Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112177) — 372 parça

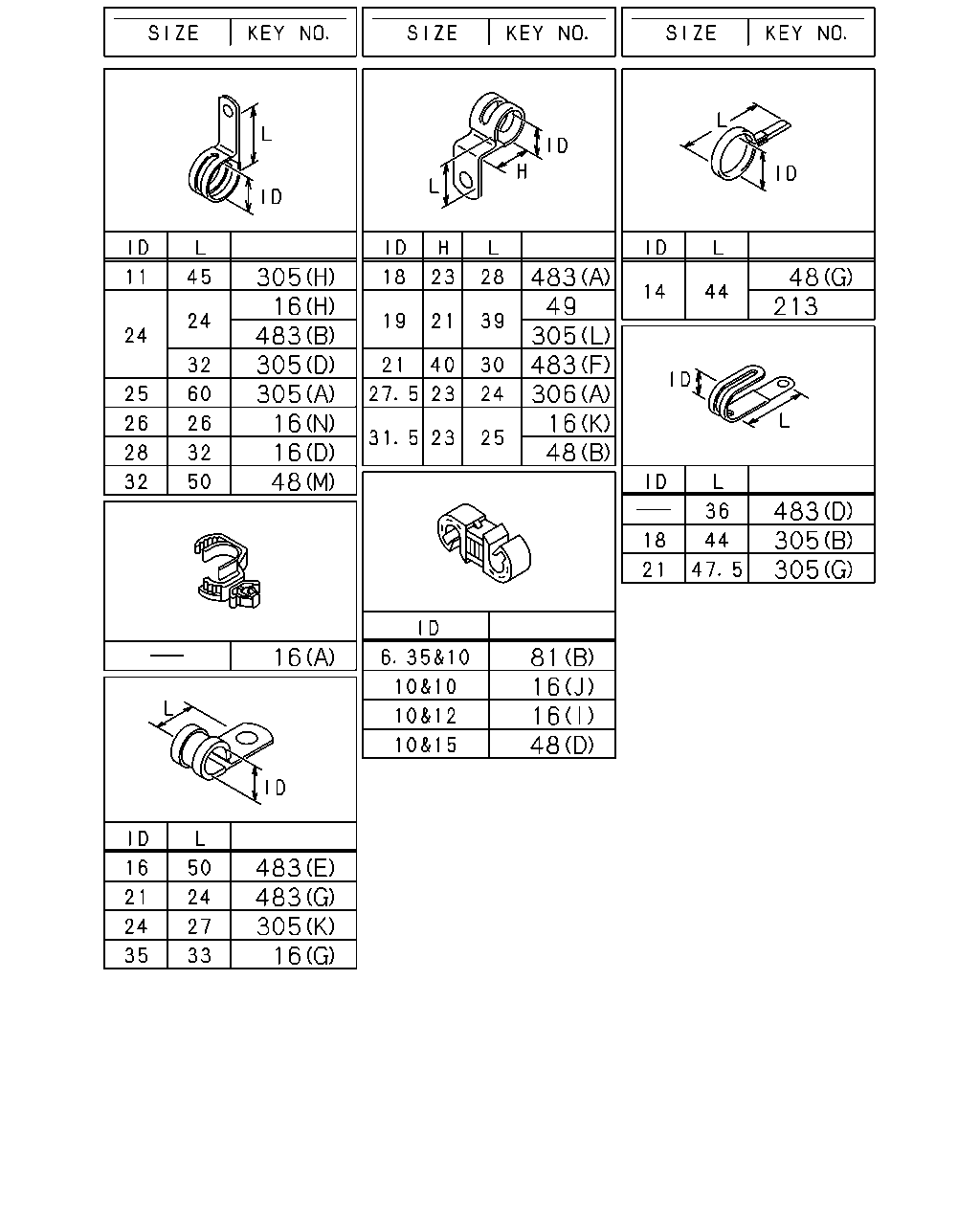

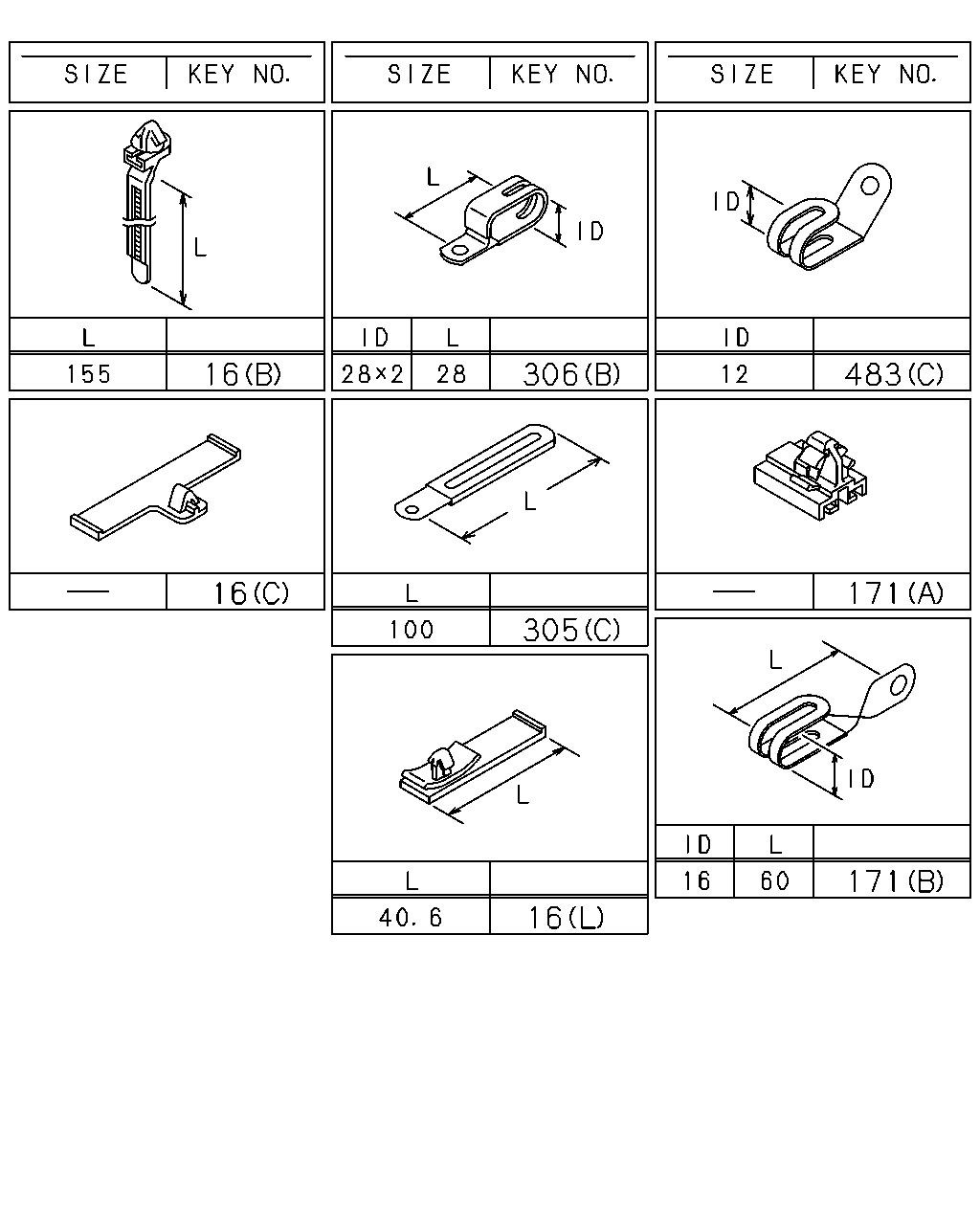

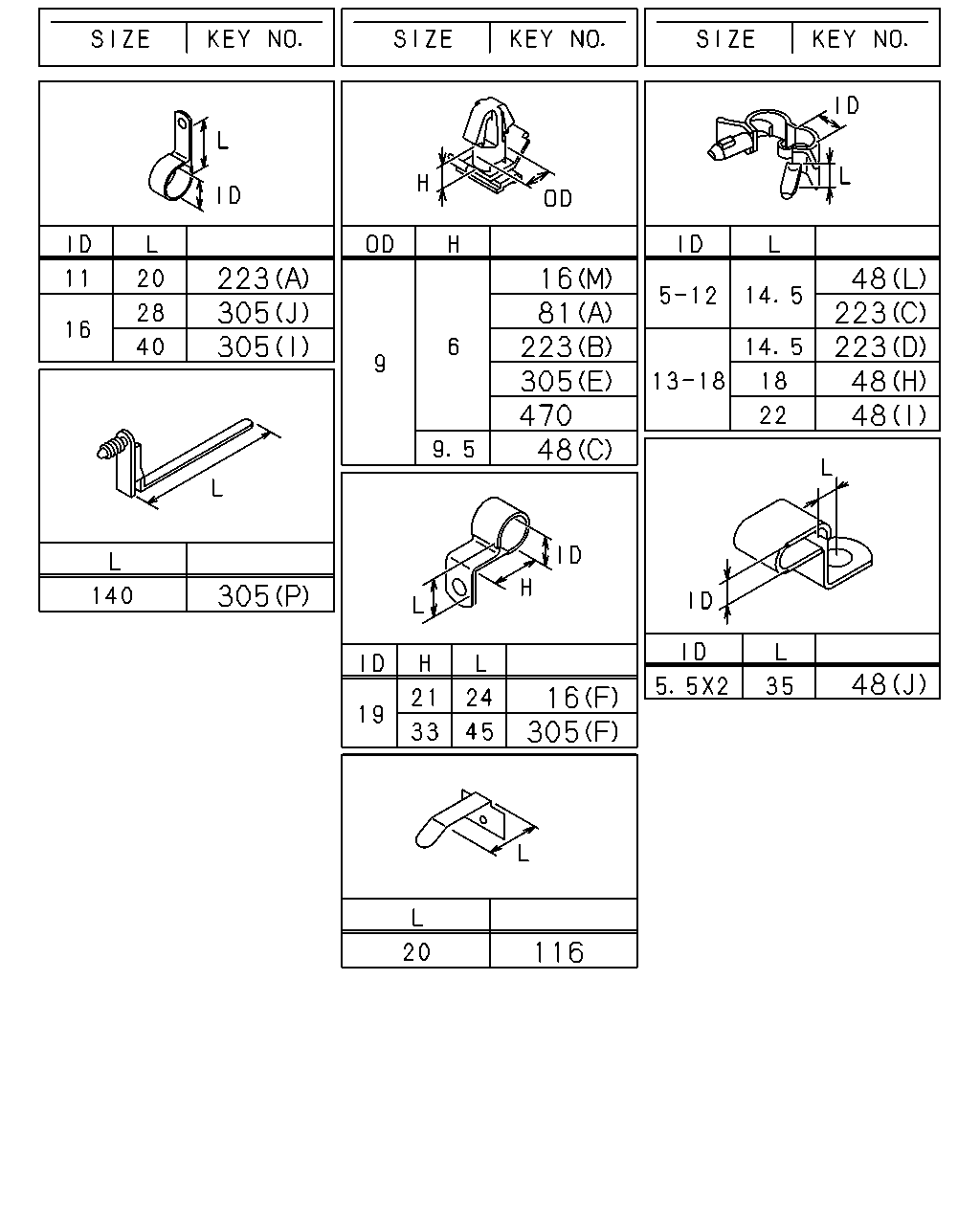

305 16 483 305 305 16 16 48 483 49 305 483 306 16 48 48 213 483 305 305 81 16 16 48 483 483 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=10 & 12	1-09709-278-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (H) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=26 L=26	1-09701-236-0	01	1	1302-
48	CLIP; FRAME HARNESS (M) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (G) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (G) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (G) ID=14 L=44	9-09917-427-0	15	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=18	1-09709-291-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (G) ID=14 L=44	9-09917-427-0	19	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (O) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (K) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (P) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-1312
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=24	8-98019-191-0	01	1	1302-

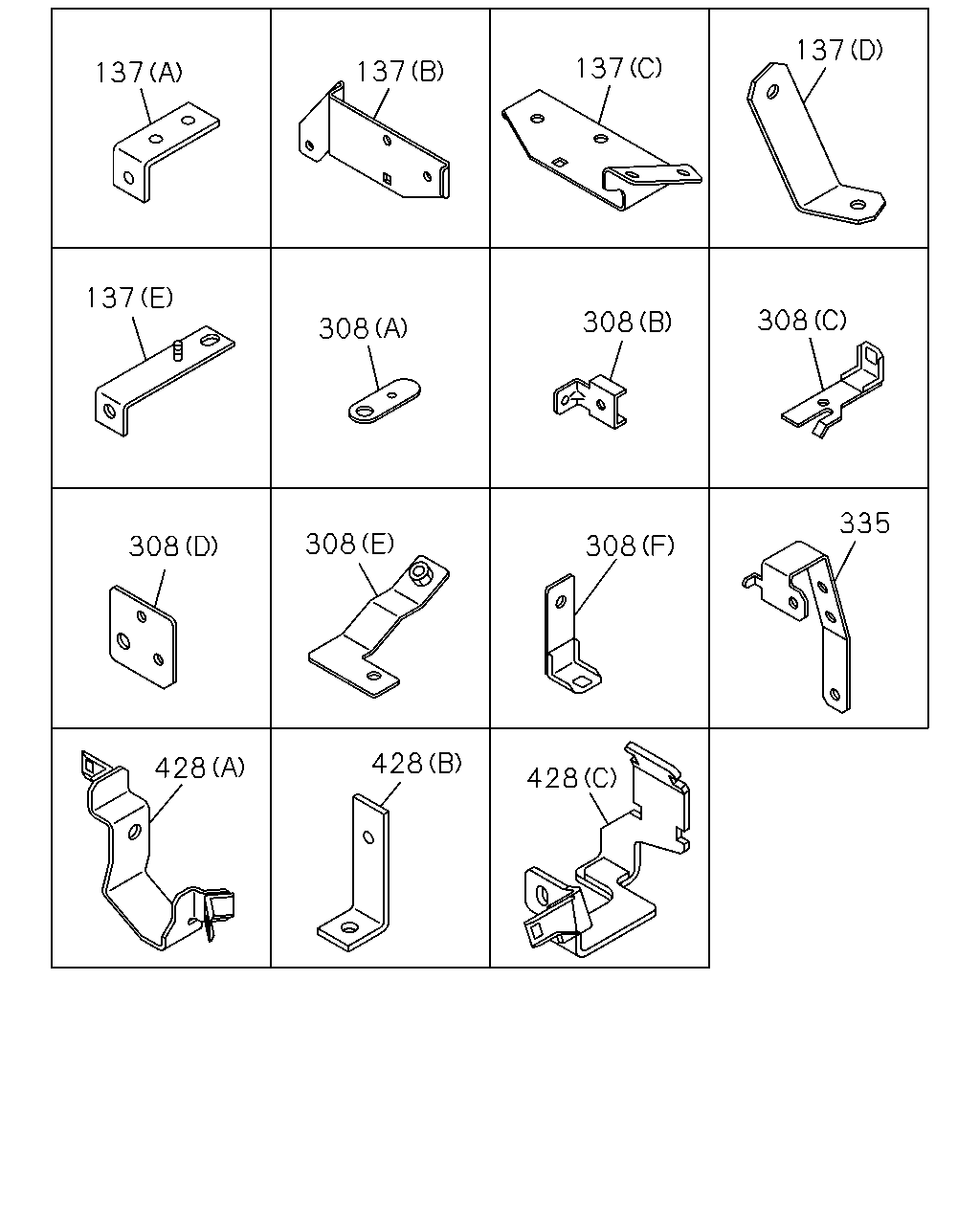

137 137 137 137 308 308 308 137 308 308 308 335 428 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97616-565-1	01	1	1302-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=62	1-21464-170-2	01	1	1302-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98193-417-0	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (D)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (E)	8-97624-013-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E)	8-98032-178-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F)	8-98075-824-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B)	8-97614-078-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C)	8-98021-291-2	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47475-519-0	01	1	1302-
428	BRACKET 4HK1-TCS ENG(RJS) (C)	8-98151-455-3	01	1	1302-
428	BRACKET 6HK1-TCN ENG(82L) (A)	8-98090-952-0	01	1	1302-

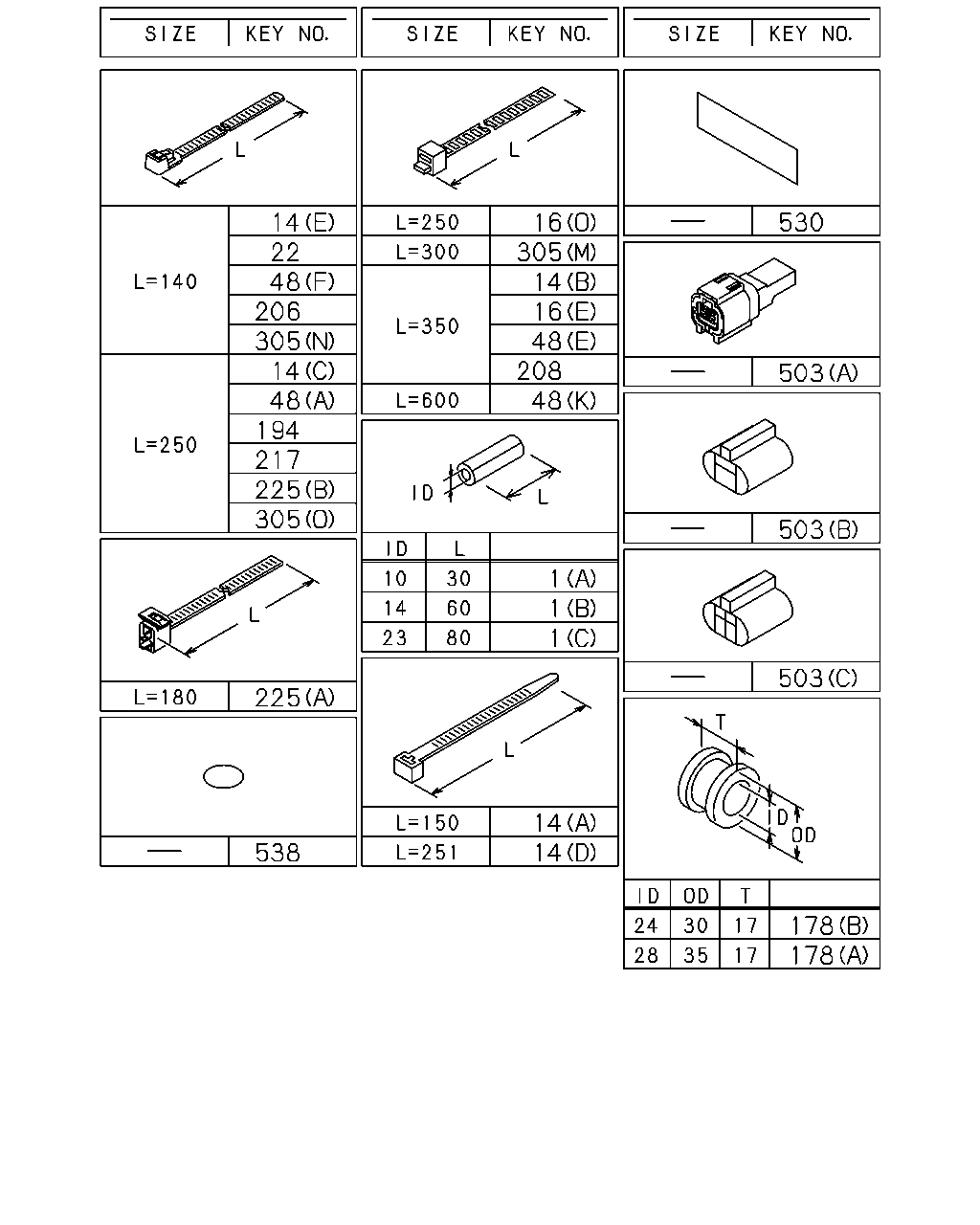

538 225 305 225 217 194 48 14 305 206 48 22 14 14 14 1 1 1 48 208 48 16 14 305 16 530 503 503 503 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=140	5-09707-031-1	02	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=140	5-09707-031-1	02	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) GLOW SYSTEM DELETE<7RK> (E) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (A) L=150	8-97355-273-0	01	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (B) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=250	8-98216-430-0	08	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) L=250	8-98216-430-0	15	1	1302-1311
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) L=250	8-98216-430-0	14	1	1312-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> (C) L=250	8-98216-430-0	01	1	1312-
16	CLIP; HARNESS (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=10 & 12	1-09709-278-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (H) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=26 L=26	1-09701-236-0	01	1	1302-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (M) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (G) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (G) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (G) ID=14 L=44	9-09917-427-0	15	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=18	1-09709-291-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (G) ID=14 L=44	9-09917-427-0	19	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
194	CLIP; BAND 6HK1-TCN ENG(82L) L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	03	1	1302-
208	CLIP; HARNESS,MAG VLV 4HK1-TCS ENG(RJS) L=350	1-09707-183-0	01	1	1302-
208	CLIP; HARNESS,MAG VLV 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=350	1-09707-183-0	01	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-09707-162-1	01	1	1302-
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	5-09707-030-1	01	1	1302-
225	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	01	1	1302-
225	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	02	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (O) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (K) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (P) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	1302-
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	1302-
503	CONNECTOR 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B)	1-82690-668-0	01	1	1302-
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

16 306 483 171 171 16 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=10 & 12	1-09709-278-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (H) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=26 L=26	1-09701-236-0	01	1	1302-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A) OD=8 H=3.8	1-09709-309-0	01	1	1302-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B)	8-97101-436-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (O) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (K) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (P) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-1312
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=24	8-98019-191-0	01	1	1302-

223 16 48 81 305 223 223 223 305 48 470 48 48 305 305 16 305 48 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=10 & 12	1-09709-278-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (H) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=26 L=26	1-09701-236-0	01	1	1302-
48	CLIP; FRAME HARNESS (M) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (G) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (G) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (G) ID=14 L=44	9-09917-427-0	15	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=18	1-09709-291-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (G) ID=14 L=44	9-09917-427-0	19	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	03	1	1302-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1302-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 L=20	0-95235-035-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	02	1	1302-
223	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (O) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (N) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (K) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (P) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-

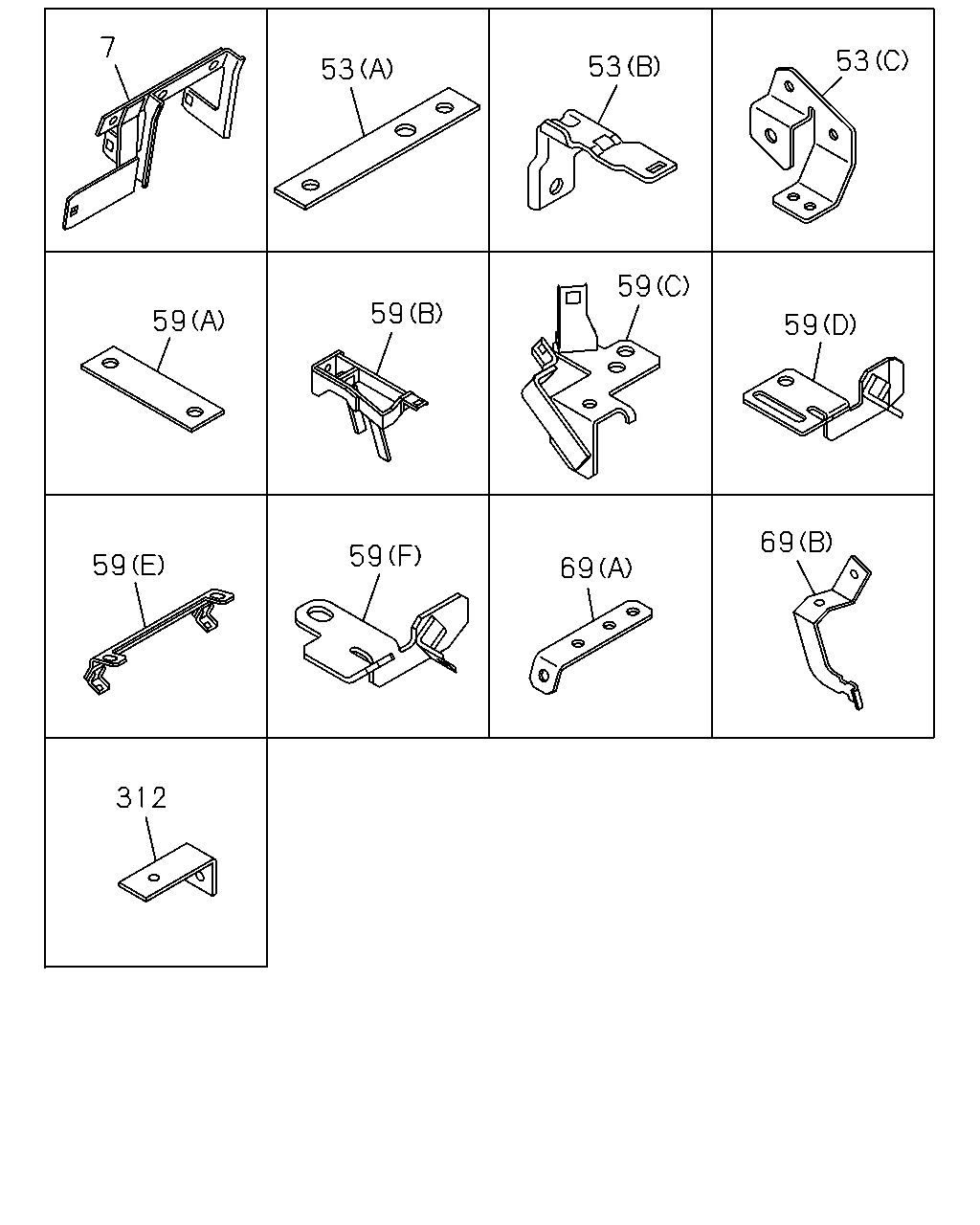

7 53 53 53 59 59 59 59 59 59 69 69 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1302-
53	BRACKET; HARNESS (A) L=170	1-47479-380-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1302-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (B)	8-98099-963-0	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (B)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=85	8-98044-743-0	01	1	1302-
69	BRACKET; CLIP 4HK1-TCS ENG(RJS) (A)	1-82698-167-0	01	1	1302-
69	BRACKET; CLIP 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-82698-167-0	01	1	1302-
69	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-97616-357-3	01	1	1302-
312	BRACKET; CLIP HARNESS L=55	1-47475-304-0	01	1	1302-

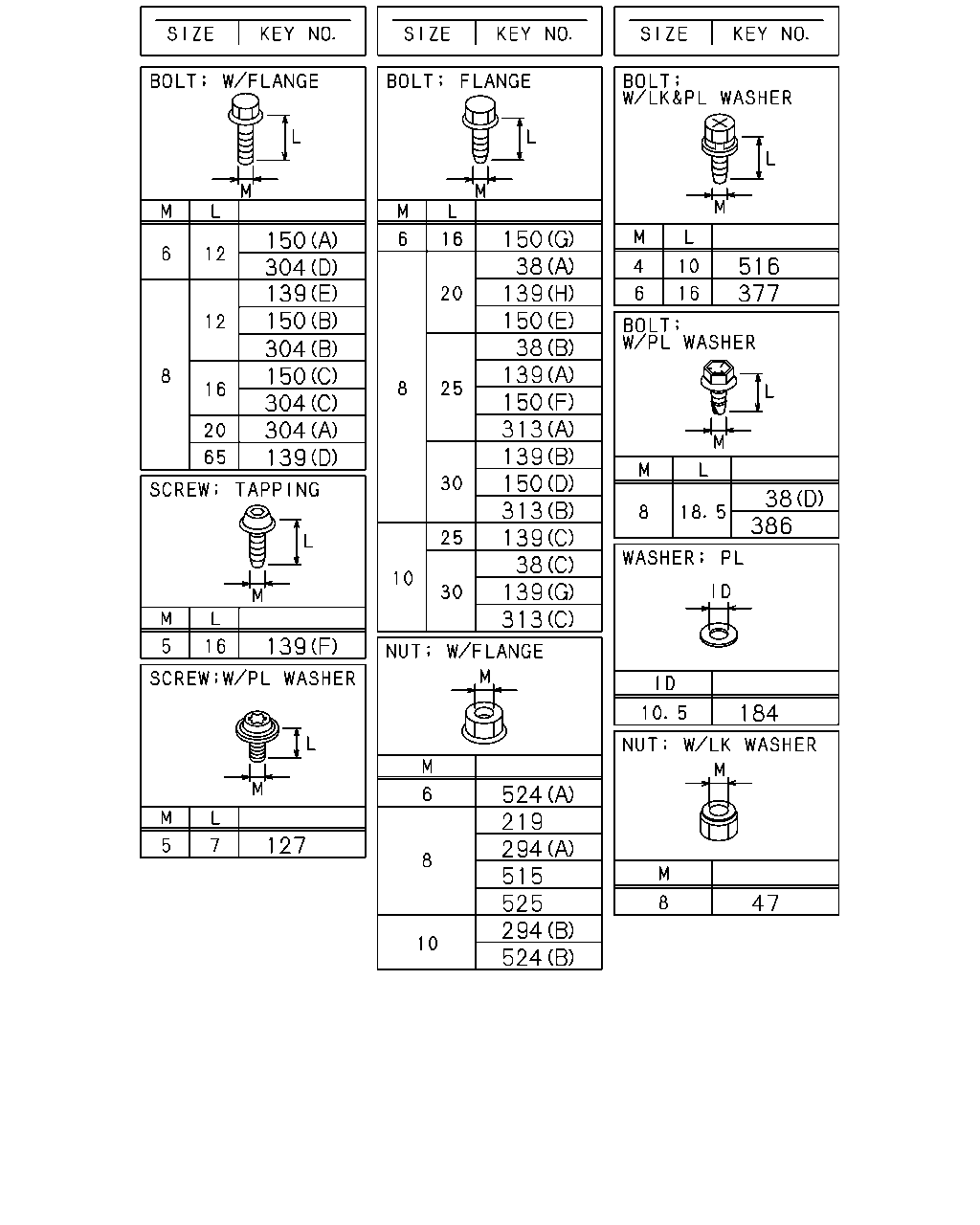

150 304 139 150 304 150 304 304 139 139 127 150 38 139 150 38 139 150 313 139 150 313 139 38 139 313 516 377 386 38 184 47 524 219 294 515 525 294 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
38	BOLT; CLIP,HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X30 FLANGE	0-28651-030-0	01	1	1302-
38	BOLT; CLIP,HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	02	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (H) M8X20 FLANGE	0-28650-820-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (G) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
150	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M8X20 FLANGE	0-28650-820-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M6X12 FLANGE	0-28050-612-0	02	1	1302-1312
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M6X12 FLANGE	0-28050-612-0	03	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (F) M8X25 FLANGE	0-28650-825-0	01	1	1302-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	1302-
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X16 FLANGE	0-28050-816-0	04	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	02	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1302-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1302-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M10X30 FLANGE	0-28651-030-0	01	1	1302-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
515	NUT; BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1302-
516	BOLT; HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1302-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1302-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1302-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
