8-15 — FIXING PARTS; WIRING HARNESS (#112176) — 161 parça

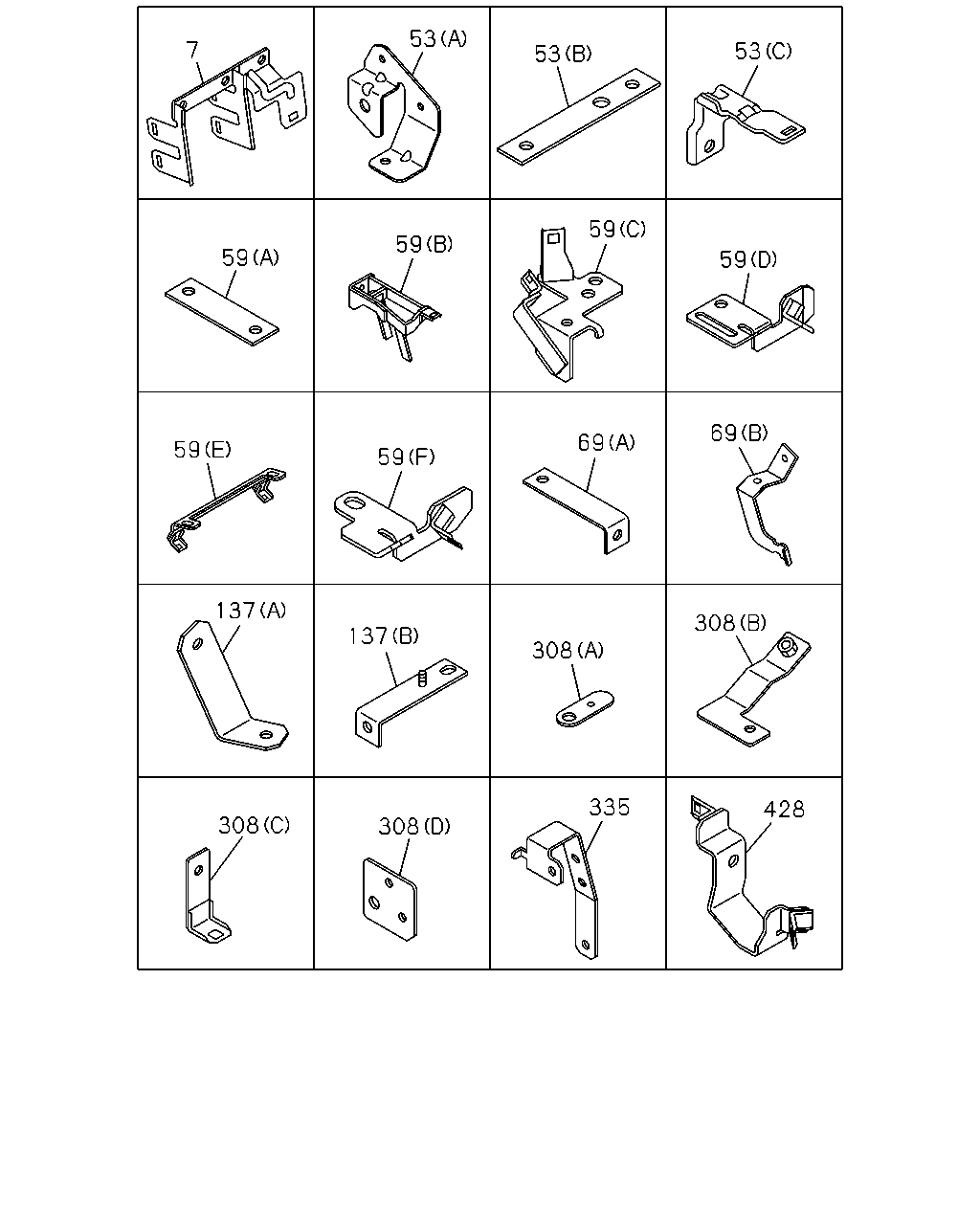

çizim 329975
7 53 53 53 59 59 59 59 59 59 69 69 308 308 137 137 308 308 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1302-
53 BRACKET; HARNESS
(B) L=170 		1-47479-380-0 01 1 1302-
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 1302-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1302-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1302-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
69 BRACKET; CLIP
(A) L=95 		1-82699-085-0 01 1 1302-
69 BRACKET; CLIP
(B) 		8-97616-357-3 01 1 1302-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1302-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98032-178-0 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98075-824-0 01 1 1302-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1302-
428 BRACKET 8-98090-952-0 01 1 1302-
çizim 330048
127 47 139 184 294 525 294 524 386 377 516 38 304 304 139 313 139 38 139 139 139 38 150 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1302-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1302-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1302-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1302-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
150 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 1302-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1302-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1302-
313 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1302-
313 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1302-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1302-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1302-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1302-1311
516 BOLT; HARNESS
EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1312-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1302-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302-

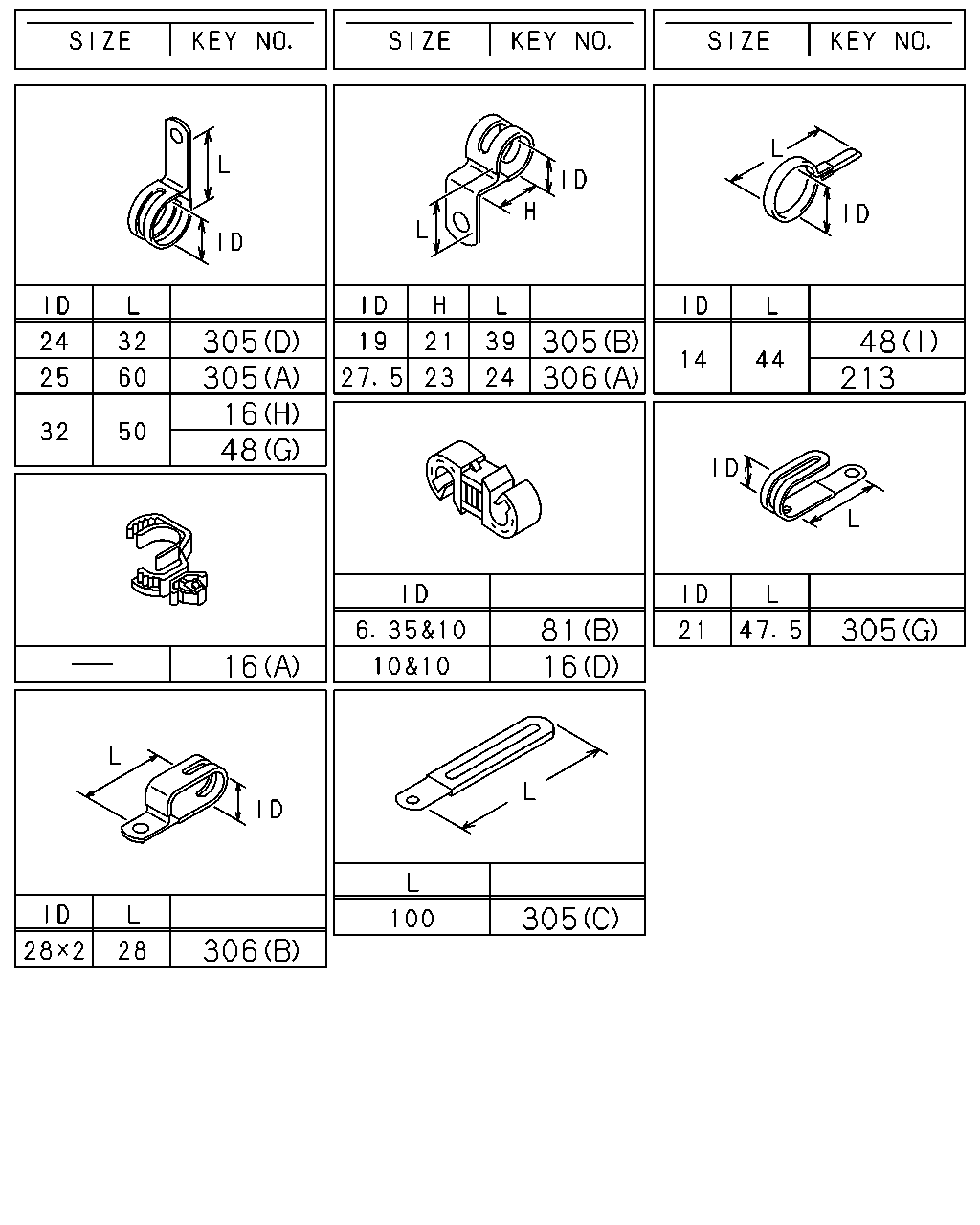

çizim 330332
305 305 16 48 305 306 48 213 305 81 16 16 306 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=32 L=50 		1-09701-055-1 01 1 1302-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1302-
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 01 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (F) OD=9 H=6 		1-09709-178-0 01 1 1302-
48 CLIP; FRAME HARNESS
(E) ID=5.5X2 L=35 		1-09700-974-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302-
48 CLIP; FRAME HARNESS
(D) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1302-
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1302-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (I) ID=14 L=44 		9-09917-427-0 09 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (I) ID=14 L=44 		9-09917-427-0 13 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=13-18 L=18 		1-09709-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=14 L=44 		9-09917-427-0 15 1 1302-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1302-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1302-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1302-
305 CLIP; ENG HARNESS
(H) ID=16 L=28 		0-95235-556-0 02 1 1302-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1302-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1302-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1302-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1302-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1302-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-

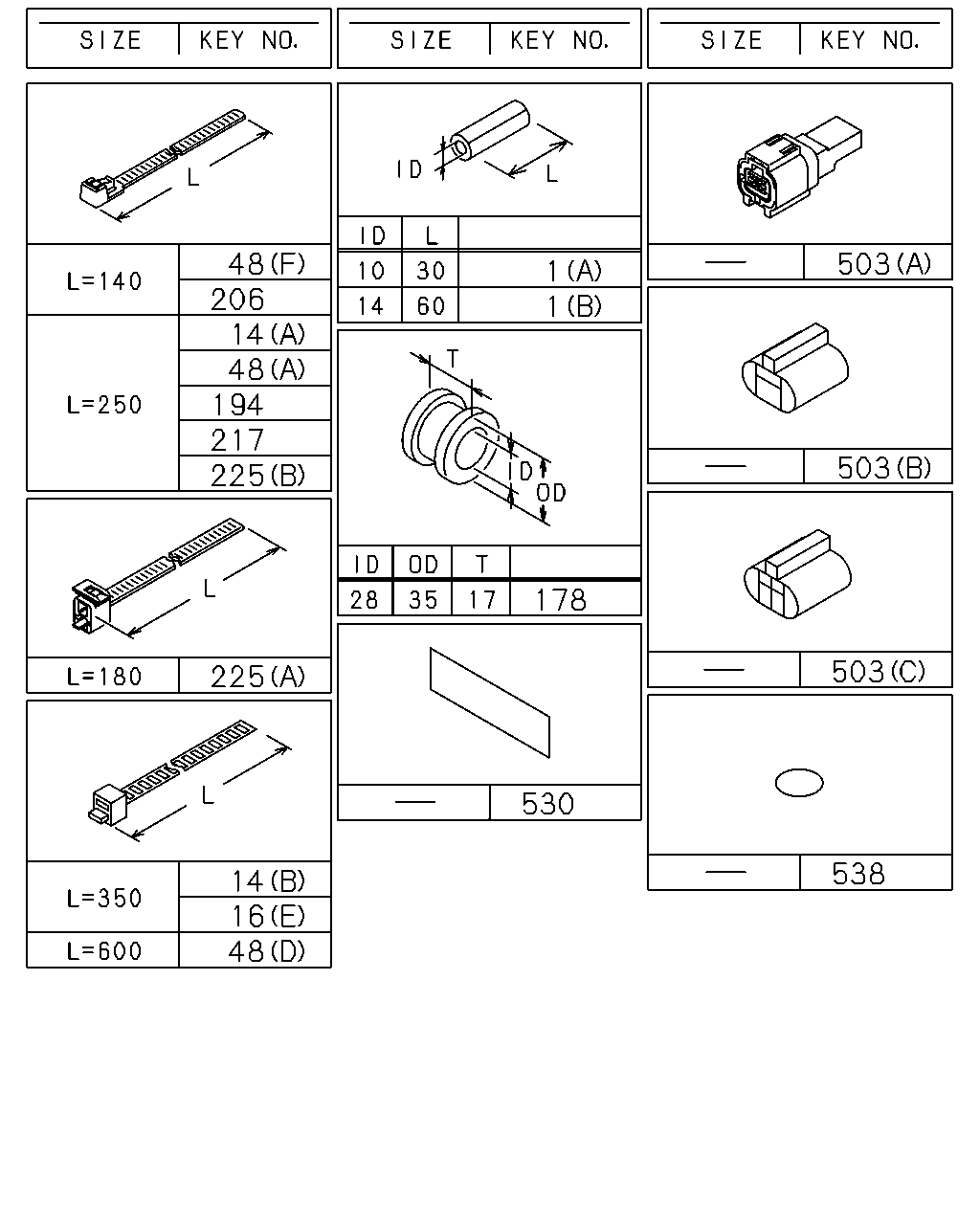

çizim 330373
48 16 14 225 225 217 194 48 14 206 48 530 178 1 1 503 503 503 538
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1302-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1302-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 08 1 1302-
14 CLIP; BAND,HARNESS
GLOW SYSTEM DELETE<7RK> (A) L=250 		8-98216-430-0 01 1 1312-
16 CLIP; HARNESS
(H) ID=32 L=50 		1-09701-055-1 01 1 1302-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1302-
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 01 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (F) OD=9 H=6 		1-09709-178-0 01 1 1302-
48 CLIP; FRAME HARNESS
(E) ID=5.5X2 L=35 		1-09700-974-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302-
48 CLIP; FRAME HARNESS
(D) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1302-
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1302-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (I) ID=14 L=44 		9-09917-427-0 09 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (I) ID=14 L=44 		9-09917-427-0 13 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=13-18 L=18 		1-09709-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=14 L=44 		9-09917-427-0 15 1 1302-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302-
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 1302-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 1302-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1302-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1302-
225 CLIP; AIR TANK HARNESS
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250 		5-09707-030-1 01 1 1302-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1302-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1302-
503 CONNECTOR
EXC. AIR DRYER<PS7> (C) 		1-82690-666-0 01 1 1302-
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 1302-
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1302-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1302-
çizim 332445
223 16 48 305 81 223 305 223 48 305 48 470 48 16 116 16 305 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=32 L=50 		1-09701-055-1 01 1 1302-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1302-
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 01 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (F) OD=9 H=6 		1-09709-178-0 01 1 1302-
48 CLIP; FRAME HARNESS
(E) ID=5.5X2 L=35 		1-09700-974-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302-
48 CLIP; FRAME HARNESS
(D) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1302-
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1302-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (I) ID=14 L=44 		9-09917-427-0 09 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (I) ID=14 L=44 		9-09917-427-0 13 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=13-18 L=18 		1-09709-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=14 L=44 		9-09917-427-0 15 1 1302-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1302-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1302-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1302-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 1302-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 04 1 1302-
223 CLIP; AIR TANK HARNESS
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 L=20 		0-95235-035-0 01 1 1302-
305 CLIP; ENG HARNESS
(H) ID=16 L=28 		0-95235-556-0 02 1 1302-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1302-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1302-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1302-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1302-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1302-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1302-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
