Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#112175) — 356 parça

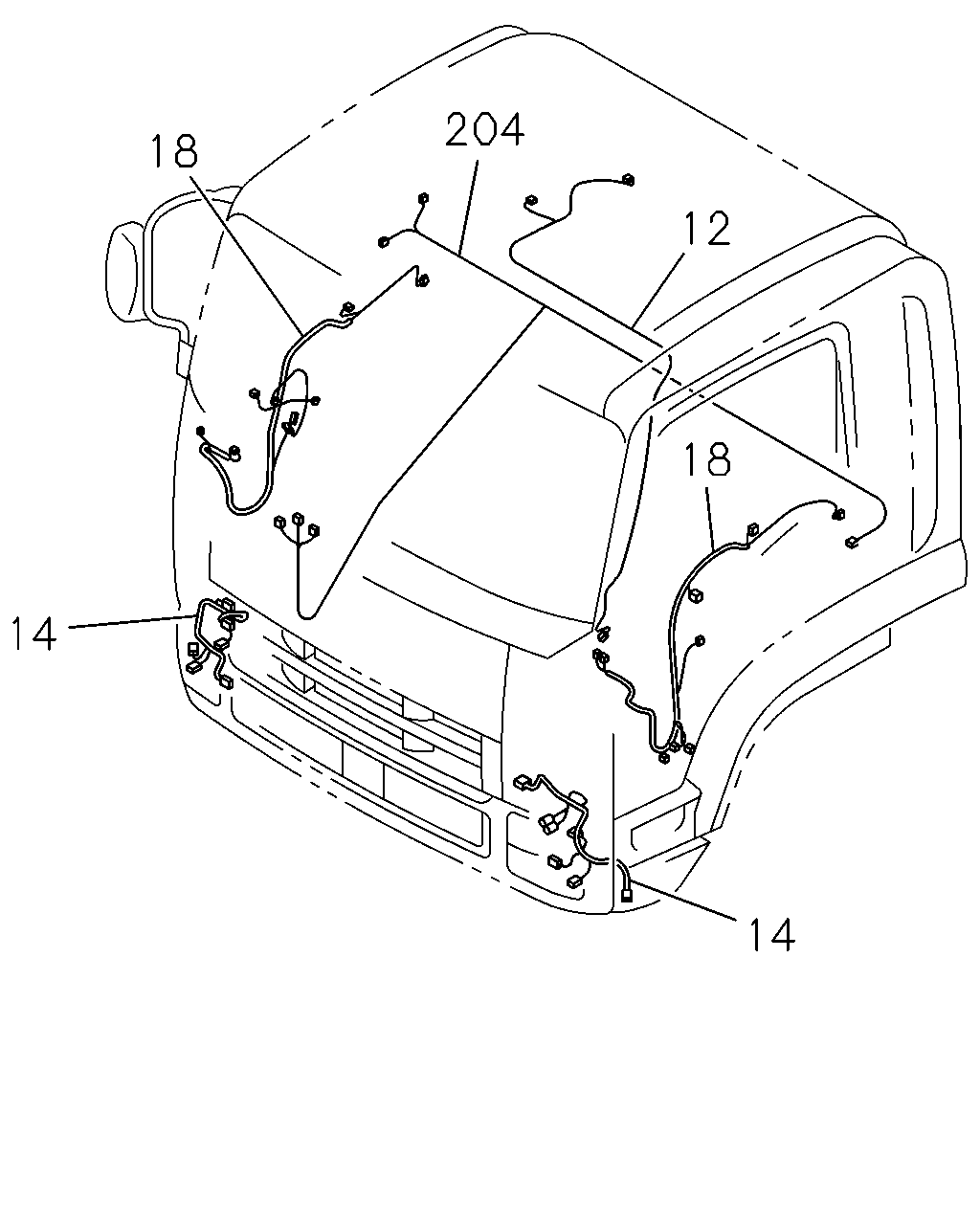

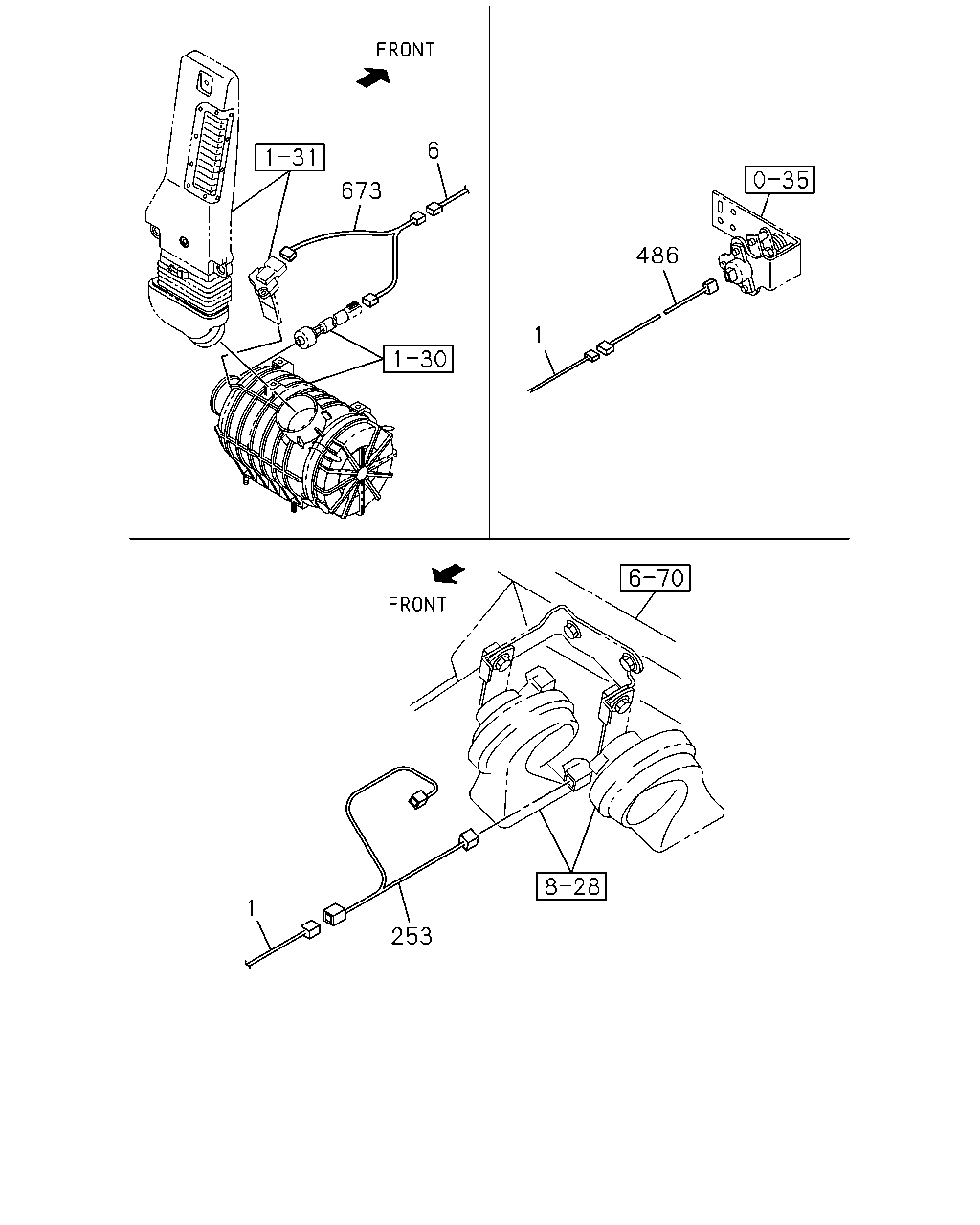

6 673 486 253 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REM OTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98212-245-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-245-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-250-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-255-0	01	1	1302-

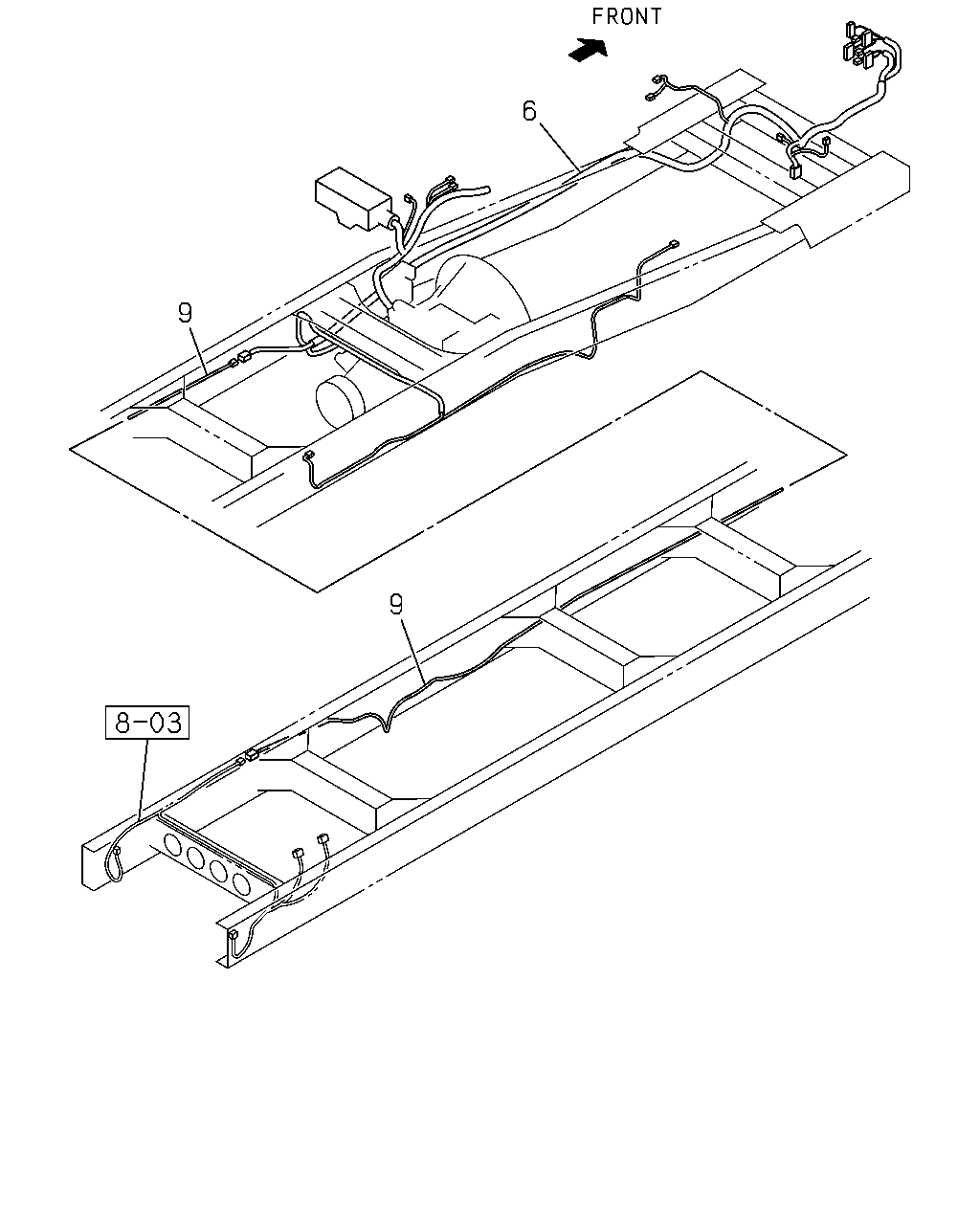

6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
253	HARNESS; EXT,HORN	8-98074-080-3	01	1	1302-
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1302-
673	HARNESS; EXT,SENSOR EURO2 SPECIFICATION<NT2>	8-98069-172-0	01	1	1302-
673	HARNESS; EXT,SENSOR EURO4 SPECIFICATION<NT4>	8-98098-510-0	01	1	1302-

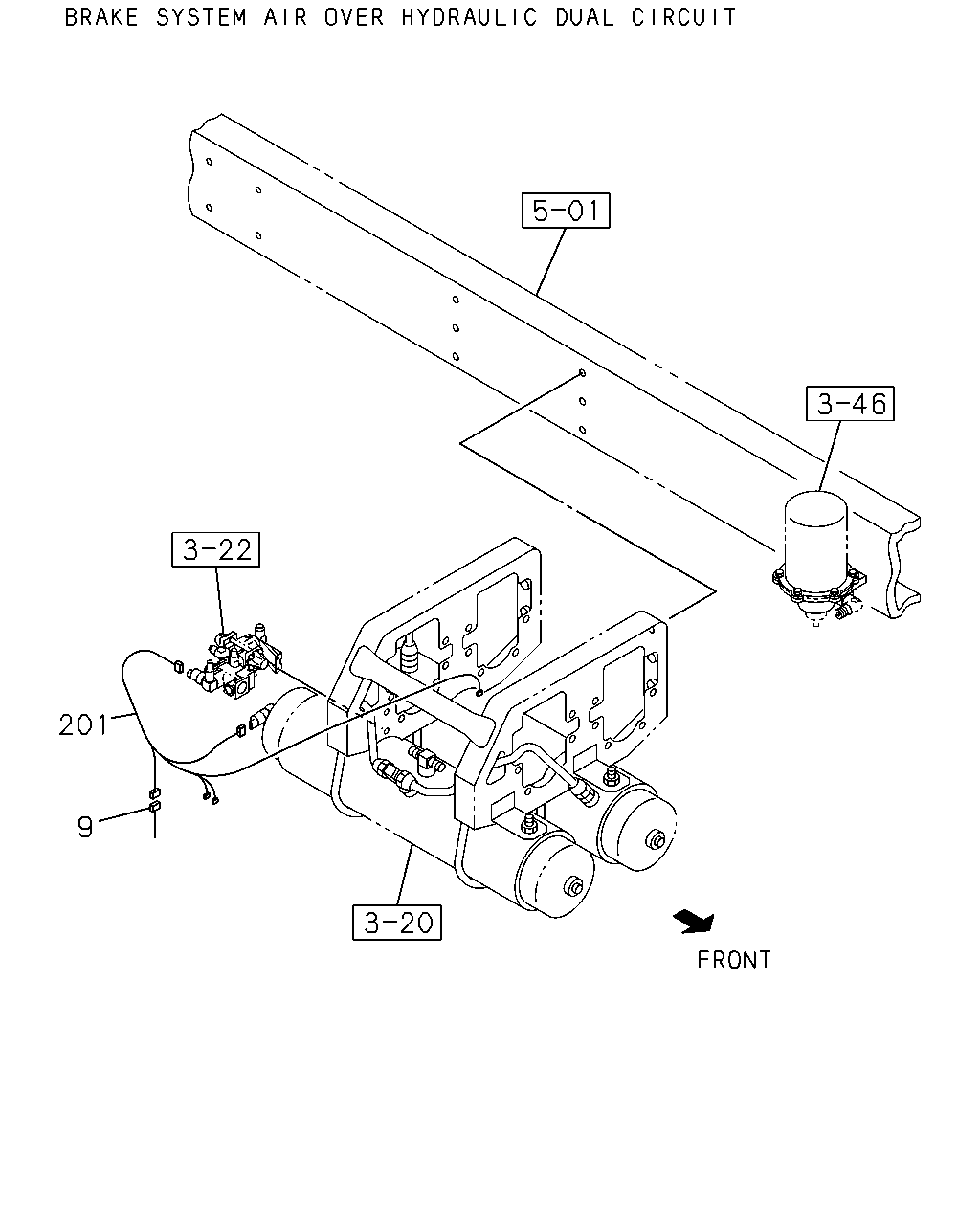

9 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-653-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-636-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-654-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-638-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-655-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-640-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-656-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-642-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-633-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-644-0	01	1	1302-

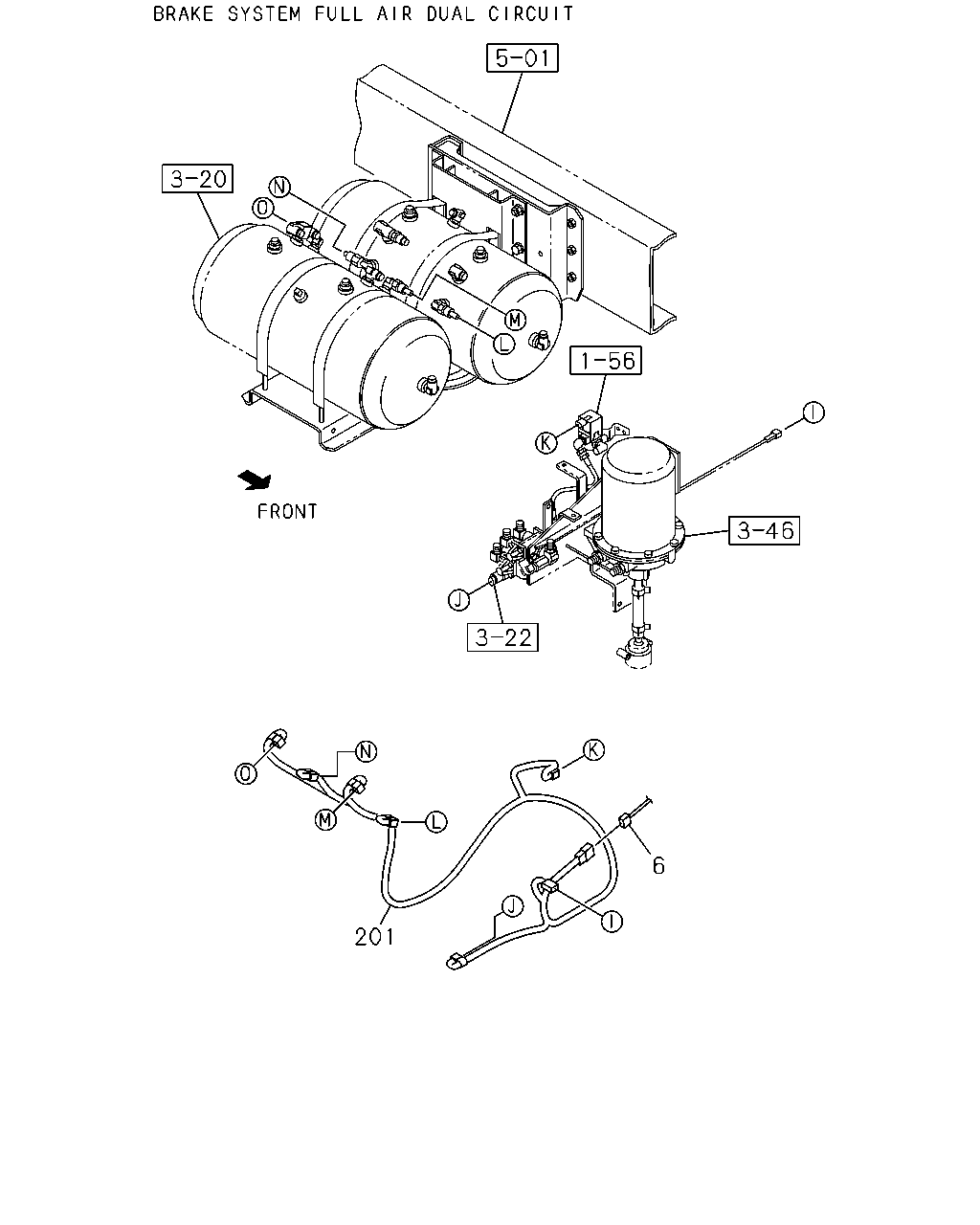

201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98178-658-2	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-703-0	01	1	1302-

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

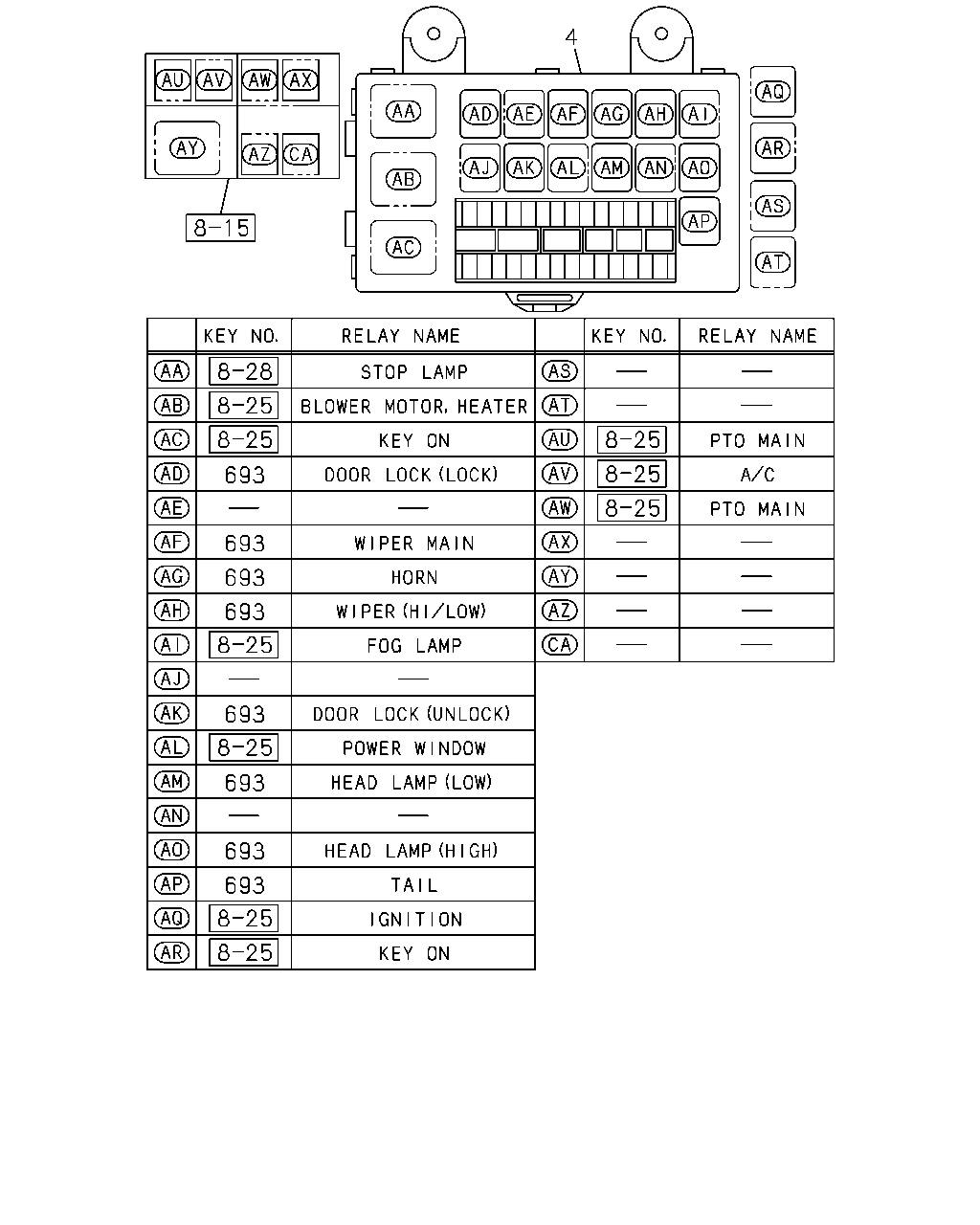

	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1302-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-

2 2 2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REM OTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98212-245-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-245-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-250-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-255-0	01	1	1302-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1302-
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1302-
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	1302-
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1302-

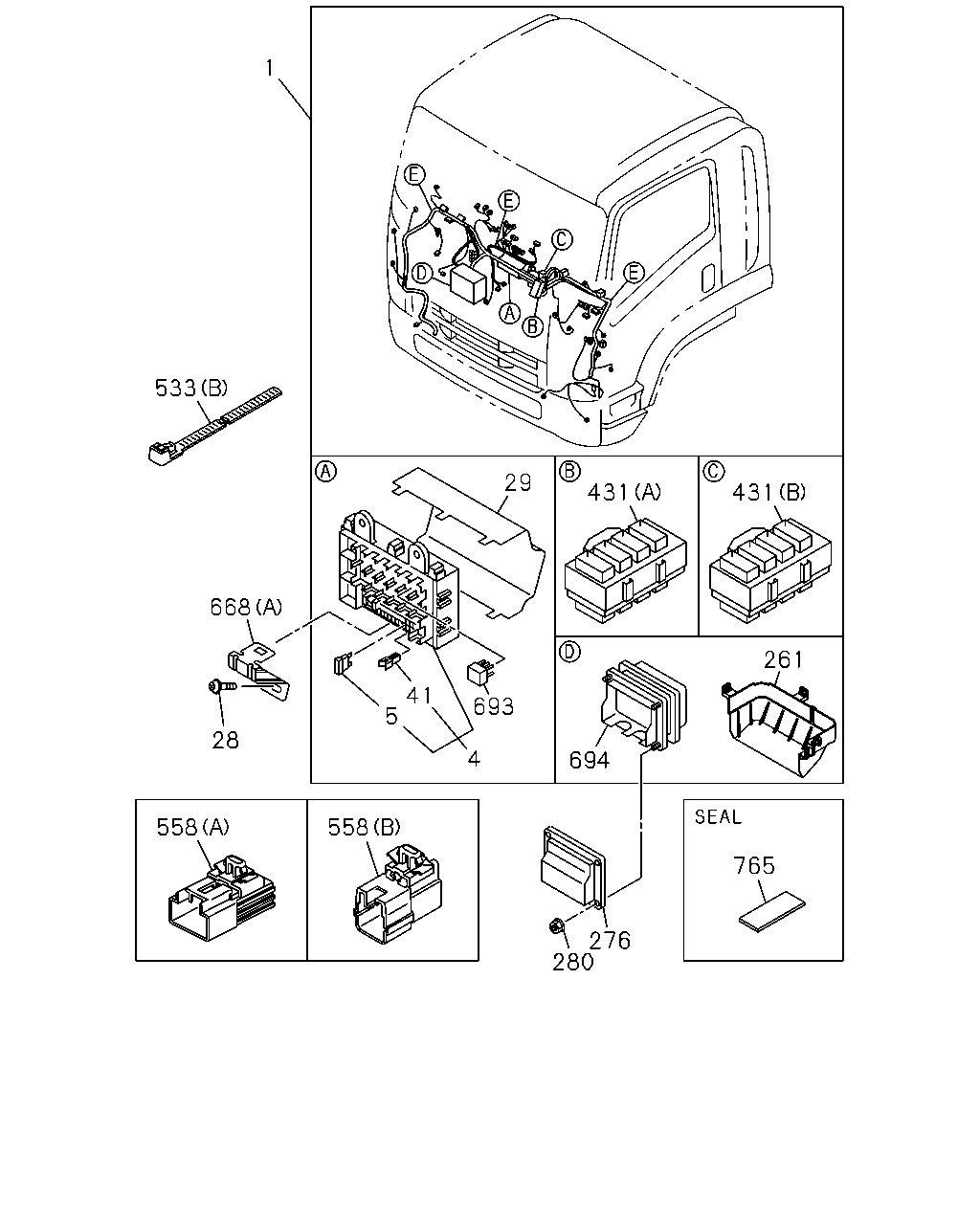

1 533 668 28 558 558 280 276 765 261 694 693 4 41 5 29 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REM OTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98212-245-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-245-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-250-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-255-0	01	1	1302-
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1302-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1302-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1302-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1302-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1302-
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1302-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1302-
41	PULLER; FUSE	8-98054-260-0	01	1	1302-
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1302-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1302-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1302-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1302-

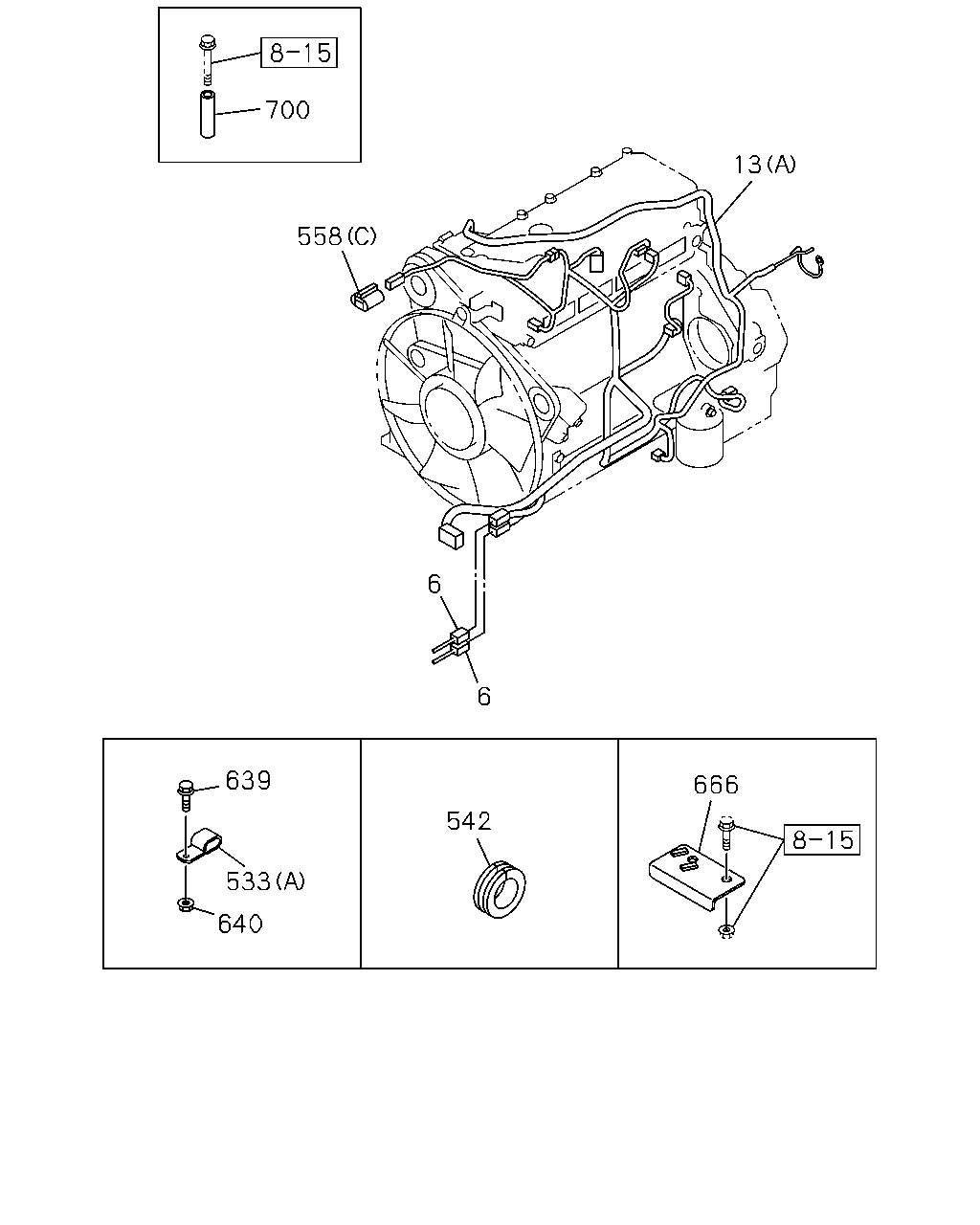

533	CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=11 L=16	0-95235-025-0	03	1	1302-
533	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180	1-09707-162-1	01	1	1302-
533	CLIP EXC. INTERMITTENT WIPER<C13> (B) L=100	5-09707-036-1	01	1	1302-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1302-

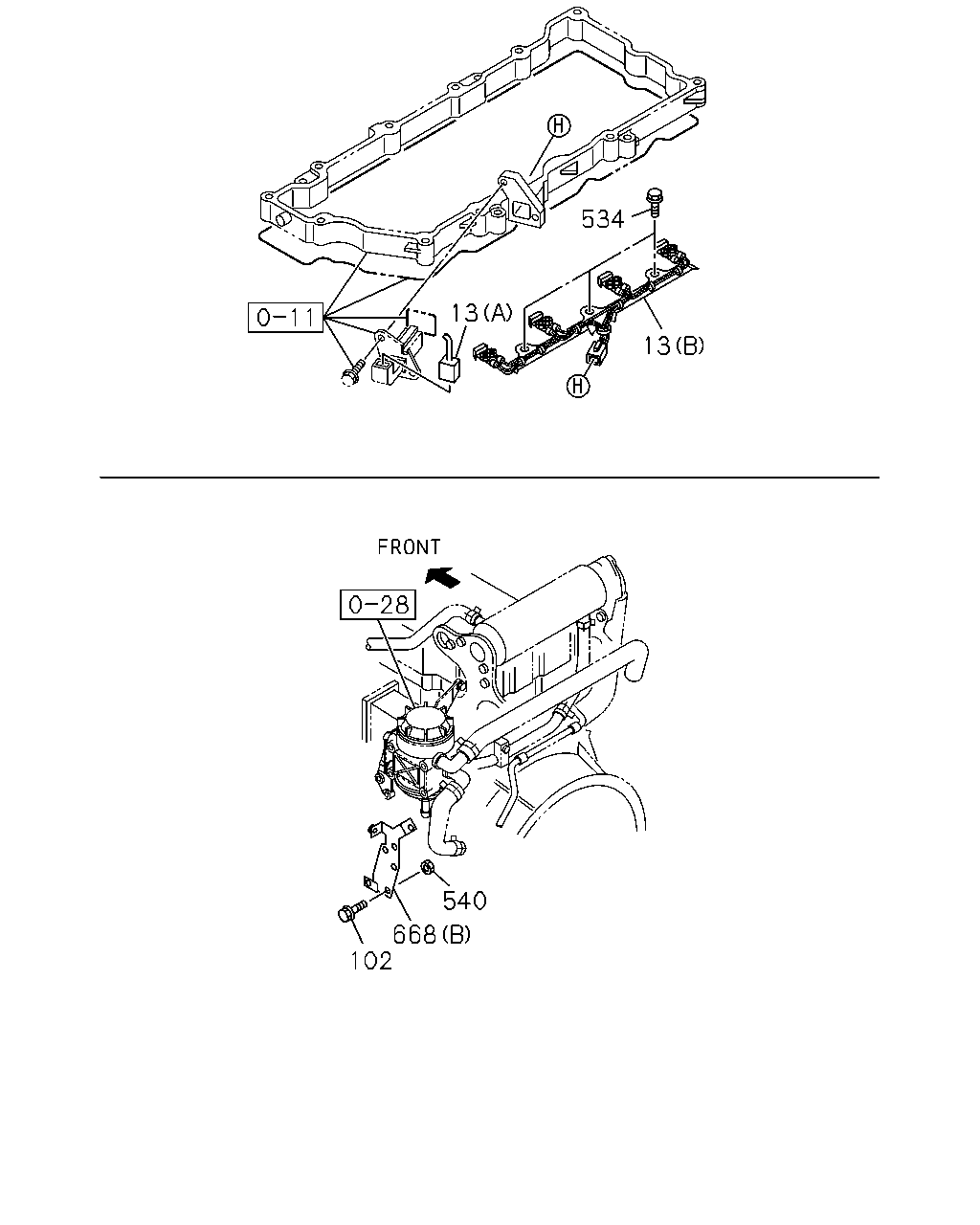

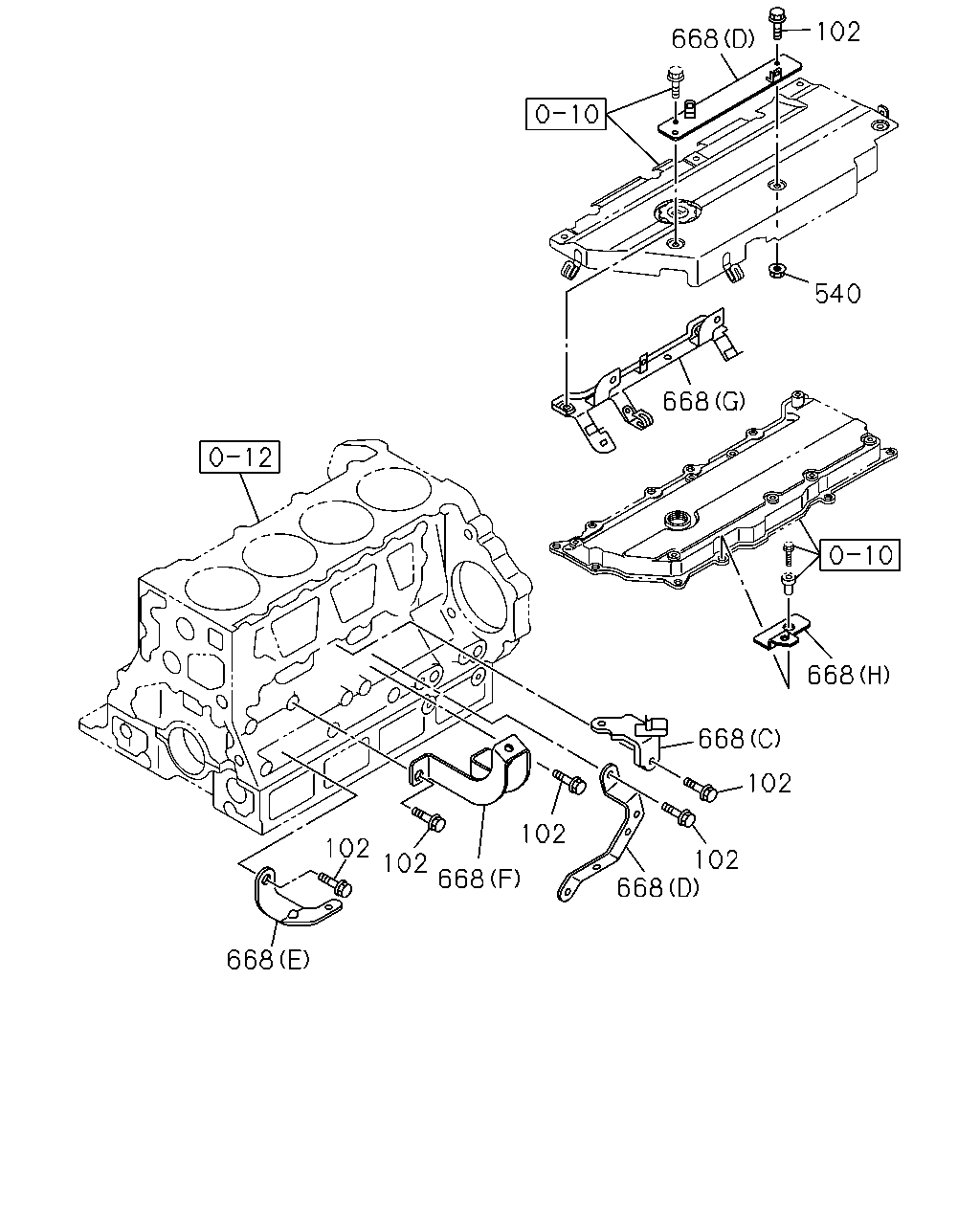

668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98011-484-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98061-780-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98097-674-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (H)	8-98205-089-0	01	1	1302-1312
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1302-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1302-
765	TAPE 100X40	1-72498-022-1	01	1	1409-

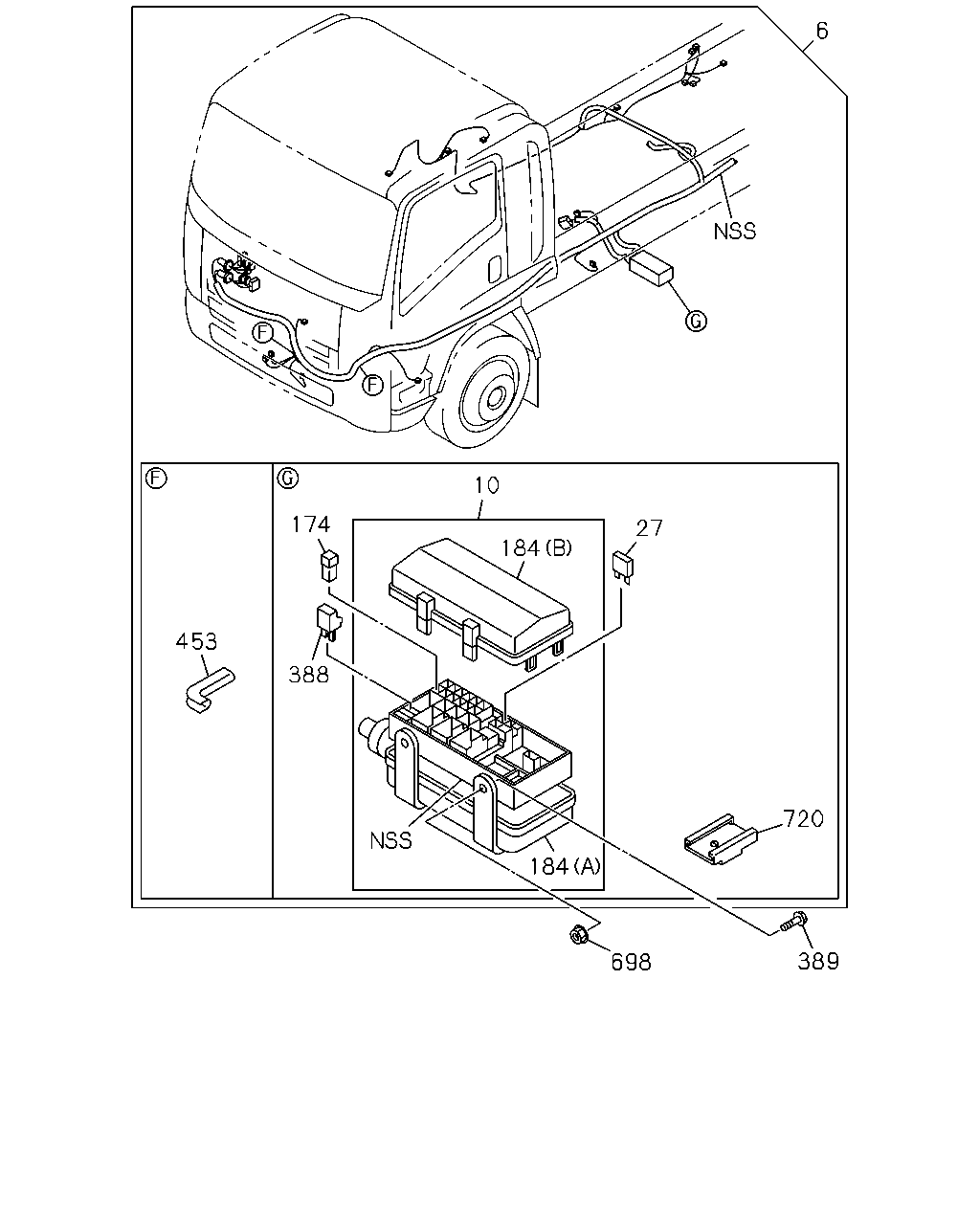

27 184 720 389 698 184 10 174 388 453 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1302-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1302-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1302-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1302-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1302-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1302-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1302-
174	FUSE; SLOW BLOW 4HK1-TCS ENG(RJS) 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> 60A YELLOW 60A YELLOW	8-97219-407-0	01	1	1302-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1302-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1302-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1302-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1302-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1302-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	1302-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1302-

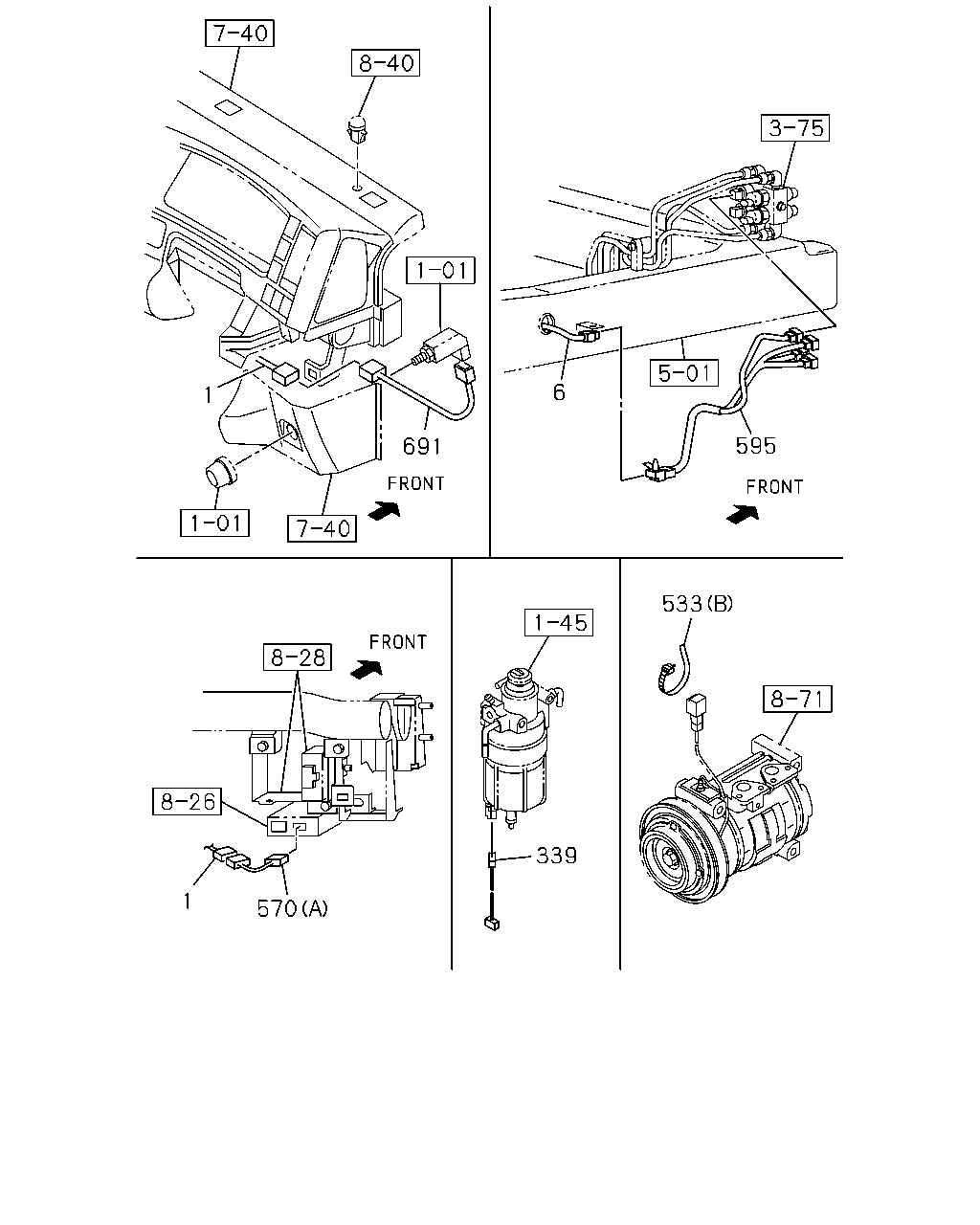

1 691 6 595 533 339 570 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REM OTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98212-245-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-245-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-250-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-255-0	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
339	HARNESS; EXT,FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 200L FRAME SIDE<N20>	8-98227-392-1	01	1	1302-
533	CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=11 L=16	0-95235-025-0	03	1	1302-
533	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180	1-09707-162-1	01	1	1302-
533	CLIP EXC. INTERMITTENT WIPER<C13> (B) L=100	5-09707-036-1	01	1	1302-
570	HARNESS; SPEED SENSOR FULLER FSO5206B OD M/T(Y4V) (C)	1-82670-012-0	01	1	1302-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1302-1506
570	HARNESS; SPEED SENSOR SPEED LIMITER 90KM(NMJ) (A)	8-98058-327-1	01	1	1507-1507
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ) (A)	8-98058-327-1	01	1	1507-1507
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1508-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1302-
595	HARNESS; WARNING,BRK	8-97620-487-1	01	1	1302-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1302-

14 18 204 12 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98048-931-2	01	1	1302-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98041-949-2	01	1	1302-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-94270-986-0	02	1	1307-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98069-166-0	02	1	1302-1306
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98069-166-1	02	1	1307-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98108-439-1	01	1	1302-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98108-440-1	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98076-304-3	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98076-305-3	01	1	1302-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3)	8-98085-279-1	01	1	1302-
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER(AJ3)	8-98085-274-0	01	1	1302-

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98178-658-2	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-703-0	01	1	1302-

700 558 13 6 6 542 666 639 533 640

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1302-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98202-784-2	01	1	1302-1308
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98251-351-0	01	1	1309-1407
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98274-071-0	01	1	1408-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98217-444-2	01	1	1302-1312
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98255-599-0	01	1	1401-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98274-079-0	01	1	1406-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A)	8-98075-775-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (A)	8-98177-209-1	01	1	1302-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A)	8-98075-774-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A)	8-98177-208-1	01	1	1302-
533	CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=11 L=16	0-95235-025-0	03	1	1302-
533	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180	1-09707-162-1	01	1	1302-
533	CLIP EXC. INTERMITTENT WIPER<C13> (B) L=100	5-09707-036-1	01	1	1302-
542	GROMMET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1302-
639	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	03	1	1302-
640	NUT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	1302-
666	BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-98234-808-0	01	1	1302-
700	TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1302-

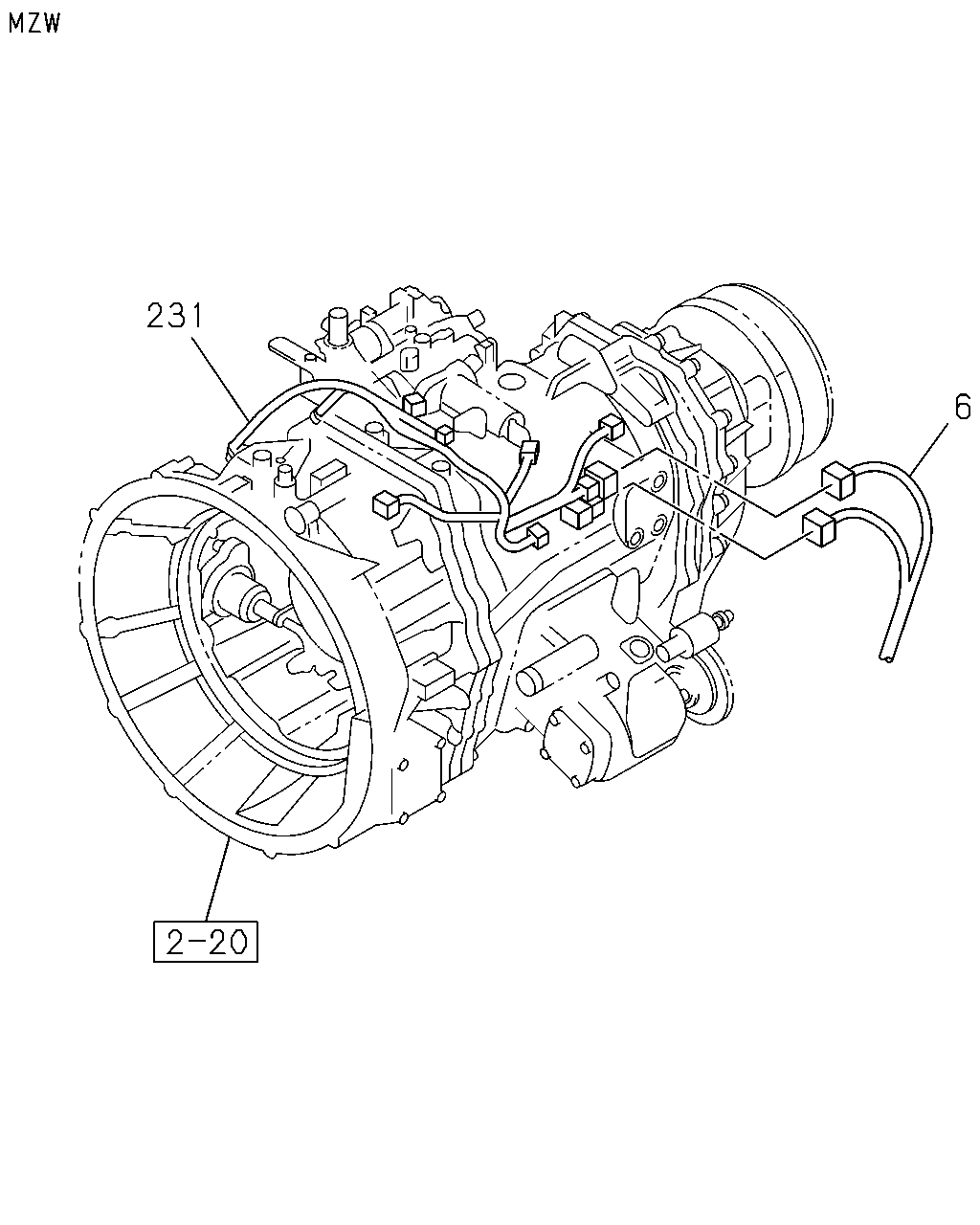

231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
231	HARNESS; TRANS 4HK1-TCS ENG(RJS)	8-97618-933-2	01	1	1302-
231	HARNESS; TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-97618-932-2	01	1	1302-

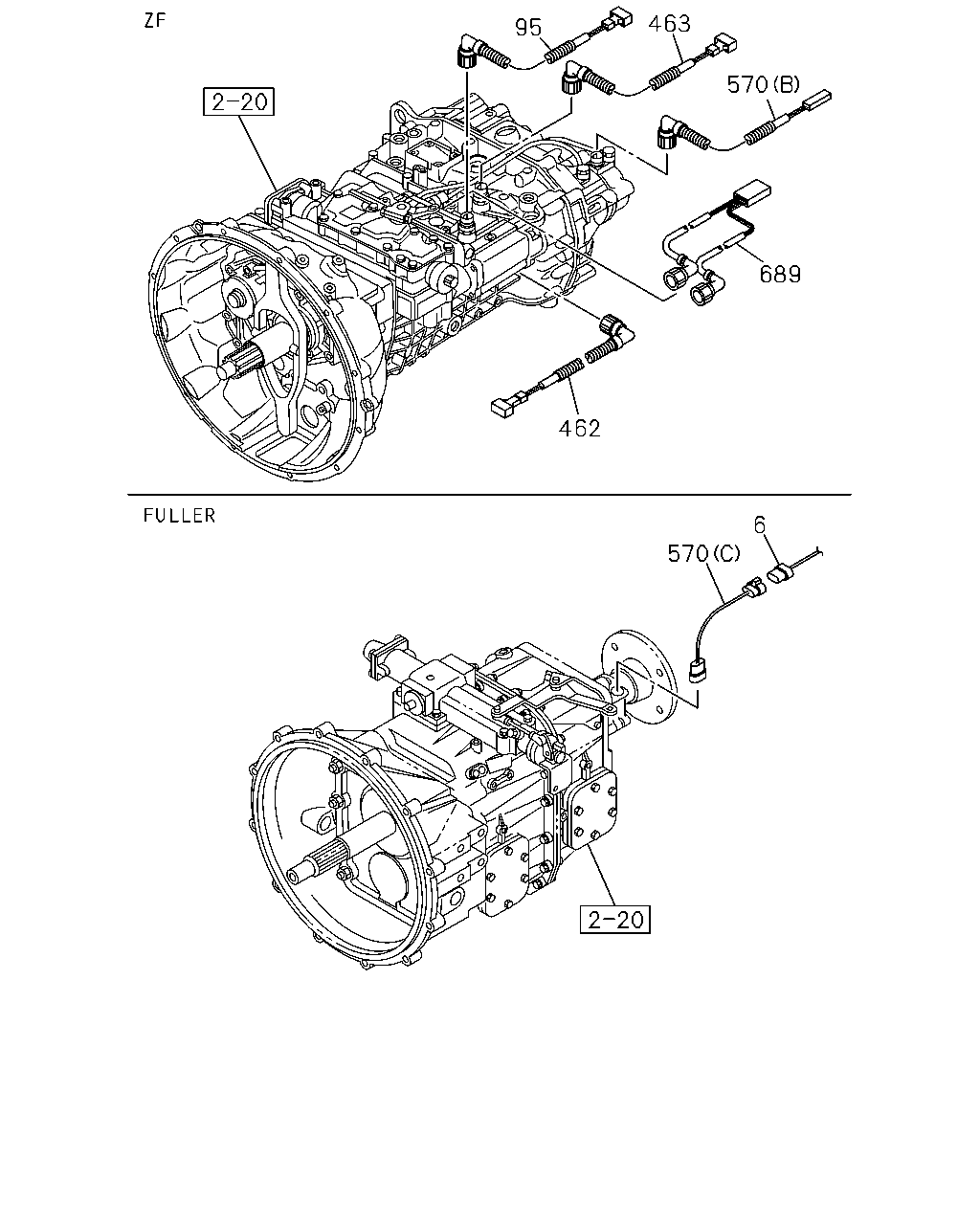

462 689 570 463 95 570 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-854-0	01	1	1302-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-855-0	01	1	1302-
462	HARNESS; SW,RANGE ZF9S1110 M/T(Y5E) BLUE	8-98145-857-0	01	1	1302-
463	HARNESS; SW,BACK UP ZF9S1110 M/T(Y5E) BLACK	8-98145-856-0	01	1	1302-
570	HARNESS; SPEED SENSOR FULLER FSO5206B OD M/T(Y4V) (C)	1-82670-012-0	01	1	1302-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1302-1506
570	HARNESS; SPEED SENSOR SPEED LIMITER 90KM(NMJ) (A)	8-98058-327-1	01	1	1507-1507
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ) (A)	8-98058-327-1	01	1	1507-1507
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1508-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1302-
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98148-603-0	01	1	1302-

668 102 540 668 668 668 102 102 668 102 668 102 102 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28151-016-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M6X12 FLANGE	0-28050-612-0	01	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	1302-
540	NUT; BRKT FIX 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	02	1	1302-1312
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98011-484-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98061-780-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98097-674-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (H)	8-98205-089-0	01	1	1302-1312
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1302-

9 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98209-434-4	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0)	8-98204-506-4	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-549-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-563-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-550-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-564-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-551-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. TURBO - CONVENTIONAL<Q5T>	8-98212-565-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-556-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> FUEL TANK 200L FRAME SIDE<N20> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-554-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-653-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-636-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-654-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-638-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-655-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-640-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-656-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-642-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98168-633-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98168-644-0	01	1	1302-

534 13 13 540 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1302-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98202-784-2	01	1	1302-1308
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98251-351-0	01	1	1309-1407
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98274-071-0	01	1	1408-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98217-444-2	01	1	1302-1312
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98255-599-0	01	1	1401-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98274-079-0	01	1	1406-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A)	8-98075-775-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (A)	8-98177-209-1	01	1	1302-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A)	8-98075-774-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A)	8-98177-208-1	01	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28151-016-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M6X12 FLANGE	0-28050-612-0	01	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	1302-
534	BOLT 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	03	1	1302-
540	NUT; BRKT FIX 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	02	1	1302-1312
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98011-484-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98061-780-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98097-674-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (H)	8-98205-089-0	01	1	1302-1312
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1302-

408 1 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF>	8-98212-247-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REM OTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-246-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98212-245-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-245-0	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-243-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, ASSISTOR SHIFT CONTROL<WX8>,REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-254-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-250-0	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3),BUMPER W/HEADLAMPS<SLB>, REMOTE CONT DOOR LOCK<6NF>	8-98212-255-0	01	1	1302-
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1302-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
