◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#112172) — 527 parça
çizim 328826
668 540 668 102 540 700 13 558 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98333-874-0 01 1 1512-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98330-158-0 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98291-046-1 01 1 1410-1510
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98291-046-1 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1410-1412
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1501-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 		8-98277-238-0 01 1 1406-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-345-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-715-3 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-344-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1302-1405
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1406-1409
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1410-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-704-0 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-705-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-703-0 01 1 1302-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (A) 		8-98274-675-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1302-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98171-998-3 01 1 1302-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98255-581-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98274-028-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98209-311-2 01 1 1302-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98255-597-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98274-077-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) 		8-98218-088-3 01 1 1302-1308
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) 		8-98250-890-0 01 1 1309-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (A) 		8-98274-067-0 01 1 1406-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (C) 		8-98075-770-5 01 1 1302-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (C) 		8-98075-771-5 01 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M8X16 FLANGE 		0-28050-816-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M10X16 FLANGE 		0-28151-016-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M6X12 FLANGE 		0-28050-612-0 01 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1302-1312
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M6 FLANGE 		0-91180-106-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1302-
668 BRACKET; HARNESS
(C) 		8-98111-712-1 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98009-245-0 01 1 1302-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-98011-484-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1302-1312
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) 		8-98061-780-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) 		8-98097-674-0 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-
700 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1302-
çizim 329767
13 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98333-874-0 01 1 1512-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98330-158-0 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98291-046-1 01 1 1410-1510
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98291-046-1 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1410-1412
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1501-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 		8-98277-238-0 01 1 1406-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-345-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-715-3 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-344-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1302-1405
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1406-1409
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1410-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-704-0 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-705-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-703-0 01 1 1302-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (A) 		8-98274-675-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1302-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98171-998-3 01 1 1302-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98255-581-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98274-028-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98209-311-2 01 1 1302-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98255-597-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98274-077-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) 		8-98218-088-3 01 1 1302-1308
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) 		8-98250-890-0 01 1 1309-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (A) 		8-98274-067-0 01 1 1406-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (C) 		8-98075-770-5 01 1 1302-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (C) 		8-98075-771-5 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

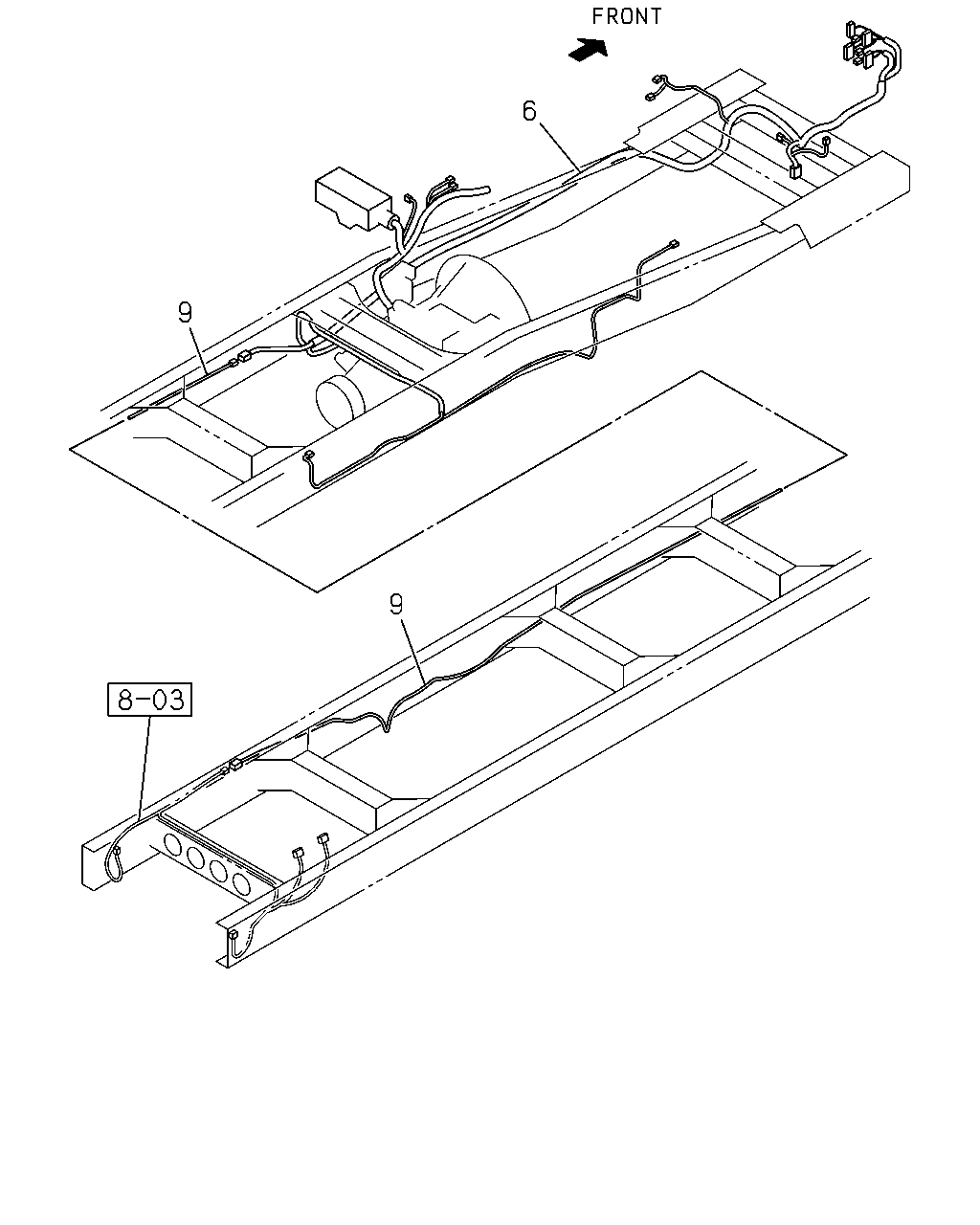

çizim 329791
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98333-874-0 01 1 1512-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98330-158-0 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98291-046-1 01 1 1410-1510
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98291-046-1 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1410-1412
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1501-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 		8-98277-238-0 01 1 1406-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-345-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-715-3 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-344-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1302-1405
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1406-1409
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1410-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-704-0 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-705-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-703-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-201-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) ALGERIA EQUIPMENT(WN1) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-583-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> 		8-98284-202-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EXC. RUSSIA EQUIPMENT(B12) 		8-98212-039-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98298-998-0 01 1 1501-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-612-0 01 1 1406-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98277-239-0 01 1 1406-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-602-0 01 1 1302-1405
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) 		8-98168-602-0 01 1 1406-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98168-582-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-719-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-075-2 01 1 1302-1405
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-075-2 01 1 1406-1409
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 140L FRAME SIDE<N19> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-075-2 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98168-584-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-720-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) 		8-98211-076-2 01 1 1302-1409
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) FUEL TANK 140L FRAME SIDE<N19> 		8-98211-076-2 01 1 1410-
9 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-718-0 01 1 1302-
9 HARNESS; FRAME,RR
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-580-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98168-580-0 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-
çizim 329813
2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1302-1510
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1511-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (A) BLACK 10P 		1-82699-703-0 AR 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

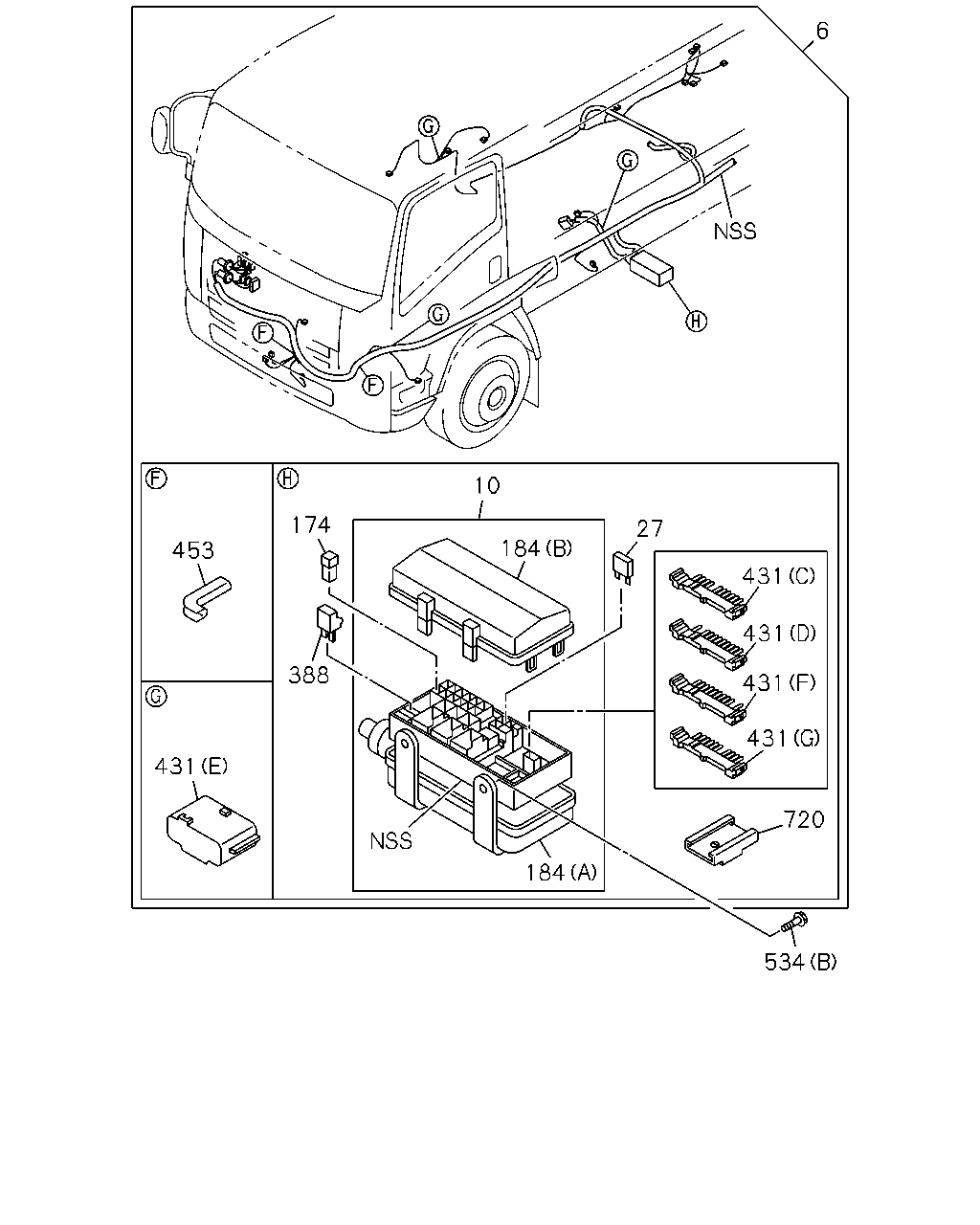

çizim 329822
453 431 388 174 10 184 184 27 431 431 431 431 720 534 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98333-874-0 01 1 1512-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98330-158-0 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98291-046-1 01 1 1410-1510
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98291-046-1 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1410-1412
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1501-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 		8-98277-238-0 01 1 1406-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-345-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-715-3 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-344-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1302-1405
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1406-1409
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1410-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-704-0 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-705-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-703-0 01 1 1302-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1302-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1302-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1302-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 60A YELLOW 60A YELLOW 		8-97219-407-0 01 1 1512-
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN 		8-98079-192-0 03 1 1406-1409
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19>,FUEL TANK 200L FRAMESIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN 		8-98079-192-0 03 1 1410-1412
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN 		8-98079-192-0 03 1 1501-
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN 		8-98079-192-0 03 1 1501-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1302-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1302-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1302-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1302-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1302-
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN 		8-98079-192-0 03 1 1302-1405
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 40A GREEN 		8-98079-192-0 02 1 1406-1409
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 40A GREEN 		8-98079-192-0 02 1 1410-
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 40A GREEN 		8-98079-192-0 02 1 1410-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1302-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1302-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (F) 10P GREEN 		1-82698-579-0 02 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (C) 10P BLUE 		1-82699-598-0 05 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (G) 10P GREEN 		1-82699-599-0 04 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (D) 10P BROWN 		1-82699-601-0 01 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (E) 6P BLACK 		8-97616-194-0 02 1 1512-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (B) WHITE 		8-98056-375-0 01 1 1302-
453 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-82699-709-0 01 1 1302-
453 PROTECTOR; HARNESS
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-82699-709-0 02 1 1302-
453 PROTECTOR; HARNESS
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-82699-709-0 02 1 1302-
534 BOLT
4HK1-TCS ENG(RJS) M10X55 FLANGE 		8-97365-449-0 03 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1302-

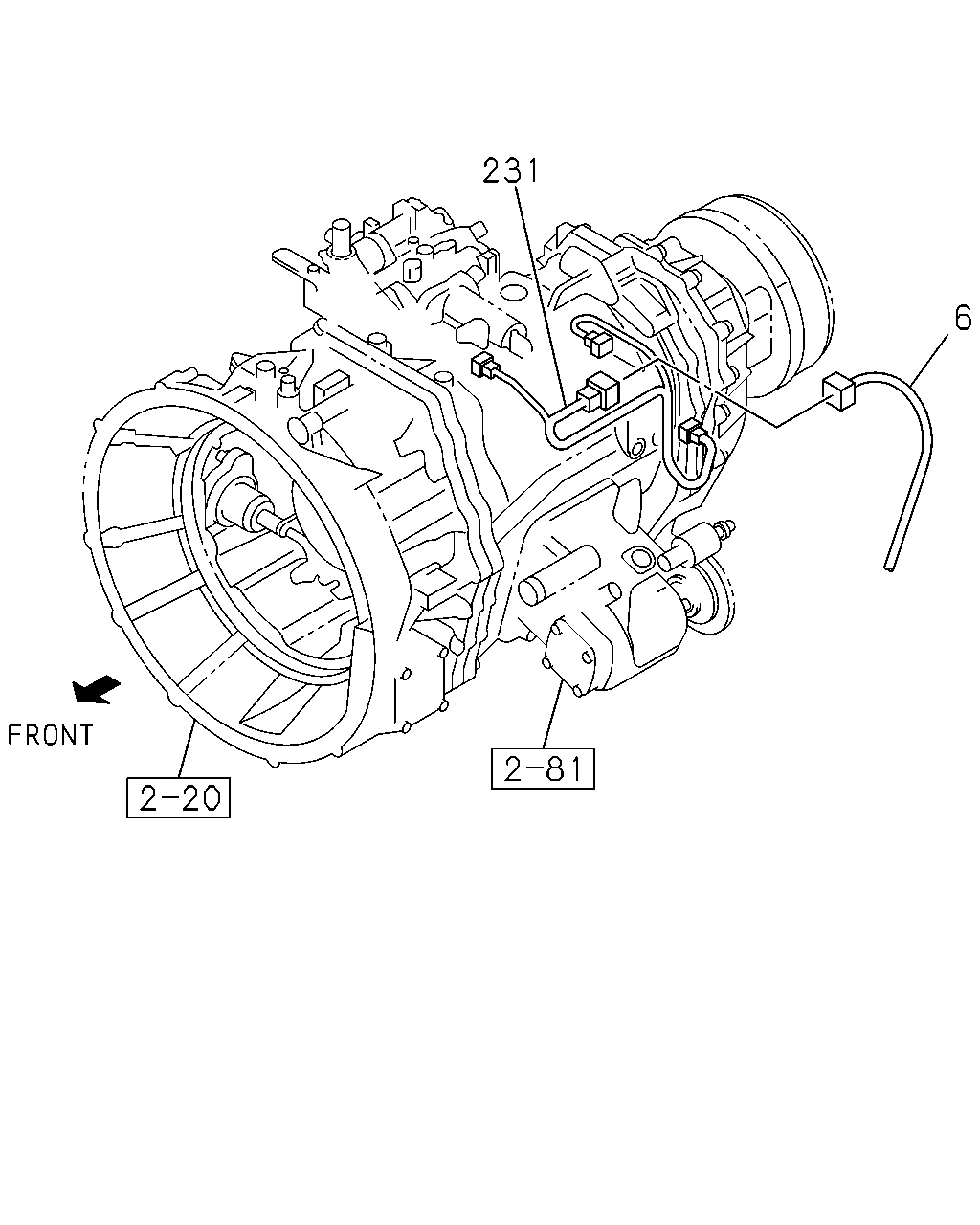

çizim 329832
6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98333-874-0 01 1 1512-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98330-158-0 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98291-046-1 01 1 1410-1510
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98291-046-1 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1410-1412
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1501-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 		8-98277-238-0 01 1 1406-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-345-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-715-3 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-344-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1302-1405
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1406-1409
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1410-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-704-0 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-705-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-703-0 01 1 1302-
231 HARNESS; TRANS
4HK1-TCS ENG(RJS) 		8-97618-933-2 01 1 1302-
231 HARNESS; TRANS
6HK1-TCN ENG(82L) 		8-97618-932-2 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

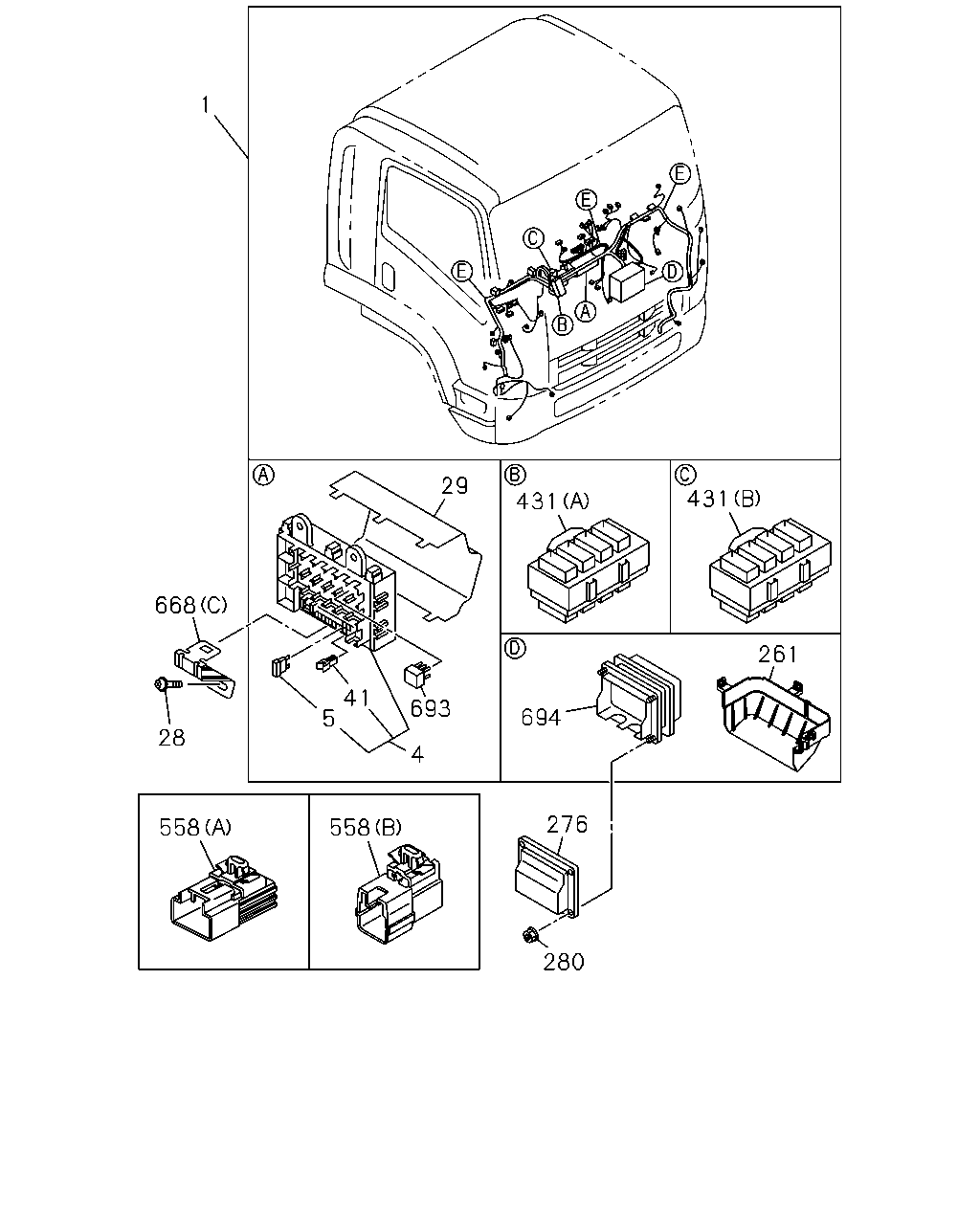

çizim 329833
1 29 693 41 431 431 261 694 4 5 28 668 558 558 276 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1302-1510
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1511-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98065-666-0 01 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 10A RED 		8-98054-257-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 15A BLUE 		8-98054-258-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 20A YELLOW 		8-98054-259-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 25A WHITE 		8-98062-982-0 AR 1 1302-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1302-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE 		0-28650-616-0 01 1 1302-
29 COVER; FUSE BOX
HALOGEN HEADLAMPS<TT5> 		8-98056-968-0 01 1 1302-
41 PULLER; FUSE
HALOGEN HEADLAMPS<TT5> 		8-98054-260-0 01 1 1302-
261 COVER; CONNECTOR BOX
HALOGEN HEADLAMPS<TT5> 		8-98065-986-1 01 1 1302-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1302-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (F) 10P GREEN 		1-82698-579-0 02 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (C) 10P BLUE 		1-82699-598-0 05 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (G) 10P GREEN 		1-82699-599-0 04 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (D) 10P BROWN 		1-82699-601-0 01 1 1512-
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> (E) 6P BLACK 		8-97616-194-0 02 1 1512-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (B) WHITE 		8-98056-375-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1302-
668 BRACKET; HARNESS
(C) 		8-98111-712-1 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98009-245-0 01 1 1302-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-98011-484-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1302-1312
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) 		8-98061-780-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) 		8-98097-674-0 01 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
694 BOX ASM; CONNECTOR
HALOGEN HEADLAMPS<TT5> 		8-98057-771-0 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

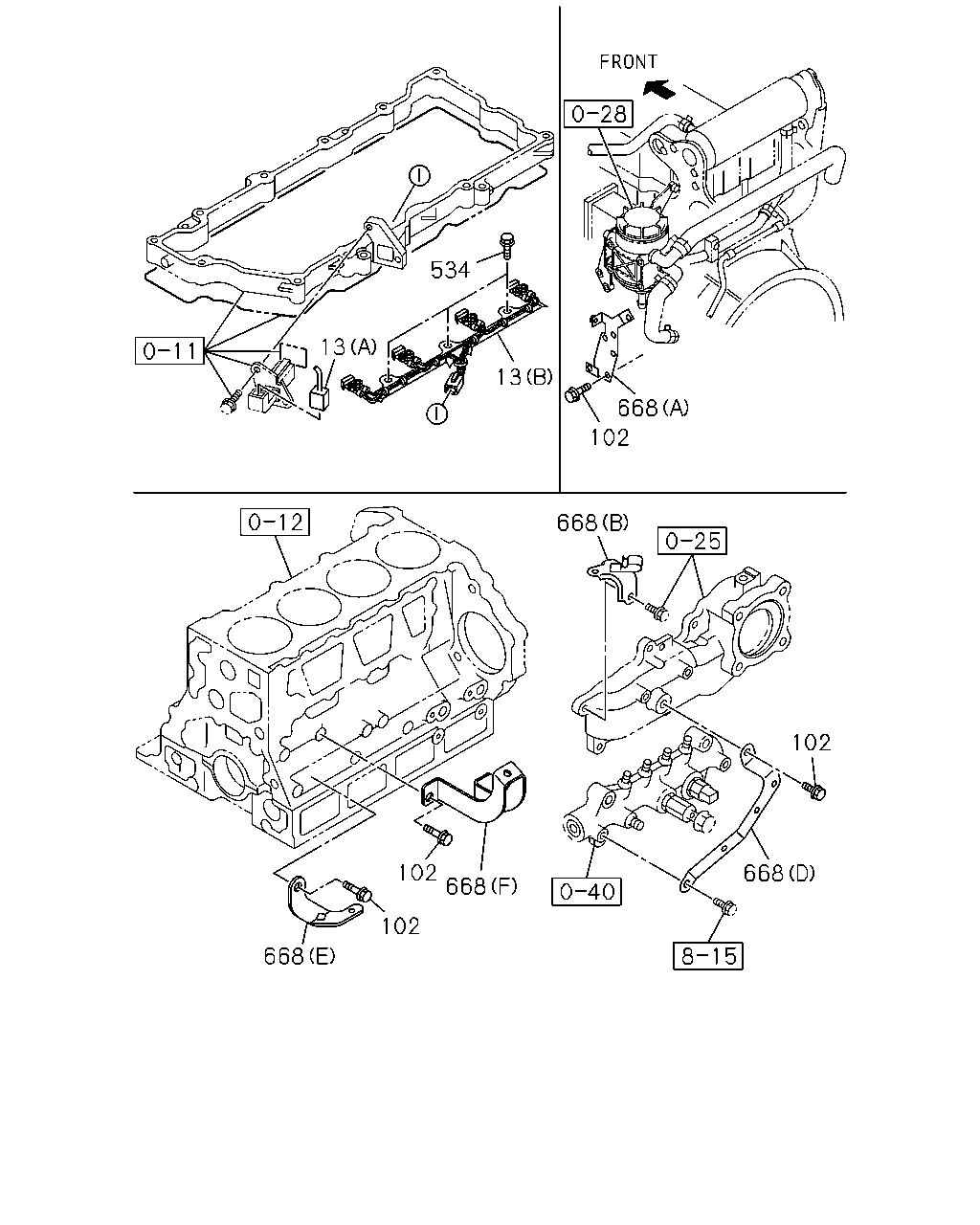

çizim 329844
13 534 13 668 102 668 102 668 668 102 102 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (A) 		8-98274-675-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1302-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98171-998-3 01 1 1302-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98255-581-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98274-028-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98209-311-2 01 1 1302-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98255-597-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98274-077-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) 		8-98218-088-3 01 1 1302-1308
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) 		8-98250-890-0 01 1 1309-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (A) 		8-98274-067-0 01 1 1406-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (C) 		8-98075-770-5 01 1 1302-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (C) 		8-98075-771-5 01 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M8X16 FLANGE 		0-28050-816-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M10X16 FLANGE 		0-28151-016-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M6X12 FLANGE 		0-28050-612-0 01 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
534 BOLT
4HK1-TCS ENG(RJS) M10X55 FLANGE 		8-97365-449-0 03 1 1302-
668 BRACKET; HARNESS
(C) 		8-98111-712-1 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98009-245-0 01 1 1302-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-98011-484-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1302-1312
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) 		8-98061-780-0 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) 		8-98097-674-0 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

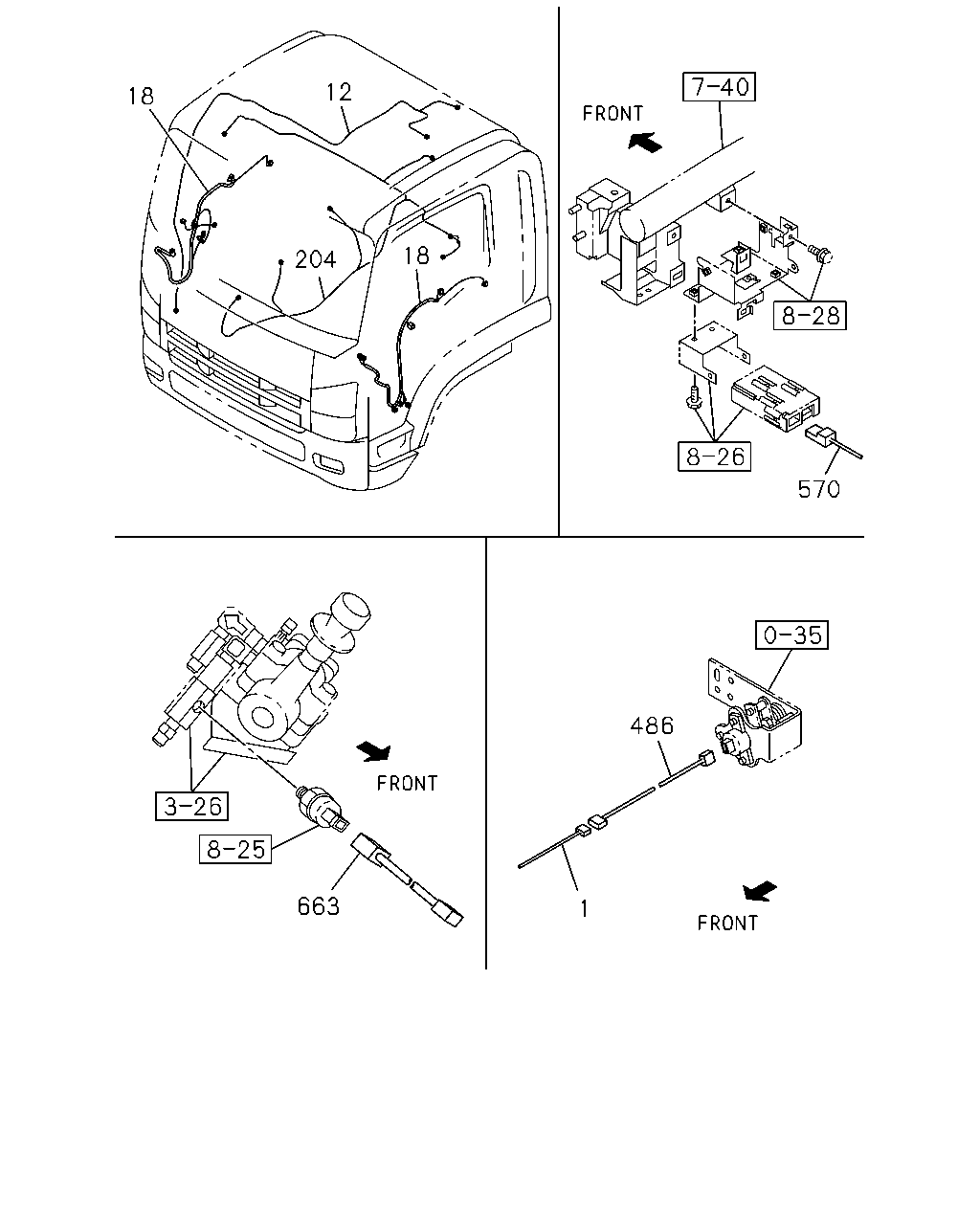

çizim 329857
18 12 204 18 570 486 1 663
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1302-1510
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1511-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98071-441-0 01 1 1302-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC> 		8-98079-073-2 01 1 1302-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC> 		8-98084-249-1 01 1 1302-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC> 		8-98084-248-1 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98080-127-3 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98080-128-3 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98178-803-0 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98178-804-0 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98178-801-0 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98178-802-0 01 1 1302-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUTO DOOR LOCK<AU4> 		8-98084-285-2 01 1 1302-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUTO DOOR LOCK<AU4> 		8-98084-290-2 01 1 1302-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98084-217-1 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1311-
570 HARNESS; SPEED SENSOR
SPEED LIMITER 85KM<EDX> 		8-98058-327-1 01 1 1406-1409
570 HARNESS; SPEED SENSOR
SPEED LIMITER 85KM<EDX>,SPEED LIMITER 90KM<NMJ> 		8-98058-327-1 01 1 1410-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

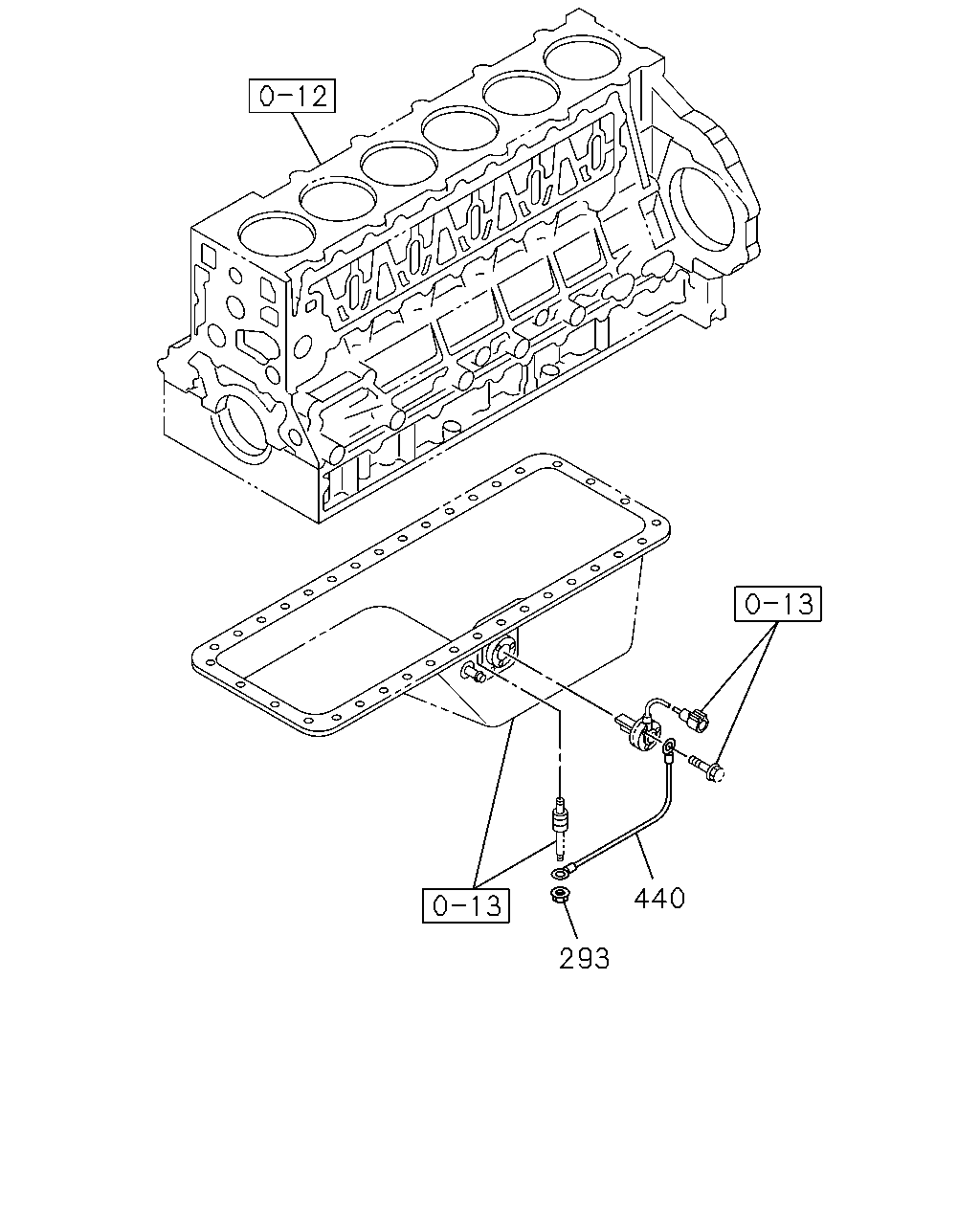

çizim 330294
293 440
BalonParca AdiParca NoAdetTipApplied Date
293 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
440 CABLE; EARTH
6HK1-TCN ENG(82L) 		8-97606-639-0 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-
çizim 330330
638 535 441 639 640
BalonParca AdiParca NoAdetTipApplied Date
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
441 HARNESS; CABLE,SPEED SENSOR
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98061-652-0 01 1 1302-
535 BOLT; BRKT FIX
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X10 W/LK WASHER 		8-98029-928-0 02 1 1302-
638 BRACKET; SPD SENSOR
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-580-1 02 1 1302-
639 BOLT; CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 05 1 1302-
640 NUT; CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 05 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-
çizim 330371
533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
533 CLIP
EXC. INTERMITTENT WIPER<C13> (A) L=100 		5-09707-036-1 01 1 1302-
533 CLIP
4HK1-TCS ENG(RJS) (E) L=250 		5-09707-030-1 02 1 1302-
533 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=11 L=16 		0-95235-025-0 05 1 1302-
533 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=18 		1-09709-287-0 01 1 1302-
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

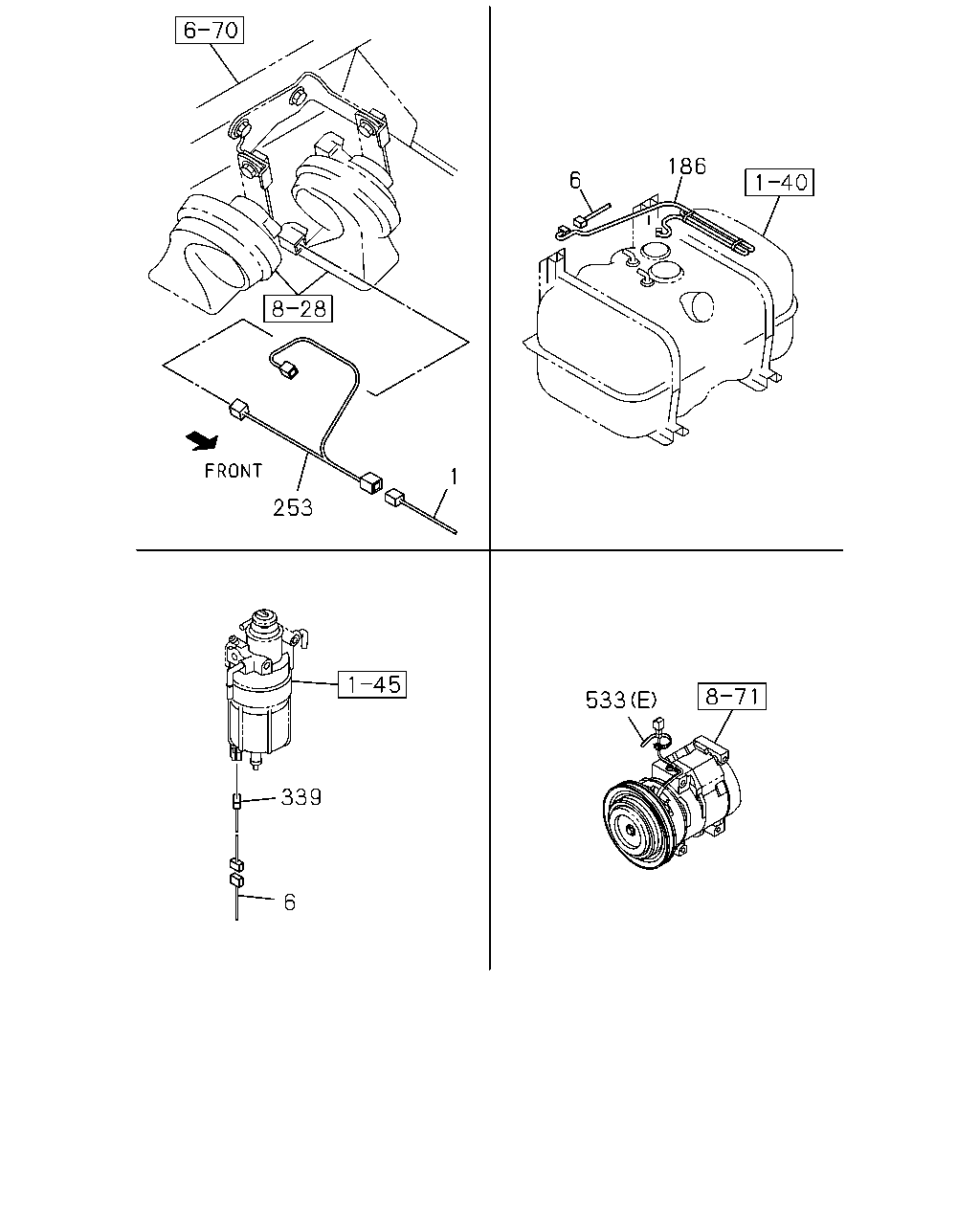

çizim 332402
253 6 186 339 6 533 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1302-1510
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1511-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98333-874-0 01 1 1512-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98330-158-0 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98291-046-1 01 1 1410-1510
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98291-046-1 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1410-1412
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1501-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 		8-98277-238-0 01 1 1406-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-345-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-715-3 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-344-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1302-1405
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1406-1409
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1410-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-704-0 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-705-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-703-0 01 1 1302-
186 HARNESS; FUEL TANK
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-079-0 01 1 1302-
253 HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN<6KK> 		8-98074-080-3 01 1 1302-
253 HARNESS; EXT,HORN
ELECTRICAL HORN<WB7> 		8-98074-081-2 01 1 1302-
253 HARNESS; EXT,HORN
EXC. ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> 		8-98159-227-2 01 1 1302-
339 HARNESS; EXT,FUEL
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98119-943-0 01 1 1302-1412
339 HARNESS; EXT,FUEL
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98119-943-0 01 1 1501-
339 HARNESS; EXT,FUEL
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98212-411-0 01 1 1302-1405
339 HARNESS; EXT,FUEL
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98212-411-0 01 1 1406-
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98212-413-0 01 1 1302-
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98124-756-0 01 1 1302-
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98213-860-0 01 1 1302-
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) 		8-98212-412-0 01 1 1302-
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> 		8-98213-861-0 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
533 CLIP
EXC. INTERMITTENT WIPER<C13> (A) L=100 		5-09707-036-1 01 1 1302-
533 CLIP
4HK1-TCS ENG(RJS) (E) L=250 		5-09707-030-1 02 1 1302-
533 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=11 L=16 		0-95235-025-0 05 1 1302-
533 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=18 		1-09709-287-0 01 1 1302-
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

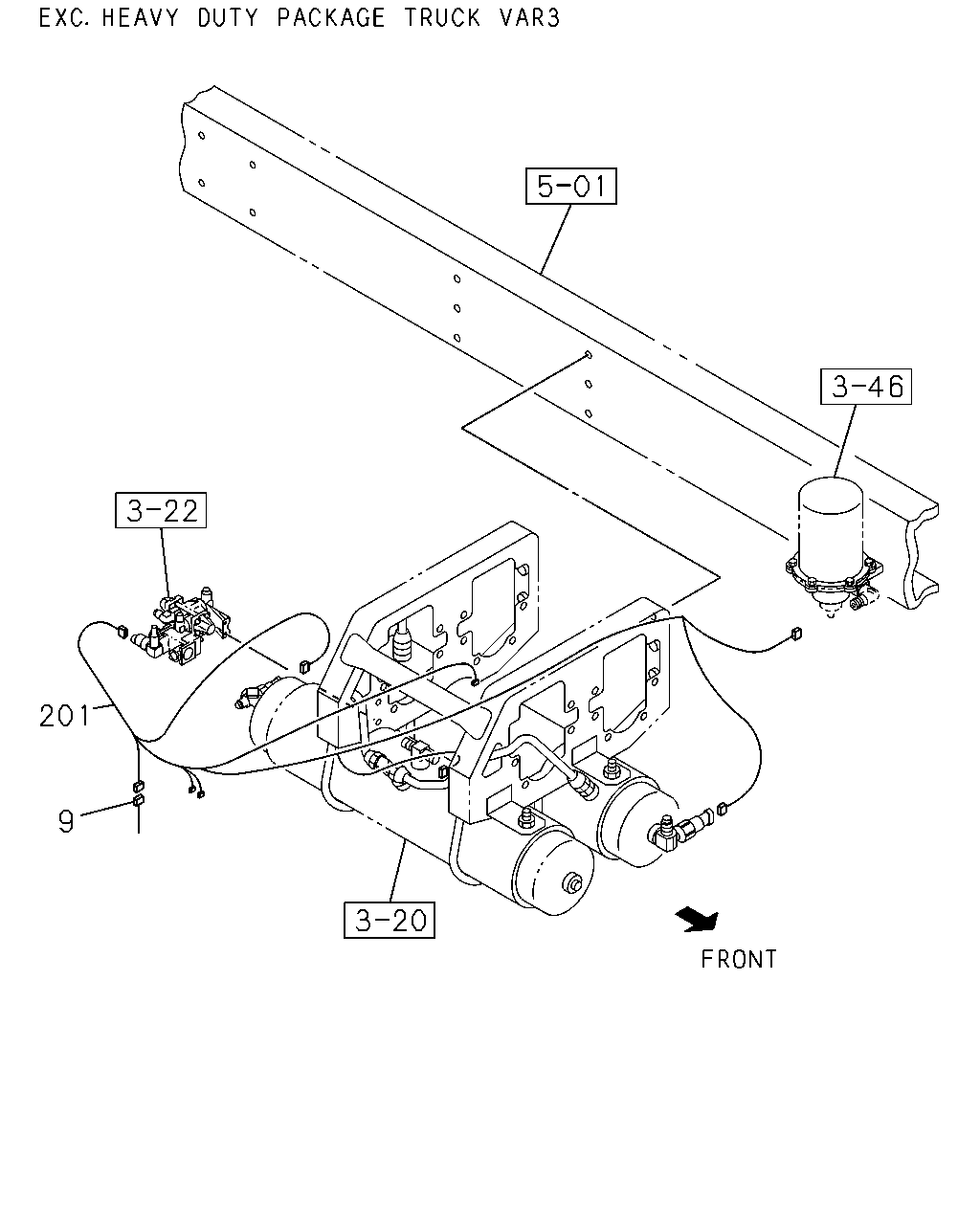

çizim 332423
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-201-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) ALGERIA EQUIPMENT(WN1) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-583-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> 		8-98284-202-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EXC. RUSSIA EQUIPMENT(B12) 		8-98212-039-0 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98298-998-0 01 1 1501-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-612-0 01 1 1406-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98277-239-0 01 1 1406-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-602-0 01 1 1302-1405
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) 		8-98168-602-0 01 1 1406-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98168-582-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-719-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-075-2 01 1 1302-1405
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-075-2 01 1 1406-1409
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) RUSSIA EQUIPMENT(B12) FUEL TANK 140L FRAME SIDE<N19> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-075-2 01 1 1410-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98168-584-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-720-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) 		8-98211-076-2 01 1 1302-1409
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) FUEL TANK 140L FRAME SIDE<N19> 		8-98211-076-2 01 1 1410-
9 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-718-0 01 1 1302-
9 HARNESS; FRAME,RR
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98168-580-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98168-580-0 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98288-621-0 01 1 1502-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> 		8-98212-308-1 01 1 1302-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98212-312-0 01 1 1302-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,H.S.A SYSTEM<6EP> 		8-98156-705-2 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98156-705-2 01 1 1302-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98156-710-2 01 1 1302-1409
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98156-710-2 01 1 1410-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98156-712-1 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) 		8-98212-309-0 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98212-313-1 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T> ,BRAKE REGULATION ECE(TDV) 		8-98156-706-1 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98212-314-0 01 1 1302-1501
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) ,VIN MODEL YEAR 2014<VZE> 		8-98212-314-0 01 1 1502-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98212-311-0 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> 		8-98212-310-1 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

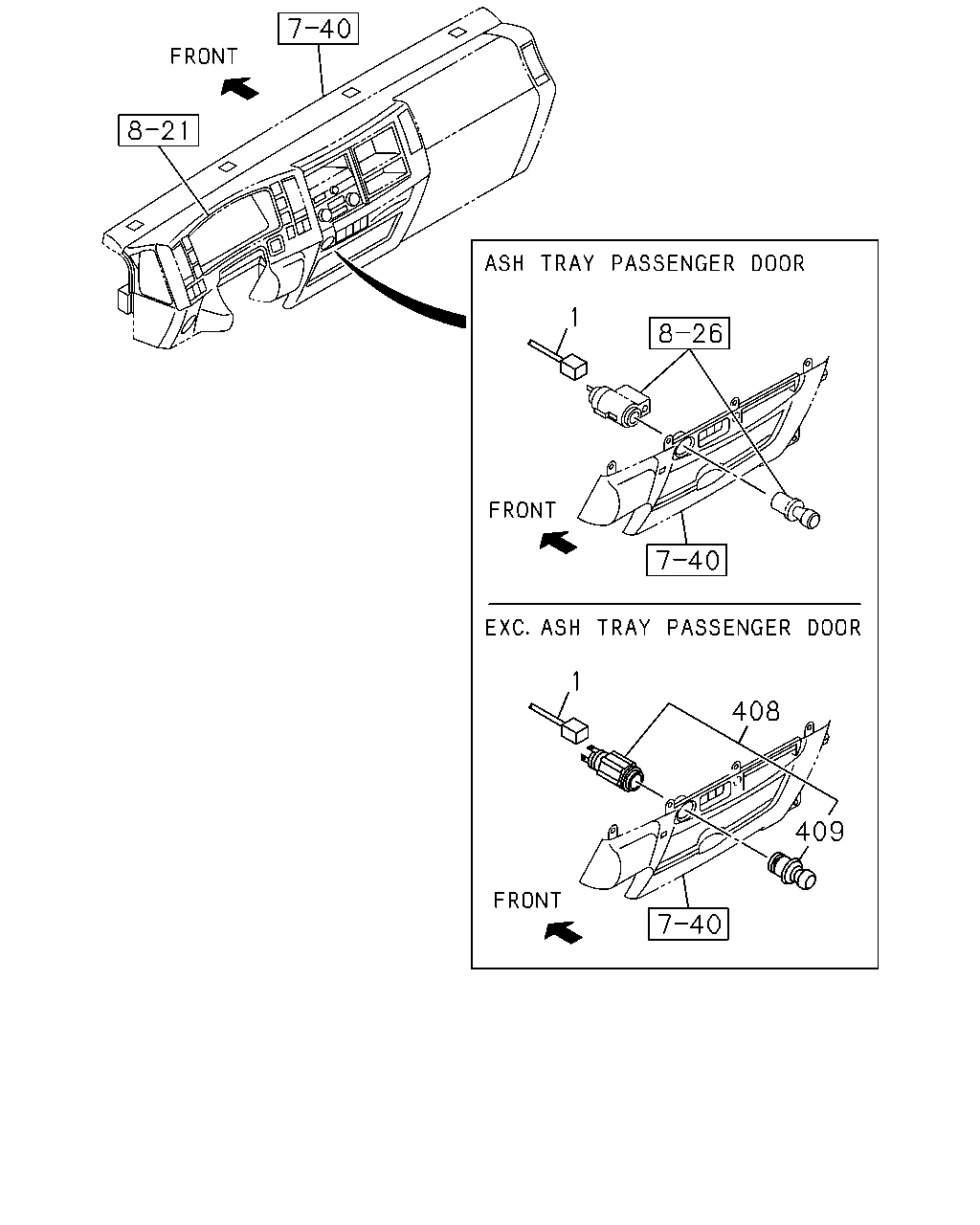

çizim 332441
1 1 408 409
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98250-452-1 01 1 1511-
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98212-166-2 01 1 1302-1510
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30> ,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.A SYSTEM<6EP> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,AUTO CRUISE<K30> 		8-98212-166-2 01 1 1511-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1302-1510
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,A NTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98212-165-1 01 1 1511-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1302-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-

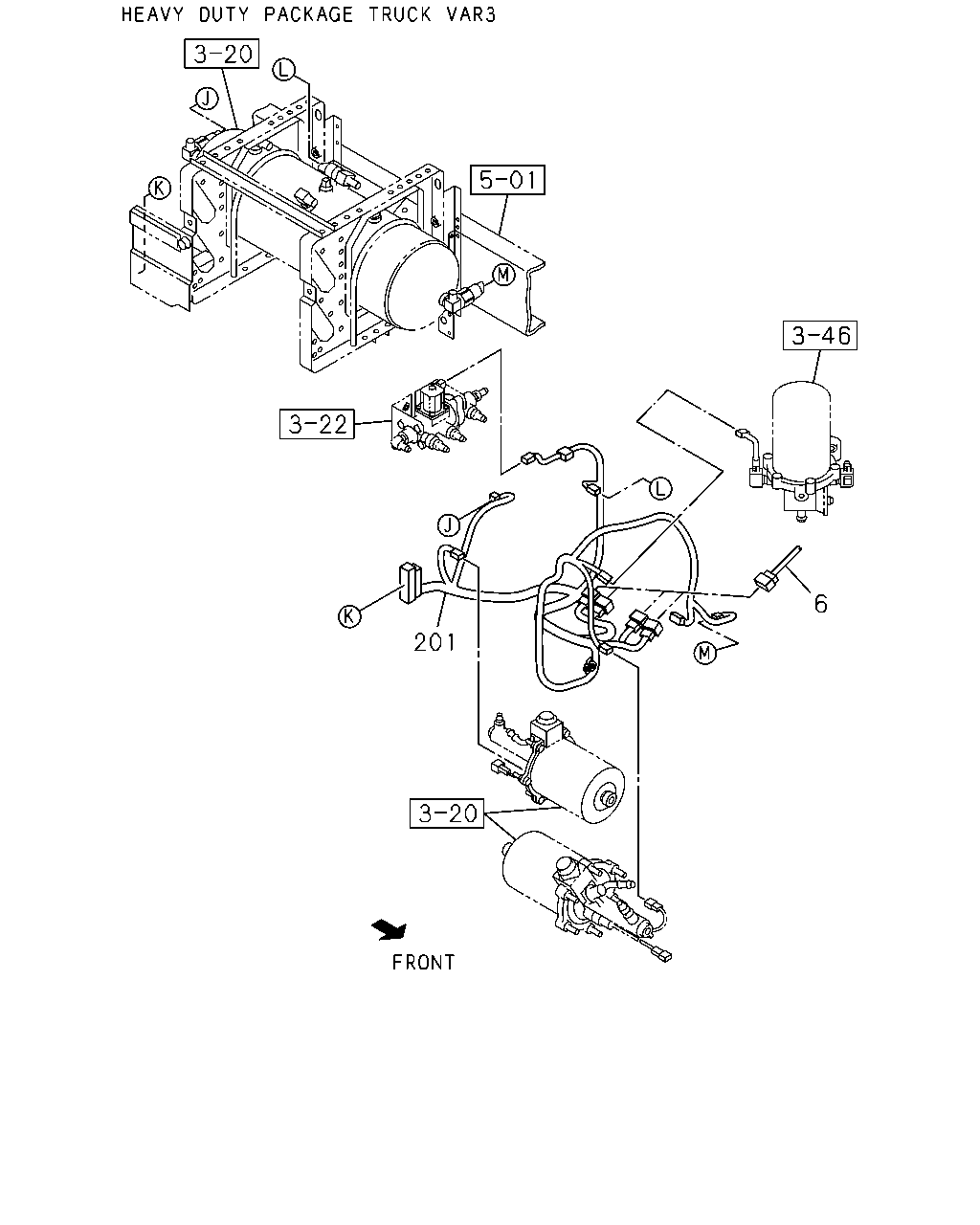

çizim 332444
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98333-874-0 01 1 1512-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98330-158-0 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RR FOG LAMP<T79> 		8-98291-046-1 01 1 1410-1510
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98291-046-1 01 1 1511-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1410-1412
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98284-199-0 01 1 1501-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) 		8-98277-238-0 01 1 1406-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-345-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-715-3 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98212-344-2 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1302-1405
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1406-1409
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> FUEL TANK 140L FRAME SIDE<N19> RR FOG LAMP<T79> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-713-5 01 1 1410-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-704-0 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98211-705-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),RR FOG LAMP<T79> 		8-98211-703-0 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98288-621-0 01 1 1502-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> 		8-98212-308-1 01 1 1302-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98212-312-0 01 1 1302-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,H.S.A SYSTEM<6EP> 		8-98156-705-2 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98156-705-2 01 1 1302-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98156-710-2 01 1 1302-1409
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98156-710-2 01 1 1410-
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98156-712-1 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) 		8-98212-309-0 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98212-313-1 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T> ,BRAKE REGULATION ECE(TDV) 		8-98156-706-1 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98212-314-0 01 1 1302-1501
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) ,VIN MODEL YEAR 2014<VZE> 		8-98212-314-0 01 1 1502-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98212-311-0 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> 		8-98212-310-1 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-
çizim 414077
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98065-666-0 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-1405
698 NUT; COVER,RELAY BOX
EXC. MOROCCO EQUIPMENT(CGA) M8 FLANGE 		0-91180-108-0 02 1 1406-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
