Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#112171) — 357 parça

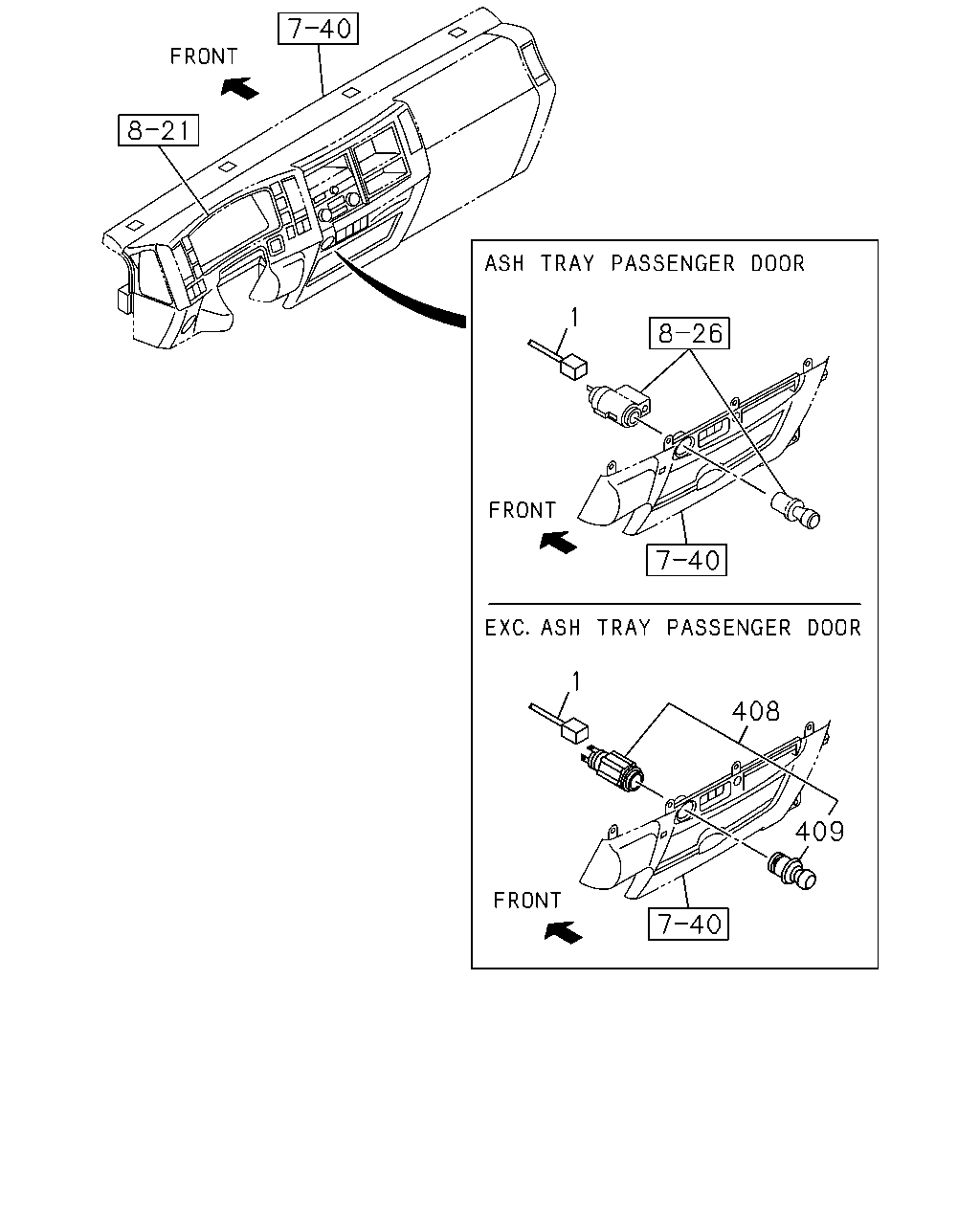

1 1 408 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

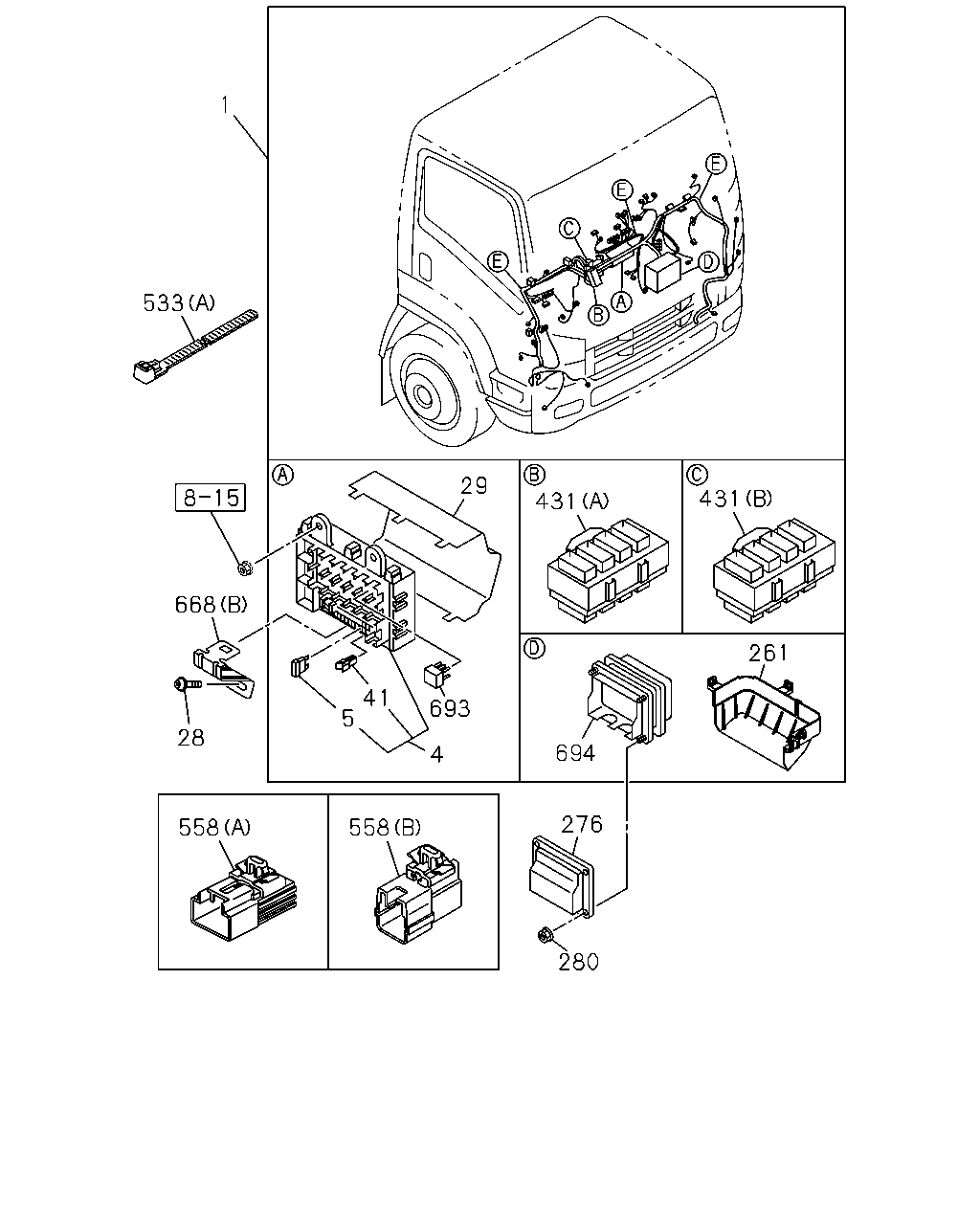

1	HARNESS; CAB ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AUTO CRUISE<K30>, HEADLAMPSCONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1302-1404
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1405-1409
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1410-1510
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEA DLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1511-
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1302-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1302-

1 533 668 28 558 558 276 280 694 431 261 431 29 41 693 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AUTO CRUISE<K30>, HEADLAMPSCONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1302-1404
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1405-1409
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1410-1510
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEA DLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1511-

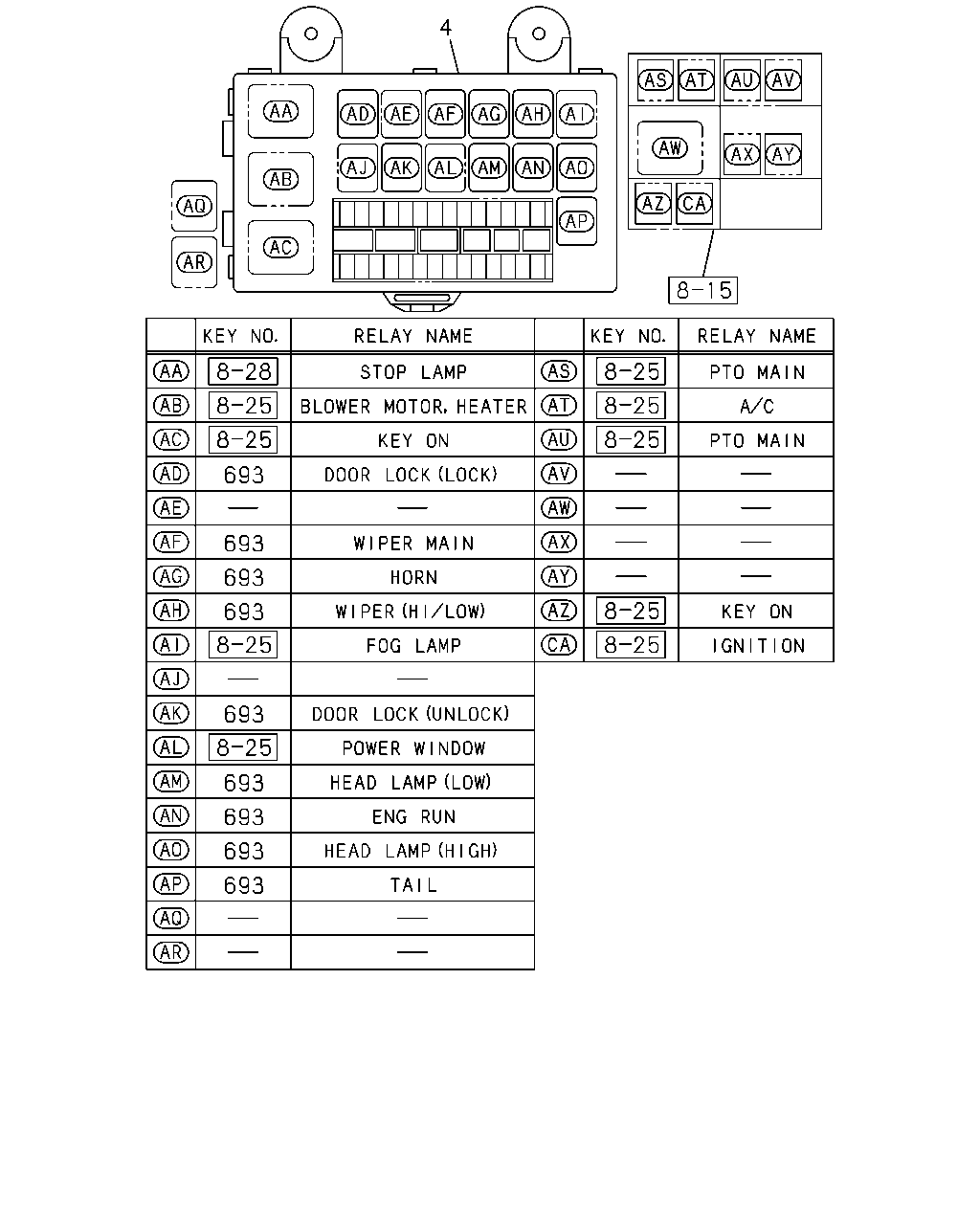

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1302-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1302-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1302-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1302-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1302-
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1302-
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE	0-28650-616-0	01	1	1302-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1302-
41	PULLER; FUSE	8-98054-260-0	01	1	1302-
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1302-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1302-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1302-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1302-
533	CLIP EURO5 SPECIFICATION<NT5> (B) L=350	1-09707-183-0	02	1	1506-
533	CLIP EXC. INTERMITTENT WIPER<C13> (A) L=100	5-09707-036-1	01	1	1302-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1302-
668	BRACKET; HARNESS EURO5 SPECIFICATION<NT5> (J)	8-98240-491-0	01	1	1506-
668	BRACKET; HARNESS EURO5 SPECIFICATION<NT5> (K)	8-98255-779-0	01	1	1506-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1302-1311
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (F)	8-98011-484-0	01	1	1312-1511
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98011-484-0	01	1	1512-
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS (B)	8-98111-712-1	01	1	1302-
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS EURO3 SPECIFICATION<NT3> (D)	8-98001-095-0	01	1	1302-1511
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (H)	8-98061-780-0	01	1	1302-1505
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (H)	8-98061-780-0	01	1	1506-
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (I)	8-98097-674-0	01	1	1302-
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1302-1312
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1401-1511
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1512-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1302-

700 13 558 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

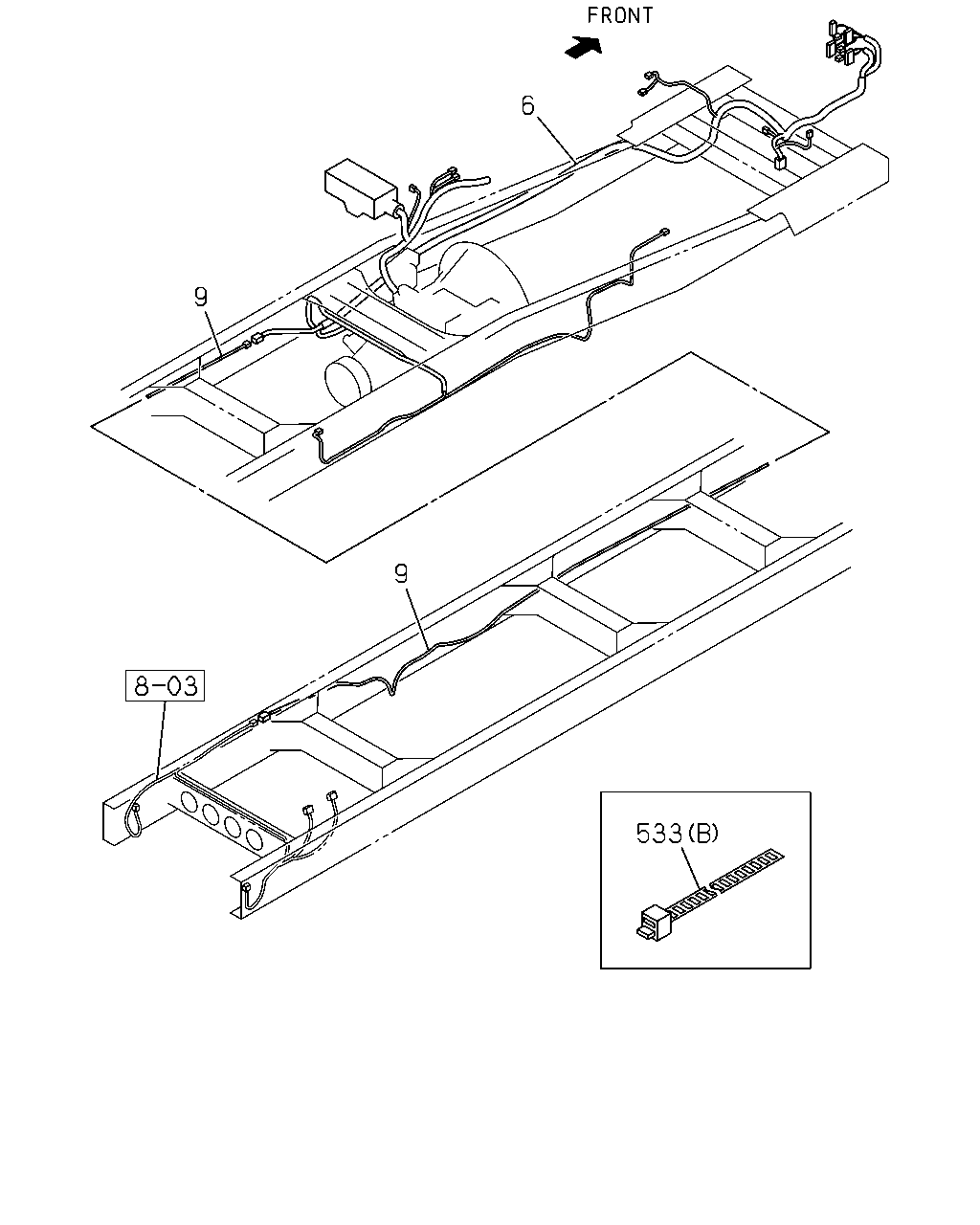

6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4>	8-98250-508-2	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98330-157-0	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>	8-98330-157-0	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE(JE5)	8-98317-650-0	01	1	1506-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98291-045-1	01	1	1410-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-307-2	01	1	1302-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4>	8-98214-300-4	01	1	1302-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE<K30>	8-98214-300-4	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1302-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE(JE5)	8-98214-301-3	01	1	1302-

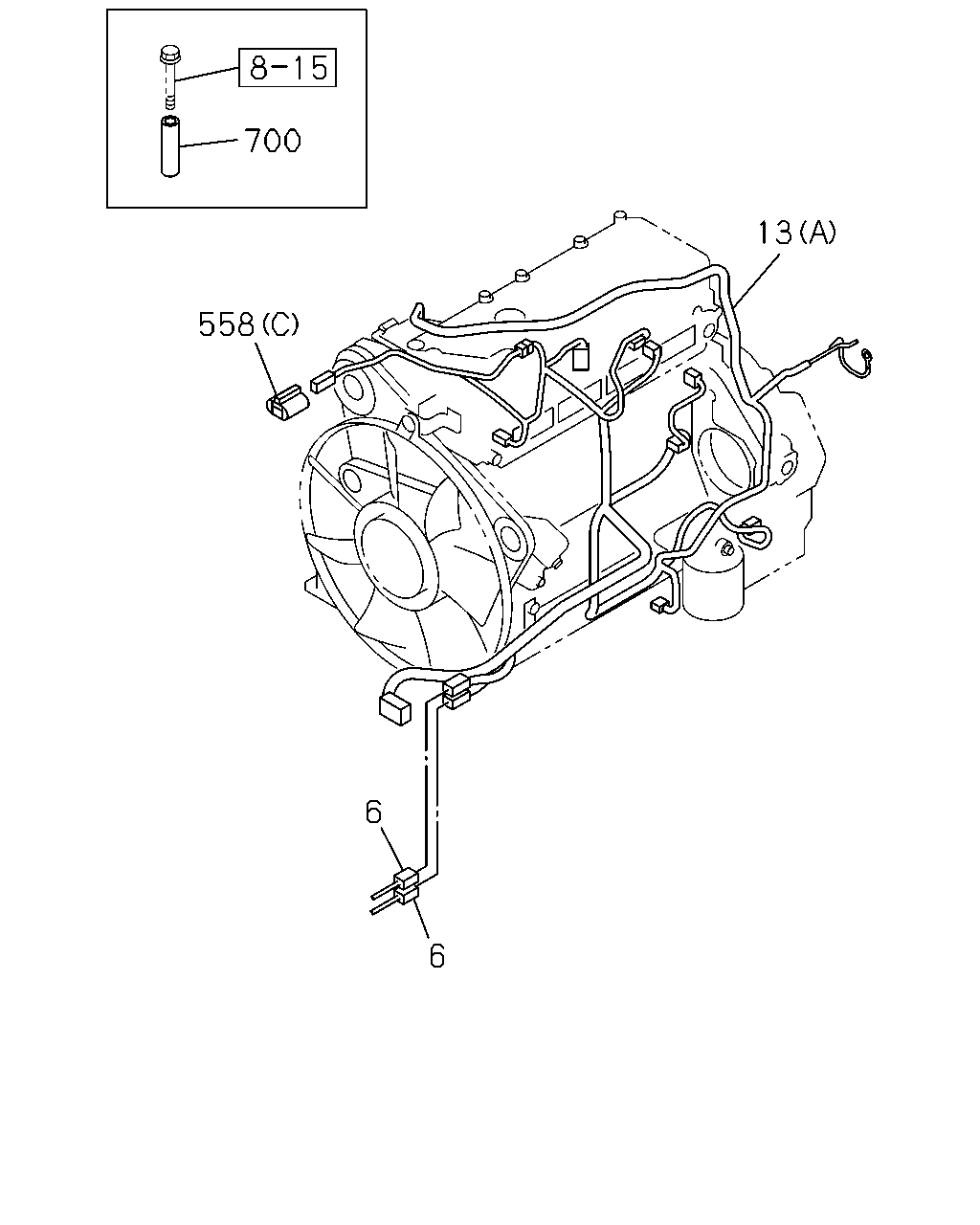

13	HARNESS; ENG EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-091-0	01	1	1506-
13	HARNESS; ENG EURO5 SPECIFICATION<NT5> GENERATOR 24V50A(K89) (A)	8-98274-090-0	01	1	1506-
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1302-
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> (A)	8-98171-996-2	01	1	1302-1312
13	HARNESS; ENG EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98255-589-0	01	1	1401-1405
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> (A)	8-98274-036-0	01	1	1406-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> (A)	8-98219-269-0	01	1	1302-1312
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> (A)	8-98255-601-0	01	1	1401-1405
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> (A)	8-98274-081-0	01	1	1406-1511
13	HARNESS; ENG EURO4 SPECIFICATION<NT4> (A)	8-98219-230-0	01	1	1302-1405
13	HARNESS; ENG EURO4 SPECIFICATION<NT4> (A)	8-98274-058-0	01	1	1406-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1302-
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1302-

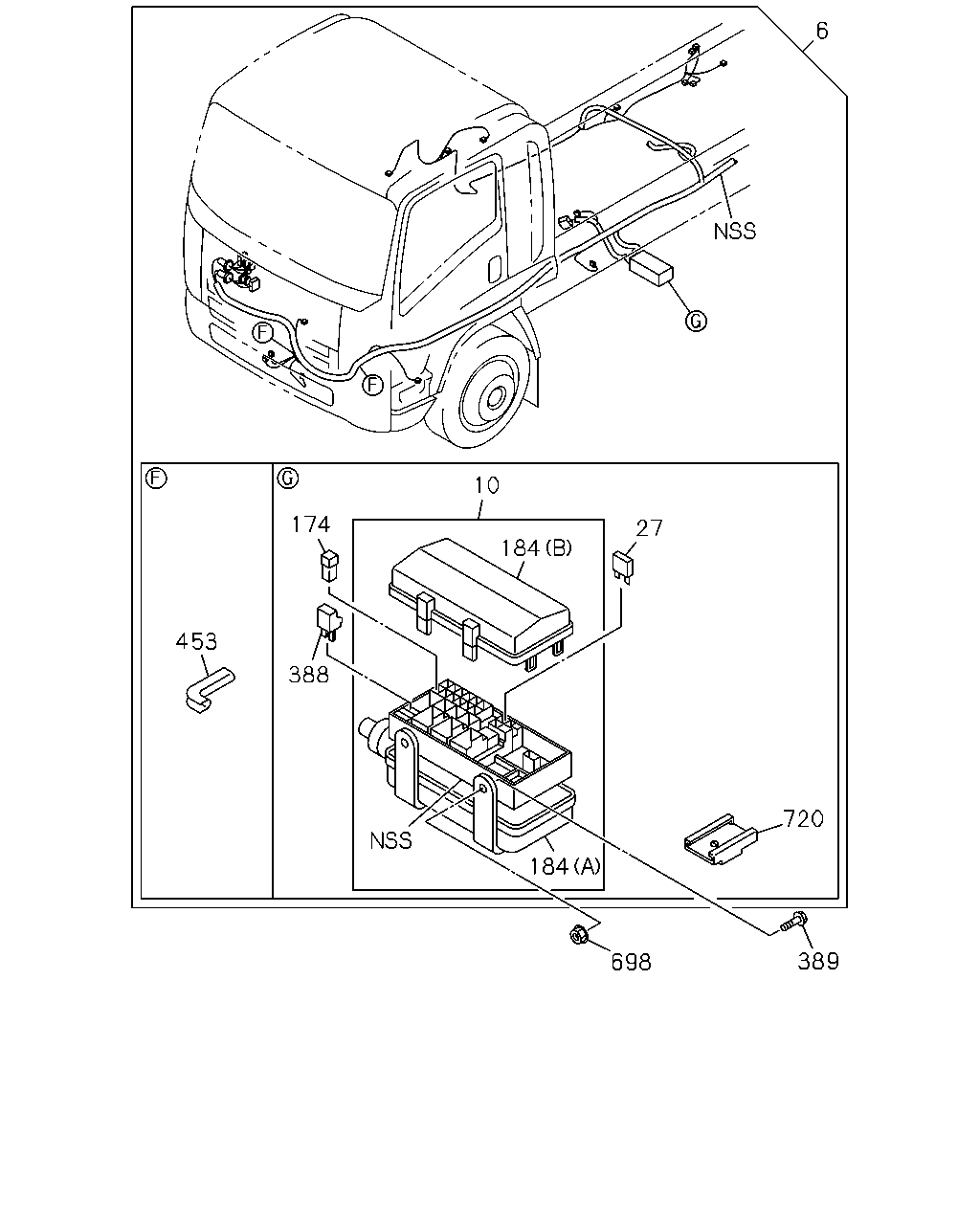

6 10 174 453 184 388 698 389 720 27 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4>	8-98250-508-2	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98330-157-0	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>	8-98330-157-0	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE(JE5)	8-98317-650-0	01	1	1506-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98291-045-1	01	1	1410-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-307-2	01	1	1302-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4>	8-98214-300-4	01	1	1302-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE<K30>	8-98214-300-4	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1302-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE(JE5)	8-98214-301-3	01	1	1302-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1302-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1302-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1302-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1302-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1302-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1302-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1302-
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 40A GREEN	8-98079-192-0	01	1	1302-1511
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 40A GREEN	8-98079-192-0	01	1	1512-
174	FUSE; SLOW BLOW EURO4 SPECIFICATION<NT4> 40A GREEN	8-98079-192-0	02	1	1302-1505
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO5 SPECIFICATION<NT5> 40A GREEN	8-98079-192-0	02	1	1506-1511
174	FUSE; SLOW BLOW EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE(JE5) 40A GREEN	8-98079-192-0	02	1	1506-1511
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2> ANTI LOCK BRAKE(JE5) 40A GREEN	8-98079-192-0	02	1	1512-
174	FUSE; SLOW BLOW EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 40A GREEN	8-98079-192-0	02	1	1512-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1302-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1302-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1302-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1302-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1302-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	1302-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1302-

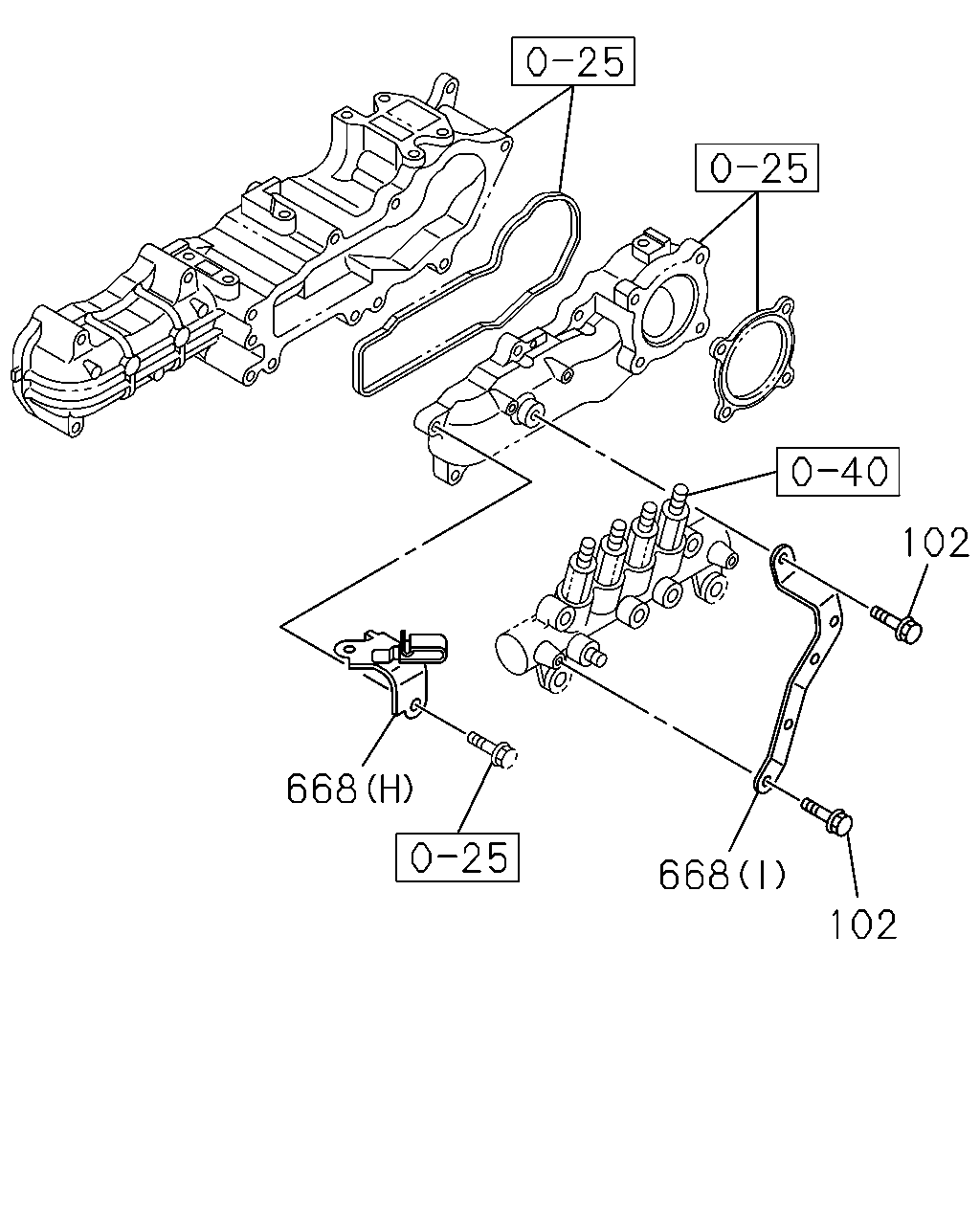

668 540 668 102 668 668 102 13 534 13 102 102 668 668 668 102 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

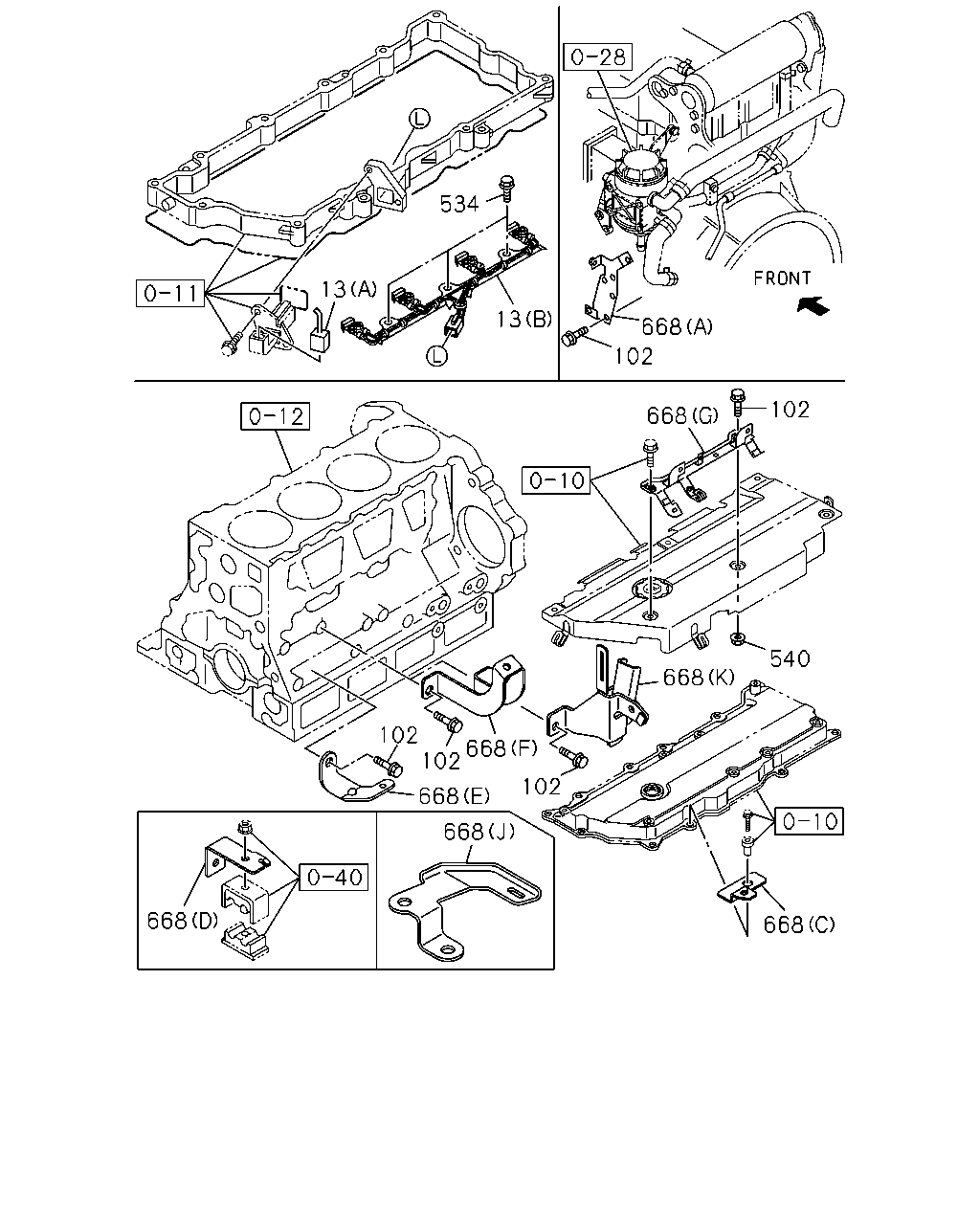

13	HARNESS; ENG EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-091-0	01	1	1506-
13	HARNESS; ENG EURO5 SPECIFICATION<NT5> GENERATOR 24V50A(K89) (A)	8-98274-090-0	01	1	1506-
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1302-
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> (A)	8-98171-996-2	01	1	1302-1312
13	HARNESS; ENG EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98255-589-0	01	1	1401-1405
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> (A)	8-98274-036-0	01	1	1406-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> (A)	8-98219-269-0	01	1	1302-1312
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> (A)	8-98255-601-0	01	1	1401-1405
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> (A)	8-98274-081-0	01	1	1406-1511
13	HARNESS; ENG EURO4 SPECIFICATION<NT4> (A)	8-98219-230-0	01	1	1302-1405
13	HARNESS; ENG EURO4 SPECIFICATION<NT4> (A)	8-98274-058-0	01	1	1406-
102	BOLT; BRKT,HARNESS CONNECTOR EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28650-820-0	01	1	1506-
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR EURO4 SPECIFICATION<NT4> M6X12 FLANGE	0-28050-612-0	01	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	1302-
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	1302-
540	NUT; BRKT FIX EURO5 SPECIFICATION<NT5> M6 FLANGE	0-91180-106-0	01	1	1506-
540	NUT; BRKT FIX EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE	0-91180-106-0	02	1	1302-1312
668	BRACKET; HARNESS EURO5 SPECIFICATION<NT5> (J)	8-98240-491-0	01	1	1506-
668	BRACKET; HARNESS EURO5 SPECIFICATION<NT5> (K)	8-98255-779-0	01	1	1506-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1302-1311
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (F)	8-98011-484-0	01	1	1312-1511
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98011-484-0	01	1	1512-
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS (B)	8-98111-712-1	01	1	1302-
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS EURO3 SPECIFICATION<NT3> (D)	8-98001-095-0	01	1	1302-1511
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (H)	8-98061-780-0	01	1	1302-1505
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (H)	8-98061-780-0	01	1	1506-
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (I)	8-98097-674-0	01	1	1302-
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1302-1312
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1401-1511
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1512-

1 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AUTO CRUISE<K30>, HEADLAMPSCONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1302-1404
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1405-1409
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1410-1510
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEA DLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1511-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1302-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1302-

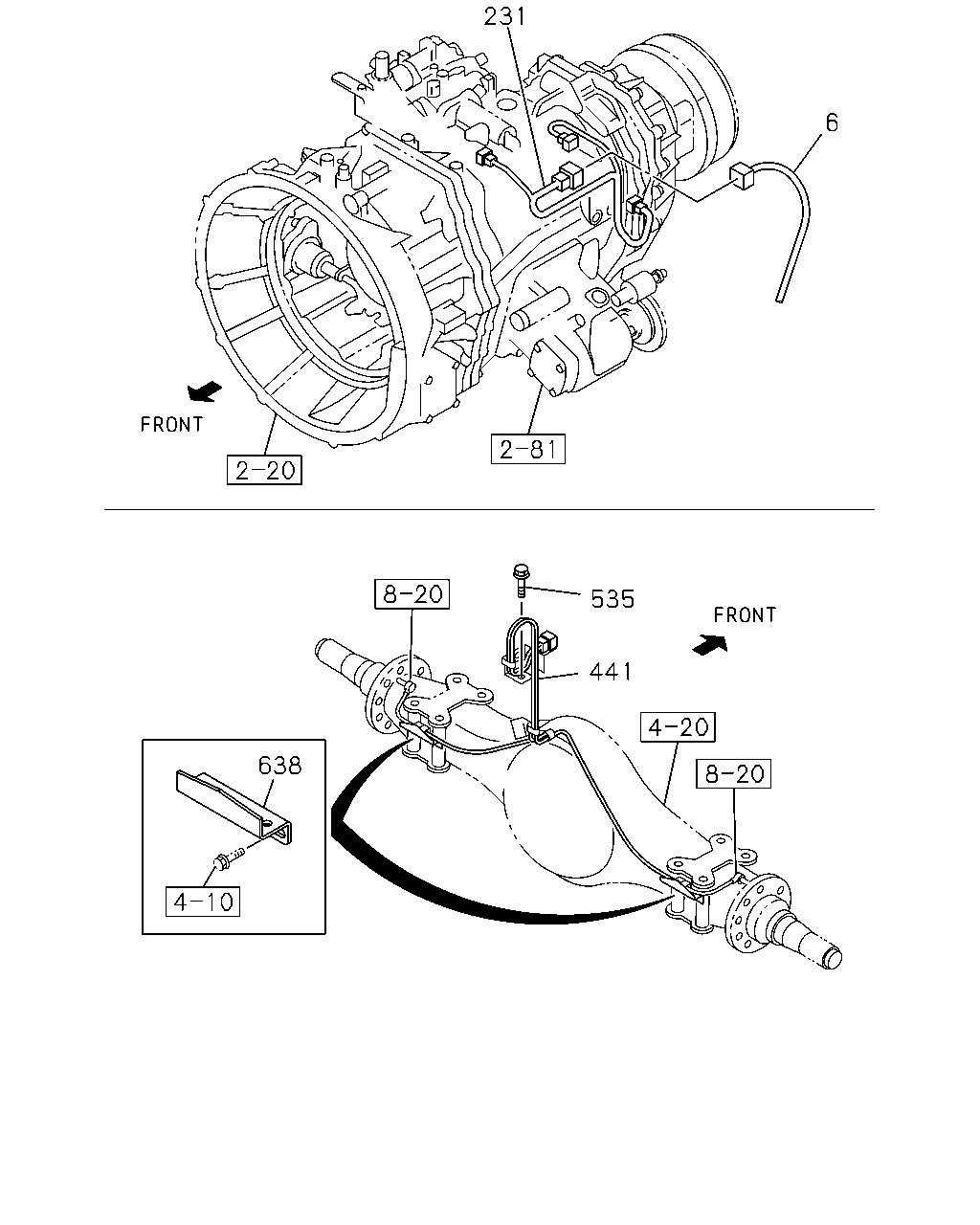

231 6 638 535 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4>	8-98250-508-2	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98330-157-0	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>	8-98330-157-0	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE(JE5)	8-98317-650-0	01	1	1506-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98291-045-1	01	1	1410-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-307-2	01	1	1302-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4>	8-98214-300-4	01	1	1302-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE<K30>	8-98214-300-4	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1302-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE(JE5)	8-98214-301-3	01	1	1302-
231	HARNESS; TRANS MZW6P M/T(RSZ)	8-97618-933-2	01	1	1302-
231	HARNESS; TRANS MZZ6W M/T(RSA)	8-98170-740-0	01	1	1302-
441	HARNESS; CABLE,SPEED SENSOR ANTI LOCK BRAKE(JE5)	8-98061-652-0	01	1	1302-
535	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) M8X10 W/LK WASHER	8-98029-928-0	02	1	1302-
638	BRACKET; SPD SENSOR ANTI LOCK BRAKE(JE5)	8-98012-580-1	02	1	1302-

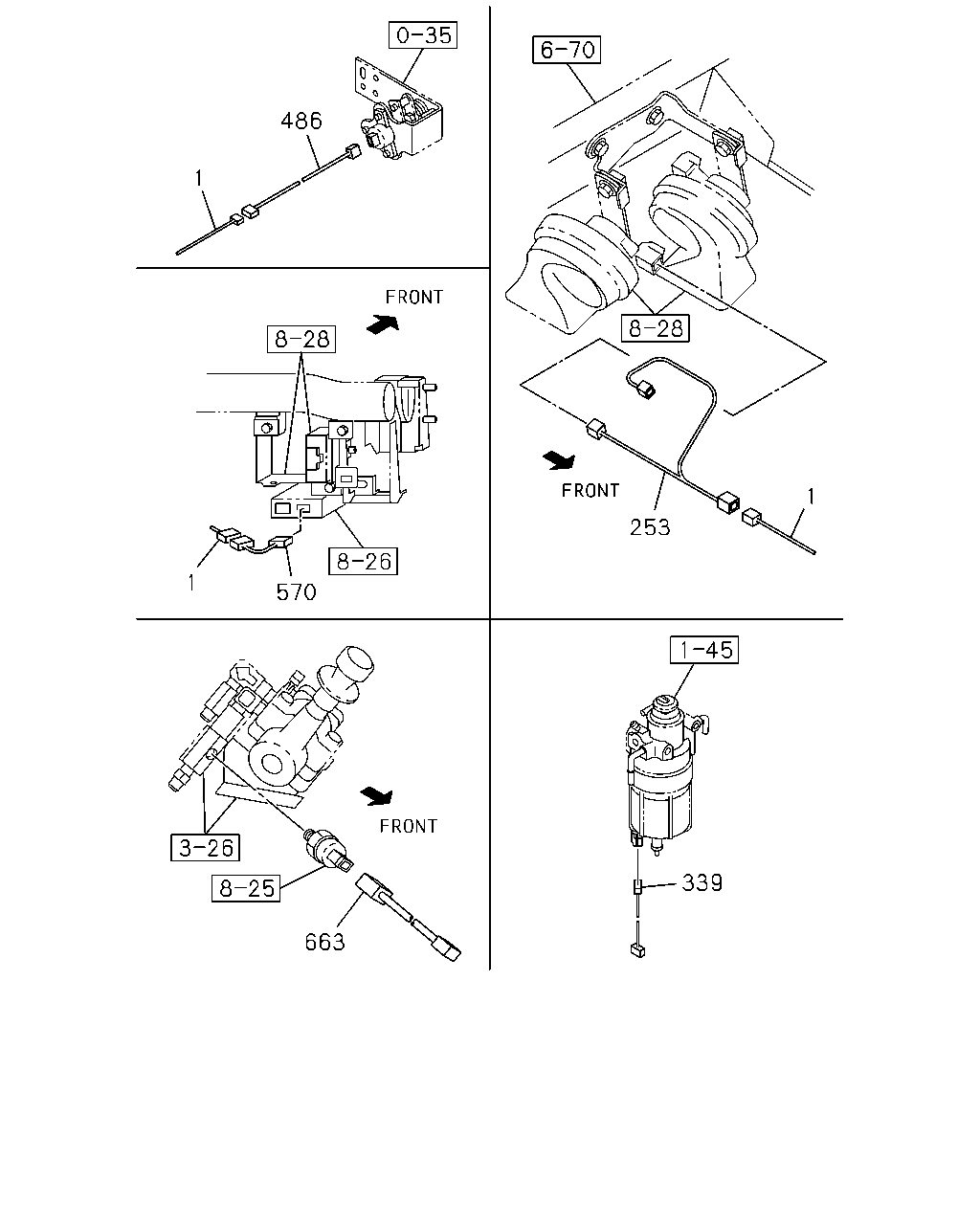

486 1 570 1 663 339 253 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) AUTO CRUISE<K30> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB AUTO CRUISE<K30> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98250-452-1	01	1	1511-
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1302-1404
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1405-1409
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98212-166-2	01	1	1410-1510
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AUTO CRUISE<K30>, HEADLAMPSCONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AUTO CRUISE<K30>	8-98212-166-2	01	1	1511-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1302-1404
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1405-1409
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1410-1510
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5),AUTO CRUISE<K30>,HEA DLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-165-1	01	1	1511-
253	HARNESS; EXT,HORN DUAL HEAVY DUTY HORN<6KK>	8-98074-080-3	01	1	1302-
253	HARNESS; EXT,HORN EXC. DUAL HEAVY DUTY HORN<6KK>	8-98159-227-2	01	1	1302-
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W)	8-98119-943-0	01	1	1302-
339	HARNESS; EXT,FUEL WHEEL BASE 4600MM(46W)	8-98214-591-0	01	1	1302-
339	HARNESS; EXT,FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98212-411-0	01	1	1302-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1302-
570	HARNESS; SPEED SENSOR SPEED LIMITER 90KM(NMJ) ALGERIA EQUIPMENT(WN1)	8-98058-327-1	01	1	1511-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	8-98126-779-2	01	1	1302-

668 668 102 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	BOLT; BRKT,HARNESS CONNECTOR EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28650-820-0	01	1	1506-
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR EURO4 SPECIFICATION<NT4> M6X12 FLANGE	0-28050-612-0	01	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	1302-
668	BRACKET; HARNESS EURO5 SPECIFICATION<NT5> (J)	8-98240-491-0	01	1	1506-
668	BRACKET; HARNESS EURO5 SPECIFICATION<NT5> (K)	8-98255-779-0	01	1	1506-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1302-1311
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (F)	8-98011-484-0	01	1	1312-1511
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98011-484-0	01	1	1512-
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS (B)	8-98111-712-1	01	1	1302-
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS EURO3 SPECIFICATION<NT3> (D)	8-98001-095-0	01	1	1302-1511
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (H)	8-98061-780-0	01	1	1302-1505
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (H)	8-98061-780-0	01	1	1506-
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (I)	8-98097-674-0	01	1	1302-
668	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1302-1312
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1401-1511
668	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C)	8-98205-089-0	01	1	1512-

6 9 9 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4>	8-98250-508-2	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98330-157-0	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>	8-98330-157-0	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE(JE5)	8-98317-650-0	01	1	1506-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98291-045-1	01	1	1410-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-307-2	01	1	1302-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4>	8-98214-300-4	01	1	1302-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE<K30>	8-98214-300-4	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1302-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE(JE5)	8-98214-301-3	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-570-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5)	8-98168-572-1	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-573-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU)	8-98171-635-1	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-575-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5)	8-98210-144-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-577-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-578-0	01	1	1302-
533	CLIP EURO5 SPECIFICATION<NT5> (B) L=350	1-09707-183-0	02	1	1506-
533	CLIP EXC. INTERMITTENT WIPER<C13> (A) L=100	5-09707-036-1	01	1	1302-

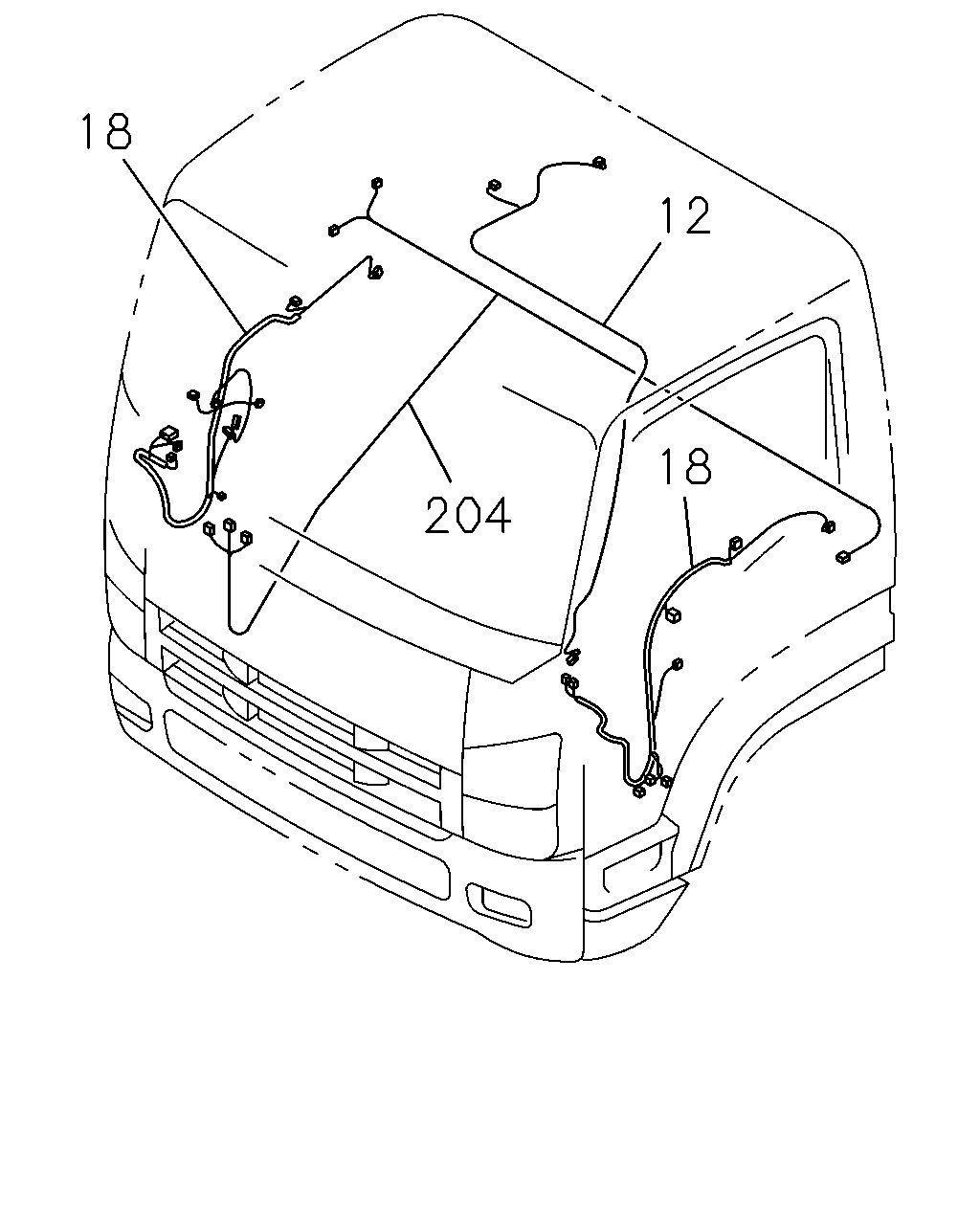

18 204 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98071-441-0	01	1	1302-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-248-1	01	1	1302-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98178-803-0	01	1	1302-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98178-804-0	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98178-801-0	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98178-802-0	01	1	1302-
204	HARNESS; CABLE,FLOOR	8-98084-217-1	01	1	1302-

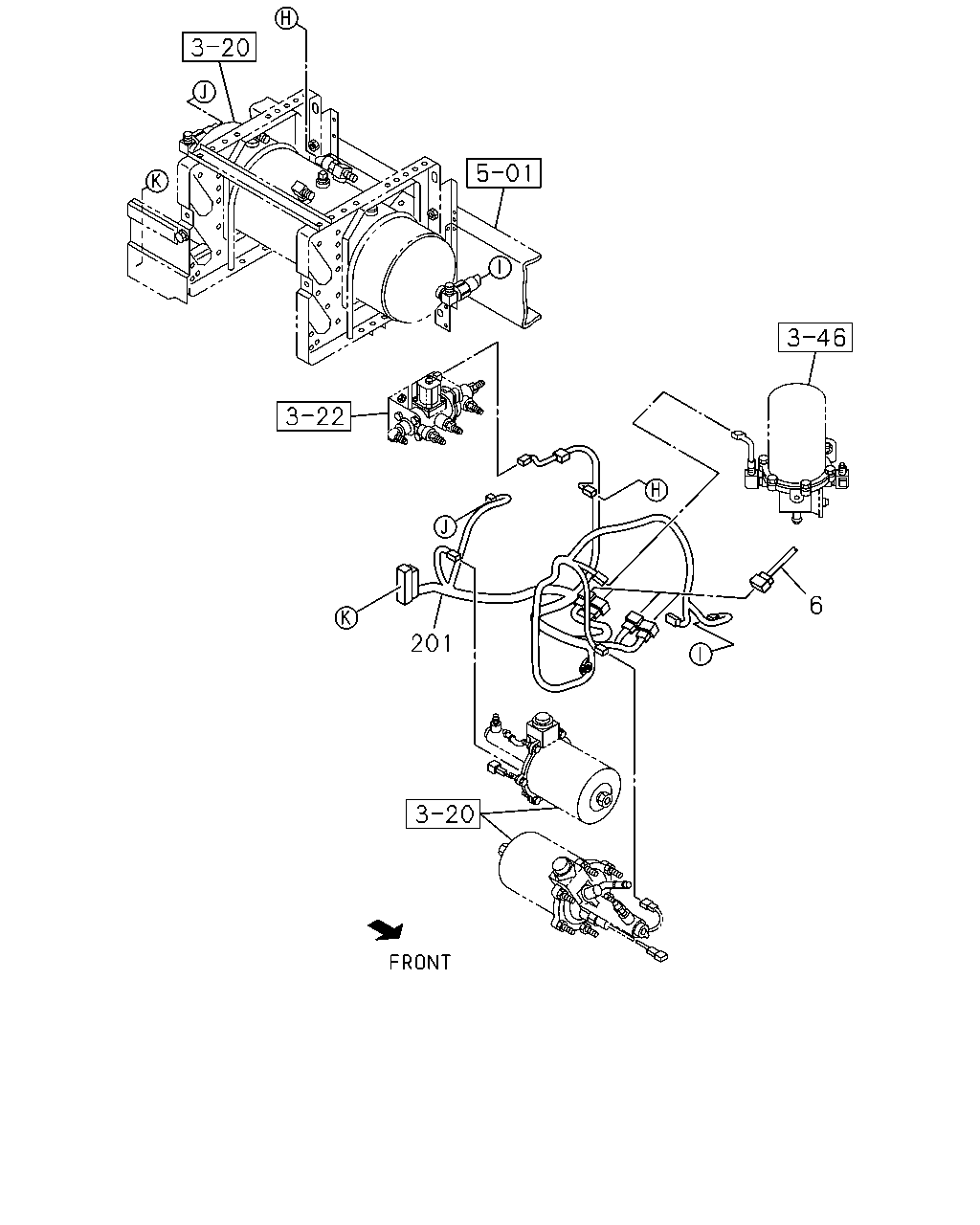

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4>	8-98250-508-2	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98330-157-0	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) AUTO CRUISE<K30> EURO2 SPECIFICATION<NT2>	8-98330-157-0	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE(JE5)	8-98317-650-0	01	1	1506-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98291-045-1	01	1	1410-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1511-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>	8-98291-045-1	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-307-2	01	1	1302-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4>	8-98214-300-4	01	1	1302-1510
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE<K30>	8-98214-300-4	01	1	1511-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1302-1511
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5)	8-98214-306-2	01	1	1512-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE(JE5)	8-98214-301-3	01	1	1302-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	8-98291-270-0	01	1	1410-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,THROTTLE CONTROL SYSTEM(6XH)	8-98208-803-1	01	1	1302-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU),THR OTTLE CONTROL SYSTEM(6XH)	8-98156-709-2	01	1	1302-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	8-98156-707-2	01	1	1302-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T> ,BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	8-98156-706-1	01	1	1302-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) ,THROTTLE CONTROL SYSTEM(6XH)	8-98156-712-1	01	1	1302-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE RE GULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	8-98212-309-0	01	1	1302-
201	HARNESS; AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	8-98212-312-0	01	1	1302-

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1302-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
