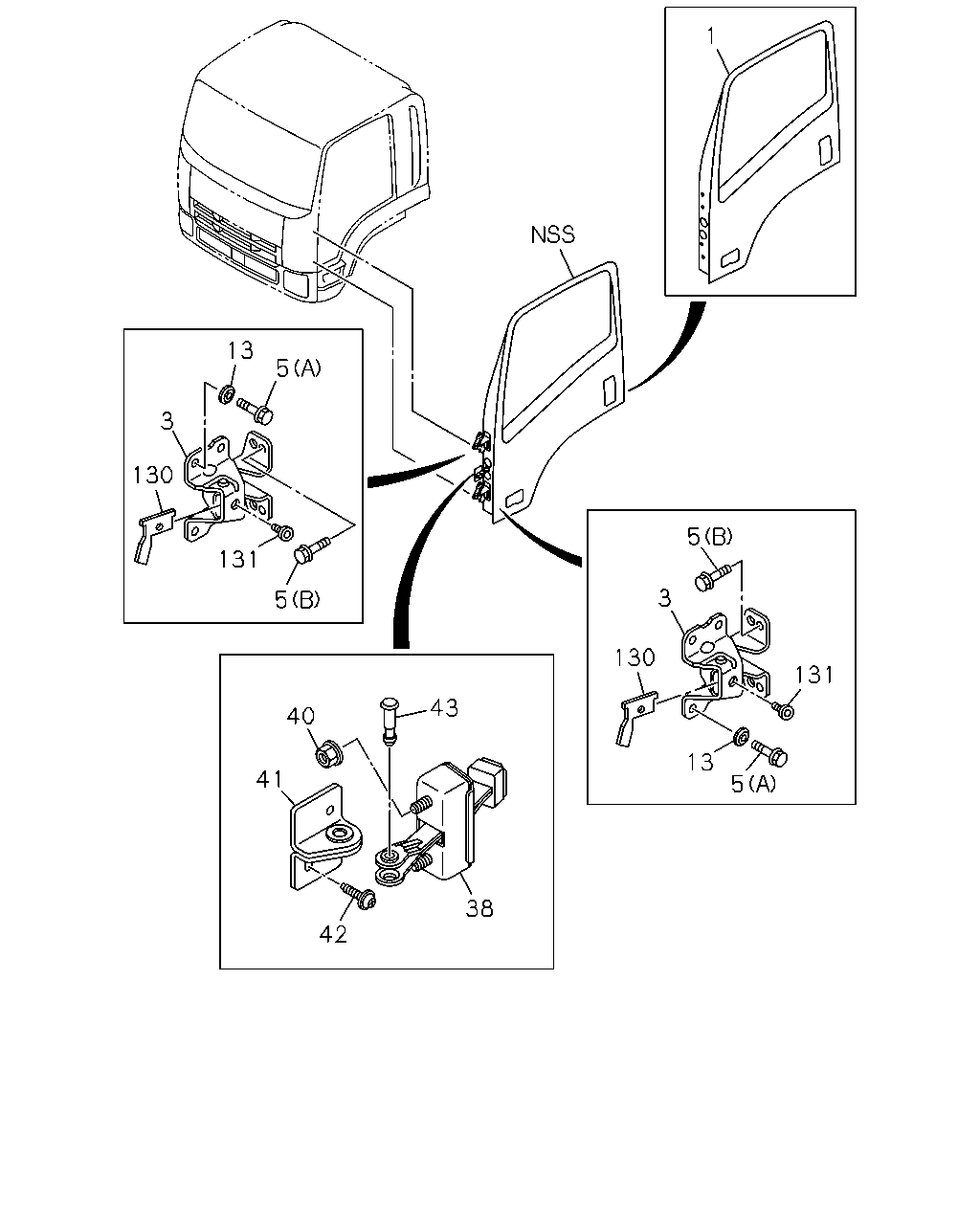

6-30 — FRONT DOOR AND HINGE (#112155) — 26 parça

5 3 130 131 13 5 1 43 40 41 42 38 5 131 130 3 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DOOR ASM; FRT,WO/TRIM MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98171-232-0	01	1	1302-1411	●	●
1	DOOR ASM; FRT,WO/TRIM MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98260-600-0	01	1	1412-	●	●
1	DOOR ASM; FRT,WO/TRIM MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98171-224-0	01	1	1302-1411	●	●
1	DOOR ASM; FRT,WO/TRIM MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98260-599-0	01	1	1412-	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98171-231-0	01	1	1302-1411	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98260-598-0	01	1	1412-	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98171-223-0	01	1	1302-1411	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98260-597-0	01	1	1412-	●	●
3	HINGE; DOOR FRT	8-98191-302-0	04	1	1302-	●	●
5	BOLT; HINGE (A) M8X20 FLANGE	8-98049-756-0	12	1	1302-	●	●
5	BOLT; HINGE KD PREPARATORY PACK VAR.4<7TV> (B) M8X20 FLANGE	8-98049-756-0	08	1	1302-	●	●
5	BOLT; HINGE EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE	8-98029-440-0	08	1	1302-	●	●
13	WASHER; HINGE EXC. KD PREPARATORY PACK VAR.4<7TV> ID=8.1 W/SEAL	8-97890-584-1	04	1	1302-	●	●
38	CHECKER ASM; DOOR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98208-189-1	02	1	1302-1508	●	●
38	CHECKER ASM; DOOR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98296-601-0	02	1	1509-	●	●
38	CHECKER ASM; DOOR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98031-730-6	02	1	1302-1508	●	●
38	CHECKER ASM; DOOR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98296-602-0	02	1	1509-	●	●
40	NUT; CHECKER KD PREPARATORY PACK VAR.4<7TV> M8 W/DISHED WASHER	8-97329-625-0	04	1	1510-	●	●
40	NUT; CHECKER M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-1508	●	●
40	NUT; CHECKER M8 W/DISHED WASHER	8-98302-918-0	04	1	1509-1509	●	●
40	NUT; CHECKER EXC. KD PREPARATORY PACK VAR.4<7TV> M8 W/DISHED WASHER	8-98302-918-0	04	1	1510-	●	●
41	BRACKET; CHECKER	8-98029-290-3	02	1	1302-	●	●
42	BOLT; BRKT M6X20 W/PL WASHER	8-98032-159-2	04	1	1302-	●	●
43	PIN	8-98037-152-2	02	1	1302-	●	●
130	STOPPER; HINGE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98038-299-1	04	1	1302-	●	●
131	BOLT; DOOR STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10X11	8-98039-593-1	04	1	1302-	●	●
