◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11507 - FRR RHD EURO2/4 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#112152) — 54 parça

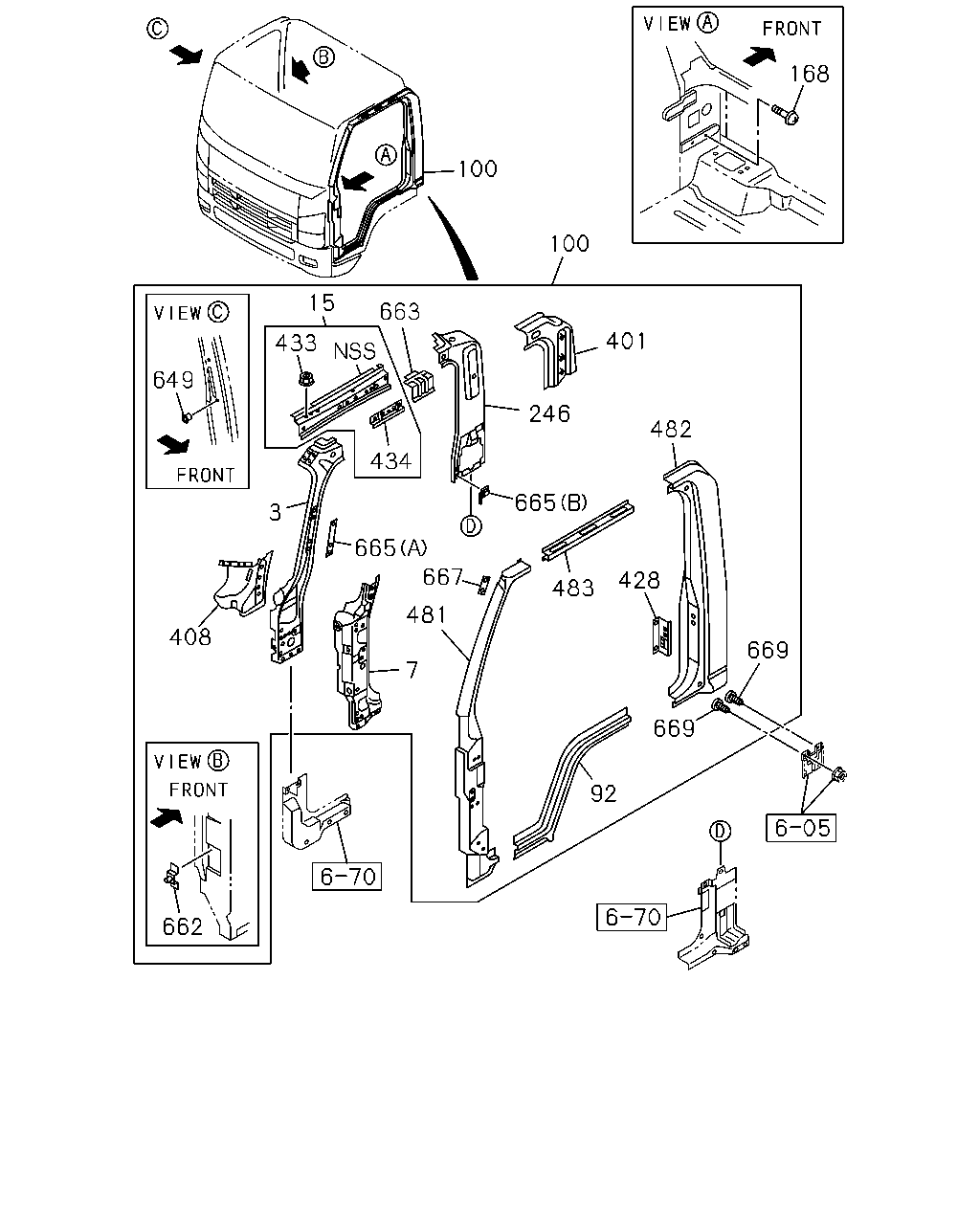

çizim 329008
92 669 669 428 483 482 66 667 481 665 7 246 401 100 100 663 433 15 649 434 3 168 408 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1302-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1302-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1302-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1302-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1302-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1302-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1302-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1302-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-046-7 01 1 1302-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-046-7 01 1 1302-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-028-6 01 1 1302-
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98044-541-5 01 1 1302-
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-040-4 01 1 1302-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1302-
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1302-
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1302-
401 PATCH; CLOSING,FRT PILLAR 8-97585-303-2 01 1 1302-
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 1302-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1302-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1302-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1302-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1302-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1302-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1302-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-453-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-453-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98055-451-0 01 1 1302-
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1302-
482 PANEL; SIDE RR PILLAR 8-98055-466-1 01 1 1302-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1302-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1302-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1302-
662 BRACKET; DUCT 8-97584-611-1 01 1 1302-
663 BRACKET; AIR 8-97585-208-2 01 1 1302-
663 BRACKET; AIR 8-97585-207-2 01 1 1302-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1302-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1302-
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1302-
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1302-
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1302-
669 STUD; FENDER
M6X18 		8-98013-113-1 02 1 1302-

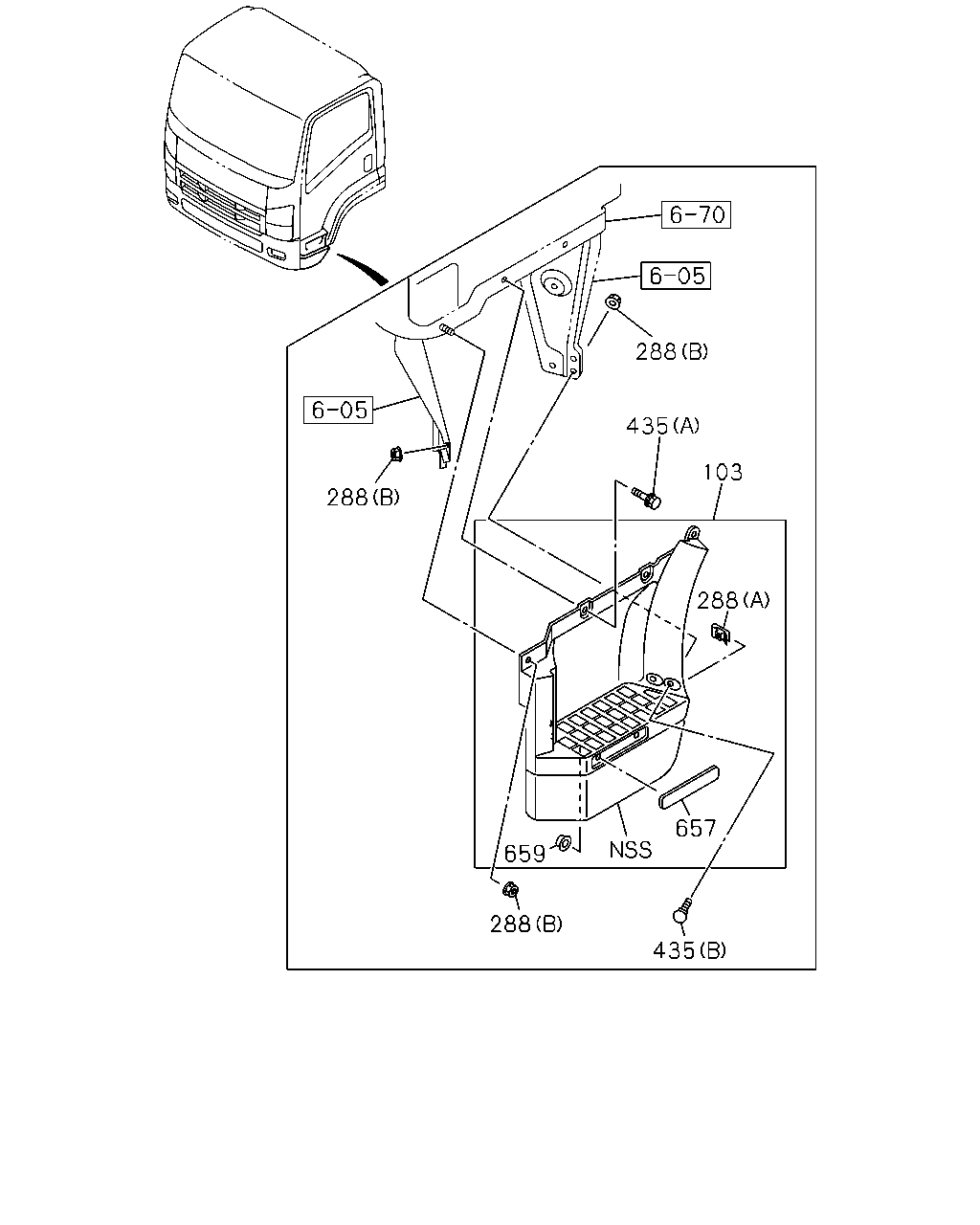

çizim 329216
288 435 288 103 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
FRONT UNDER SPOILER DELETE<SGA> 		8-98037-329-3 01 1 1302-
103 PLATE; STEP
FRONT UNDER SPOILER DELETE<SGA> 		8-98037-327-3 01 1 1302-
103 PLATE; STEP
FRONT UNDER SPOILER<VP1> 		8-98037-326-3 01 1 1302-
103 PLATE; STEP
FRONT UNDER SPOILER<VP1> 		8-98037-325-3 01 1 1302-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1302-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1302-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1302-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1302-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1302-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1302-
