3-70 — BRAKE PIPING; AIR,AIR MASTER (#112142) — 61 parça

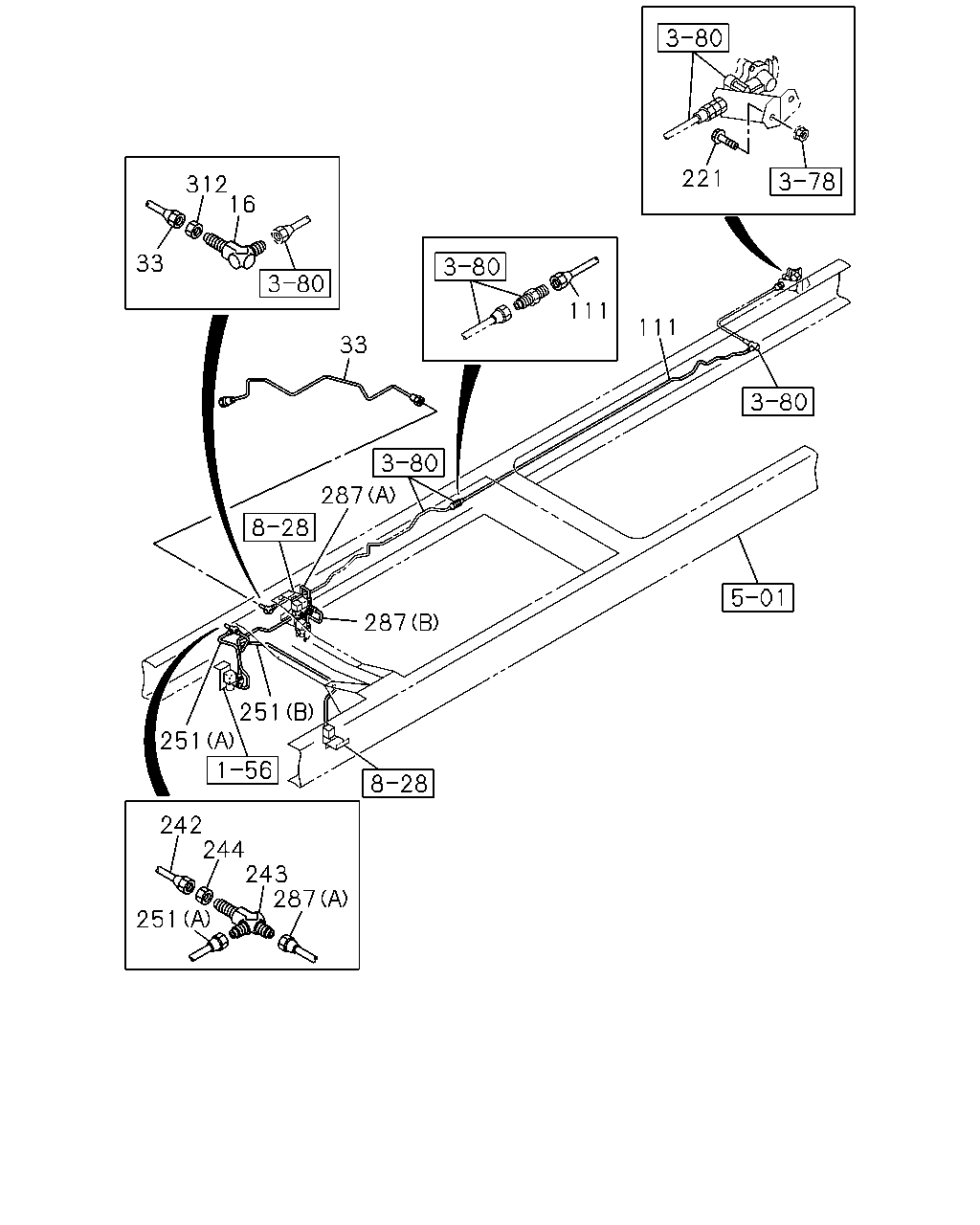

çizim 328185
312 16 33 33 221 287 287 251 251 242 244 243 251 287 111 111
BalonParca AdiParca NoAdetTipApplied Date A B
16 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW 		0-92135-210-0 01 1 1302- ●
33 PIPE; AIR,UNION TO AIR TANK
TRAILER BRAKE CONTROL<J91> L=900 SERVICED BY L=900 		1-47428-873-0 01 1 1302- ●
111 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1729 SERVICED BY L=1783 		1-47428-881-0 01 1 1302- ●
221 BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE 		0-28651-030-0 02 1 1302- ●
242 PIPE; AIR,AIR TANK TO UNION
L=645 SERVICED BY L=650 		1-47428-810-0 01 1 1302- ●
242 PIPE; AIR,AIR TANK TO UNION
L=653 SERVICED BY L=700 		1-47428-811-0 01 1 1302- ●
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 1302- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1302- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=418 		8-98217-753-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) L=1017 SERVICED BY L=1100 		1-47428-815-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> (B) L=1017 SERVICED BY L=1100 		1-47428-815-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) L=1017 SERVICED BY L=1100 		1-47428-815-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=412 		8-98217-754-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> (B) L=954 SERVICED BY L=1000 		1-47428-814-0 01 1 1302- ●
287 PIPE; AIR,MAG VLV
(C) L=1063 		8-98138-240-1 01 1 1302- ●
287 PIPE; AIR,MAG VLV
(A) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 1302- ●
287 PIPE; AIR,MAG VLV
(B) L=236 		8-98093-529-0 01 1 1302- ●
312 NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 		0-91111-516-0 01 1 1302- ●

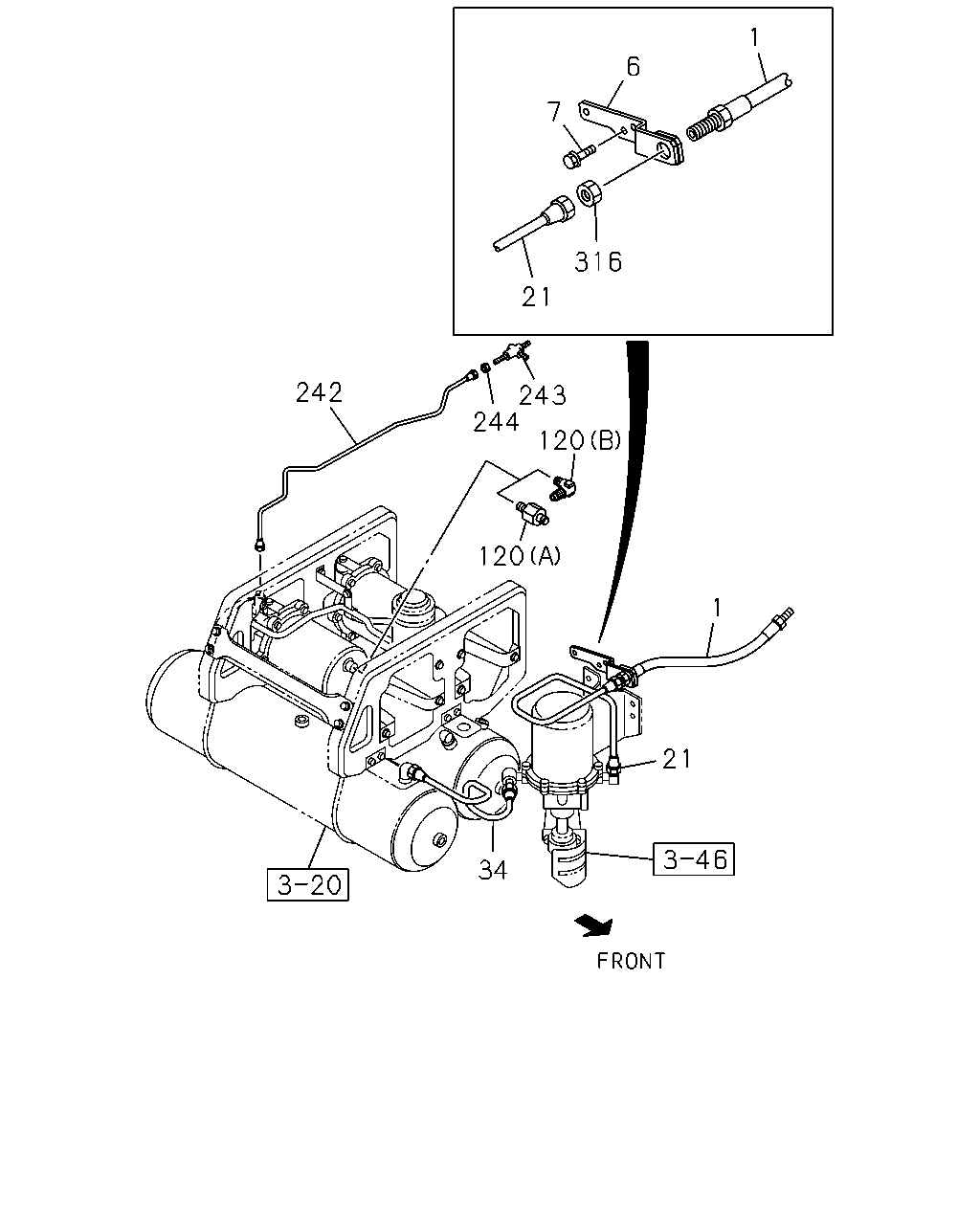

çizim 328347
6 7 316 21 243 244 242 120 120 21 34 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 1302- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98119-929-0 01 1 1302- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1302- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1302- ● ●
34 PIPE; AIR
L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1302- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1302- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302- ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=645 SERVICED BY L=650 		1-47428-810-0 01 1 1302- ●
242 PIPE; AIR,AIR TANK TO UNION
L=653 SERVICED BY L=700 		1-47428-811-0 01 1 1302- ●
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 1302- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1302- ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1302- ● ●

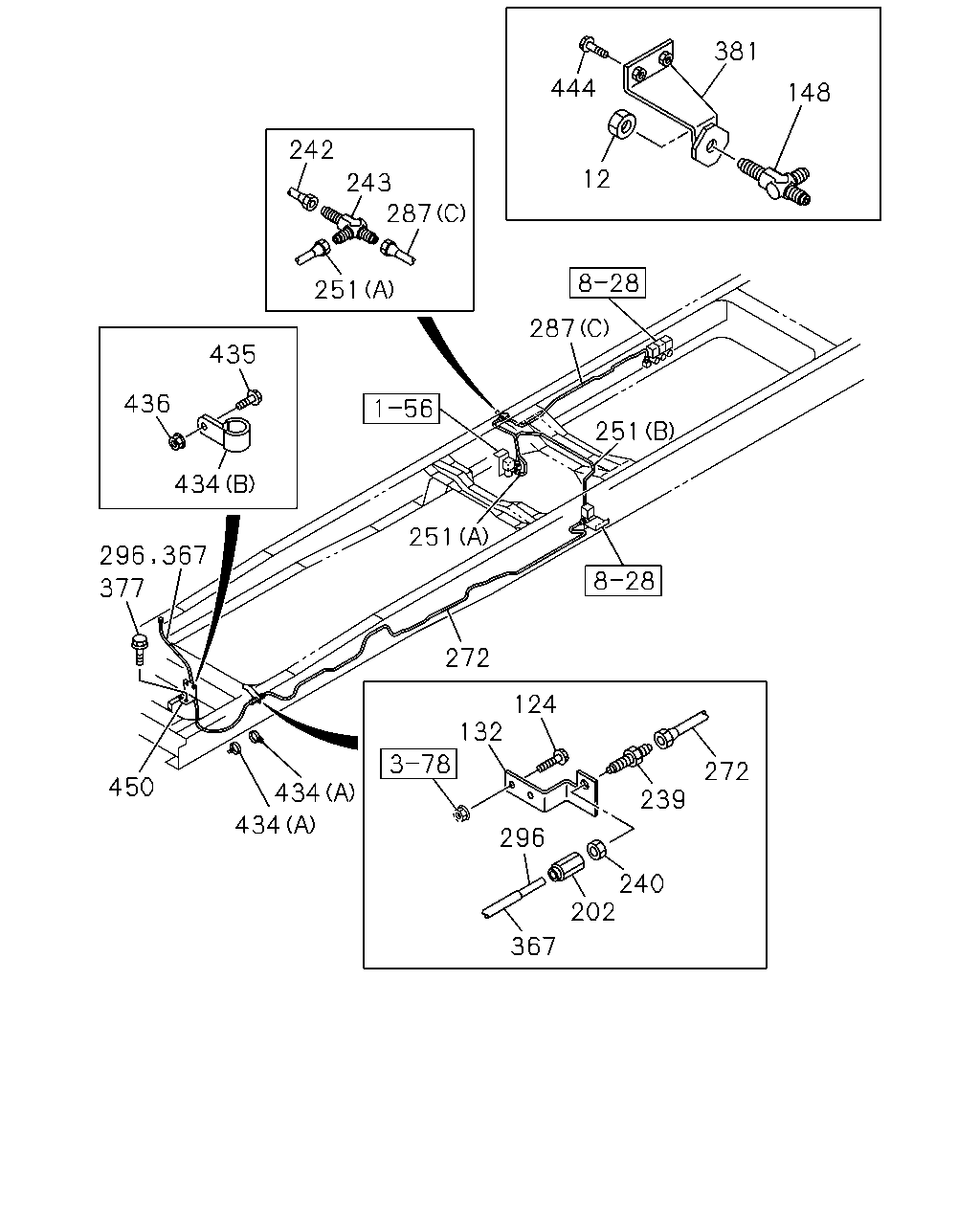

çizim 330428
242 243 287 251 435 436 434 296 367 377 450 434 434 444 381 148 12 287 251 251 272 132 124 272 239 296 240 202 367
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1302- ●
124 BOLT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M10X25 FLANGE 		0-28651-025-0 02 1 1302- ●
132 BRACKET; PIPE UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98122-875-0 01 1 1302- ●
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1302- ●
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302- ●
239 UNION; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 L=56.5 		0-92113-106-0 01 1 1302- ●
240 NUT; UNION,AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		9-09840-280-0 01 1 1302- ●
242 PIPE; AIR,AIR TANK TO UNION
L=645 SERVICED BY L=650 		1-47428-810-0 01 1 1302- ●
242 PIPE; AIR,AIR TANK TO UNION
L=653 SERVICED BY L=700 		1-47428-811-0 01 1 1302- ●
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 1302- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=418 		8-98217-753-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) L=1017 SERVICED BY L=1100 		1-47428-815-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> (B) L=1017 SERVICED BY L=1100 		1-47428-815-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) L=1017 SERVICED BY L=1100 		1-47428-815-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=412 		8-98217-754-0 01 1 1302- ●
251 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> (B) L=954 SERVICED BY L=1000 		1-47428-814-0 01 1 1302- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2407 		8-98132-312-0 01 1 1302- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2473 		8-98132-313-0 01 1 1302- ●
287 PIPE; AIR,MAG VLV
(C) L=1063 		8-98138-240-1 01 1 1302- ●
287 PIPE; AIR,MAG VLV
(A) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 1302- ●
287 PIPE; AIR,MAG VLV
(B) L=236 		8-98093-529-0 01 1 1302- ●
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1302- ●
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302- ●
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98131-569-0 01 1 1302- ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302- ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 02 1 1302- ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302- ●
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1302- ●
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98070-479-0 01 1 1302- ●
