Isuzu WW
▶
TRUCKS
▶
FSR
▶
11509 - FSR-R EU2/4EXC.SPACE
▶
5 - Frame, Cab Mounting
▶

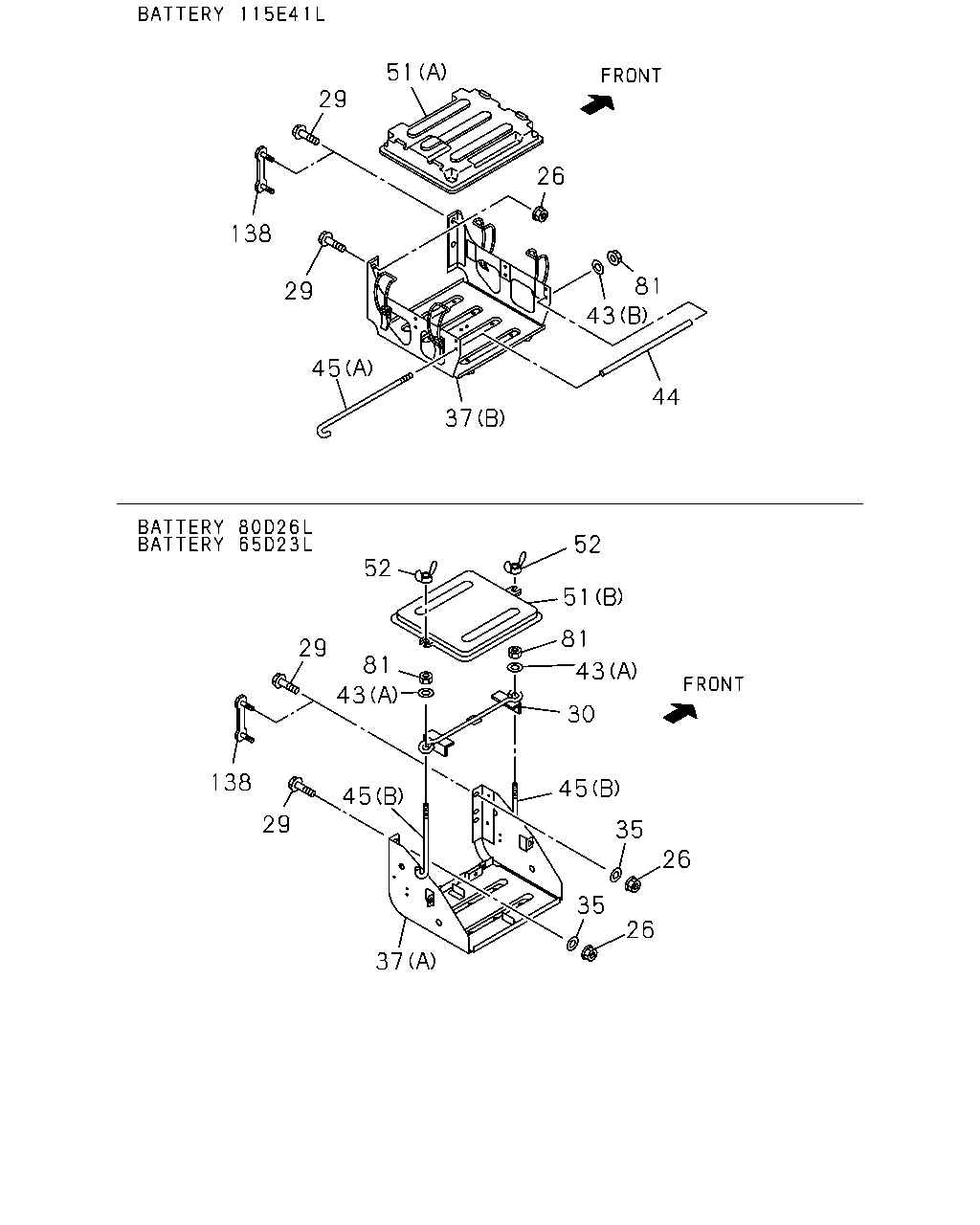

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#112141) — 22 parça
51
29
138
29
45
37
44
43
81
26
52
29
81
43
138
29
45
37
26
35
26
35
45
30
43
81
51
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1302-
29
BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE
0-28651-035-0
04
1
1302-
29
BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE
0-28651-035-0
04
1
1302-
29
BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE
0-28651-035-0
04
1
1302-
29
BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE
0-28651-035-0
02
1
1302-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1302-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1302-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1302-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1302-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1302-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1302-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1302-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A)
8-97134-740-0
02
1
1302-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
9-53616-615-0
02
1
1302-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1302-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1302-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1302-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1302-
138
STUD
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98178-497-0
01
1
1302-1311
138
STUD
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98255-710-0
01
1
1312-
