Sayfa 3-05 - Isuzu EPC

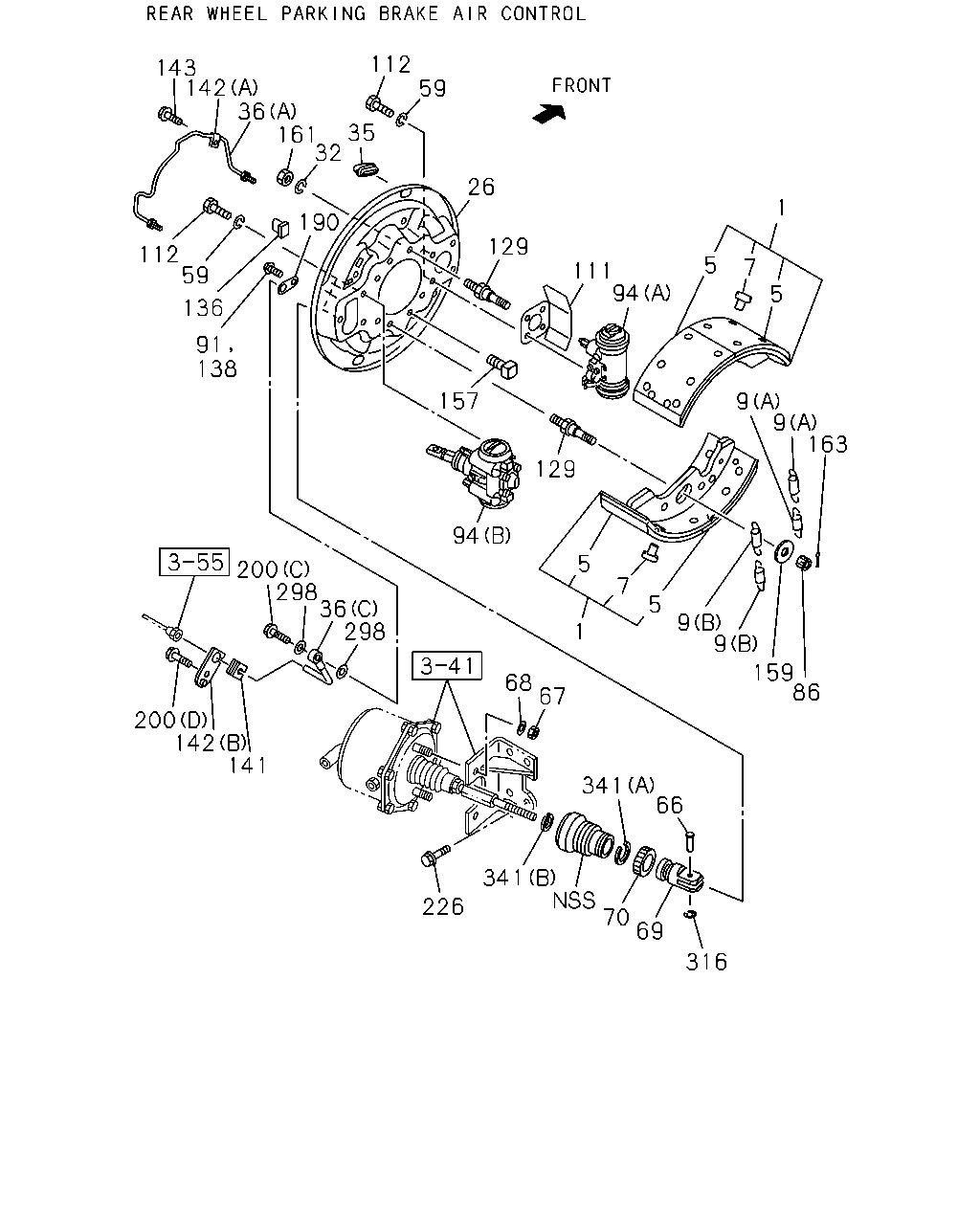

3-05 — REAR WHEEL BRAKE (#112138) — 316 parça

143 142 36 161 32 35 112 59 26 190 112 59 136 91 138 200 298 200 142 141 36 298 129 157 111 94 5 1 7 5 129 94 68 67 341 66 226 341 70 69 316 5 1 7 5 9 9 159 86 9 9 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-382-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-381-1	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	1302-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1302-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	1302-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1302-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	1302-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	1302-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	1302-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	1302-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	1302-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1302-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	1302-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	1302-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	1302-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-115-0	04	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1302-

170 102 97 96 99 101 241 94 94 112 36 95 143 161 142 35 112 32 59 129 136 59 112 59 157 111 26 94 1 5 7 5 129 163 9 94 111 5 7 5 9 159 86 1 7 5 55 5 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-382-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-381-1	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	1302-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	1302-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1302-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1302-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	1302-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1302-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	1302-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-

96 97 102 103 110 99 101 32 53 200 199 81 157 9 163 86 9 7 5 157 55 94 111 26 112 136 36 35 94 141 95 1 2 3 5 6 5 6 5 6 5 6 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	1302-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-552-1	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-804-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-382-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-381-1	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	1302-
53	BOLT; LOCK PLATE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-050-0	02	1	1302-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	1302-
81	NUT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1302-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	1302-
103	SPRING; LK,RR WHEEL CYL,ADJ BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	1302-
110	SCREW; LOCK SPRING,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94128-727-0	04	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
199	NUT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	1302-

2 5 5 5 7 5 95 95 66 341 341 316 94 241 101 99 99 101 97 246 171 175 200 241 94 102 182 183 178 287 171 200 102 200 55 175 266 267 171 200 266 268 180 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	1302-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	1302-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-071-0	10	1	1302-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-187-0	02	1	1302-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-188-0	02	1	1302-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-013-0	02	1	1302-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	1302-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	1302-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-280-0	04	1	1302-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-690-0	02	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1302-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	1302-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	1302-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	1302-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-186-0	02	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
