9-01 — TOOLS (#112127) — 67 parça
çizim 330493
125 126 127 129 143 144 151 153 154 156 157 158 159 163
BalonParca AdiParca NoAdetTipApplied Date A B
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1302- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1302- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1302- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1302- ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1302- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 1302- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16 		1-85237-002-0 01 1 1302- ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1302- ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1302- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1302- ● ●
156 PULLER; ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85210-025-0 01 1 1302- ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1302- ●
157 REPLACER KIT; RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		9-85231-554-0 01 1 1302- ●
158 SETTING TOOL; RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		9-85221-231-0 01 1 1302- ●
159 REMOVER; RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=12.5 		9-85231-555-0 01 1 1302- ●
159 REMOVER; RETURN SPR
(A) 		1-85237-023-0 01 1 1302- ●
163 TOOL; SETTING
MZW6P M/T(RSZ) L=195 		1-85221-162-1 01 1 1302- ●
163 TOOL; SETTING
MZW6P M/T(RSZ) L=150 		1-85221-163-0 01 1 1302- ●
163 TOOL; SETTING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-85221-231-0 01 1 1302- ●
163 TOOL; SETTING 9-85221-231-0 01 1 1302- ●
çizim 330533
1 9 23 22 21 20 17 13 29 29 29 115 237 230
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1302- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1302- ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.00TX20 162-12(Q54) B=41X21 L=440 		1-85113-015-1 01 1 1302-1601 ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.00TX20 162-12(Q54) B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		1-85111-033-1 01 1 1302-1601 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		8-98316-700-0 01 1 1602- ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		1-85111-033-1 01 1 1506-1601 ● ●
13 WRENCH; MONKEY
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=247 		1-85117-006-0 01 1 1302-1407 ● ●
13 WRENCH; MONKEY
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=255 		8-98270-303-0 01 1 1408- ● ●
17 HAMMER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		9-85121-406-0 01 1 1302- ● ●
20 WRENCH; 10X12
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 10X12 		0-95902-510-0 01 1 1302- ● ●
21 WRENCH; 14X17
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 14X17 		0-95902-514-0 01 1 1302- ● ●
22 WRENCH; 19X22
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 19X22 		0-95902-519-0 01 1 1302- ● ●
23 WRENCH; 24X27
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 24X27 		0-95902-524-0 01 1 1302- ● ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (C) <+>,<-> L=160 		8-94242-798-1 01 1 1302- ● ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) <-> L=275 		8-98061-105-0 01 1 1302- ● ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) <+> L=190 		9-09595-522-0 01 1 1302- ● ●
115 PLIER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		5-85171-002-0 01 1 1302-1410 ● ●
115 PLIER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		8-98282-845-0 01 1 1411- ● ●
230 PUMP; GREASE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		1-85556-007-5 01 1 1302- ● ●
237 BAG; TOOL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		8-97130-902-1 01 1 1302- ● ●

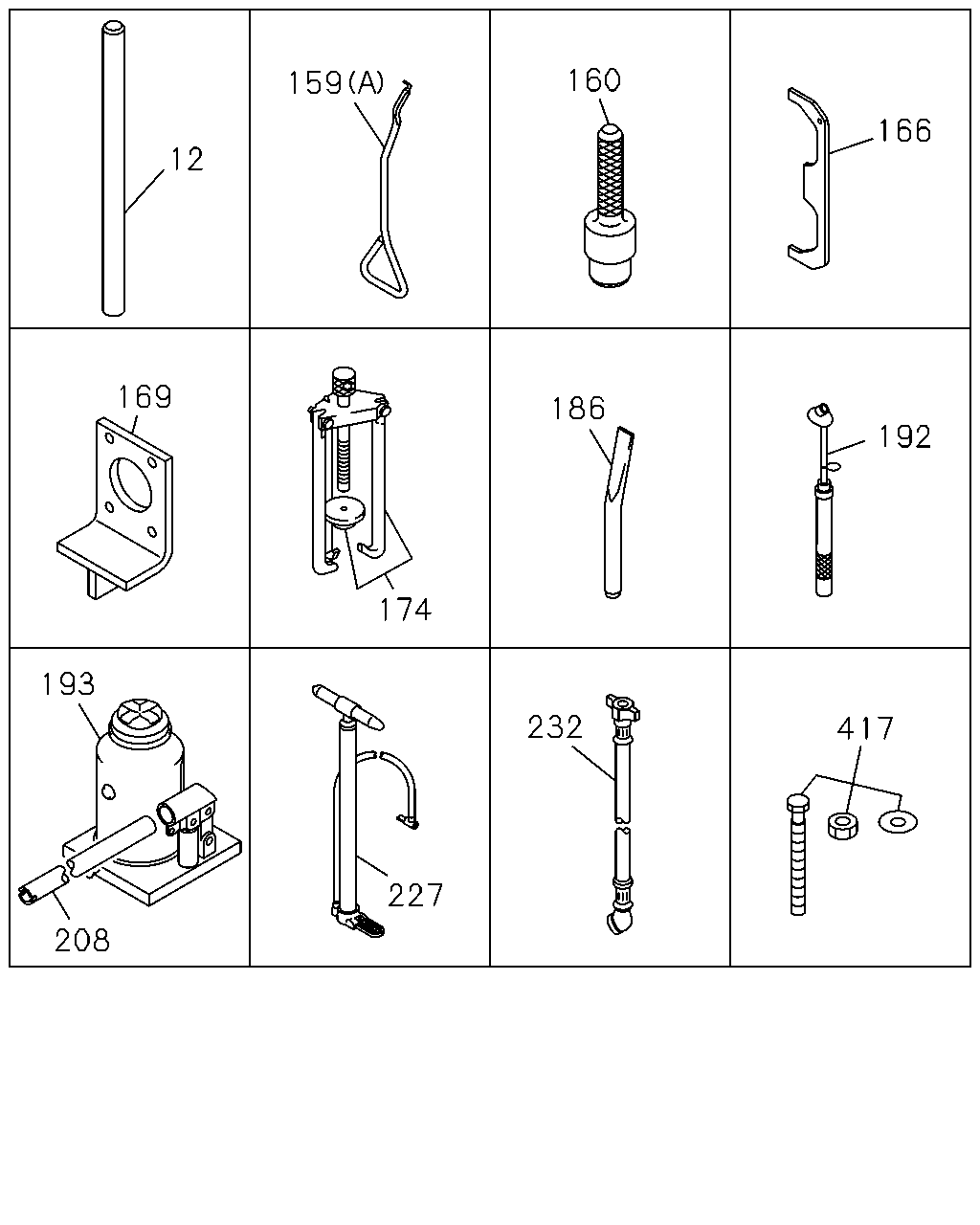

çizim 330587
12 159 160 166 192 186 174 169 193 208 227 232 417
BalonParca AdiParca NoAdetTipApplied Date A B
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OD=25 L=480 		1-85116-011-0 01 1 1302-1501 ● ●
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
159 REMOVER; RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=12.5 		9-85231-555-0 01 1 1302- ●
159 REMOVER; RETURN SPR
(A) 		1-85237-023-0 01 1 1302- ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1302- ● ●
166 ALIGNER; CLU RELEASE LEVER
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) 		1-85253-026-0 01 1 1305- ●
169 BRACKET; SPLINE YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-85221-317-0 01 1 1302- ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 1302- ●
186 ADJUSTER; BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85269-008-0 01 1 1302- ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1302- ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1302- ● ●
193 JACK ASM
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 10STUD 7.00TX20(Q58), DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 10TON 		8-97607-599-0 01 1 1302- ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1302- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1302- ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 1302- ● ●
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 2-SETS 		1-85576-329-1 01 1 1302- ●
çizim 330607
274 271 209 268 285 281 311 284 283 282
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1302- ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1302- ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1302- ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1302- ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1302- ●
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1302- ●
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 1302- ●
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 1302- ●
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1302- ●
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1302- ●
