◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#112126) — 202 parça

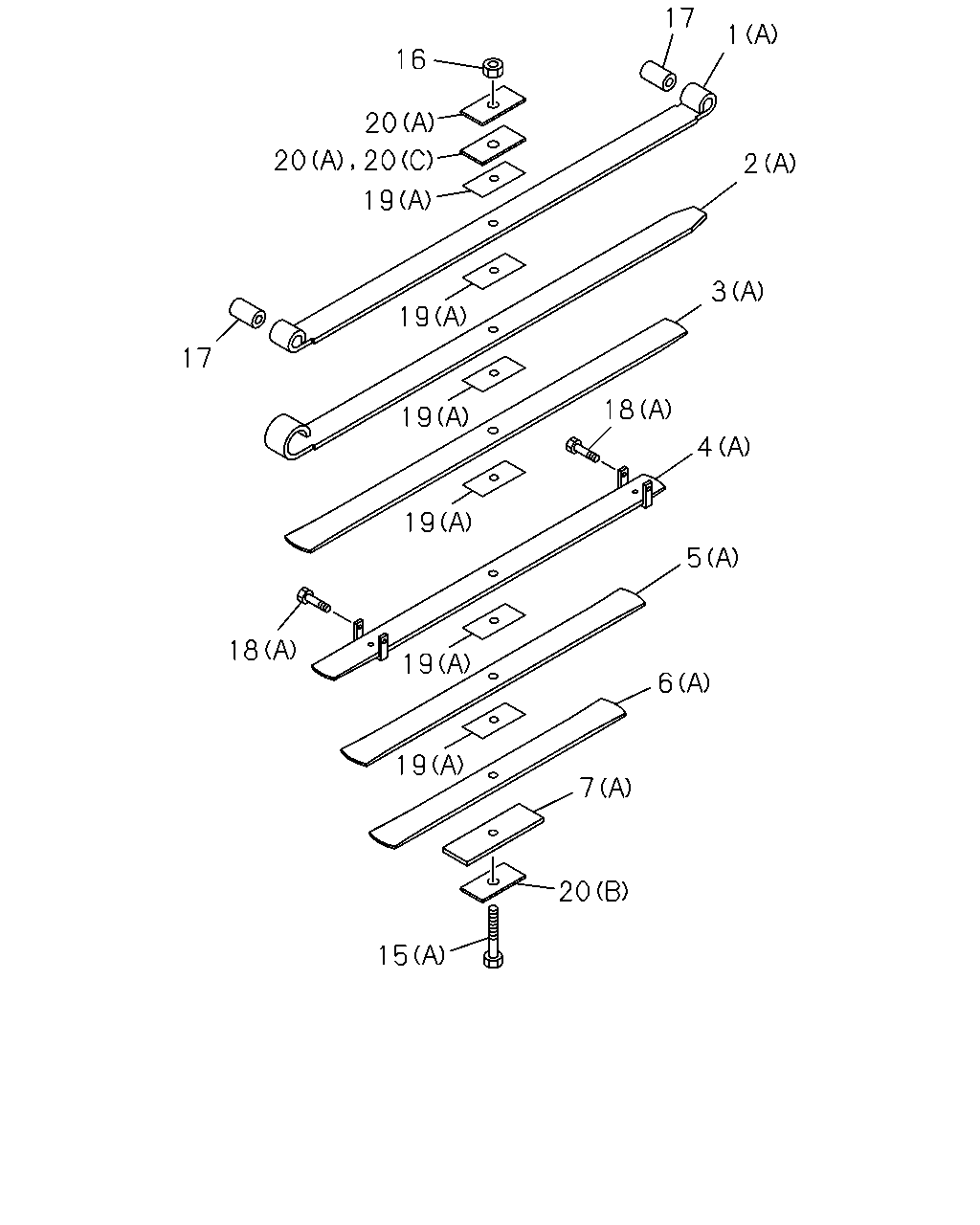

çizim 328590
16 17 2 1 20 20 20 19 17 19 19 18 3 4 19 18 19 7 19 15 20 5 6
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-820-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-827-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-686-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-548-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-867-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-821-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-828-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-687-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-549-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-868-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-829-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-688-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-550-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-869-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-823-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-830-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-551-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-870-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-831-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-552-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-871-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-832-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-553-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-872-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-826-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-833-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-554-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-873-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: B = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: D = 8-98167-308-0, E = 8-98228-700-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: A = 8-98010-512-0, F = 8-98268-436-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: C = 8-98069-483-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, D = 8-98167-308-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: D = 8-98167-308-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: D = 8-98167-308-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: C = 8-98069-483-0, D = 8-98167-308-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98138-617-0 02 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, D = 8-98167-308-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: C = 8-98069-483-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98229-246-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: D = 8-98167-308-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-114-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: C = 8-98069-483-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(F), T=6 ASM PART: F = 8-98268-436-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=14 ASM PART: C = 8-98069-483-0 		1-51177-127-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=8 ASM PART: B = 8-98029-096-0 		1-51177-178-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=16 ASM PART: A = 8-98010-512-0 		8-98032-510-0 02 1 -

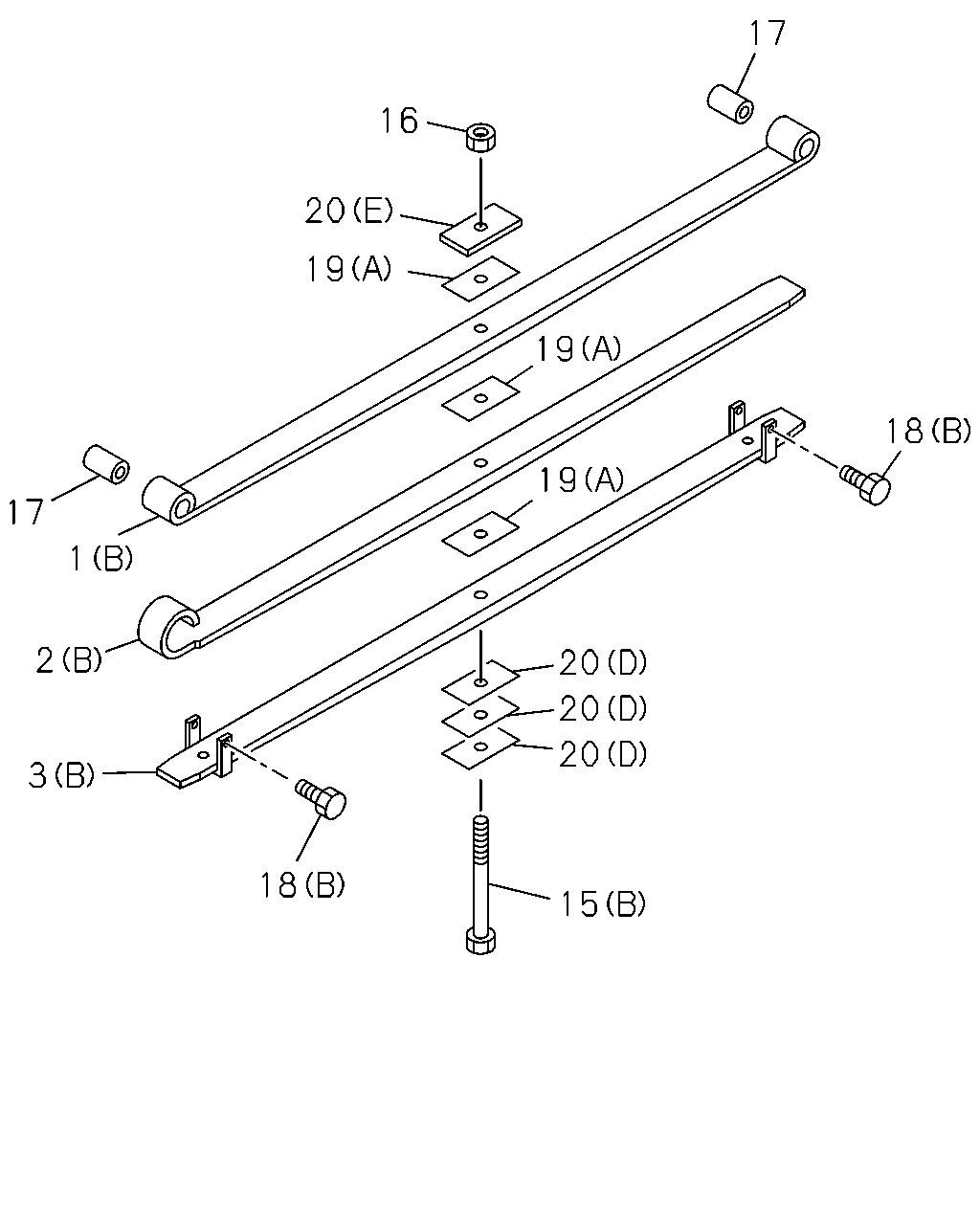

çizim 328864
16 17 20 19 19 17 2 3 18 20 20 20 15 18 19 1
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-820-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-827-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-686-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-548-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-867-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-821-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-828-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-687-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-549-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-868-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-829-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-688-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-550-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-869-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: B = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: D = 8-98167-308-0, E = 8-98228-700-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: A = 8-98010-512-0, F = 8-98268-436-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: C = 8-98069-483-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, D = 8-98167-308-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: D = 8-98167-308-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: D = 8-98167-308-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: C = 8-98069-483-0, D = 8-98167-308-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98138-617-0 02 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, D = 8-98167-308-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: C = 8-98069-483-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98229-246-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: D = 8-98167-308-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-114-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: C = 8-98069-483-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(F), T=6 ASM PART: F = 8-98268-436-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=14 ASM PART: C = 8-98069-483-0 		1-51177-127-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=8 ASM PART: B = 8-98029-096-0 		1-51177-178-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=16 ASM PART: A = 8-98010-512-0 		8-98032-510-0 02 1 -

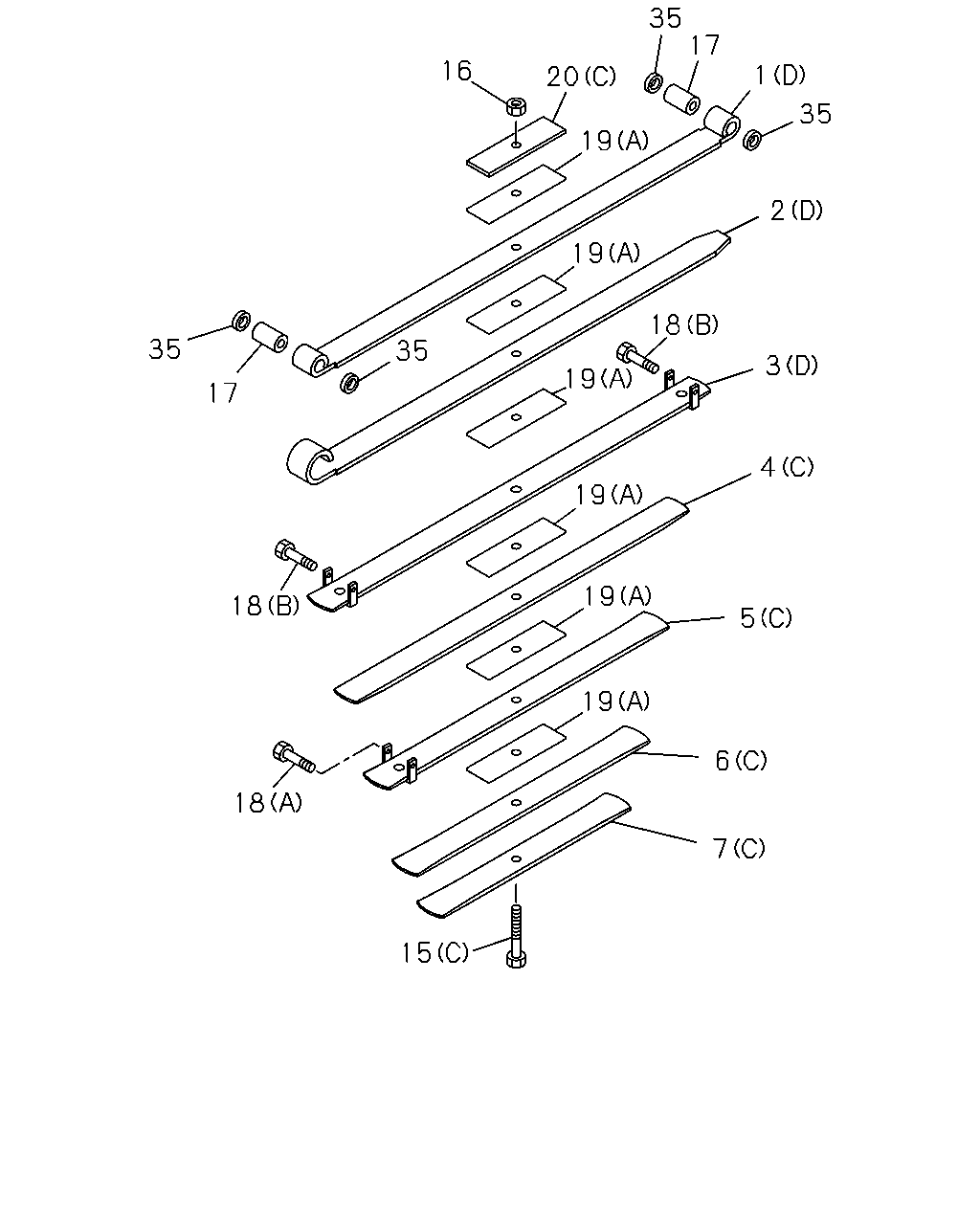

çizim 351117
16 20 35 17 1 35 2 19 19 18 3 19 35 35 17 19 4 5 19 19 6 7 18 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-820-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-827-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-686-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-548-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-867-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-821-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-828-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-687-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-549-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-868-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-829-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-688-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-550-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-869-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-823-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-830-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-551-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-870-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-831-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-552-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-871-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-832-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-553-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-872-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-826-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-833-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-554-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-873-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: B = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: D = 8-98167-308-0, E = 8-98228-700-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: A = 8-98010-512-0, F = 8-98268-436-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: C = 8-98069-483-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, D = 8-98167-308-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: D = 8-98167-308-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: D = 8-98167-308-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: C = 8-98069-483-0, D = 8-98167-308-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98138-617-0 02 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, D = 8-98167-308-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: C = 8-98069-483-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98229-246-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: D = 8-98167-308-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-114-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: C = 8-98069-483-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(F), T=6 ASM PART: F = 8-98268-436-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=14 ASM PART: C = 8-98069-483-0 		1-51177-127-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=8 ASM PART: B = 8-98029-096-0 		1-51177-178-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=16 ASM PART: A = 8-98010-512-0 		8-98032-510-0 02 1 -
35 SEAL; DUST
ASM PART: D = 8-98167-308-0 		1-51177-321-0 04 1 -

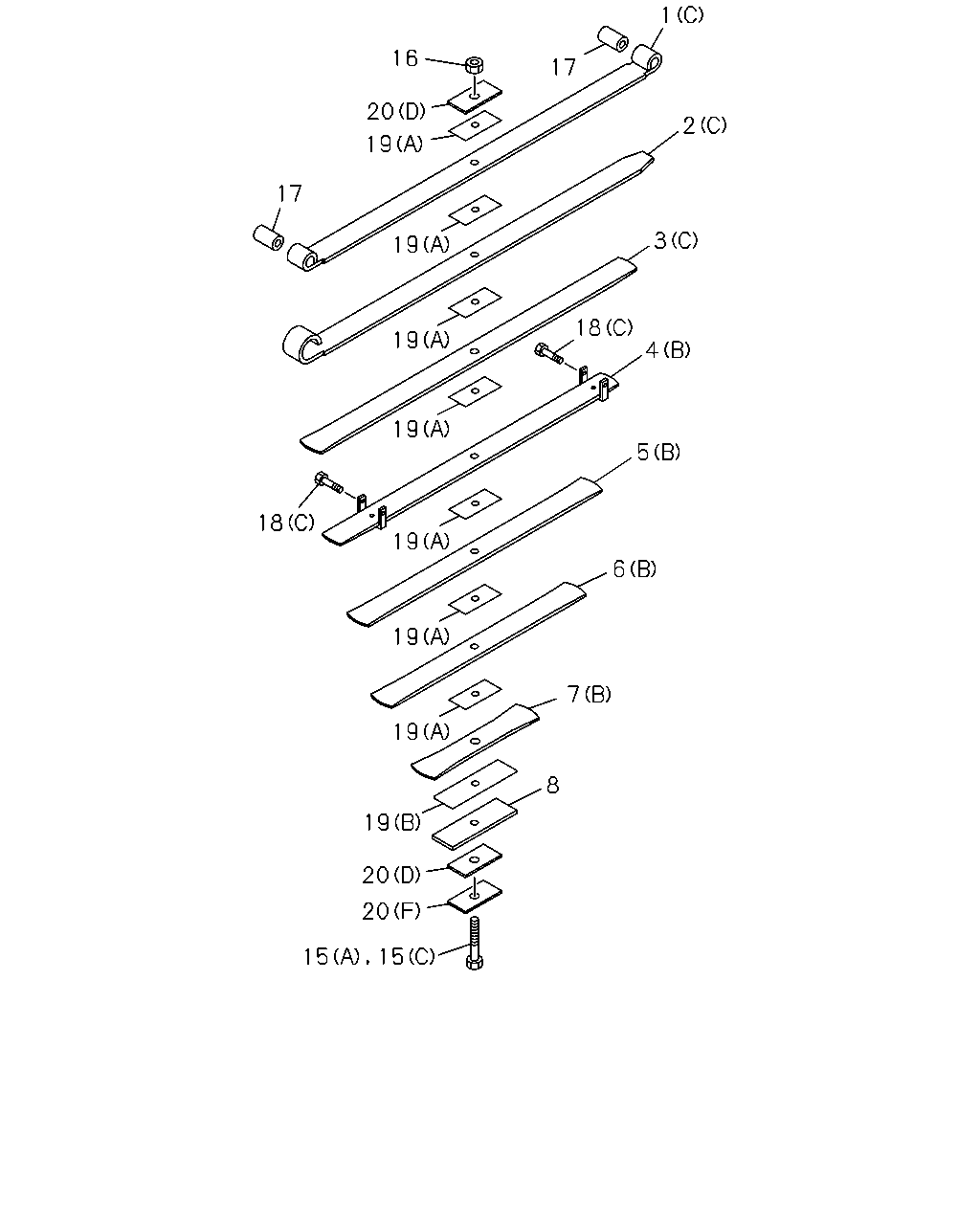

çizim 488378
16 17 1 2 3 20 19 17 19 19 18 4 19 18 19 6 19 7 8 19 19 20 20 15 15 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-820-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-827-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-686-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-548-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-867-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-821-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-828-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-687-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-549-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-868-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-829-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98069-483-0 		8-98073-688-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98167-308-0 		8-98167-550-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-869-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-823-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-830-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-551-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-870-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-831-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-552-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-871-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-832-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-553-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-872-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98010-512-0 		8-98031-826-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: B = 8-98029-096-0 		8-98031-833-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: D = 8-98167-308-0 		8-98167-554-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-873-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98207-874-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: B = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: D = 8-98167-308-0, E = 8-98228-700-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: A = 8-98010-512-0, F = 8-98268-436-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: C = 8-98069-483-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, D = 8-98167-308-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98069-483-0, E = 8-98228-700-0, F = 8-98268-436-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: D = 8-98167-308-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: D = 8-98167-308-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: C = 8-98069-483-0, D = 8-98167-308-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98138-617-0 02 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, D = 8-98167-308-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: C = 8-98069-483-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		8-98229-246-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: D = 8-98167-308-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: E = 8-98228-700-0, F = 8-98268-436-0 		1-51177-114-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: C = 8-98069-483-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(F), T=6 ASM PART: F = 8-98268-436-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=14 ASM PART: C = 8-98069-483-0 		1-51177-127-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=8 ASM PART: B = 8-98029-096-0 		1-51177-178-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=16 ASM PART: A = 8-98010-512-0 		8-98032-510-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
