4-50 — FRONT SUSPENSION (#112125) — 155 parça

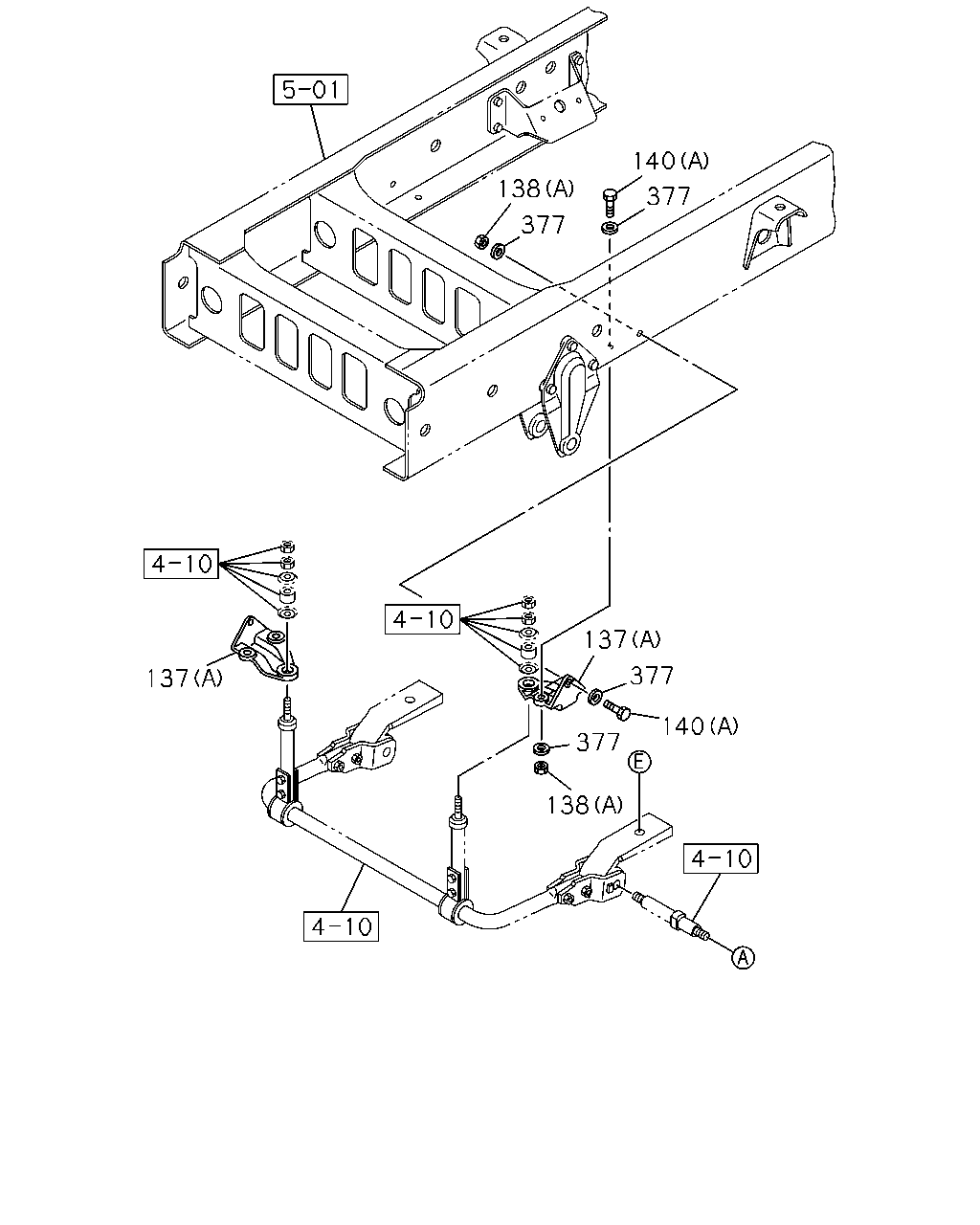

çizim 328611
138 377 140 377 137 138 377 377 140 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) 		1-51781-046-3 02 1 1305- ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1302-1505 ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L) (A) 		8-98128-356-1 02 1 1302-1505 ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1506- ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L) (A) 		8-98128-356-1 02 1 1506- ●
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10 FLANGE 		0-91180-210-0 08 1 1305- ●
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1302-1505 ●
138 NUT; BRKT
6HK1-TCS ENG(80L) (A) M14 		0-91110-514-0 06 1 1302-1505 ●
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1506- ●
138 NUT; BRKT
6HK1-TCS ENG(80L) (A) M14 		0-91110-514-0 06 1 1506- ●
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10X30 FLANGE 		0-28651-030-0 08 1 1305- ●
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1302-1505 ●
140 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M14X45 		9-92061-445-0 06 1 1302-1505 ●
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1506- ●
140 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M14X45 		9-92061-445-0 06 1 1506- ●
377 WASHER; LK,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1302-1505 ●
377 WASHER; LK,BRKT
6HK1-TCS ENG(80L) ID=15 		8-98010-627-1 12 1 1302-1505 ●
377 WASHER; LK,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1506- ●
377 WASHER; LK,BRKT
6HK1-TCS ENG(80L) ID=15 		8-98010-627-1 12 1 1506- ●

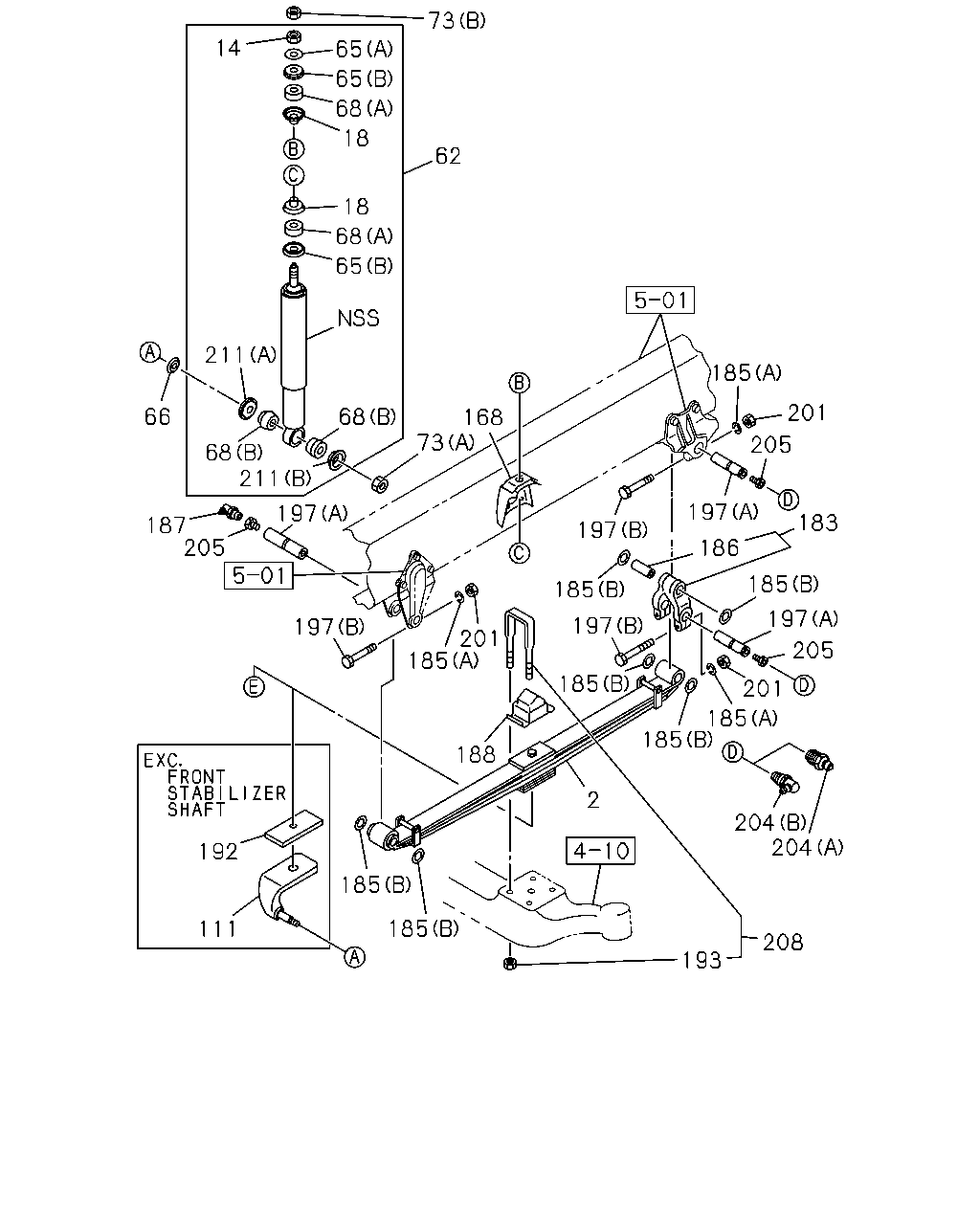

çizim 331972
73 62 65 65 68 18 14 18 68 65 66 211 68 211 187 205 197 197 185 188 2 185 185 197 185 197 197 186 185 197 205 201 185 204 204 185 192 111 201 205 201 183 185 68 73 168 185 193 208
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98167-308-0 02 1 1406-1505 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98167-308-0 02 1 1506- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 02 1 1402-1405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 02 1 1406- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 02 1 1305-1401 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 01 1 1402-1405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 01 1 1406- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98268-436-0 01 1 1402- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 1302-1405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L) 7-LEAF 		8-98010-512-0 02 1 1302-1405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 1406-1505 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L) 7-LEAF 		8-98010-512-0 02 1 1406-1505 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 1506- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L) 7-LEAF 		8-98010-512-0 02 1 1506- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1302-1405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1302-1405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) 7-LEAF 		8-98029-096-0 02 1 1406-1505 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1406-1505 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) 7-LEAF 		8-98029-096-0 02 1 1506- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1506- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 3-LEAF 		8-98069-483-0 02 1 1302-1405 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) 3-LEAF 		8-98069-483-0 02 1 1406-1505 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) 3-LEAF 		8-98069-483-0 02 1 1506- ●
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ> M14 		9-99111-414-0 02 1 1302-1405 ●
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		9-99111-414-0 02 1 1302-1405 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1302-1405 ●
14 NUT; S/ABS,UPR
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		9-99111-414-0 02 1 1406- ●
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) M14 		9-99111-414-0 02 1 1406- ●
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) M14 		9-99111-414-0 02 1 1406- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1406- ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=24 		1-51631-067-0 04 1 1302-1405 ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) ID=24 		1-51631-067-0 04 1 1406- ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> ID=20.8 		9-51631-041-0 04 1 1302-1405 ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 1302-1405 ●
18 WASHER; CENTERING,S/ABS
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=20.8 		9-51631-041-0 04 1 1406- ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) ID=20.8 		9-51631-041-0 04 1 1406- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 1406- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98029-369-0 02 1 1302-1405 ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) 		8-98029-369-0 02 1 1406- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> 		8-98029-372-0 02 1 1302-1405 ●
62 ABSORBER ASM; SHOCK,FRT 8-98029-372-0 02 1 1302-1405 ●
62 ABSORBER ASM; SHOCK,FRT
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98029-372-0 02 1 1406- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) 		8-98029-372-0 02 1 1406- ●
62 ABSORBER ASM; SHOCK,FRT 8-98029-372-0 02 1 1406- ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 1302-1405 ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA),FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 1406- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 1302-1405 ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 1406- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 1302-1405 ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA),FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 1406- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=16.5 		1-09503-266-0 02 1 1302-1405 ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (A) ID=16.5 		1-09503-266-0 02 1 1406- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=16.5 		1-51631-068-0 04 1 1302-1405 ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (B) ID=16.5 		1-51631-068-0 04 1 1406- ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=16.5 		9-51631-040-0 04 1 1302-1405 ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 1302-1405 ●
65 WASHER; S/ABS
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=16.5 		9-51631-040-0 04 1 1406- ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) (B) ID=16.5 		9-51631-040-0 04 1 1406- ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 1406- ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1302- ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=16 T=25 		1-51631-069-0 04 1 1302-1405 ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (A) ID=16 T=25 		1-51631-069-0 04 1 1406- ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) 		9-51631-026-0 04 1 1302-1405 ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		9-51631-026-0 04 1 1302-1405 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1302-1405 ●
68 BUSHING; S/ABS
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		9-51631-026-0 04 1 1406- ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (B) 		9-51631-026-0 04 1 1406- ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) (B) 		9-51631-026-0 04 1 1406- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1406- ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (A) 		9-51631-039-0 04 1 1302-1405 ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 1302-1405 ●
68 BUSHING; S/ABS
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		9-51631-039-0 04 1 1406- ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) (A) 		9-51631-039-0 04 1 1406- ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 1406- ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1302- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1302- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1302- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1302- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1302- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1302- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1302- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1302- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 1302-1304 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1302-1304 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
4HK1-TCS ENG(RJS) FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-096-2 02 1 1305- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 1305- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1305- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-125-1 02 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 1302- ●
192 PIECE; DIST
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 AR 1 1402-1505 ●
192 PIECE; DIST
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> KD PREPARATORY PACK<6HF> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 1402-1505 ●
192 PIECE; DIST
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 AR 1 1506- ●
192 PIECE; DIST
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> KD PREPARATORY PACK<6HF> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 1506- ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 1302-1401 ●
192 PIECE; DIST
4HK1-TCS ENG(RJS) MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 1402- ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1302- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1302- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1302- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1302- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1302- ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-498-0 04 1 1302- ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1302- ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1302- ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=27 		9-51631-027-0 02 1 1302-1405 ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=27 		9-51631-027-0 02 1 1302-1405 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1302-1405 ●
211 WASHER; BRKT,SHOCK
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=27 		9-51631-027-0 02 1 1406- ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (A) ID=27 		9-51631-027-0 02 1 1406- ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) (A) ID=27 		9-51631-027-0 02 1 1406- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1406- ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=21 		9-51631-028-0 02 1 1302-1405 ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=21 		9-51631-028-0 02 1 1302-1405 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1302-1405 ●
211 WASHER; BRKT,SHOCK
MOROCCO EQUIPMENT(CGA) MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=21 		9-51631-028-0 02 1 1406- ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (B) ID=21 		9-51631-028-0 02 1 1406- ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> EXC. MOROCCO EQUIPMENT(CGA) (B) ID=21 		9-51631-028-0 02 1 1406- ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1406- ●

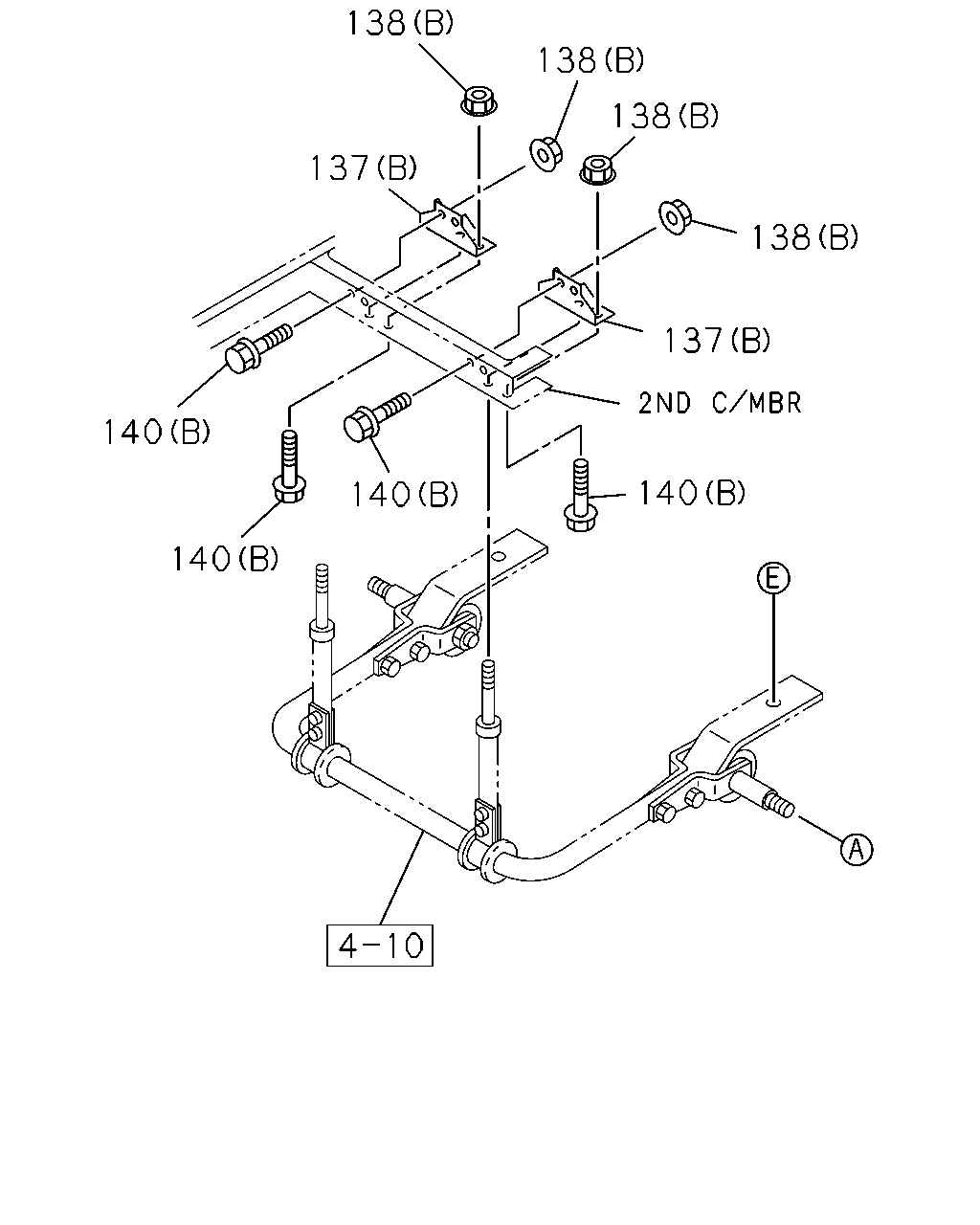

çizim 351105
138 138 138 138 137 140 140 140 140 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) 		1-51781-046-3 02 1 1305- ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1302-1505 ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L) (A) 		8-98128-356-1 02 1 1302-1505 ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1506- ●
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L) (A) 		8-98128-356-1 02 1 1506- ●
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10 FLANGE 		0-91180-210-0 08 1 1305- ●
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1302-1505 ●
138 NUT; BRKT
6HK1-TCS ENG(80L) (A) M14 		0-91110-514-0 06 1 1302-1505 ●
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1506- ●
138 NUT; BRKT
6HK1-TCS ENG(80L) (A) M14 		0-91110-514-0 06 1 1506- ●
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10X30 FLANGE 		0-28651-030-0 08 1 1305- ●
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1302-1505 ●
140 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M14X45 		9-92061-445-0 06 1 1302-1505 ●
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1506- ●
140 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M14X45 		9-92061-445-0 06 1 1506- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
