◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11514 - FTS(RHD)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#112124) — 38 parça

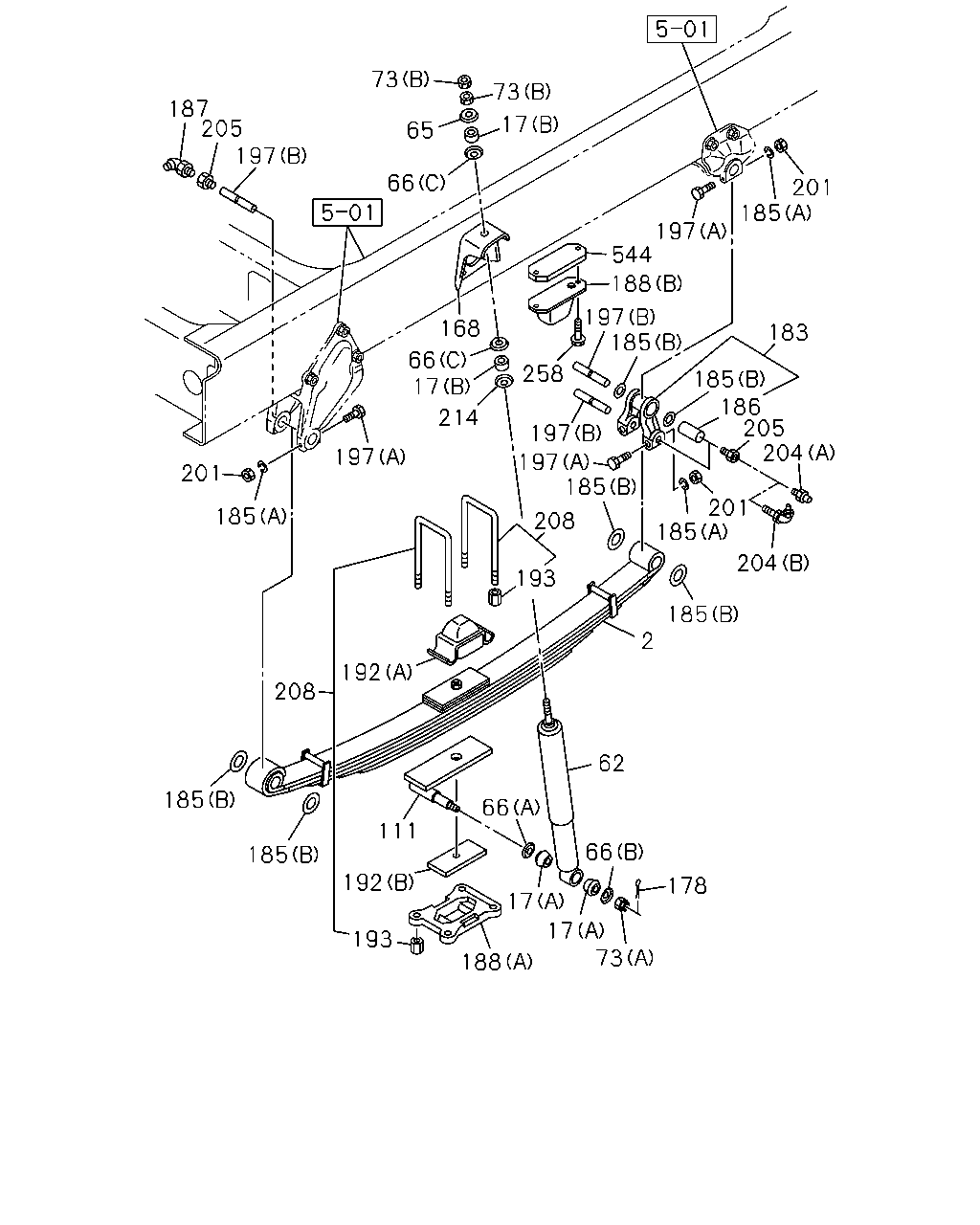

çizim 331956
17 73 66 65 73 197 205 187 201 201 185 197 544 183 204 204 205 186 185 201 185 185 2 185 197 188 185 208 197 197 258 168 214 17 66 197 193 62 66 192 66 178 73 17 17 188 193 192 111 185 185 208 185
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98135-956-0 02 1 1302-
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1302-
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1302-
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1302-
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 1302-1412
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 02 1 1302-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1302-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 1302-
66 WASHER; LK,S/ABS SETTING
(C) ID=16.8 		1-51631-022-0 04 1 1302-
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1302-
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1302-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 1302-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 1302-
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1302-
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1302-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1302-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1302-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1302-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1302-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51173-038-0 02 1 1302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-009-2 01 1 1302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-008-2 01 1 1302-
192 PIECE; DIST
(A) 		1-51172-106-0 02 1 1302-
192 PIECE; DIST
(B) 		9-51377-038-0 01 1 1302-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1302-
197 PIN; FRT SPR,FRT
(A) M12X80 		0-10856-280-0 12 1 1302-
197 PIN; FRT SPR,FRT
(B) 		1-51161-031-0 06 1 1302-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1302-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1302-
208 U-BOLT SET; FRT SPRING
L=400 		1-87870-503-0 04 1 1302-
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 1302-
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 1302-
544 BRACKET; RUBBER 1-51174-017-1 02 1 1302-
çizim 331984
344 82
BalonParca AdiParca NoAdetTipApplied Date
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 1302-
344 PIN; FRT S/ABS 9-43219-034-0 01 1 1302-
