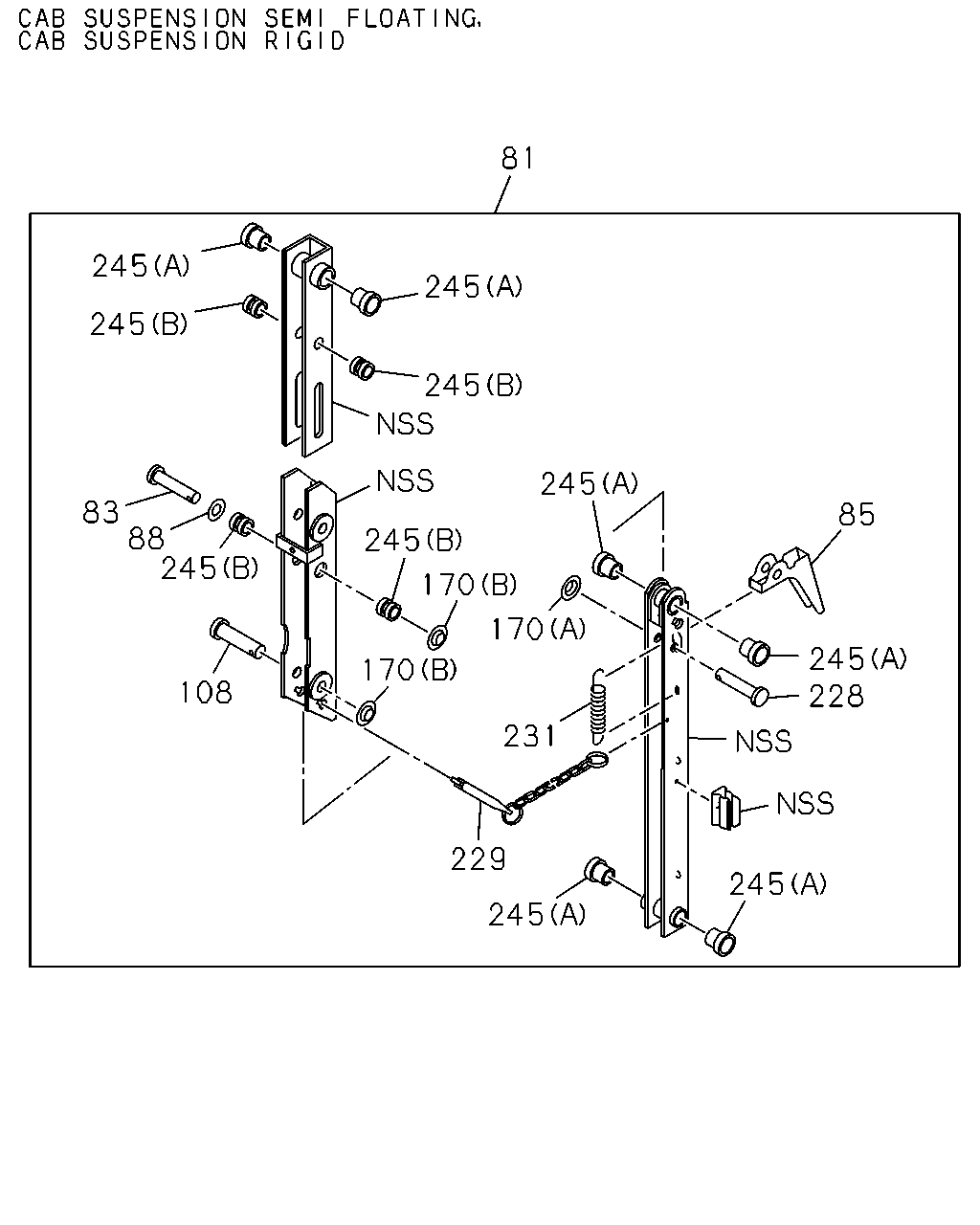

5-15 — CAB MOUNTING; CAB SIDE (#112123) — 142 parça

81 245 245 83 245 88 108 229 245 245 228 245 85 231 170 170 170 245 245 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-761-0	01	1	1302-1406	●
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1302-1406		●
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98278-116-0	01	1	1407-	●
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-		●
83	PIN; JOINT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=42	1-09744-106-0	01	1	1302-	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1302-		●
85	LEVER; LOCK,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-503-0	01	1	1302-	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1302-		●
88	WASHER; PL,CAB STAY PIN CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	1302-	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1302-		●
108	PIN; ADJ,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=42	1-09744-106-0	01	1	1302-	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1302-		●
170	NUT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1302-	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1302-		●
170	NUT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1302-	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1302-		●
228	PIN; SAFETY LOCK SPRING,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=8 L=27	1-09744-086-2	01	1	1302-	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1302-		●
229	PIN ASM; SAFETY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-517-1	01	1	1302-	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1302-		●
231	SPRING; RETURN,LOCK LEVER,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-09583-244-0	01	1	1302-	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1302-		●
245	BUSHING; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	1-62500-587-0	06	1	1302-	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1302-		●
245	BUSHING; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	1-62500-588-0	04	1	1302-	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1302-		●

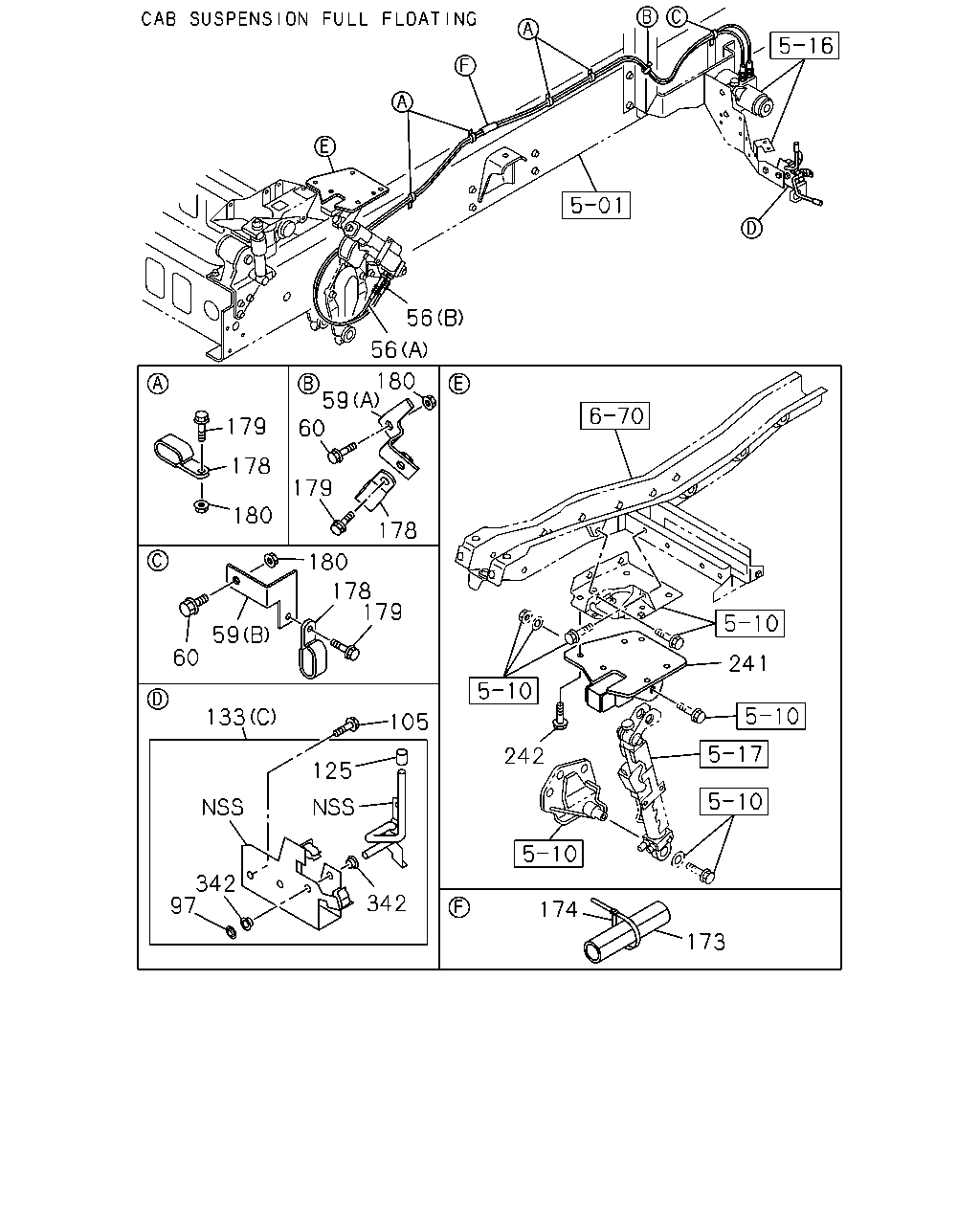

56 56 59 179 178 180 60 179 178 180 180 178 179 59 60 133 97 342 342 125 105 174 173 242 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (A)	8-98022-487-2	01	1	1302-	●
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (B)	8-98087-331-1	01	1	1302-	●
59	BRACKET; CLIP AUTO CAB TILT<WV2> (A)	8-98083-608-1	01	1	1302-	●
59	BRACKET; CLIP AUTO CAB TILT<WV2> (B)	8-98083-609-0	01	1	1302-	●
60	BOLT; BRKT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
97	NUT; CAB STAY PIN AUTO CAB TILT<WV2> ID=9.9 PUSH NUT	8-97022-566-0	01	1	1302-	●
105	BOLT; CAB STAY AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
125	GRIP; HAND LEVER,CAB LOCK AUTO CAB TILT<WV2> ID=9.0	8-94207-303-0	01	1	1302-	●
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (C)	8-97608-198-0	01	1	1302-	●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1302-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1302-	●	●
173	SLEEVE; RUBBER,FLEX HOSE AUTO CAB TILT<WV2> ID=17 OD=21 L=40	1-09337-012-0	01	1	1302-	●
174	CLIP; BAND,FLEX HOSE AUTO CAB TILT<WV2> L=140	5-09707-031-1	01	1	1302-	●
178	CLIP; FLEX HOSE AUTO CAB TILT<WV2> ID=11X2 L=20	0-95325-035-0	07	1	1302-	●
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	1302-	●
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X30 FLANGE	0-28650-830-0	03	1	1302-	●
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	1512-	●
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	04	1	1302-	●
241	BRACKET; POWER CYL UPR,CAB TILT AUTO CAB TILT<WV2>	8-98022-417-1	01	1	1302-	●
242	BOLT; POWER CYL BRKT,CAB TILT AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	05	1	1302-	●
342	BUSHING; LEVER,CAB LOCK AUTO CAB TILT<WV2> T=6 OD=17.5	9-33659-249-0	02	1	1302-	●

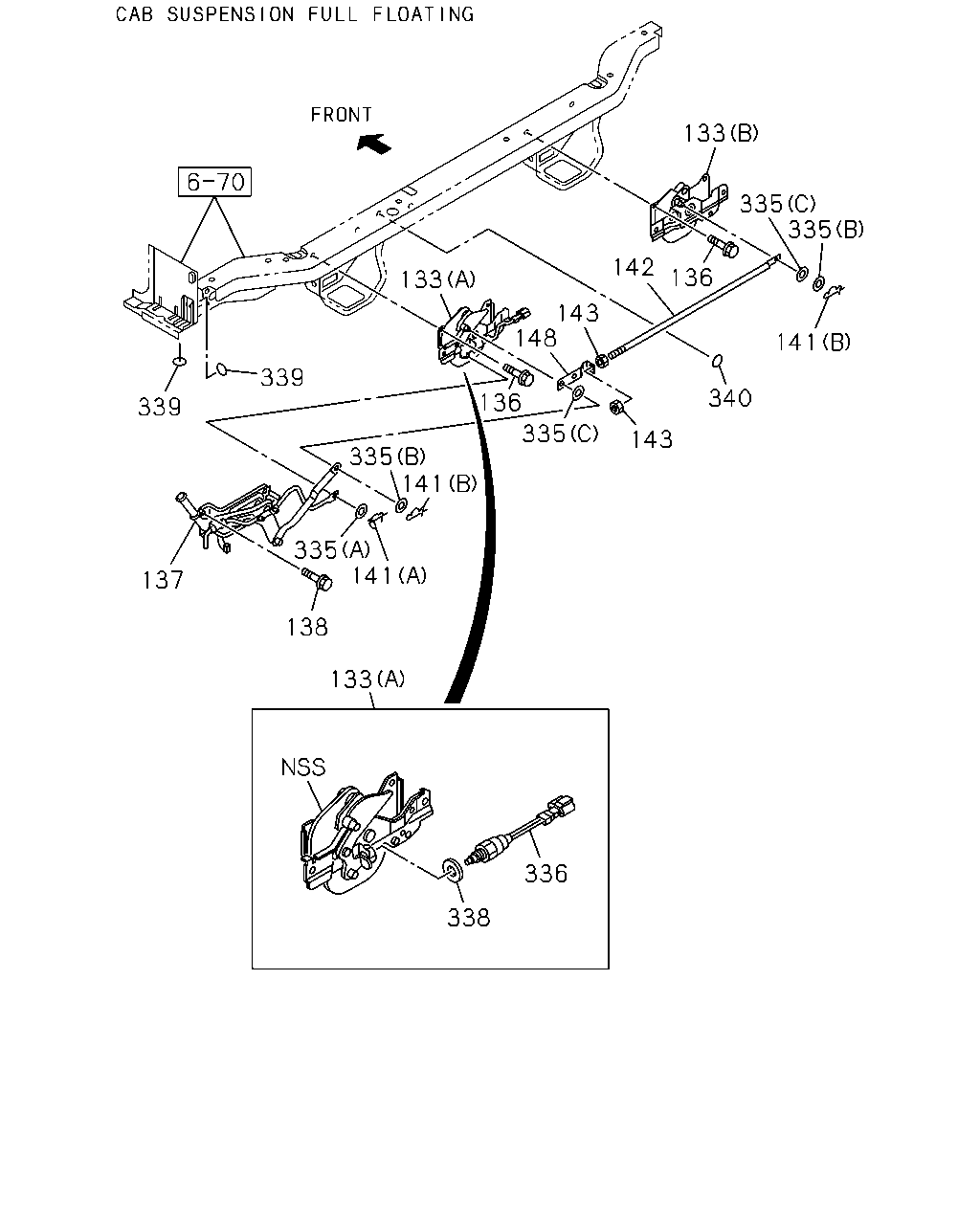

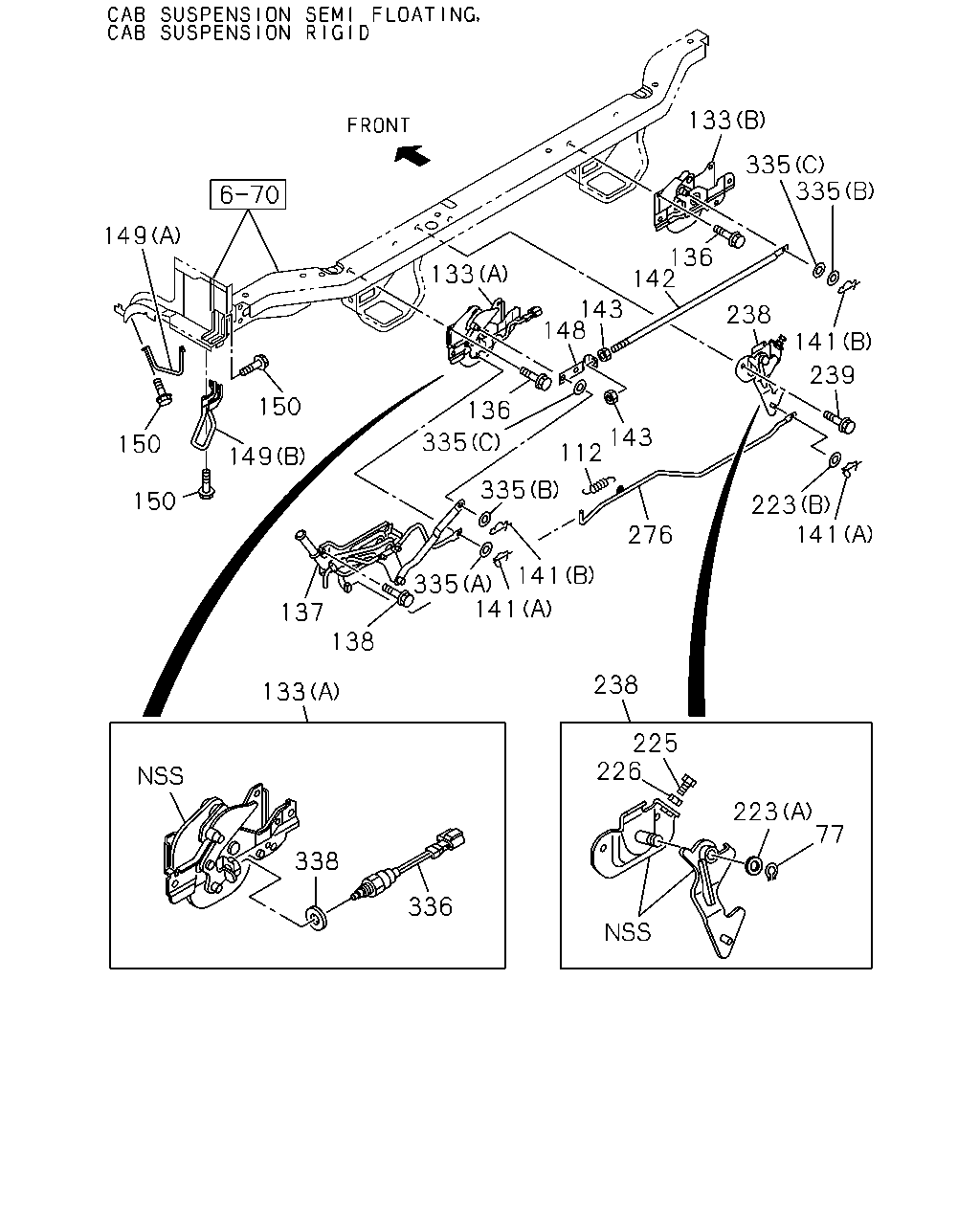

339 137 138 133 338 336 141 335 335 141 335 136 143 340 141 335 335 133 136 142 143 148 133 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (C)	8-97608-198-0	01	1	1302-	●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1302-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1302-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1302-	●	●
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1302-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1302-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1302-	●	●
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	1302-	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1302-		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1302-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1302-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1302-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1302-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1302-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1302-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1302-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1302-	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1302-	●	●
339	SEAL; TILT HANDLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	04	1	1302-	●
340	SEAL; HOLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	02	1	1302-	●

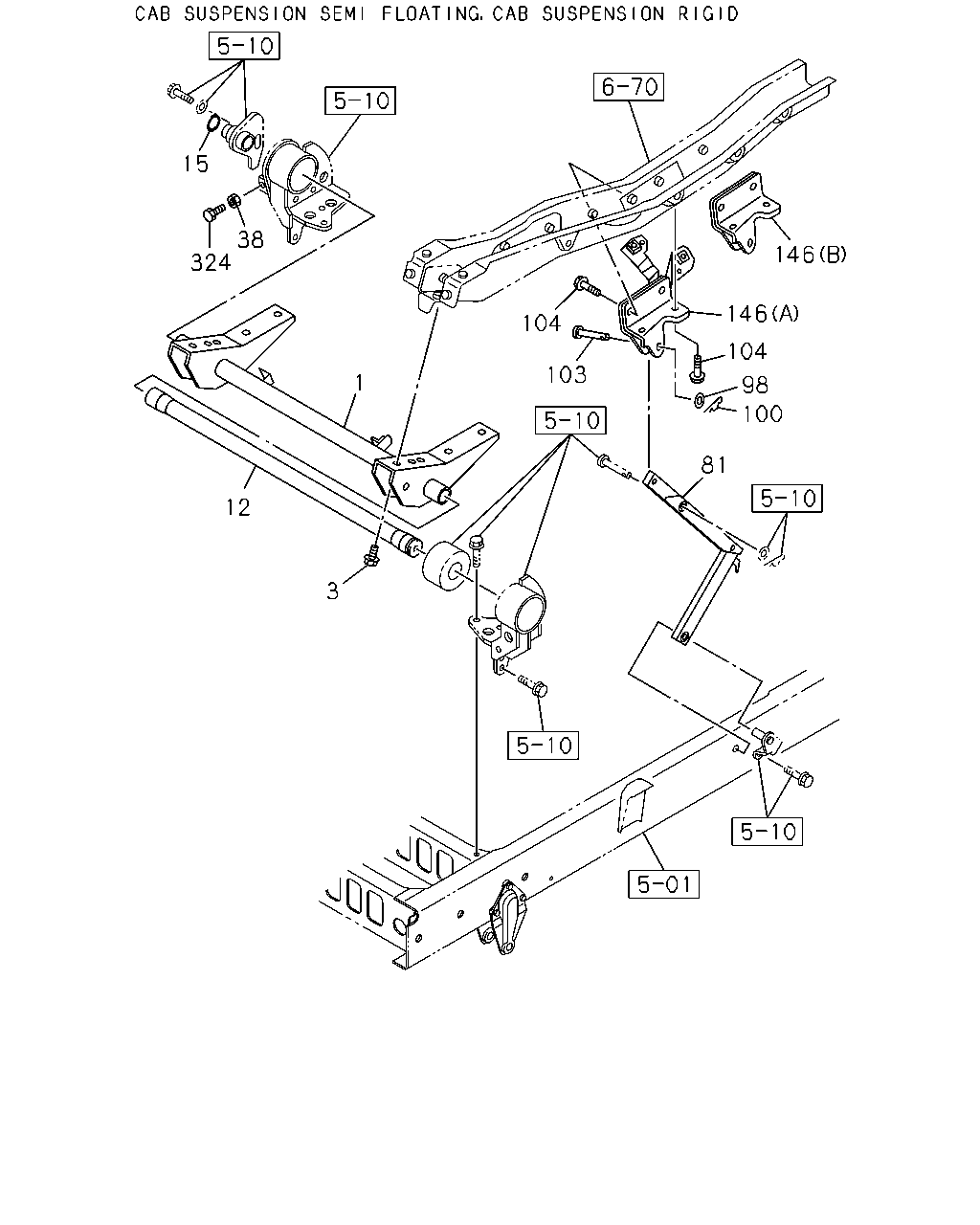

15 38 324 12 3 1 104 103 81 100 98 104 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98017-608-5	01	1	1302-	●
1	LEVER; TORSION BAR	8-98017-608-5	01	1	1302-		●
3	BOLT; LEVER CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M12X42 FLANGE	8-98090-287-1	08	1	1302-	●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1302-		●
12	BAR; TORSION,UPR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98017-940-0	01	1	1302-	●
12	BAR; TORSION,UPR	8-98017-940-0	01	1	1302-		●
15	RING; SNAP,TORSION BAR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> T=1.90 BLUE	8-97129-615-0	01	1	1302-	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1302-		●
38	NUT; LK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14	0-91110-514-0	01	1	1302-	●
38	NUT; LK M14	0-91110-514-0	01	1	1302-		●
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-761-0	01	1	1302-1406	●
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1302-1406		●
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98278-116-0	01	1	1407-	●
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-		●
98	WASHER; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	1302-	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1302-		●
100	PIN; SNAP,CAB STAY TO CAB CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=34	8-98039-426-1	01	1	1302-	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1302-		●
103	PIN; JOINT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-09744-108-1	01	1	1302-	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1302-		●
104	BOLT; CAB STAY BRKT EXC. AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	04	1	1302-	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1302-		●
146	BRACKET ASM; CAB STAY UPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUTO CAB TILT<WV2> (B)	8-98019-506-0	01	1	1305-	●
146	BRACKET ASM; CAB STAY UPR (B)	8-98019-506-0	01	1	1305-		●
146	BRACKET ASM; CAB STAY UPR EXC. AUTO CAB TILT<WV2> (A)	8-98089-081-0	01	1	1302-1304	●
146	BRACKET ASM; CAB STAY UPR (A)	8-98089-081-0	01	1	1302-1304		●
146	BRACKET ASM; CAB STAY UPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUTO CAB TILT<WV2> (A)	8-98089-081-0	01	1	1305-	●
324	BOLT; ADJUST EXC. AUTO CAB TILT<WV2>,KD PREPARATORY PACK<6HF> M14X59	8-98330-402-0	01	1	1512-	●
324	BOLT; ADJUST EXC. KD PREPARATORY PACK<6HF> M14X59	8-98330-402-0	01	1	1512-		●
324	BOLT; ADJUST CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X55	8-98004-319-1	01	1	1302-1511	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	1302-1511		●
324	BOLT; ADJUST KD PREPARATORY PACK<6HF> EXC. AUTO CAB TILT<WV2> M14X55	8-98004-319-1	01	1	1512-	●
324	BOLT; ADJUST KD PREPARATORY PACK<6HF> M14X55	8-98004-319-1	01	1	1512-		●

149 150 150 150 149 137 138 133 338 336 77 223 226 225 238 141 223 276 141 141 335 335 335 136 143 112 239 141 238 148 143 133 142 136 335 335 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
77	RING; SNAP EXC. AUTO CAB TILT<WV2> ID=14.7	0-91800-616-0	01	1	1302-	●
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1302-		●
112	SPRING; RETURN,SAFETY ROD EXC. AUTO CAB TILT<WV2>	1-79718-655-0	01	1	1302-	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1302-		●
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (C)	8-97608-198-0	01	1	1302-	●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1302-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1302-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1302-	●	●
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1302-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1302-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1302-	●	●
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	1302-	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1302-		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1302-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1302-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1302-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1302-	●	●
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (A)	8-97586-206-1	01	1	1302-	●
149	HANDLE; TILT (A)	8-97586-206-1	01	1	1302-		●
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (B)	8-98025-707-3	01	1	1302-	●
149	HANDLE; TILT (B)	8-98025-707-3	01	1	1302-		●
150	BOLT; TILT HANDLE EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	1302-	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	06	1	1302-		●
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (B) ID=8.4 OD=16	0-91610-508-0	01	1	1302-	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16	0-91610-508-0	01	1	1302-		●
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (A) ID=17 OD=30	0-91610-516-0	01	1	1302-	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1302-		●
225	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28050-830-0	01	1	1302-	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1302-		●
226	NUT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8	0-91110-508-0	01	1	1302-	●
226	NUT; SAFETY LK M8	0-91110-508-0	01	1	1302-		●
238	LOCK ASM; SAFETY,CAB TILT EXC. AUTO CAB TILT<WV2>	8-98048-899-1	01	1	1302-	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1302-		●
239	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
239	BOLT; SAFETY LK M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
276	ROD ASM; CAB LOCK,HOOK TO HOOK EXC. AUTO CAB TILT<WV2>	8-98048-831-1	01	1	1302-	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-831-1	01	1	1302-		●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1302-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1302-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1302-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1302-	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1302-	●	●
