Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#11212) — 100 parça
◀

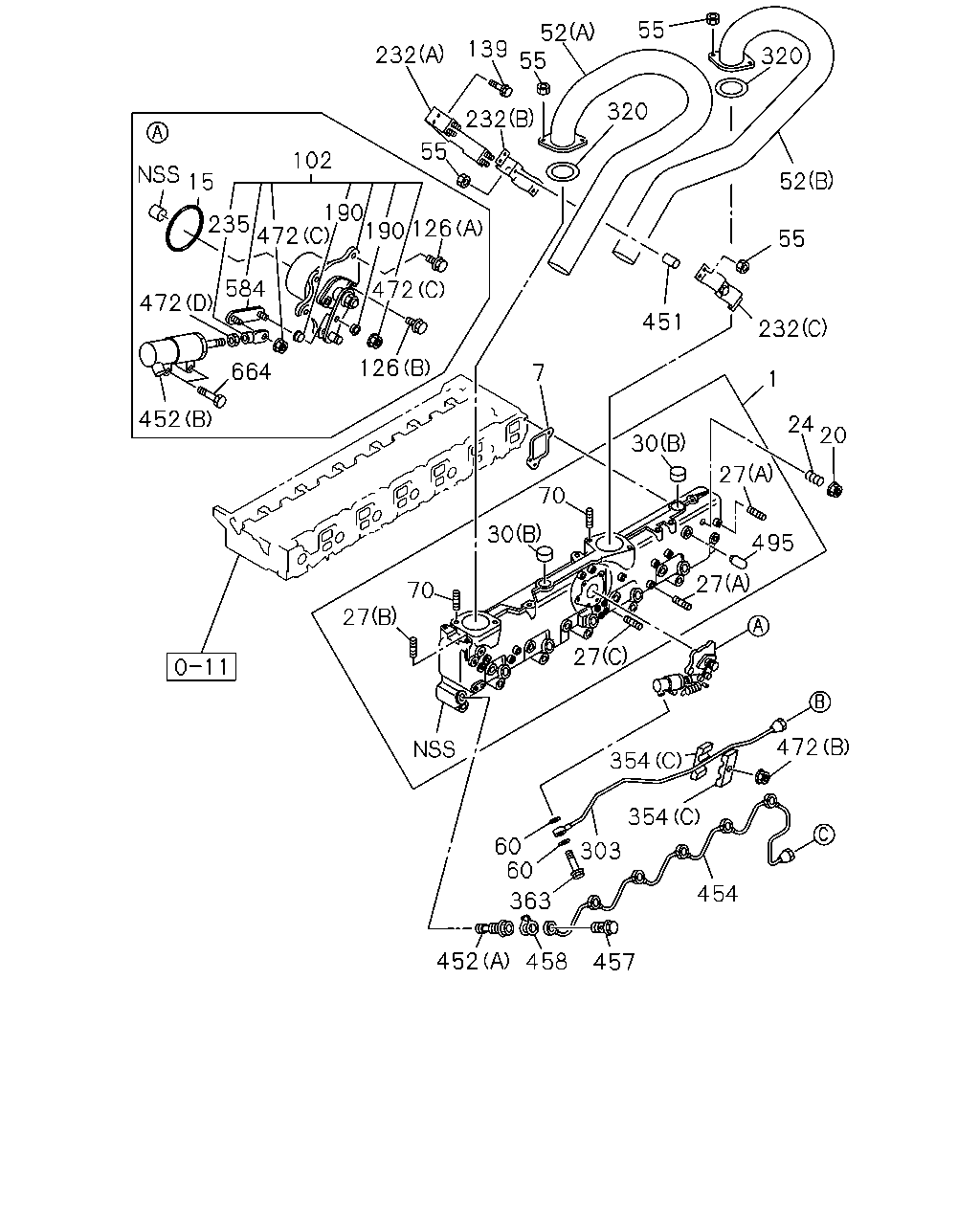

[025A] MANIF ASM AND INL PIPE (56 parça)

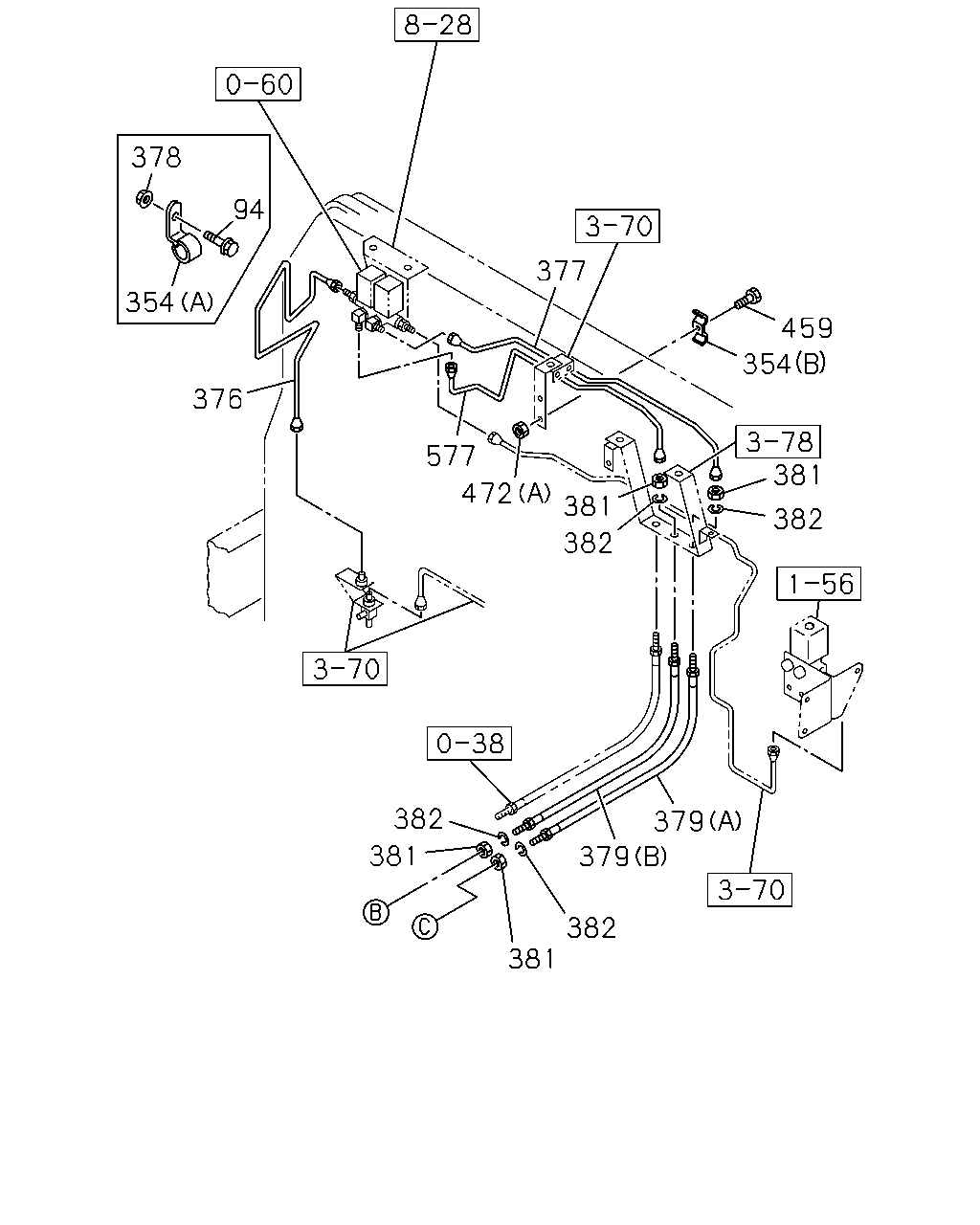

[025A] PIPE;AIR MAG VLV (28 parça)

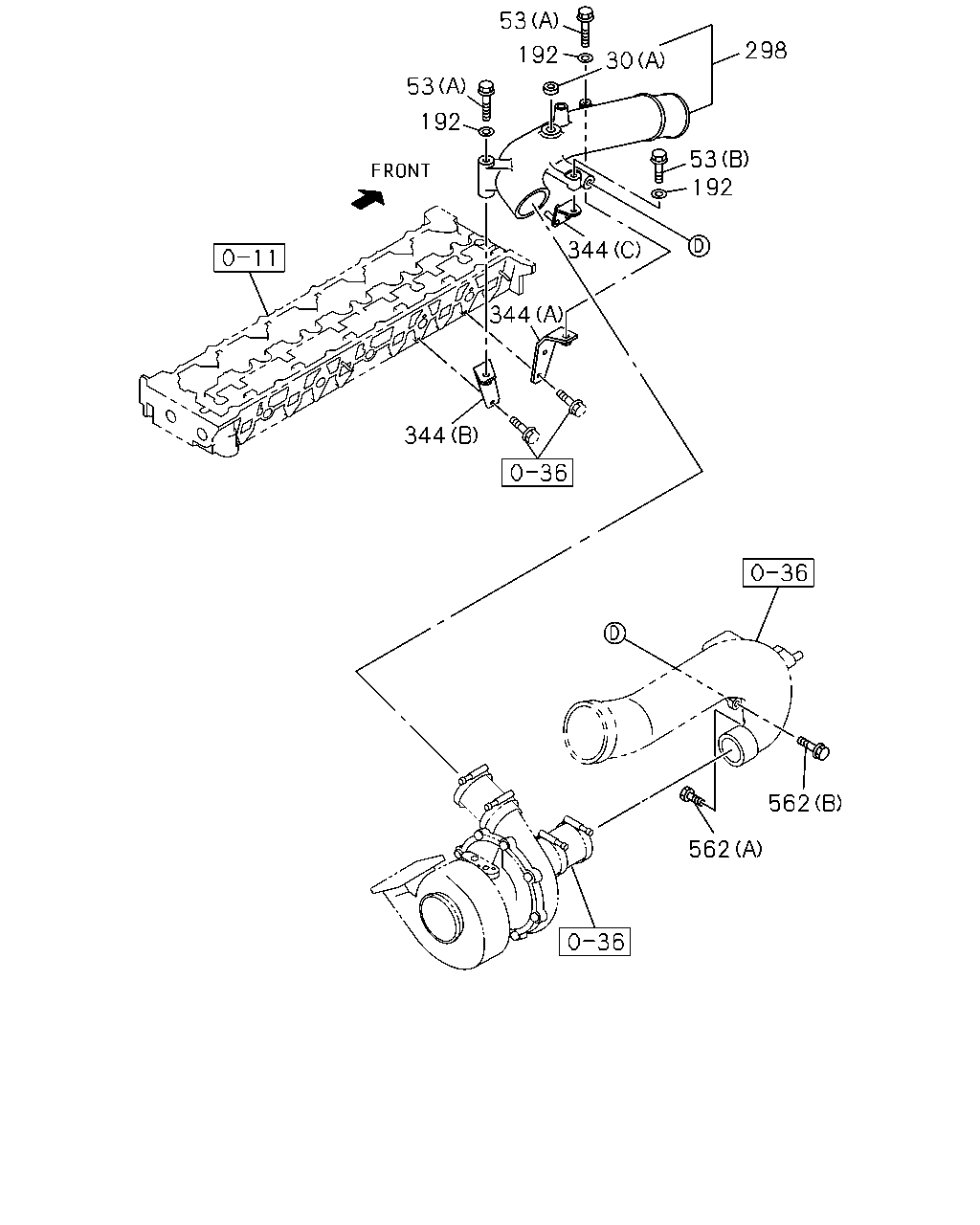

[025A] PIPE;INL TO TURBOCHARGER (16 parça)
▶
55
52
55
139
232
320
320
232
55
102
15
52
190
235
190
126
472
55
584
472
472
451
232
126
664
7
1
452
24
20
30
27
70
27
30
495
27
70
27
472
354
354
60
60
303
454
363
452
458
457
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; INL
1-14110-581-1
01
1
0107-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-063-1
06
1
0107-
15
GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-406-0
01
1
0107-
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
12
1
0107-0602
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
0603-
24
SPRING; INL MANIF
1-09580-156-0
12
1
0107-
27
STUD; INL MANIF
(A) M6X30 L=38
9-04110-630-0
09
1
0107-0604
27
STUD; INL MANIF
(A) M6X30 L=38
0-41010-630-0
09
1
0605-
27
STUD; INL MANIF
(B) M8X16 L=28
9-04110-816-0
04
1
0107-0604
27
STUD; INL MANIF
(B) M8X16 L=28
0-41010-816-0
04
1
0605-
27
STUD; INL MANIF
(C) M8X20 L=32
9-04110-820-0
02
1
0107-0604
27
STUD; INL MANIF
(C) M8X20 L=32
0-41010-820-0
02
1
0605-
30
CUP; SEALING,INL MANIF
(B) OD=30
8-94241-638-0
02
1
0107-
30
CUP; SEALING,INL MANIF
(A) OD=20
9-11129-128-0
01
1
0107-
52
PIPE; INL
(B)
1-14112-522-1
01
1
0107-
52
PIPE; INL
(A)
1-14112-635-0
01
1
0107-
55
NUT; INL PIPE
M10 FLANGE
0-91150-110-0
09
1
0107-0602
55
NUT; INL PIPE
M10 FLANGE
0-91180-110-0
09
1
0603-
60
GASKET; INL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2
1-09630-083-0
02
1
0107-
70
STUD; WATER PIPE
M10X20 L=35
9-04411-020-0
07
1
0107-
102
VALVE ASM; INDUCTION CONT
1-14310-221-1
01
1
0107-
126
BOLT; COVER
(B) M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
126
BOLT; COVER
(B) M8X16 FLANGE
0-28050-816-0
02
1
0601-
126
BOLT; COVER
(A) M10X20 FLANGE
0-28181-020-0
03
1
0107-0512
126
BOLT; COVER
(A) M10X20 FLANGE
0-28151-020-0
03
1
0601-
139
BOLT; BRKT FIX
M10X20 FLANGE
0-28181-020-0
05
1
0107-0512
139
BOLT; BRKT FIX
M10X20 FLANGE
0-28151-020-0
05
1
0601-
190
COLLAR; INLET MANIFOLD
1-22199-138-0
02
1
0107-
232
BRACKET; INJ PIPE
(A)
1-14119-377-0
01
1
0107-
232
BRACKET; INJ PIPE
(B)
1-14119-378-1
01
1
0107-
232
BRACKET; INJ PIPE
(C)
1-14119-379-1
01
1
0107-
235
JOINT; INL MANIF
1-22199-137-0
01
1
0107-
303
PIPE; AIR
1-19192-803-1
01
1
0107-
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6
1-09623-421-0
02
1
0107-
354
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
0107-
354
CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
0107-
354
CLIP; AIR PIPE
(C)
1-09701-132-1
02
1
0107-
363
BOLT; EYE
M10X21 FLANGE
8-94396-711-0
01
1
0107-
451
TUBE; DIST,BRKT
1-21529-002-0
01
1
0107-
452
CYLINDER ASM; AIR
(A)
1-14370-013-0
06
1
0107-
452
CYLINDER ASM; AIR
(B)
1-22190-579-1
01
1
0107-
454
PIPE; AIR,IVES
1-19192-590-1
01
1
0107-
457
BOLT; EYE,AIR PIPE,IVES
M8X18 EYE-BOLT
1-09675-037-1
06
1
0107-
458
GASKET; AIR PIPE,VSS
ID=8.6
8-94395-214-0
06
1
0107-
472
NUT
(B) M6 FLANGE
0-91150-106-0
01
1
0107-0602
472
NUT
(B) M6 FLANGE
0-91180-106-0
01
1
0603-
472
NUT
(C) M8 FLANGE
0-91150-108-0
02
1
0107-0602
472
NUT
(C) M8 FLANGE
0-91180-108-0
02
1
0603-
472
NUT
(A) M8 FLANGE
0-91150-108-0
01
1
0107-0602
472
NUT
(A) M8 FLANGE
0-91180-108-0
01
1
0603-
472
NUT
(D) M8
9-09110-408-0
01
1
0107-0512
472
NUT
(D) M8
0-91110-508-0
01
1
0601-
495
PIPE; BOOST SENSOR
1-09669-073-0
01
1
0107-
584
LINK
1-22199-153-0
01
1
0107-
664
BOLT; AIR CYL
M8X35 FLANGE
0-28080-835-0
02
1
0107-0512
664
BOLT; AIR CYL
M8X35 FLANGE
0-28050-835-0
02
1
0601-
378
94
377
354
459
354
376
381
577
472
381
382
382
382
379
381
379
382
381
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
BOLT
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
94
BOLT
M8X20 FLANGE
0-28650-820-0
01
1
0601-
354
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
0107-
354
CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
0107-
354
CLIP; AIR PIPE
(C)
1-09701-132-1
02
1
0107-
376
PIPE ASM; AIR UNION TO MAG VLV
1-49121-779-0
01
1
0107-
377
PIPE ASM; AIR MAG VLV
L=612 SERVICED BY L=650
1-47428-810-0
01
1
0107-
378
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0107-0602
378
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
379
HOSE; FLEX
(A) L=520
1-09363-657-0
01
1
0107-
379
HOSE; FLEX
(B) L=360
1-09363-658-0
01
1
0107-
381
NUT; FLEX TUBE
M12
9-09840-280-0
02
1
0107-
381
NUT; FLEX TUBE
M12
9-09840-280-0
02
1
0107-
382
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
02
1
0107-0603
382
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
02
1
0107-0603
382
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
02
1
0604-
382
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
02
1
0604-
459
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
459
BOLT; CLIP FIX
M8X20 FLANGE
0-28650-820-0
01
1
0601-
472
NUT
(B) M6 FLANGE
0-91150-106-0
01
1
0107-0602
472
NUT
(B) M6 FLANGE
0-91180-106-0
01
1
0603-
472
NUT
(C) M8 FLANGE
0-91150-108-0
02
1
0107-0602
472
NUT
(C) M8 FLANGE
0-91180-108-0
02
1
0603-
472
NUT
(A) M8 FLANGE
0-91150-108-0
01
1
0107-0602
472
NUT
(A) M8 FLANGE
0-91180-108-0
01
1
0603-
472
NUT
(D) M8
9-09110-408-0
01
1
0107-0512
472
NUT
(D) M8
0-91110-508-0
01
1
0601-
577
PIPE; AIR,UNION TO FLEX HOSE
L=766 SERVICED BY L=800
1-47428-812-0
01
1
0107-
53
298
192
30
53
192
53
192
344
344
344
562
562
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
CUP; SEALING,INL MANIF
(B) OD=30
8-94241-638-0
02
1
0107-
30
CUP; SEALING,INL MANIF
(A) OD=20
9-11129-128-0
01
1
0107-
53
BOLT; INL PIPE
(A) M10X100 FLANGE
0-28181-000-0
02
1
0107-0512
53
BOLT; INL PIPE
(A) M10X100 FLANGE
0-28151-000-0
02
1
0601-
53
BOLT; INL PIPE
(B) M10X40 FLANGE
0-28181-040-0
01
1
0107-0512
53
BOLT; INL PIPE
(B) M10X40 FLANGE
0-28151-040-0
01
1
0601-
192
WASHER; PL,INL PIPE
ID=10.5 OD=22
9-09160-610-0
03
1
0107-0605
192
WASHER; PL,INL PIPE
ID=10.5 OD=22 T=1.6
0-91610-610-0
03
1
0606-
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-485-2
01
1
0107-
344
BRACKET; INL PIPE
(A)
1-14119-314-0
01
1
0107-
344
BRACKET; INL PIPE
(B)
1-14119-324-0
01
1
0107-
344
BRACKET; INL PIPE
(C)
1-14119-393-0
01
1
0107-
562
BOLT; INL DUCT
(A) M10X20 FLANGE
0-28181-020-0
01
1
0107-0512
562
BOLT; INL DUCT
(A) M10X20 FLANGE
0-28151-020-0
01
1
0601-
562
BOLT; INL DUCT
(B) M10X35 FLANGE
0-28181-035-0
02
1
0107-0512
562
BOLT; INL DUCT
(B) M10X35 FLANGE
0-28151-035-0
02
1
0601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
