5-10 — CAB MOUNTING; FRAME SIDE (#112117) — 66 parça

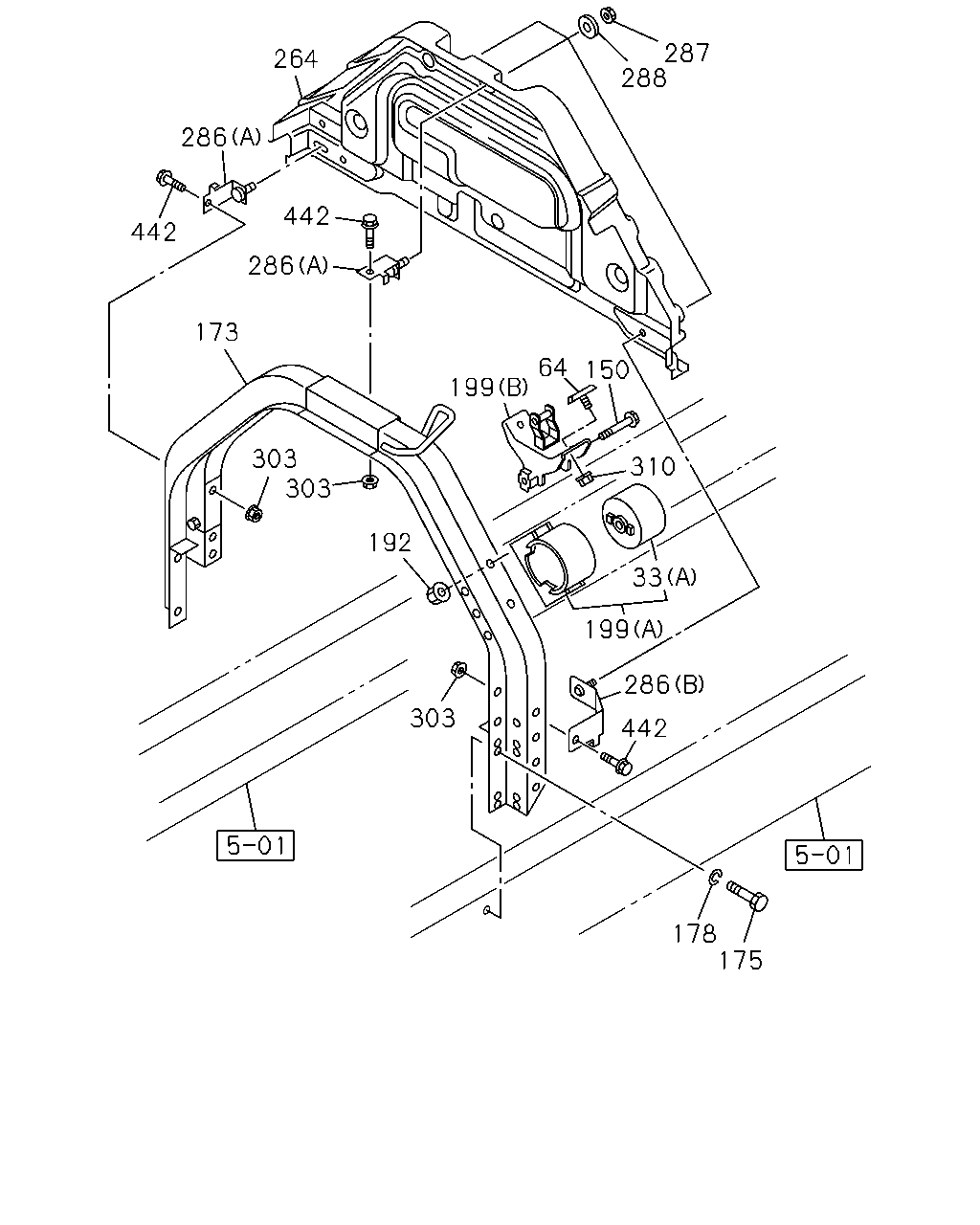

287 288 264 286 442 442 286 173 303 303 192 303 442 286 199 33 310 150 64 199 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-932-2	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98013-933-1	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98013-933-1	01	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98013-933-1	01	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	1302-
64	RUBBER; CUSHION	8-97113-340-0	04	1	1302-
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	1302-
173	MEMBER; CAB MTG RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98219-357-0	01	1	1302-
173	MEMBER; CAB MTG RR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98150-944-0	01	1	1302-
173	MEMBER; CAB MTG RR 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98150-944-0	01	1	1302-
173	MEMBER; CAB MTG RR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	8-98213-002-0	01	1	1302-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1302-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1302-
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	1302-
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	1302-
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98064-944-0	02	1	1302-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-769-2	02	1	1302-
264	PANEL; BACK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98208-840-0	01	1	1302-1405
264	PANEL; BACK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98208-840-0	01	1	1406-
286	BRACKET; LOW 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	1-53457-187-0	02	1	1302-1405
286	BRACKET; LOW 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	1-53457-187-0	02	1	1406-
286	BRACKET; LOW 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98208-841-0	01	1	1302-1405
286	BRACKET; LOW 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98208-841-0	01	1	1406-
287	NUT 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1302-1405
287	NUT 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1406-
288	WASHER; PL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	1302-1405
288	WASHER; PL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	1406-
303	NUT; BRKT 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1302-1405
303	NUT; BRKT 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	1406-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1302-
442	BOLT; BRKT 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	03	1	1302-1405
442	BOLT; BRKT 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	03	1	1406-

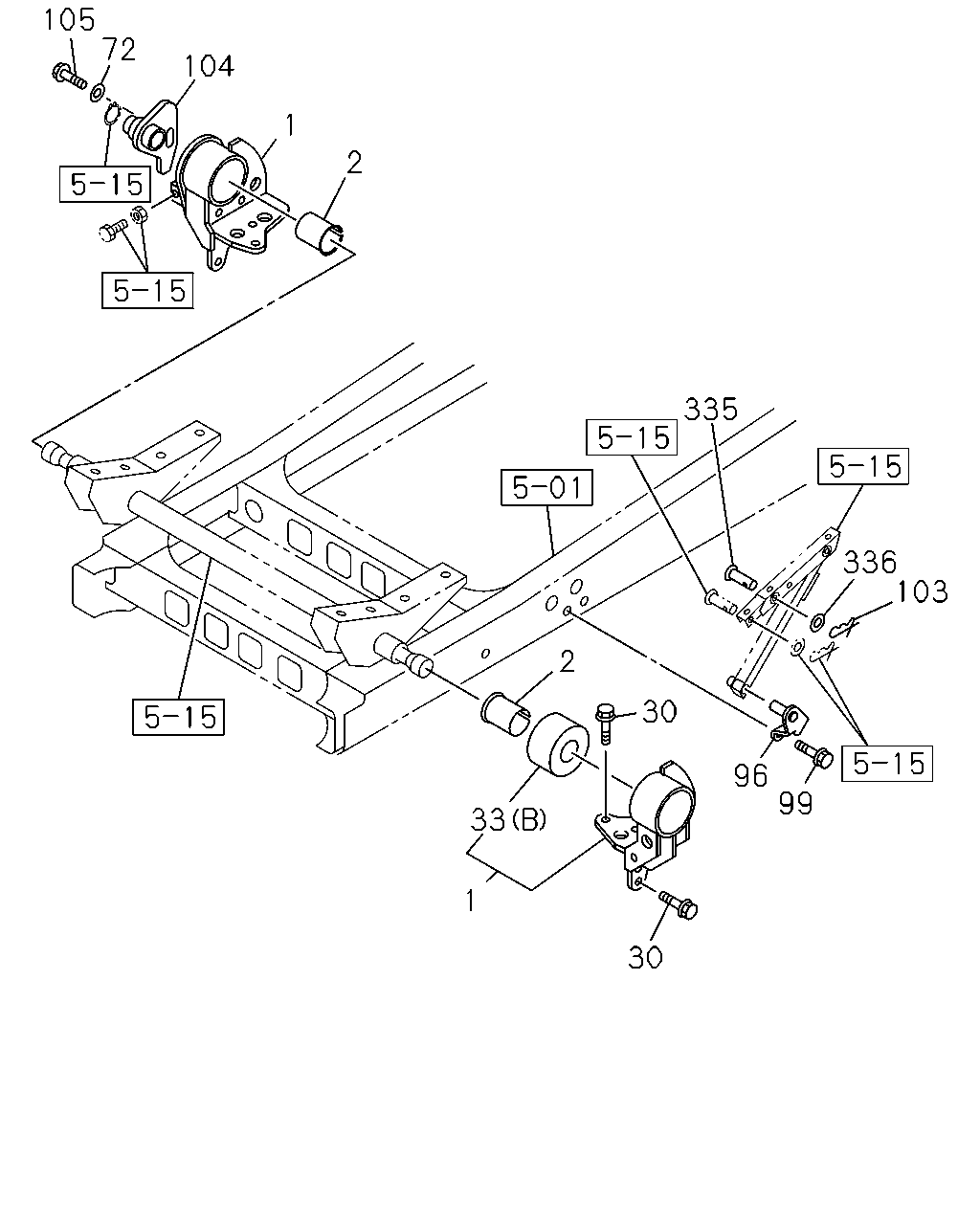

30 99 96 103 336 335 30 33 1 2 2 1 104 72 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98010-751-2	01	1	1302-
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98050-999-2	01	1	1302-
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98017-666-2	01	1	1302-
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71>	8-98017-666-2	01	1	1302-
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98017-617-3	01	1	1302-
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71>	8-98017-617-3	01	1	1302-
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION SEMI FLOATING<SDK> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-002-1	01	1	1302-
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION SEMI FLOATING<SDK> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-001-1	01	1	1302-
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98017-606-1	01	1	1302-
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-606-1	01	1	1302-
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98017-605-2	01	1	1302-
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-605-2	01	1	1302-
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	1302-
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-932-2	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98013-933-1	02	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98013-933-1	01	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98013-933-1	01	1	1302-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	1302-
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	1302-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	1302-
99	BOLT; BRKT M10X30 FLANGE	0-28661-030-0	02	1	1302-
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	1302-
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98017-610-3	01	1	1302-1511
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98330-669-0	01	1	1512-
105	BOLT; BRKT TO CAB FRAME M14X35 FLANGE	0-28661-435-0	01	1	1302-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	1302-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	1302-
