5-01 — FRAME AND OTHER PARTS (#112116) — 784 parça

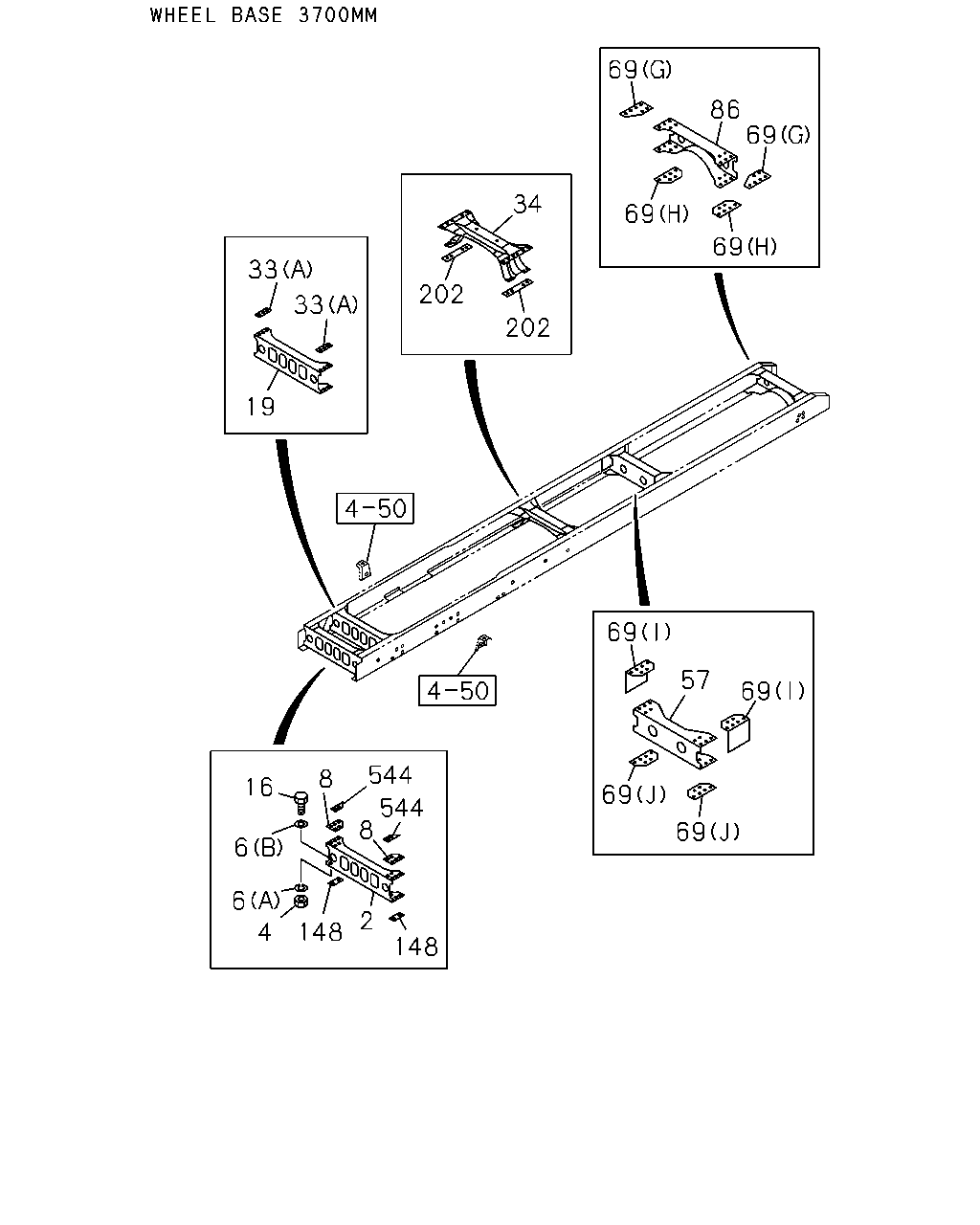

çizim 328572
69 86 69 69 69 34 202 202 33 33 19 69 57 69 69 69 148 2 148 4 6 6 16 8 8 544 544
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1302- ● ● ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14 		0-91110-514-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ● ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14X40 		0-20851-440-0 02 1 1302- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-2 01 1 1302-1302 ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1302-1505 ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97623-239-3 01 1 1302-1505 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1506- ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) 		8-97623-239-3 01 1 1506- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1305-1308 ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1309- ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1302- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1305-1308 ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1309- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 1302- ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1302-1505 ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1506- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1309- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 1302- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1302-1505 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1506- ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1302- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 1302- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1302 ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97610-872-0 02 1 1302-1304 ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1304 ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1305- ● ● ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1302-1308 ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1302-1308 ● ● ● ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97615-598-0 02 1 1302-1308 ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1309-1510 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1309-1510 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1511- ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1511- ● ● ● ● ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 1302- ● ● ● ● ●

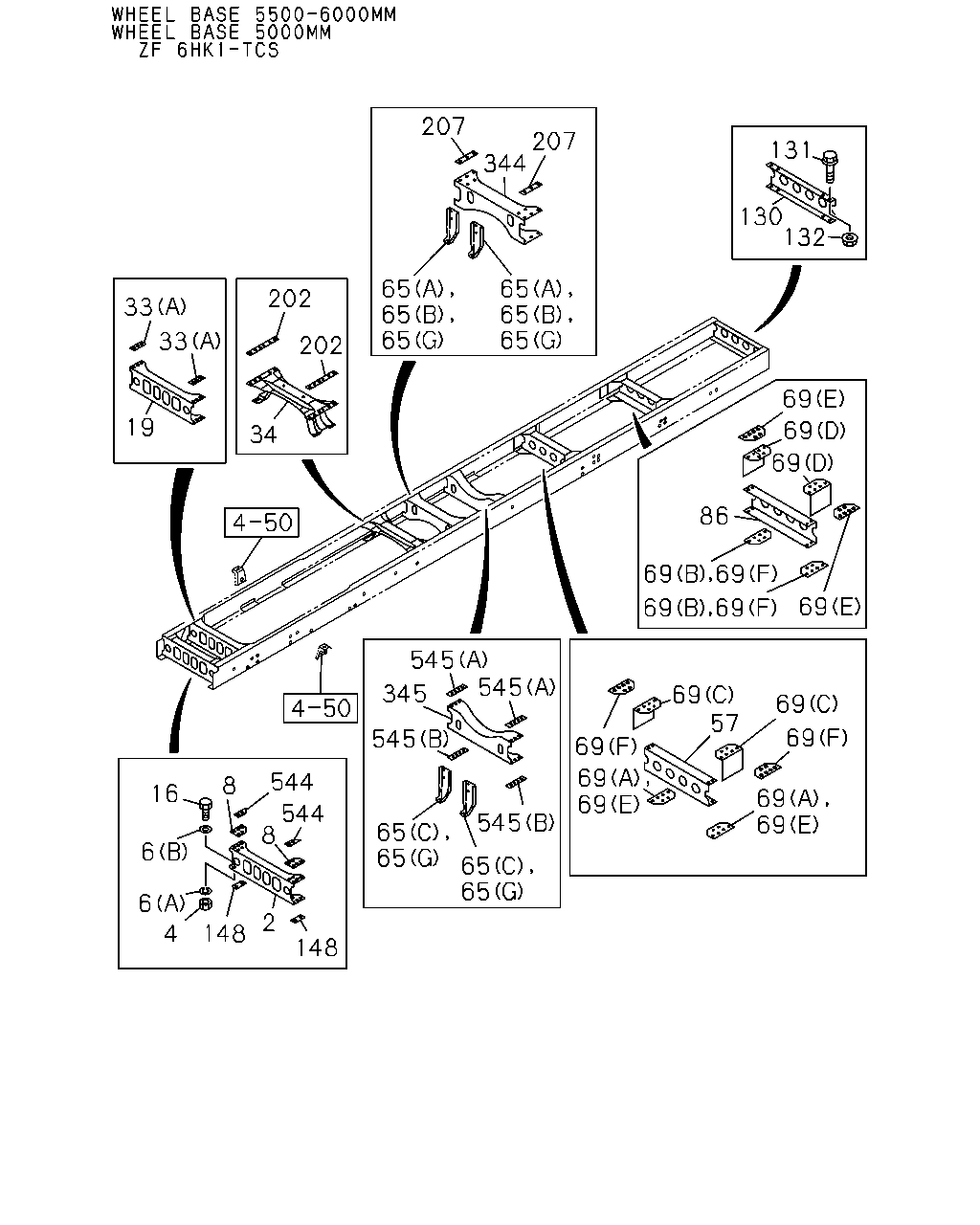

çizim 331873
207 207 344 65 65 65 65 65 65 202 202 34 19 33 33 131 130 132 69 69 69 86 69 69 69 69 69 545 345 545 545 545 65 65 65 65 544 544 8 8 16 6 6 4 148 2 148 69 57 69 69 69 69 69 69 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1302- ● ● ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14 		0-91110-514-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ● ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14X40 		0-20851-440-0 02 1 1302- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-2 01 1 1302-1302 ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1302-1505 ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97623-239-3 01 1 1302-1505 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1506- ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) 		8-97623-239-3 01 1 1506- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1305-1308 ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1309- ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1302- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1305-1308 ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1309- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 1302- ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1302-1505 ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1506- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		8-97614-129-0 02 1 1505- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (A) 		8-97623-229-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) FULLER ES11109 DD M/T(Y5N) (A) 		8-97623-229-0 02 1 1506- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98103-401-0 01 1 1302-1309 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98103-401-0 02 1 1302-1309 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98103-401-0 02 1 1302-1309 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-98103-401-0 02 1 1310- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98103-401-0 02 1 1310- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 1302-1504 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 1302-1504 ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 1505- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 1505- ● ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-137-0 02 1 1302- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-137-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-97611-328-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-97614-150-0 02 1 1302- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 1302- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 1302- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 1506- ●
65 BRACKET; CENTER BRG
FULLER ES11109 DD M/T(Y5N) (G) 		8-97614-139-0 04 1 1302- ● ● ● ● ● ● ● ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (G) 		8-97614-139-0 04 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1309- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 1302- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1302-1505 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1506- ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302-1302 ● ● ● ● ● ● ●
130 MEMBER; CROSS,END
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97610-869-1 01 1 1302-1304 ● ● ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302-1304 ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1305- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1302 ● ● ● ● ● ● ●
131 BOLT; END C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1304 ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1304 ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1305- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302-1302 ● ● ● ● ● ● ●
132 NUT; END C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12 		0-91110-512-0 04 1 1302-1304 ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302-1304 ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1305- ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1302- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 1302- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1302 ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97610-872-0 02 1 1302-1304 ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1304 ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1305- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1302-1308 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1302-1308 ● ● ● ●
207 SPACER; 4TH C/MBR
ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1302-1308 ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1309-1505 ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1506- ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302-1302 ● ● ● ● ● ● ●
344 MEMBER; CROSS,4TH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97611-238-1 01 1 1302-1304 ● ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302-1304 ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1305- ● ● ● ● ● ● ●
345 MEMBER; CROSS,5TH
ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 1302-1308 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1302-1308 ● ● ●
345 MEMBER; CROSS,5TH
ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 1309- ●
345 MEMBER; CROSS,5TH
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 		8-97611-238-1 01 1 1309- ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1309- ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1302-1308 ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1302-1308 ● ● ● ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97615-598-0 02 1 1302-1308 ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1309-1510 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1309-1510 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1511- ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1511- ● ● ● ● ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 1302- ● ● ● ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1302-1408 ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 1302-1408 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TOW HOOK<V76>,TOW HOOK DELETE<8C8> (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1512- ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1512- ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1512- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (A) 0.24KG 		8-97611-245-0 02 1 1512- ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1512- ●

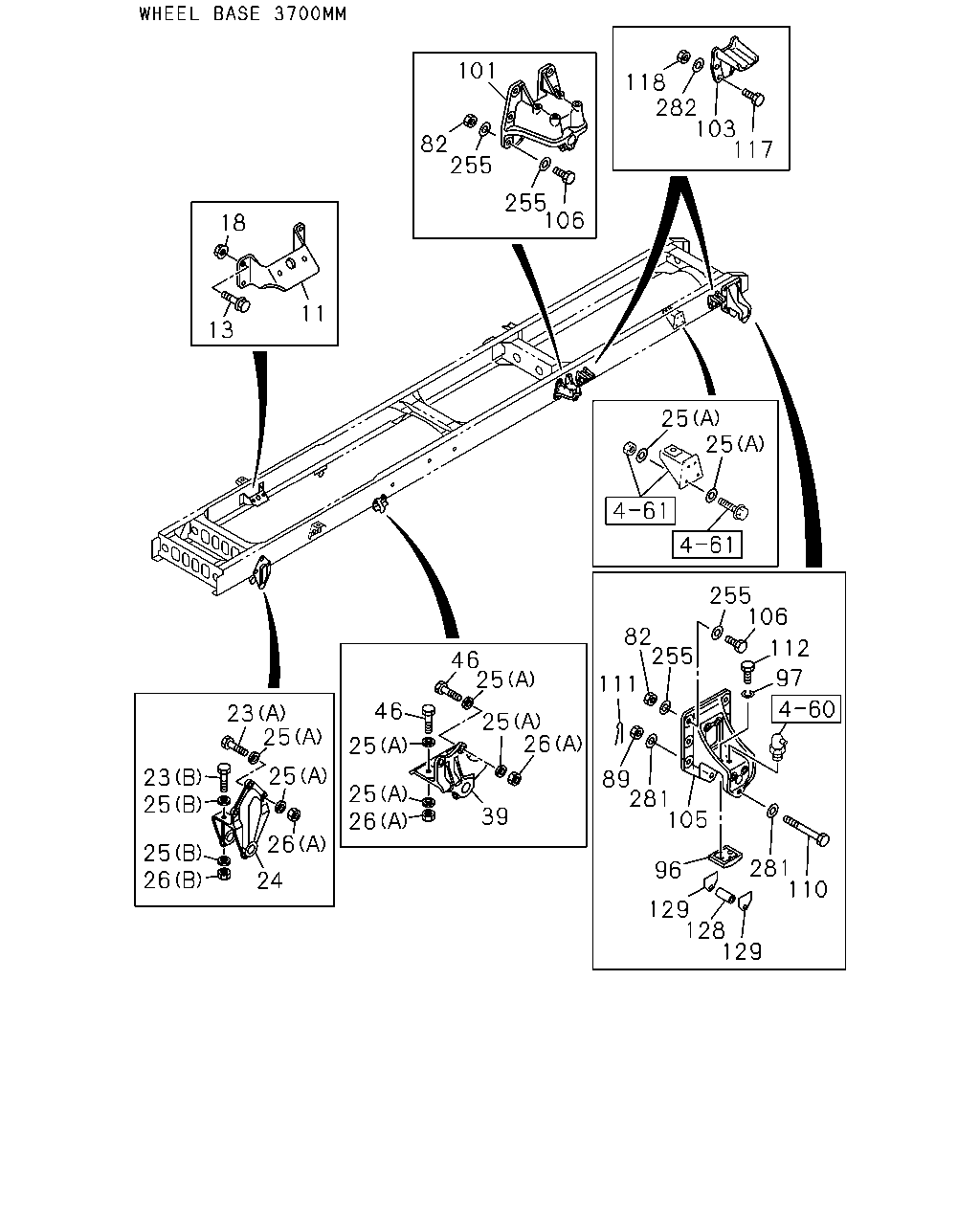

çizim 331877
18 11 13 82 255 255 101 106 282 118 103 117 25 25 255 106 112 97 255 82 111 89 281 105 96 129 128 129 281 110 26 25 25 46 46 25 25 26 39 23 25 25 26 24 23 25 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97644-889-0 01 1 1309- ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97644-890-0 01 1 1309- ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1302-1505 ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 1302-1505 ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97619-550-0 02 1 1302-1505 ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1506- ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 1506- ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) 		8-97619-550-0 02 1 1506- ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 1302-1302 ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 1302-1505 ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 1506- ● ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1309- ● ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1309- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 1302- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302-1302 ● ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12X35 FLANGE 		0-28661-235-0 08 1 1302-1505 ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302-1505 ●
13 BOLT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) M12X35 FLANGE 		0-28661-235-0 08 1 1506- ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1506- ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1305-1308 ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1309- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302-1302 ● ● ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302-1505 ● ●
18 NUT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12 FLANGE 		0-91180-212-0 08 1 1302-1505 ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1506- ● ●
18 NUT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) M12 FLANGE 		0-91180-212-0 08 1 1506- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1305-1308 ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1309- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1302- ● ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1302- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1302- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1302- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 44 1 1302- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1302- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302-1302 ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=15 		8-98010-627-1 28 1 1302-1304 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302-1304 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1305- ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1302- ● ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1302- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1302- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1302- ● ● ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 1302- ● ● ● ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 1302- ● ● ● ● ● ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 1302- ● ● ● ● ● ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1302- ● ● ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-081-2 02 1 1302- ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1302-1302 ● ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-53353-078-1 02 1 1302-1304 ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1302-1304 ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1305- ● ● ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1302- ● ● ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-073-1 02 1 1302- ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1302-1302 ● ● ● ● ● ● ●
105 BRACKET; RR SPR,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-53354-064-1 02 1 1302-1304 ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1302-1304 ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1305- ● ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 1302- ● ● ● ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 1302- ● ● ● ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1302- ● ● ● ● ● ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 1302- ● ● ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ● ● ● ● ●
128 COLLAR; RUBBER 1-53359-004-0 02 1 1302- ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 1302- ● ● ● ● ● ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 1302- ● ● ● ● ● ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 1302- ● ● ● ● ● ● ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 48 1 1302- ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 1302- ● ● ● ● ● ● ● ●
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-1 16 1 1302- ●

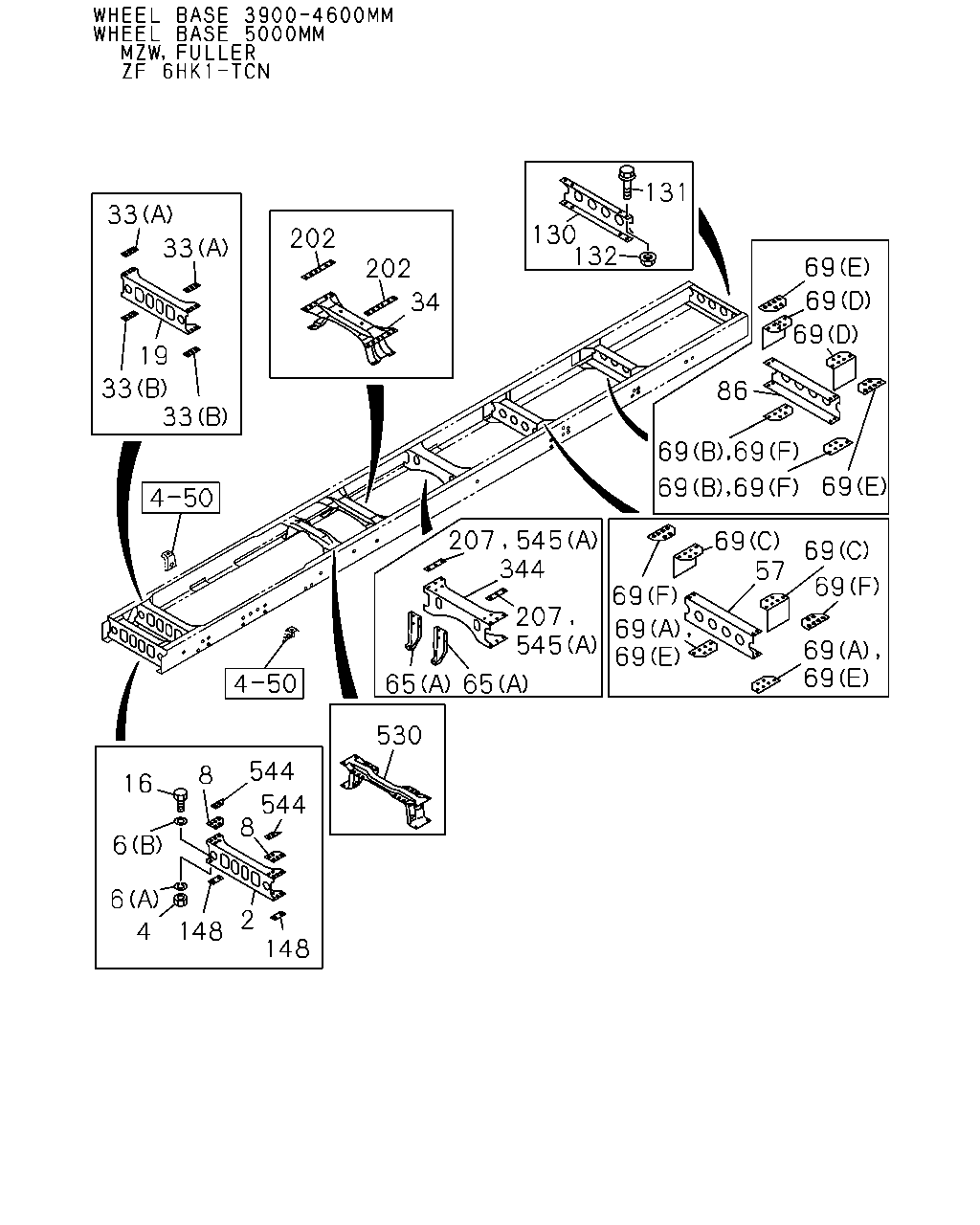

çizim 331991
33 33 19 33 33 202 202 34 130 132 131 16 8 8 6 6 4 148 148 2 544 544 530 207 545 207 344 545 65 65 69 69 69 86 69 69 69 69 69 69 57 69 69 69 69 69 69 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1302- ● ● ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14 		0-91110-514-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ● ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14X40 		0-20851-440-0 02 1 1302- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-2 01 1 1302-1302 ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1302-1505 ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97623-239-3 01 1 1302-1505 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1506- ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) 		8-97623-239-3 01 1 1506- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1305-1308 ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1309- ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1302- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1305-1308 ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1309- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 1302- ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1302-1505 ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1506- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		8-97614-129-0 02 1 1505- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (A) 		8-97623-229-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) FULLER ES11109 DD M/T(Y5N) (A) 		8-97623-229-0 02 1 1506- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98103-401-0 01 1 1302-1309 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98103-401-0 02 1 1302-1309 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98103-401-0 02 1 1302-1309 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-98103-401-0 02 1 1310- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98103-401-0 02 1 1310- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 1302-1504 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 1302-1504 ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 1505- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 1505- ● ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-137-0 02 1 1302- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-137-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-97611-328-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-97614-150-0 02 1 1302- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 1302- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 1302- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 1506- ●
65 BRACKET; CENTER BRG
FULLER ES11109 DD M/T(Y5N) (G) 		8-97614-139-0 04 1 1302- ● ● ● ● ● ● ● ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (G) 		8-97614-139-0 04 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1309- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 1302- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1302-1505 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1506- ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302-1302 ● ● ● ● ● ● ●
130 MEMBER; CROSS,END
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97610-869-1 01 1 1302-1304 ● ● ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302-1304 ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1305- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1302 ● ● ● ● ● ● ●
131 BOLT; END C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1304 ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1304 ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1305- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302-1302 ● ● ● ● ● ● ●
132 NUT; END C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12 		0-91110-512-0 04 1 1302-1304 ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302-1304 ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1305- ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1302- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 1302- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1302 ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97610-872-0 02 1 1302-1304 ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1304 ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1305- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1302-1308 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1302-1308 ● ● ● ●
207 SPACER; 4TH C/MBR
ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1302-1308 ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1309-1505 ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1506- ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302-1302 ● ● ● ● ● ● ●
344 MEMBER; CROSS,4TH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97611-238-1 01 1 1302-1304 ● ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302-1304 ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1305- ● ● ● ● ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97638-949-0 01 1 1305-1308 ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97638-949-0 01 1 1309- ● ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1302-1308 ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1302-1308 ● ● ● ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97615-598-0 02 1 1302-1308 ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1309-1510 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1309-1510 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1511- ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1511- ● ● ● ● ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 1302- ● ● ● ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1302-1408 ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 1302-1408 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TOW HOOK<V76>,TOW HOOK DELETE<8C8> (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1512- ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1512- ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1512- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (A) 0.24KG 		8-97611-245-0 02 1 1512- ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1512- ●

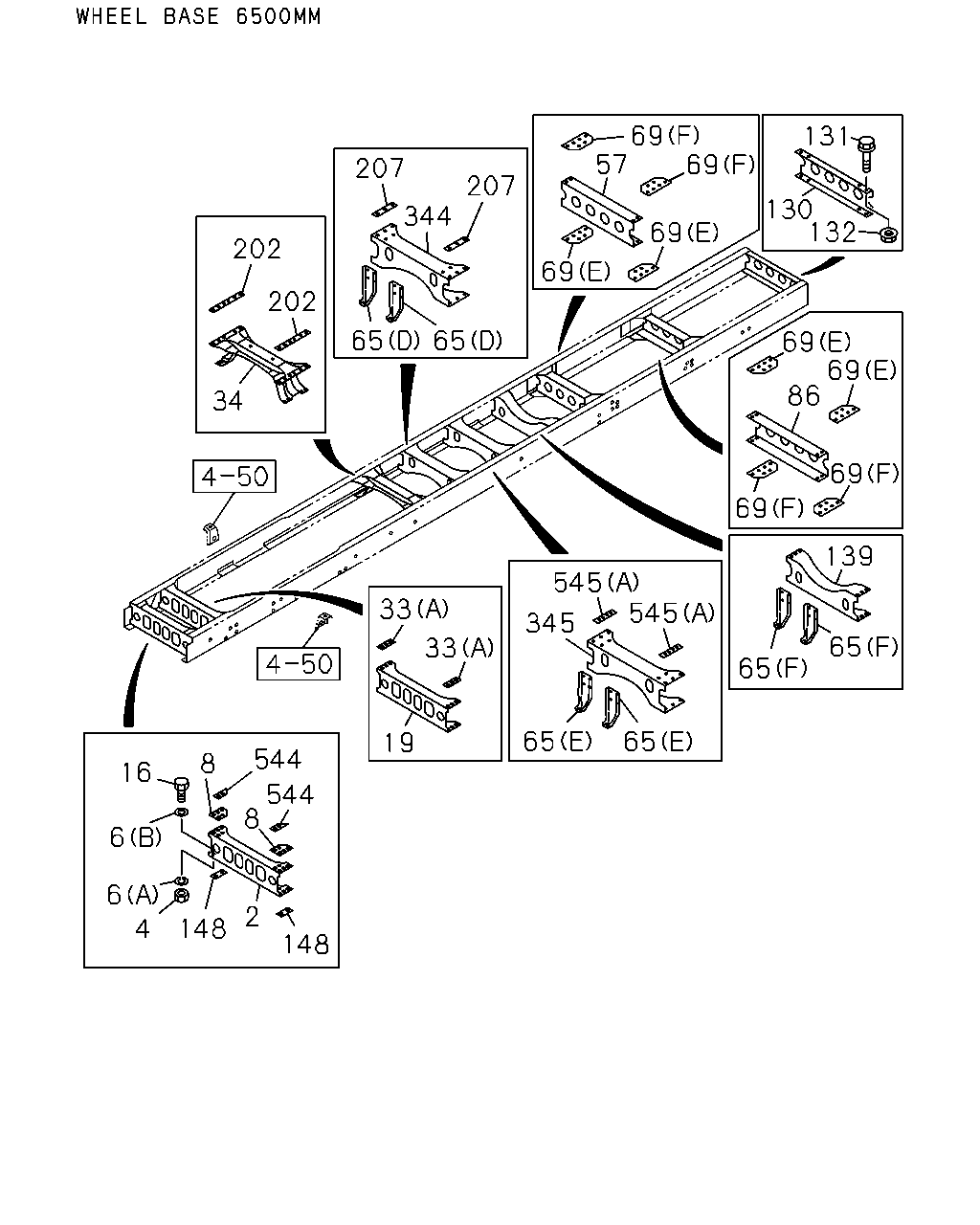

çizim 331993
202 34 202 207 65 65 344 207 69 69 69 57 69 130 132 131 69 69 86 69 69 139 65 65 545 545 345 65 65 33 33 19 544 544 8 8 16 6 6 4 148 2 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1302- ● ● ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14 		0-91110-514-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15 		8-98010-627-1 02 1 1302- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ● ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14X40 		0-20851-440-0 02 1 1302- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-2 01 1 1302-1302 ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1302-1505 ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97623-239-3 01 1 1302-1505 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1506- ● ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) 		8-97623-239-3 01 1 1506- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1305-1308 ●
19 MEMBER; CROSS,2ND
4HK1-TCS ENG(RJS) 		8-97645-337-0 01 1 1309- ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1302- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1305-1308 ●
33 SPACER; 2ND C/MBR,UPR
4HK1-TCS ENG(RJS) (B) 		8-97641-603-0 02 1 1309- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 1302- ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1302-1505 ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1506- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		8-97614-129-0 02 1 1505- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (A) 		8-97623-229-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) FULLER ES11109 DD M/T(Y5N) (A) 		8-97623-229-0 02 1 1506- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98103-401-0 01 1 1302-1309 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98103-401-0 02 1 1302-1309 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98103-401-0 02 1 1302-1309 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-98103-401-0 02 1 1310- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98103-401-0 02 1 1310- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 1302-1504 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 1302-1504 ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 1505- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 1505- ● ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-137-0 02 1 1302- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-137-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-97611-328-0 02 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-97614-150-0 02 1 1302- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 1302- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 1302- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 1506- ●
65 BRACKET; CENTER BRG
FULLER ES11109 DD M/T(Y5N) (G) 		8-97614-139-0 04 1 1302- ● ● ● ● ● ● ● ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (G) 		8-97614-139-0 04 1 1302- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-97614-133-0 02 1 1512- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1302-1505 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1506-1511 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97621-881-0 02 1 1512- ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 1302- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 1302- ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 1302- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 1302- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1302-1505 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1302-1505 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1506- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1506- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 1309- ●
69 GUSSET; RR SUSP,UPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1302-1308 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 1309- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 1302- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1302- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1302-1505 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1302-1505 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1506- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1506- ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302-1302 ● ● ● ● ● ● ●
130 MEMBER; CROSS,END
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97610-869-1 01 1 1302-1304 ● ● ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1302-1304 ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1305- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1302 ● ● ● ● ● ● ●
131 BOLT; END C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1304 ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302-1304 ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1305- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302-1302 ● ● ● ● ● ● ●
132 NUT; END C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12 		0-91110-512-0 04 1 1302-1304 ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1302-1304 ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1305- ● ● ● ● ● ● ●
139 MEMBER; CROSS,6TH 8-97611-238-1 01 1 1302- ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1302- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 1302- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1302 ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97610-872-0 02 1 1302-1304 ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302-1304 ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1305- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1302-1304 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1305-1308 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.24KG 		8-97611-245-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1302-1308 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1302-1308 ● ● ● ●
207 SPACER; 4TH C/MBR
ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1302-1308 ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1309-1505 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1309-1505 ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 0.25KG 		8-97611-244-0 02 1 1506- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1506- ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302-1302 ● ● ● ● ● ● ●
344 MEMBER; CROSS,4TH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97611-238-1 01 1 1302-1304 ● ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1302-1304 ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1305- ● ● ● ● ● ● ●
345 MEMBER; CROSS,5TH
ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 1302-1308 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1302-1308 ● ● ●
345 MEMBER; CROSS,5TH
ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 1309- ●
345 MEMBER; CROSS,5TH
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 		8-97611-238-1 01 1 1309- ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1309- ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1302-1308 ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1302-1308 ● ● ● ● ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97615-598-0 02 1 1302-1308 ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1309-1510 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1309-1510 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1511- ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1511- ● ● ● ● ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 1302- ● ● ● ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 1302-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1302-1408 ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 1302-1408 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TOW HOOK<V76>,TOW HOOK DELETE<8C8> (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 0.24KG 		8-97611-245-0 02 1 1409-1505 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1506-1510 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1511-1511 ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) (A) 0.24KG 		8-97611-245-0 02 1 1512- ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) MZW6P M/T(RSZ) (A) 0.24KG 		8-97611-245-0 02 1 1512- ● ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) 0.24KG 		8-97611-245-0 02 1 1512- ●
545 SPACER; 5TH C/MBR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (A) 0.24KG 		8-97611-245-0 02 1 1512- ●
545 SPACER; 5TH C/MBR
FULLER ES11109 DD M/T(Y5N) (A) 0.24KG 		8-97611-245-0 02 1 1512- ●
çizim 332005
101 82 138 106 118 98 103 117 18 13 11 23 25 25 26 24 23 25 25 26 46 25 25 46 25 25 26 39 26 129 128 129 105 96 106 281 89 111 82 138 112 97 281 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97644-889-0 01 1 1309- ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97644-890-0 01 1 1309- ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1302-1505 ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 1302-1505 ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-97619-550-0 02 1 1302-1505 ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1506- ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 1506- ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) 		8-97619-550-0 02 1 1506- ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 1302-1302 ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 1302-1505 ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 1506- ● ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-385-1 01 1 1309- ● ● ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1305-1308 ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97639-386-1 01 1 1309- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 1302- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302-1302 ● ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12X35 FLANGE 		0-28661-235-0 08 1 1302-1505 ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302-1505 ●
13 BOLT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) M12X35 FLANGE 		0-28661-235-0 08 1 1506- ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1506- ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1305-1308 ●
13 BOLT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12X35 FLANGE 		0-28661-235-0 12 1 1309- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302-1302 ● ● ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302-1505 ● ●
18 NUT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12 FLANGE 		0-91180-212-0 08 1 1302-1505 ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1506- ● ●
18 NUT; BRKT,ENG MTG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L), 6HK1-TCNENG(82L) M12 FLANGE 		0-91180-212-0 08 1 1506- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1305-1308 ●
18 NUT; BRKT,ENG MTG
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 12 1 1309- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1302- ● ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1302- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1302- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1302- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 44 1 1302- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1302- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302-1302 ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=15 		8-98010-627-1 28 1 1302-1304 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302-1304 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1305- ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1302- ● ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1302- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1302- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1302- ● ● ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1302- ● ● ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 1302- ● ● ● ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 1302- ● ● ● ● ● ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 1302- ● ● ● ● ● ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1302- ● ● ● ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1302-1302 ● ● ● ● ● ● ●
98 WASHER; LK,STOPPER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=14.2 		0-91510-814-0 16 1 1302-1304 ● ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1302-1304 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1305- ● ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-081-2 02 1 1302- ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1302-1302 ● ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-53353-078-1 02 1 1302-1304 ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1302-1304 ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1305- ● ● ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1302- ● ● ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-073-1 02 1 1302- ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1302-1302 ● ● ● ● ● ● ●
105 BRACKET; RR SPR,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-53354-064-1 02 1 1302-1304 ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1302-1304 ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1305- ● ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 1302- ● ● ● ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 1302- ● ● ● ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1302- ● ● ● ● ● ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 1302- ● ● ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1302- ● ● ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ● ● ● ● ● ●
128 COLLAR; RUBBER 1-53359-004-0 02 1 1302- ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 1302- ● ● ● ● ● ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 1302- ● ● ● ● ● ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 1302- ● ● ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1302-1302 ● ● ● ● ● ● ●
138 WASHER; LK,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=14.2 		0-91510-814-0 24 1 1302-1304 ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1302-1304 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1305- ● ● ● ● ● ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 1302- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
