1-10 — RADIATOR (#112104) — 76 parça
çizim 326889

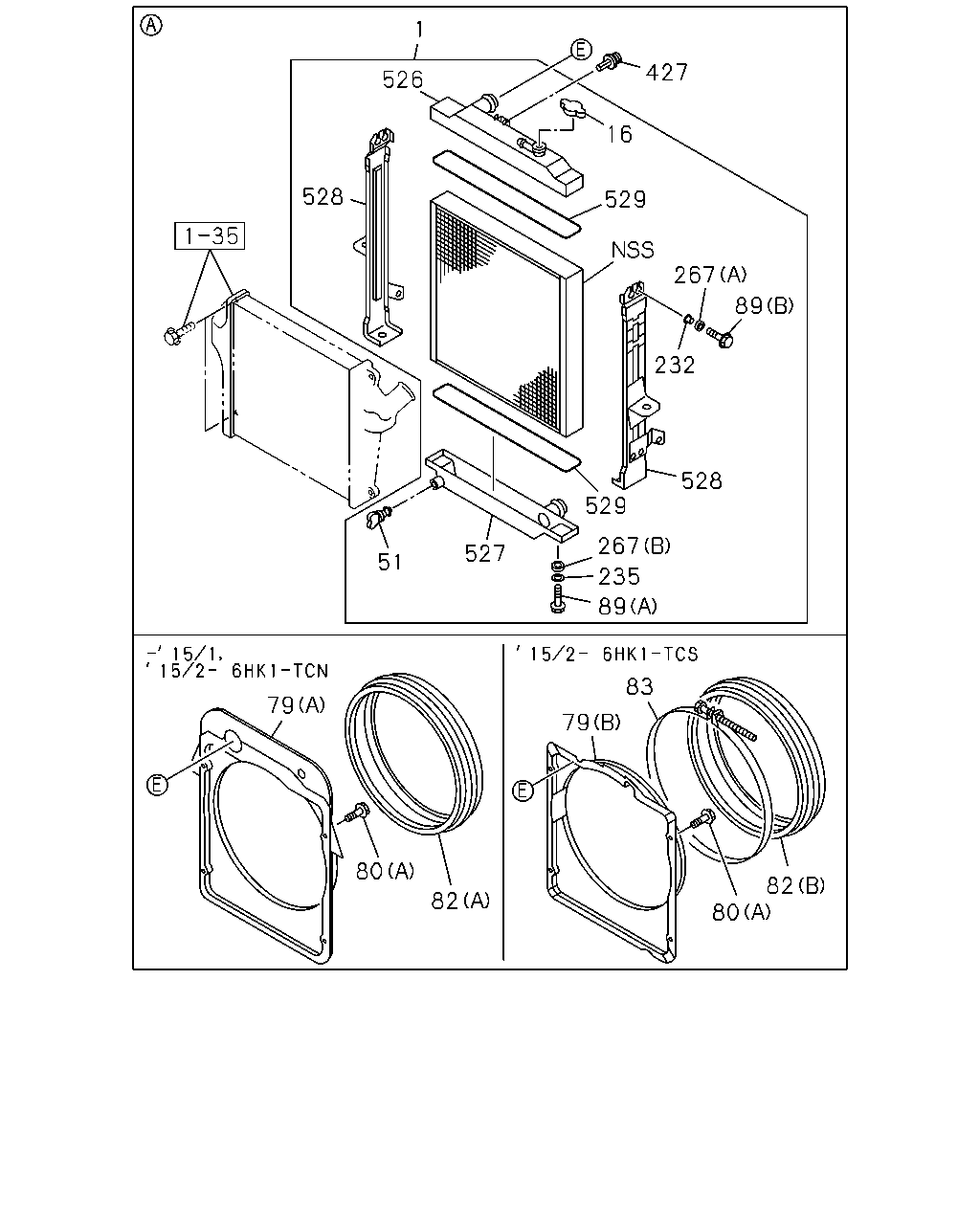

1 526 528 51 527 529 267 235 89 528 232 89 267 529 16 427 79 80 82 79 83 80 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-98139-310-0 01 1 1302- ●
1 RADIATOR ASM 8-98139-313-0 01 1 1302- ●
16 CAP; RAD 8-98096-226-0 01 1 1302- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(A) 		8-98286-937-0 01 1 1506- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 1302-1501 ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1502- ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1302-1501 ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1302- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1302- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1302- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1501 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 1302- ● ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 1302- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-371-3 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 1302- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1302- ● ●
çizim 326894

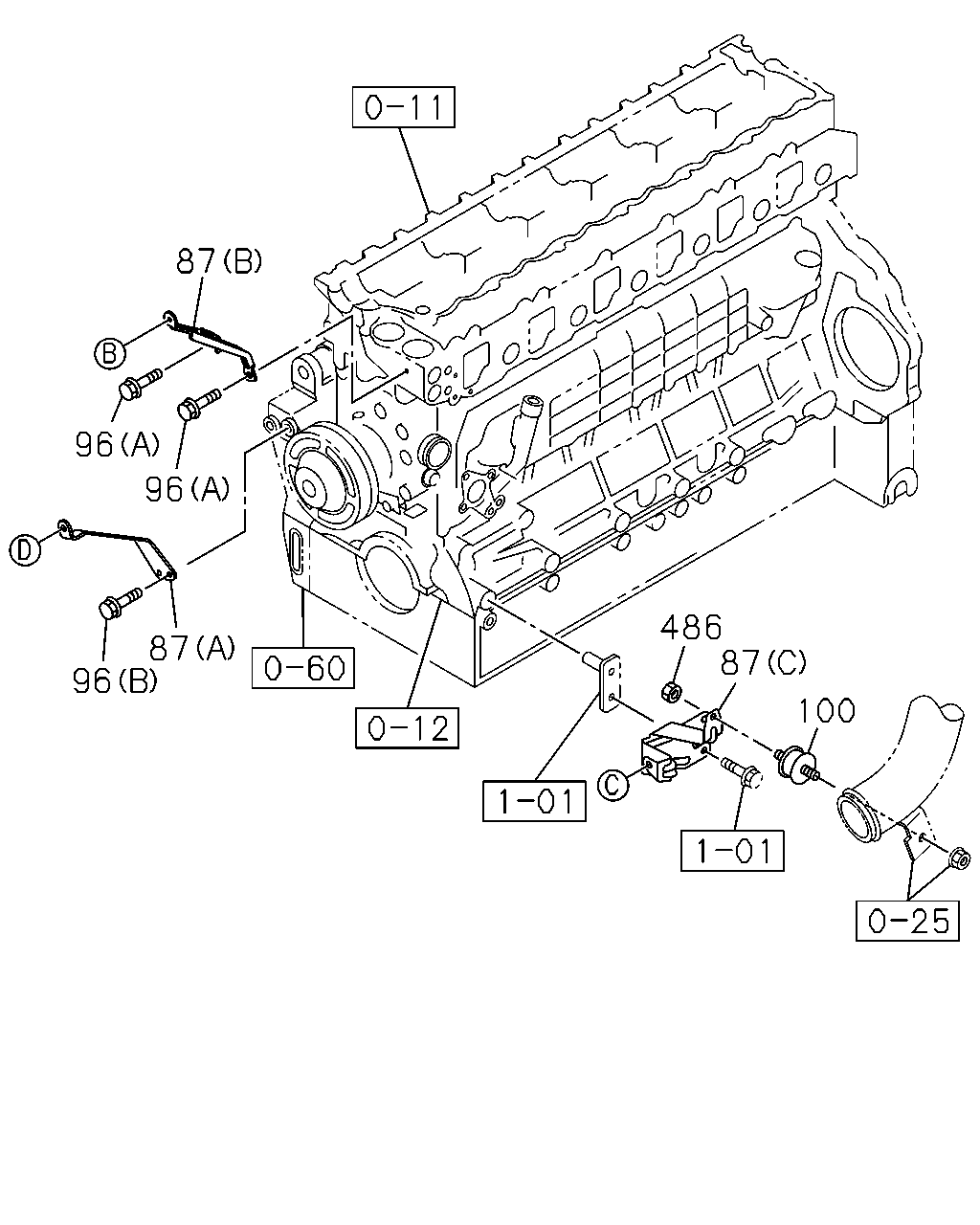

87 96 87 96 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1302- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1302- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1302- ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1302- ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 1302- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
çizim 330623

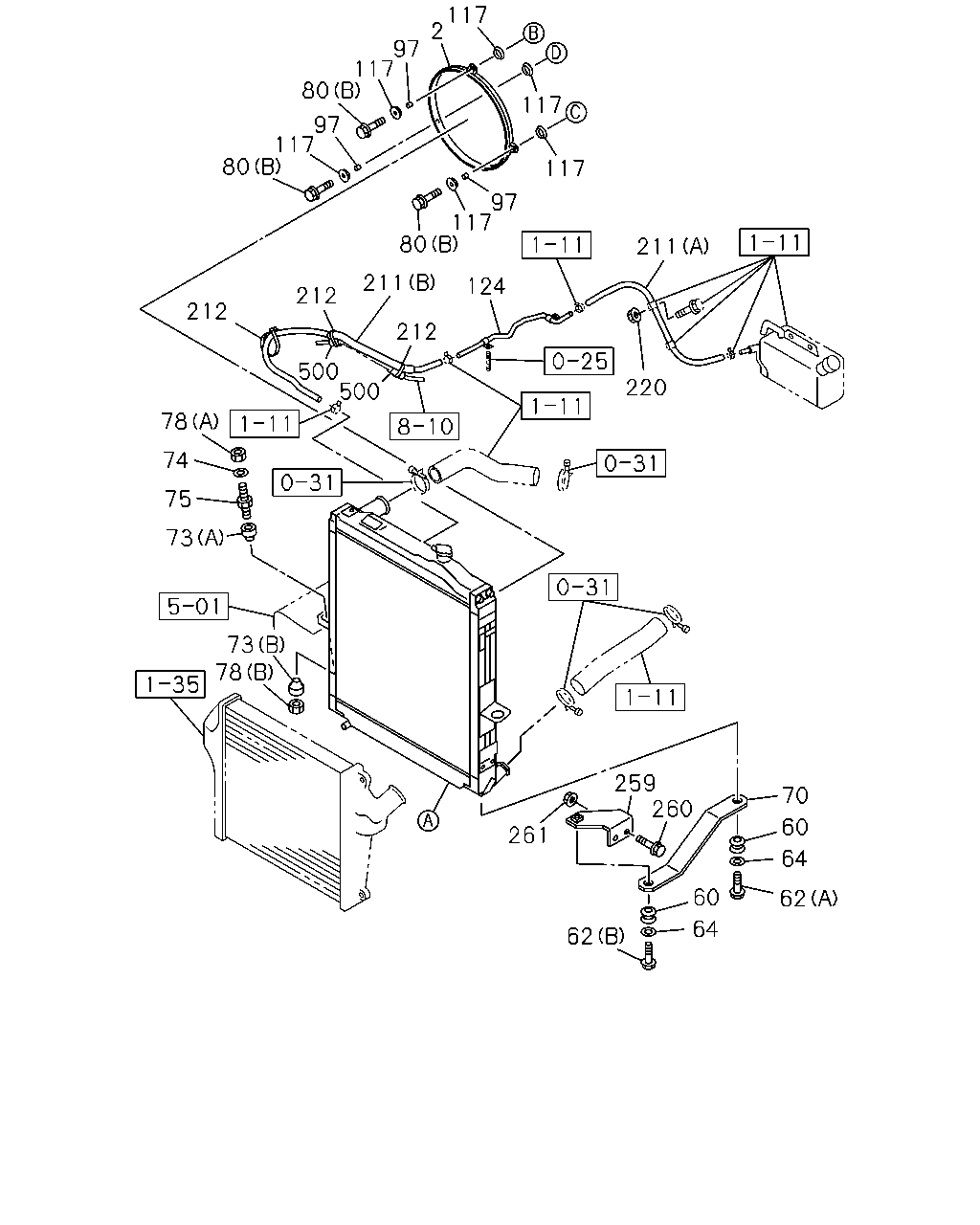

117 2 97 117 80 117 80 212 78 75 74 73 73 78 212 211 80 117 97 117 117 212 124 500 211 500 220 261 62 259 260 60 64 70 60 64 62 97
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 1302- ● ●
60 GROMMET 1-09332-117-0 04 1 1302- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1302- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1302- ● ●
70 STAY; RAD 8-98004-132-2 02 1 1302- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1302- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1302- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1302- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1302- ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1302-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1302- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1302- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1302- ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1302- ● ●
211 HOSE; RAD TO PIPE
(B) L=970 		8-98073-545-0 01 1 1302- ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> L=250 		5-09707-030-1 01 1 1602- ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> L=140 		5-09707-031-1 02 1 1602- ● ●
212 CLIP; HOSE
L=250 		5-09707-030-1 02 1 1302-1601 ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> L=250 		5-09707-030-1 02 1 1602- ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 1302-1601 ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> L=140 		5-09707-031-1 01 1 1602- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1302- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1302- ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1302- ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
500 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40 		1-09337-012-0 02 1 1602- ● ●
