Isuzu WW
▶
TRUCKS
▶
FRR
▶
11507 - FRR RHD EURO2/4 SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#112102) — 47 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
◀

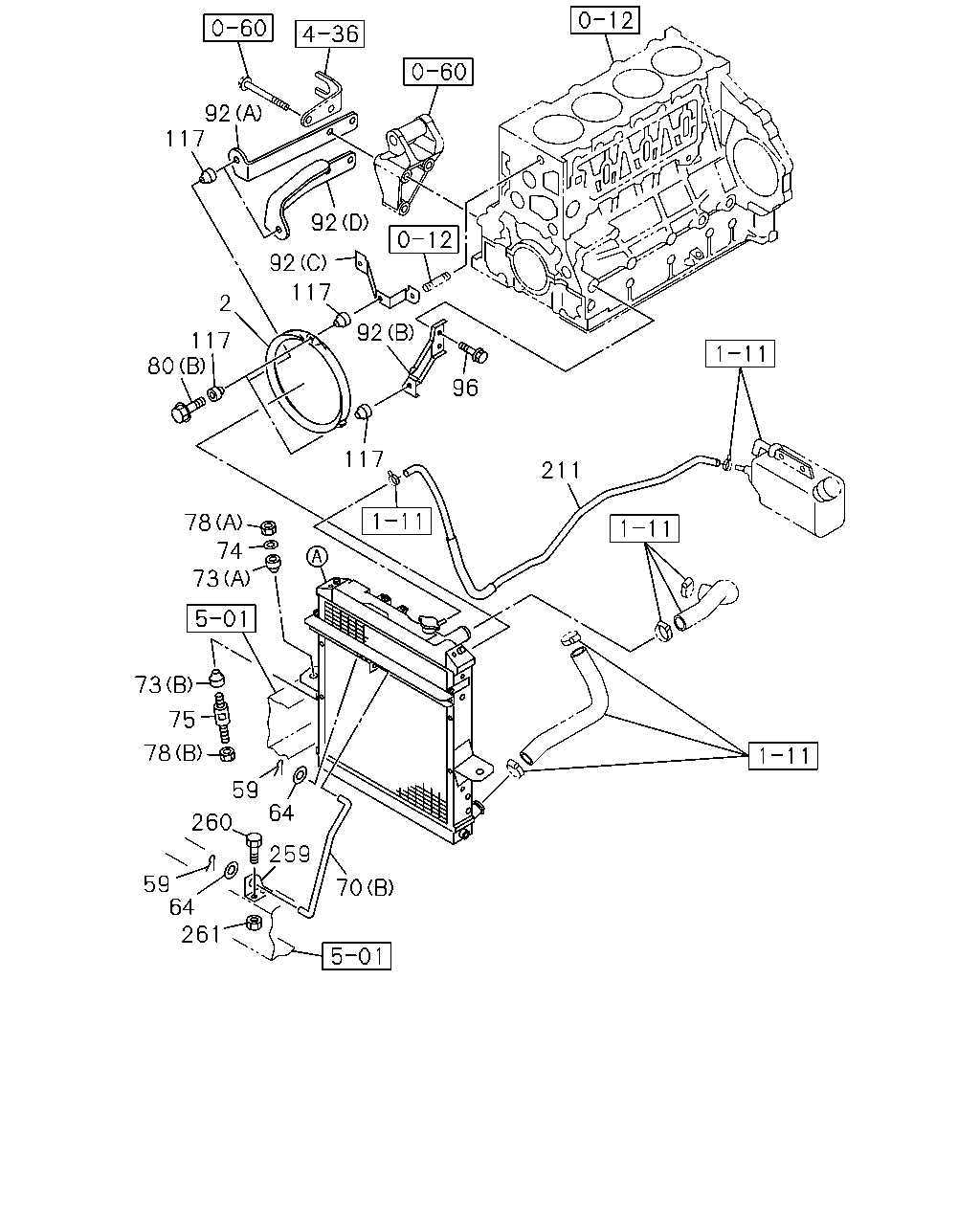

[110A] NO.1 (25 parça)

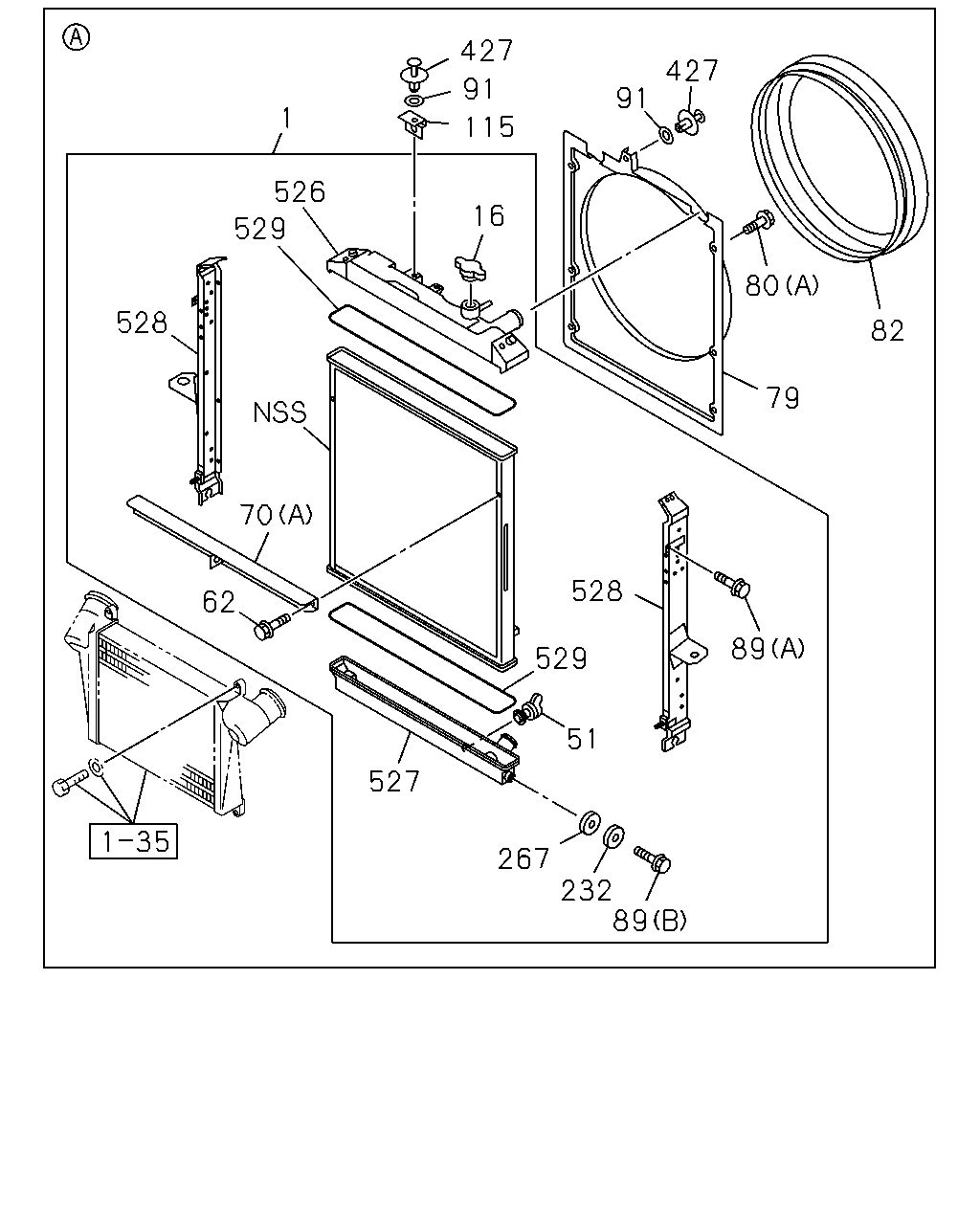

[110A] NO.2 (22 parça)
▶
92
92
92
92
117
117
117
117
211
2
80
96
78
78
73
73
74
75
59
59
64
64
261
259
260
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
8-97350-995-0
01
1
1302-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1302-
●
●
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1302-
●
●
70
STAY; RAD
(B)
8-98010-657-0
01
1
1302-
●
●
70
STAY; RAD
(A)
8-98018-941-0
01
1
1302-
●
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1302-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1302-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1302-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1302-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1302-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1302-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1302-
●
●
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1302-
●
●
92
BRACKET; FAN GUIDE
(C)
8-97382-827-2
01
1
1302-
●
●
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1302-
●
●
92
BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D)
8-98032-526-0
01
1
1302-
●
●
92
BRACKET; FAN GUIDE
EXC. GENERATOR 24V90A(K44) (A)
8-97350-997-0
01
1
1302-
●
●
96
BOLT; STAY FIX
M10X20 FLANGE
0-28151-020-0
02
1
1302-
●
●
96
BOLT; STAY FIX
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X75 FLANGE
8-94399-669-1
02
1
1302-
●
●
96
BOLT; STAY FIX
GENERATOR 24V90A(K44) M10X25 FLANGE
0-28751-025-0
02
1
1302-
●
●
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1302-
●
●
211
HOSE; RAD TO PIPE
8-98205-854-0
01
1
1302-
●
●
259
BRACKET; RAD STAY
8-98063-603-0
01
1
1302-
●
●
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1302-
●
●
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1302-
●
●
1
115
91
427
16
91
427
80
79
82
528
89
529
51
527
267
232
89
62
70
528
529
526
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98214-370-0
01
1
1302-
●
●
16
CAP; RAD
8-98096-226-0
01
1
1302-
●
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1302-
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1302-
●
●
70
STAY; RAD
(B)
8-98010-657-0
01
1
1302-
●
●
70
STAY; RAD
(A)
8-98018-941-0
01
1
1302-
●
●
79
GUIDE; FAN,RAD
8-98010-297-0
01
1
1302-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1302-
●
●
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1302-
●
●
82
COVER; FAN,RAD
8-98006-478-0
01
1
1302-
●
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1302-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1302-
●
●
91
WASHER; PL
1-21469-111-0
02
1
1302-
●
●
115
BRACKET; FAN GUIDE
8-98204-117-0
01
1
1302-
●
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1302-
●
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
1302-
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1302-
●
●
526
TANK; UPR,RADIATOR CORE
8-98107-793-0
01
1
1302-
●
●
527
TANK; LWR,RADIATOR CORE
8-98032-433-1
01
1
1302-
●
●
528
PLATE; SIDE,RADIATOR CORE
8-98010-290-1
01
1
1302-
●
●
528
PLATE; SIDE,RADIATOR CORE
8-98010-291-1
01
1
1302-
●
●
529
GASKET; CORE,RADIATOR
8-98032-435-0
02
1
1302-
●
●
