Isuzu WW
▶
TRUCKS
▶
FRR
▶
11505 - FRR(LHD) SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#112100) — 66 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
◀

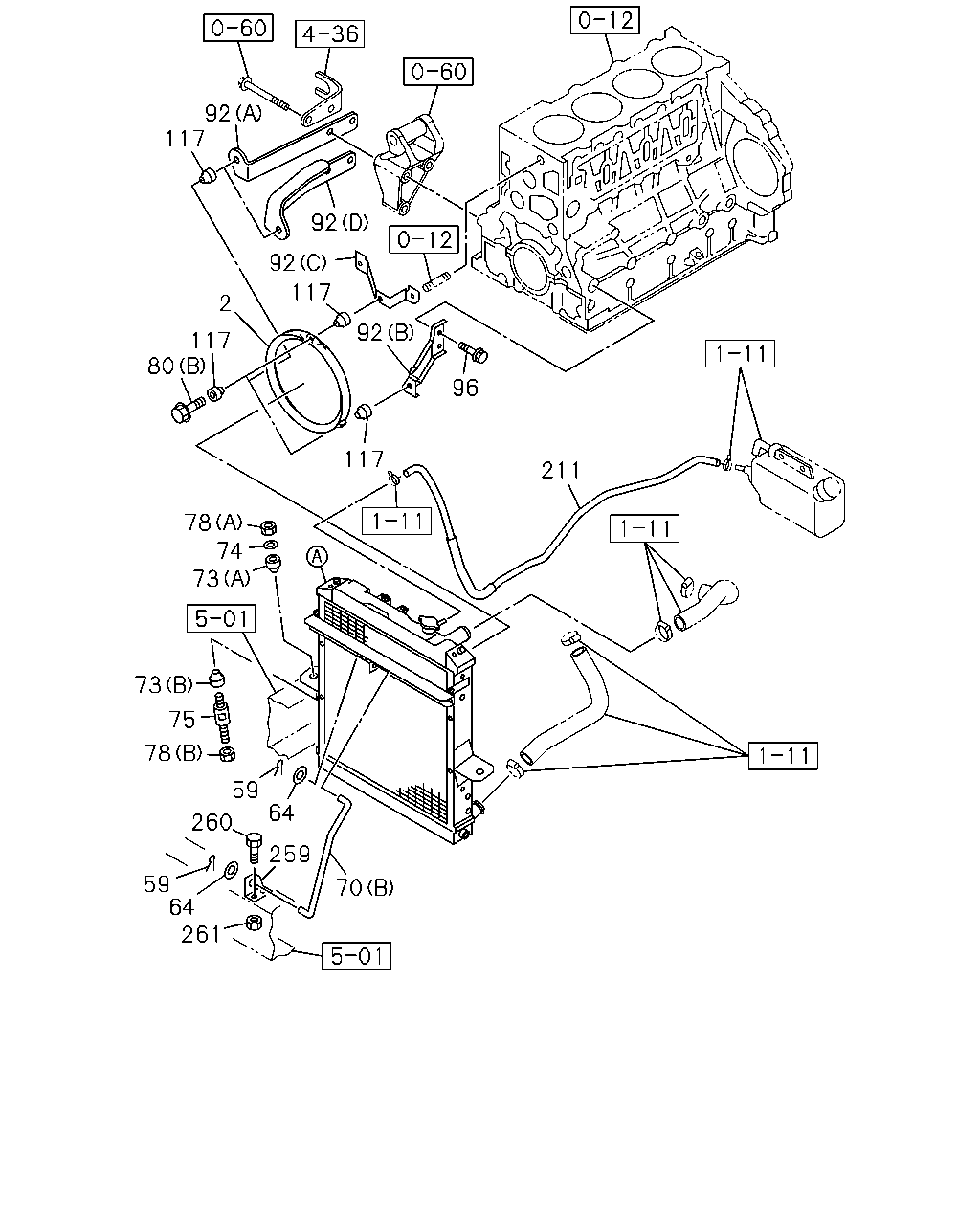

[110A] NO.1 (28 parça)

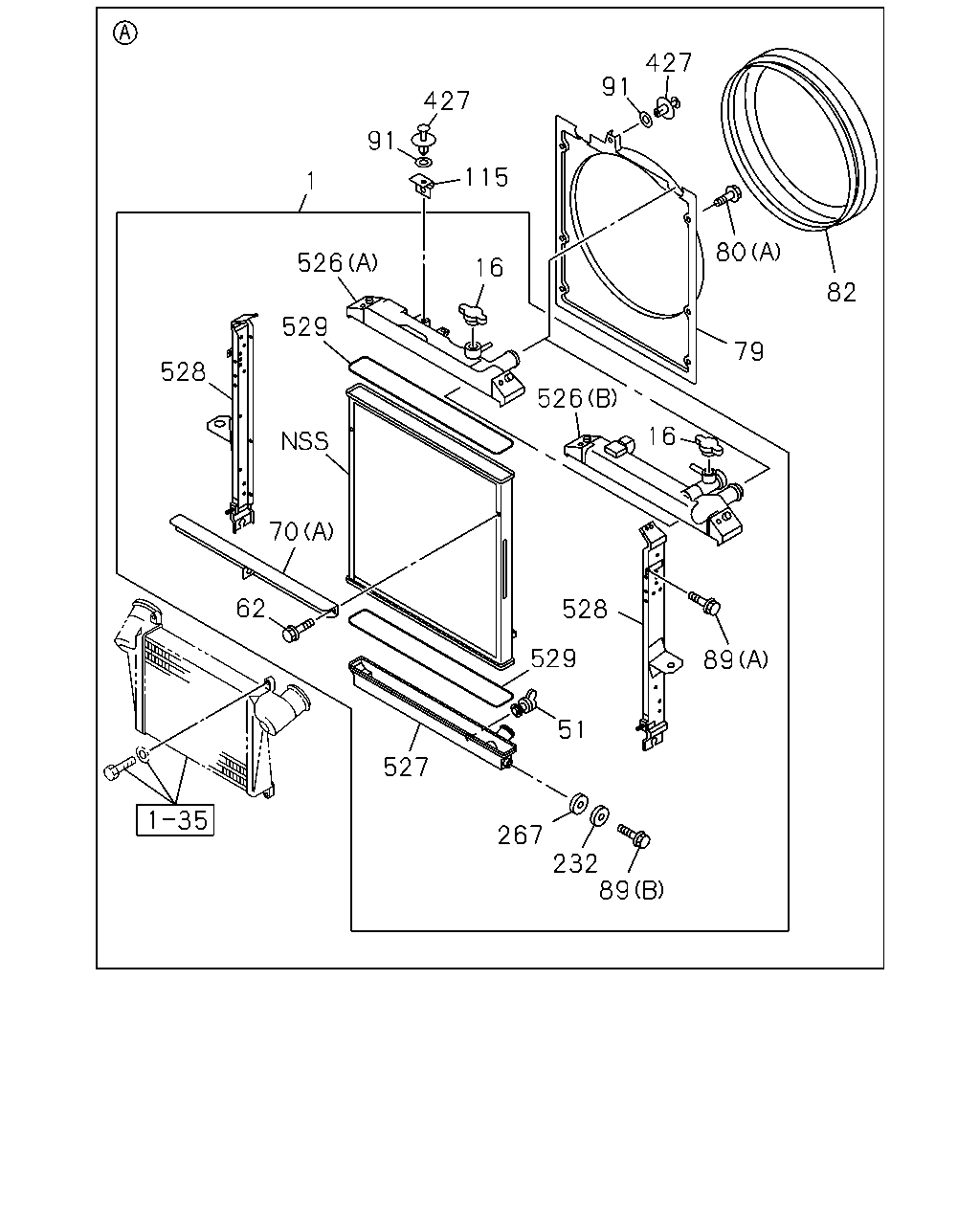

[110A] NO.2 (38 parça)
▶
92
117
92
92
92
117
2
117
96
117
78
74
73
73
75
78
59
64
260
259
59
211
70
64
261
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
8-97350-995-0
01
1
1302-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1302-
●
●
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1302-
●
●
70
STAY; RAD
(B)
8-98010-657-0
01
1
1302-
●
●
70
STAY; RAD
(A)
8-98018-941-0
01
1
1302-
●
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1302-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1302-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1302-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1302-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1302-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1302-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1302-
●
●
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1302-
●
●
92
BRACKET; FAN GUIDE
(C)
8-97382-827-2
01
1
1302-
●
●
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1302-
●
●
92
BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D)
8-98032-526-0
01
1
1302-
●
●
92
BRACKET; FAN GUIDE
EXC. GENERATOR 24V90A(K44) (A)
8-97350-997-0
01
1
1302-
●
●
96
BOLT; STAY FIX
M10X20 FLANGE
0-28151-020-0
02
1
1302-
●
●
96
BOLT; STAY FIX
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X75 FLANGE
8-94399-669-1
02
1
1302-
●
●
96
BOLT; STAY FIX
GENERATOR 24V90A(K44) M10X25 FLANGE
0-28751-025-0
02
1
1302-
●
●
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1302-
●
●
211
HOSE; RAD TO PIPE
EURO5 SPECIFICATION<NT5>
8-98132-968-0
01
1
1506-
●
211
HOSE; RAD TO PIPE
8-98205-854-0
01
1
1302-1505
●
●
211
HOSE; RAD TO PIPE
EXC. EURO5 SPECIFICATION<NT5>
8-98205-854-0
01
1
1506-
●
211
HOSE; RAD TO PIPE
8-98205-854-0
01
1
1506-
●
259
BRACKET; RAD STAY
8-98063-603-0
01
1
1302-
●
●
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1302-
●
●
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1302-
●
●
1
526
529
70
62
528
526
528
529
51
89
267
232
89
527
16
79
82
80
91
427
115
91
16
427
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
EURO5 SPECIFICATION<NT5>
8-98234-536-0
01
1
1506-
●
1
RADIATOR ASM
8-98214-370-0
01
1
1302-1505
●
●
1
RADIATOR ASM
EXC. EURO5 SPECIFICATION<NT5>
8-98214-370-0
01
1
1506-
●
1
RADIATOR ASM
8-98214-370-0
01
1
1506-
●
16
CAP; RAD
8-98096-226-0
01
1
1302-
●
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1302-
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1302-
●
●
70
STAY; RAD
(B)
8-98010-657-0
01
1
1302-
●
●
70
STAY; RAD
(A)
8-98018-941-0
01
1
1302-
●
●
79
GUIDE; FAN,RAD
8-98010-297-0
01
1
1302-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1302-
●
●
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1302-
●
●
82
COVER; FAN,RAD
8-98006-478-0
01
1
1302-
●
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1302-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1302-
●
●
91
WASHER; PL
1-21469-111-0
02
1
1302-1505
●
●
91
WASHER; PL
EXC. EURO5 SPECIFICATION<NT5>
1-21469-111-0
02
1
1506-
●
91
WASHER; PL
1-21469-111-0
02
1
1506-
●
115
BRACKET; FAN GUIDE
8-98204-117-0
01
1
1302-1505
●
●
115
BRACKET; FAN GUIDE
EXC. EURO5 SPECIFICATION<NT5>
8-98204-117-0
01
1
1506-
●
115
BRACKET; FAN GUIDE
8-98204-117-0
01
1
1506-
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1302-
●
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
1302-
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1302-
●
●
526
TANK; UPR,RADIATOR CORE
EURO5 SPECIFICATION<NT5> (B)
8-98010-271-2
01
1
1506-
●
526
TANK; UPR,RADIATOR CORE
(A)
8-98107-793-0
01
1
1302-1505
●
●
526
TANK; UPR,RADIATOR CORE
EXC. EURO5 SPECIFICATION<NT5> (A)
8-98107-793-0
01
1
1506-
●
526
TANK; UPR,RADIATOR CORE
(A)
8-98107-793-0
01
1
1506-
●
527
TANK; LWR,RADIATOR CORE
8-98032-433-1
01
1
1302-
●
●
528
PLATE; SIDE,RADIATOR CORE
EURO5 SPECIFICATION<NT5>
8-98204-114-0
01
1
1506-
●
528
PLATE; SIDE,RADIATOR CORE
EURO5 SPECIFICATION<NT5>
8-98220-521-0
01
1
1506-
●
528
PLATE; SIDE,RADIATOR CORE
8-98010-290-1
01
1
1302-1505
●
●
528
PLATE; SIDE,RADIATOR CORE
EXC. EURO5 SPECIFICATION<NT5>
8-98010-290-1
01
1
1506-
●
528
PLATE; SIDE,RADIATOR CORE
8-98010-290-1
01
1
1506-
●
528
PLATE; SIDE,RADIATOR CORE
8-98010-291-1
01
1
1302-1505
●
●
528
PLATE; SIDE,RADIATOR CORE
EXC. EURO5 SPECIFICATION<NT5>
8-98010-291-1
01
1
1506-
●
528
PLATE; SIDE,RADIATOR CORE
8-98010-291-1
01
1
1506-
●
529
GASKET; CORE,RADIATOR
8-98032-435-0
02
1
1302-
●
●
