6-05 — FRONT PANEL (#1121) — 131 parça

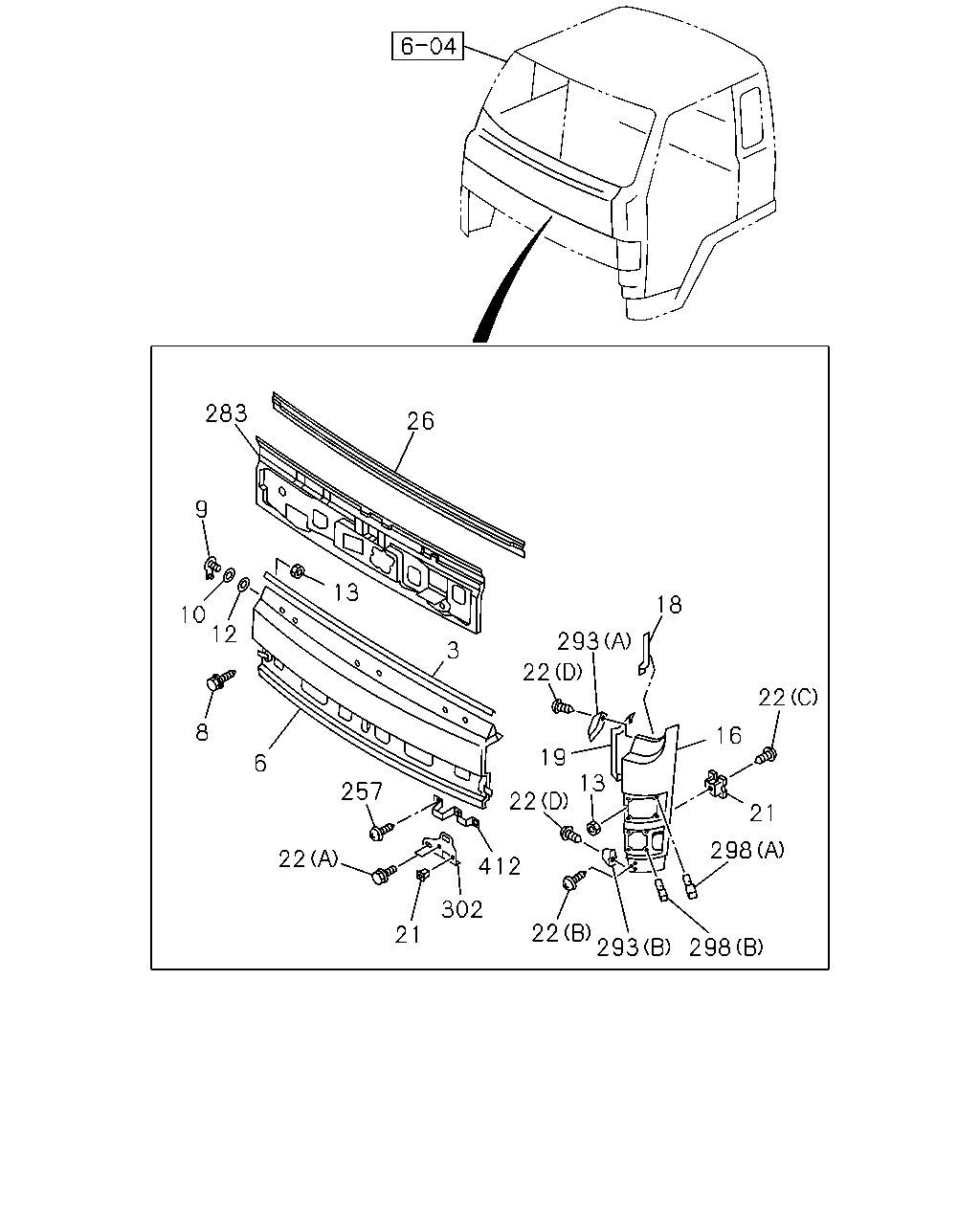

çizim 92853
26 283 9 13 10 12 3 6 8 257 22 21 302 412 22 293 298 298 21 16 22 13 22 19 22 293 18
BalonParca AdiParca NoAdetTipApplied Date A B
3 FINISHER; FRT PANEL UPR 1-71907-093-0 01 1 9202- ● ●
6 PANEL; FRONT 1-65480-910-0 01 1 9202- ●
6 PANEL; FRONT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-910-0 01 1 9202- ●
6 PANEL; FRONT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-151-0 01 1 9308- ●
8 SCREW; FRT PANEL
M6X16 W/LK&PL WASHER 		1-09980-574-0 07 1 9202- ● ●
9 FASTENER; FRT PANEL TO SIDE PANEL 1-65570-152-1 02 1 9202- ● ●
10 WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20 		1-09985-145-0 02 1 9202- ● ●
12 WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22 		9-09160-708-0 02 1 9202- ● ●
13 NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE 		1-09984-064-0 02 1 9202- ● ●
16 PANEL; FRONT,SIDE 1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE 1-65480-533-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-533-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-041-5 01 1 9308- ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-040-5 01 1 9308- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-171-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-171-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-531-0 01 1 9308- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-530-0 01 1 9308- ●
19 SEAL; FRT SIDE PANEL 1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL 1-65580-194-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-194-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-575-2 01 1 9308- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-574-2 01 1 9308- ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=10.5 M5 WHITE 		1-09983-115-0 06 1 9308- ●
22 SCREW; FRT PANEL SIDE
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
(B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
(C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-497-0 04 1 9308- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M5X20 		1-09981-454-0 06 1 9308- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M6X10 		1-09981-520-0 02 1 9308- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 08 1 9309- ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 1-61480-408-5 01 1 9202- ● ●
257 BOLT; BRKT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9308- ●
283 PANEL ASM; FRT CENTER,INNER 1-61480-410-4 01 1 9202-9311 ● ●
283 PANEL ASM; FRT CENTER,INNER
EXC. AUSTRALIA PACKAGE<D2Y>,AUSTRALIA EQUIPMENT(RR3) 		1-61480-410-4 01 1 9312- ● ●
283 PANEL ASM; FRT CENTER,INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-756-0 01 1 9312- ● ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) 		1-65481-043-3 01 1 9308- ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) 		1-65481-045-1 01 1 9308- ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) 		1-65481-042-3 01 1 9308- ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) 		1-65481-044-1 01 1 9308- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL 8-94279-039-0 08 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		8-94279-039-0 08 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M5 		1-09983-116-0 08 1 9308- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M4 		1-09983-117-0 08 1 9308- ●
302 BRACKET; FRT SIDE,HD LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-054-1 01 1 9308- ●
302 BRACKET; FRT SIDE,HD LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-053-1 01 1 9308- ●
412 BRACKET ASM; HD LAMP UPR
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-79998-619-2 01 1 9308- ●
412 BRACKET ASM; HD LAMP UPR
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-79998-895-1 01 1 9308- ●
çizim 94037
341 375 376 353 357 14 352 341 370 419 371 356 354 374 369 374 373 43
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 1-65480-727-4 01 1 9202- ● ●
14 FENDER; FRT 1-65480-726-4 01 1 9202- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK 		1-76798-018-0 02 1 9202- ● ●
341 BOLT; FENDER TO COWL
(A) M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9202- ● ●
341 BOLT; FENDER TO COWL
(B) M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 9202- ● ●
352 WASHER; NYLON 1-09985-171-0 06 1 9202- ● ●
353 SPACER; FENDER TO CAB
ID=12.5 		1-09503-171-0 02 1 9501- ● ●
354 SEAL; FENDER SIDE 1-71998-307-1 01 1 9202- ● ●
354 SEAL; FENDER SIDE 1-71998-306-1 01 1 9202- ● ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-228-0 01 1 9202- ● ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-148-1 01 1 9202- ● ●
357 FINISHER; WIDE FENDER RR 1-71998-311-0 01 1 9202- ● ●
357 FINISHER; WIDE FENDER RR 1-71998-310-0 01 1 9202- ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-300-3 01 1 9202- ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-299-3 01 1 9202- ● ●
370 PROTECTOR; NYLON TUBE
SERVICED BY L=240 		1-71998-400-0 01 1 9202- ● ●
371 BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-280-5 01 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-279-5 01 1 9202- ● ●
374 BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ● ●
375 SUPPORT; FENDER REAR 1-65680-663-0 01 1 9202- ● ●
376 BOLT; SUPPORT,FENDER RR
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9202- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9305- ● ●

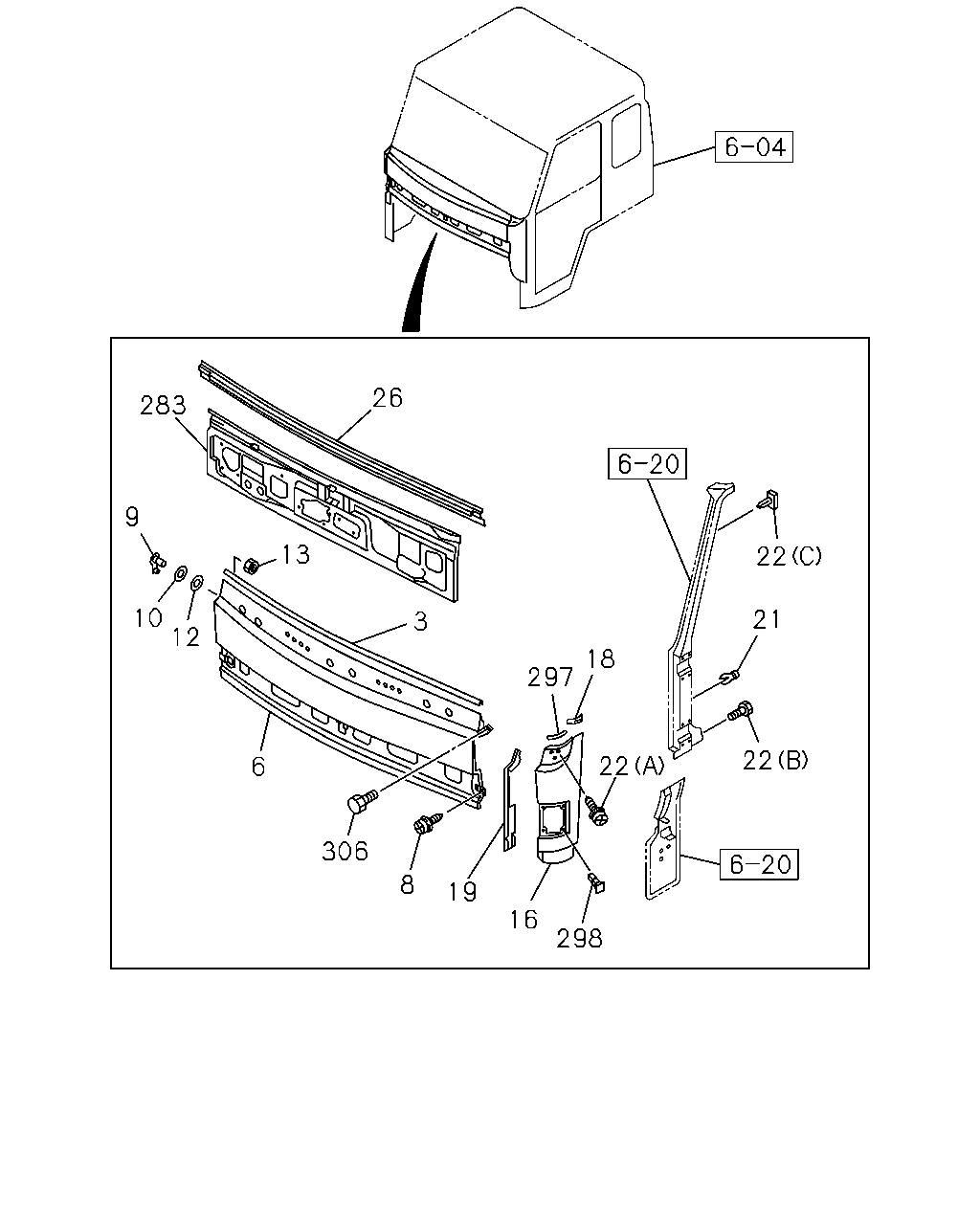

çizim 95769
26 283 9 13 10 12 3 6 306 8 19 16 298 22 297 18 22 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
3 FINISHER; FRT PANEL UPR 1-71907-093-0 01 1 9202- ● ●
6 PANEL; FRONT 1-65480-910-0 01 1 9202- ●
6 PANEL; FRONT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-910-0 01 1 9202- ●
6 PANEL; FRONT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-151-0 01 1 9308- ●
8 SCREW; FRT PANEL
M6X16 W/LK&PL WASHER 		1-09980-574-0 07 1 9202- ● ●
9 FASTENER; FRT PANEL TO SIDE PANEL 1-65570-152-1 02 1 9202- ● ●
10 WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20 		1-09985-145-0 02 1 9202- ● ●
12 WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22 		9-09160-708-0 02 1 9202- ● ●
13 NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE 		1-09984-064-0 02 1 9202- ● ●
16 PANEL; FRONT,SIDE 1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE 1-65480-533-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-533-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-041-5 01 1 9308- ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-040-5 01 1 9308- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-171-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-171-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-531-0 01 1 9308- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-530-0 01 1 9308- ●
19 SEAL; FRT SIDE PANEL 1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL 1-65580-194-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-194-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-575-2 01 1 9308- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-574-2 01 1 9308- ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=10.5 M5 WHITE 		1-09983-115-0 06 1 9308- ●
22 SCREW; FRT PANEL SIDE
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
(B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
(C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-497-0 04 1 9308- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M5X20 		1-09981-454-0 06 1 9308- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M6X10 		1-09981-520-0 02 1 9308- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 08 1 9309- ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 1-61480-408-5 01 1 9202- ● ●
283 PANEL ASM; FRT CENTER,INNER 1-61480-410-4 01 1 9202-9311 ● ●
283 PANEL ASM; FRT CENTER,INNER
EXC. AUSTRALIA PACKAGE<D2Y>,AUSTRALIA EQUIPMENT(RR3) 		1-61480-410-4 01 1 9312- ● ●
283 PANEL ASM; FRT CENTER,INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-756-0 01 1 9312- ● ●
297 FINISHER; SIDE PANEL,CAB 1-71998-300-0 02 1 9202- ●
297 FINISHER; SIDE PANEL,CAB
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-300-0 02 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL 8-94279-039-0 08 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		8-94279-039-0 08 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M5 		1-09983-116-0 08 1 9308- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M4 		1-09983-117-0 08 1 9308- ●
306 BOLT; SUPPORT,OUTSIDE MIRROR BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9208-9209 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
