Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

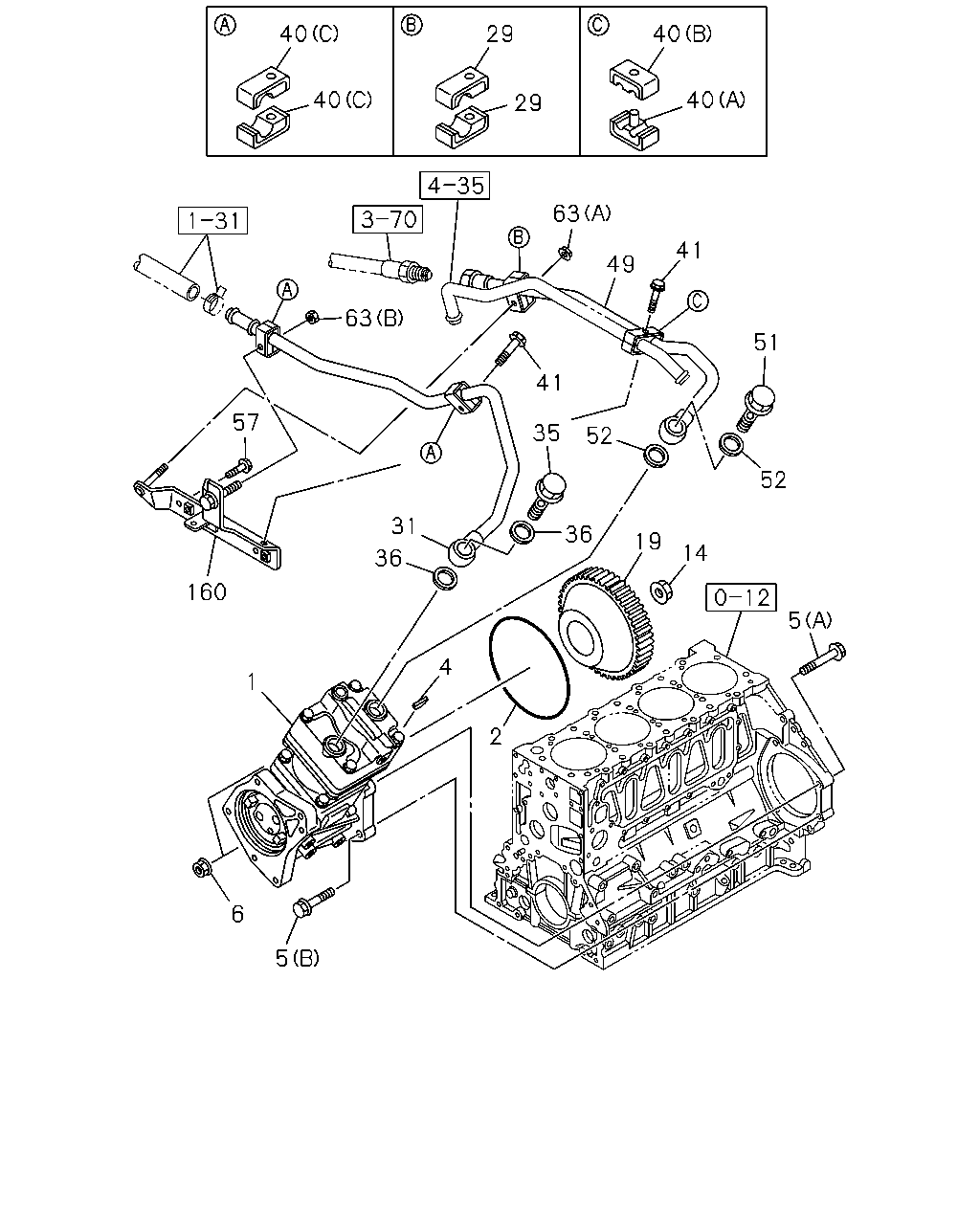

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#112078) — 27 parça
40
40
29
29
40
40
63
41
49
51
52
14
5
19
52
36
35
41
31
36
4
2
5
6
1
160
57
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-308-0
01
1
1302-1405
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98270-233-0
01
1
1406-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6
1-09623-464-0
01
1
1302-
4
KEY; INJ PUMP GEAR
9-08055-519-0
01
1
1302-
5
BOLT; AIR CMPR FIX
(B) M12X70 FLANGE
0-28151-270-0
01
1
1302-
5
BOLT; AIR CMPR FIX
(A) M12X95 FLANGE
8-94396-485-1
01
1
1302-
6
NUT; AIR CMPR
M10 FLANGE
0-91180-110-0
02
1
1302-
14
NUT; GEAR
M18
8-97141-154-0
01
1
1302-
19
GEAR; INJ PUMP
Z=35
8-97600-987-2
01
1
1302-
29
CLIP; AIR PIPE
ID=14 L=15
1-09701-282-0
02
1
1302-
31
PIPE; AIR,AIR CMPR SUCTION
8-98067-830-1
01
1
1302-
35
BOLT; EYE,AIR PIPE
M24X39
1-09675-132-1
01
1
1302-1404
35
BOLT; EYE,AIR PIPE
M24X39
1-09675-175-2
01
1
1405-
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1302-
40
CLIP; AIR PIPE
(C) ID=17 L=17
1-09701-284-0
04
1
1302-
40
CLIP; AIR PIPE
(A) ID=14&17 L=32.5
8-97619-417-0
01
1
1302-
40
CLIP; AIR PIPE
(B) ID=14&17 L=32.5
8-97619-418-0
01
1
1302-
41
BOLT; CLIP
M8X45 FLANGE
0-28050-845-0
02
1
1302-
49
PIPE; AIR,CHARGE
8-98069-425-0
01
1
1302-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-132-1
01
1
1302-1404
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1405-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1302-
57
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1302-
57
BOLT; BRKT,AIR PIPE
M8X20 FLANGE
0-28050-820-0
01
1
1302-
63
NUT; CLIP
(A) M6 FLANGE
0-91180-106-0
01
1
1302-
63
NUT; CLIP
(B) M8 FLANGE
0-91180-108-0
01
1
1302-
160
BRACKET; AIR PIPE
8-98076-098-0
01
1
1302-
