◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#112071) — 359 parça

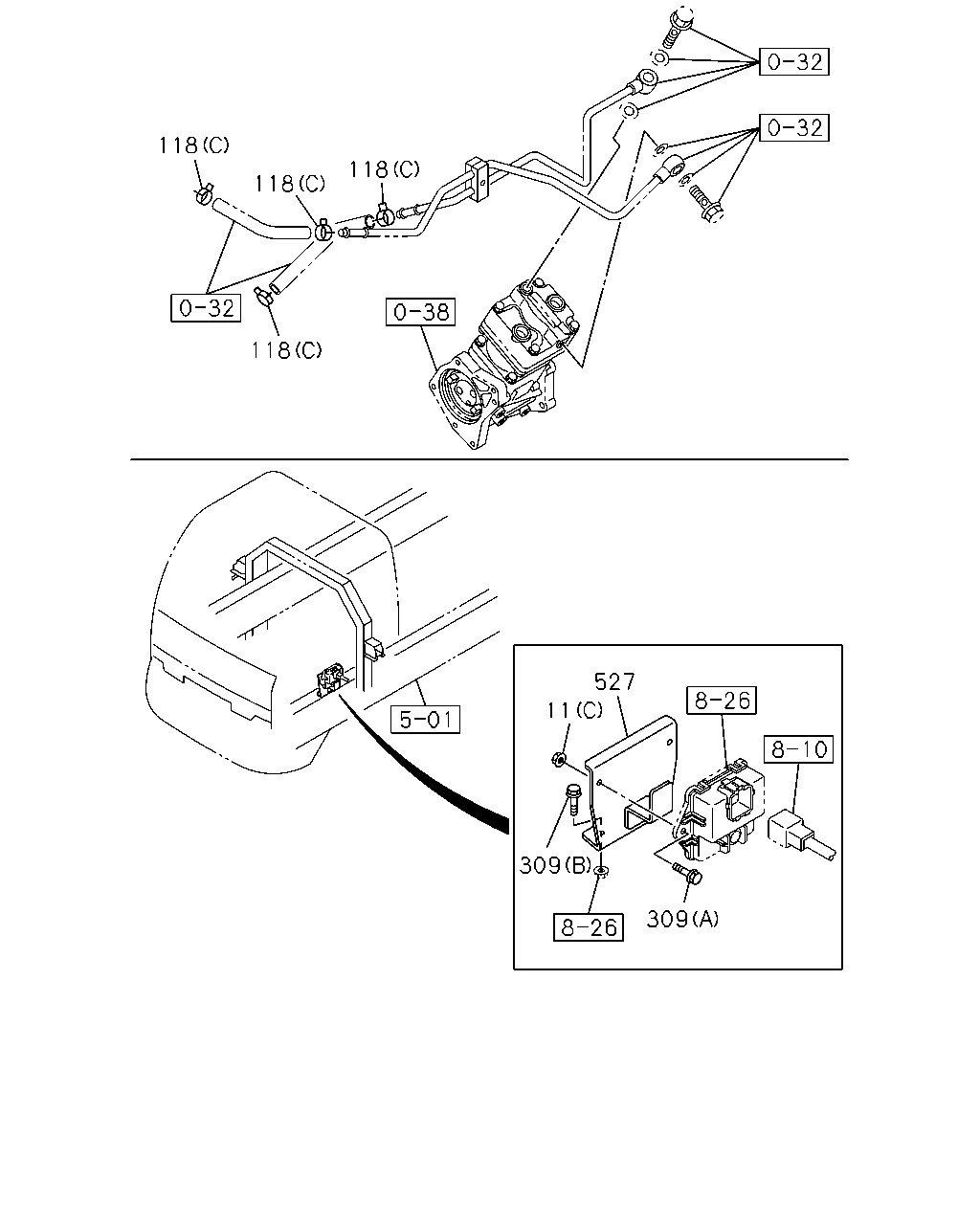

çizim 326454
118 118 118 118 11 309 527 309
BalonParca AdiParca NoAdetTipApplied Date A B C
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		8-97381-617-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8 		9-09842-007-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10 		1-09420-005-0 04 1 1302- ● ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (B) ID=22 		8-97359-141-0 02 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1302- ●
309 BOLT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M6X20 FLANGE 		0-28650-620-0 02 1 1302- ●
309 BOLT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
527 BRACKET; TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98206-458-0 01 1 1302- ●

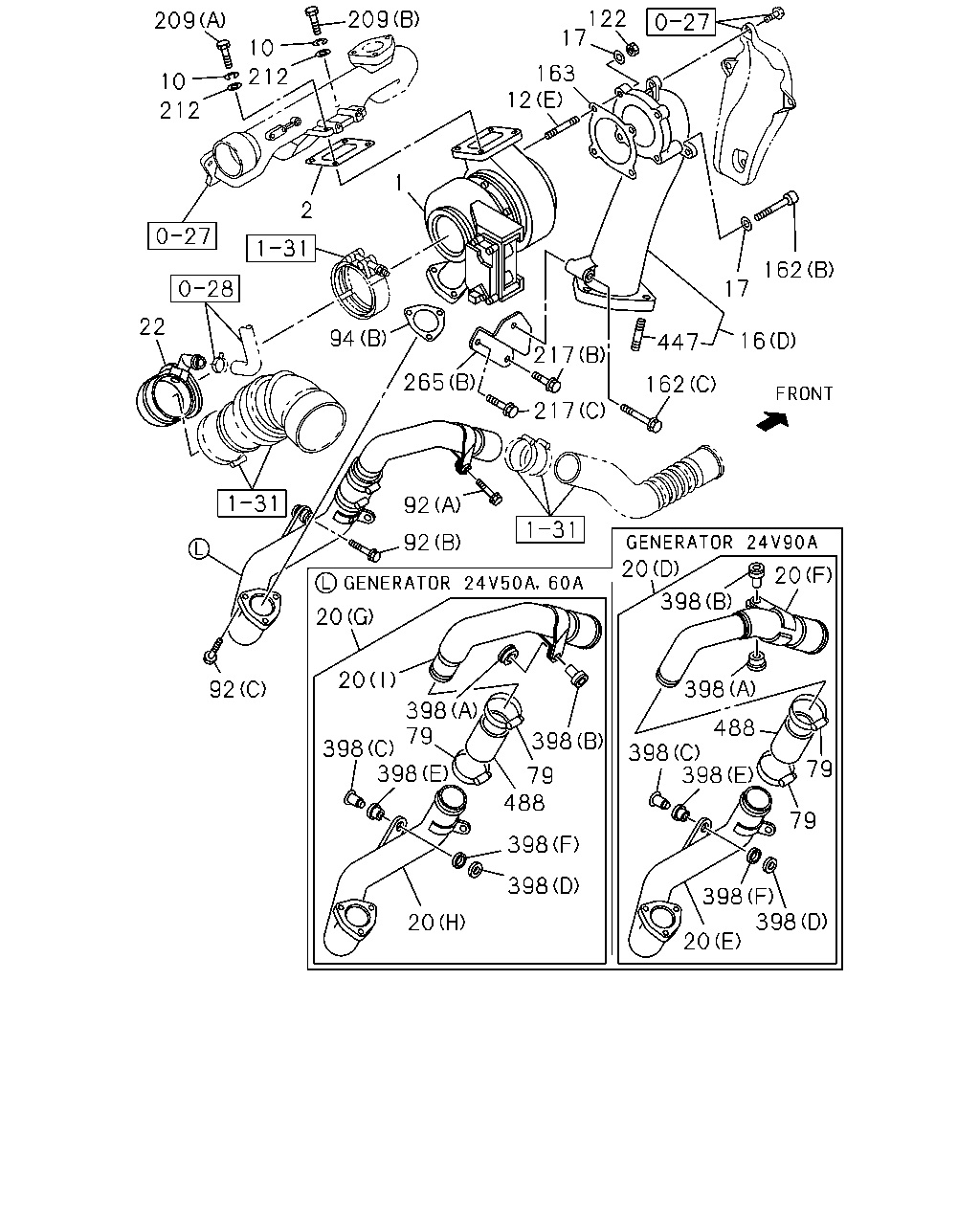

çizim 326466
209 10 212 10 212 163 17 122 12 1 2 22 94 217 265 217 162 447 16 17 162 92 92 209 92 20 20 398 398 398 398 20 488 79 398 398 79 398 398 20 398 398 79 79 398 398 20 488 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1302- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1302- ● ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1302- ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X30 L=45 		1-09302-106-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10X28 		9-04731-028-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M8X25 L=36 		8-94476-282-0 02 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M8X25 		9-04130-825-0 01 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10X80 		9-04731-080-0 02 1 1302- ● ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98030-080-3 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97039-749-2 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98018-241-1 01 1 1302- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-94395-767-0 01 1 1302- ● ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1302- ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98046-167-4 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-97618-726-2 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1302- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 1302- ● ●
79 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=58-79 		1-09707-136-0 02 1 1302- ● ●
79 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> ID=58-79 		1-09707-136-0 02 1 1302- ● ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ● ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ● ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> (A) ID=56 		8-98107-962-0 01 1 1302- ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> (B) ID=55 		8-98053-830-0 01 1 1302- ● ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1302- ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1302- ● ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302- ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1302- ● ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=83 		8-94392-553-2 01 1 1302- ● ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 1302- ● ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 1302- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1302- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1302- ● ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1302- ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) OD=28 		8-94390-551-1 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (C) OD=28 		8-94390-551-1 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (E) OD=26 		8-94394-529-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (E) OD=26 		8-94394-529-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) OD=32 		8-94395-766-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (A) OD=32 		8-94395-766-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) OD=23 		8-97105-689-6 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (B) OD=23 		8-97105-689-6 01 1 1302- ● ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 1302- ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 1302-1408 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●

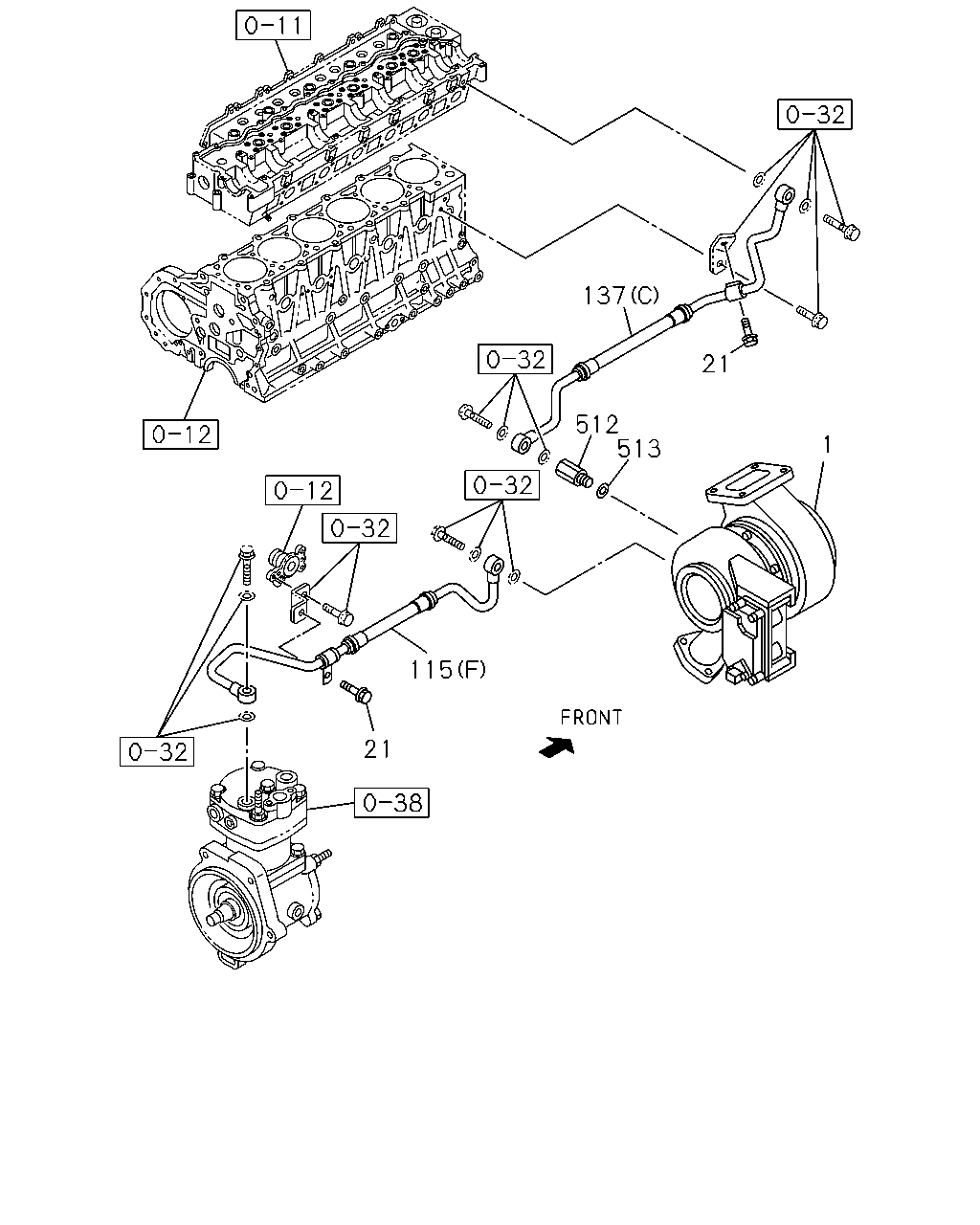

çizim 326467
137 512 21 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ● ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (B) 		8-97387-270-2 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-98063-841-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (F) 		8-97610-087-2 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (F) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (E) 		8-94392-950-0 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97618-807-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (B) 		8-97387-271-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2> (A) 		8-98063-007-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (C) 		8-98046-783-0 01 1 1302- ● ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 1302- ● ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 1302-1312 ● ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●
çizim 330671
11 10 212 12 2 212 11 16 388 17 162 217 275 217 17 122 17 162 275 13 1 12 20 20 79 79 398 20 398 92 143 98 143 28 398 398 92 488 398 398 265
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1302- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1302- ● ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1302- ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1302- ● ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		8-97381-617-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8 		9-09842-007-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10 		1-09420-005-0 04 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X30 L=45 		1-09302-106-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10X28 		9-04731-028-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M8X25 L=36 		8-94476-282-0 02 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M8X25 		9-04130-825-0 01 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10X80 		9-04731-080-0 02 1 1302- ● ●
13 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X103 L=123 		8-94394-656-0 01 1 1302- ● ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98030-080-3 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97039-749-2 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98018-241-1 01 1 1302- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-94395-767-0 01 1 1302- ● ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1302- ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98046-167-4 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1302- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-97618-726-2 01 1 1302-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1302- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 1302- ● ●
79 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=58-79 		1-09707-136-0 02 1 1302- ● ●
79 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> ID=58-79 		1-09707-136-0 02 1 1302- ● ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ● ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1302- ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1302- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 1302- ● ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302- ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1302- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1302- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1302- ● ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1302- ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1302- ● ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 1302- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) OD=28 		8-94390-551-1 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (C) OD=28 		8-94390-551-1 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (E) OD=26 		8-94394-529-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (E) OD=26 		8-94394-529-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) OD=32 		8-94395-766-0 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (A) OD=32 		8-94395-766-0 01 1 1302- ● ●
398 MOUNTING
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) OD=23 		8-97105-689-6 01 1 1302- ● ●
398 MOUNTING
EURO4 SPECIFICATION<NT4> (B) OD=23 		8-97105-689-6 01 1 1302- ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 1302-1408 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●

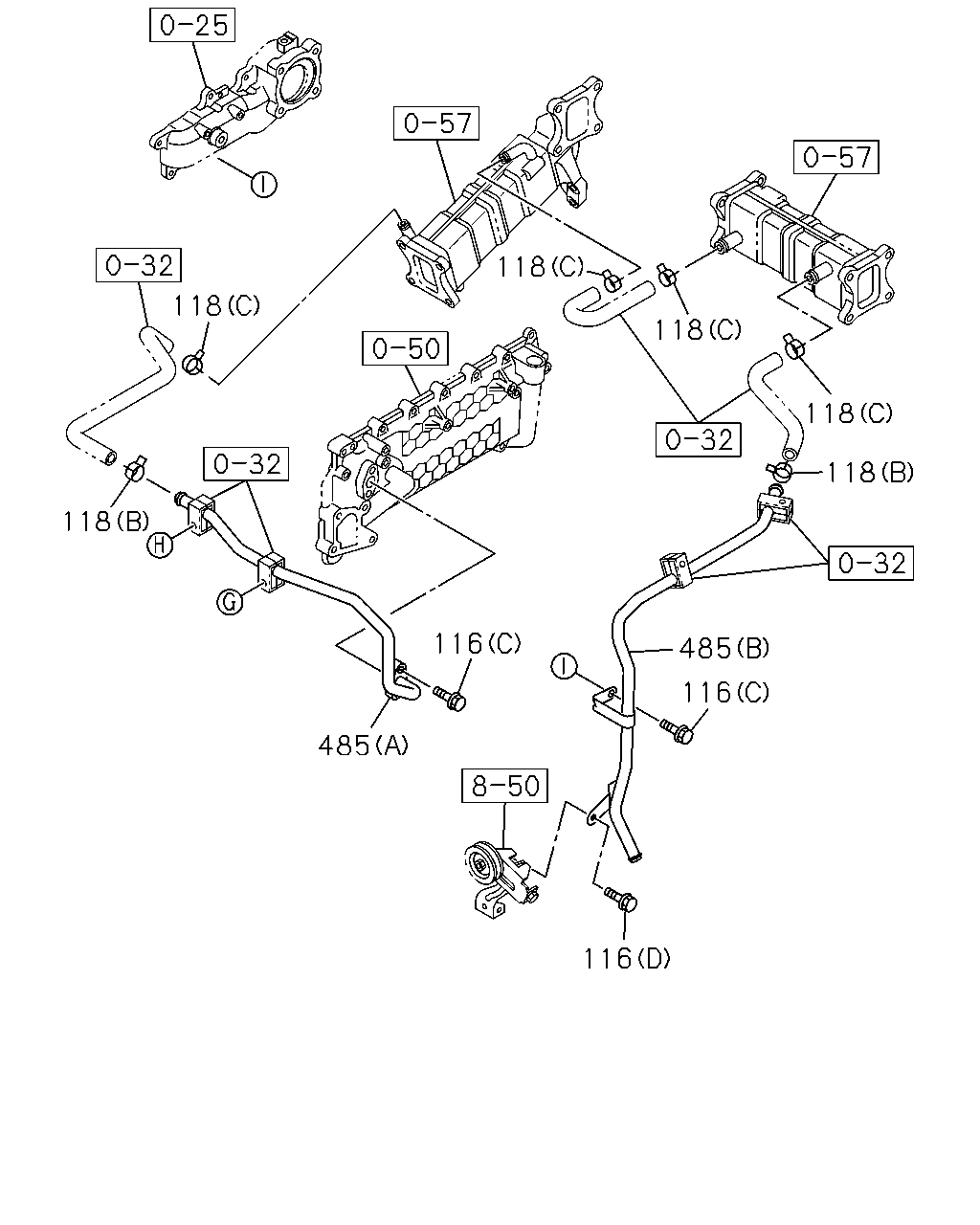

çizim 330748
118 118 118 118 118 485 116 116 485 116 118
BalonParca AdiParca NoAdetTipApplied Date A B C
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1302- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1302- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1302- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (B) ID=22 		8-97359-141-0 02 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1302- ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (A) 		8-97376-773-0 01 1 1302- ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (B) 		8-98036-855-1 01 1 1302- ●

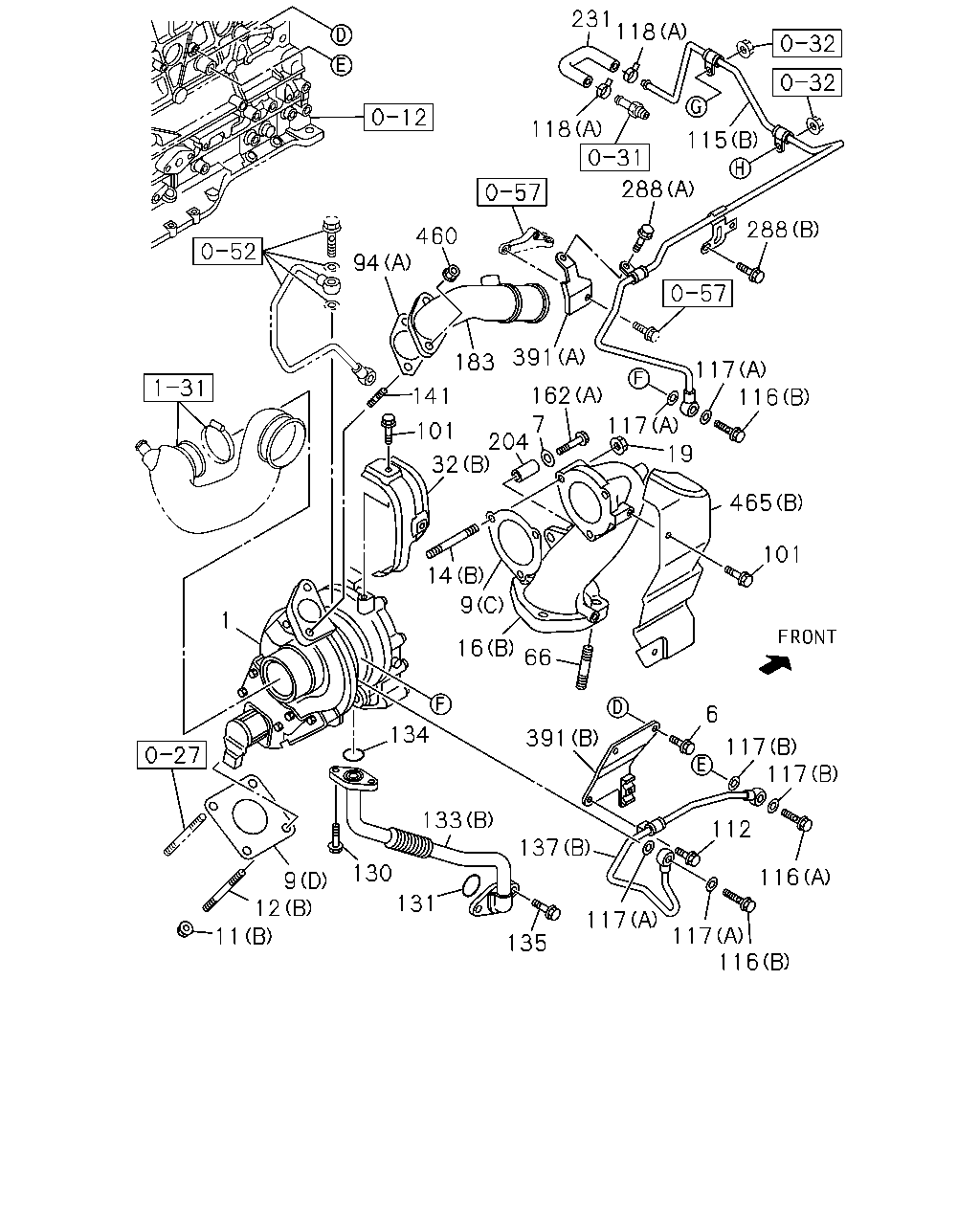

çizim 330773
118 460 94 183 391 141 101 32 14 1 9 16 134 391 6 117 117 101 465 19 117 162 204 7 288 288 115 231 118 117 116 112 116 117 117 135 131 130 133 9 12 66 11 116 137
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ● ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54 		8-97376-758-0 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49 		8-98046-241-0 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (A) 		8-97039-777-1 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (B) 		8-97374-412-0 01 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		8-97381-617-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8 		9-09842-007-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10 		1-09420-005-0 04 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X30 L=45 		1-09302-106-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10X28 		9-04731-028-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M8X25 L=36 		8-94476-282-0 02 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M8X25 		9-04130-825-0 01 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10X80 		9-04731-080-0 02 1 1302- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1302- ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2> (A) M8X94 L=108 		8-97019-477-0 02 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98030-080-3 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97039-749-2 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98018-241-1 01 1 1302- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-94395-767-0 01 1 1302- ● ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		8-94170-486-0 03 1 1302- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		8-94170-486-0 05 1 1302- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) 		8-98031-888-3 01 1 1302- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) 		8-97351-168-0 01 1 1302- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1302- ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> (A) ID=56 		8-98107-962-0 01 1 1302- ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> (B) ID=55 		8-98053-830-0 01 1 1302- ● ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1302- ●
112 BOLT; CLIP
EURO4 SPECIFICATION<NT4> M8X12 FLANGE 		0-28050-812-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (B) 		8-97387-270-2 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-98063-841-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (F) 		8-97610-087-2 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (F) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (E) 		8-94392-950-0 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97618-807-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 1302- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1302- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1302- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1302- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		9-09571-412-0 04 1 1302- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (B) ID=22 		8-97359-141-0 02 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1302- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1302- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1302- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) 		8-98172-661-0 01 1 1302- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) 		8-98172-662-0 01 1 1302- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1302- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (B) 		8-97387-271-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2> (A) 		8-98063-007-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (C) 		8-98046-783-0 01 1 1302- ● ●
141 STUD; INL PIPE TO BRKT
EURO4 SPECIFICATION<NT4> M10X28 L=43 		0-44011-028-0 02 1 1302- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302- ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1302- ● ●
183 PIPE; INL,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98205-124-1 01 1 1302-1409 ●
183 PIPE; INL,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98239-380-0 01 1 1410- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1302- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1302- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE 		0-28050-810-0 01 1 1302- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1302- ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1302- ●
391 BRACKET; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98013-958-0 01 1 1302- ●
460 NUT; PIPE
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-110-0 02 1 1302- ●
460 NUT; PIPE
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 01 1 1302- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION<NT4> (B) 		8-98052-394-0 01 1 1302- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> (A) 		8-98176-248-0 01 1 1302- ●

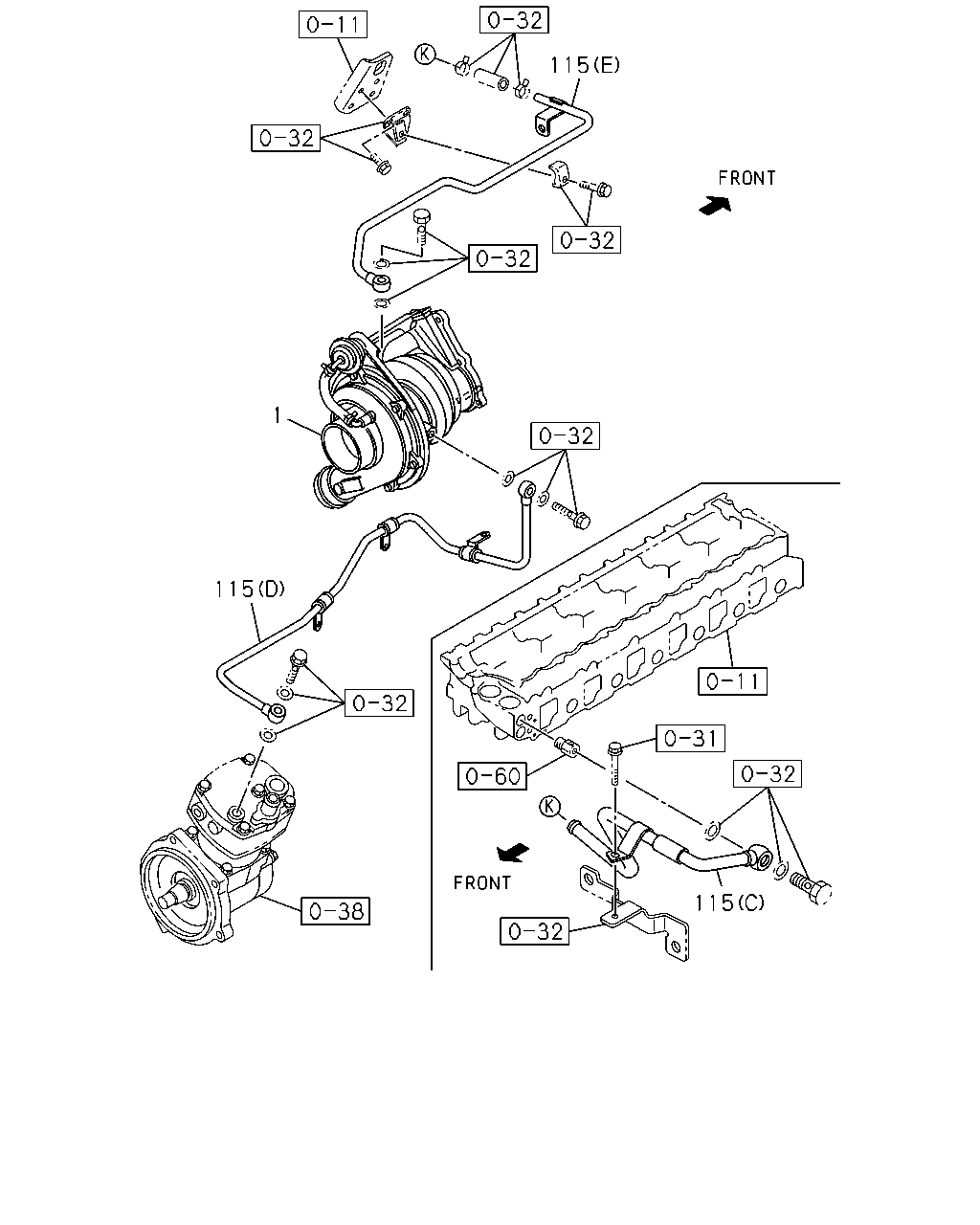

çizim 330781
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (B) 		8-97387-270-2 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-98063-841-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (F) 		8-97610-087-2 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (F) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (E) 		8-94392-950-0 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97618-807-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 1302- ●

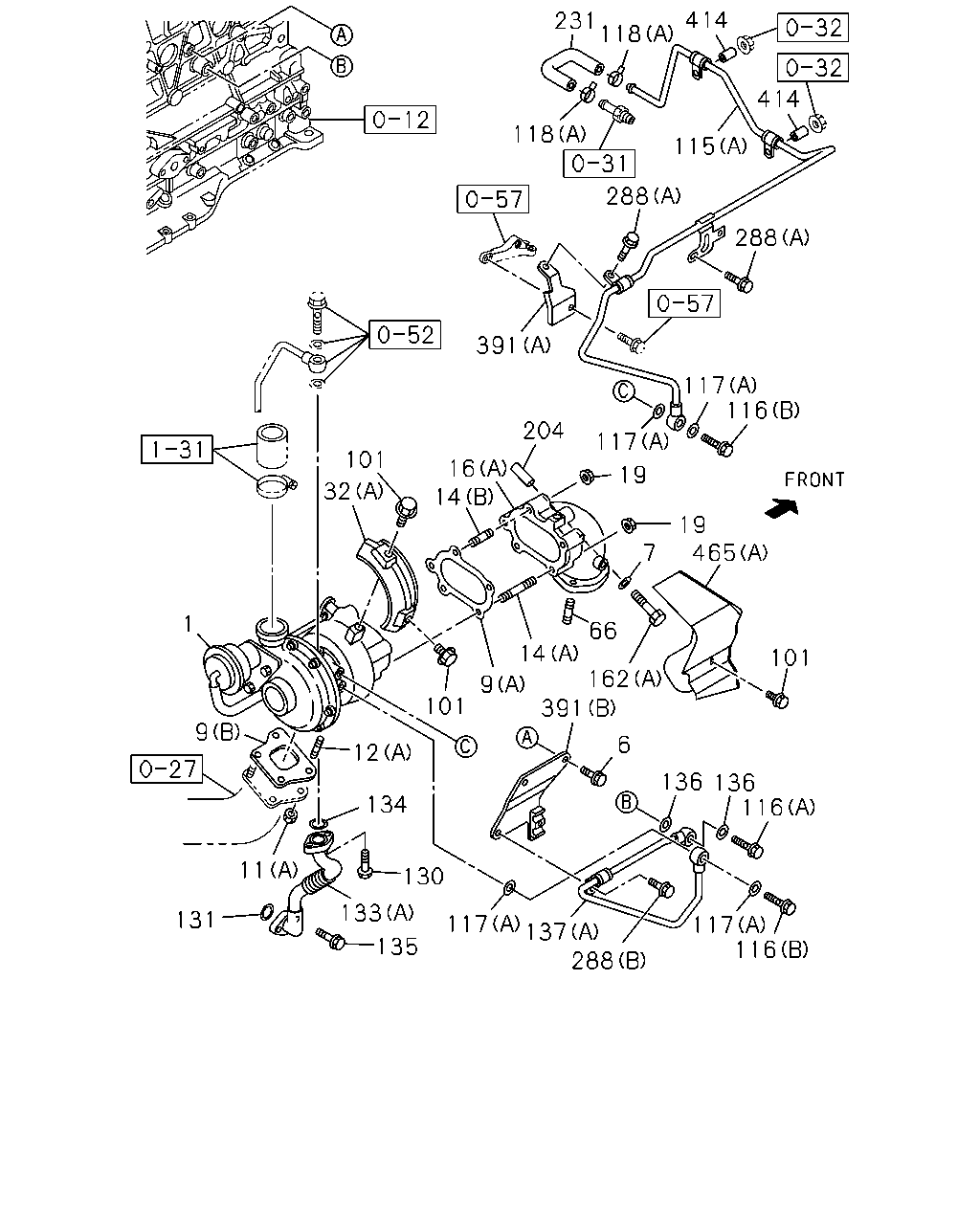

çizim 331204
117 137 288 116 117 116 136 136 6 391 101 162 66 14 9 101 12 134 130 133 135 11 131 32 101 1 16 204 14 19 19 465 116 117 288 115 288 391 118 231 414 118 414 117 9 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1302- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ● ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54 		8-97376-758-0 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49 		8-98046-241-0 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (A) 		8-97039-777-1 01 1 1302- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (B) 		8-97374-412-0 01 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		8-97381-617-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 P=1.5 H=8 		9-09842-007-0 04 1 1302- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1302- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10 		1-09420-005-0 04 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X30 L=45 		1-09302-106-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10X28 		9-04731-028-0 02 1 1302- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M8X25 L=36 		8-94476-282-0 02 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M8X25 		9-04130-825-0 01 1 1302- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (D) M10X80 		9-04731-080-0 02 1 1302- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1302- ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2> (A) M8X94 L=108 		8-97019-477-0 02 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98030-080-3 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97039-749-2 01 1 1302- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98018-241-1 01 1 1302- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-94395-767-0 01 1 1302- ● ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		8-94170-486-0 03 1 1302- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		8-94170-486-0 05 1 1302- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) 		8-98031-888-3 01 1 1302- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) 		8-97351-168-0 01 1 1302- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1302- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (B) 		8-97387-270-2 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-98063-841-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (F) 		8-97610-087-2 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (F) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (E) 		8-94392-950-0 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1302- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97618-807-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 1302- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1302- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1302- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1302- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		9-09571-412-0 04 1 1302- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (B) ID=22 		8-97359-141-0 02 1 1302- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1302- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1302- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1302- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) 		8-98172-661-0 01 1 1302- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) 		8-98172-662-0 01 1 1302- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1302- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1302- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (B) 		8-97387-271-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2> (A) 		8-98063-007-0 01 1 1302- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (C) 		8-98046-783-0 01 1 1302- ● ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1302- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302- ● ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302- ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1302- ● ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1302- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1302- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE 		0-28050-810-0 01 1 1302- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1302- ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1302- ●
391 BRACKET; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98013-958-0 01 1 1302- ●
414 SPACER
EURO2 SPECIFICATION<NT2> M8X10 		1-11369-081-0 02 1 1302- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION<NT4> (B) 		8-98052-394-0 01 1 1302- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> (A) 		8-98176-248-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
