◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#112070) — 514 parça

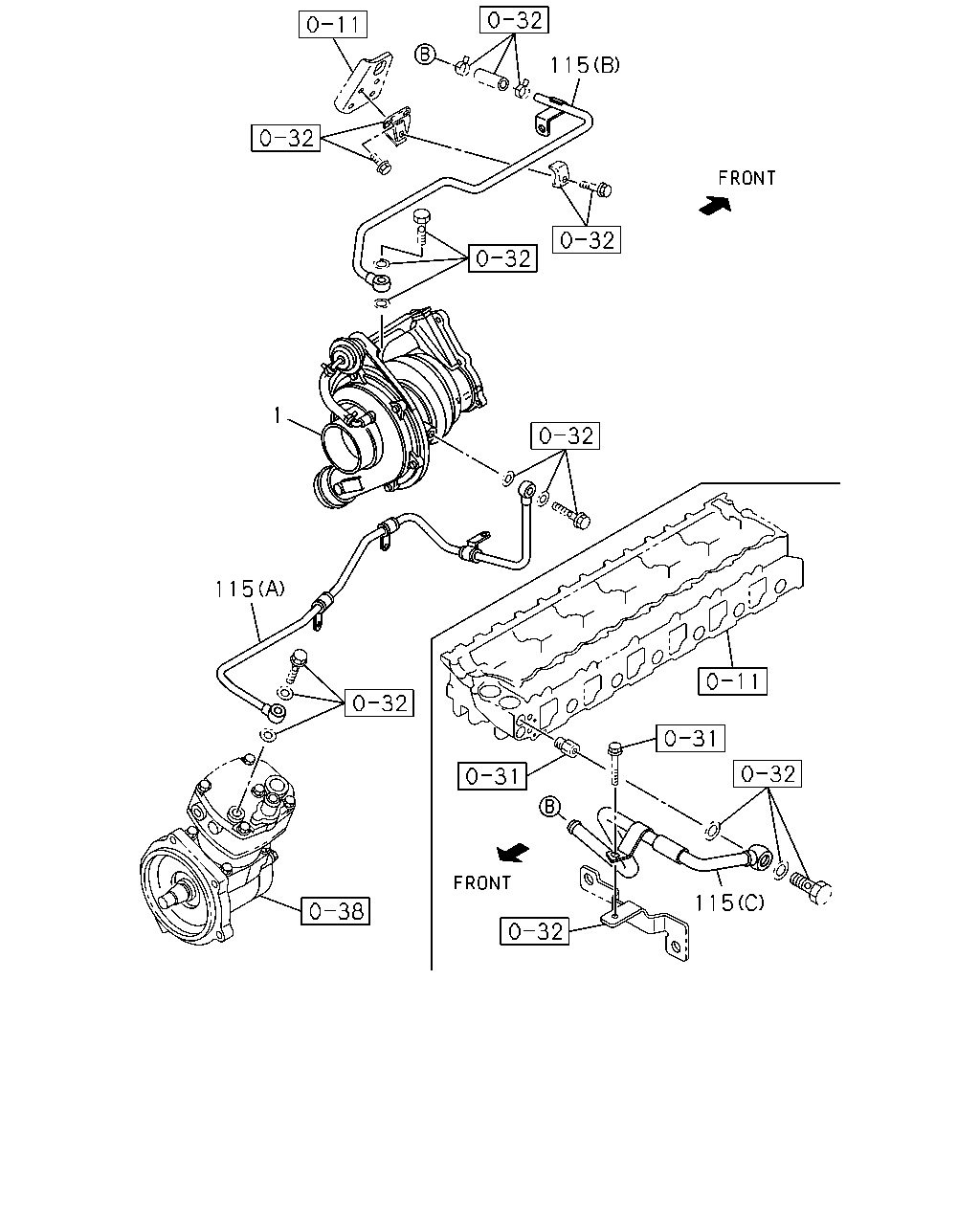

çizim 326441
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1302-1511 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302-1505 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97604-975-9 01 1 1506- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-94392-950-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-94395-454-4 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1302-1505 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1506- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-98063-841-0 01 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (F) 		8-97387-270-2 01 1 1305- ●

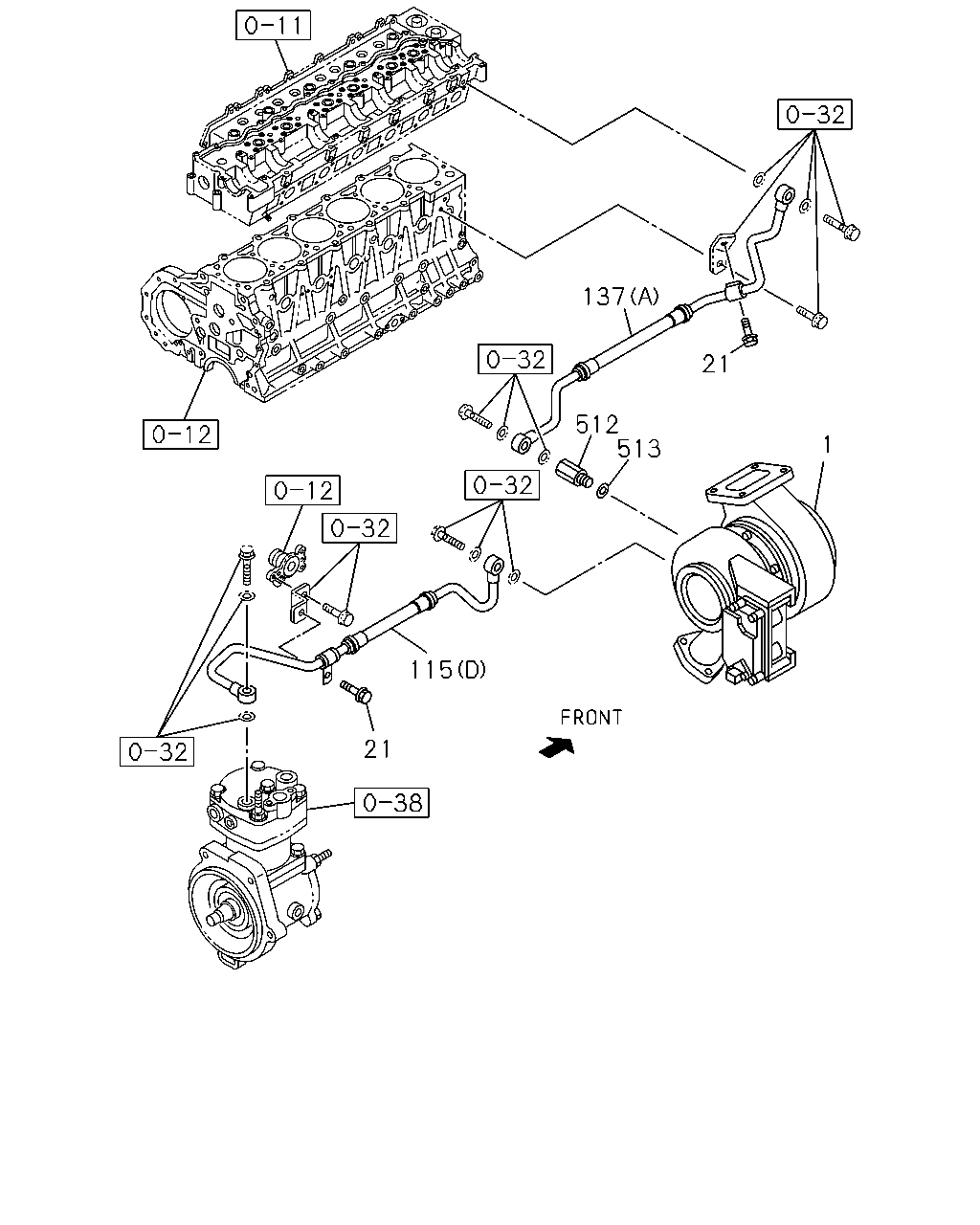

çizim 326450
137 513 512 21 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1302-1511 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302-1505 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97604-975-9 01 1 1506- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1305- ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 1302-1505 ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X16 FLANGE 		0-28050-816-0 02 1 1506- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-94392-950-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-94395-454-4 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1302-1505 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1506- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-98063-841-0 01 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (F) 		8-97387-270-2 01 1 1305- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (A) 		8-98046-783-0 01 1 1302-1505 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-98046-783-0 01 1 1506- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-98063-007-0 01 1 1305- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (C) 		8-97387-271-0 01 1 1305- ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 1302-1505 ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98031-856-0 01 1 1506- ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 1302-1312 ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-1505 ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1506- ●

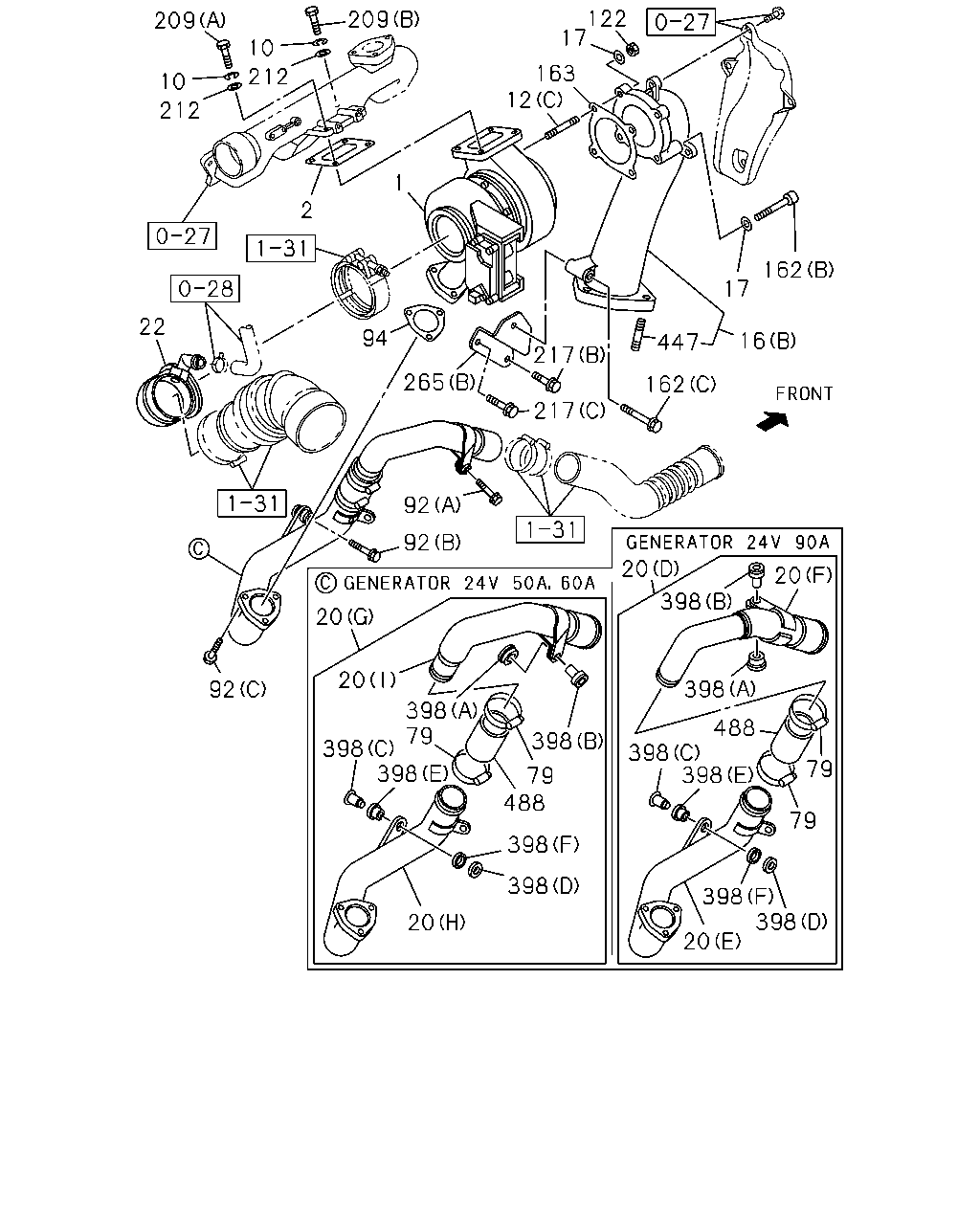

çizim 330780
10 212 209 12 163 17 122 209 10 212 22 2 1 94 265 217 217 447 17 162 16 162 20 398 20 488 398 79 79 398 398 398 79 488 398 398 20 398 398 20 398 79 20 92 398 398 20 92 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1302-1511 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302-1505 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97604-975-9 01 1 1506- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1305- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-94390-044-0 01 1 1302-1511 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1512- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1302-1505 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97024-124-0 01 1 1506- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=2.2 		1-09556-015-0 02 1 1302-1511 ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1512- ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1302-1505 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=2.2 		1-09556-015-0 04 1 1506- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X25 		9-04130-825-0 01 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1512- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X80 		9-04731-080-0 02 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1512- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1302-1505 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X25 L=36 		8-94476-282-0 02 1 1506- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M10X28 		9-04731-028-0 02 1 1305- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M10X30 L=45 		1-09302-106-0 02 1 1305- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-94395-767-0 01 1 1302-1511 ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1512- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1302-1505 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-98018-241-1 01 1 1506- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-97039-749-2 01 1 1305- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98030-080-3 01 1 1305- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.9 		5-09500-012-0 06 1 1302-1511 ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1512- ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1302-1505 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.9 		5-09500-012-0 04 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97606-675-1 01 1 1302-1511 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1512- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97618-726-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-98251-577-0 01 1 1409-1511 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1512- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-97618-734-0 01 1 1302-1511 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1512- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98046-167-4 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1409-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1506- ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 1302-1505 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98036-164-1 01 1 1506- ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1302- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1505 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1506- ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 1302-1505 ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> ID=55 		8-98053-830-0 01 1 1506-1511 ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=55 		8-98053-830-0 01 1 1512- ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=56 		8-98107-962-0 01 1 1305- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 		1-09400-118-1 01 1 1302-1511 ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1512- ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1302-1505 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 		1-09400-118-1 02 1 1506- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X57 		5-09000-275-0 05 1 1302-1511 ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1512- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1506- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X60 		8-98158-604-0 02 1 1506- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1305- ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=83 		8-94392-553-2 01 1 1302-1505 ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=83 		8-94392-553-2 01 1 1506- ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 1302-1505 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10X80 		8-98049-825-0 02 1 1506- ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 1302-1505 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M10X40 		9-09604-007-1 02 1 1506- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M12X30 		8-94394-324-0 03 1 1302-1511 ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1512- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1302-1505 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1506- ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1302-1505 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-98260-415-0 01 1 1506- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-94395-764-2 01 1 1302-1511 ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1512- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1302- ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1302- ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1302- ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1302- ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 1302-1505 ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M12X30 L=48 		0-44011-230-0 03 1 1506- ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=62 L=70 		8-98245-240-0 01 1 1409-1511 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1512- ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409-1505 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=52.5 L=70 		8-98245-242-0 01 1 1506- ●
çizim 330802
143 98 143 28 92 92 398 398 488 398 398 20 79 398 398 79 20 20 1 94 13 17 122 17 162 275 217 265 275 217 162 16 388 17 12 212 11 2 12 212 10 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1302-1511 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302-1505 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97604-975-9 01 1 1506- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1305- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-94390-044-0 01 1 1302-1511 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1512- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 1302-1505 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97024-124-0 01 1 1506- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=2.2 		1-09556-015-0 02 1 1302-1511 ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1512- ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 1302-1505 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=2.2 		1-09556-015-0 04 1 1506- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 		1-09420-005-0 04 1 1302-1511 ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 		1-09420-005-0 04 1 1512- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10 P=1.5 H=8 		9-09842-007-0 04 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (D) M10 FLANGE 		8-97381-617-0 04 1 1305- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X25 		9-04130-825-0 01 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1512- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X80 		9-04731-080-0 02 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1512- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1302-1505 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X25 L=36 		8-94476-282-0 02 1 1506- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M10X28 		9-04731-028-0 02 1 1305- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M10X30 L=45 		1-09302-106-0 02 1 1305- ●
13 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M12X103 L=123 		8-94394-656-0 01 1 1302-1511 ●
13 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X103 L=123 		8-94394-656-0 01 1 1512- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-94395-767-0 01 1 1302-1511 ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1512- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1302-1505 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-98018-241-1 01 1 1506- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-97039-749-2 01 1 1305- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98030-080-3 01 1 1305- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.9 		5-09500-012-0 06 1 1302-1511 ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1512- ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 1302-1505 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.9 		5-09500-012-0 04 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97606-675-1 01 1 1302-1511 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1512- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97618-726-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-98251-577-0 01 1 1409-1511 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1512- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-97618-734-0 01 1 1302-1511 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1512- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98046-167-4 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1409-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-98251-581-0 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98046-168-1 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-98046-169-2 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1302-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1506- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1302-1505 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1506- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-94393-182-0 01 1 1302-1511 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 1512- ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1302- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302- ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1302- ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1302-1505 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE 		0-28650-830-0 03 1 1506- ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 1302-1505 ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> ID=55 		8-98053-830-0 01 1 1506-1511 ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=55 		8-98053-830-0 01 1 1512- ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=56 		8-98107-962-0 01 1 1305- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=62 L=70 		8-98245-240-0 01 1 1409-1511 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1512- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 		1-09400-118-1 01 1 1302-1511 ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1512- ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 1302-1505 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 		1-09400-118-1 02 1 1506- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=58-79 		8-94126-771-0 02 1 1302-1511 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 1512- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X57 		5-09000-275-0 05 1 1302-1511 ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1512- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1506- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X60 		8-98158-604-0 02 1 1506- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1305- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1302- ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M12X30 		8-94394-324-0 03 1 1302-1511 ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M12X30 		8-94394-324-0 03 1 1512- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1302-1505 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1506- ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98260-415-0 01 1 1302-1505 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-98260-415-0 01 1 1506- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-94395-764-2 01 1 1302-1511 ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-764-2 01 1 1512- ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=12.2 		1-09503-008-0 03 1 1302-1511 ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 1512- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-94394-248-2 01 1 1302-1511 ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 1512- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1302- ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1302- ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1302- ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1302- ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1302- ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1302- ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=62 L=70 		1-09360-797-1 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=62 L=70 		8-98245-240-0 01 1 1409-1511 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1512- ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 1302-1408 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409-1505 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=52.5 L=70 		8-98245-242-0 01 1 1506- ●

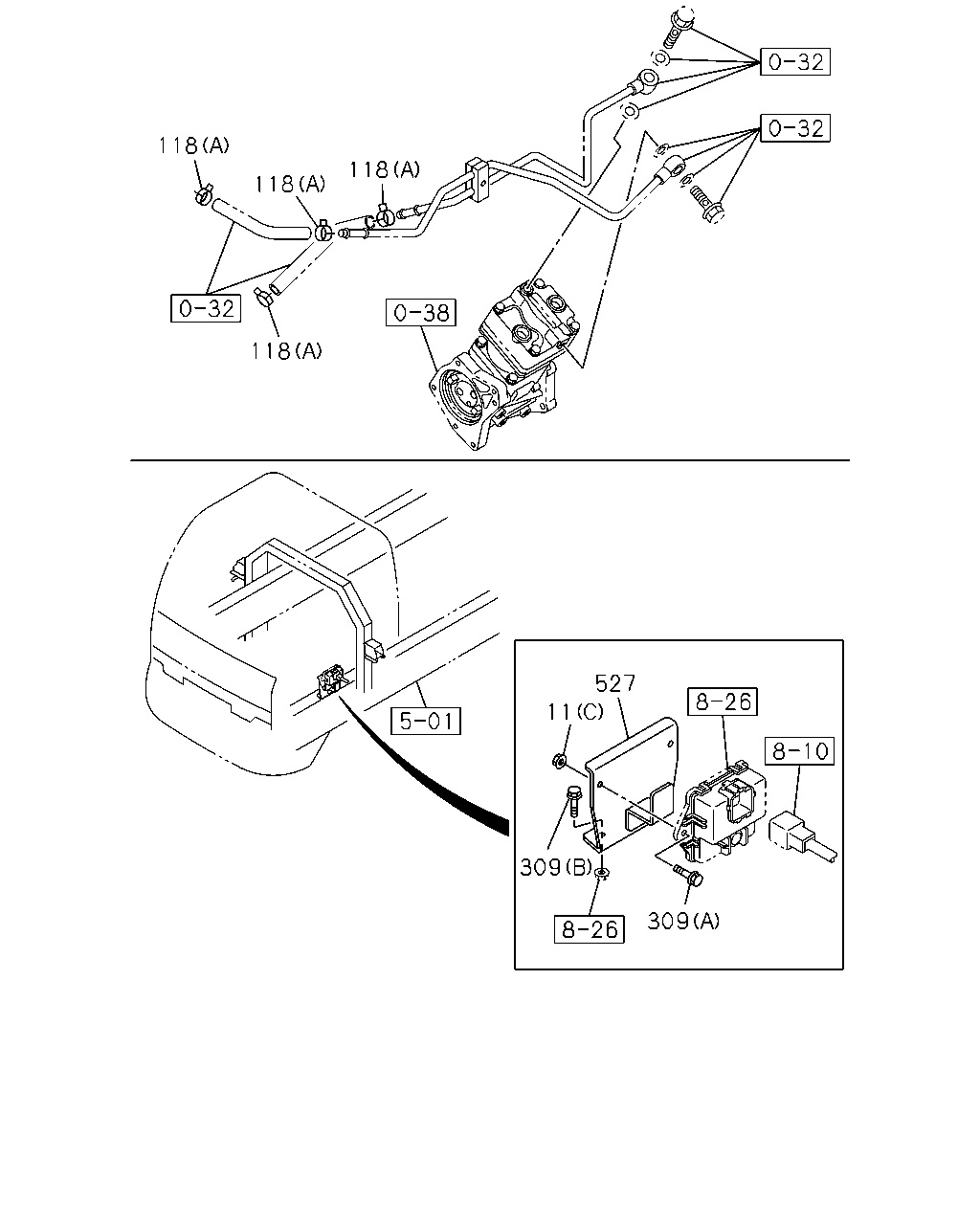

çizim 350235
118 118 118 118 527 11 309 309
BalonParca AdiParca NoAdetTipApplied Date A B
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 		1-09420-005-0 04 1 1302-1511 ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 		1-09420-005-0 04 1 1512- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10 P=1.5 H=8 		9-09842-007-0 04 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (D) M10 FLANGE 		8-97381-617-0 04 1 1305- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1305- ●
118 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (B) ID=20 		1-09707-084-1 06 1 1305-1511 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (D) ID=22 		8-97359-141-0 02 1 1305- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1305- ●
309 BOLT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M6X20 FLANGE 		0-28650-620-0 02 1 1305- ●
309 BOLT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1305- ●
527 BRACKET; TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98206-458-0 01 1 1305- ●

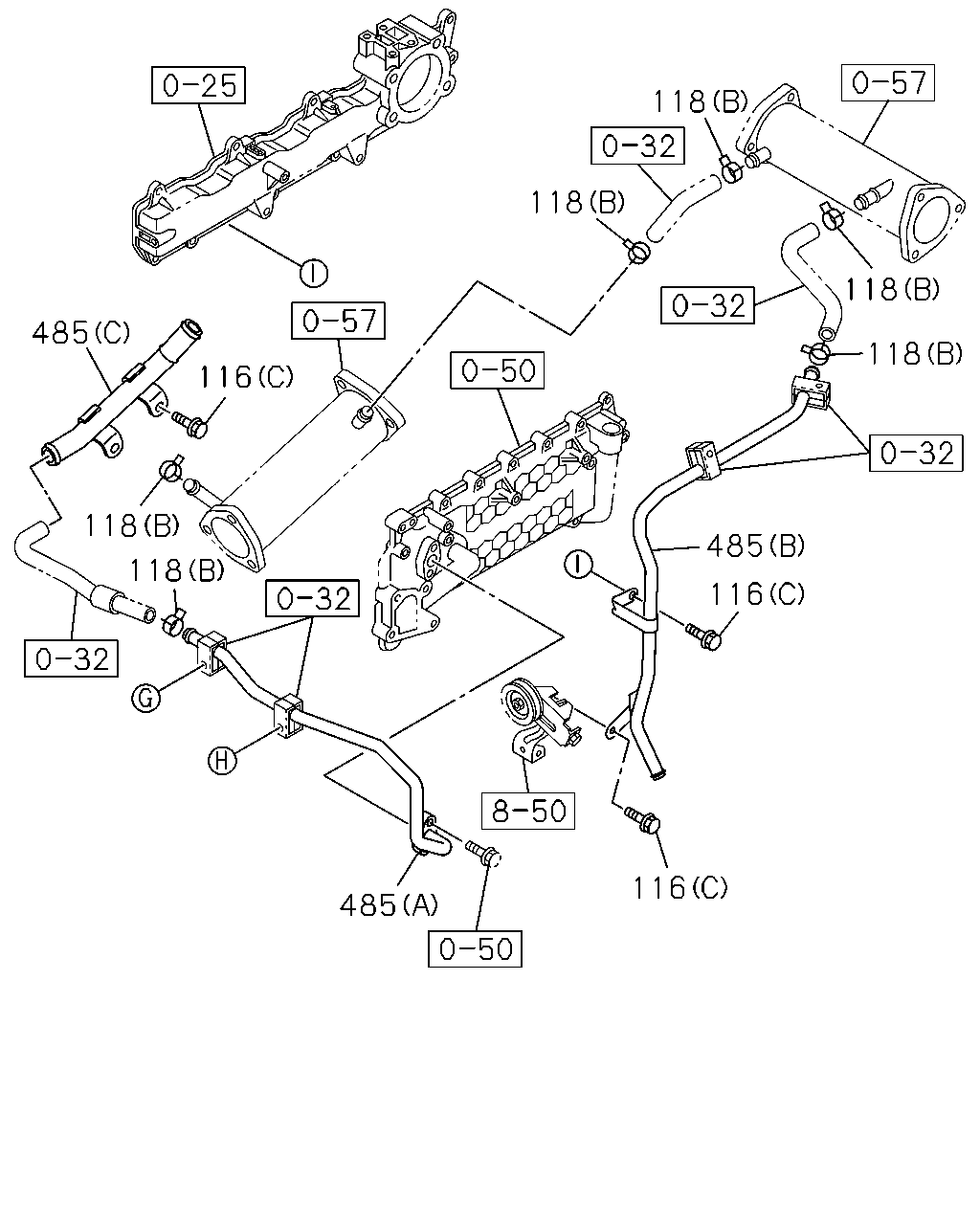

çizim 350251
485 118 118 485 116 116 118 118 485 116 118 118
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1305- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE 		0-28650-820-0 06 1 1305-1511 ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1305- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1305- ●
118 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (B) ID=20 		1-09707-084-1 06 1 1305-1511 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (D) ID=22 		8-97359-141-0 02 1 1305- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1305- ●
485 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97376-775-2 01 1 1305-1511 ●
485 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98064-164-0 01 1 1305-1511 ●
485 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-97376-773-0 01 1 1305-1511 ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (A) 		8-97376-773-0 01 1 1512- ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (D) 		8-98036-855-1 01 1 1305- ●

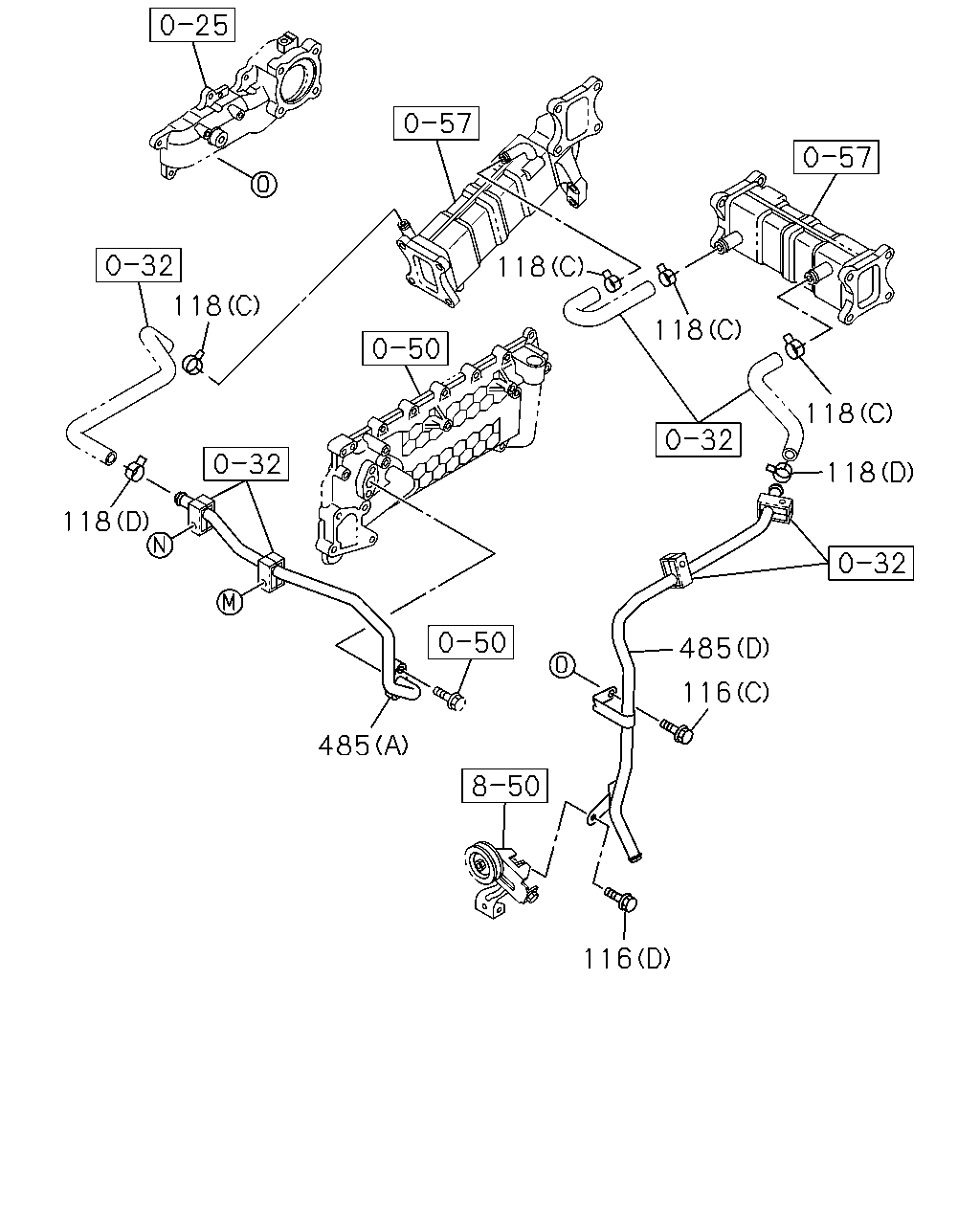

çizim 351908
118 118 118 118 485 116 485 116 118 118
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1305- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE 		0-28650-820-0 06 1 1305-1511 ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1305- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1305- ●
118 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (B) ID=20 		1-09707-084-1 06 1 1305-1511 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (D) ID=22 		8-97359-141-0 02 1 1305- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1305- ●
485 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97376-775-2 01 1 1305-1511 ●
485 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98064-164-0 01 1 1305-1511 ●
485 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 		8-97376-773-0 01 1 1305-1511 ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (A) 		8-97376-773-0 01 1 1512- ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (D) 		8-98036-855-1 01 1 1305- ●

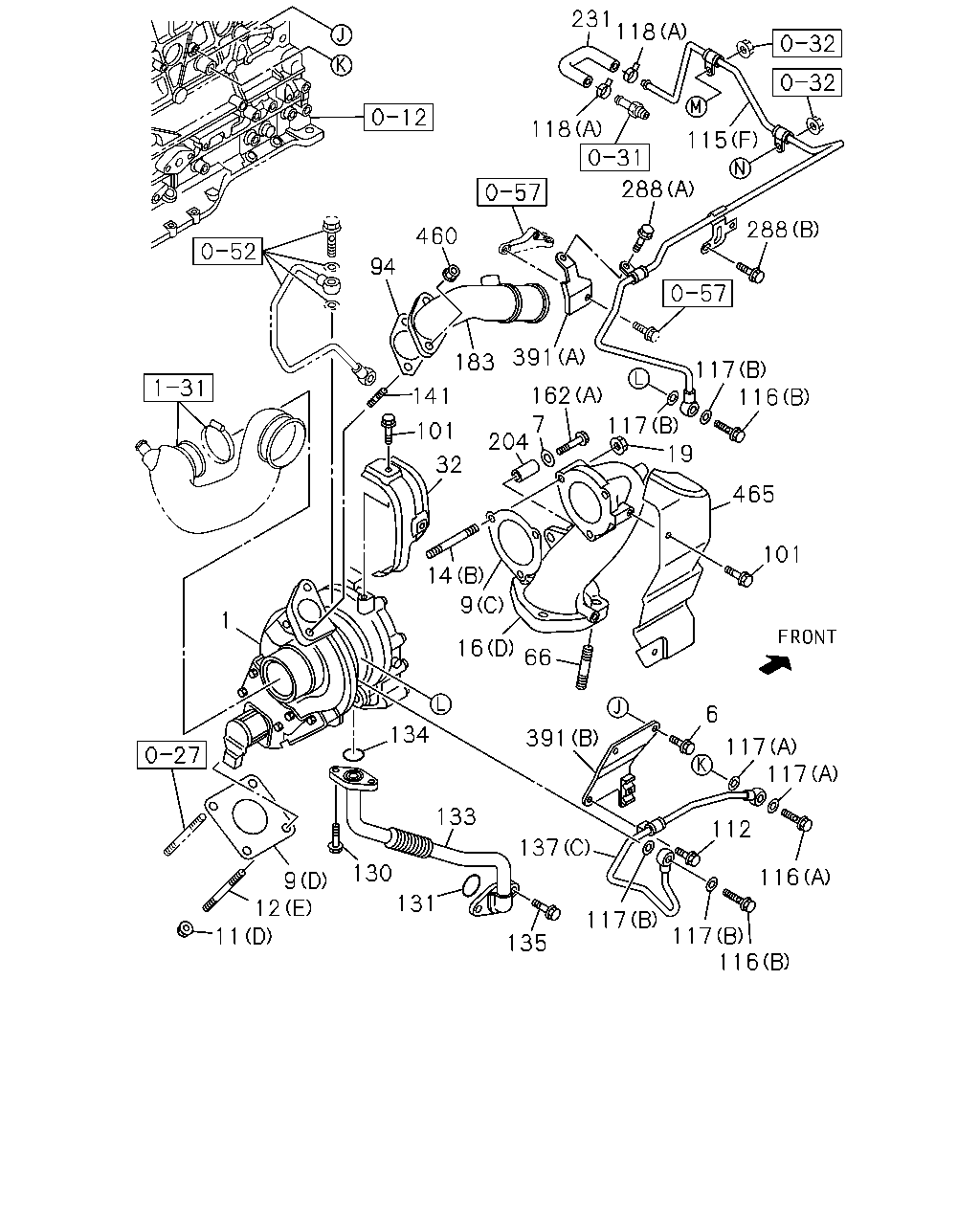

çizim 352219
231 118 118 115 288 117 116 391 183 141 162 19 465 101 6 117 117 112 116 117 116 117 137 133 134 130 131 9 12 11 391 66 16 9 14 1 32 101 204 7 117 288 460 94 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1302-1511 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302-1505 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97604-975-9 01 1 1506- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1305- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97039-777-1 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97374-412-0 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54 		8-97376-758-0 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49 		8-98046-241-0 01 1 1305- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 		1-09420-005-0 04 1 1302-1511 ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 		1-09420-005-0 04 1 1512- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10 P=1.5 H=8 		9-09842-007-0 04 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (D) M10 FLANGE 		8-97381-617-0 04 1 1305- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X25 		9-04130-825-0 01 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1512- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X80 		9-04731-080-0 02 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1512- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1302-1505 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X25 L=36 		8-94476-282-0 02 1 1506- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M10X28 		9-04731-028-0 02 1 1305- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M10X30 L=45 		1-09302-106-0 02 1 1305- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1305- ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X94 L=108 		8-97019-477-0 02 1 1305- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-94395-767-0 01 1 1302-1511 ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1512- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1302-1505 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-98018-241-1 01 1 1506- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-97039-749-2 01 1 1305- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98030-080-3 01 1 1305- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE 		8-94170-486-0 05 1 1305- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		8-94170-486-0 03 1 1305- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97351-168-0 01 1 1305- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98031-888-3 01 1 1305- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1305- ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 1302-1505 ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> ID=55 		8-98053-830-0 01 1 1506-1511 ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=55 		8-98053-830-0 01 1 1512- ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=56 		8-98107-962-0 01 1 1305- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1305- ●
112 BOLT; CLIP
EURO4 SPECIFICATION<NT4> M8X12 FLANGE 		0-28050-812-0 01 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-94392-950-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-94395-454-4 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1302-1505 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1506- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-98063-841-0 01 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (F) 		8-97387-270-2 01 1 1305- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1305- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE 		0-28650-820-0 06 1 1305-1511 ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1305- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 04 1 1305- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1305-1312 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1305- ●
118 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (B) ID=20 		1-09707-084-1 06 1 1305-1511 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (D) ID=22 		8-97359-141-0 02 1 1305- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1305- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1305- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1305- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98172-662-0 01 1 1305- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98172-661-0 01 1 1305- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1305- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1305- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (A) 		8-98046-783-0 01 1 1302-1505 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-98046-783-0 01 1 1506- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-98063-007-0 01 1 1305- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (C) 		8-97387-271-0 01 1 1305- ●
141 STUD; INL PIPE TO BRKT
EURO4 SPECIFICATION<NT4> M10X28 L=43 		0-44011-028-0 02 1 1305- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X57 		5-09000-275-0 05 1 1302-1511 ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1512- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1506- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X60 		8-98158-604-0 02 1 1506- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1305- ●
183 PIPE; INL,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98205-124-1 01 1 1305-1409 ●
183 PIPE; INL,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98239-380-0 01 1 1410- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1305- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1305- ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE 		0-28050-810-0 01 1 1305- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1305- ●
391 BRACKET; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98013-958-0 01 1 1305- ●
460 NUT; PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1305- ●
460 NUT; PIPE
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-110-0 02 1 1305- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98176-248-0 01 1 1305- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION<NT4> 		8-98052-394-0 01 1 1305- ●

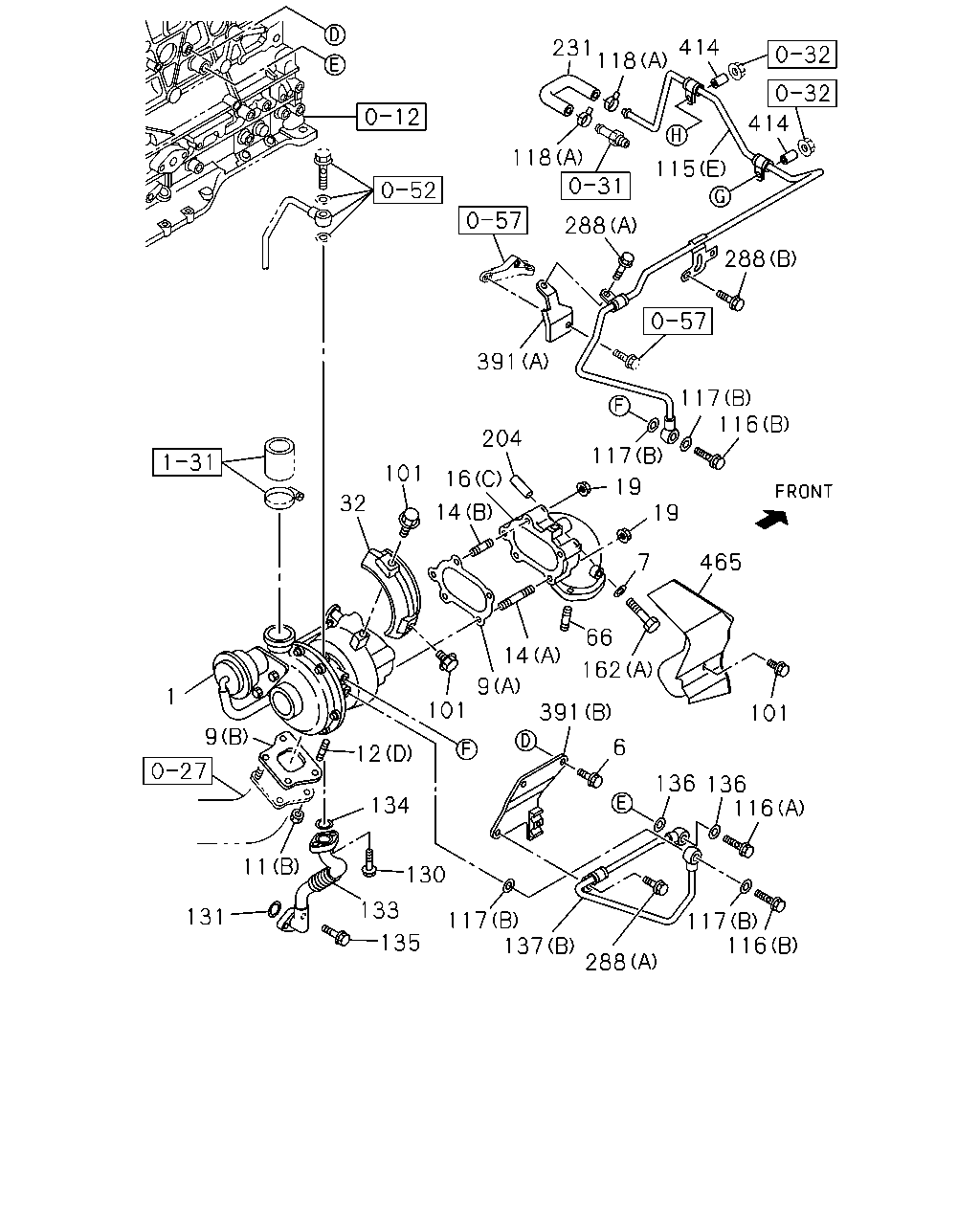

çizim 352324
465 101 116 136 136 6 391 162 66 14 9 101 12 134 130 133 135 117 137 288 117 116 11 131 9 1 32 101 14 16 204 117 19 19 7 117 116 288 288 391 118 115 414 414 118 231
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 1302- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1302- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1302-1511 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 1302-1505 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97604-975-9 01 1 1506- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1305- ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98203-610-0 01 1 1305- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97039-777-1 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97374-412-0 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (C) ID=54 		8-97376-758-0 01 1 1305- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (D) ID=49 		8-98046-241-0 01 1 1305- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10 		1-09420-005-0 04 1 1302-1511 ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M10 		1-09420-005-0 04 1 1512- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10 P=1.5 H=8 		9-09842-007-0 04 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M6 FLANGE 		0-91180-106-0 02 1 1305- ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (D) M10 FLANGE 		8-97381-617-0 04 1 1305- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X25 		9-04130-825-0 01 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1512- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X80 		9-04731-080-0 02 1 1302-1511 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1512- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 1302-1505 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X25 L=36 		8-94476-282-0 02 1 1506- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) M10X28 		9-04731-028-0 02 1 1305- ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (E) M10X30 L=45 		1-09302-106-0 02 1 1305- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1305- ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X94 L=108 		8-97019-477-0 02 1 1305- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-94395-767-0 01 1 1302-1511 ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94395-767-0 01 1 1512- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98018-241-1 01 1 1302-1505 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-98018-241-1 01 1 1506- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-97039-749-2 01 1 1305- ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98030-080-3 01 1 1305- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE 		8-94170-486-0 05 1 1305- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		8-94170-486-0 03 1 1305- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97351-168-0 01 1 1305- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98031-888-3 01 1 1305- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1305- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97618-808-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97618-807-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-94392-950-0 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-94395-454-4 01 1 1302-1511 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1512- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97615-877-0 01 1 1302- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1302-1505 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-97610-087-2 01 1 1506- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-98063-841-0 01 1 1305- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (F) 		8-97387-270-2 01 1 1305- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1305- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> (C) M8X20 FLANGE 		0-28650-820-0 06 1 1305-1511 ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1305- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 04 1 1305- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1305-1312 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1305- ●
118 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (B) ID=20 		1-09707-084-1 06 1 1305-1511 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (D) ID=22 		8-97359-141-0 02 1 1305- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1305- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1305- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1305- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98172-662-0 01 1 1305- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98172-661-0 01 1 1305- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1305- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1305- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2 		1-09630-085-0 02 1 1305-1312 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (A) 		8-98046-783-0 01 1 1302-1505 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-98046-783-0 01 1 1506- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-98063-007-0 01 1 1305- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> (C) 		8-97387-271-0 01 1 1305- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X57 		5-09000-275-0 05 1 1302-1511 ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M8X57 		5-09000-275-0 05 1 1512- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X60 FLANGE 		0-28051-060-0 01 1 1506- ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 1302-1505 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X60 		8-98158-604-0 02 1 1506- ●
162 BOLT; ADAPTER
(A) M8X57 		5-09000-275-0 01 1 1305- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1305- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1305- ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (B) M8X10 FLANGE 		0-28050-810-0 01 1 1305- ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1305- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1305- ●
391 BRACKET; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98013-958-0 01 1 1305- ●
414 SPACER
EURO2 SPECIFICATION<NT2> M8X10 		1-11369-081-0 02 1 1305- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98176-248-0 01 1 1305- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION<NT4> 		8-98052-394-0 01 1 1305- ●
çizim 352868
460 118 118 118 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1305- ●
118 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (B) ID=20 		1-09707-084-1 06 1 1305-1511 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (D) ID=22 		8-97359-141-0 02 1 1305- ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (C) ID=24 		8-98025-921-0 04 1 1305- ●
460 NUT; PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1305- ●
460 NUT; PIPE
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-110-0 02 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
