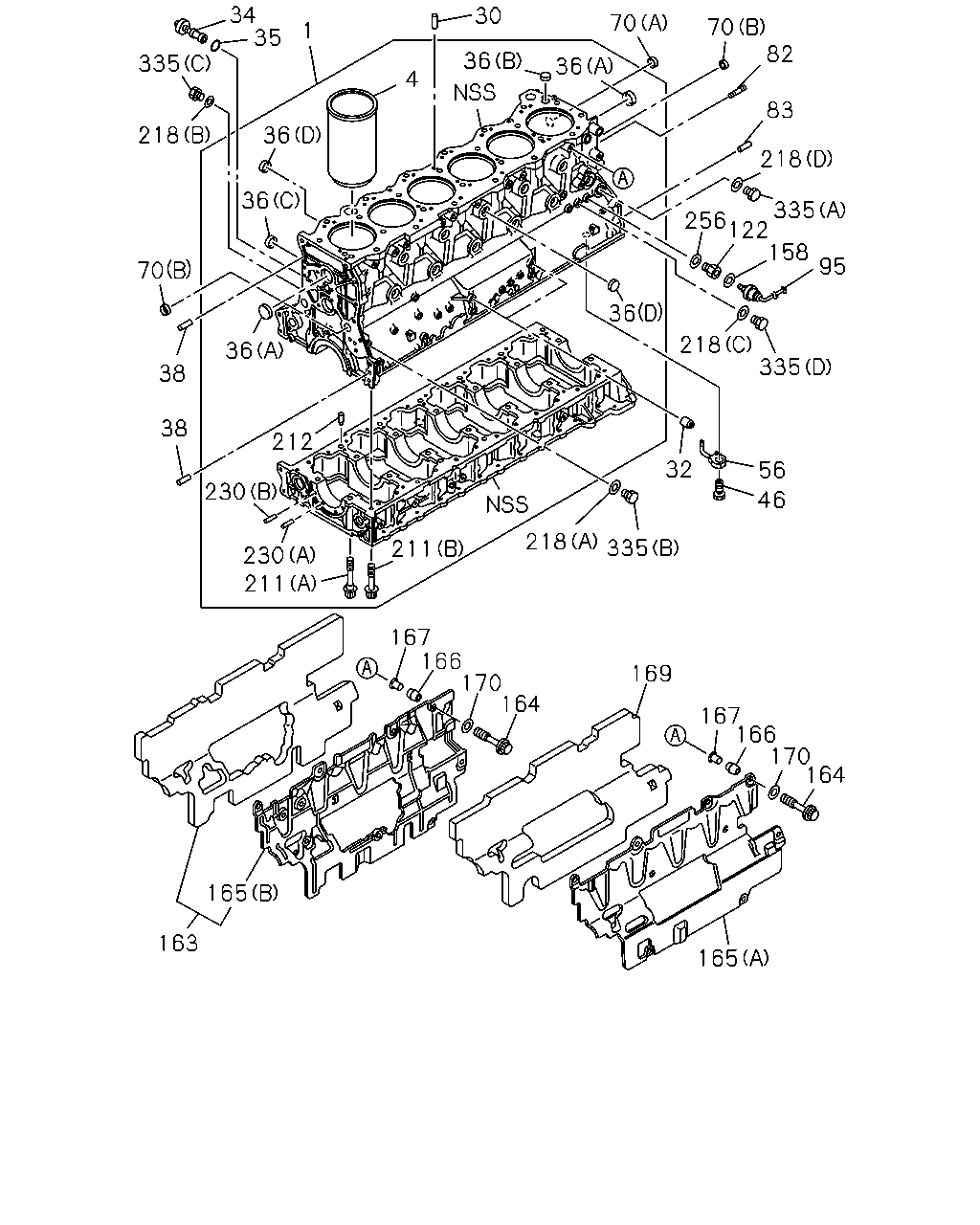

0-12 — CYLINDER BLOCK (#11206) — 55 parça

34 35 30 70 70 82 1 36 335 36 4 83 218 36 218 36 335 256 122 158 95 70 36 212 230 218 335 36 38 38 211 32 56 46 218 335 230 211 167 166 170 164 169 167 166 170 164 165 163 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-632-9	01	1	0107-0505
1	BLOCK ASM; CYL	8-98003-655-0	01	1	0506-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-2	06	1	0107-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-2	06	1	0107-
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0107-
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0107-
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	0107-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0107-0508
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0107-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0107-
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-1	02	1	0107-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0107-
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	0107-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0107-
56	JET; OIL,PISTON COOLING	1-13342-139-0	06	1	0107-
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	0107-
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	0107-
82	STUD; FLYWHEEL HSG M14X35 L=56	9-04411-435-0	01	1	0107-0604
82	STUD; FLYWHEEL HSG M14X35 L=56	0-44011-435-0	01	1	0605-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	0107-
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0107-
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	0107-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
163	COVER ASM; C/BL SKIRT	1-19380-209-2	01	1	0307-0308
163	COVER ASM; C/BL SKIRT	1-19380-212-0	01	1	0309-0310
163	COVER ASM; C/BL SKIRT	1-19380-209-3	01	1	0311-
164	BOLT; COVER BLOCK SKIRT M10X35 FLANGE	0-28181-035-0	08	1	0107-0512
164	BOLT; COVER BLOCK SKIRT M10X35 FLANGE	0-28151-035-0	08	1	0601-
165	COVER; C/BL SKIRT (A)	1-19381-376-0	01	1	0107-0306
165	COVER; C/BL SKIRT (B)	1-19381-455-2	01	1	0307-0308
165	COVER; C/BL SKIRT (B)	1-19381-459-0	01	1	0309-0310
165	COVER; C/BL SKIRT (B)	1-19381-455-3	01	1	0311-
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	08	1	0107-
167	TUBE; DIST,SIDE COVER	1-19389-134-1	08	1	0107-0207
167	TUBE; DIST,SIDE COVER	1-19389-329-0	08	1	0208-
169	INSULATOR; SIDE COVER	1-19389-191-1	01	1	0107-0306
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	08	1	0107-
211	BOLT; CRANKCASE (B) M12X114	1-09070-087-2	28	1	0107-
211	BOLT; CRANKCASE (A) M18X150	1-09070-151-0	14	1	0107-
212	PIN; CRANKCASE	1-09740-068-1	02	1	0107-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	1-09630-084-0	01	1	0107-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SUDE ID=14.2 OD=19.2	1-09630-085-0	01	1	0107-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) LH SIDE ID=22	1-09630-089-0	01	1	0107-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	0107-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	0107-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0107-
335	PLUG; C/BL,SIDE (A) LH SIDE M22X12	1-09604-035-0	01	1	0107-
335	PLUG; C/BL,SIDE (B) LH SIDE M10X7	1-09604-094-0	01	1	0107-
335	PLUG; C/BL,SIDE (C) RH SIDE M12X9	1-09604-095-0	01	1	0107-
335	PLUG; C/BL,SIDE (D) LH SIDE M14X9	9-99202-314-0	01	1	0107-

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87811-667-6	06	1	0107-
2	LINER SET; ENG CYL GRADE=3X	1-87811-668-7	06	1	0107-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-2	06	1	0107-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-2	06	1	0107-
