Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#112059) — 235 parça

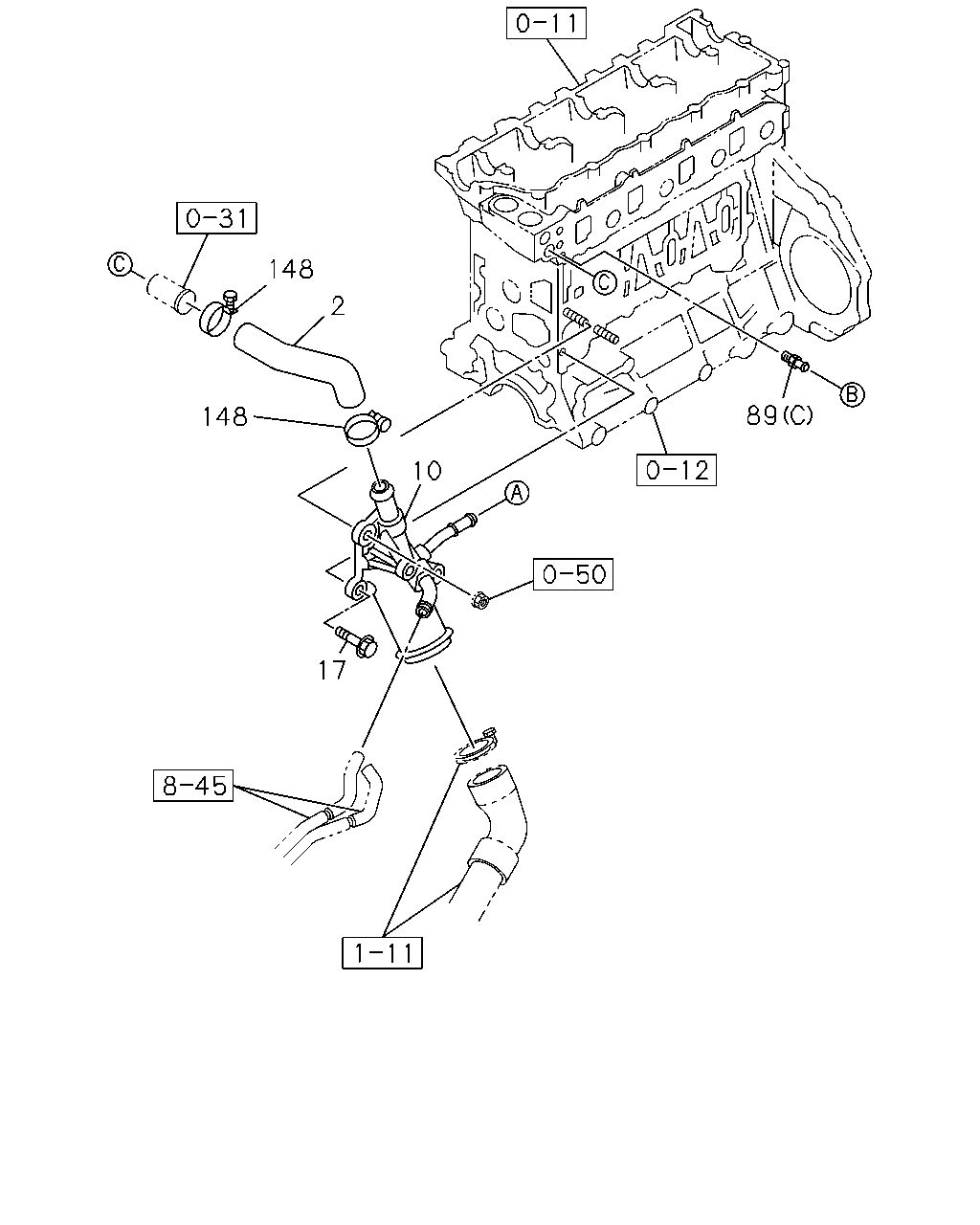

148 148 2 10 89 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1302-	●
10	PIPE; SUCTION	8-98166-995-0	01	1	1302-	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (A)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97611-095-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97610-086-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (D)	8-97610-086-0	01	1	1302-			●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1302-	●

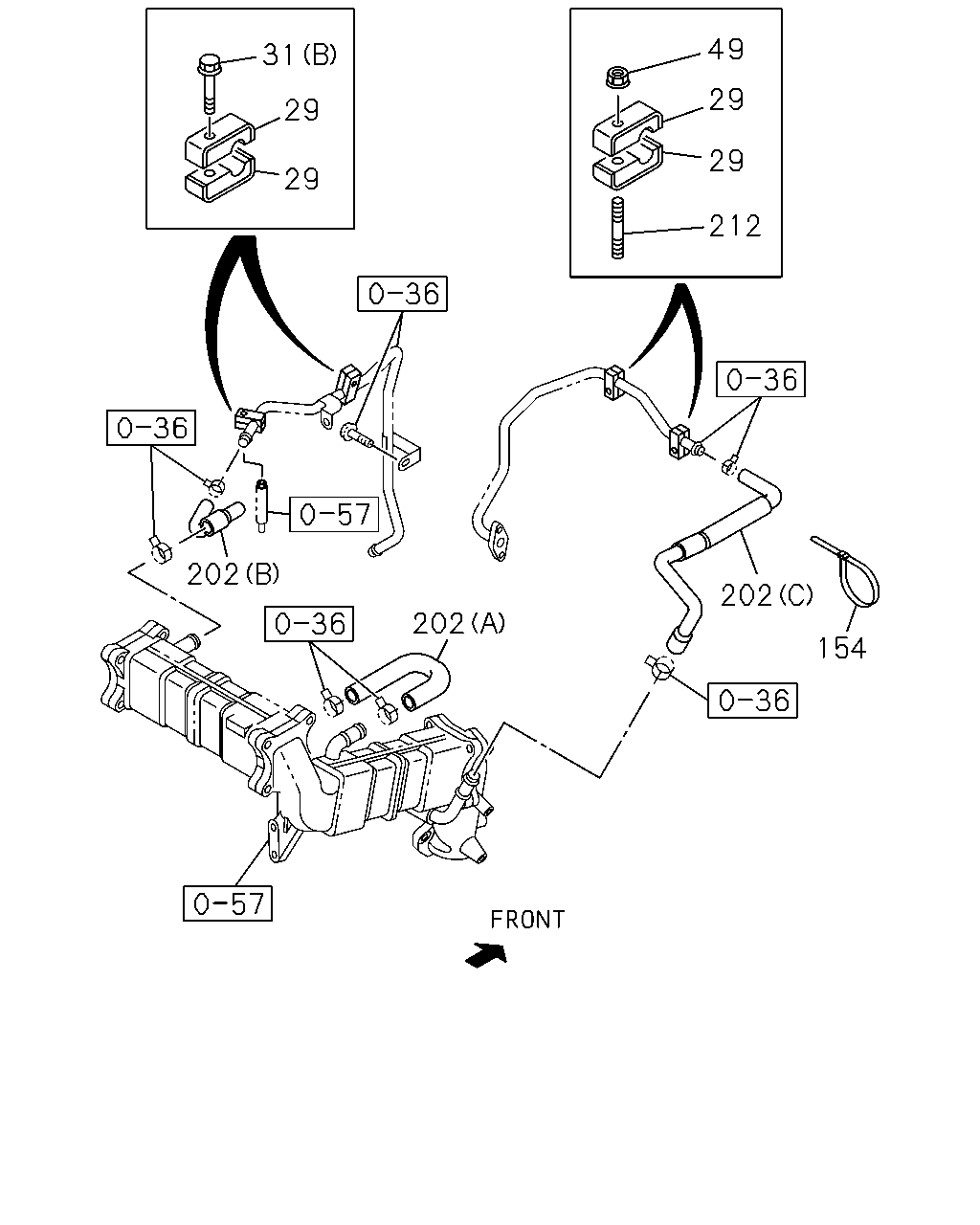

31 29 29 49 29 29 212 202 154 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	CLIP; PIPE EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M6X45 FLANGE	0-28050-645-0	01	1	1302-		●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M6X40 FLANGE	0-28650-640-0	03	1	1302-		●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1302-		●	●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1302-	●
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> L=170.3	1-09987-182-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98028-170-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98028-171-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (C)	8-98097-717-0	01	1	1302-	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1302-	●

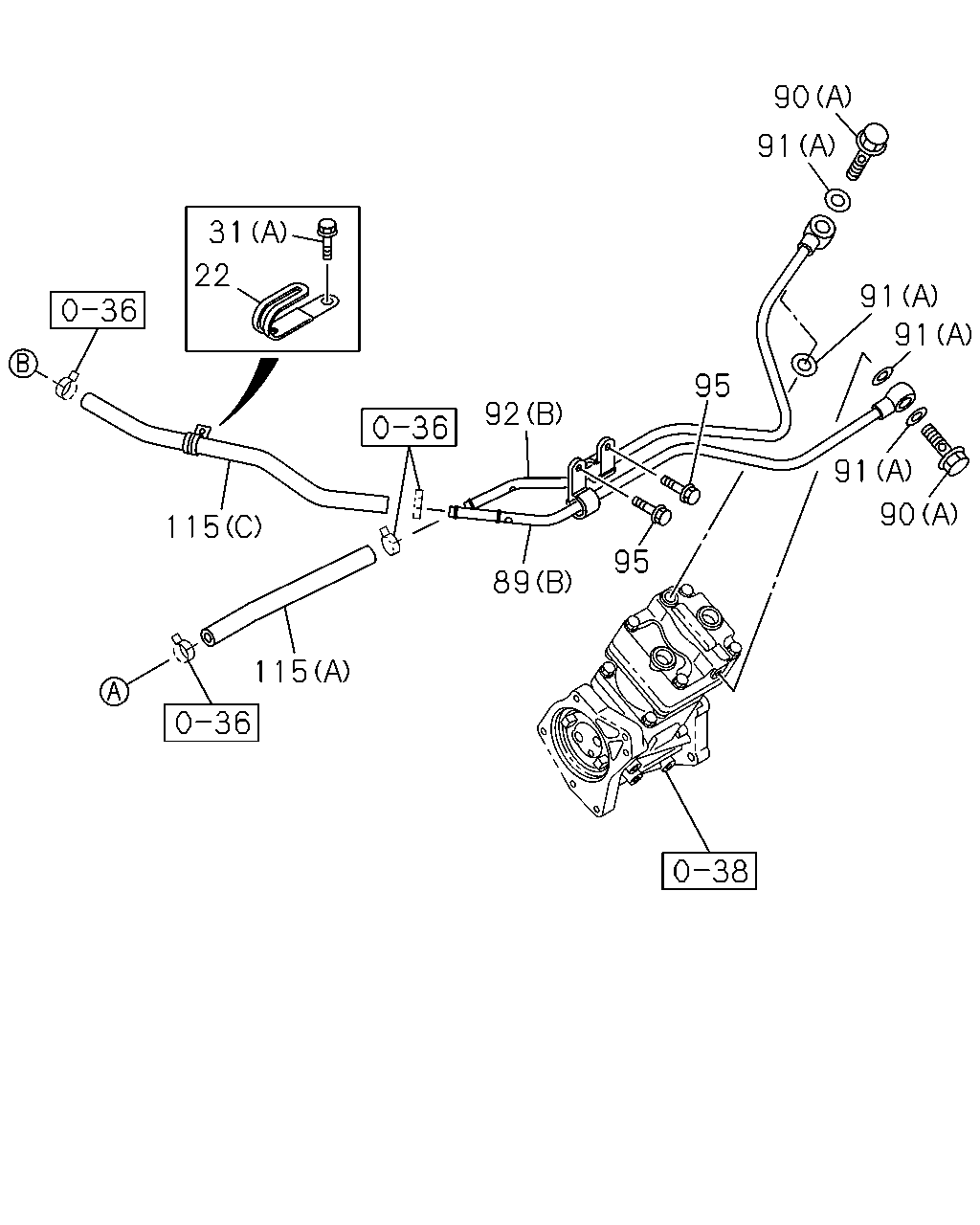

31 22 115 92 89 95 115 95 90 91 91 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> L=36	8-94224-891-1	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M6X45 FLANGE	0-28050-645-0	01	1	1302-		●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M6X40 FLANGE	0-28650-640-0	03	1	1302-		●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1302-		●	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (A)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97611-095-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97610-086-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (D)	8-97610-086-0	01	1	1302-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-		●	●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4> (B)	8-98132-662-0	01	1	1302-	●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2> (A)	8-97376-784-0	01	1	1302-	●
95	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (B)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (F)	8-97606-735-1	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (G)	8-97606-749-0	02	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98043-192-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (D) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●	●

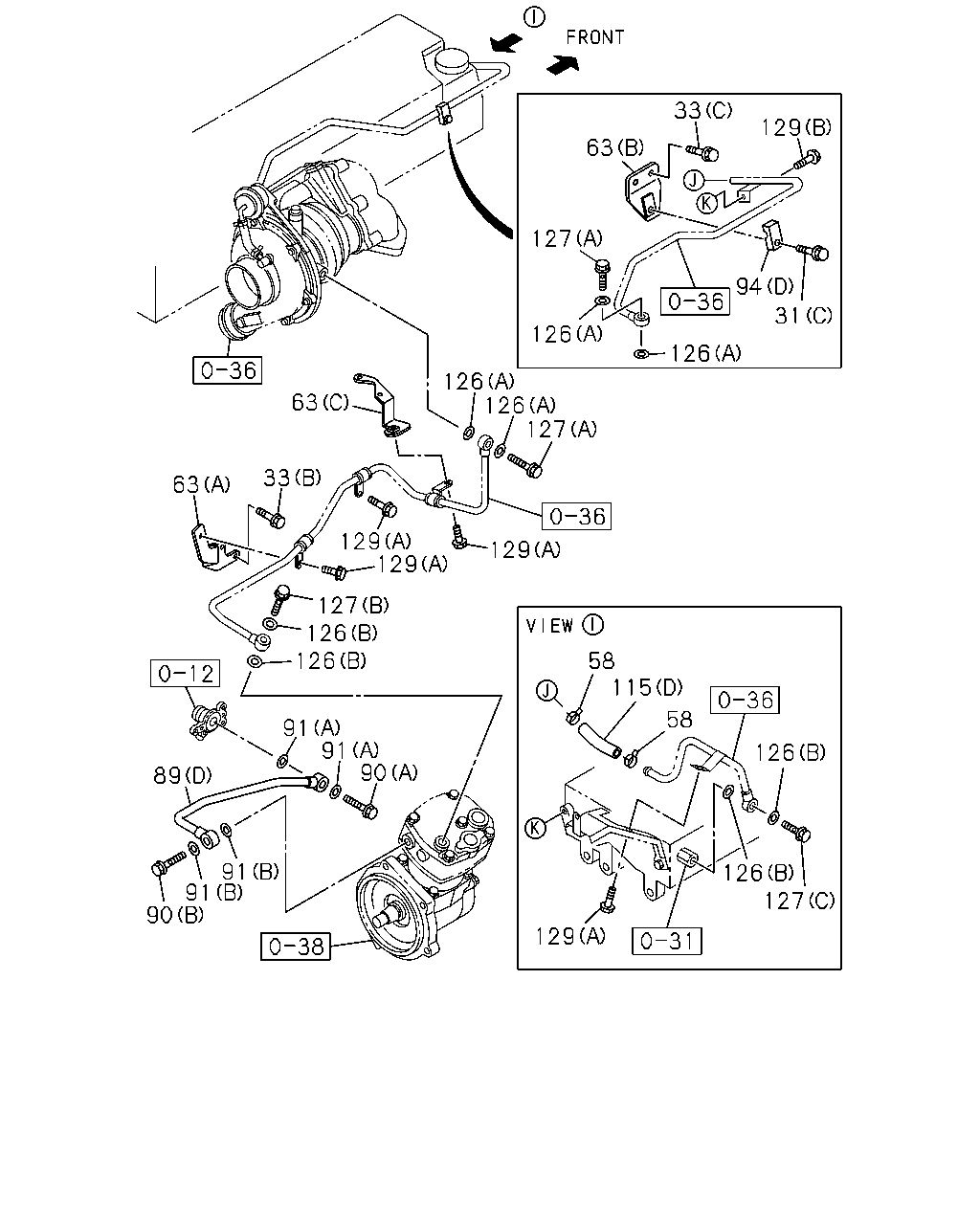

33 63 127 126 126 31 94 129 63 126 126 127 129 129 129 127 126 126 63 33 91 91 90 91 91 90 89 129 115 58 126 127 126 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M6X45 FLANGE	0-28050-645-0	01	1	1302-		●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M6X40 FLANGE	0-28650-640-0	03	1	1302-		●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M6X10 FLANGE	0-28050-610-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-		●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X20 FLANGE	0-28650-820-0	03	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●	●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1302-		●	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (E)	8-98046-784-0	01	1	1302-		●	●
63	BRACKET; WATER PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (D)	8-98153-457-0	01	1	1302-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1302-		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1302-		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1302-		●	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (A)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97611-095-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97610-086-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (D)	8-97610-086-0	01	1	1302-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (C)	8-97605-129-1	08	1	1302-		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-94396-860-0	01	1	1302-		●	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (B)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (F)	8-97606-735-1	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (G)	8-97606-749-0	02	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98043-192-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (D) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	02	1	1302-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-		●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1302-		●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	1302-		●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1302-		●	●

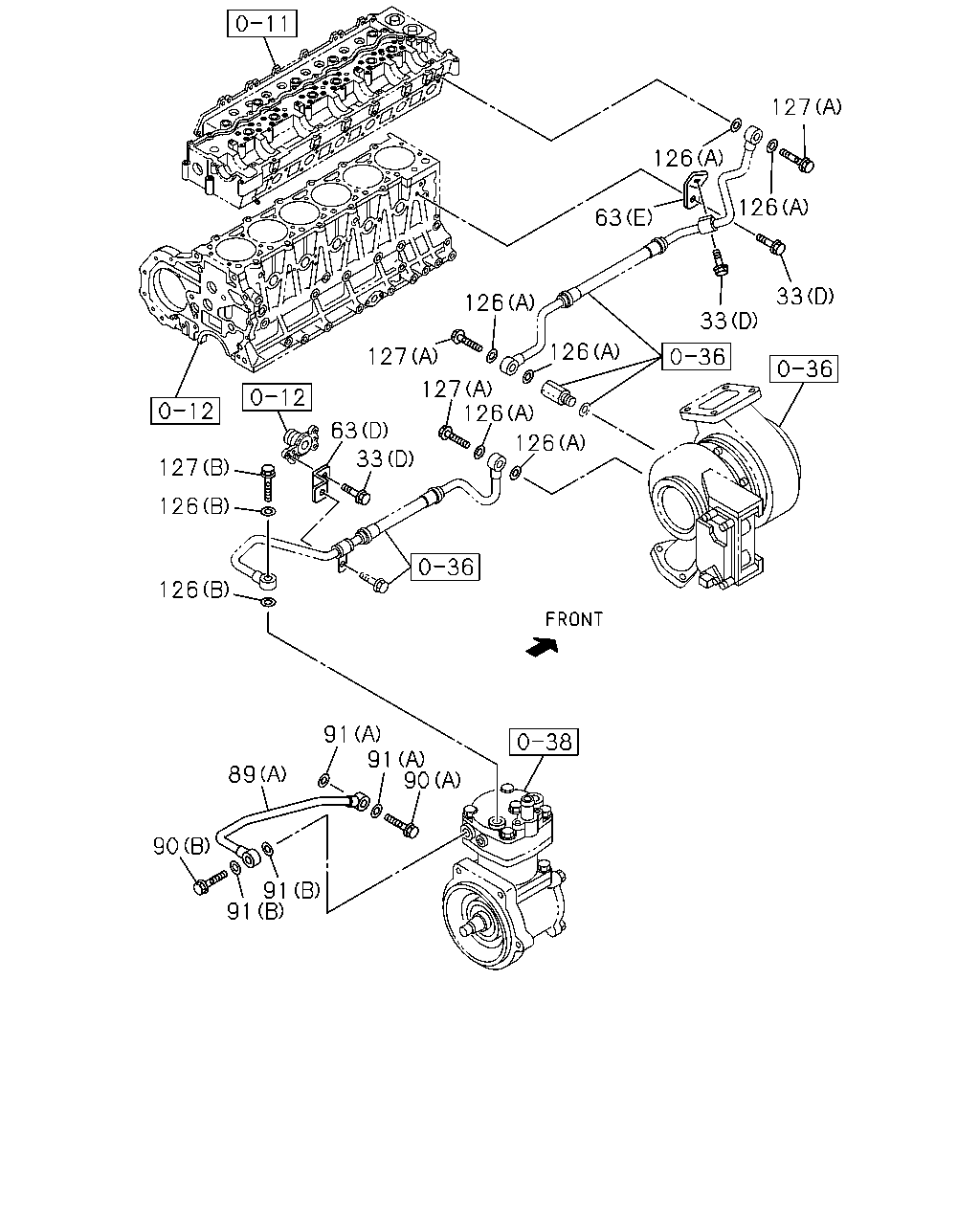

126 63 126 127 126 33 33 126 127 127 126 126 33 63 127 91 91 90 89 90 91 126 126 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M6X10 FLANGE	0-28050-610-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-		●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X20 FLANGE	0-28650-820-0	03	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (E)	8-98046-784-0	01	1	1302-		●	●
63	BRACKET; WATER PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (D)	8-98153-457-0	01	1	1302-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1302-		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1302-		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1302-		●	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (A)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97611-095-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97610-086-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (D)	8-97610-086-0	01	1	1302-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	02	1	1302-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-		●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1302-		●	●

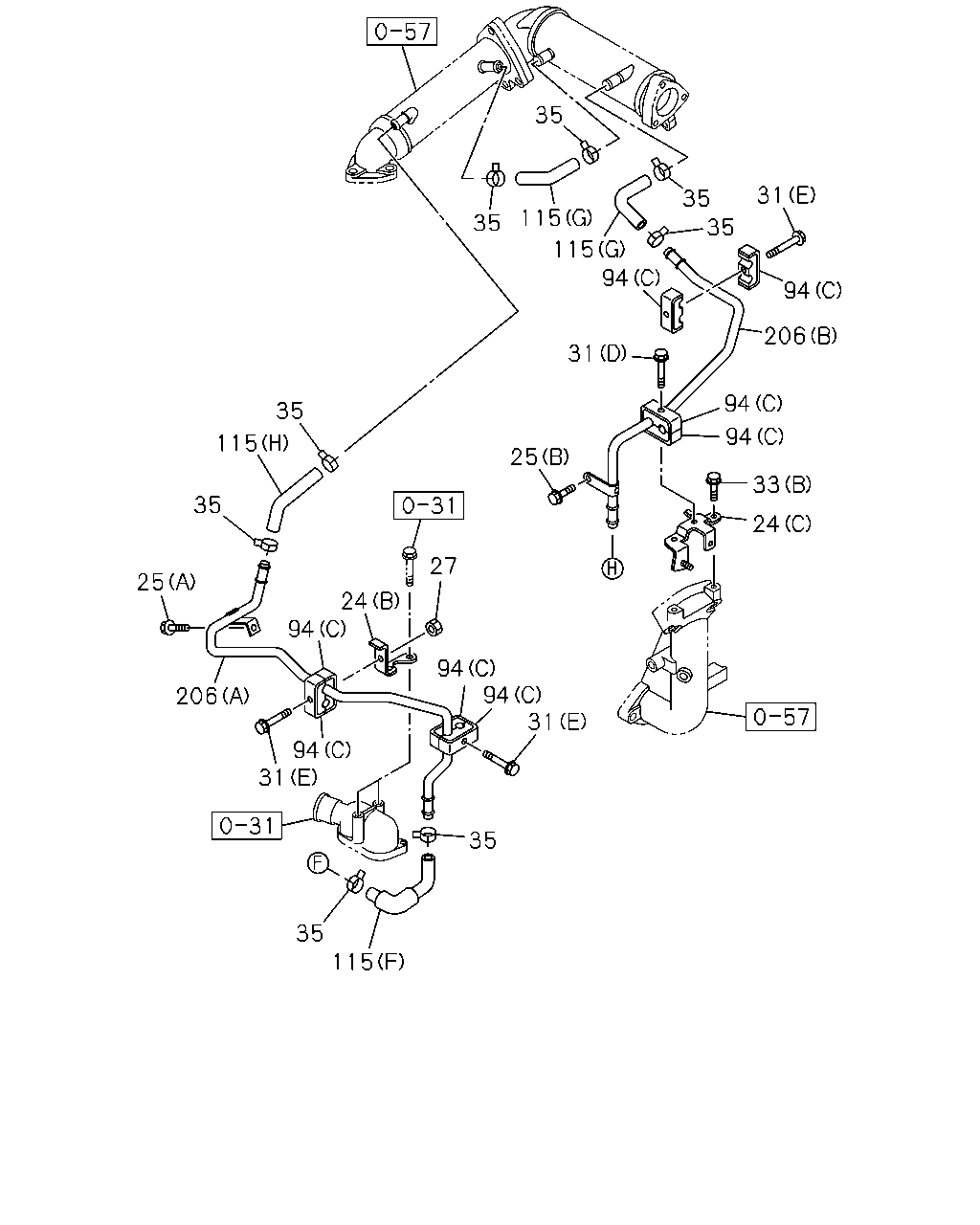

35 31 35 115 35 35 115 94 94 206 31 94 25 94 24 33 35 115 35 25 24 94 27 94 94 31 35 94 206 31 35 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-97379-140-0	01	1	1302-	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98000-557-2	01	1	1302-		●	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (C)	8-98051-626-1	01	1	1302-		●	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-		●	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-		●	●
27	NUT; PIPE FIX EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1302-		●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M6X45 FLANGE	0-28050-645-0	01	1	1302-		●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M6X40 FLANGE	0-28650-640-0	03	1	1302-		●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M6X10 FLANGE	0-28050-610-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-		●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X20 FLANGE	0-28650-820-0	03	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-		●	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1302-		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (C)	8-97605-129-1	08	1	1302-		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-94396-860-0	01	1	1302-		●	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (B)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (F)	8-97606-735-1	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (G)	8-97606-749-0	02	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98043-192-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (D) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	1302-		●	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	1302-		●	●

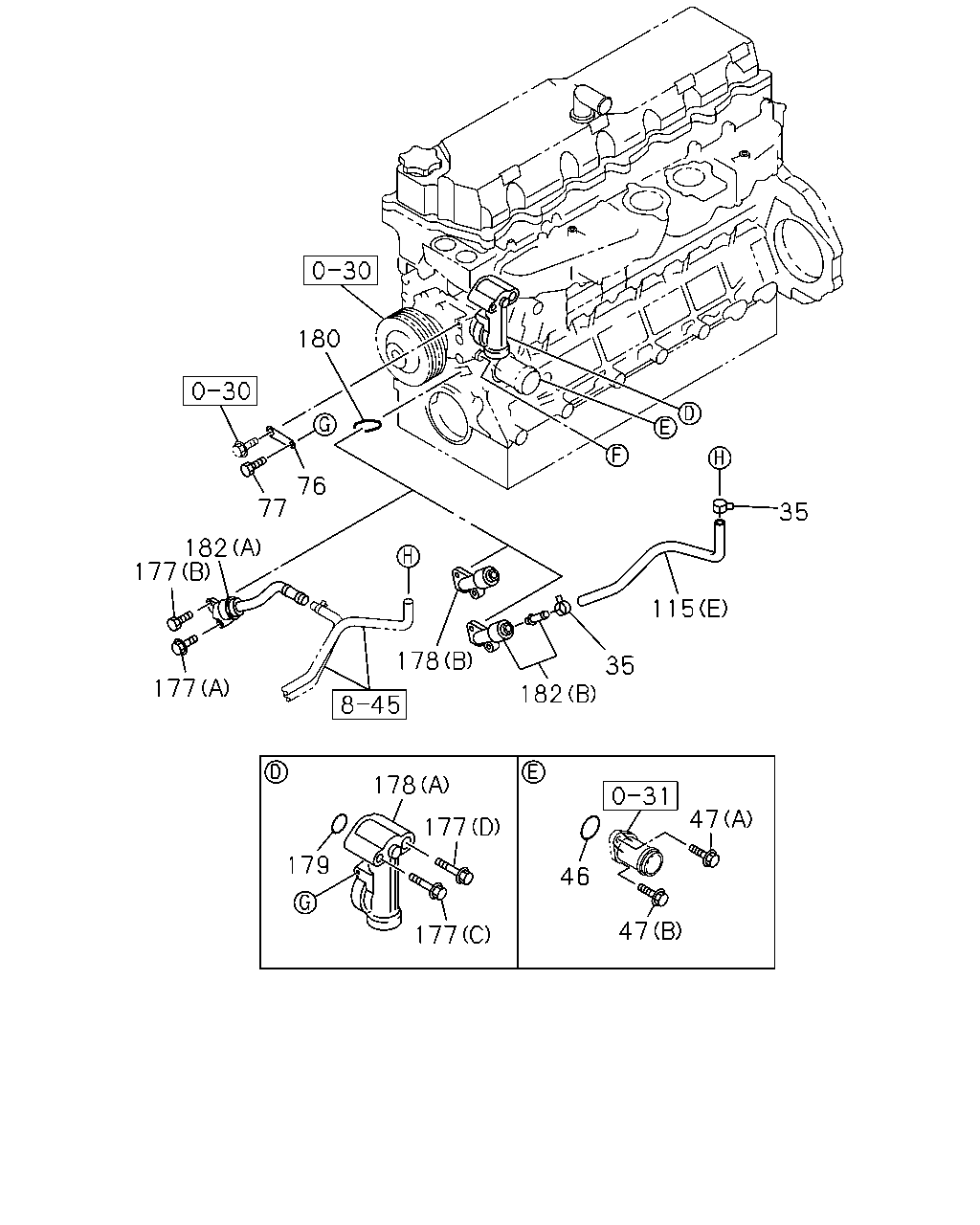

180 76 77 182 177 177 178 182 115 35 178 177 177 179 46 47 47 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-		●	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1302-		●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1302-		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1302-		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-		●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1302-		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1302-		●	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (B)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (F)	8-97606-735-1	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (G)	8-97606-749-0	02	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98043-192-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (D) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1302-		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1302-		●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1302-		●	●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1302-		●	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1302-		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1302-1408		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-		●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1302-		●	●
182	DUCT; WATER,HTR EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	1302-		●	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1302-		●	●

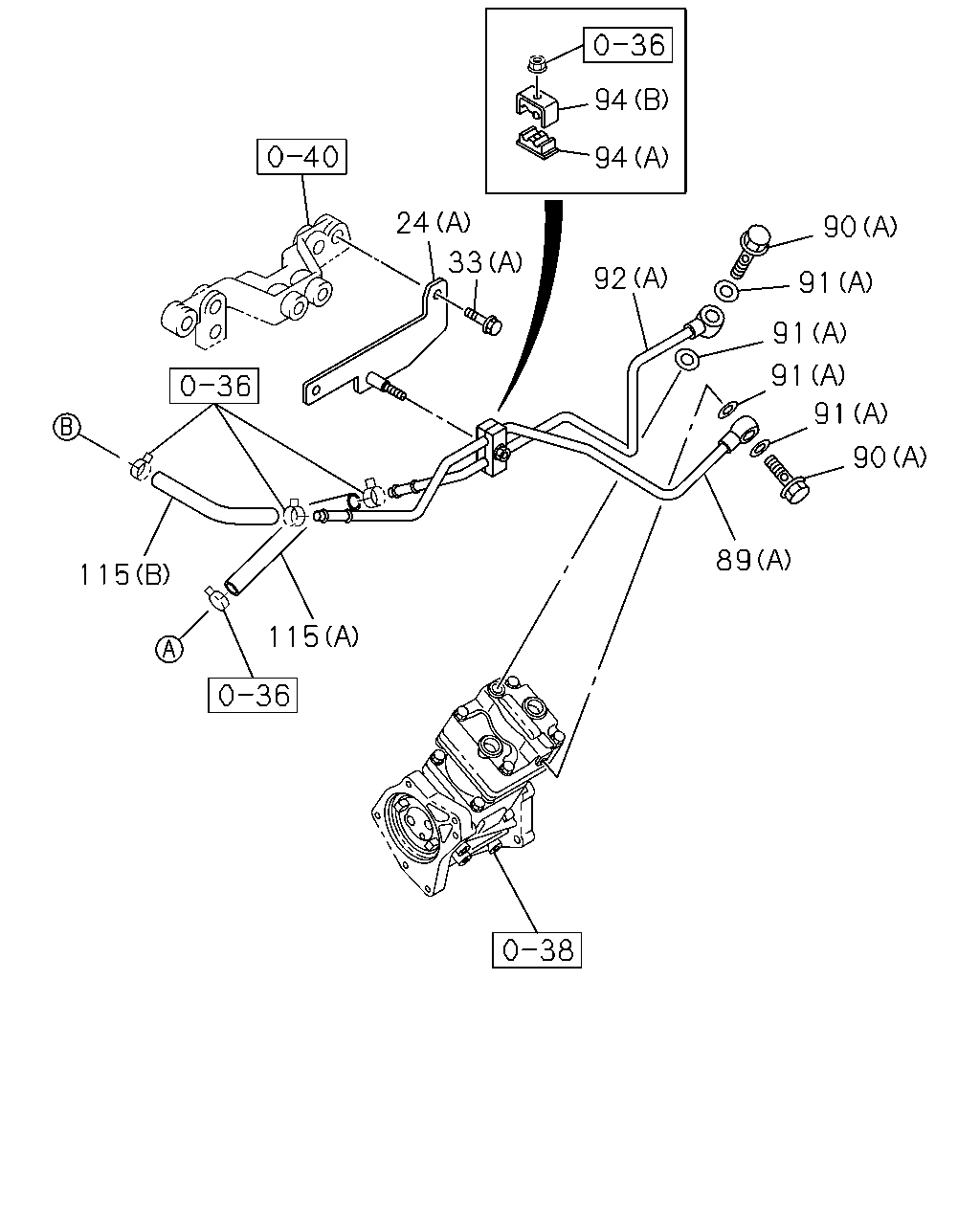

94 94 92 33 24 115 115 89 90 91 91 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-97379-140-0	01	1	1302-	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98000-557-2	01	1	1302-		●	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (C)	8-98051-626-1	01	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M6X10 FLANGE	0-28050-610-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-		●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X20 FLANGE	0-28650-820-0	03	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (A)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97611-095-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97610-086-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (D)	8-97610-086-0	01	1	1302-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-		●	●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4> (B)	8-98132-662-0	01	1	1302-	●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2> (A)	8-97376-784-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (C)	8-97605-129-1	08	1	1302-		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-94396-860-0	01	1	1302-		●	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (B)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (F)	8-97606-735-1	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (G)	8-97606-749-0	02	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98043-192-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (D) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
