0-31 — THERMOSTAT AND HOUSING (#112058) — 23 parça

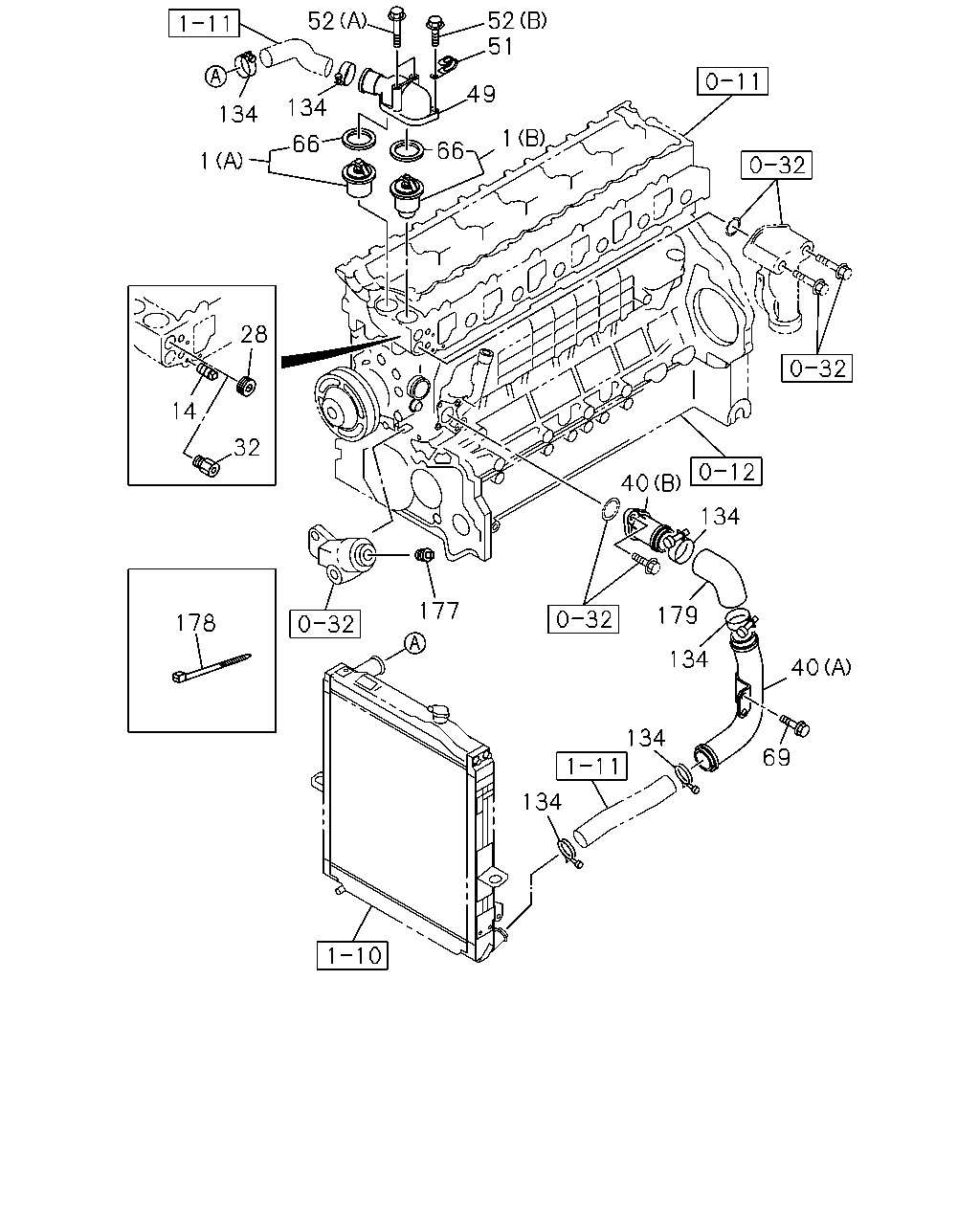

çizim 326365
52 52 51 49 66 1 134 66 134 1 28 14 32 178 177 179 134 134 134 40 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 1302- ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 1302-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1302- ● ●
28 PLUG; HTR
EURO4 SPECIFICATION<NT4> PT3/4 		1-09605-020-0 01 1 1602- ● ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1302-1601 ● ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2> 		8-98177-501-0 01 1 1602- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 1302- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 1302- ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1302- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 1302- ● ●
52 BOLT; JOINT,THERMOSTAT
EURO4 SPECIFICATION<NT4> (A) M8X85 FLANGE 		8-97023-062-0 02 1 1602- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1302-1601 ● ●
52 BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<NT2> (A) M8X80 FLANGE 		0-28050-880-0 02 1 1602- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1302-1501 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 1302- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 1302- ● ●
177 PLUG; PIPE,WATER DUCT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 1302-1601 ● ●
177 PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 1602- ● ●
178 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		8-98216-430-0 01 1 1602- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 1302- ● ●
