0-52 — OIL AND VACUUM PIPING; ENGINE (#112041) — 44 parça

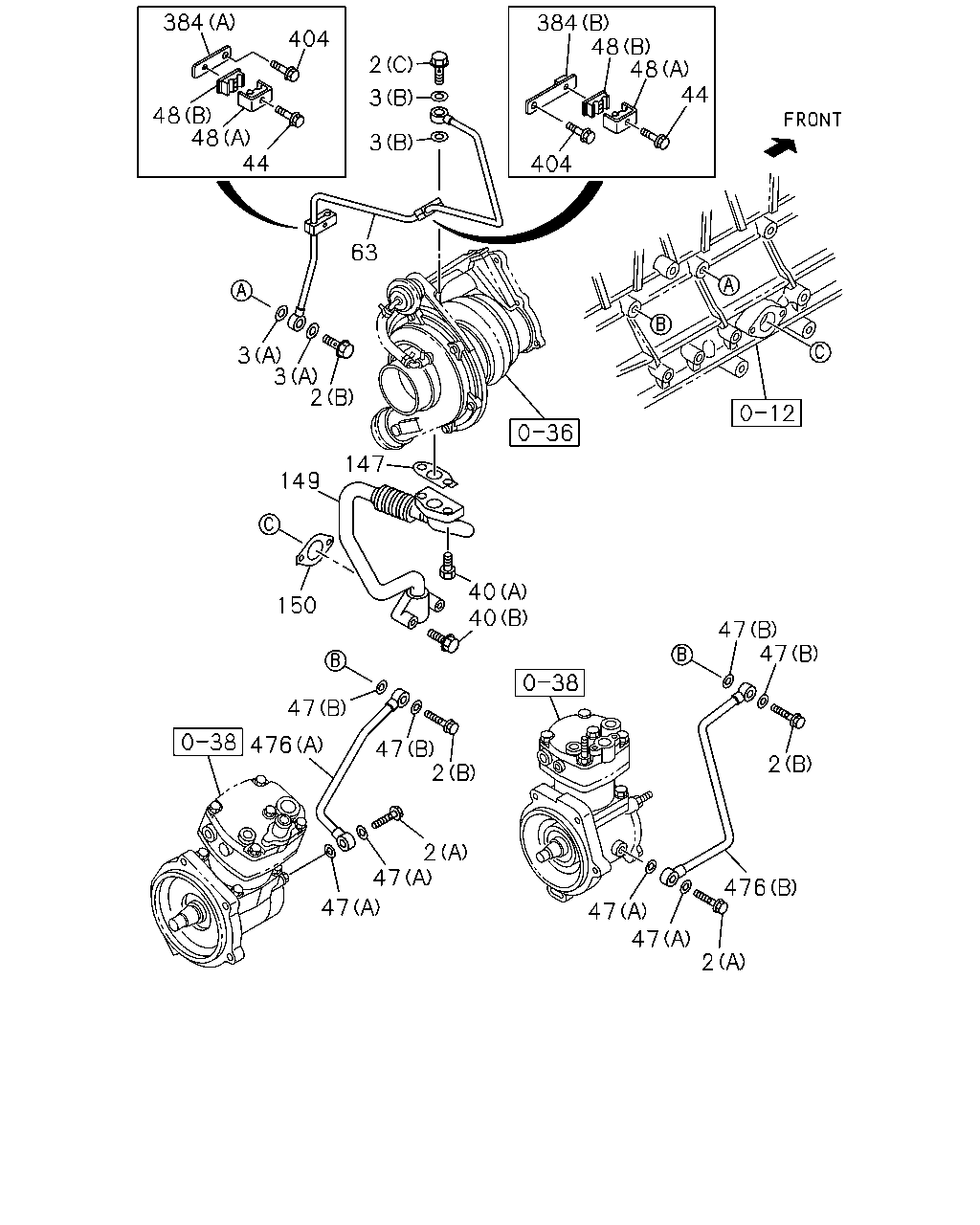

384 404 48 48 44 2 3 3 384 404 48 44 48 63 3 2 3 149 147 40 40 150 47 47 47 47 2 476 2 47 47 2 47 47 476 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1302-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	1302-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1302-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	1302-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-		●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●
40	BOLT; OIL PIPE (C) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
40	BOLT; OIL PIPE (D) M8X20 FLANGE	0-28050-820-0	03	1	1305-		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	1302-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1302-	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1302-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98074-254-0	01	1	1302-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98069-427-0	01	1	1305-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	1302-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-98147-092-0	01	1	1302-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13319-020-0	01	1	1302-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13319-041-0	01	1	1302-	●
404	BOLT; BRKT M8X15	1-09000-114-0	02	1	1302-	●
476	PIPE; OIL,C/BL TO AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97608-935-0	01	1	1302-	●
476	PIPE; OIL,C/BL TO AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-97610-075-0	01	1	1302-	●

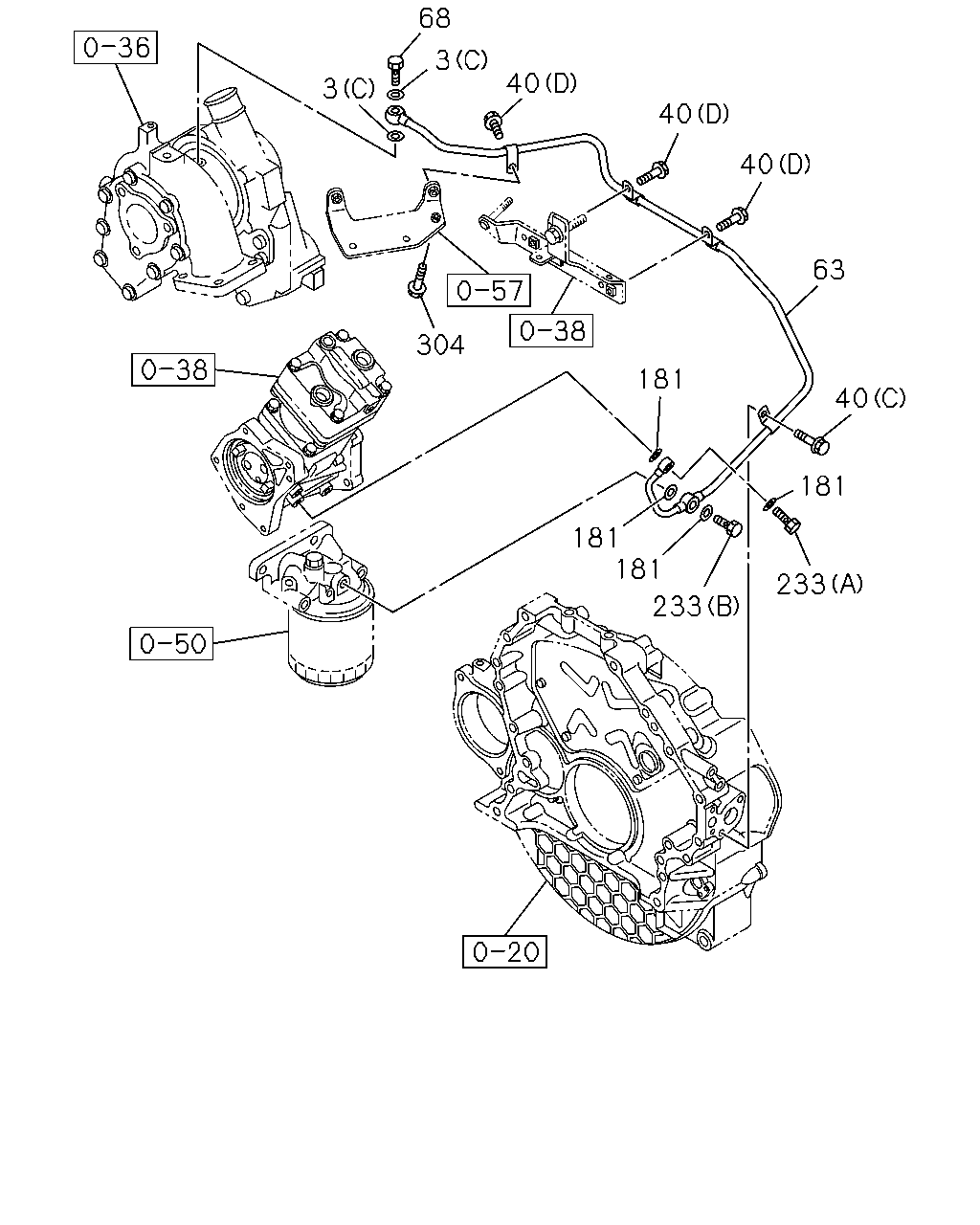

63 40 40 40 3 68 3 304 181 40 181 233 233 181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	1302-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-		●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●
40	BOLT; OIL PIPE (C) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
40	BOLT; OIL PIPE (D) M8X20 FLANGE	0-28050-820-0	03	1	1305-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-98074-254-0	01	1	1302-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98069-427-0	01	1	1305-		●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-98037-825-0	01	1	1305-		●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	1305-		●
233	BOLT; EYE (A) M10X22	1-09675-028-0	01	1	1305-		●
233	BOLT; EYE (B) M10X28	8-98037-823-0	01	1	1305-		●
304	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	04	1	1305-		●
