0-22 — ENGINE MOUNTING (#112027) — 60 parça

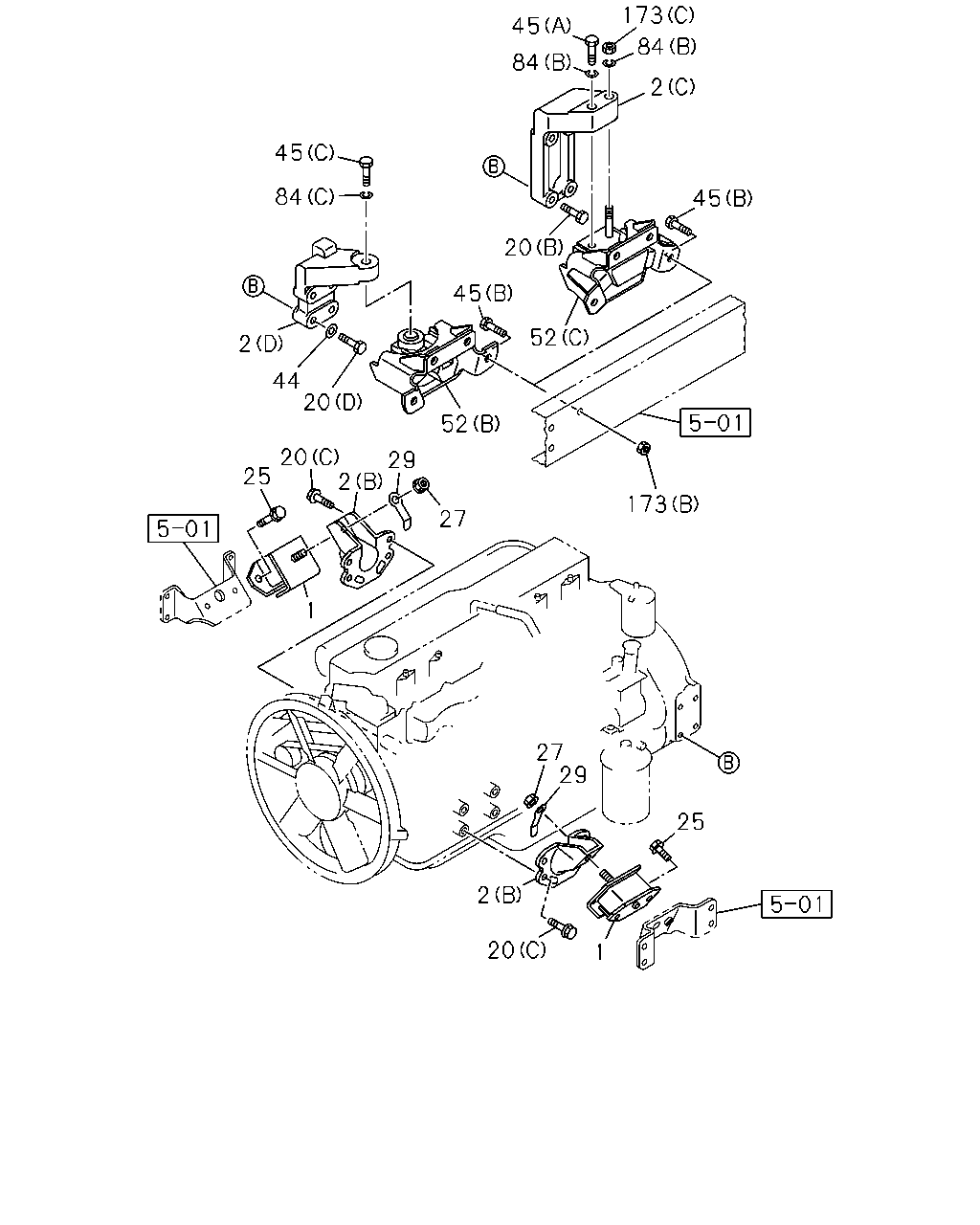

173 84 2 45 45 84 20 52 173 25 29 27 27 52 29 2 20 25 2 44 20 84 45 45 2 20 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-184-0	02	1	1302-	●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	1302-		●	●
2	FOOT; ENG (A)	8-97376-076-1	02	1	1302-	●
2	FOOT; ENG (B)	8-97602-589-1	02	1	1302-		●	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-97611-990-0	01	1	1302-		●	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-97611-991-0	01	1	1302-		●	●
2	FOOT; ENG MZW6P M/T(RSZ) (D)	8-97611-988-0	01	1	1302-		●	●
2	FOOT; ENG MZW6P M/T(RSZ) (D)	8-97611-989-0	01	1	1302-		●	●
20	BOLT; ENG FOOT (A) M10X30 FLANGE	0-28161-030-0	08	1	1302-	●
20	BOLT; ENG FOOT (C) M10X20 FLANGE	8-94395-721-0	08	1	1302-		●	●
20	BOLT; ENG FOOT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	1302-		●	●
20	BOLT; ENG FOOT MZW6P M/T(RSZ) (D) M12X50	0-16956-250-0	08	1	1302-		●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	1302-	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	1302-	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	1302-	●	●	●
44	WASHER; LK,ENG FOOT MZW6P M/T(RSZ) ID=12.5	0-91614-512-0	08	1	1302-		●	●
45	BOLT; CUSHION RUBBER TO FRAME (B) M14X50	0-29261-450-0	08	1	1302-		●	●
45	BOLT; CUSHION RUBBER TO FRAME MZW6P M/T(RSZ) (C) M18X65	8-94393-260-1	02	1	1302-			●
45	BOLT; CUSHION RUBBER TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M16X60	0-10956-660-0	02	1	1302-		●	●
52	RUBBER; CUSHION,ENG MTG,RR (A)	8-97039-277-0	02	1	1302-	●
52	RUBBER; CUSHION,ENG MTG,RR MZW6P M/T(RSZ) (B)	8-98013-021-1	02	1	1302-			●
52	RUBBER; CUSHION,ENG MTG,RR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-98013-022-1	02	1	1302-		●	●
84	WASHER; PL,ENG MTG RR TO FRAME (A) ID=10.5 OD=32	0-91614-810-0	04	1	1302-	●
84	WASHER; PL,ENG MTG RR TO FRAME MZW6P M/T(RSZ) (C) ID=19 OD=36	0-91614-618-0	02	1	1302-			●
84	WASHER; PL,ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=17	9-09164-516-0	04	1	1302-		●	●
173	NUT; ENG MTG RR TO FRAME (A) M10 FLANGE	0-91180-210-0	04	1	1302-	●
173	NUT; ENG MTG RR TO FRAME (B) M14 FLANGE	0-91180-214-0	08	1	1302-		●	●
173	NUT; ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) M16	0-91110-516-0	02	1	1302-		●	●

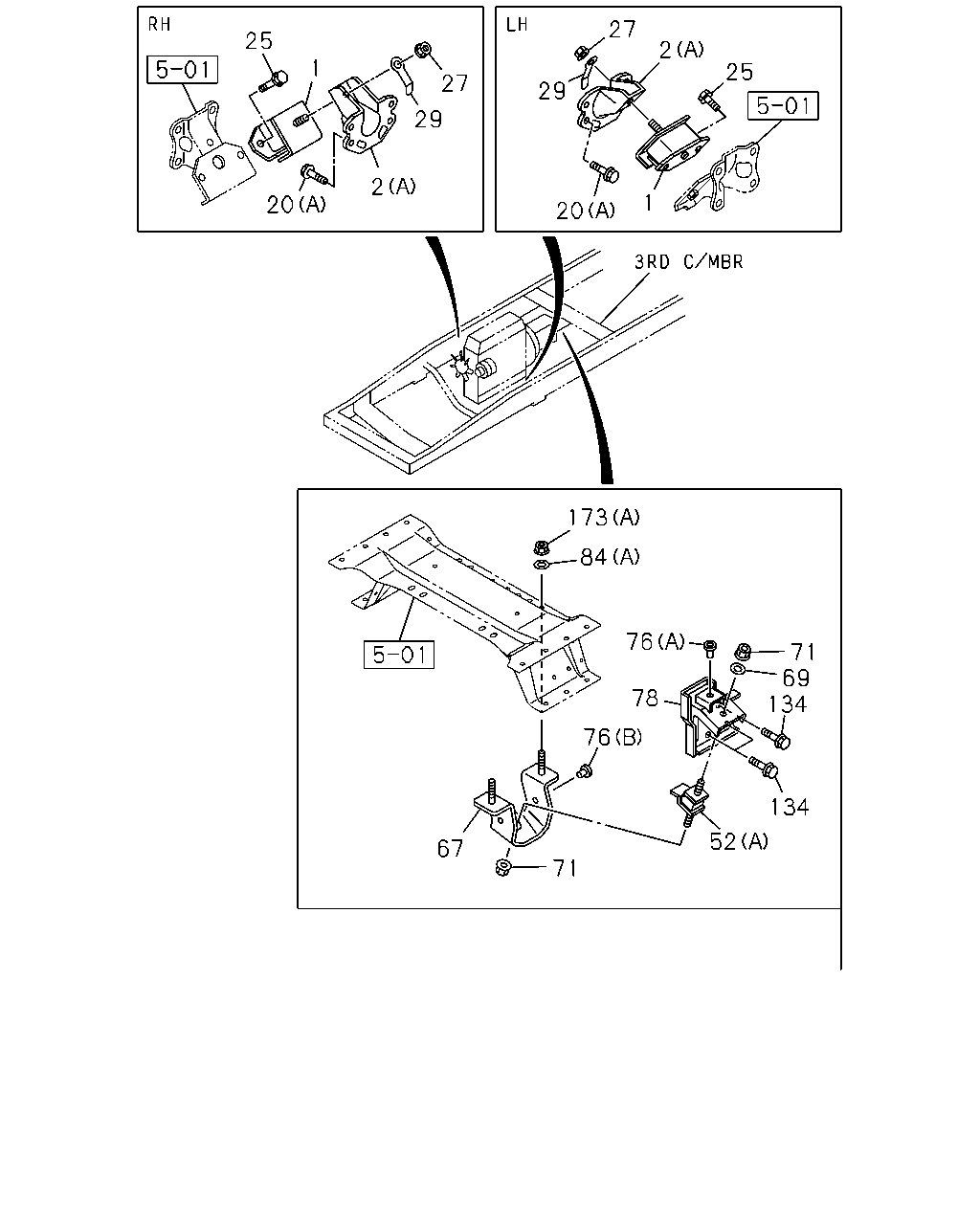

71 67 76 52 78 76 84 71 69 134 134 173 1 20 29 27 25 2 25 20 2 1 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-184-0	02	1	1302-	●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	1302-		●	●
2	FOOT; ENG (A)	8-97376-076-1	02	1	1302-	●
2	FOOT; ENG (B)	8-97602-589-1	02	1	1302-		●	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-97611-990-0	01	1	1302-		●	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-97611-991-0	01	1	1302-		●	●
2	FOOT; ENG MZW6P M/T(RSZ) (D)	8-97611-988-0	01	1	1302-		●	●
2	FOOT; ENG MZW6P M/T(RSZ) (D)	8-97611-989-0	01	1	1302-		●	●
20	BOLT; ENG FOOT (A) M10X30 FLANGE	0-28161-030-0	08	1	1302-	●
20	BOLT; ENG FOOT (C) M10X20 FLANGE	8-94395-721-0	08	1	1302-		●	●
20	BOLT; ENG FOOT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	1302-		●	●
20	BOLT; ENG FOOT MZW6P M/T(RSZ) (D) M12X50	0-16956-250-0	08	1	1302-		●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	1302-	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	1302-	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	1302-	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR (A)	8-97039-277-0	02	1	1302-	●
52	RUBBER; CUSHION,ENG MTG,RR MZW6P M/T(RSZ) (B)	8-98013-021-1	02	1	1302-			●
52	RUBBER; CUSHION,ENG MTG,RR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-98013-022-1	02	1	1302-		●	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-98055-142-0	02	1	1302-	●
69	WASHER; PL,SUPPORT RUBBER TO BRKT ID=10.5 OD=22 T=4	1-09503-045-0	02	1	1302-	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE	0-91180-110-0	04	1	1302-	●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	02	1	1302-	●
76	STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	1302-	●
78	BRACKET; ENG MTG,RR	8-98180-441-1	01	1	1302-	●
78	BRACKET; ENG MTG,RR	8-98180-442-1	01	1	1302-	●
84	WASHER; PL,ENG MTG RR TO FRAME (A) ID=10.5 OD=32	0-91614-810-0	04	1	1302-	●
84	WASHER; PL,ENG MTG RR TO FRAME MZW6P M/T(RSZ) (C) ID=19 OD=36	0-91614-618-0	02	1	1302-			●
84	WASHER; PL,ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=17	9-09164-516-0	04	1	1302-		●	●
134	BOLT; SUPPORT BRKT M14X35 FLANGE	0-28751-435-0	08	1	1302-	●
173	NUT; ENG MTG RR TO FRAME (A) M10 FLANGE	0-91180-210-0	04	1	1302-	●
173	NUT; ENG MTG RR TO FRAME (B) M14 FLANGE	0-91180-214-0	08	1	1302-		●	●
173	NUT; ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) M16	0-91110-516-0	02	1	1302-		●	●
