Isuzu WW
▶
TRUCKS
▶
FRR
▶
11507 - FRR RHD EURO2/4 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

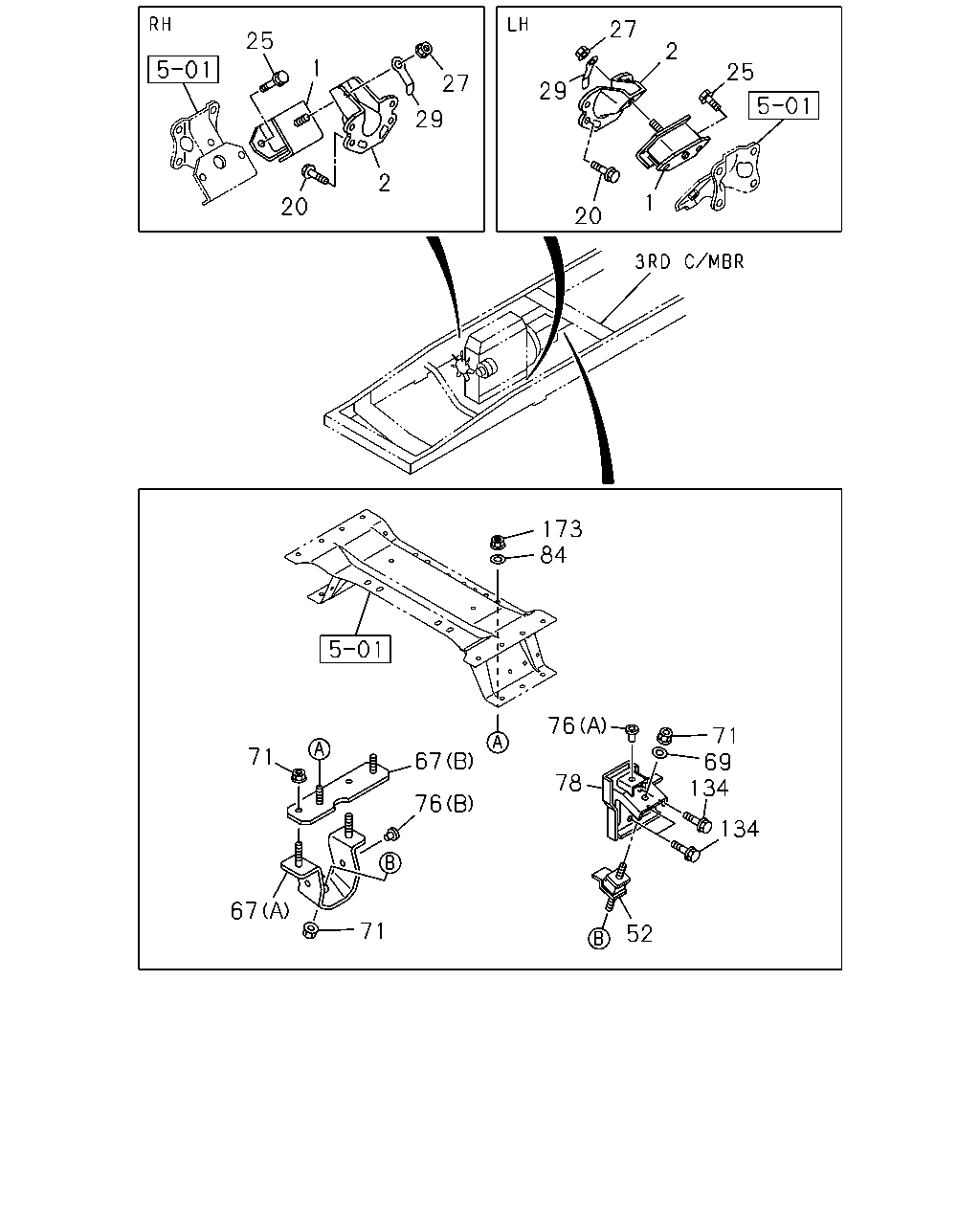

0-22 — ENGINE MOUNTING
(#112024) — 24 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
25
20
71
67
71
76
67
76
78
52
134
134
69
71
84
173
20
1
25
2
27
29
27
29
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-184-0
02
1
1302-
●
●
2
FOOT; ENG
8-97376-076-1
02
1
1302-
●
●
20
BOLT; ENG FOOT
M10X30 FLANGE
0-28161-030-0
08
1
1302-
●
●
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1302-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1302-
●
●
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1302-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
8-97039-277-0
02
1
1302-
●
●
67
BRACKET; SUPPORT,ENG MTG,RR
(A)
8-98013-942-0
02
1
1302-
●
●
67
BRACKET; SUPPORT,ENG MTG,RR
(B)
8-98051-918-0
01
1
1302-
●
67
BRACKET; SUPPORT,ENG MTG,RR
(B)
8-98051-917-0
01
1
1302-
●
69
WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4
1-09503-045-0
03
1
1302-
●
69
WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4
1-09503-045-0
02
1
1302-
●
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE
0-91180-110-0
04
1
1302-
●
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE
0-91180-110-0
08
1
1302-
●
76
STOPPER; ENG MTG RUBBER
(A)
8-94111-904-0
02
1
1302-
●
●
76
STOPPER; ENG MTG RUBBER
(B)
8-97039-947-1
04
1
1302-
●
●
78
BRACKET; ENG MTG,RR
8-98229-167-0
01
1
1302-
●
78
BRACKET; ENG MTG,RR
8-98229-175-0
01
1
1302-
●
78
BRACKET; ENG MTG,RR
8-98013-945-2
01
1
1302-
●
78
BRACKET; ENG MTG,RR
8-98013-944-0
01
1
1302-
●
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
1302-
●
●
134
BOLT; SUPPORT BRKT
M12X25 FLANGE
0-28751-225-0
06
1
1302-
●
134
BOLT; SUPPORT BRKT
M14X35 FLANGE
0-28751-435-0
08
1
1302-
●
173
NUT; ENG MTG RR TO FRAME
M10 FLANGE
0-91180-210-0
04
1
1302-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
