◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#112004) — 19 parça

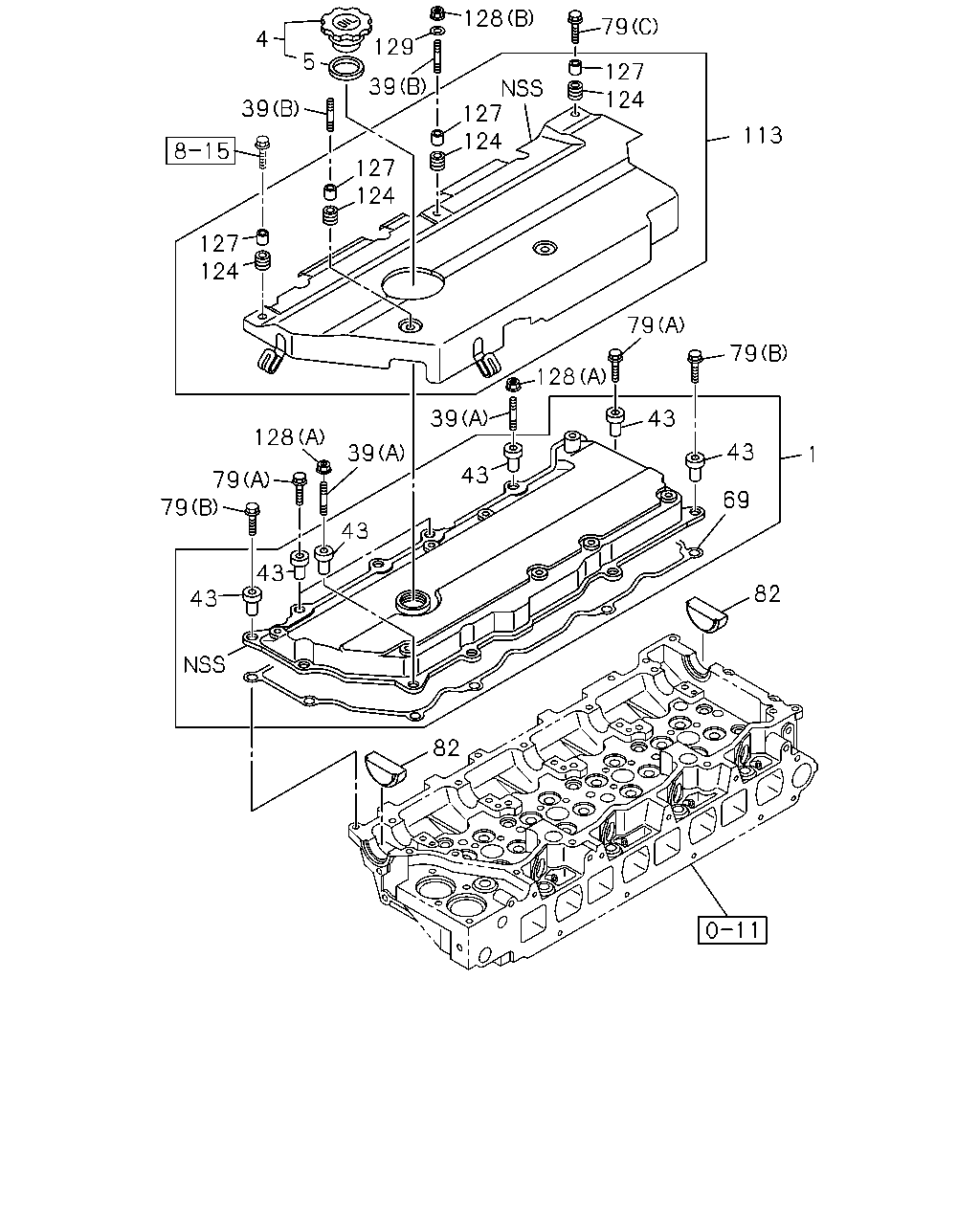

çizim 326055
4 5 39 39 129 128 79 127 124 113 127 124 127 124 127 124 128 79 79 39 39 43 43 43 1 69 82 43 128 79 79 43 43 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD 8-97331-361-2 01 1 1302- ● ●
4 CAP; OIL FILLER 8-94133-207-5 01 1 1302- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-94123-623-1 01 1 1302- ● ●
39 STUD; COVER,HD
EURO5 SPECIFICATION<NT5> (B) M6X25 L=34 		0-41010-625-0 02 1 1506- ●
39 STUD; COVER,HD
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X20 L=28 		0-41010-620-0 02 1 1302-1312 ●
39 STUD; COVER,HD
(A) M6X20 L=28 		0-41010-620-0 02 1 1302-1312 ●
43 RUBBER; MTG,HD COVER,OUTER
OD=22 		8-94395-684-0 11 1 1302- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-359-1 01 1 1302- ● ●
79 BOLT; COVER
EURO5 SPECIFICATION<NT5> (C) M6X20 		8-97127-607-0 01 1 1506- ●
79 BOLT; COVER
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1302- ● ●
79 BOLT; COVER
(B) M8X65 FLANGE 		1-09044-072-1 07 1 1302- ● ●
82 PLUG; CYL HD COVER 8-98163-813-0 02 1 1302- ● ●
113 COVER; CYL HEAD COVER
EURO5 SPECIFICATION<NT5> 		8-98115-676-0 01 1 1506- ●
124 RUBBER; MTG,COVER
EURO5 SPECIFICATION<NT5> 		8-97226-908-0 05 1 1506- ●
127 RETAINER; COVER
EURO5 SPECIFICATION<NT5> 		8-97092-314-0 05 1 1506- ●
128 NUT; COVER,CYL HEAD COVER
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ● ●
128 NUT; COVER,CYL HEAD COVER
EURO5 SPECIFICATION<NT5> (B) M6 FLANGE 		0-91180-106-0 02 1 1506- ●
128 NUT; COVER,CYL HEAD COVER
(A) M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
129 WASHER; COVER,CYL HEAD COVER
EURO5 SPECIFICATION<NT5> ID=6.4 OD=18 		0-91610-706-0 01 1 1506- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
