Sayfa 8-15 - Isuzu EPC

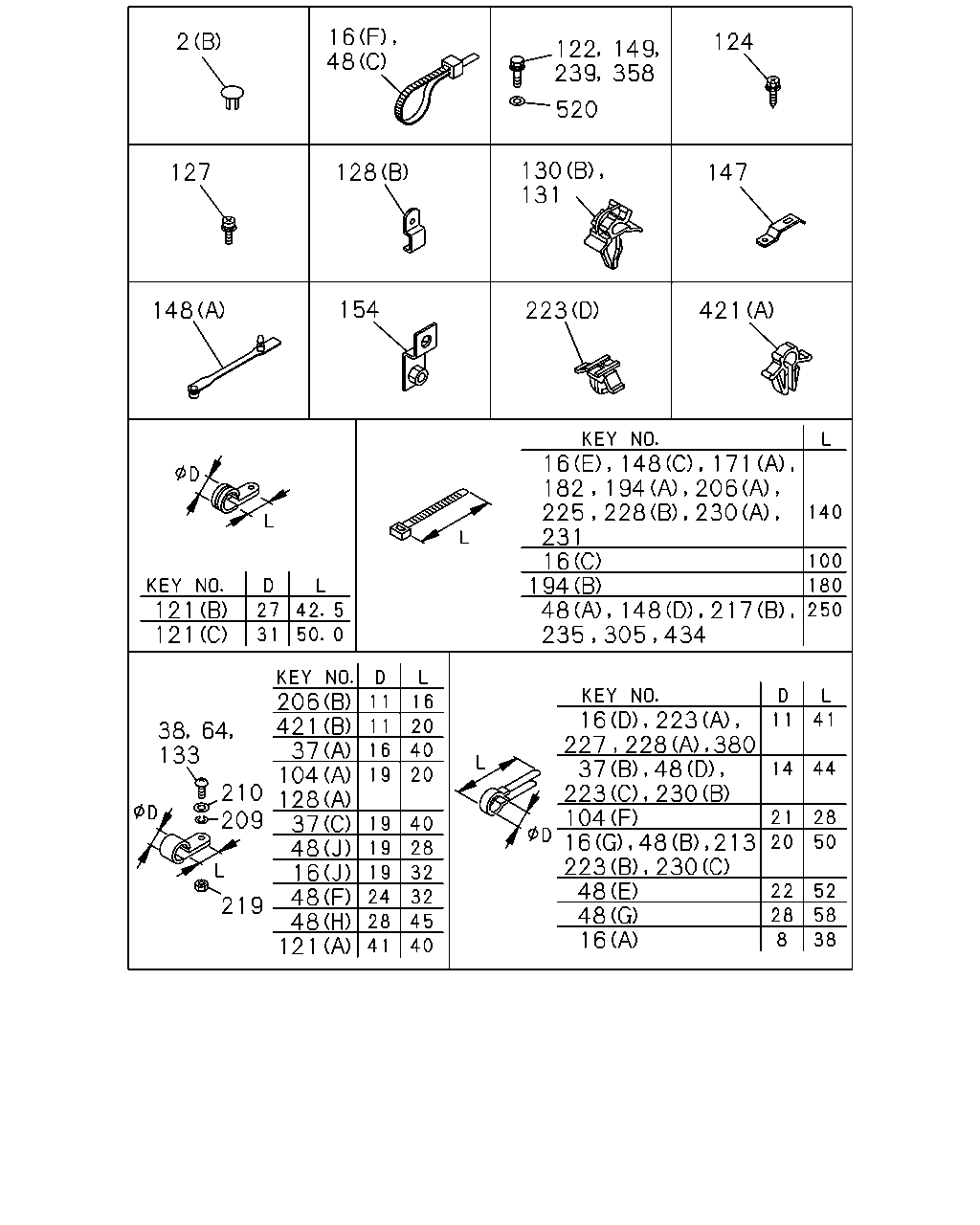

8-15 — FIXING PARTS; WIRING HARNESS (#112) — 361 parça

16 48 2 124 122 239 149 358 520 130 131 127 128 147 154 148 223 421 16 148 171 231 16 194 48 121 121 206 421 37 104 128 37 48 16 48 48 121 104 48 48 16 133 210 209 219 182 194 206 225 228 230 148 217 235 305 434 38 64 16 223 227 228 380 37 48 223 230 16 48 213 223 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-039-1	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-038-1	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	04	1	9312-	●	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	02	1	9202-	●	●
16	CLIP; HARNESS (I) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-	●	●
16	CLIP; HARNESS (F) L=300	1-09707-001-0	01	1	9202-	●	●
16	CLIP; HARNESS (H) L=135	1-09987-143-1	03	1	9202-	●	●
16	CLIP; HARNESS (J) ID=19 L=32	9-09525-866-0	01	1	9202-	●	●
16	CLIP; HARNESS (G) ID=20 L=50	9-09917-430-0	04	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (D) ID=11 L=41	1-09700-403-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (E) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=219.5	1-09987-136-0	05	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=219.5	1-09987-136-0	04	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 L=38	9-09917-424-0	02	1	9202-	●	●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=40	9-09525-575-0	01	1	9202-		●
37	CLIP; HARNESS,POWER TILT (C) ID=19 L=40	9-09525-875-0	02	1	9202-		●
37	CLIP; HARNESS,POWER TILT VERTICAL TAIL PIPE<NC4> (B) ID=14 L=44	9-09917-427-0	01	1	9202-		●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28010-814-0	02	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9205-	●	●
38	BOLT; CLIP,HARNESS M8X18	0-28010-818-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X18	0-28010-818-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X18 FLANGE	0-28080-818-0	03	1	9205-9205	●	●
38	BOLT; CLIP,HARNESS M8X18 FLANGE	0-28080-818-0	02	1	9206-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	02	1	9205-9205	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	04	1	9206-9211	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	01	1	9212-	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28010-822-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28080-822-0	01	1	9205-9207	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9208-9211	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9208-9211	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9212-	●	●
38	BOLT; CLIP,HARNESS M8X30 FLANGE	0-28010-830-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28010-822-0	02	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28080-822-0	02	1	9205-9207	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9208-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9206-9207	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28010-820-0	06	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	06	1	9205-	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X18 FLANGE	0-28080-818-0	01	1	9205-9207	●	●
38	BOLT; CLIP,HARNESS M6X20 W/LK&PL WASHER	1-09980-493-0	03	1	9202-		●
38	BOLT; CLIP,HARNESS M6X16 W/LK&PL WASHER	1-09980-506-0	01	1	9202-		●
38	BOLT; CLIP,HARNESS M8X25 W/LK WASHER	9-01900-825-0	03	1	9202-9204		●
38	BOLT; CLIP,HARNESS M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-		●
48	CLIP; FRAME HARNESS (E) ID=22 L=52	9-09917-431-0	01	1	9202-	●
48	CLIP; FRAME HARNESS EXC. EXHAUST BRAKE<NF8> (D) ID=14 L=44	9-09917-427-0	02	1	9202-9203	●
48	CLIP; FRAME HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	9204-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	14	1	9202-9203	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	10	1	9204-9210	●
48	CLIP; FRAME HARNESS (I) ID=12 H=24 L=20	1-09700-605-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (J) ID=19 L=28	9-09525-856-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=44	9-09917-427-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) ID=14 L=44	9-09917-427-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	06	1	9206-9210	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	08	1	9211-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	9206-	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	01	1	9206-	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (F) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (H) ID=28 L=45	1-09700-825-1	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS (E) ID=22 L=52	9-09917-431-0	02	1	9202-9410	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	02	1	9411-	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	07	1	9202-9205	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	04	1	9206-9403	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	03	1	9404-	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) ID=14 L=44	9-09917-427-0	04	1	9202-9205	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	10	1	9211-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	10	1	9211-	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	05	1	9202-9205	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	12	1	9202-9203	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	13	1	9204-9211	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (B) ID=20 L=50	9-09917-430-0	14	1	9212-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	13	1	9202-9203	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (B) ID=20 L=50	9-09917-430-0	19	1	9202-9203	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (B) ID=20 L=50	9-09917-430-0	16	1	9204-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	9202-		●
64	SCREW; CLIP AT545 A/T ALLISON(MD1) M10X20 W/LK WASHER	9-01921-020-0	01	1	9202-9204	●
64	SCREW; CLIP AT545 A/T ALLISON(MD1) M10X20 W/LK WASHER	0-50051-020-0	01	1	9205-	●
64	SCREW; CLIP FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS POWER WINDOW<A30> (F) ID=21 L=28	1-09700-673-1	01	1	9208-	●
104	CLIP; HEADLAMP HARNESS (B) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=19 L=20	9-09525-832-0	01	1	9202-9207	●	●
104	CLIP; HEADLAMP HARNESS EXC. POWER WINDOW<A30> (A) ID=19 L=20	9-09525-832-0	01	1	9208-	●
104	CLIP; HEADLAMP HARNESS (A) ID=19 L=20	9-09525-832-0	01	1	9208-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=12 H=24 L=20	1-09700-605-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=15 L=42	9-09716-203-1	02	1	9202-	●	●
121	CLIP; FACIA HARNESS (A) ID=41 L=40	1-09700-596-0	01	1	9202-	●	●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-1	03	1	9202-9309	●	●
121	CLIP; FACIA HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) ID=27 L=32	1-09700-712-1	03	1	9310-	●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-1	03	1	9310-		●
121	CLIP; FACIA HARNESS (C) ID=31 L=50	1-09700-870-1	01	1	9202-9208	●	●
122	BOLT; FACIA HARNESS CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9202-9204	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-	●	●
124	BOLT; GRAND,FACIA M6X22 W/LK&PL WASHER	1-09980-584-0	01	1	9202-9303	●	●
124	BOLT; GRAND,FACIA M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9304-	●	●
127	SCREW; FACIA HARNESS CLIP EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B)	1-09987-193-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A)	9-09525-832-0	01	1	9202-	●	●
130	CLIP; WASHER HARNESS (A) L=147	1-09987-219-0	01	1	9202-9202	●	●
130	CLIP; WASHER HARNESS (B) ID=7-10	8-94472-578-0	01	1	9203-	●	●
131	CLIP; HARNESS,A/C SW	8-94206-730-0	01	1	9202-9301	●	●
131	CLIP; HARNESS,A/C SW	8-94472-578-0	01	1	9302-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	9202-	●	●
147	BRACKET; HARNESS,HEADLAMP	1-71998-471-0	02	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) L=250	5-09707-030-0	01	1	9311-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	07	1	9310-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	07	1	9310-		●
148	CLIP; BAND,HEADLAMP HARNESS (C) L=140	5-09707-031-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	02	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	03	1	9310-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	08	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	10	1	9310-9310	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	09	1	9311-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	03	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=85	8-94232-611-0	02	1	9310-	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	02	1	9310-		●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	07	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	08	1	9310-	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	08	1	9310-		●
149	BOLT; HEADLAMP HARNESS EARTH EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9310-	●
149	BOLT; HEADLAMP HARNESS EARTH M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9310-		●
149	BOLT; HEADLAMP HARNESS EARTH M6X22 W/LK&PL WASHER	1-09980-430-0	01	1	9202-9303	●	●
149	BOLT; HEADLAMP HARNESS EARTH M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9304-9309	●	●
149	BOLT; HEADLAMP HARNESS EARTH HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9310-	●
149	BOLT; HEADLAMP HARNESS EARTH M6X22 W/LK&PL WASHER	1-09980-537-0	01	1	9202-9303	●	●
154	BRACKET; STARTER EARTH CABLE	1-47465-518-0	01	1	9202-	●	●
171	CLIP; STARTER HARNESS (B) L=63	1-09700-418-1	01	1	9202-9204	●
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-0	01	1	9202-	●	●
171	CLIP; STARTER HARNESS (C) ID=18 L=44	8-94225-185-0	01	1	9204-		●
182	CLIP; HARNESS,OIL FILTER L=140	5-09707-031-0	01	1	9202-	●	●
194	CLIP; BAND A/T<X9D> (A) L=140	5-09707-031-0	01	1	9202-9211	●
194	CLIP; BAND (B) L=180	1-09707-162-0	03	1	9202-	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=180	1-09707-162-0	01	1	9202-	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=180	1-09707-162-0	02	1	9202-9210	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=180	1-09707-162-0	02	1	9202-9210	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=180	1-09707-162-0	02	1	9211-	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=180	1-09707-162-0	02	1	9211-	●
206	CLIP; FUEL TANK HARNESS FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> (B) ID=11 L=16	9-09525-022-0	01	1	9202-	●	●
206	CLIP; FUEL TANK HARNESS EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A) L=140	5-09707-031-0	02	1	9202-9202	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-0	02	1	9203-	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9202-	●	●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	9301-	●	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9202-	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-0	02	1	9202-	●	●
219	NUT M8	9-09110-408-0	03	1	9202-9203	●	●
219	NUT M8	9-09110-408-0	04	1	9204-	●	●
219	NUT M8	9-09110-408-0	01	1	9202-9203	●	●
219	NUT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9204-	●	●
219	NUT BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M8	9-09110-408-0	02	1	9202-	●	●
219	NUT M8	9-09110-408-0	02	1	9202-	●	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 L=41	1-09700-403-0	02	1	9202-9205	●	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=14 L=44	9-09917-427-0	01	1	9206-9207	●	●
223	CLIP; AIR TANK HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 L=41	1-09700-403-0	02	1	9208-	●	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	05	1	9202-9205	●	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	04	1	9206-9207	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	9208-	●	●
223	CLIP; AIR TANK HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 L=41	1-09700-403-0	01	1	9202-9205	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	9206-9207	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	01	1	9208-	●	●
223	CLIP; AIR TANK HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=14 L=44	9-09917-427-0	04	1	9202-9207	●	●
223	CLIP; AIR TANK HARNESS EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 L=41	1-09700-403-0	01	1	9208-	●	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 L=41	1-09700-403-0	01	1	9208-	●	●
223	CLIP; AIR TANK HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	03	1	9202-9207	●	●
223	CLIP; AIR TANK HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	05	1	9208-9208	●	●
223	CLIP; AIR TANK HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) OD=9 H=6	1-09709-178-0	01	1	9303-	●	●
225	CLIP; AIR TANK HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	03	1	9208-9302	●	●
225	CLIP; AIR TANK HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	02	1	9303-	●	●
225	CLIP; AIR TANK HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	03	1	9202-9207	●	●
225	CLIP; AIR TANK HARNESS EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	01	1	9208-9302	●	●
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	01	1	9208-9302	●	●
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	01	1	9303-	●	●
227	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB> ID=11 L=41	1-09700-403-0	02	1	9202-	●	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (A) ID=11 L=41	1-09700-403-0	03	1	9202-9203	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (B) L=140	5-09707-031-0	03	1	9204-	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (B) L=140	5-09707-031-0	01	1	9202-	●
230	CLIP; C/MBR HARNESS (B) ID=14 L=44	9-09917-427-0	02	1	9202-9205	●	●
230	CLIP; C/MBR HARNESS (C) ID=20 L=50	9-09917-430-0	02	1	9206-	●	●
230	CLIP; C/MBR HARNESS HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=140	5-09707-031-0	01	1	9202-	●	●
231	CLIP; BAND,OIL PRESS L=140	5-09707-031-0	01	1	9202-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS L=250	5-09707-030-0	01	1	9202-	●	●
239	BOLT; GRAND M8X20	0-28410-820-0	01	1	9202-9204	●	●
239	BOLT; GRAND M8X20	0-28480-820-0	01	1	9205-9212	●	●
239	BOLT; GRAND M8X16	8-97087-055-0	01	1	9301-	●	●
239	BOLT; GRAND M5X8	9-92040-508-0	01	1	9202-9204	●	●
239	BOLT; GRAND M5X8	0-20800-508-0	01	1	9205-	●	●
305	CLIP; ENG HARNESS L=250	5-09707-030-0	01	1	9202-	●	●
358	BOLT; EARTH M10X20 W/LK WASHER	9-01901-020-0	01	1	9202-9204		●
358	BOLT; EARTH M10X20 W/LK WASHER	0-50041-020-0	01	1	9205-		●
380	CLIP; EARTH HARNESS ID=11 L=41	1-09700-403-0	01	1	9202-		●
421	CLIP; FLOOR HARNESS (A) ID=9	5-09707-027-0	01	1	9202-		●
421	CLIP; FLOOR HARNESS (B)	9-09525-032-0	05	1	9202-		●
434	CLIP; BAND HARNESS TO POWER STRG HARNE POWER STEERING(N40) L=250	5-09707-030-0	01	1	9202-9211		●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	9301-	●	●

2 16 38 27 219 252 38 219 104 130 115 148 104 115 115 115 119 173 176 207 171 184 219 38 64 48 104 16 178 178 185 16 95 104 217 171 303 1 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER A/T<X9D> ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-9211	●
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-039-1	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-038-1	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	04	1	9312-	●	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	02	1	9202-	●	●
16	CLIP; HARNESS (I) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-	●	●
16	CLIP; HARNESS (F) L=300	1-09707-001-0	01	1	9202-	●	●
16	CLIP; HARNESS (H) L=135	1-09987-143-1	03	1	9202-	●	●
16	CLIP; HARNESS (J) ID=19 L=32	9-09525-866-0	01	1	9202-	●	●
16	CLIP; HARNESS (G) ID=20 L=50	9-09917-430-0	04	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (D) ID=11 L=41	1-09700-403-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (E) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=219.5	1-09987-136-0	05	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=219.5	1-09987-136-0	04	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 L=38	9-09917-424-0	02	1	9202-	●	●
27	PROTECTOR; EDGE L=2040	1-71997-513-1	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28010-814-0	02	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9205-	●	●
38	BOLT; CLIP,HARNESS M8X18	0-28010-818-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X18	0-28010-818-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X18 FLANGE	0-28080-818-0	03	1	9205-9205	●	●
38	BOLT; CLIP,HARNESS M8X18 FLANGE	0-28080-818-0	02	1	9206-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	02	1	9205-9205	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	04	1	9206-9211	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	01	1	9212-	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28010-822-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28080-822-0	01	1	9205-9207	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9208-9211	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9208-9211	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9212-	●	●
38	BOLT; CLIP,HARNESS M8X30 FLANGE	0-28010-830-0	01	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28010-822-0	02	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS M8X22 FLANGE	0-28080-822-0	02	1	9205-9207	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9208-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9206-9207	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28010-820-0	06	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	06	1	9205-	●	●
38	BOLT; CLIP,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X18 FLANGE	0-28080-818-0	01	1	9205-9207	●	●
38	BOLT; CLIP,HARNESS M6X20 W/LK&PL WASHER	1-09980-493-0	03	1	9202-		●
38	BOLT; CLIP,HARNESS M6X16 W/LK&PL WASHER	1-09980-506-0	01	1	9202-		●
38	BOLT; CLIP,HARNESS M8X25 W/LK WASHER	9-01900-825-0	03	1	9202-9204		●
38	BOLT; CLIP,HARNESS M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-		●
48	CLIP; FRAME HARNESS (E) ID=22 L=52	9-09917-431-0	01	1	9202-	●
48	CLIP; FRAME HARNESS EXC. EXHAUST BRAKE<NF8> (D) ID=14 L=44	9-09917-427-0	02	1	9202-9203	●
48	CLIP; FRAME HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	9204-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	14	1	9202-9203	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	10	1	9204-9210	●
48	CLIP; FRAME HARNESS (I) ID=12 H=24 L=20	1-09700-605-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (J) ID=19 L=28	9-09525-856-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=44	9-09917-427-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) ID=14 L=44	9-09917-427-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	06	1	9206-9210	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	08	1	9211-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	9206-	●	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	01	1	9206-	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (F) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (H) ID=28 L=45	1-09700-825-1	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS (E) ID=22 L=52	9-09917-431-0	02	1	9202-9410	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	02	1	9411-	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	07	1	9202-9205	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	04	1	9206-9403	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	03	1	9404-	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) ID=14 L=44	9-09917-427-0	04	1	9202-9205	●	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	10	1	9211-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	10	1	9211-	●
48	CLIP; FRAME HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	05	1	9202-9205	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	12	1	9202-9203	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	13	1	9204-9211	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (B) ID=20 L=50	9-09917-430-0	14	1	9212-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=20 L=50	9-09917-430-0	13	1	9202-9203	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (B) ID=20 L=50	9-09917-430-0	19	1	9202-9203	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (B) ID=20 L=50	9-09917-430-0	16	1	9204-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	9202-		●
64	SCREW; CLIP AT545 A/T ALLISON(MD1) M10X20 W/LK WASHER	9-01921-020-0	01	1	9202-9204	●
64	SCREW; CLIP AT545 A/T ALLISON(MD1) M10X20 W/LK WASHER	0-50051-020-0	01	1	9205-	●
64	SCREW; CLIP FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9202-	●	●
95	CLIP; CABLE L=135	1-09987-143-1	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS POWER WINDOW<A30> (F) ID=21 L=28	1-09700-673-1	01	1	9208-	●
104	CLIP; HEADLAMP HARNESS (B) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=19 L=20	9-09525-832-0	01	1	9202-9207	●	●
104	CLIP; HEADLAMP HARNESS EXC. POWER WINDOW<A30> (A) ID=19 L=20	9-09525-832-0	01	1	9208-	●
104	CLIP; HEADLAMP HARNESS (A) ID=19 L=20	9-09525-832-0	01	1	9208-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=12 H=24 L=20	1-09700-605-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=15 L=42	9-09716-203-1	02	1	9202-	●	●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (B) 1 SET=5 PIECE	1-09987-214-0	09	1	9206-	●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (C) ID=9	5-09707-027-0	02	1	9206-	●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (A)	8-94138-987-0	01	1	9211-	●
115	CLIP; DOOR HARNESS AUSTRALIA PACKAGE<D2Y> (D) L=142	8-94232-619-0	02	1	9312-	●	●
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M4X13	1-09981-148-0	02	1	9206-	●
130	CLIP; WASHER HARNESS (A) L=147	1-09987-219-0	01	1	9202-9202	●	●
130	CLIP; WASHER HARNESS (B) ID=7-10	8-94472-578-0	01	1	9203-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) L=250	5-09707-030-0	01	1	9311-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	07	1	9310-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	07	1	9310-		●
148	CLIP; BAND,HEADLAMP HARNESS (C) L=140	5-09707-031-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	02	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	03	1	9310-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	08	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	10	1	9310-9310	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	09	1	9311-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	03	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=85	8-94232-611-0	02	1	9310-	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (A) L=85	8-94232-611-0	02	1	9310-		●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	07	1	9202-9309	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	08	1	9310-	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> (B) L=142	8-94232-619-0	08	1	9310-		●
171	CLIP; STARTER HARNESS (B) L=63	1-09700-418-1	01	1	9202-9204	●
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-0	01	1	9202-	●	●
171	CLIP; STARTER HARNESS (C) ID=18 L=44	8-94225-185-0	01	1	9204-		●
173	BOLT; STARTER EARTH M10X16	0-28081-016-0	01	1	9202-9212	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9301-	●	●
176	CLIP; BACK SW HARNESS MLD6 M/T<X9Y> ID=11	1-09700-415-0	01	1	9202-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	9202-9205	●	●
178	GROMMET; HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	9202-9205	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	9206-9211	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	9-09956-178-0	01	1	9212-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-1	01	1	9202-	●	●
178	GROMMET; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=15 OD=20 T=17.5	1-09332-130-0	02	1	9202-9211	●	●
178	GROMMET; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=15 OD=20 T=17.5	9-09956-178-0	02	1	9212-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5	1-09503-265-0	01	1	9301-	●	●
185	SLEEVE; RUBBER ID=9 OD=14 L=35	8-94127-043-0	01	1	9202-	●	●
207	CLIP; OIL THERMO SW AT545 A/T ALLISON(MD1) ID=11	1-09700-415-0	01	1	9202-	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9202-	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-0	02	1	9202-	●	●
219	NUT M8	9-09110-408-0	03	1	9202-9203	●	●
219	NUT M8	9-09110-408-0	04	1	9204-	●	●
219	NUT M8	9-09110-408-0	01	1	9202-9203	●	●
219	NUT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9204-	●	●
219	NUT BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M8	9-09110-408-0	02	1	9202-	●	●
219	NUT M8	9-09110-408-0	02	1	9202-	●	●
224	SLEEVE; RUBBER,HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10 OD=14 L=30	9-09956-682-0	03	1	9208-9302	●	●
224	SLEEVE; RUBBER,HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10 OD=14 L=30	9-09956-682-0	02	1	9303-	●	●
224	SLEEVE; RUBBER,HARNESS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10 OD=14 L=30	9-09956-682-0	03	1	9202-9207	●	●
224	SLEEVE; RUBBER,HARNESS EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10 OD=14 L=30	9-09956-682-0	01	1	9208-9302	●	●
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10 OD=14 L=30	9-09956-682-0	01	1	9208-9302	●	●
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10 OD=14 L=30	9-09956-682-0	01	1	9303-	●	●
252	CLIP; CONNECTOR FIX W/SPONGE RUBBER	1-09709-150-0	01	1	9202-	●	●
303	CLIP; HARNESS POWER TILT RELAY L=63	1-09700-418-1	01	1	9202-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
