Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#11189) — 219 parça

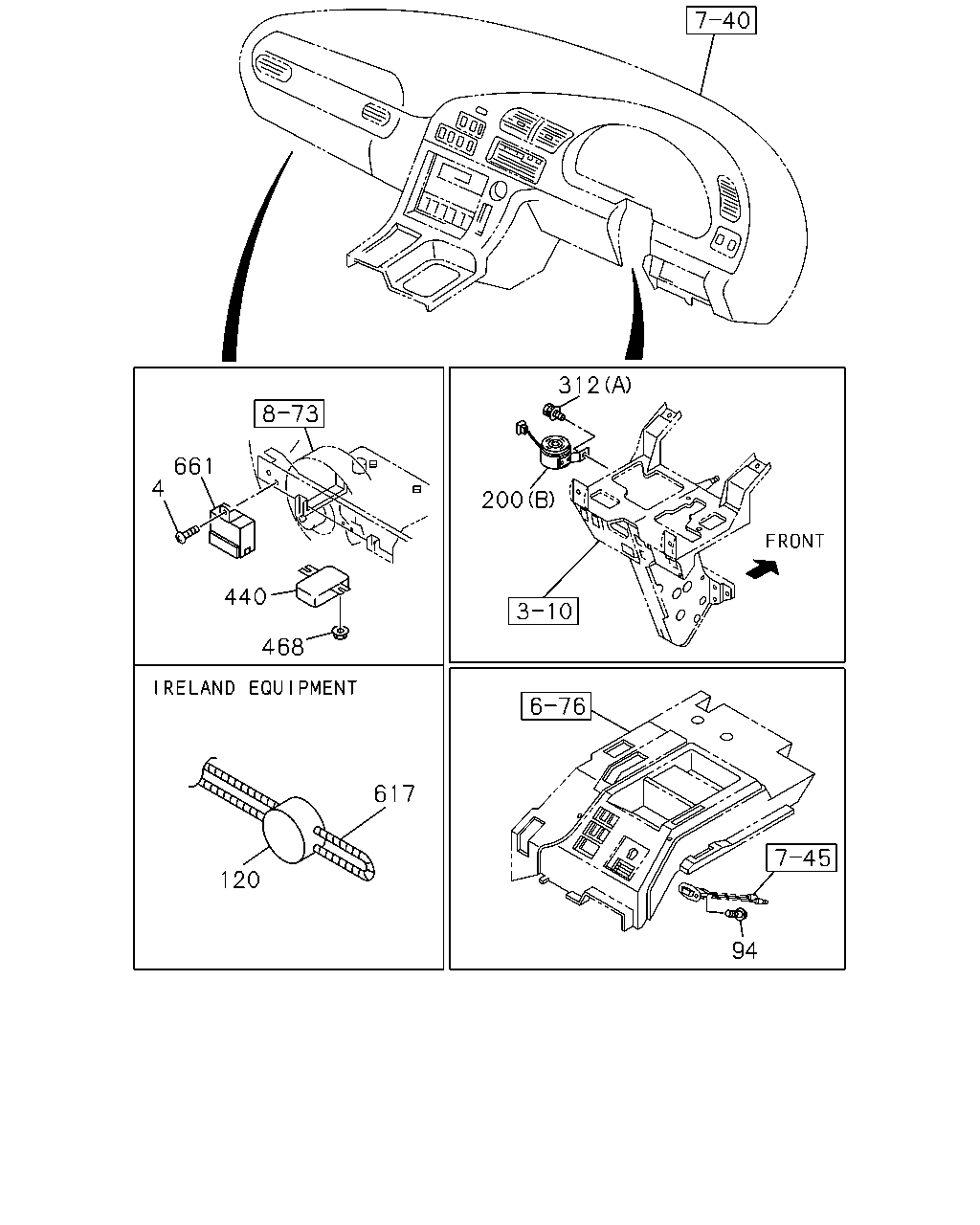

312 661 4 200 440 468 617 120 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0107-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0107-
120	SEAL IRELAND EQUIPMENT(NJY)	1-15739-002-0	01	1	0107-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-051-1	01	1	0107-
200	BUZZER; WARNING,AIR SUSP (A) METRO DENSO	1-83460-094-2	01	1	0107-
312	BOLT; BUZZER (B) M10X35 FLANGE	0-28681-035-0	01	1	0107-
312	BOLT; BUZZER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0107-
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	02	1	0107-
617	WIRE; RACK SENSOR IRELAND EQUIPMENT(NJY)	9-81325-446-0	01	1	0107-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0107-

566 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-
96	BOLT; BRKT FIX LIGHT DUTY PACKAGE TRUCK<Y21> (B) M6X16 FLANGE	0-28080-616-0	02	1	0107-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0107-

282 91 90 34 90 89 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN12X2 & R1/4 3WAY	1-09661-071-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	01	1	0107-
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X20 FLANGE	0-28680-820-0	02	1	0107-
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X30 FLANGE	0-28680-830-0	02	1	0107-
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91150-108-0	02	1	0107-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
282	BRACKET; MAG VLV DIFF LOCK<C3N> (C)	1-82569-278-0	01	1	0107-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (D)	1-82569-290-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-53458-994-0	01	1	0107-
282	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-981-0	01	1	0107-

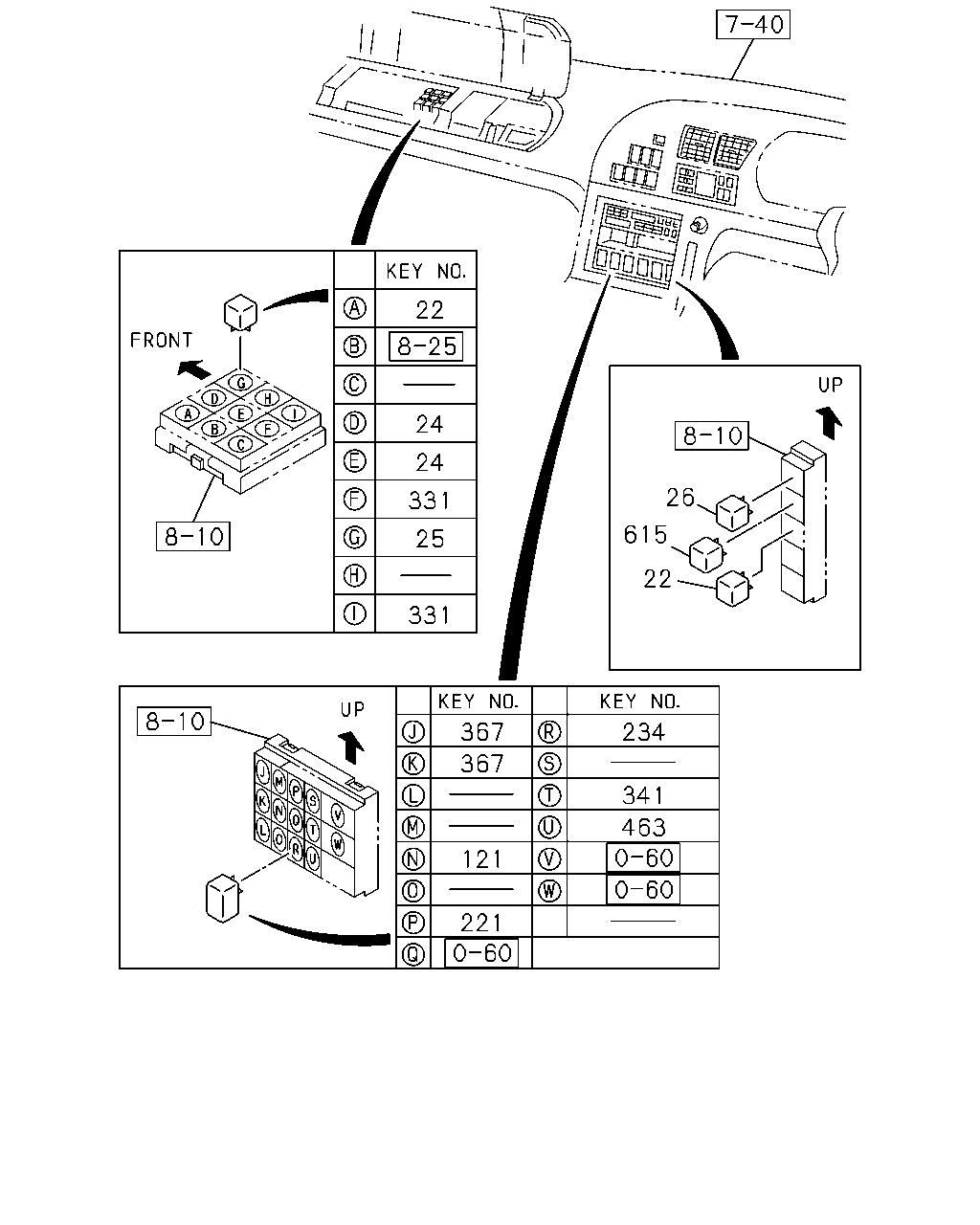

22 24 24 26 331 615 25 22 331 367 234 367 341 463 121 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
221	RELAY; AUTO CRUISE AUTO CRUISE W/RESUME<NKA> 24V 10A PANASONIC	8-97173-035-1	02	1	0107-
234	RELAY; AIR SUSPENSION 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
463	RELAY; ABS SIGNAL ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-

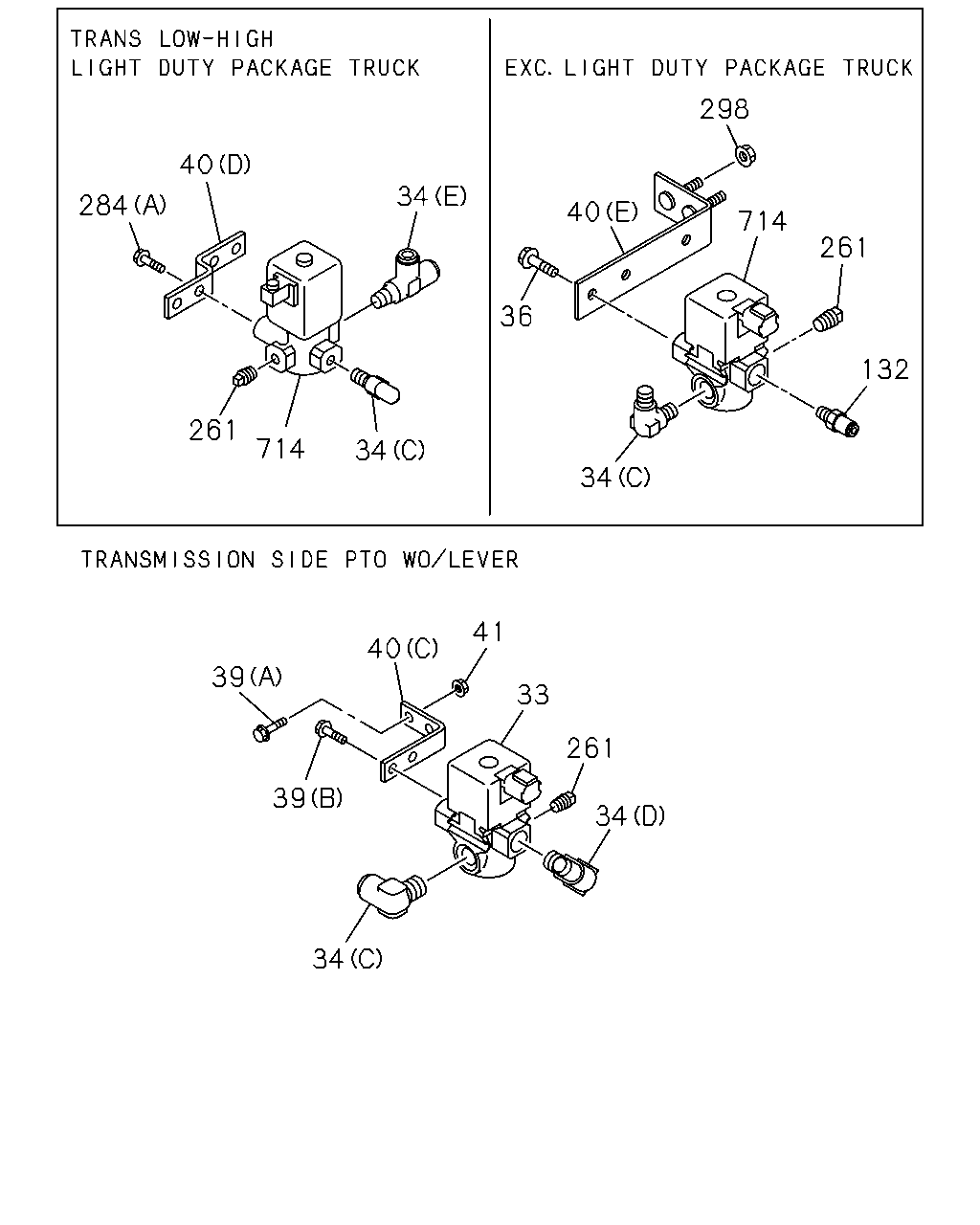

298 40 34 284 40 714 261 36 132 261 714 34 34 41 40 39 33 261 39 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-82563-871-2	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN12X2 & R1/4 3WAY	1-09661-071-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	02	1	0107-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-53458-994-0	01	1	0107-
40	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-82569-278-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-82569-339-0	01	1	0107-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-
284	BOLT; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
298	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
714	VALVE; MAG,TRANS,LOW TO HIGH LIGHT DUTY PACKAGE TRUCK<Y21>	1-82563-871-2	01	1	0107-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-82563-871-2	01	1	0107-

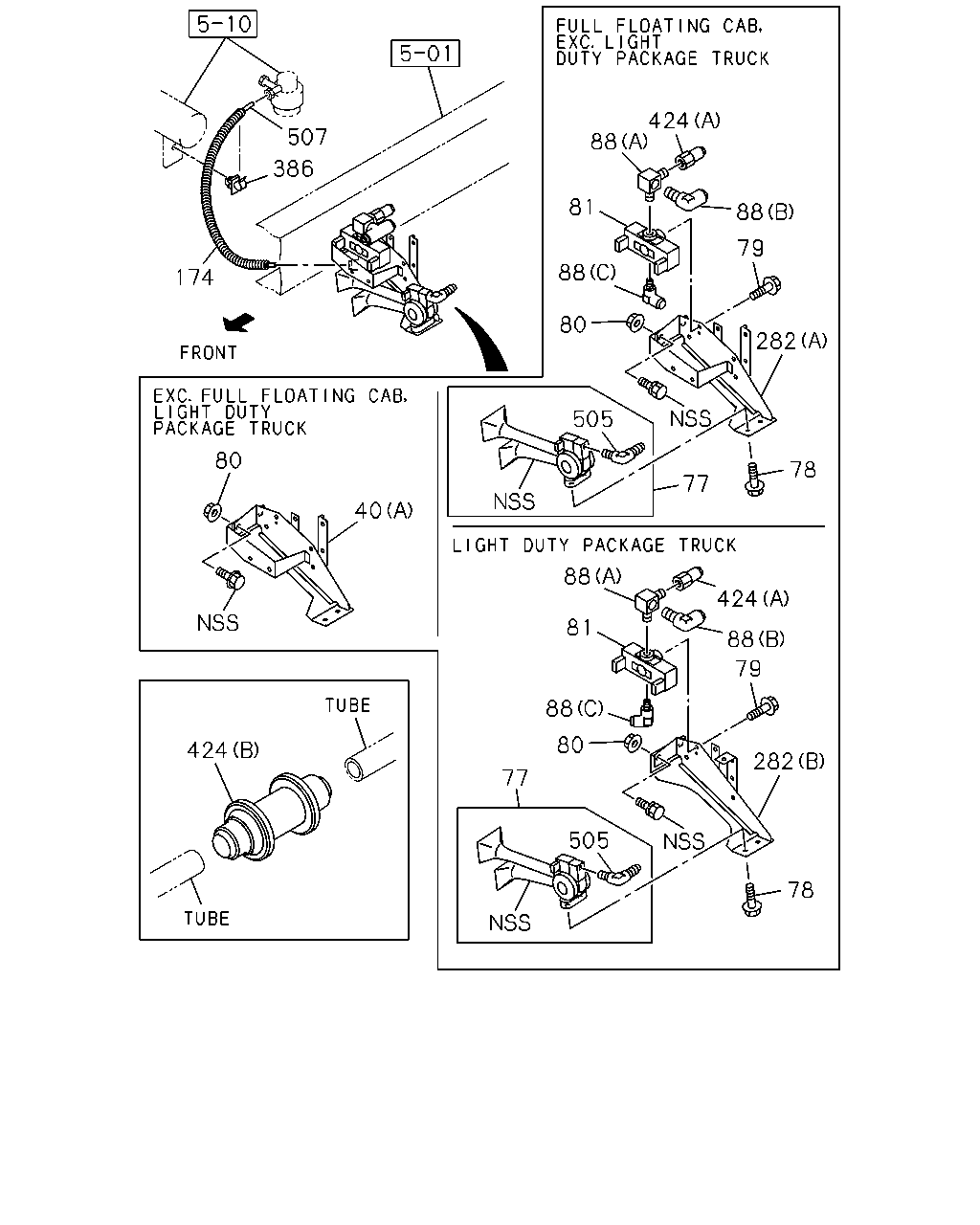

424 507 88 386 81 88 79 88 174 80 282 505 80 78 77 40 88 424 81 88 79 88 80 424 282 77 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-53458-994-0	01	1	0107-
40	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-82569-278-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-82569-339-0	01	1	0107-
77	HORN ASM	1-83430-041-1	01	1	0107-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0107-
79	BOLT; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> M8X12 FLANGE	0-28080-812-0	01	1	0107-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X12 FLANGE	0-28080-812-0	01	1	0107-
80	NUT; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> M12 FLANGE	0-91150-212-0	02	1	0107-
80	NUT; MAG VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M12 FLANGE	0-91150-212-0	04	1	0107-
81	VALVE; MAG,HORN LIGHT DUTY PACKAGE TRUCK<Y21>	1-53458-378-2	01	1	0107-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-53458-378-2	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (G) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
174	COVER L=800	1-83129-031-1	01	1	0107-
282	BRACKET; MAG VLV DIFF LOCK<C3N> (C)	1-82569-278-0	01	1	0107-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (D)	1-82569-290-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-53458-994-0	01	1	0107-
282	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-981-0	01	1	0107-
386	CLIP; HARNESS ID=9.5	5-09709-020-0	01	1	0107-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0107-
424	ADAPTER EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09661-310-0	01	1	0107-
424	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0107-
424	ADAPTER FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0107-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0107-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0107-

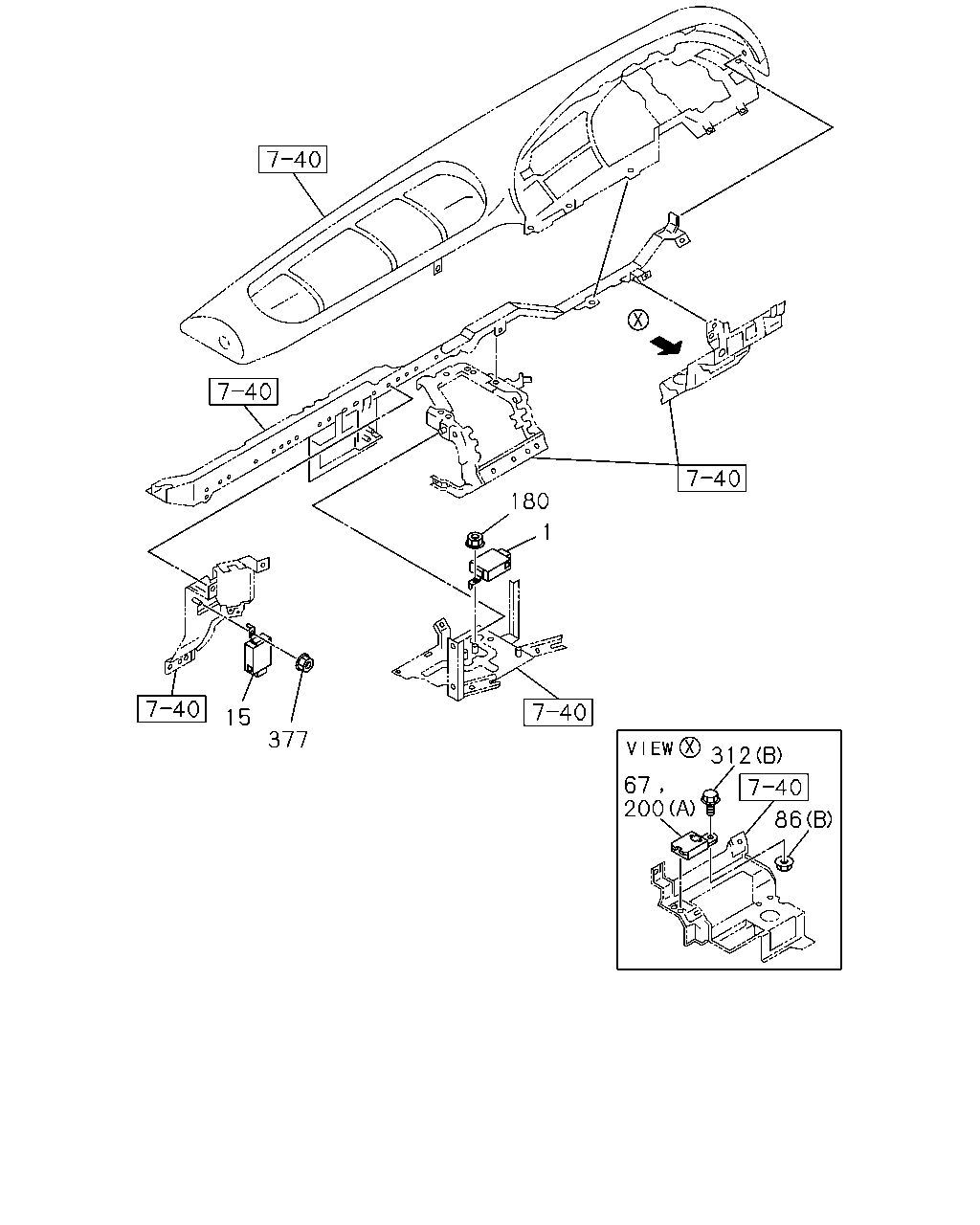

180 1 15 377 312 67 200 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0107-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0107-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0107-
86	NUT; BUZZER (A) M8 FLANGE	0-91150-108-0	01	1	0107-
86	NUT; BUZZER (B) M10 FLANGE	0-91150-210-0	01	1	0107-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0107-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-051-1	01	1	0107-
200	BUZZER; WARNING,AIR SUSP (A) METRO DENSO	1-83460-094-2	01	1	0107-
312	BOLT; BUZZER (B) M10X35 FLANGE	0-28681-035-0	01	1	0107-
312	BOLT; BUZZER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0107-

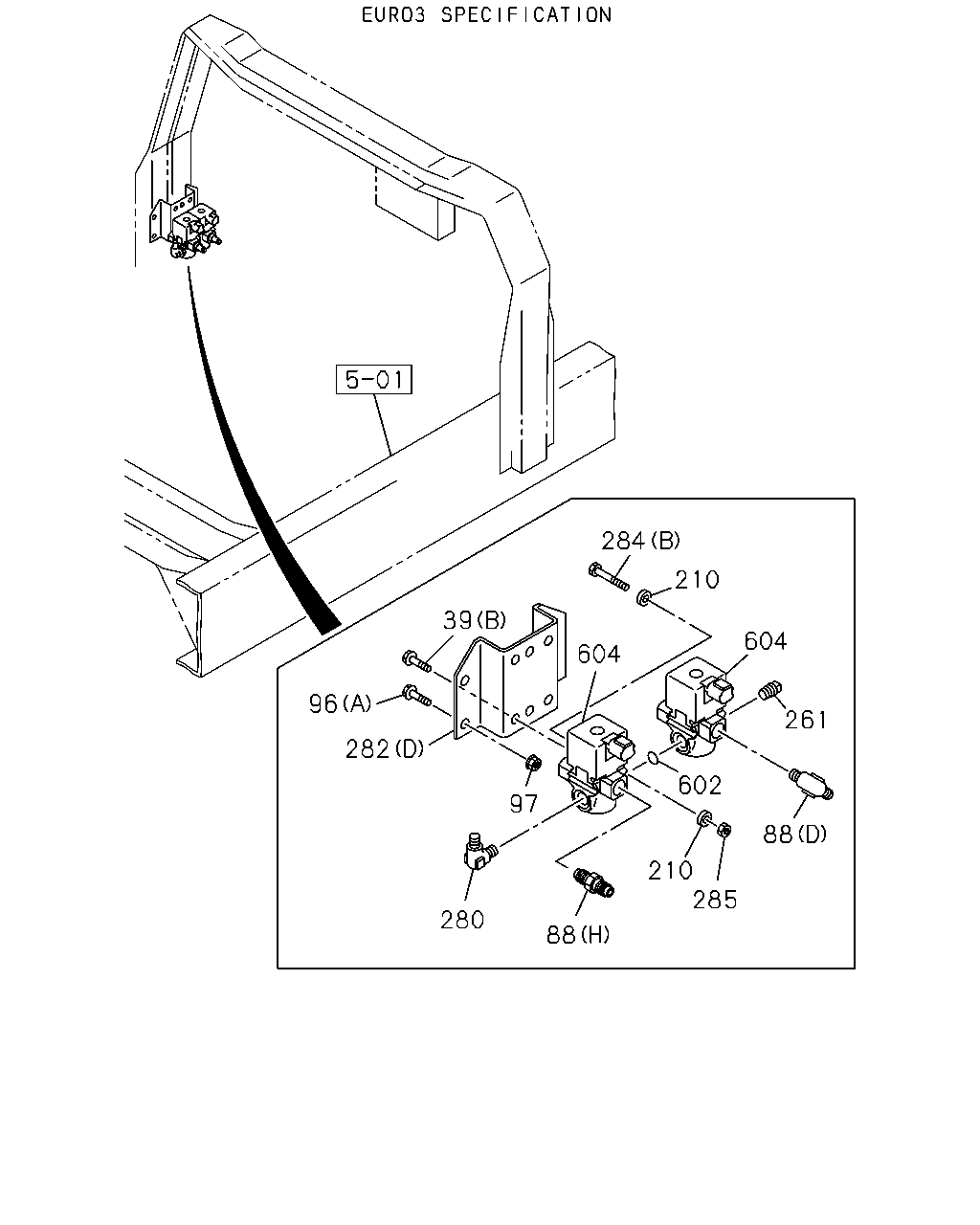

284 210 39 604 604 96 261 282 602 97 88 210 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (G) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-
96	BOLT; BRKT FIX LIGHT DUTY PACKAGE TRUCK<Y21> (B) M6X16 FLANGE	0-28080-616-0	02	1	0107-
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	04	1	0107-
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4	9-99204-513-0	01	1	0107-
280	CONNECTOR; IN,MAG VLV EURO3 SPECIFICATION<NJX> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
282	BRACKET; MAG VLV DIFF LOCK<C3N> (C)	1-82569-278-0	01	1	0107-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (D)	1-82569-290-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-53458-994-0	01	1	0107-
282	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-981-0	01	1	0107-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-
284	BOLT; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	0107-

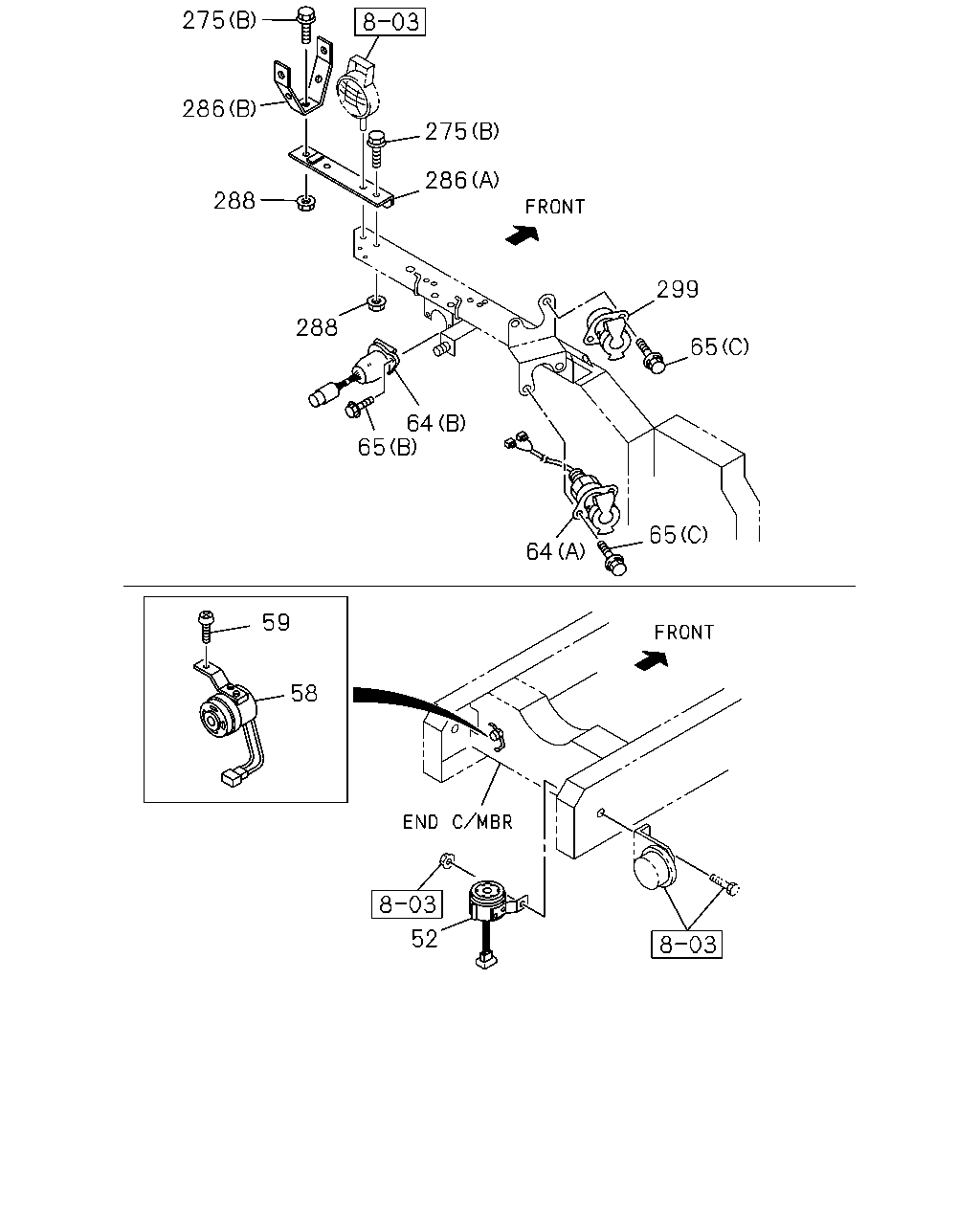

275 286 275 286 288 299 288 65 64 65 65 64 59 58 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. IRELAND EQUIPMENT(NJY) METRO DENSO	1-83460-088-1	01	1	0107-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0107-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0107-
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0107-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=860	1-82699-449-2	01	1	0107-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0107-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0107-
275	BOLT; BRKT FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X14 FLANGE	0-28080-814-0	01	1	0107-
275	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X14 FLANGE	0-28080-814-0	01	1	0107-
275	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-
286	BRACKET LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-651-0	01	1	0107-
286	BRACKET LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-53458-919-1	01	1	0107-
288	NUT; BRKT FIX LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-1	01	1	0107-

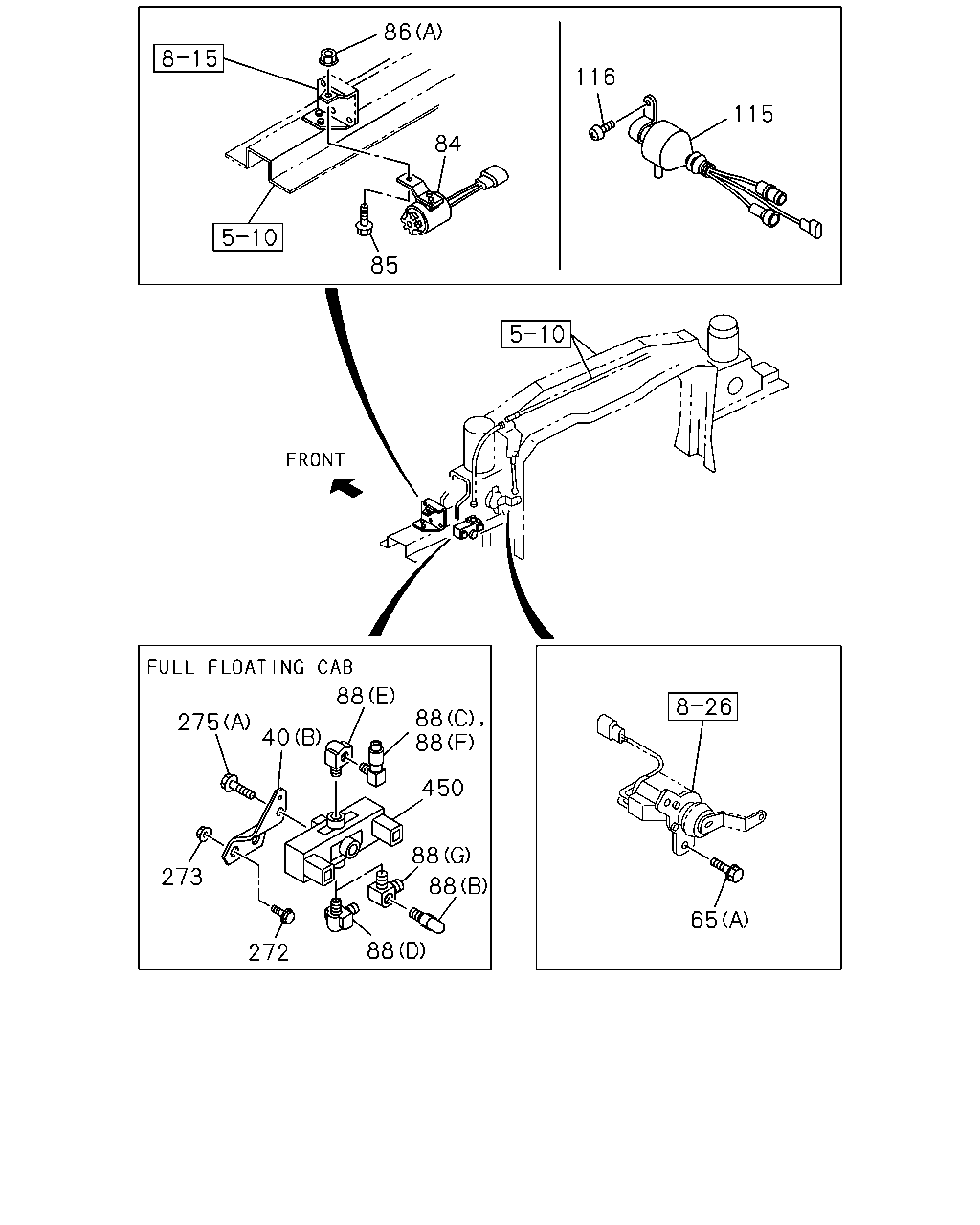

86 116 115 84 85 88 88 88 275 40 450 88 273 88 65 88 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-53458-994-0	01	1	0107-
40	BRACKET; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-82569-278-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-82569-339-0	01	1	0107-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0107-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0107-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0107-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0107-
86	NUT; BUZZER (A) M8 FLANGE	0-91150-108-0	01	1	0107-
86	NUT; BUZZER (B) M10 FLANGE	0-91150-210-0	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (G) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0107-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0107-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10X30 FLANGE	0-28681-030-0	02	1	0107-
272	BOLT; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> M10X30 FLANGE	0-28681-030-0	02	1	0107-
273	NUT; MAG VLV LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	01	1	0107-
275	BOLT; BRKT FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X14 FLANGE	0-28080-814-0	01	1	0107-
275	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X14 FLANGE	0-28080-814-0	01	1	0107-
275	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-
450	VALVE; MAG FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-53458-378-2	01	1	0107-
450	VALVE; MAG LIGHT DUTY PACKAGE TRUCK<Y21>	1-53458-378-2	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
