◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#11186) — 42 parça

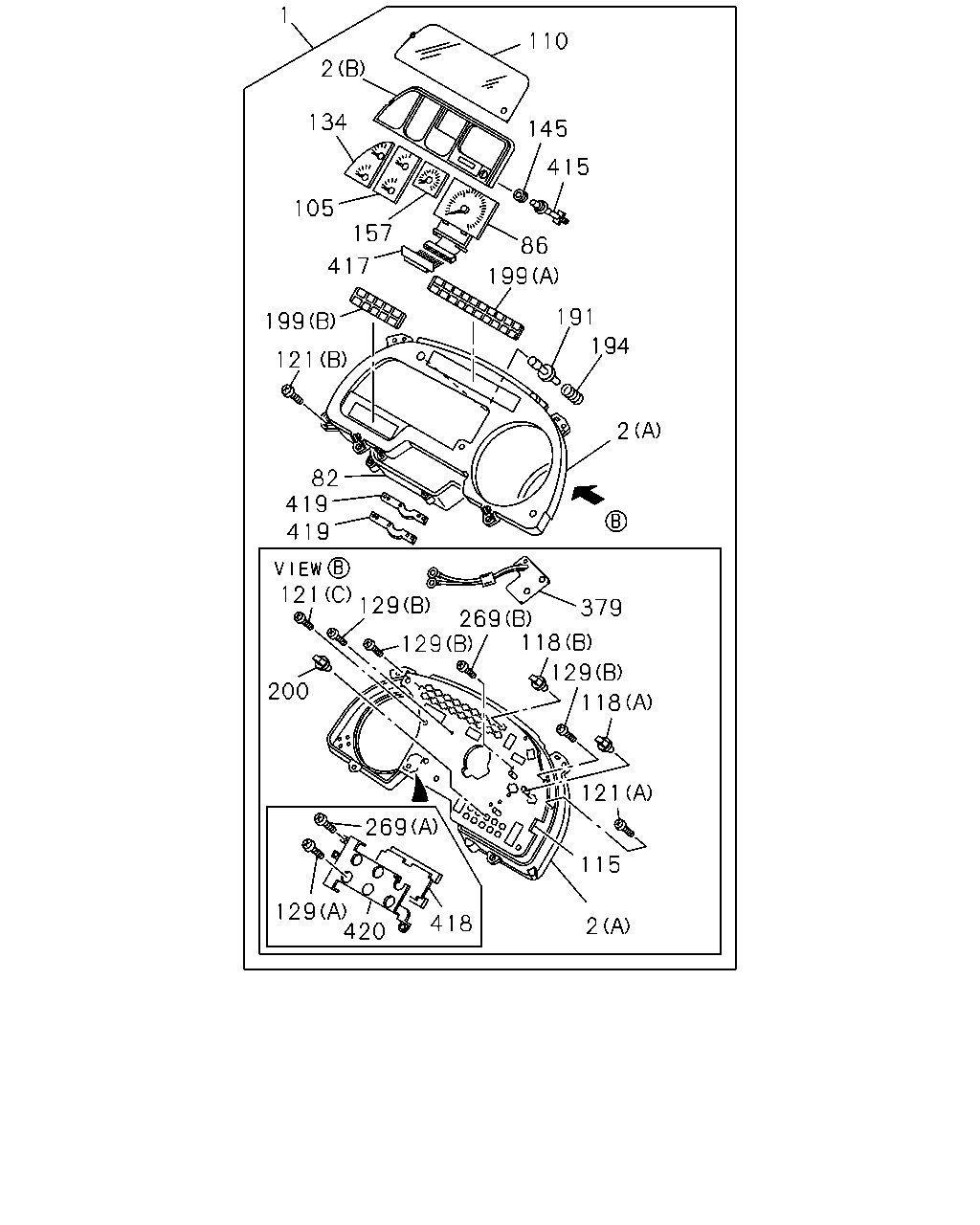

çizim 22034
1 110 2 134 145 415 105 157 86 417 199 191 199 194 121 2 82 419 419 121 129 379 269 129 118 129 200 118 121 269 115 129 420 418 2
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83115-855-3 01 1 0107-
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 0107-
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 0107-
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 0107-
86 TACHOMETER; CLUSTER METER 1-83120-921-0 01 1 0107-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 0107-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 0107-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-438-0 01 1 0107-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0107-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 27 1 0107-
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 0107-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 0107-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 0107-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-657-0 09 1 0107-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-675-0 06 1 0107-
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 0107-
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 0107-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-235-0 01 1 0107-
191 KNOB; BULB CHECK 1-83119-672-0 01 1 0107-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 0107-
199 LENS; WARNING LAMP
(A) 		1-83119-795-1 01 1 0107-
199 LENS; WARNING LAMP
(B) 		1-83119-796-0 01 1 0107-
200 BULB; WARNING LAMP
AUTO CRUISE W/RESUME<NKA> 24V 1.8W BROWN SOCKET 		1-82194-062-0 01 1 0107-
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 0107-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 0107-
379 CIRCUIT; DROP 1-83189-369-0 01 1 0107-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 0107-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 0107-
418 CIRCUIT; CONTROL,METER 1-83189-442-0 01 1 0107-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 0107-
420 HEAT SINK; METER 1-83119-679-0 01 1 0107-

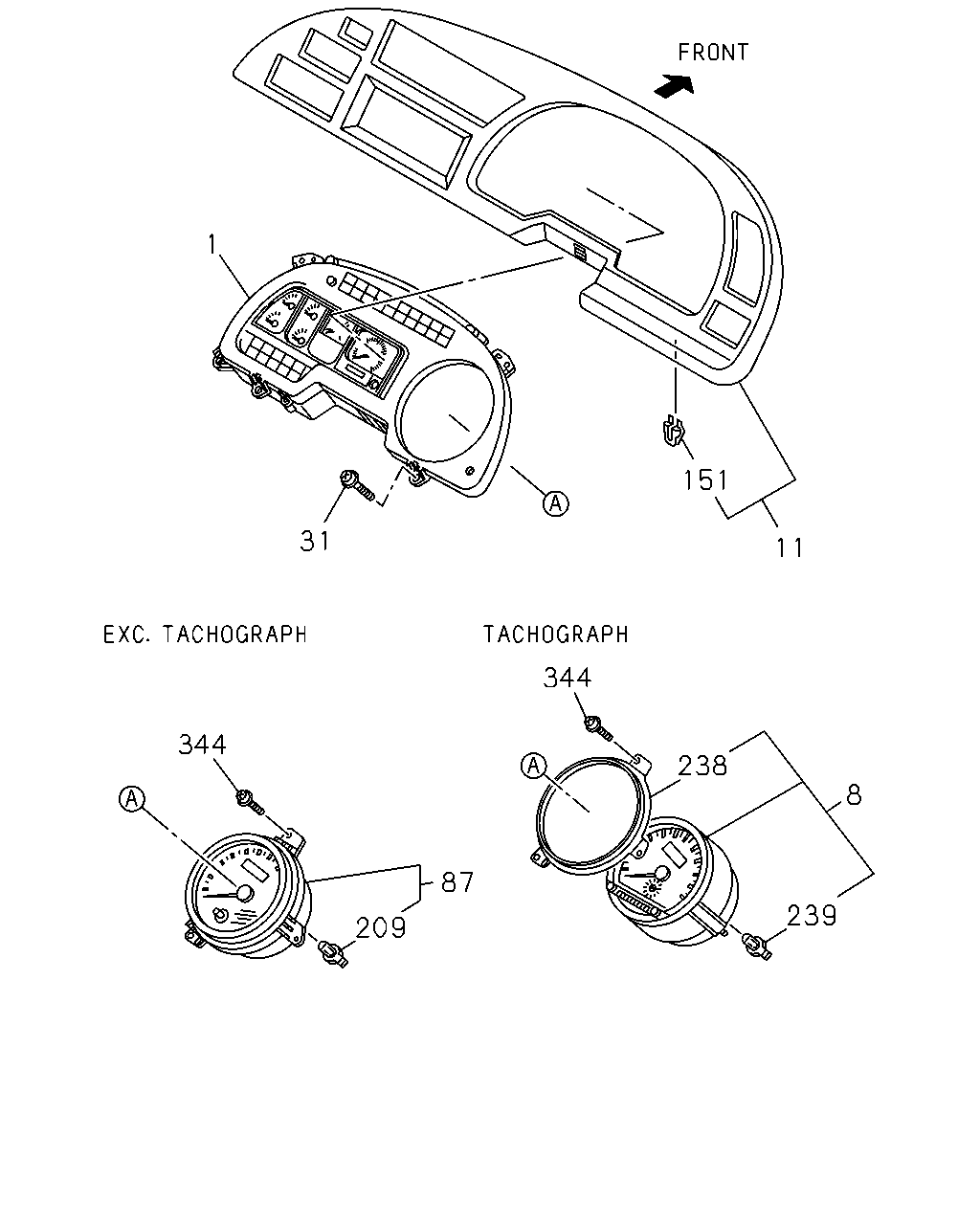

çizim 74525
1 151 31 11 344 344 238 8 87 239 209
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83115-855-3 01 1 0107-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-847-0 01 1 0107-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-849-0 01 1 0107-
11 CLUSTER ASM; METER 1-72418-012-9 01 1 0107-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0107-
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 0107-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0107-
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 0107-
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 0107-
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		1-82194-101-0 03 1 0107-
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0107-
