8-20 — METER CABLE (#11183) — 78 parça

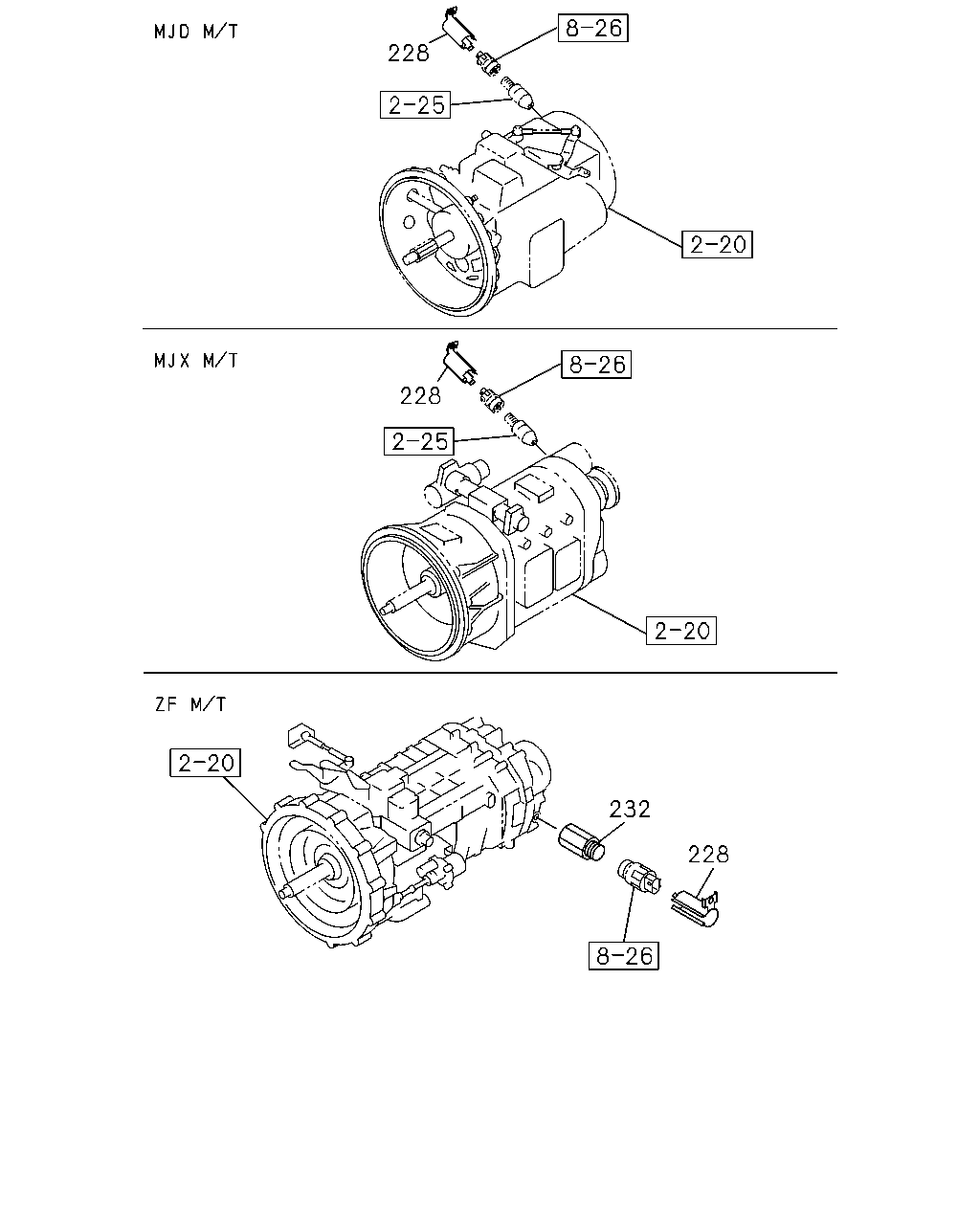

228 228 232 228

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	228	PROTECTOR; SENSOR	8-97168-308-0	01	1	0105-
	232	ADAPTER; SPEED SENSOR TRANSMISSION-ZF 16S151 OD(Y2N)	1-80249-006-0	01	1	0105-

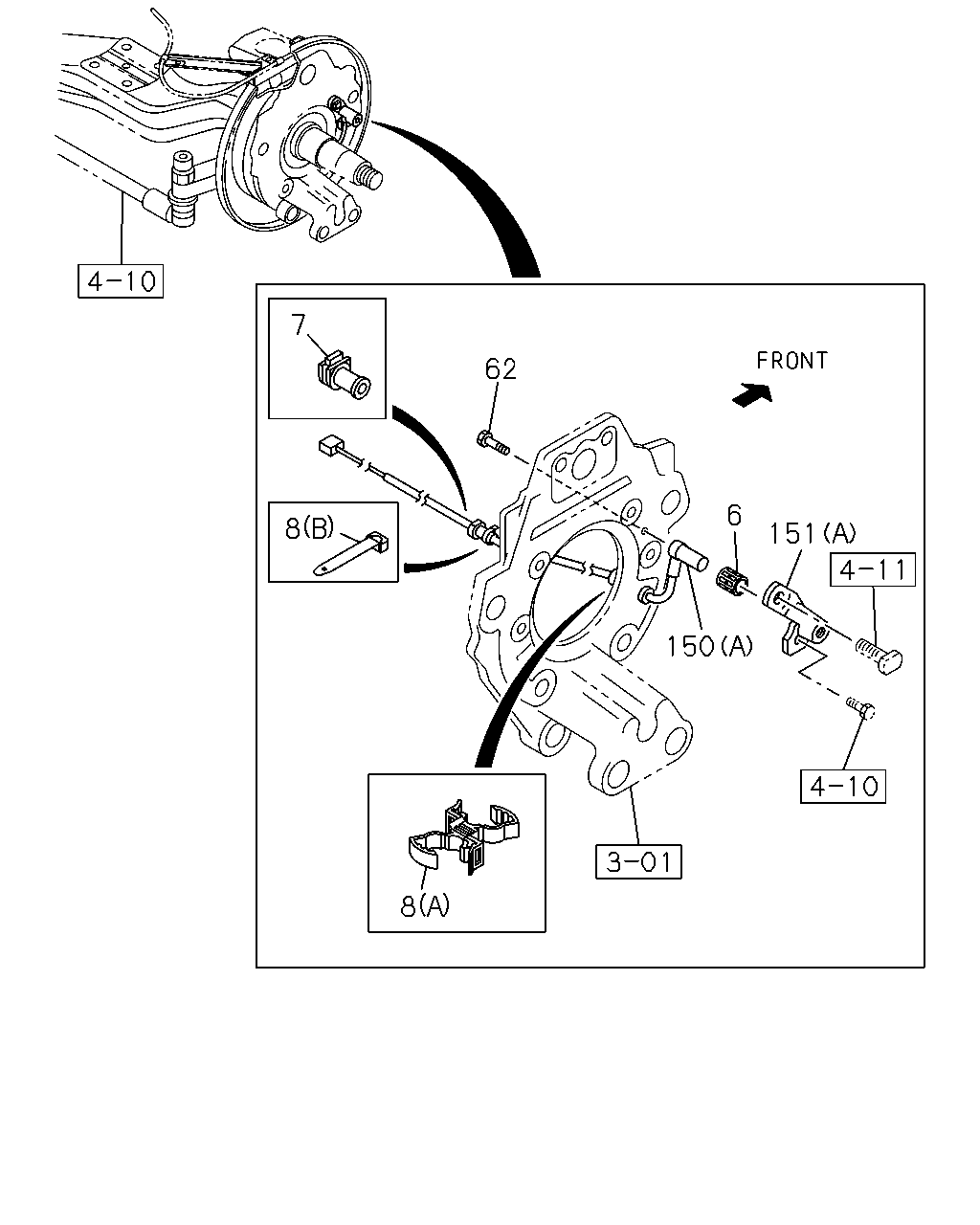

8 7 8 150 62 6 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA)	1-83129-260-1	02	1	0105-
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA)	1-83129-260-1	02	1	0105-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	02	1	0105-
7	GROMMET; SPD SENSOR FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	01	1	0105-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	01	1	0105-
8	CLIP; HARNESS (A) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-
8	CLIP; HARNESS (A) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=140	5-09707-031-1	02	1	0105-
8	CLIP; HARNESS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) L=140	5-09707-031-1	01	1	0105-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=140	5-09707-031-1	01	1	0105-
62	BOLT; SENSOR FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) M8X16	9-05820-816-0	02	1	0105-
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM(BFA) M8X16	9-05820-816-0	02	1	0105-
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-803-0	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-803-0	01	1	0106-0106
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-806-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-806-0	01	1	0107-0307
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-804-0	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-804-0	01	1	0106-0106
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-807-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-807-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83127-517-1	01	1	0105-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83127-805-1	01	1	0107-
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-645-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-645-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-645-1	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-809-0	01	1	0107-0307
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-644-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-644-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-644-1	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-808-0	01	1	0107-0307
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-849-1	02	1	0308-
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-849-1	02	1	0308-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83129-422-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83129-421-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-406-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-405-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-404-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-403-0	01	1	0105-

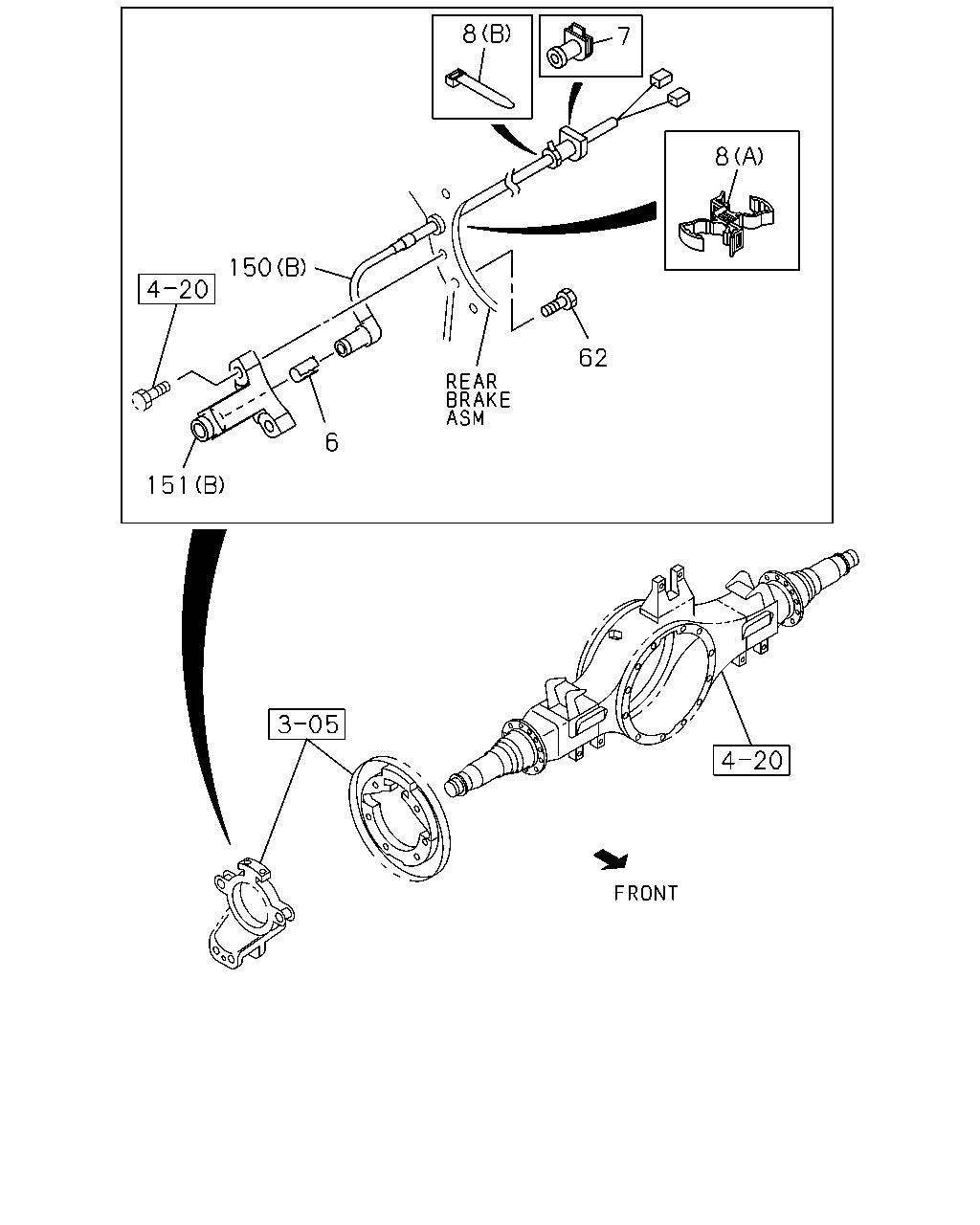

7 62 6 8 151 150 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA)	1-83129-260-1	02	1	0105-
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA)	1-83129-260-1	02	1	0105-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	02	1	0105-
7	GROMMET; SPD SENSOR FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	01	1	0105-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	01	1	0105-
8	CLIP; HARNESS (A) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-
8	CLIP; HARNESS (A) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=140	5-09707-031-1	02	1	0105-
8	CLIP; HARNESS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) L=140	5-09707-031-1	01	1	0105-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=140	5-09707-031-1	01	1	0105-
62	BOLT; SENSOR FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) M8X16	9-05820-816-0	02	1	0105-
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM(BFA) M8X16	9-05820-816-0	02	1	0105-
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-803-0	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-803-0	01	1	0106-0106
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-806-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-806-0	01	1	0107-0307
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-804-0	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-804-0	01	1	0106-0106
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-807-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-807-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83127-517-1	01	1	0105-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83127-805-1	01	1	0107-
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-645-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-645-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-645-1	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-809-0	01	1	0107-0307
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-644-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-644-0	01	1	0105-0105
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-644-1	01	1	0106-0106
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) REAR	1-83127-808-0	01	1	0107-0307
150	SENSOR; SPEED,ABS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-849-1	02	1	0308-
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B) REAR	1-83127-849-1	02	1	0308-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83129-422-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A) FRONT	1-83129-421-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-406-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-405-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-404-0	01	1	0105-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) REAR	1-83129-403-0	01	1	0105-
