8-15 — FIXING PARTS; WIRING HARNESS (#11182) — 435 parça

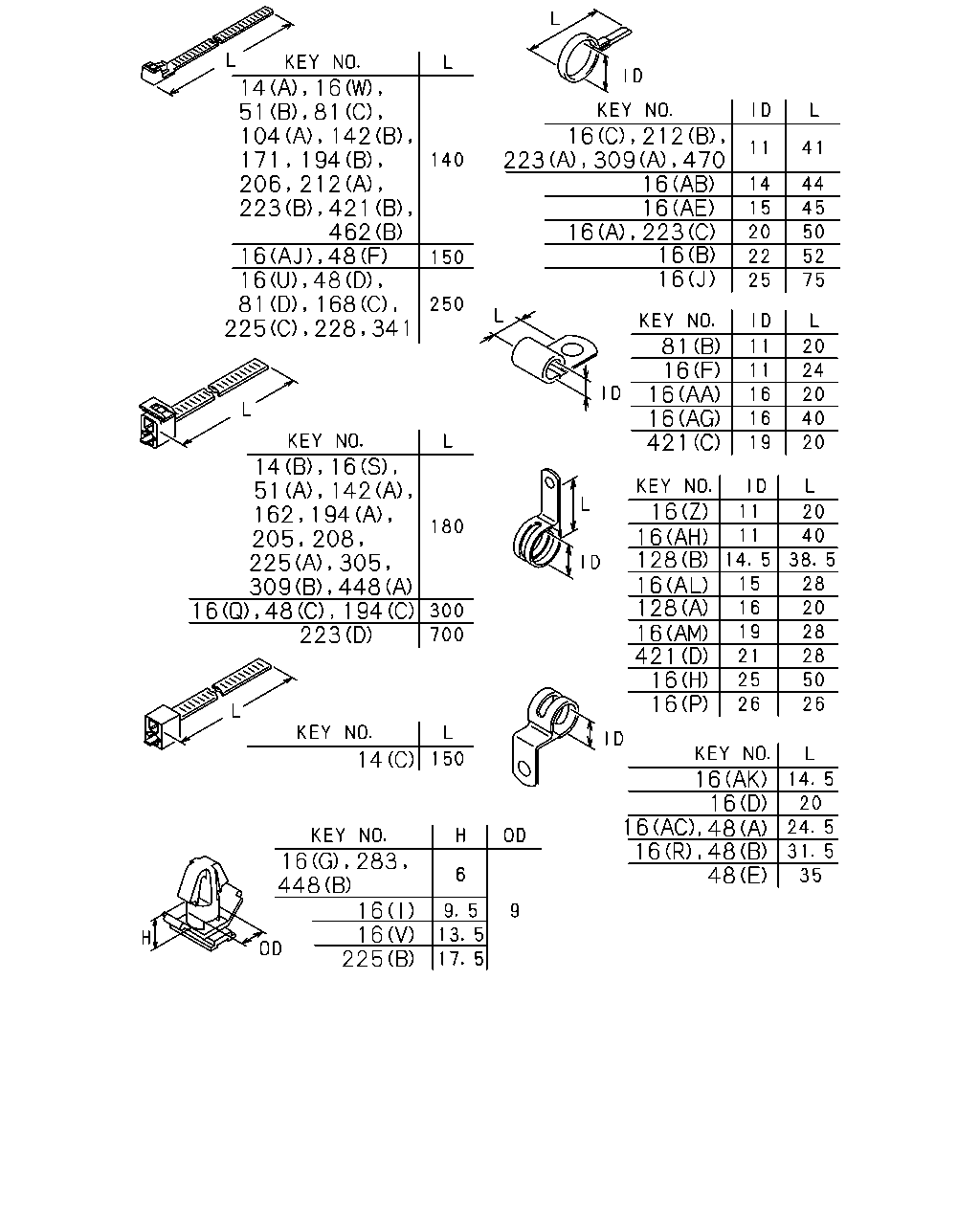

çizim 21286
14 16 51 81 104 142 171 194 206 212 223 421 462 16 48 16 81 48 168 225 228 341 14 16 51 142 162 194 205 208 225 305 309 448 16 48 194 223 14 16 283 448 16 16 16 225 16 212 223 309 470 16 16 16 223 16 16 81 16 16 16 421 16 16 128 16 128 16 421 16 16 16 16 16 48 16 48 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0105-
14 CLIP; BAND,HARNESS
AIR DRYER<PS7> (B) L=180 		1-09707-162-1 01 1 0105-
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 01 1 0105-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=150 		1-09707-145-1 02 1 0105-
16 CLIP; HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AJ) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AK) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
(AE) ID=15 L=45 		1-09700-402-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 06 1 0212-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-0106
16 CLIP; HARNESS
(AL) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(L) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0105-0107
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (Z) ID=11 L=20 		9-09525-035-0 01 1 0108-
16 CLIP; HARNESS
(N) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (O) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=25 L=75 		1-09701-275-0 02 1 0105-
16 CLIP; HARNESS
(Q) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 03 1 0105-0106
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(T) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(T) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 08 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(V) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(AD) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (U) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(X) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Y) ID=14-20 		8-97061-603-0 03 1 0105-
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 03 1 0105-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0110-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 06 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 01 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (S) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 08 1 0105-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (W) L=140 		5-09707-031-1 07 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=11 L=20 		9-09525-035-0 02 1 0105-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=11 L=20 		9-09525-035-0 02 1 0206-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=11 L=20 		9-09525-035-0 02 1 0206-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11X2 L=16 		9-09535-025-0 02 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (F) ID=11 L=24 		9-09525-045-0 01 1 0105-
16 CLIP; HARNESS
MJD7S M/T(Y2Y) (AI) ID=10 H=25 L=20 		1-09700-519-0 01 1 0106-0106
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (AI) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (U) L=250 		5-09707-030-1 01 1 0107-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (AN) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) ID=11 L=40 		9-09525-075-0 01 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (I) OD=9 H=9.5 		1-09709-179-0 01 1 0105-0107
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AA) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (G) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0107-0205
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (G) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AM) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AG) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) L=150 		1-09707-145-1 02 1 0107-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(E) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0105-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 05 1 0105-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 06 1 0105-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0105-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0105-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 0105-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=30 		1-09987-265-0 01 1 0105-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 06 1 0105-
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 0105-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 03 1 0105-0112
194 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 0201-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0305
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0105-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0105-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0112-
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7) EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0112-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 08 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0105-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (D) L=700 		1-09707-190-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 08 1 0105-
225 CLIP; AIR TANK HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=17.5 		1-09709-181-0 01 1 0105-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0105-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-
çizim 22232
38 38 38 119 255 313 38 139 38 139 313 38 133 239 38 88 64 133 358 133 516 515 524 294 340 423 219 38 242 38 313 38 242 38 242 219 294
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (I) M8X20 FLANGE 		0-28680-820-0 03 1 0206-
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28680-820-0 05 1 0201-0205
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28680-820-0 04 1 0206-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (I) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0107
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (I) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (I) M8X20 FLANGE 		0-28680-820-0 03 1 0201-0205
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (I) M8X20 FLANGE 		0-28680-820-0 05 1 0206-
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0106
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28680-835-0 01 1 0201-
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28680-825-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 04 1 0105-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 07 1 0105-0403
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 06 1 0404-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0108
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28080-825-0 01 1 0109-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0105-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) M8X16 FLANGE 		0-28080-816-0 01 1 0105-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (G) M8X16 FLANGE 		0-28080-816-0 01 1 0105-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (I) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0205
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (I) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (I) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0205
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0205
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0206-0403
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (I) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y) (J) M10X20 FLANGE 		0-28781-020-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (J) M10X20 FLANGE 		0-28781-020-0 01 1 0107-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0111-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0105-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 06 1 0105-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0105-0110
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28681-020-0 02 1 0105-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-
294 NUT
MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91150-210-0 01 1 0107-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 01 1 0105-
294 NUT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 01 1 0105-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0105-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0304
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0305-
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0305-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12X16 		0-28181-216-0 01 1 0107-0108
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0211
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0211
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0212-0304
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 0105-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0105-

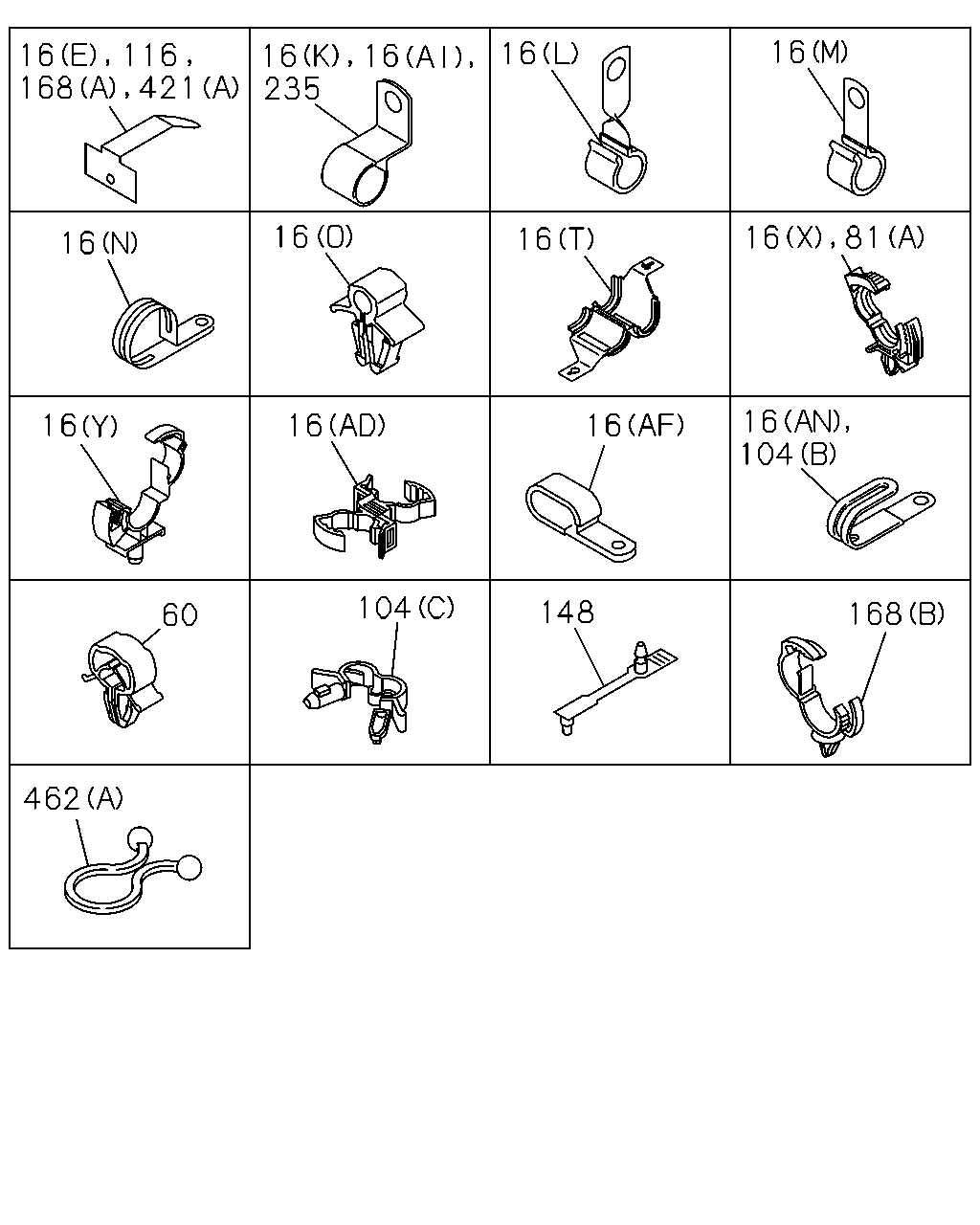

çizim 76956
16 16 16 116 16 235 16 16 16 16 104 16 16 104 148 168 60 462 168 421 16 16 81 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AJ) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AK) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
(AE) ID=15 L=45 		1-09700-402-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 06 1 0212-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-0106
16 CLIP; HARNESS
(AL) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(L) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0105-0107
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (Z) ID=11 L=20 		9-09525-035-0 01 1 0108-
16 CLIP; HARNESS
(N) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (O) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=25 L=75 		1-09701-275-0 02 1 0105-
16 CLIP; HARNESS
(Q) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 03 1 0105-0106
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(T) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(T) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 08 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(V) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(AD) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (U) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(X) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Y) ID=14-20 		8-97061-603-0 03 1 0105-
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 03 1 0105-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0110-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 06 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 01 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (S) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 08 1 0105-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (W) L=140 		5-09707-031-1 07 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=11 L=20 		9-09525-035-0 02 1 0105-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=11 L=20 		9-09525-035-0 02 1 0206-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=11 L=20 		9-09525-035-0 02 1 0206-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11X2 L=16 		9-09535-025-0 02 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (F) ID=11 L=24 		9-09525-045-0 01 1 0105-
16 CLIP; HARNESS
MJD7S M/T(Y2Y) (AI) ID=10 H=25 L=20 		1-09700-519-0 01 1 0106-0106
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (AI) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (U) L=250 		5-09707-030-1 01 1 0107-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (AN) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) ID=11 L=40 		9-09525-075-0 01 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (I) OD=9 H=9.5 		1-09709-179-0 01 1 0105-0107
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AA) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (G) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0107-0205
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (G) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AM) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AG) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0306-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> L=20 		1-09987-246-2 06 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> L=20 		1-09987-246-2 03 1 0201-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=30 		1-09987-265-0 01 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-

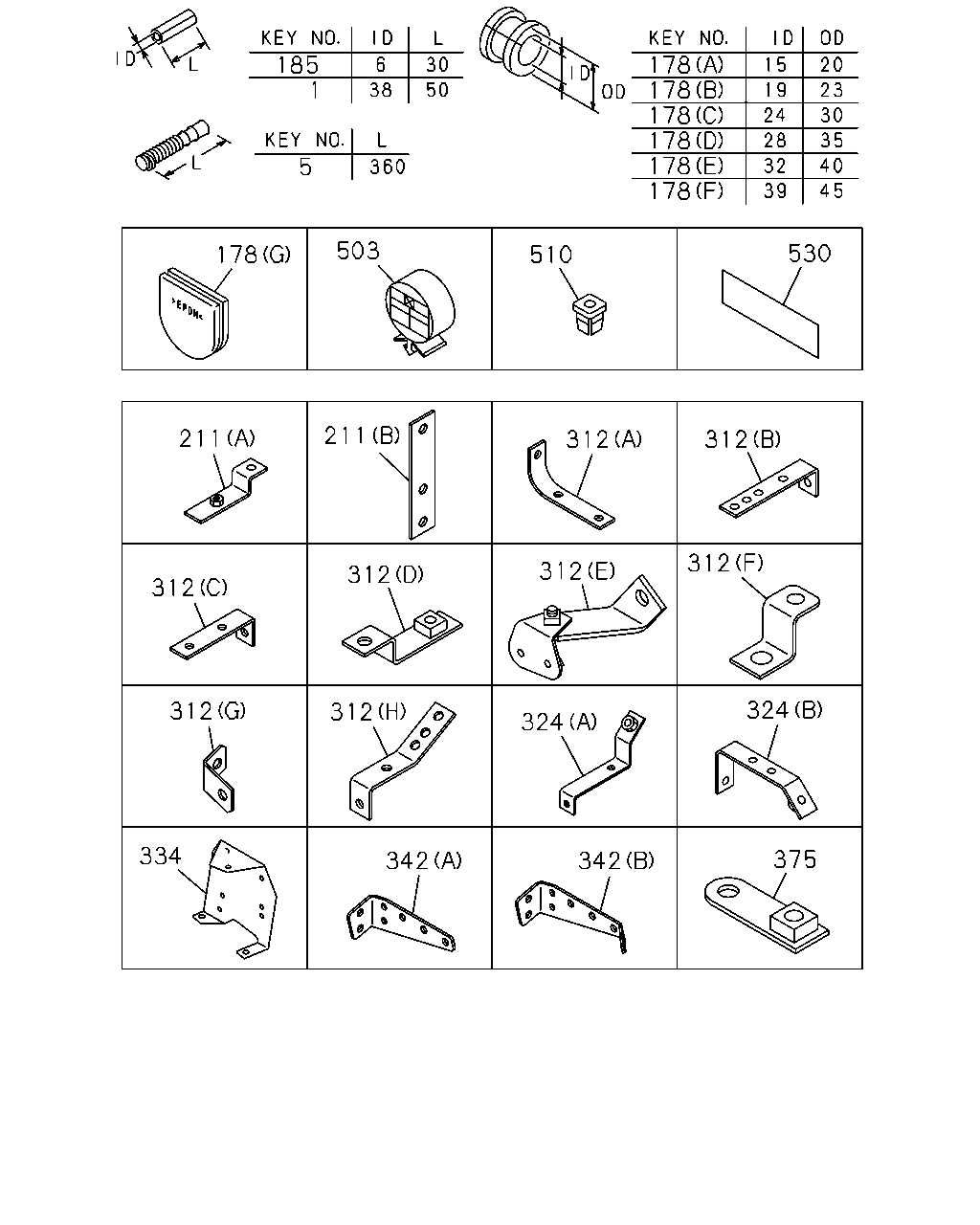

çizim 78938
185 1 178 178 178 178 178 178 5 503 530 178 510 211 211 312 312 312 312 312 312 324 312 312 324 334 375 342 342
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 0105-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0105-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105-
178 GROMMET; HARNESS
(F) ID=39 OD=45 T=19 		1-09332-077-0 01 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0105-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 02 1 0105-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0105-
178 GROMMET; HARNESS
(G) 		1-82699-891-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0105-0106
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=12 		9-09956-725-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47476-393-0 02 1 0105-0105
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=117 		1-47478-116-0 02 1 0105-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (H) 		1-47479-849-0 01 1 0306-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (B) 		1-82698-358-0 01 1 0306-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (D) 		1-82699-304-0 01 1 0106-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-47477-902-0 01 1 0107-0108
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (F) 		1-82699-425-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(C) L=90 B=25 		1-47476-630-0 01 1 0105-0211
312 BRACKET; CLIP HARNESS
(G) 		1-82699-199-0 01 1 0212-0304
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0305
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0305
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (B) 		1-82698-358-0 02 1 0306-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (B) 		1-82698-358-0 02 1 0306-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82699-996-0 01 1 0105-0105
324 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82698-258-0 01 1 0105-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82698-258-0 01 1 0105-
334 BRACKET 1-53458-709-1 01 1 0105-
342 BRACKET; HARNESS CAB MTG
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-82698-224-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 04 1 0209-
530 SEAL; HARNESS
180X40 		1-72498-019-0 05 1 0105-0208
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0209-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
