8-10 — WIRING HARNESS AND FUSE (#11181) — 150 parça

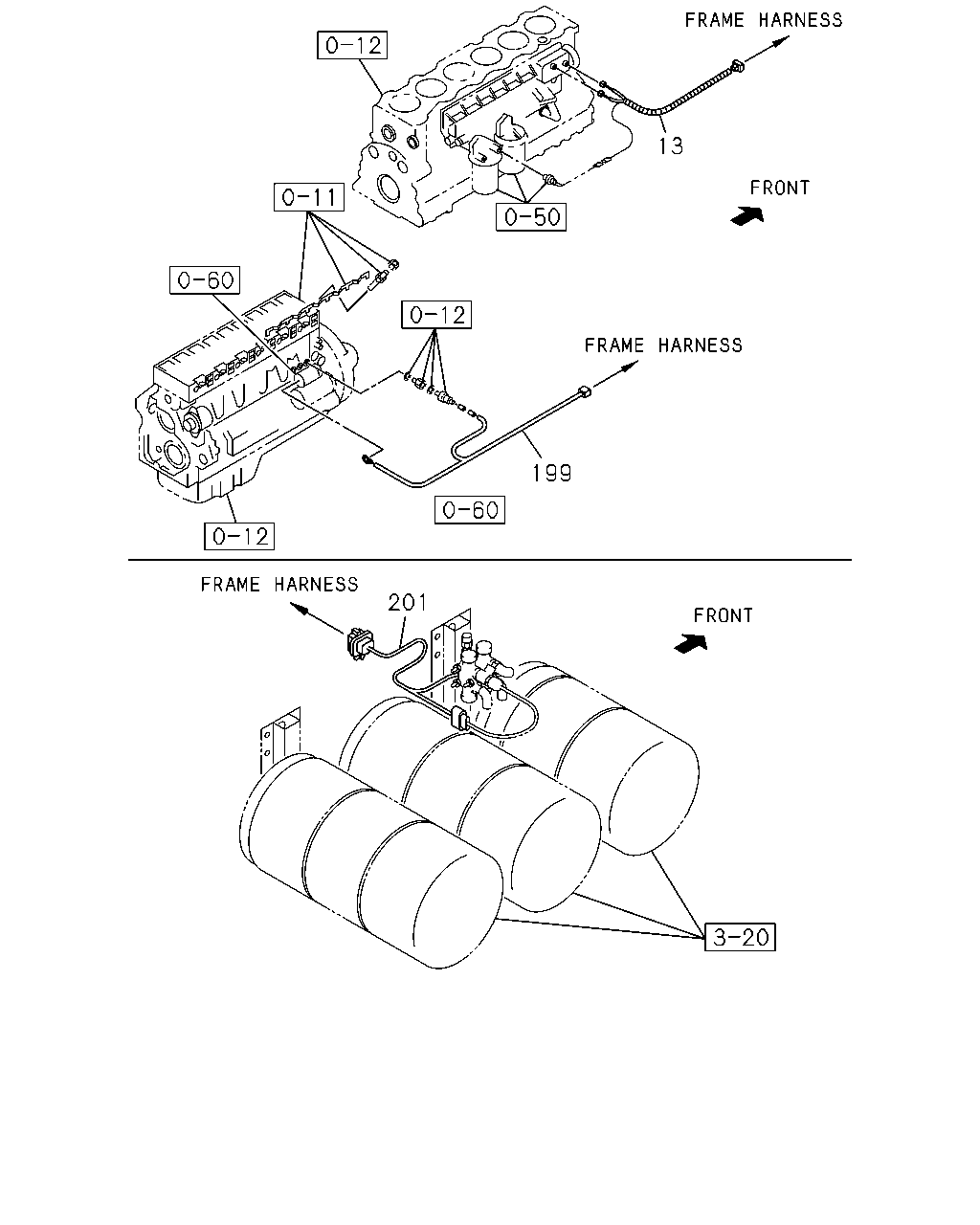

13 199 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG	1-82640-553-4	01	1	0105-
199	HARNESS; STARTER	1-82641-024-1	01	1	0105-
201	HARNESS; AIR TANK	1-82673-731-0	01	1	0105-

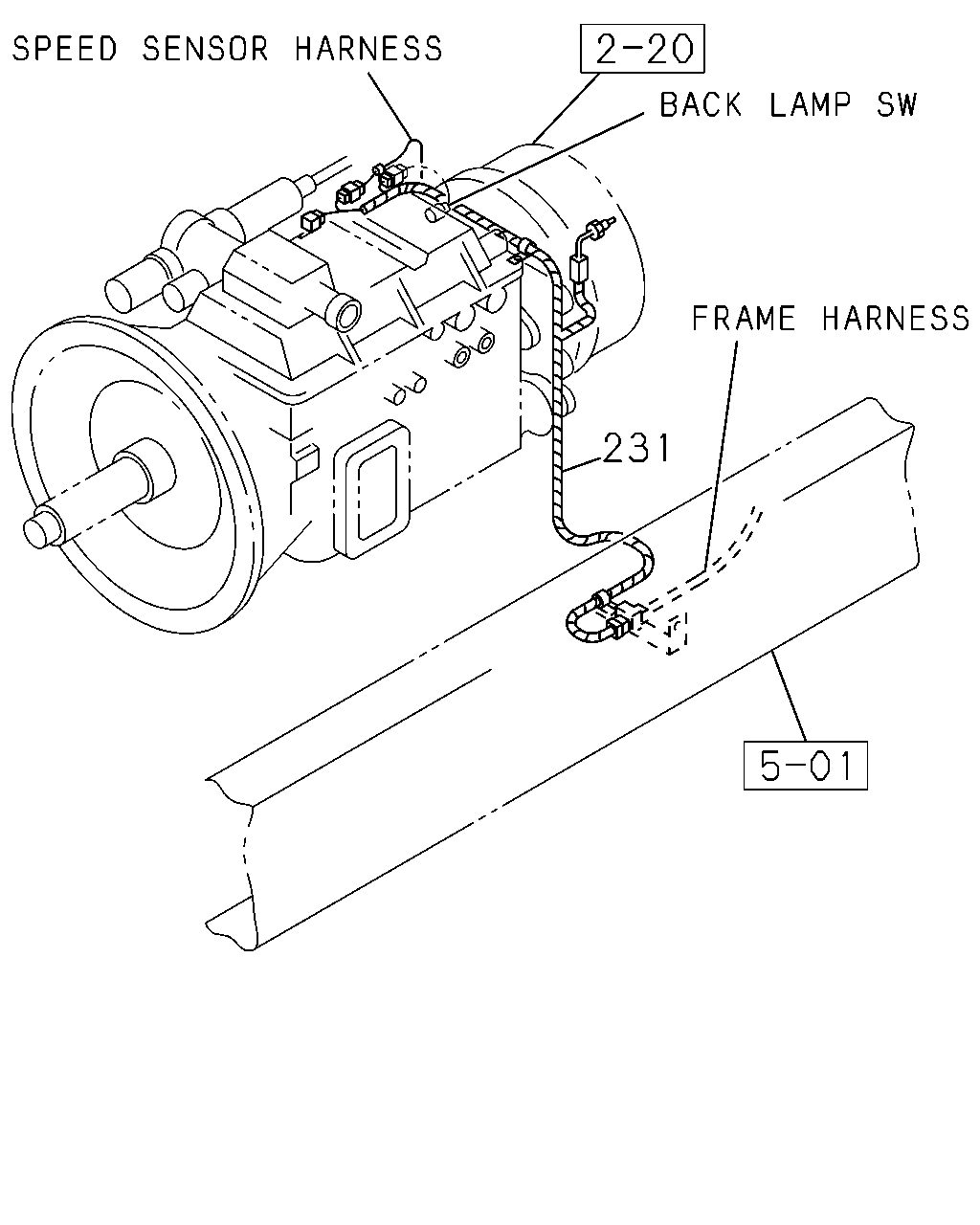

231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
231	HARNESS; TRANS MJD7S M/T(Y2Y)	1-82674-849-1	01	1	0105-
231	HARNESS; TRANS MJX16P M/T(Y3Z)	1-82674-246-2	01	1	0107-
231	HARNESS; TRANS TRANSMISSION-ZF 16S151 OD(Y2N)	1-82674-852-0	01	1	0105-0107
231	HARNESS; TRANS TRANSMISSION-ZF 16S151 OD(Y2N)	1-82675-056-0	01	1	0108-

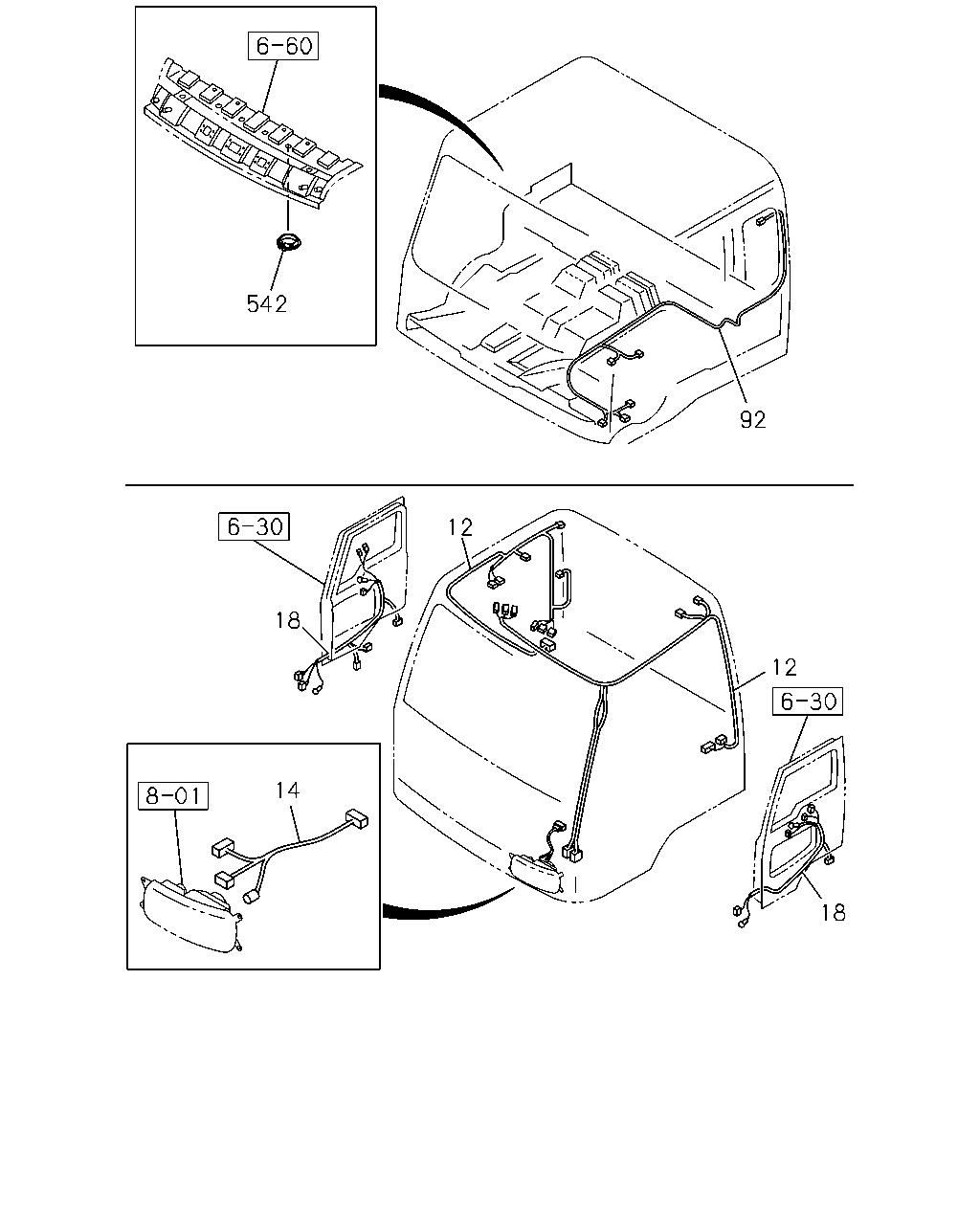

542 92 12 18 12 14 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF HIGH ROOF<S2F>	1-82629-924-2	01	1	0105-
12	HARNESS; ROOF EXC. HIGH ROOF<S2F>	1-82629-920-2	01	1	0105-
12	HARNESS; ROOF SPEAKER SYSTEM 4 SPEAKER<NBV>	1-82628-107-0	01	1	0105-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82670-022-2	02	1	0105-
14	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82625-150-2	02	1	0105-
18	HARNESS; DOOR POWER WINDOW<A30>	1-82628-584-0	01	1	0105-
18	HARNESS; DOOR POWER WINDOW<A30>	1-82628-582-0	01	1	0105-
18	HARNESS; DOOR EXC. POWER WINDOW<A30>	1-82628-581-0	01	1	0105-
18	HARNESS; DOOR EXC. POWER WINDOW<A30>	1-82628-581-0	01	1	0105-
92	HARNESS; FLOOR	1-82660-394-2	01	1	0105-
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	03	1	0105-

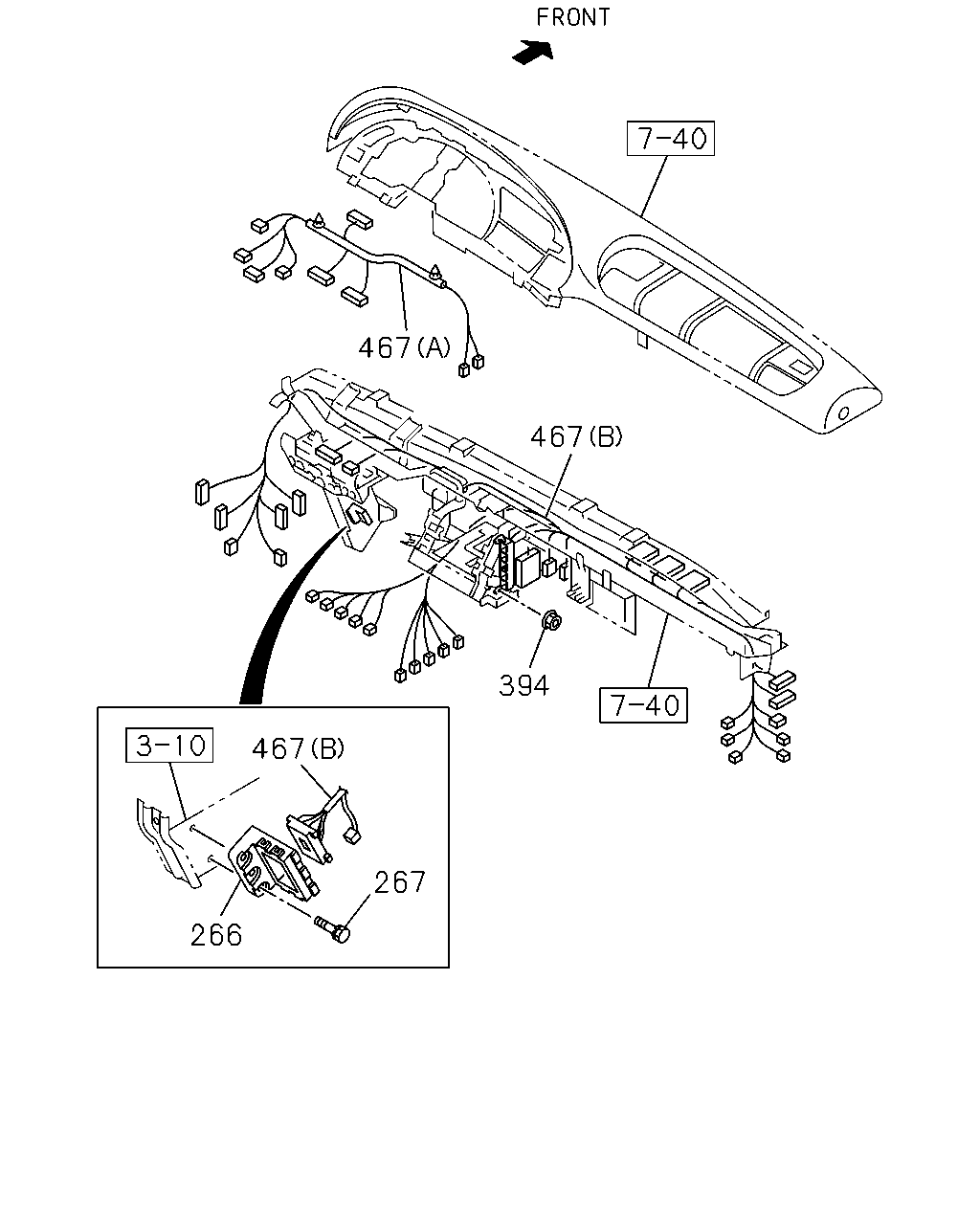

467 467 394 467 267 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0105-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0105-
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91150-106-0	01	1	0401-
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0105-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-442-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-530-3	01	1	0109-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-444-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-532-4	01	1	0109-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-443-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-531-3	01	1	0109-
467	HARNESS; FACIA CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-436-3	01	1	0105-
467	HARNESS; FACIA CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER	1-82660-439-0	01	1	0105-0108
467	HARNESS; FACIA CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER	1-82660-527-3	01	1	0109-
467	HARNESS; FACIA EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0105-
467	HARNESS; FACIA DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-437-3	01	1	0105-
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER	1-82660-441-0	01	1	0105-0108
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER	1-82660-529-4	01	1	0109-
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER	1-82660-440-0	01	1	0105-0108
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER	1-82660-528-3	01	1	0109-

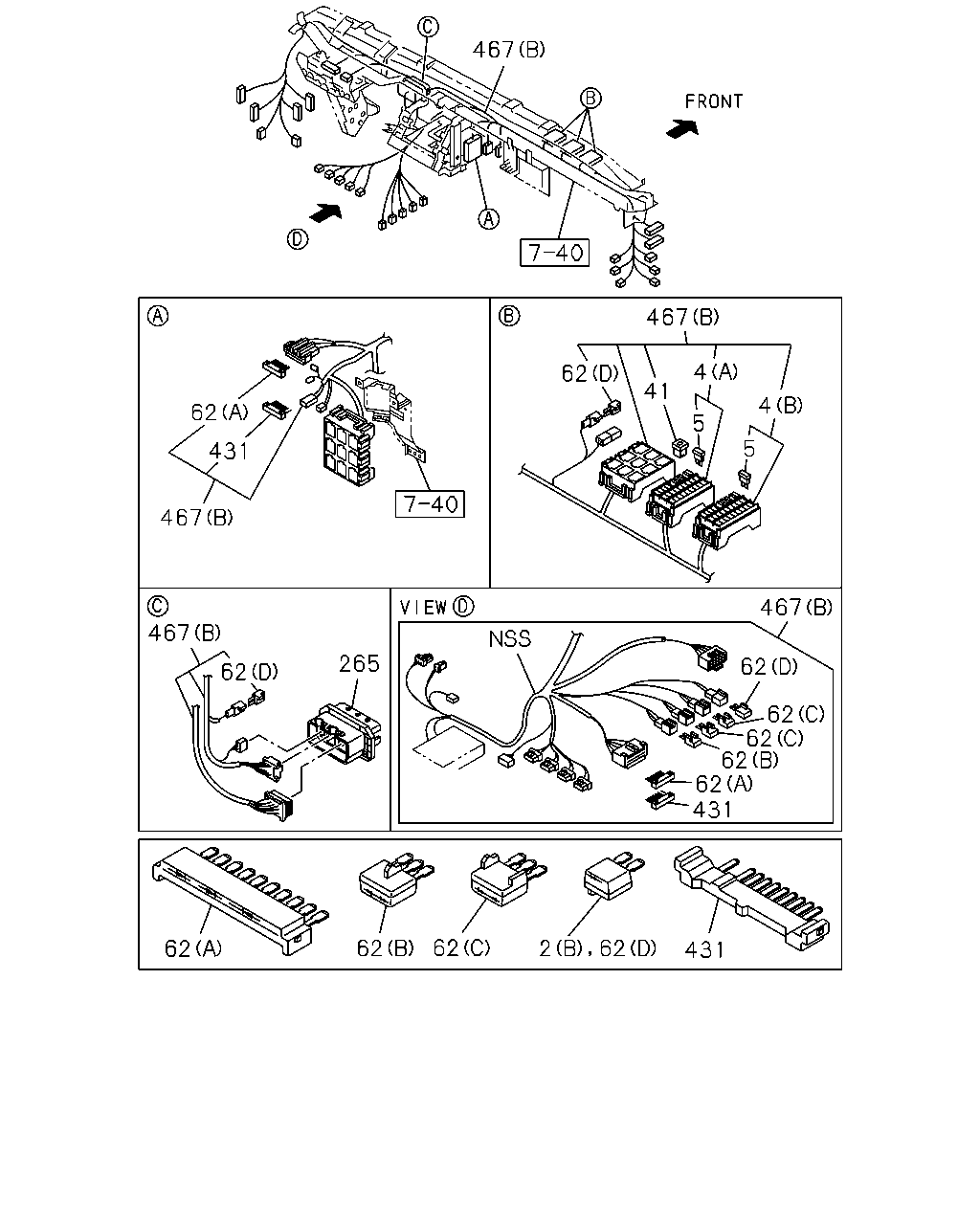

467 467 4 62 41 4 62 5 5 431 467 467 467 265 62 62 62 62 62 62 431 62 62 62 431 2 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS (A) GRAY 2P-1.3A	1-81514-015-0	AR	1	0105-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0105-
4	BOX ASM; FUSE,HARNESS (A) 7.5AX24 10AX2	1-82510-473-0	01	1	0105-
4	BOX ASM; FUSE,HARNESS (B) 15AX20 25AX2	1-82510-520-0	01	1	0105-
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	AR	1	0105-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	AR	1	0105-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	AR	1	0105-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	AR	1	0105-
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0105-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	0105-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0105-
62	DIODE; HARNESS (D) BLACK 2P-1.5A	8-94422-639-1	AR	1	0105-
62	DIODE; HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0105-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0105-
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0105-
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0105-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-442-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-530-3	01	1	0109-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-444-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-532-4	01	1	0109-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-443-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-531-3	01	1	0109-
467	HARNESS; FACIA CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-436-3	01	1	0105-
467	HARNESS; FACIA CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER	1-82660-439-0	01	1	0105-0108
467	HARNESS; FACIA CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER	1-82660-527-3	01	1	0109-
467	HARNESS; FACIA EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0105-
467	HARNESS; FACIA DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-437-3	01	1	0105-
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER	1-82660-441-0	01	1	0105-0108
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER	1-82660-529-4	01	1	0109-
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER	1-82660-440-0	01	1	0105-0108
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER	1-82660-528-3	01	1	0109-

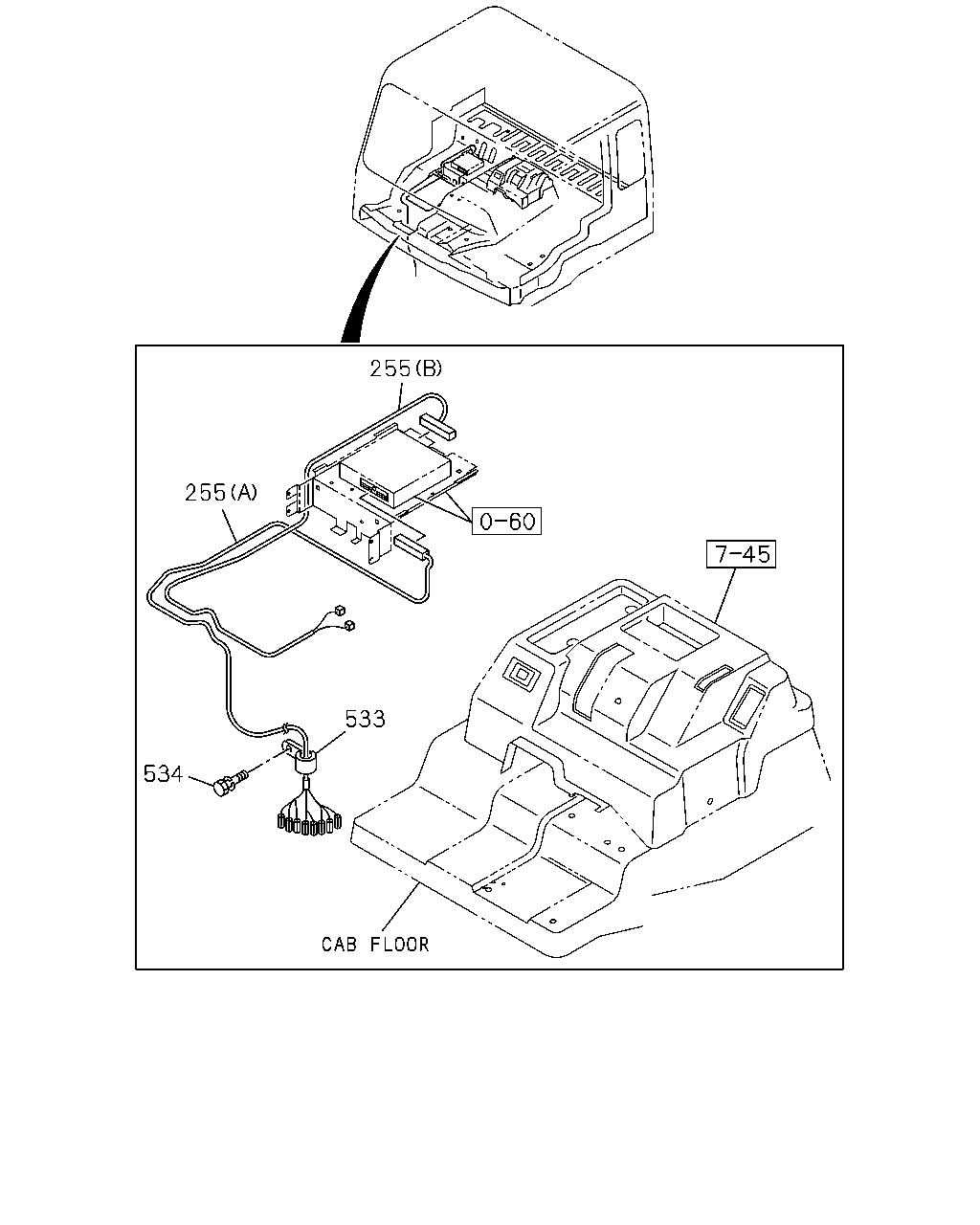

255 255 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
255	HARNESS; ELEC GOV (A)	1-82660-375-2	01	1	0105-
255	HARNESS; ELEC GOV (B)	1-82660-381-2	01	1	0105-
533	CLIP ID=19 L=32	1-09701-235-0	02	1	0105-0109
533	CLIP ID=21 L=24	8-94176-807-1	02	1	0110-
534	BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-

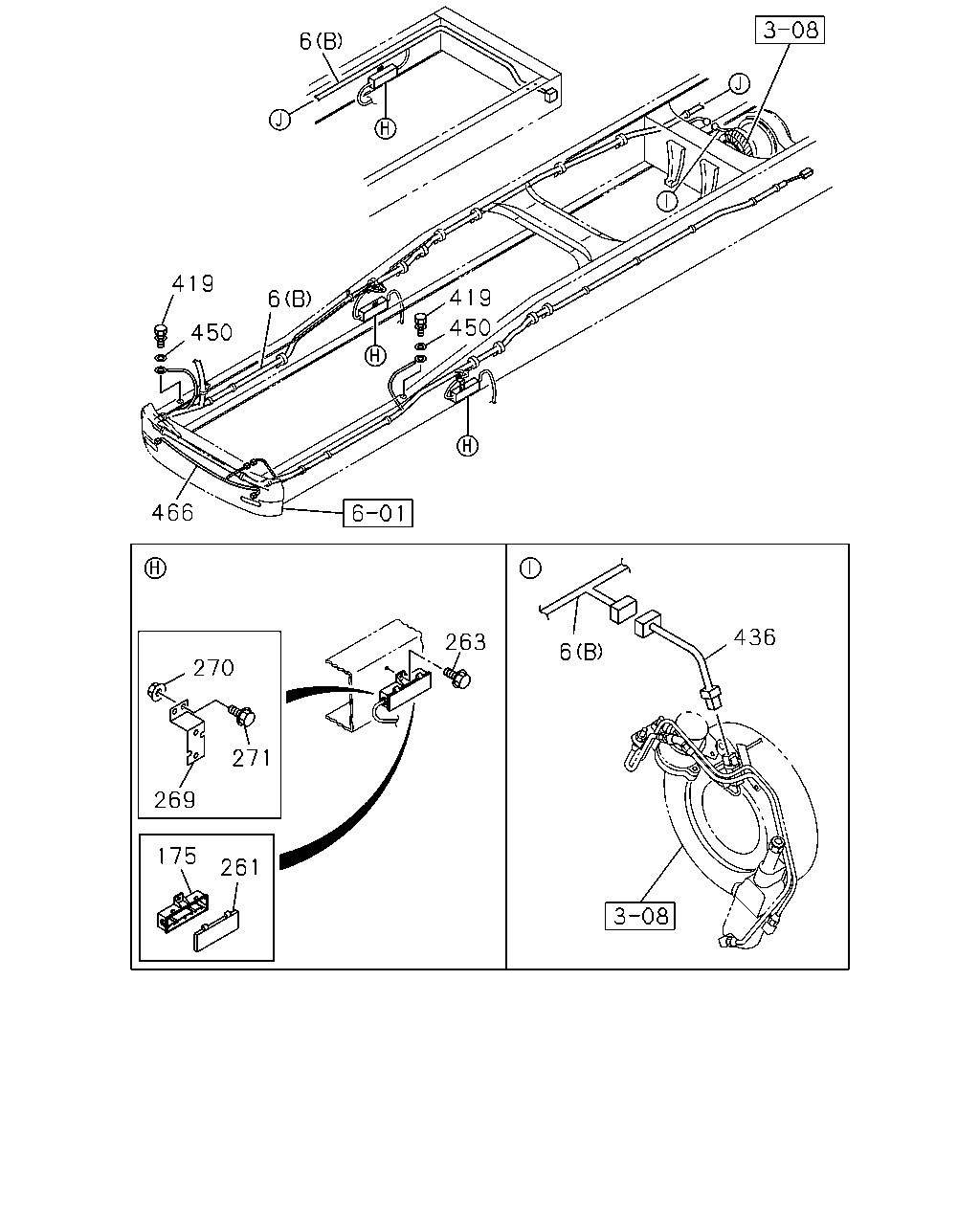

6 419 419 6 450 450 466 436 263 6 270 271 269 175 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME	1-82674-999-0	01	1	0105-0108
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME	1-82675-040-1	01	1	0109-0109
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME	1-82675-563-2	01	1	0110-
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-998-0	01	1	0105-0108
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82675-039-1	01	1	0109-0109
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82675-562-2	01	1	0110-
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME	1-82674-996-0	01	1	0105-0108
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME	1-82675-037-1	01	1	0109-0109
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME	1-82675-560-2	01	1	0110-
6	HARNESS; FRAME AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER	1-82674-842-2	01	1	0105-
6	HARNESS; FRAME AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-841-2	01	1	0105-
6	HARNESS; FRAME EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER	1-82674-840-2	01	1	0105-
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME	1-82674-997-0	01	1	0105-0108
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME	1-82675-038-1	01	1	0109-0109
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME	1-82675-561-2	01	1	0110-
175	BOX; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA)	1-82699-467-0	03	1	0105-
261	COVER; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	1-82699-320-0	03	1	0105-
263	BOLT; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X20 W/LK&PL WASHER	1-09980-622-0	01	1	0105-
263	BOLT; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X20 W/LK&PL WASHER	1-09980-622-0	02	1	0105-
269	BRACKET; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	1-82699-547-0	01	1	0105-
269	BRACKET; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	1-82699-547-0	02	1	0105-
270	NUT; BRKT,CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	06	1	0105-
271	BOLT; BRKT CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	06	1	0105-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	0105-
436	HARNESS; RETARDER BRAKE SYSTEM RETARDER<RE2>	1-82671-549-2	01	1	0105-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	0105-
466	HARNESS; BUMPER	1-82639-281-0	01	1	0105-

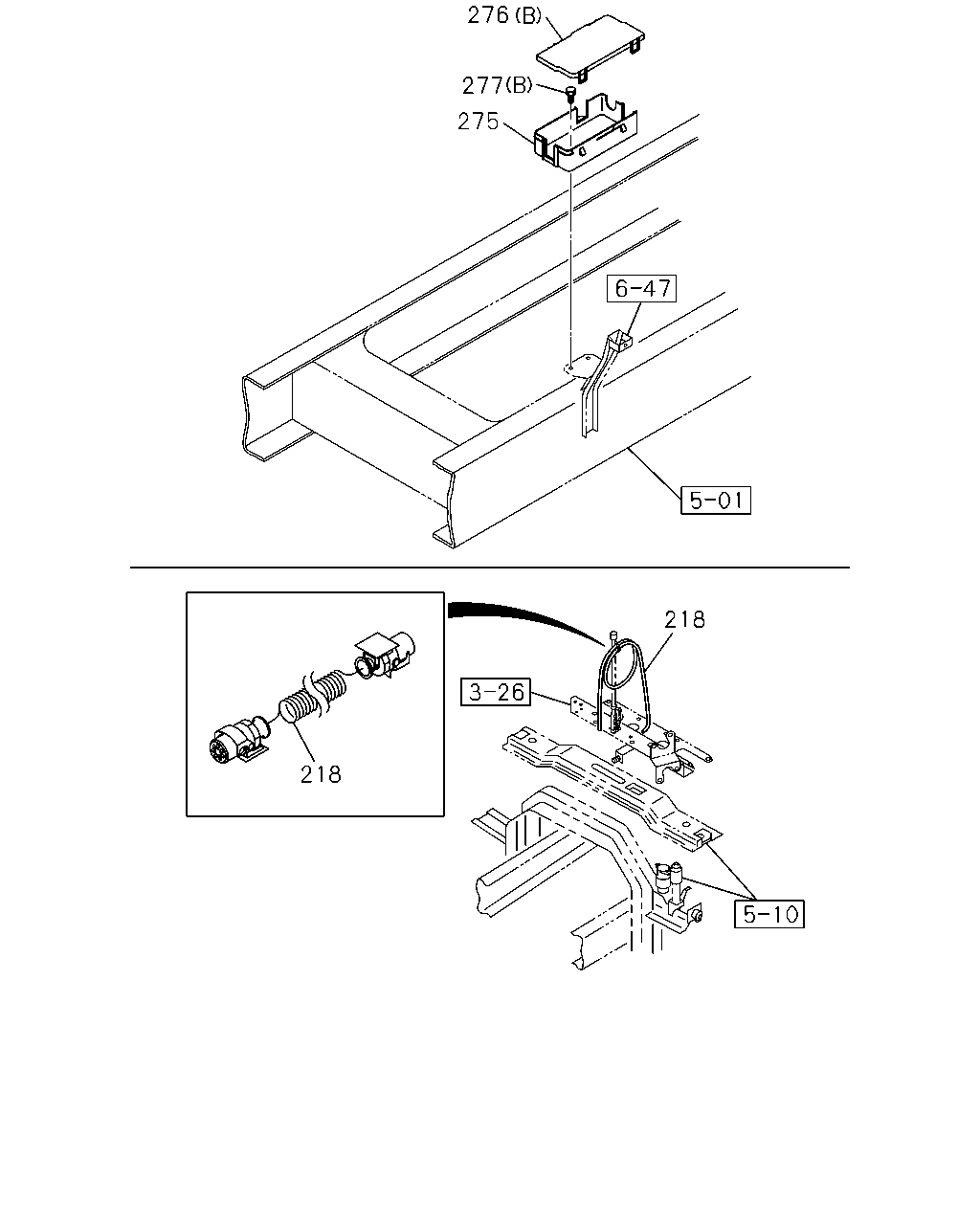

275 218 218 276 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
218	CABLE; JUMPER,ABS ANTILOCK BRAKE SYSTEM(BFA) L=4000	1-82659-187-3	01	1	0105-
275	BOX ASM; FRAME HARNESS	1-82699-474-1	01	1	0105-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0105-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0105-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0105-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0105-

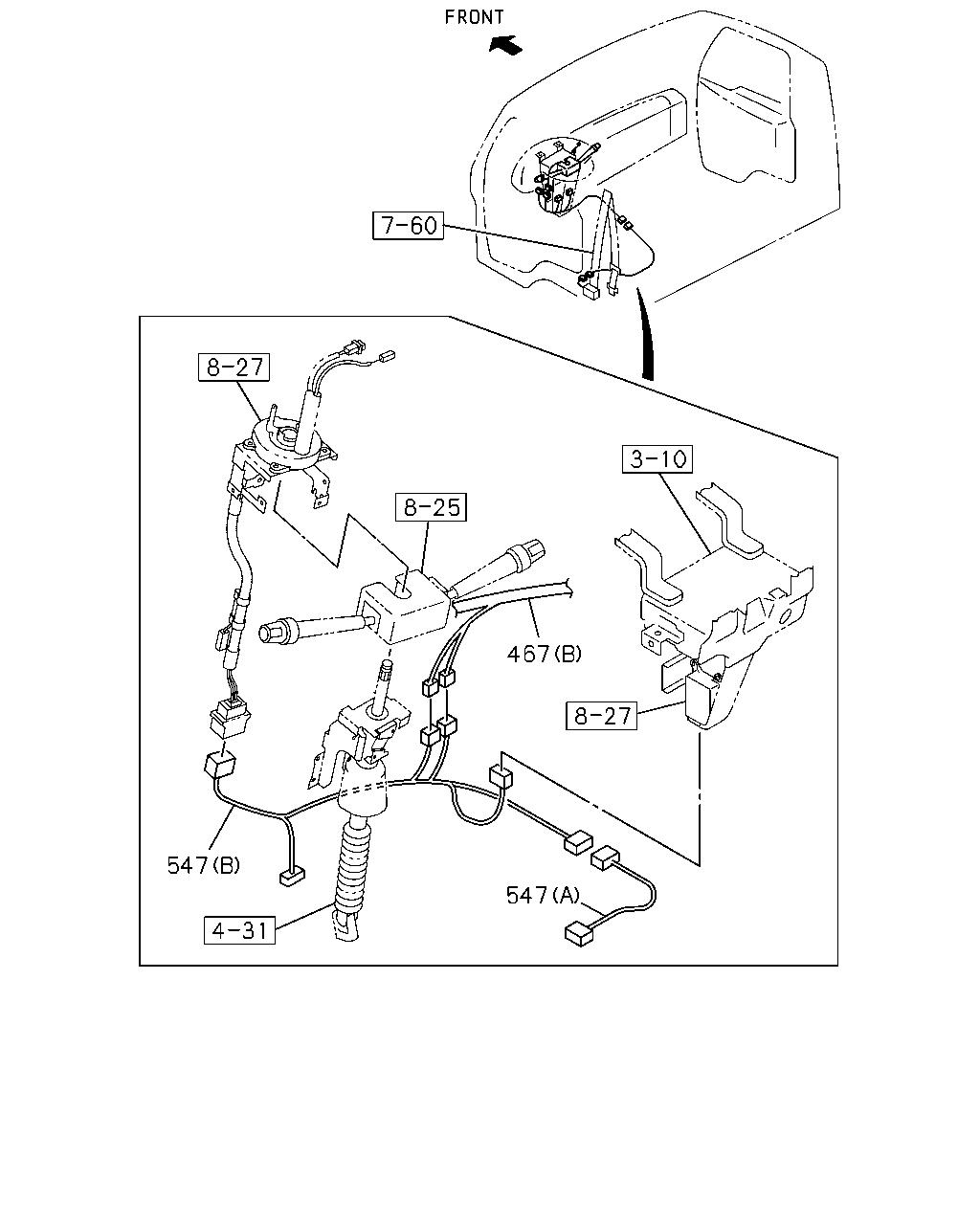

467 547 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0105-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-442-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-530-3	01	1	0109-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-444-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-532-4	01	1	0109-
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-443-0	01	1	0105-0108
467	HARNESS; FACIA ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-531-3	01	1	0109-
467	HARNESS; FACIA CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-436-3	01	1	0105-
467	HARNESS; FACIA CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER	1-82660-439-0	01	1	0105-0108
467	HARNESS; FACIA CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER	1-82660-527-3	01	1	0109-
467	HARNESS; FACIA EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0105-
467	HARNESS; FACIA DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-437-3	01	1	0105-
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER	1-82660-441-0	01	1	0105-0108
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER	1-82660-529-4	01	1	0109-
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER	1-82660-440-0	01	1	0105-0108
467	HARNESS; FACIA TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER	1-82660-528-3	01	1	0109-
547	HARNESS; CABLE,SRS DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A)	1-82626-429-5	01	1	0105-0111
547	HARNESS; CABLE,SRS DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A)	1-82661-062-2	01	1	0112-
547	HARNESS; CABLE,SRS DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (B)	1-82628-251-0	01	1	0105-

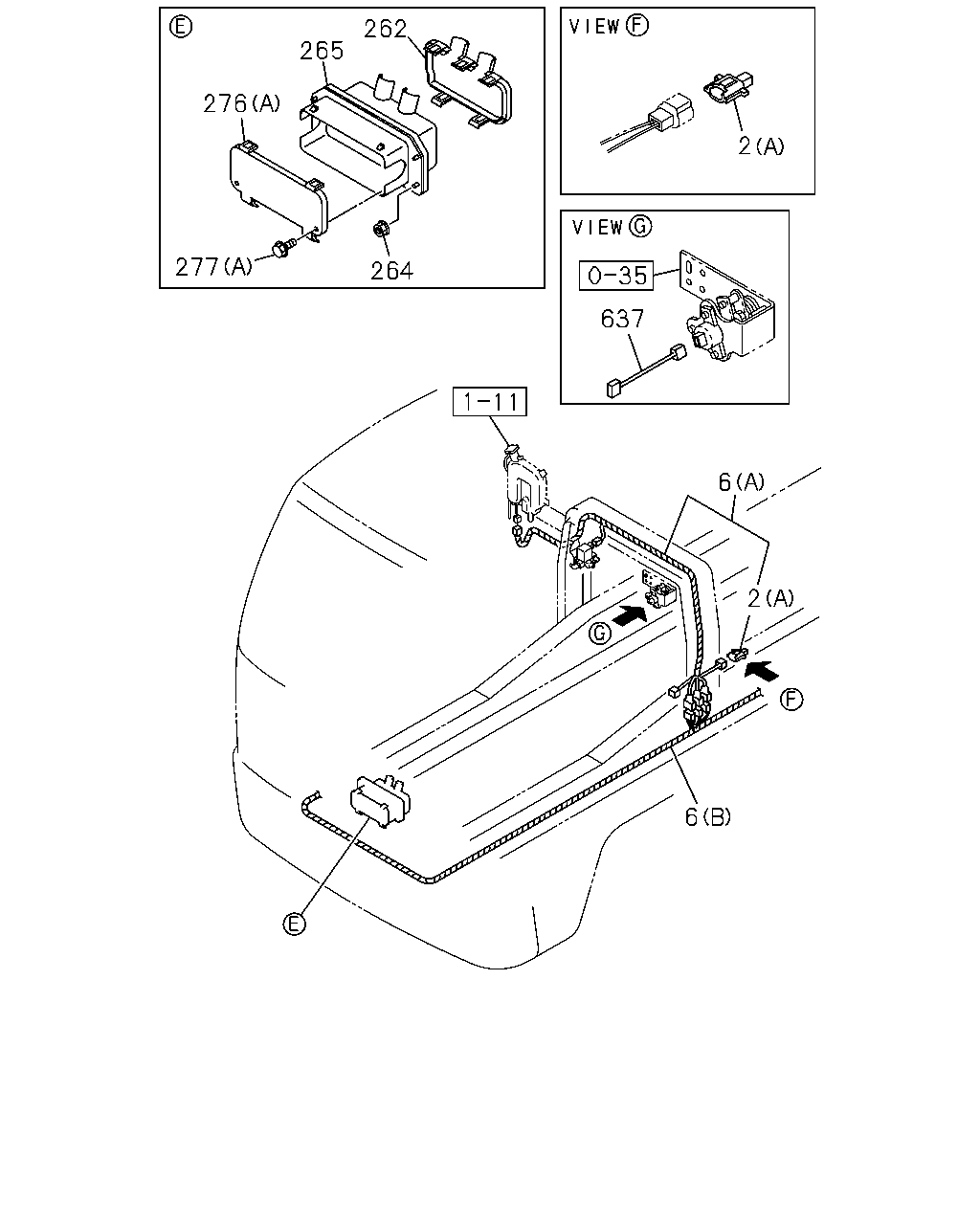

262 265 276 277 264 637 6 2 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS (A) GRAY 2P-1.3A	1-81514-015-0	AR	1	0105-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0105-
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME	1-82674-999-0	01	1	0105-0108
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME	1-82675-040-1	01	1	0109-0109
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME	1-82675-563-2	01	1	0110-
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-998-0	01	1	0105-0108
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82675-039-1	01	1	0109-0109
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82675-562-2	01	1	0110-
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME	1-82674-996-0	01	1	0105-0108
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME	1-82675-037-1	01	1	0109-0109
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME	1-82675-560-2	01	1	0110-
6	HARNESS; FRAME AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER	1-82674-842-2	01	1	0105-
6	HARNESS; FRAME AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-841-2	01	1	0105-
6	HARNESS; FRAME EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER	1-82674-840-2	01	1	0105-
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME	1-82674-997-0	01	1	0105-0108
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME	1-82675-038-1	01	1	0109-0109
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME	1-82675-561-2	01	1	0110-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0105-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0105-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0105-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0105-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0105-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0105-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0105-
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-82675-934-0	01	1	0207-
