6-01 — FRONT BUMPER (#1118) — 112 parça

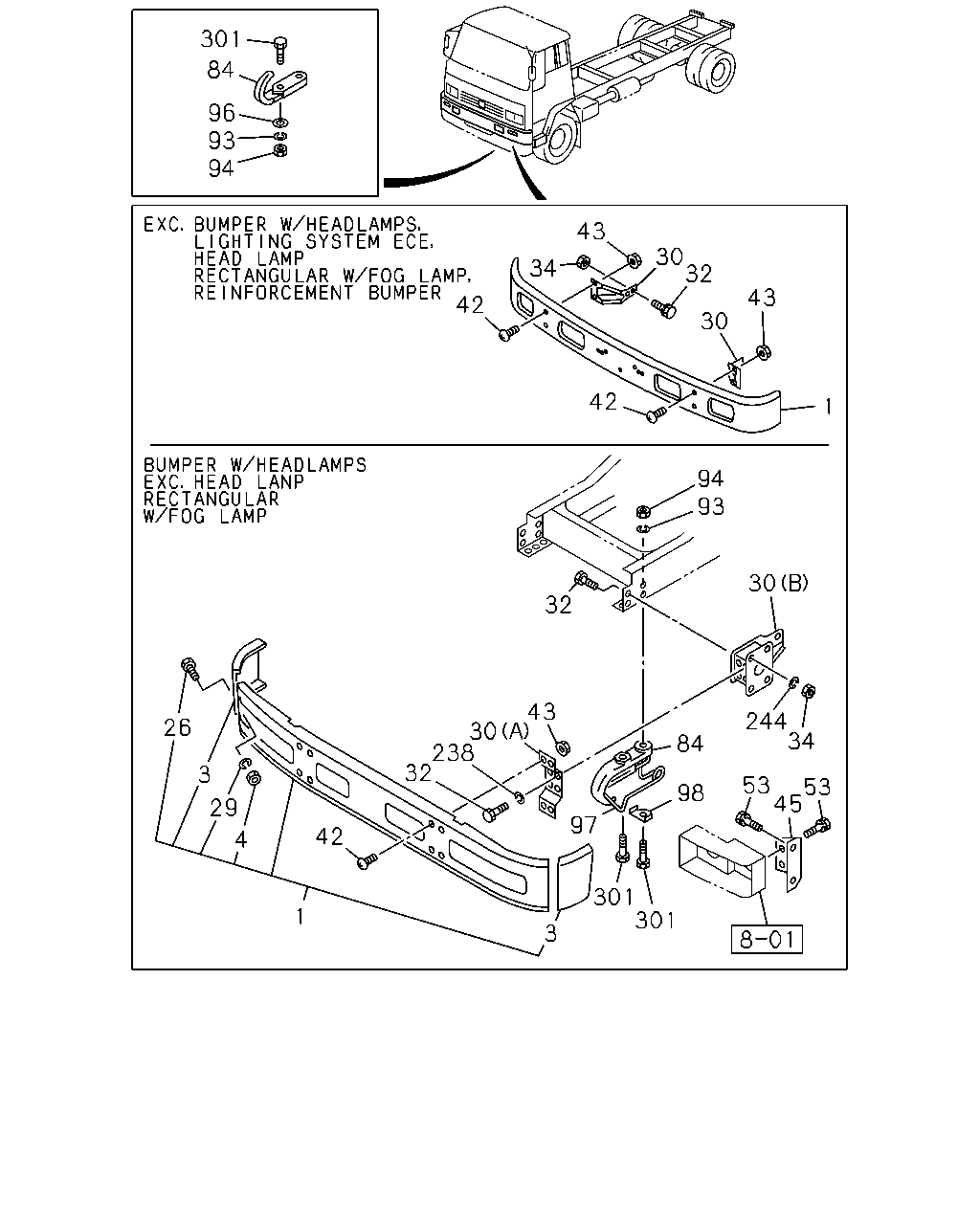

301 84 96 93 94 42 34 43 30 32 43 30 42 94 1 93 32 30 244 34 53 45 53 84 98 97 301 301 3 1 43 30 238 32 42 4 29 3 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-502-2	01	1	9202-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9202-	●	●
1	BUMPER ASM; FRT LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-655-0	01	1	9407-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-299-4	01	1	9202-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-344-1	01	1	9308-		●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-496-0	01	1	9202-	●	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-495-0	01	1	9202-	●	●
4	NUT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8 FLANGE	0-91150-108-0	06	1	9202-	●	●
26	BOLT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09060-008-0	06	1	9202-	●	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	06	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-193-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-194-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9202-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9202-9205	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30	0-20801-030-0	08	1	9206-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9202-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	03	1	9202-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	08	1	9202-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9202-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	03	1	9202-	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9202-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9202-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9202-	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9202-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9202-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9202-	●	●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-211-1	02	1	9202-	●	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M14X40	0-20801-440-0	08	1	9202-	●	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M10X20 W/LK&PL WASHER	0-50141-020-0	08	1	9202-	●	●
84	HOOK	1-57181-027-1	01	1	9202-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9202-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9202-	●	●
96	PLATE; DIST,HOOK EXC. BUMPER W/HEADLAMPS<SLB>	9-09857-022-0	01	1	9202-	●	●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9202-	●	●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9202-	●	●
238	WASHER; LK,BUMPER BRKT BUMPER W/HEADLAMPS<SLB> ID=10.2	9-09150-510-0	08	1	9206-	●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	03	1	9202-	●	●
244	WASHER; LK,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> ID=14.2	9-09150-514-0	08	1	9202-	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	9202-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9202-	●	●

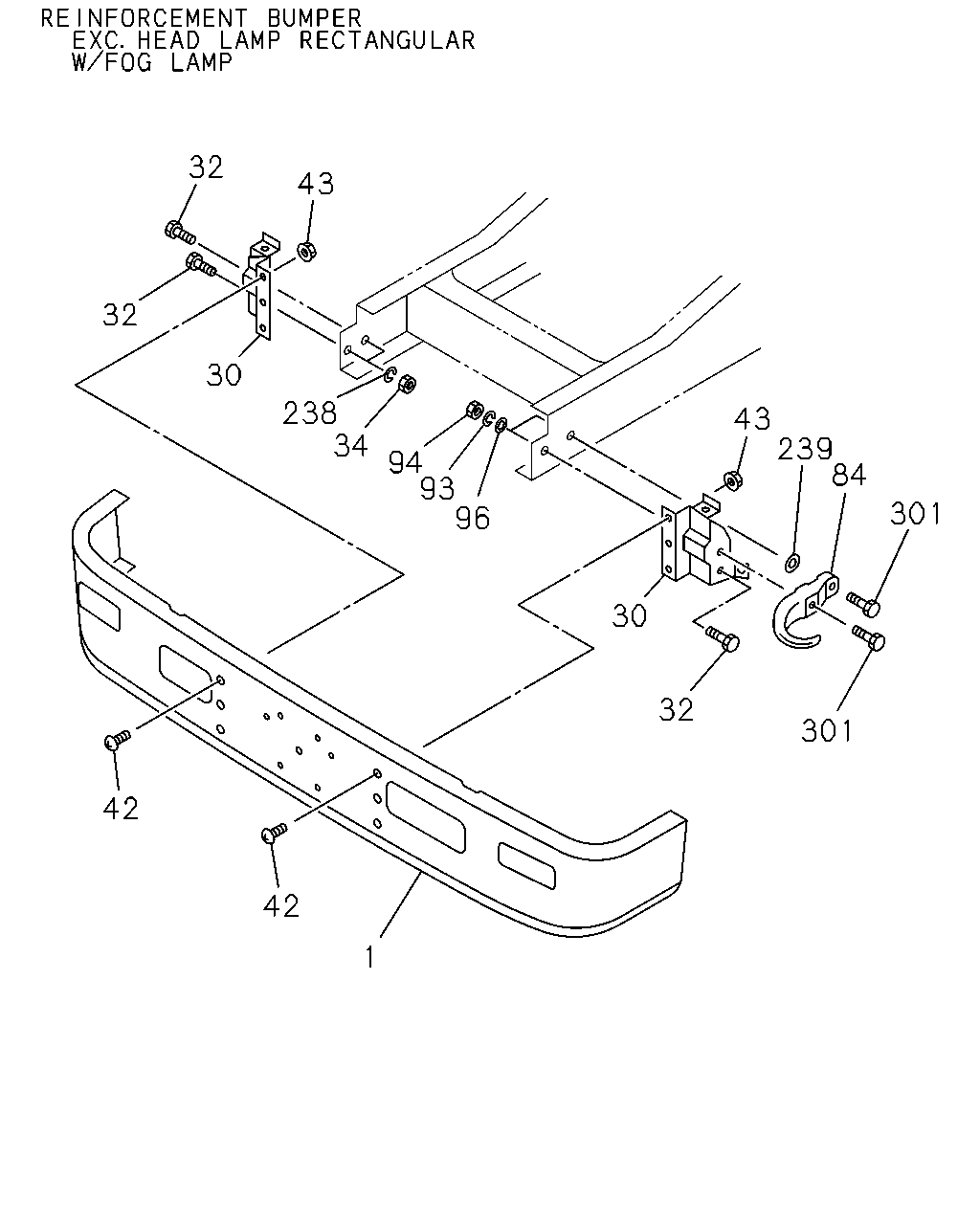

43 32 32 30 238 34 94 93 96 30 32 301 301 84 239 43 1 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-502-2	01	1	9202-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9202-	●	●
1	BUMPER ASM; FRT LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-655-0	01	1	9407-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-299-4	01	1	9202-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-344-1	01	1	9308-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-193-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-194-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9202-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9202-9205	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30	0-20801-030-0	08	1	9206-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9202-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	03	1	9202-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	08	1	9202-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9202-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	03	1	9202-	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9202-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9202-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9202-	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9202-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9202-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9202-	●	●
84	HOOK	1-57181-027-1	01	1	9202-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9202-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9202-	●	●
96	PLATE; DIST,HOOK EXC. BUMPER W/HEADLAMPS<SLB>	9-09857-022-0	01	1	9202-	●	●
238	WASHER; LK,BUMPER BRKT BUMPER W/HEADLAMPS<SLB> ID=10.2	9-09150-510-0	08	1	9206-	●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	03	1	9202-	●	●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9202-	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	9202-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9202-	●	●

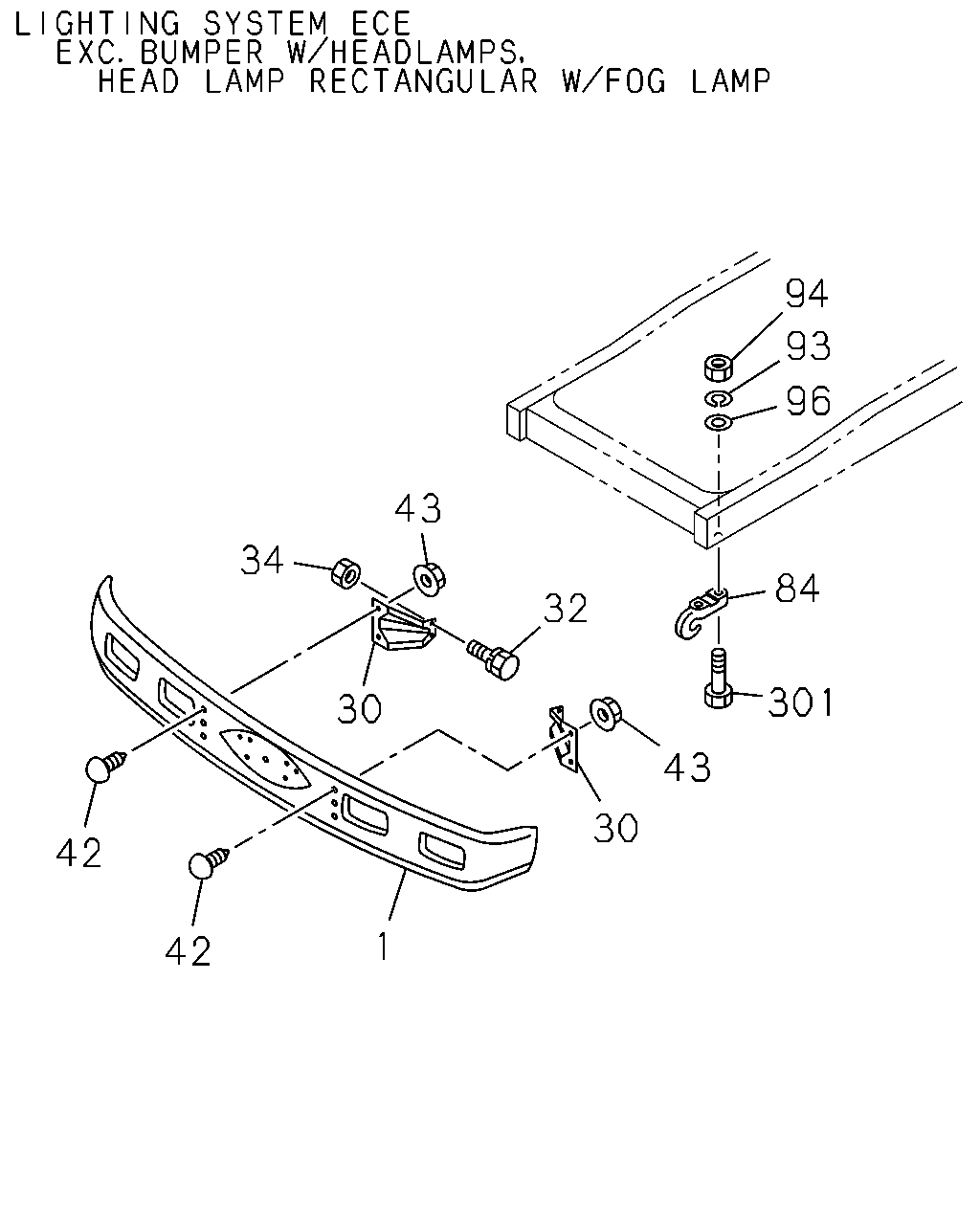

94 93 96 84 301 43 30 32 43 34 30 1 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-502-2	01	1	9202-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9202-	●	●
1	BUMPER ASM; FRT LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-655-0	01	1	9407-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-299-4	01	1	9202-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-344-1	01	1	9308-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-193-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-194-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9202-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9202-9205	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30	0-20801-030-0	08	1	9206-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9202-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	03	1	9202-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	08	1	9202-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9202-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	03	1	9202-	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9202-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9202-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9202-	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9202-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9202-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9202-	●	●
84	HOOK	1-57181-027-1	01	1	9202-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9202-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9202-	●	●
96	PLATE; DIST,HOOK EXC. BUMPER W/HEADLAMPS<SLB>	9-09857-022-0	01	1	9202-	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	9202-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9202-	●	●
