◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10868 - EXR LHD FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#11178) — 120 parça
çizim 78584
321 91 327 344 133 104 61 353 62 362 242 66 363 242 324 125 127 326 399 124 129
BalonParca AdiParca NoAdetTipApplied Date
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 		1-86830-247-2 01 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30/10W 		1-82194-065-0 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-297-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0105-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0105-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0105-
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0105-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0105-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0105-
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0105-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0105-0206
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0105-0207
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0208-
242 SCREW; CORNERING LAMP
EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 0105-0207
242 SCREW; CORNERING LAMP
EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 02 1 0208-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0105-
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0105-
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0105-
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0105-
353 LAMP ASM; STEP
EXC. CORNERING LAMP<TDS> 24V 5W 		1-86830-248-2 01 1 0105-
362 BULB; STEP LAMP
EXC. CORNERING LAMP<TDS> 24V 5W 		1-82194-042-0 01 1 0105-
363 HARNESS; STEP LAMP
EXC. CORNERING LAMP<TDS> 		1-86830-296-0 01 1 0105-
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0105-
çizim 78790
256 84 325 83 80 325 185 256 84 83 325 325 185 328 325 185
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 24V 12W 		9-82691-302-0 03 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> 		1-86830-320-0 03 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> 		1-86830-321-0 03 1 0105-
83 LENS; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> 		1-82215-068-0 03 1 0105-
84 GASKET; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> 		1-86830-153-0 03 1 0105-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> 		1-86830-153-0 03 1 0105-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0105-
256 LAMP; MARKER
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> 		1-82210-229-0 03 1 0105-
256 LAMP; MARKER
HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> 		1-82210-230-0 03 1 0105-
256 LAMP; MARKER
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> 		1-86830-170-0 03 1 0105-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105-
325 SCREW; SPD INDICATOR LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105-
325 SCREW; SPD INDICATOR LAMP
EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> M5X14 TAPPING 		9-07066-514-0 12 1 0105-
328 COVER; LAMP
EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> 		1-76217-122-1 03 1 0105-

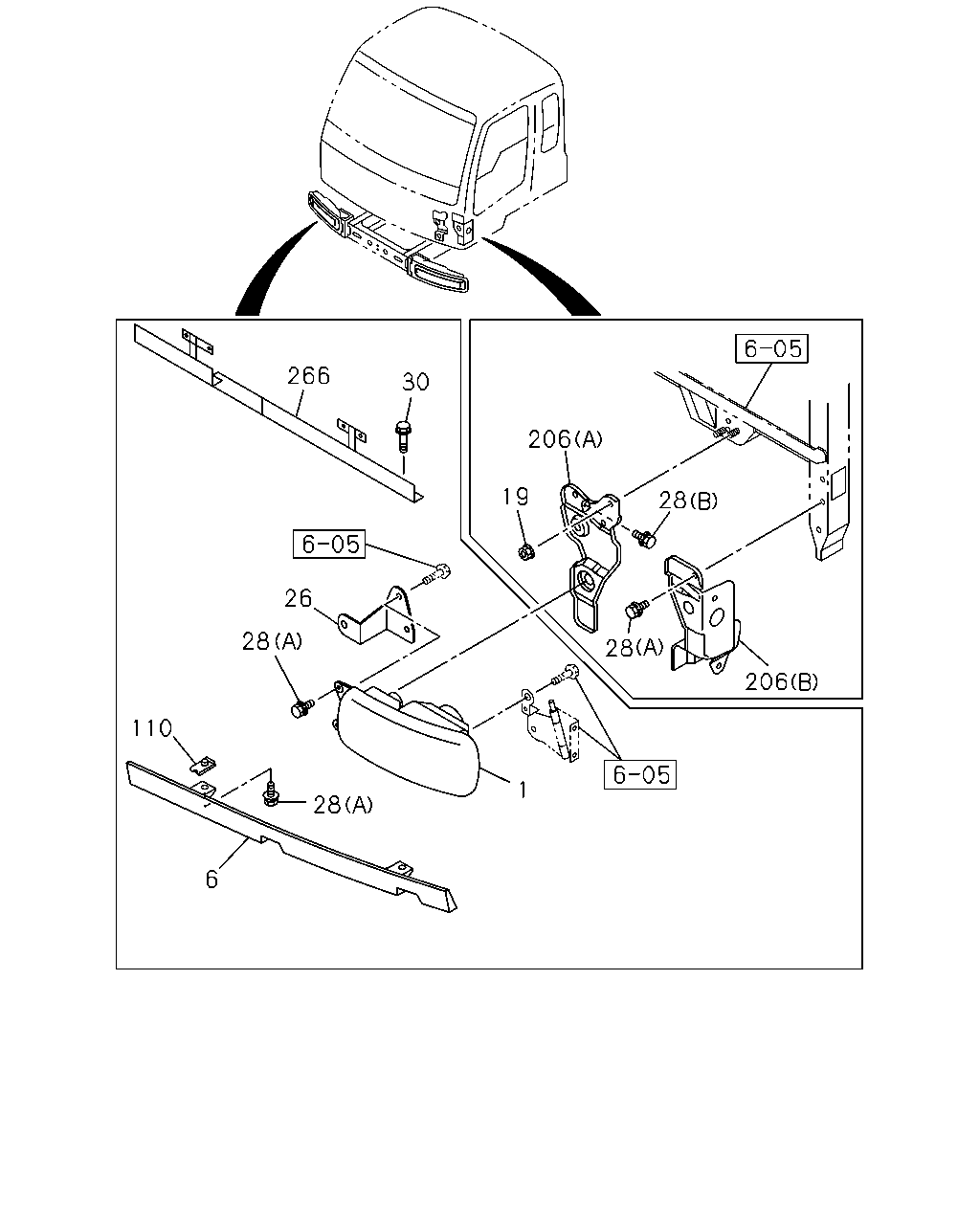

çizim 79451
266 30 19 26 28 110 1 6 206 206 28 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-400-2 01 1 0105-
1 LAMP ASM; HEAD 1-82110-399-2 01 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-024-0 01 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-023-0 01 1 0105-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-085-0 01 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-084-0 01 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
30 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 04 1 0105-
110 CLIP; RIM,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-213-0 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
266 STAY; BRKT,HEADLAMP 1-82117-128-1 01 1 0105-
çizim 79486
1 12 14 15 23 5 340 4 13 211 13 211 13 18 202
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-400-2 01 1 0105-
1 LAMP ASM; HEAD 1-82110-399-2 01 1 0105-
4 HEADLAMP UNIT 1-82119-133-0 01 1 0105-
4 HEADLAMP UNIT 1-82119-132-0 01 1 0105-
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0105-
12 HARNESS; HEADLAMP 1-82118-012-0 02 1 0105-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0105-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0105-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0105-
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0105-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0105-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0105-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0105-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0105-

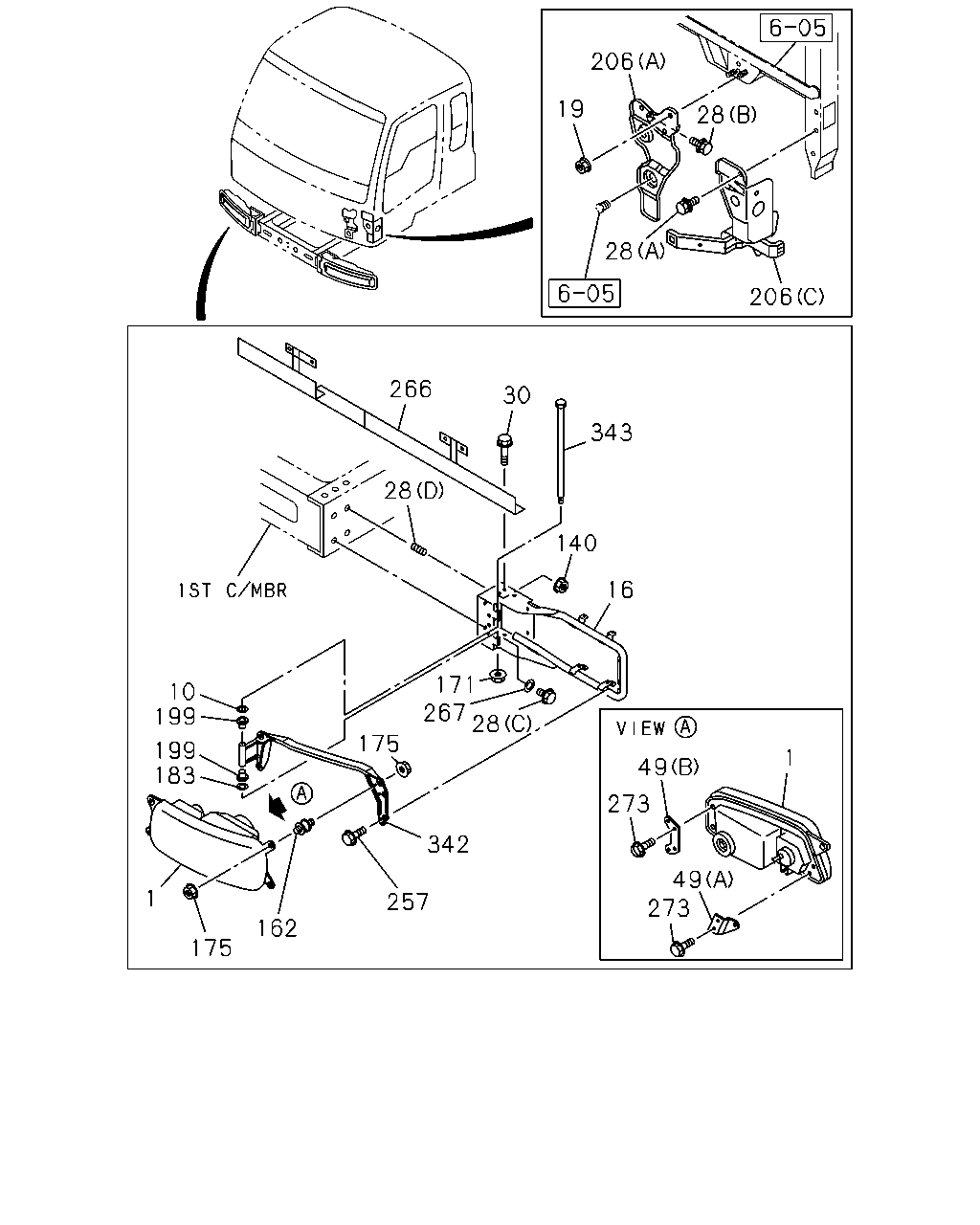

çizim 79490
206 19 28 28 206 266 30 343 28 140 16 171 267 28 10 199 175 199 183 1 49 273 342 49 273 1 257 162 175
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-400-2 01 1 0105-
1 LAMP ASM; HEAD 1-82110-399-2 01 1 0105-
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> ID=8.4 		9-09160-508-0 02 1 0105-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-120-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-119-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-155-2 02 1 0207-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
30 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 04 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-100-0 02 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-102-0 01 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-101-0 01 1 0105-
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91150-210-0 02 1 0105-
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 0105-
171 NUT
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91150-106-0 02 1 0105-
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0105-
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> ID=8.5 		9-09855-333-0 02 1 0105-
199 BUSHING
BUMPER W/HEADLAMPS<SLB> 		5-15549-001-1 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE 		0-28080-820-0 04 1 0105-
266 STAY; BRKT,HEADLAMP 1-82117-128-1 01 1 0105-
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22 		9-09164-610-0 04 1 0207-
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28680-616-0 08 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-087-2 01 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-088-2 01 1 0105-
343 SHAFT; HINGE
BUMPER W/HEADLAMPS<SLB> 		1-82119-096-1 02 1 0105-
