◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10868 - EXR LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#11176) — 14 parça

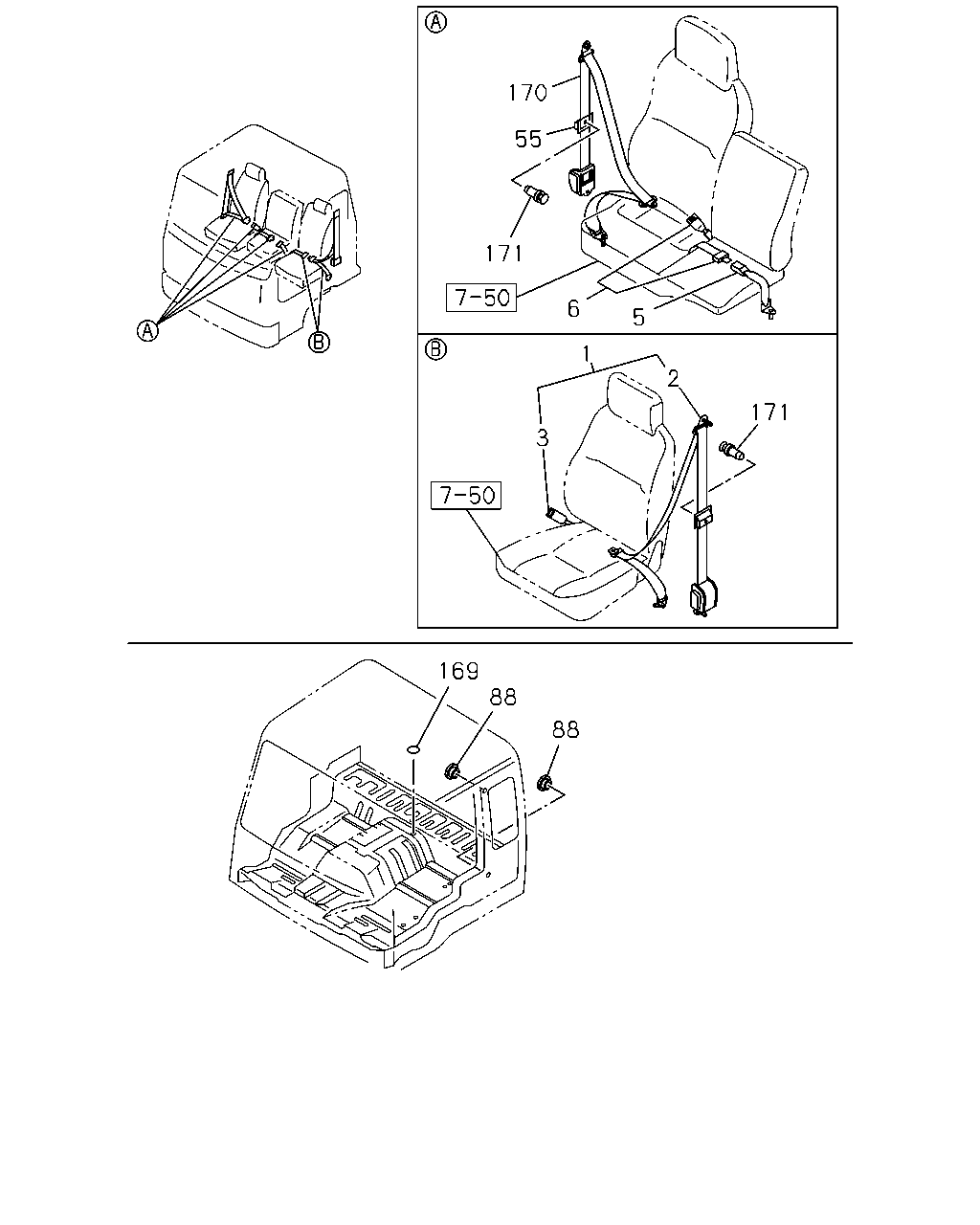

çizim 19020
170 55 171 6 5 1 2 171 3 169 88 88
BalonParca AdiParca NoAdetTipApplied Date
1 BELT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-575-0 01 1 0105-0111
1 BELT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-578-0 01 1 0112-
2 BELT; SEAT,TONGUE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-576-0 01 1 0105-0111
2 BELT; SEAT,TONGUE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-580-0 01 1 0112-
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-909-5 01 1 0105-
3 BELT; SEAT,BUCKLE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-544-0 01 1 0105-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-914-0 01 1 0105-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-553-1 01 1 0105-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-915-3 01 1 0105-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-556-0 02 1 0105-
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 0105-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) OD=25 BLACK 		1-76798-019-0 05 1 0105-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-912-5 01 1 0105-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
