7-50 — FRONT SEAT (#11175) — 158 parça

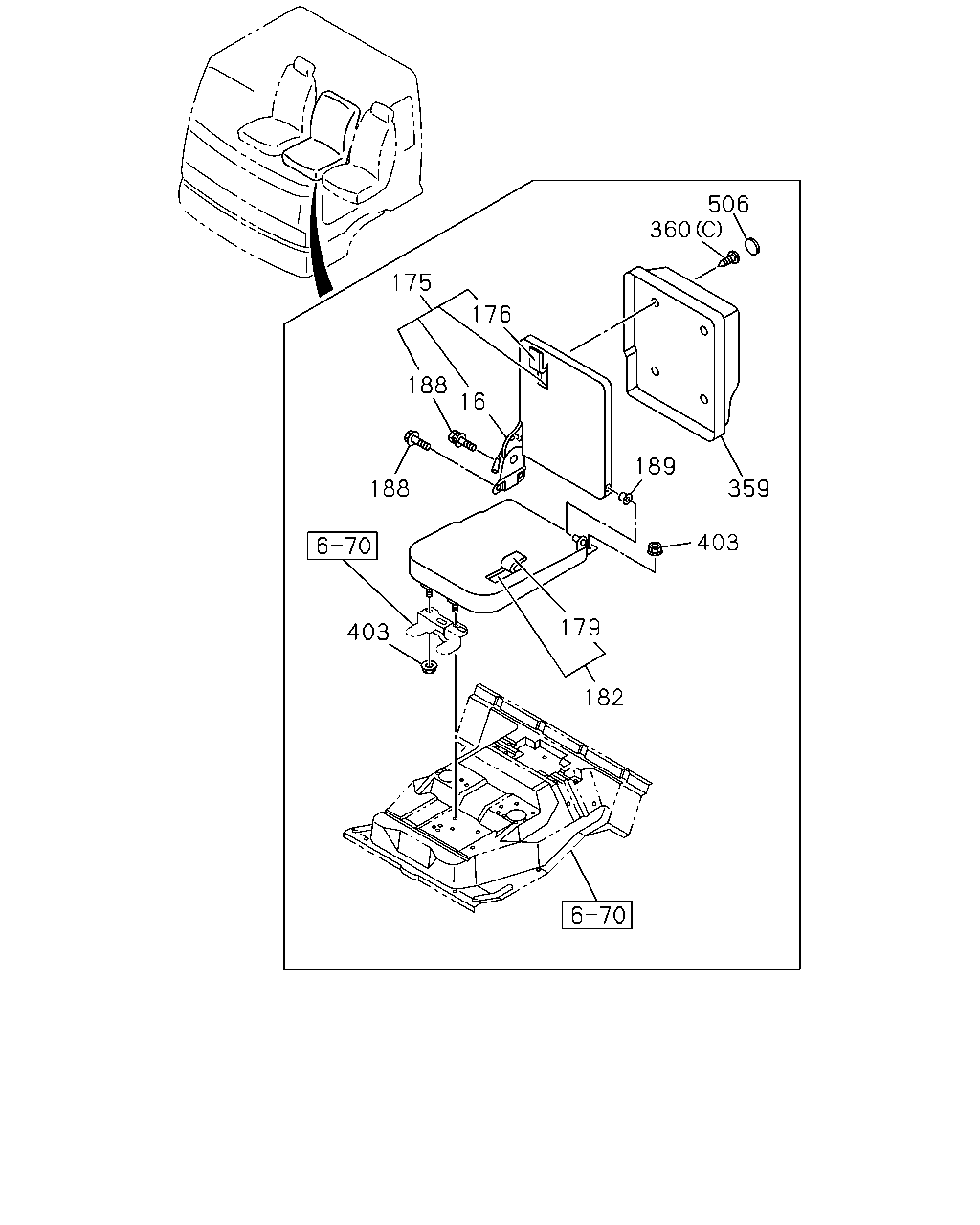

506 360 175 176 188 16 189 359 188 403 179 403 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-258-2	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-856-2	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-078-1	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-710-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75127-073-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-127-1	01	1	0105-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-305-2	01	1	0105-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-009-2	01	1	0105-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0105-
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0105-
359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211
359	BOX; PARCEL	1-72538-275-3	01	1	0212-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0310
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0105-0312
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-
506	CAP; PARCEL BOX	1-09983-164-0	04	1	0105-0211
506	CAP; PARCEL BOX	1-09983-180-2	04	1	0212-

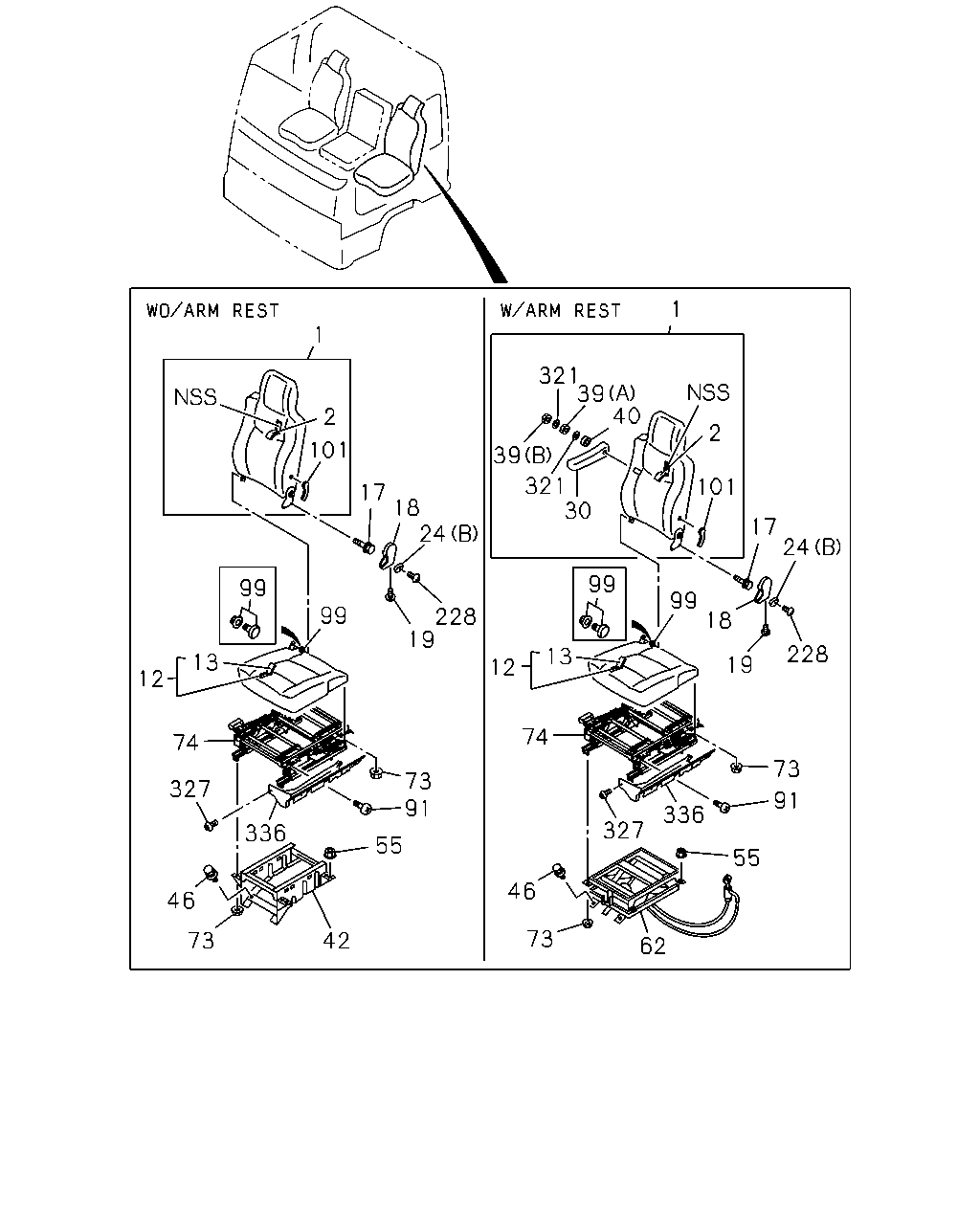

1 1 321 39 40 2 2 101 101 39 321 30 17 18 24 17 24 99 99 99 99 228 19 18 228 13 13 19 12 12 74 74 73 73 91 327 91 336 327 336 55 55 46 46 73 73 42 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-291-3	01	1	0105-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-290-3	01	1	0105-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-289-3	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-117-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-116-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-115-1	01	1	0105-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75207-288-2	01	1	0105-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-006-2	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-114-1	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-104-1	01	1	0105-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0105-
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0105-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0105-
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-120-1	01	1	0105-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0105-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0105-
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0105-
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0105-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-1	01	1	0105-
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0105-
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	0105-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0105-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0105-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0105-
327	CLIP; COVER	1-09987-273-0	01	1	0105-
336	COVER; DRIVER SEAT	1-75518-313-0	01	1	0105-

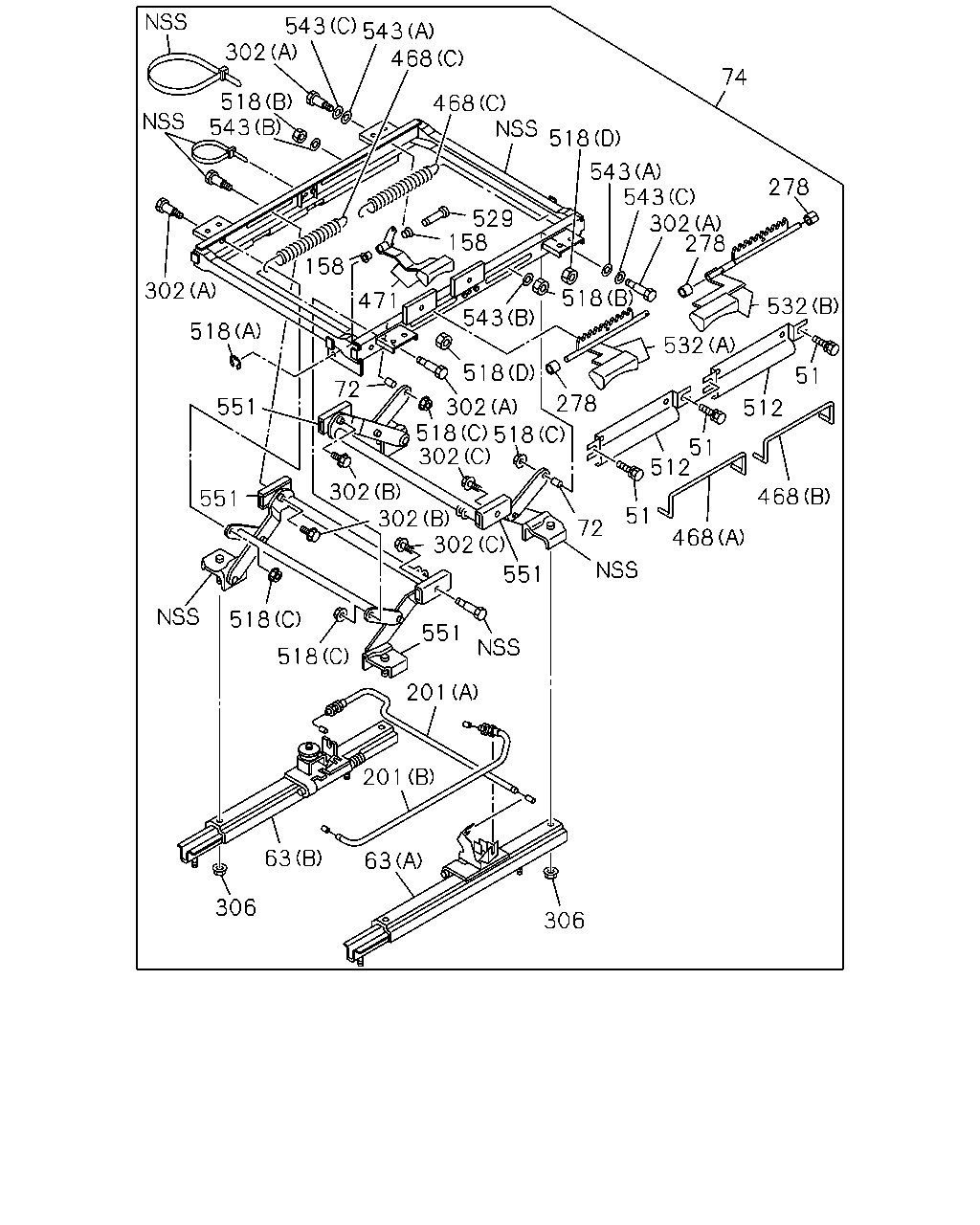

543 543 302 468 74 518 543 468 518 543 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	0105-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-324-0	01	1	0105-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0105-
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	0105-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-1	01	1	0105-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0105-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0105-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0105-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	0105-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	0105-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	0105-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	0105-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	06	1	0105-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0105-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0105-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0105-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0105-
512	COVER; LEVER	1-75518-245-1	02	1	0105-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0105-
518	NUT; TILT ADJ (B)	1-75518-264-0	04	1	0105-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-
518	NUT; TILT ADJ (C) M8 FLANGE	8-94152-886-0	04	1	0105-
529	PIN; LINK	1-75518-262-0	01	1	0105-
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	0105-
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	0105-
543	WASHER; HEIGHT ADJUSTER (C)	1-75518-335-0	02	1	0105-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-337-0	02	1	0105-0406
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	0105-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	0105-

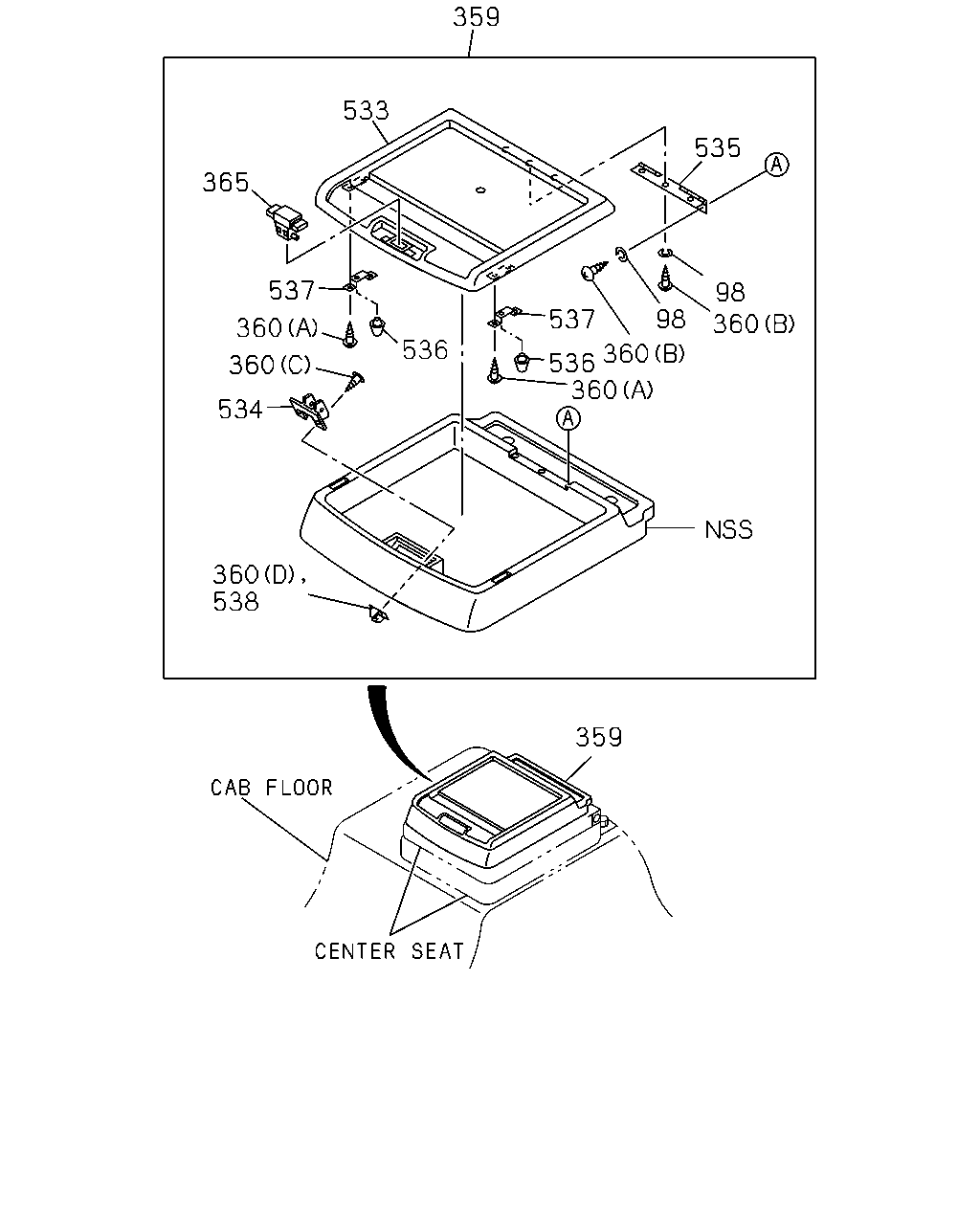

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0105-0211
359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211
359	BOX; PARCEL	1-72538-275-3	01	1	0212-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0310
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0105-
533	LID; PARCEL BOX	1-72538-194-2	01	1	0105-0211
533	LID; PARCEL BOX	1-72538-277-0	01	1	0212-
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	0105-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0105-
536	RUBBER; CUSHION	5-09983-002-1	02	1	0105-
537	BRACKET; RUBBER	1-72548-057-1	02	1	0105-
538	GROMMET; SCREW	1-09983-165-0	02	1	0311-

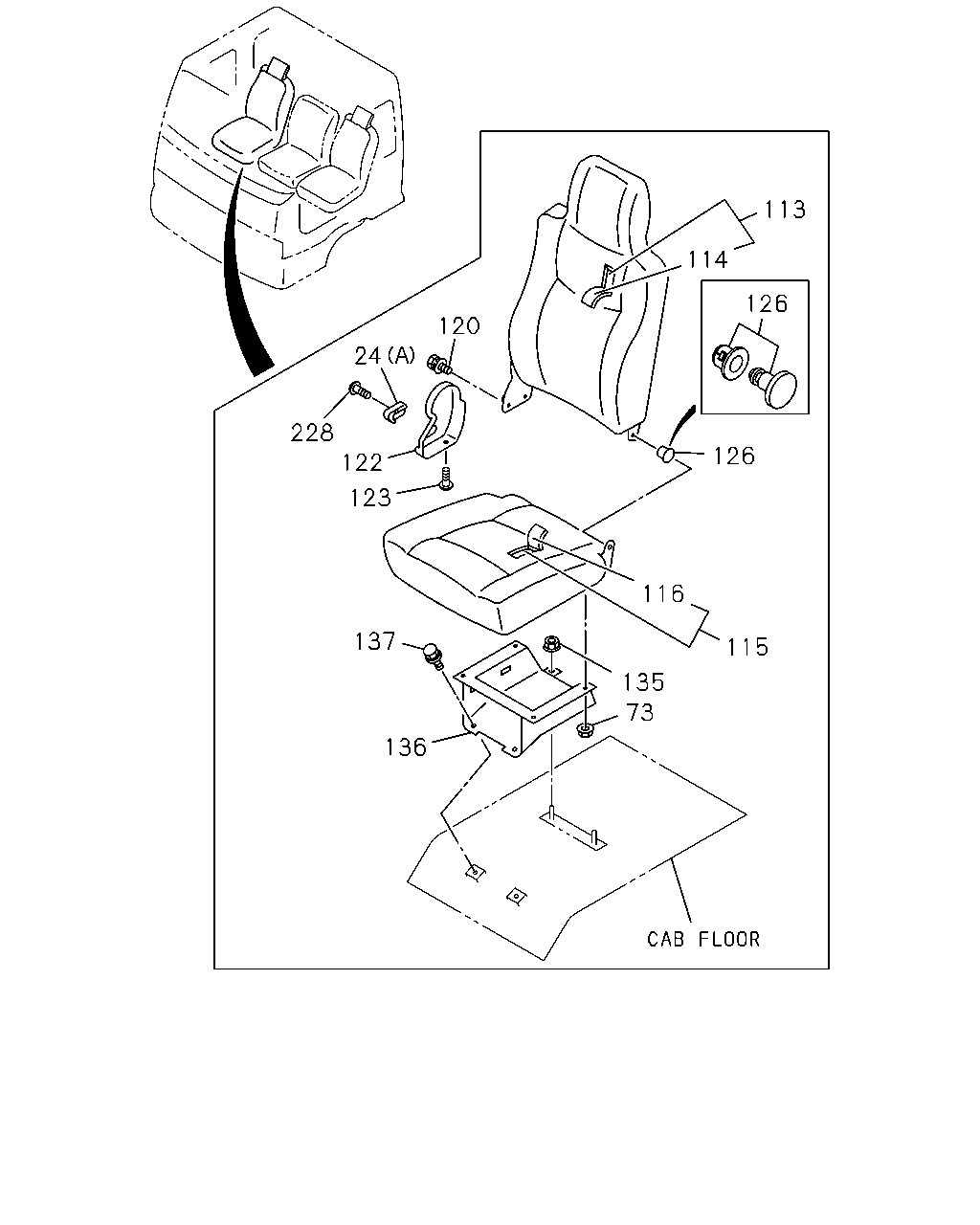

113 114 126 120 24 228 126 122 123 116 137 115 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-301-4	01	1	0105-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-728-0	01	1	0105-0105
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75208-067-3	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-125-1	01	1	0105-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-702-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-298-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-367-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-122-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-133-1	01	1	0105-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0105-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0105-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0105-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0105-
136	STAND; PASSENGER SEAT	1-75557-493-1	01	1	0105-0212
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0301-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0105-

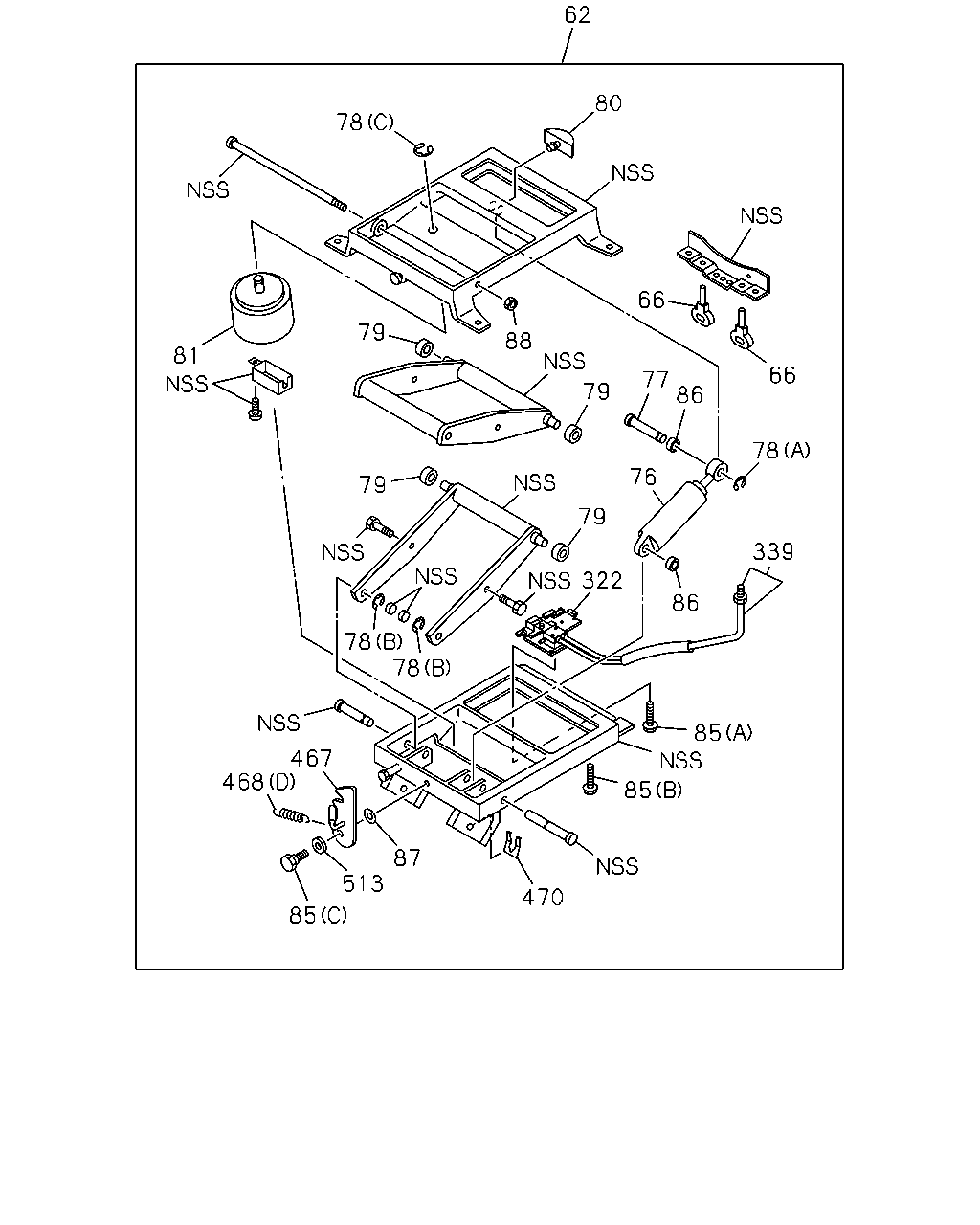

62 80 78 66 79 88 81 66 77 86 79 78 76 79 79 339 322 86 78 78 85 467 468 85 87 513 470 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0105-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0105-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0105-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0105-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0105-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0105-0406
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0105-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0105-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0105-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0105-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0105-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0105-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	0105-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	0105-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0105-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0105-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0105-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0105-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0105-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0105-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0105-
