◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10868 - EXR LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#11172) — 107 parça

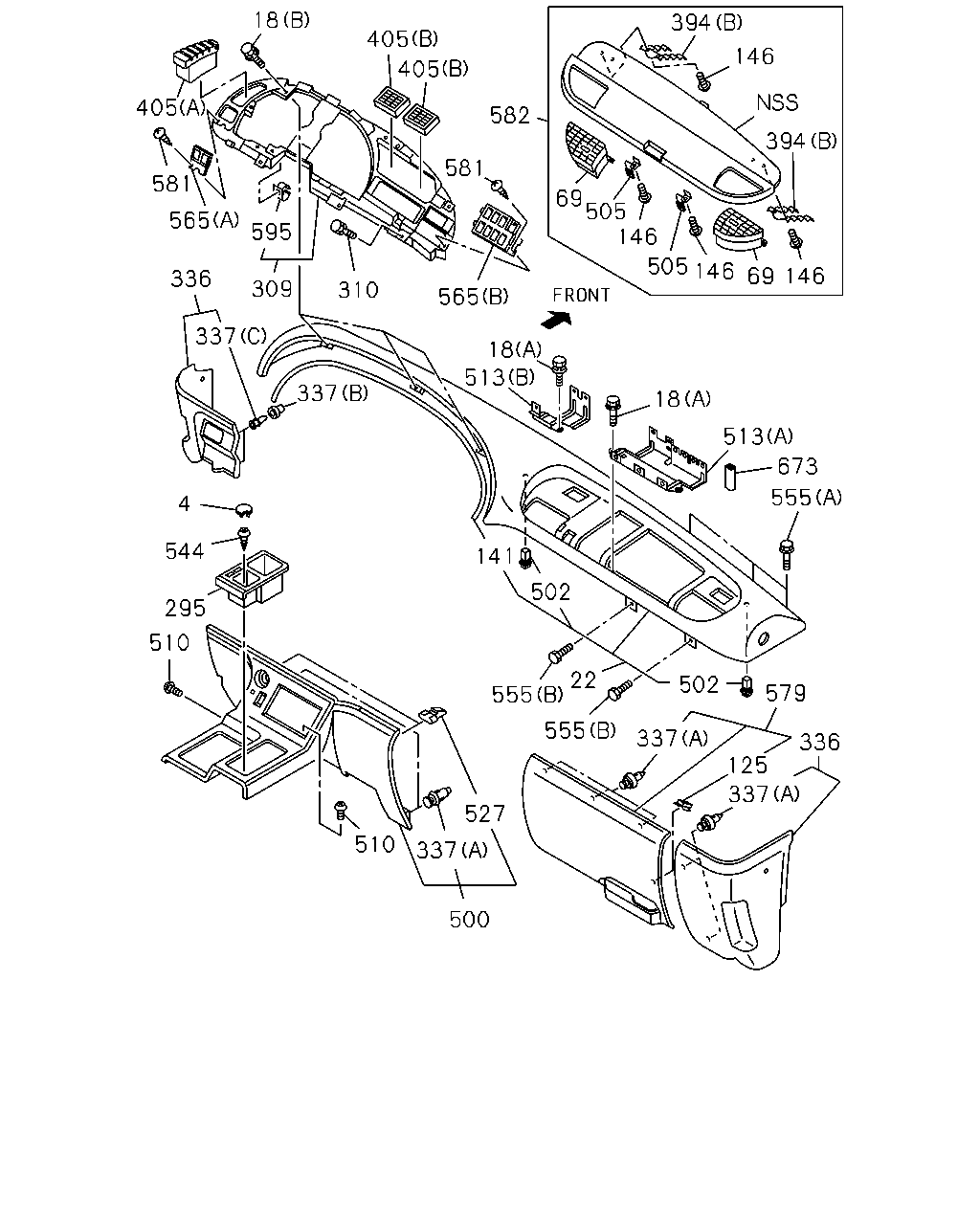

çizim 19021
18 394 146 405 582 394 581 581 69 505 146 565 595 505 146 146 69 336 309 310 337 18 337 18 513 673 555 4 544 141 502 295 510 22 555 502 579 555 337 336 125 337 527 510 337 500 405 405 565 513
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
18 BOLT; BRKT
DELUXE CAB(W14) EXC. ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
22 PAD; INST 1-72317-351-2 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0105-
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0105-0309
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0406-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0105-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0105-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0105-
309 PANEL; SW,INST 1-72418-018-3 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0105-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0105-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 0105-
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 0105-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 0105-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0105-
505 LOCK; LID 1-72558-024-2 02 1 0105-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0105-
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 0105-
513 BRACKET; RELAY
DELUXE CAB(W14) EXC. ZF M/T<X9E> (B) 		1-73907-327-3 01 1 0105-
513 BRACKET; RELAY
ZF M/T<X9E> (B) 		1-73907-327-3 01 1 0105-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0105-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0105-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 0105-
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 0105-
579 COVER; INST PNL 1-72438-195-1 01 1 0105-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0105-
595 NUT; HOOK 1-72418-013-0 10 1 0105-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0105-

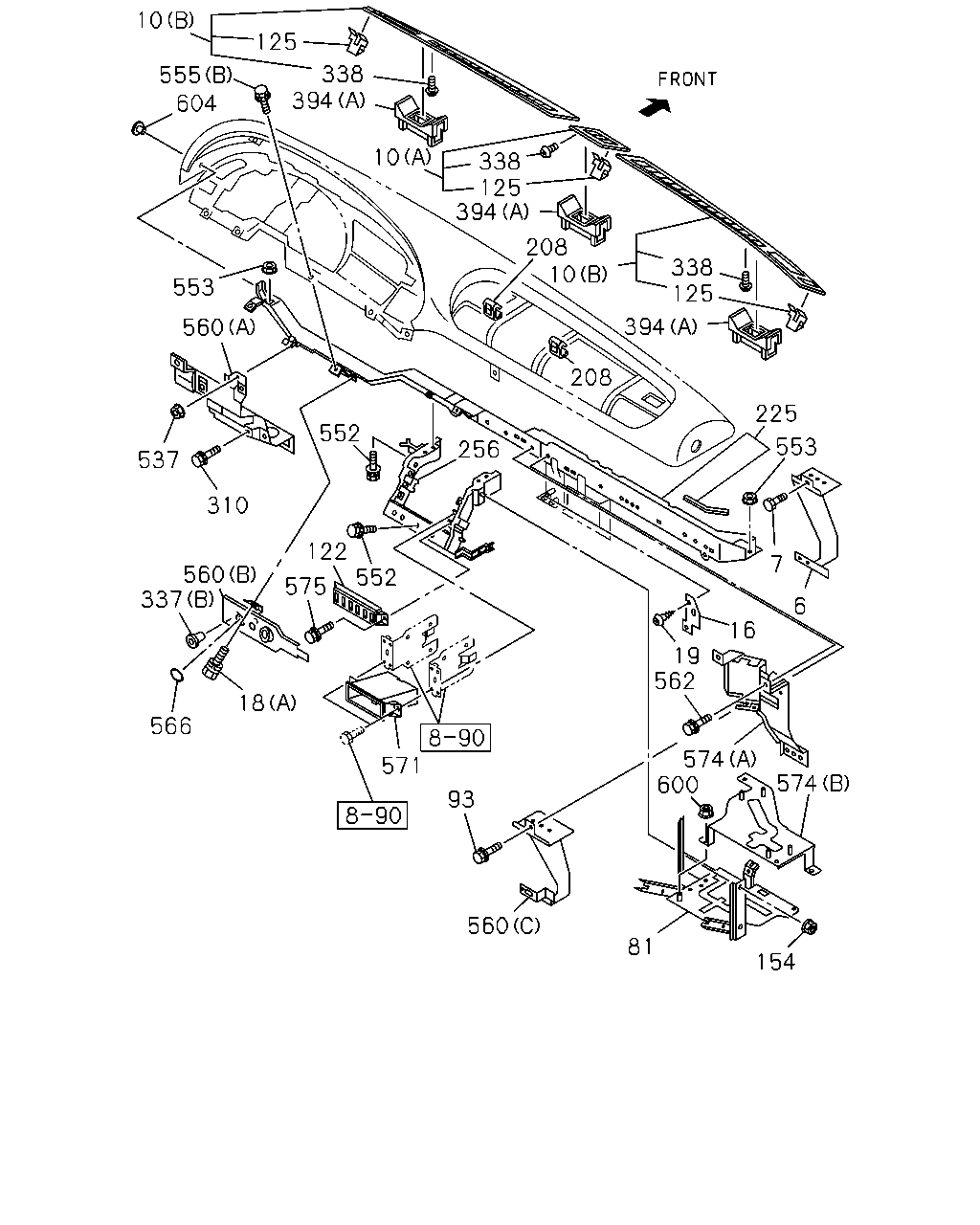

çizim 19907
10 125 338 394 555 604 10 338 125 394 208 10 338 125 553 394 560 208 225 552 256 553 537 310 122 552 575 7 560 337 6 16 19 562 18 566 574 600 571 574 93 560 81 154
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 0105-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 0105-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-72437-540-6 01 1 0105-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0105-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0105-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 0105-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0105-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0105-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
18 BOLT; BRKT
DELUXE CAB(W14) EXC. ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0105-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 0105-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0105-
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0105-0309
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0406-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0105-
225 FRAME; FACIA 1-65671-727-5 01 1 0105-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0105-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 12 1 0105-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 12 1 0406-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0105-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
560 BRACKET
(A) 		1-65681-045-6 01 1 0105-
560 BRACKET
(B) 		1-65681-160-0 01 1 0105-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 0105-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0105-
571 BEZEL; POCKET 1-72438-151-3 01 1 0105-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0105-
574 PANEL; RELAY BOX
(A) 		1-73907-407-3 01 1 0105-
574 PANEL; RELAY BOX
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-73907-647-3 01 1 0105-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
600 NUT; PANEL
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 03 1 0105-
604 CLIP; INST PAD 1-09983-123-0 01 1 0105-
çizim 78026
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
18 BOLT; BRKT
DELUXE CAB(W14) EXC. ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0105-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0105-
