◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10630 - FVR-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#1117) — 10 parça

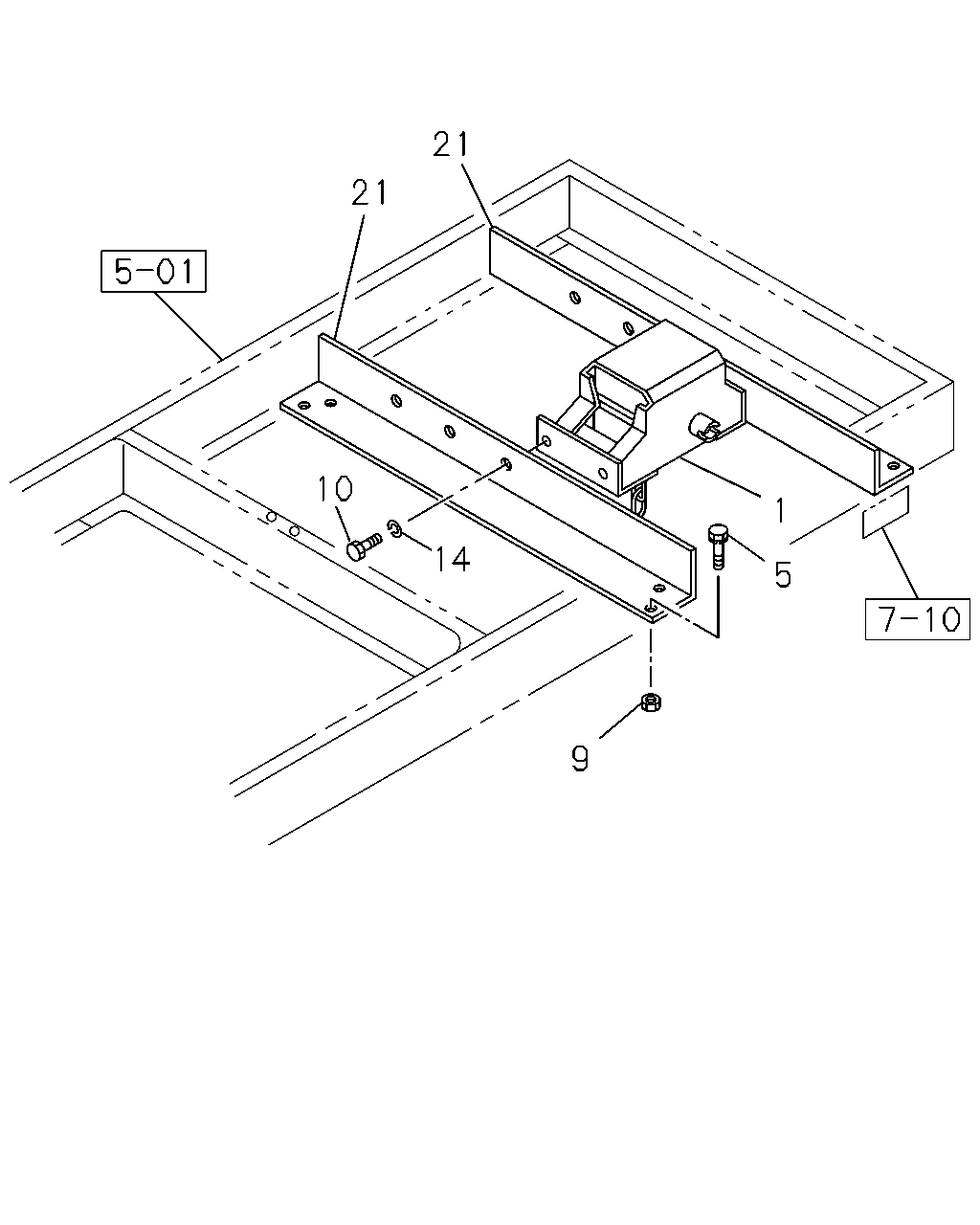

çizim 92232
21 21 10 14 9 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
HEAVY DUTY PACKAGE TRUCK<RD2> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-53630-195-2 01 1 9202-9401 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) ,HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53630-147-2 01 1 9202- ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53630-146-1 01 1 9202- ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) HEAVY DUTY PACKAGE TRUCK<RD2> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-162-1 01 1 9202-9401 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 W/LK&PL WASHER 		0-50141-030-0 08 1 9202-9501 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9502- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9202- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9202- ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> ID=16.2 		9-09150-516-0 04 1 9202- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-209-2 02 1 9202- ● ●
