11475 - FRR-L EURO5 EXC.SPAC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

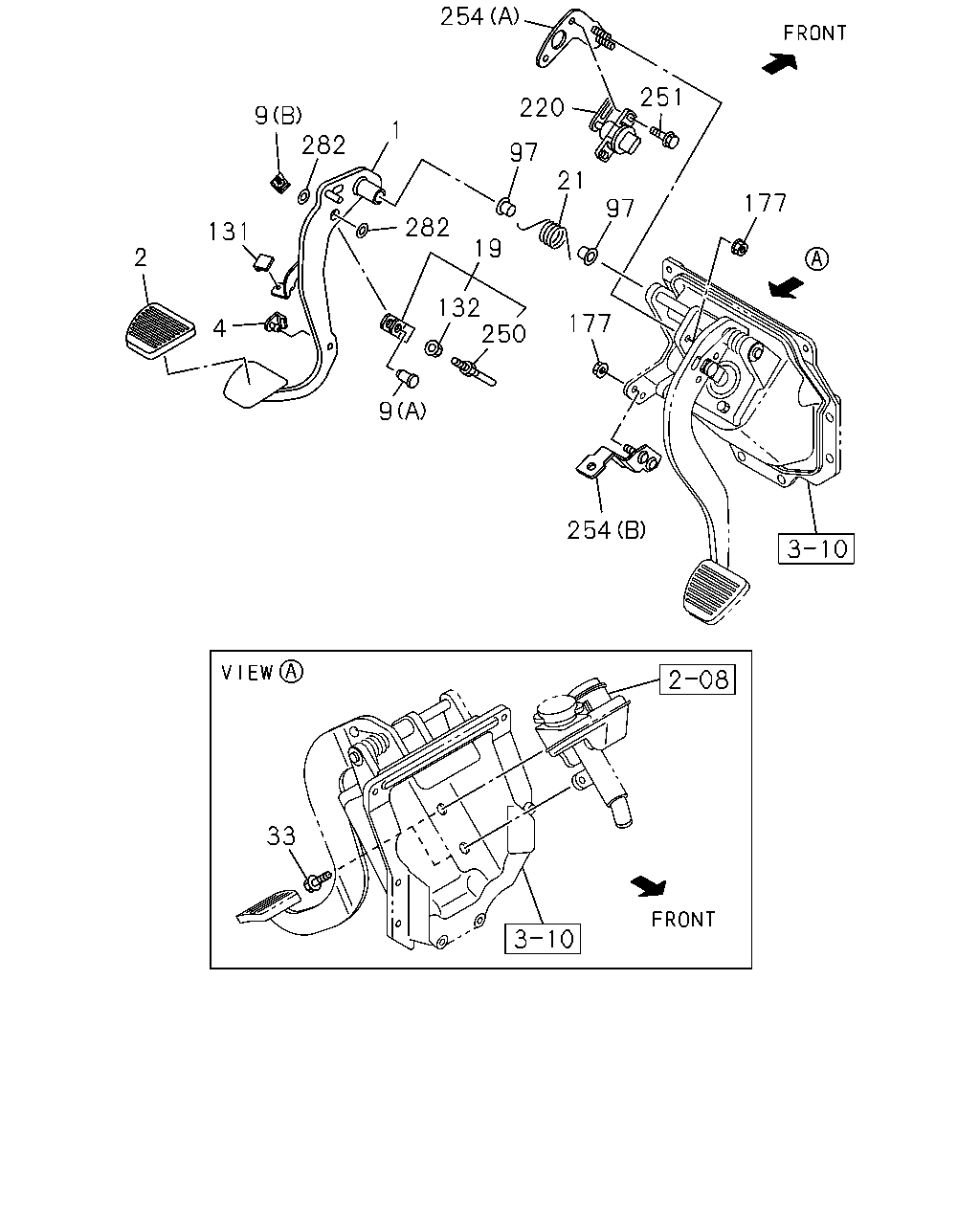

2-03 — CLUTCH PEDAL AND CONTROL
(#111615) — 20 parça
254
220
251
97
21
97
177
177
254
33
9
250
132
19
282
282
1
9
131
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP>
8-98064-603-1
01
1
1212-
1
PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>
8-98064-605-1
01
1
1212-
2
COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98056-865-0
01
1
1212-
4
STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98079-251-0
01
1
1212-
9
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98007-161-0
01
1
1212-
9
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98147-657-0
01
1
1212-
19
ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-406-1
01
1
1212-
21
SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-560-0
01
1
1212-
33
BOLT; CLU M/CYL TO BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12X20 FLANGE
0-28051-220-0
02
1
1212-
97
BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-94238-596-0
02
1
1212-
131
STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97302-305-0
01
1
1212-
132
NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
0-91180-108-0
01
1
1212-
177
NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
04
1
1212-
177
NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
02
1
1212-
220
SENSOR; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP>
1-80250-014-0
01
1
1212-
250
ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97615-589-0
01
1
1212-
251
BOLT; SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> M6X16
0-52000-616-0
02
1
1212-
254
BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98021-377-1
01
1
1212-
254
BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> (A)
8-98021-376-1
01
1
1212-
282
SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98070-329-0
02
1
1212-
