1-50 — EXHAUST PIPE AND SILENCER (#111601) — 211 parça

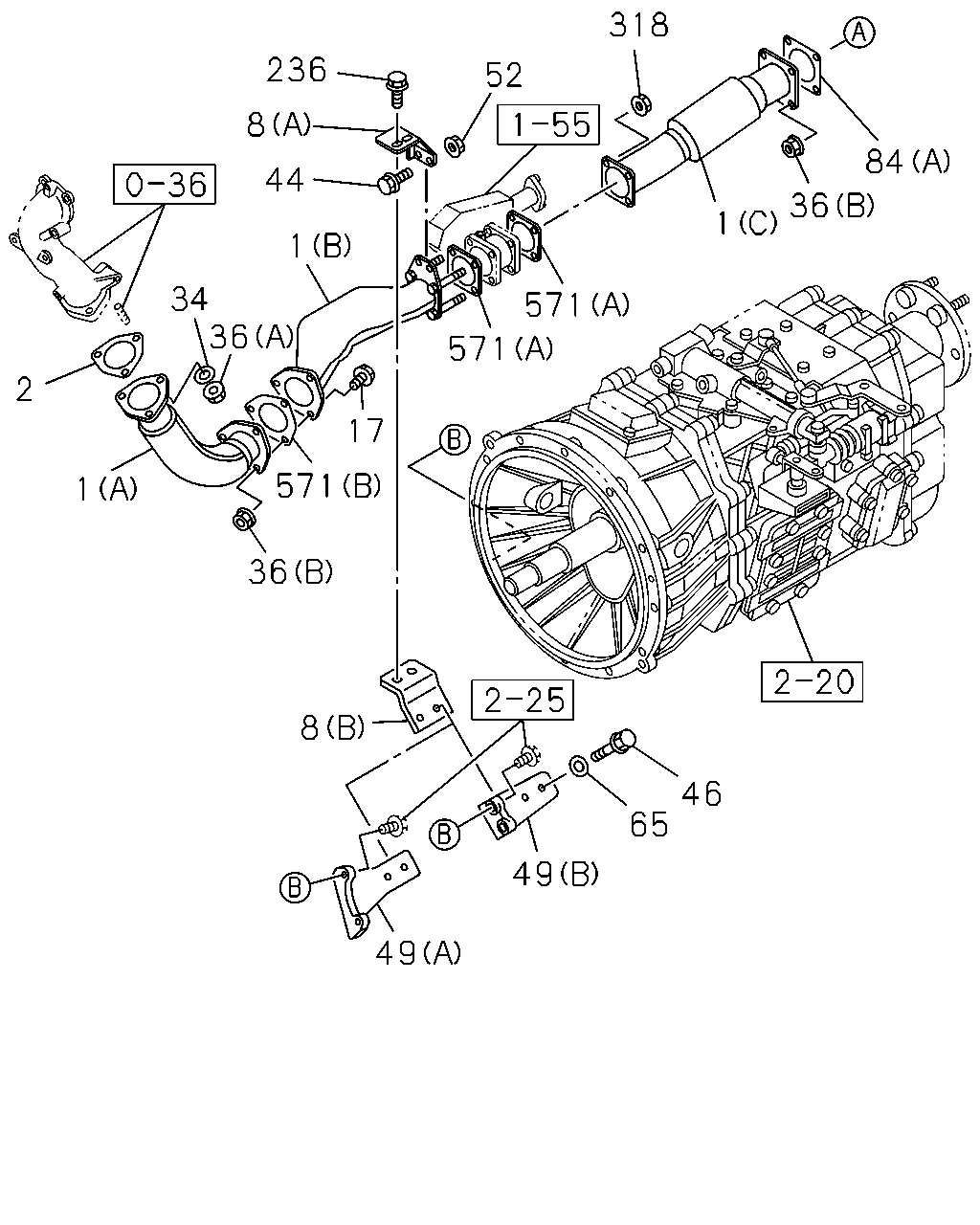

çizim 321231
2 1 34 36 236 8 44 1 17 571 36 8 49 49 65 46 571 571 1 36 84 318 52
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		1-22123-885-1 01 1 1212-
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1212-
1 PIPE; EXH
(B) 		8-98215-407-1 01 1 1212-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1212-
8 BRACKET; EXH PIPE
MLD6S M/T(X7W) (A) 		8-98113-013-0 01 1 1212-1301
8 BRACKET; EXH PIPE
MLD6S M/T(X7W) (B) 		8-98233-345-0 01 1 1302-1310
8 BRACKET; EXH PIPE
MLD6S M/T(X7W) (B) 		8-98259-873-0 01 1 1311-
8 BRACKET; EXH PIPE
MLD6S M/T(X7W) (B) 		8-98114-390-0 01 1 1212-1301
8 BRACKET; EXH PIPE
MLD6S M/T(X7W) (A) 		8-98233-348-0 01 1 1302-
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 1212-1301
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1302-1310
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311-
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A) 		8-98122-679-1 01 1 1212-1301
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A) 		8-98233-627-0 01 1 1302-1404
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A) 		8-98275-817-0 01 1 1405-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1212-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1212-
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1212-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1212-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1212-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1212-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1212-
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 1212-
49 BRACKET; EXH PIPE TO TRANS
MLD6S M/T(X7W) (B) 		8-98113-008-0 01 1 1212-
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98122-673-0 01 1 1212-
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98122-671-0 01 1 1212-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1212-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1212-
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 1212-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1212-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1212-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1212-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 1212-1301
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1212-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311
509 STUD; BRKT 8-98259-983-0 01 1 1312-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1212-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1212-

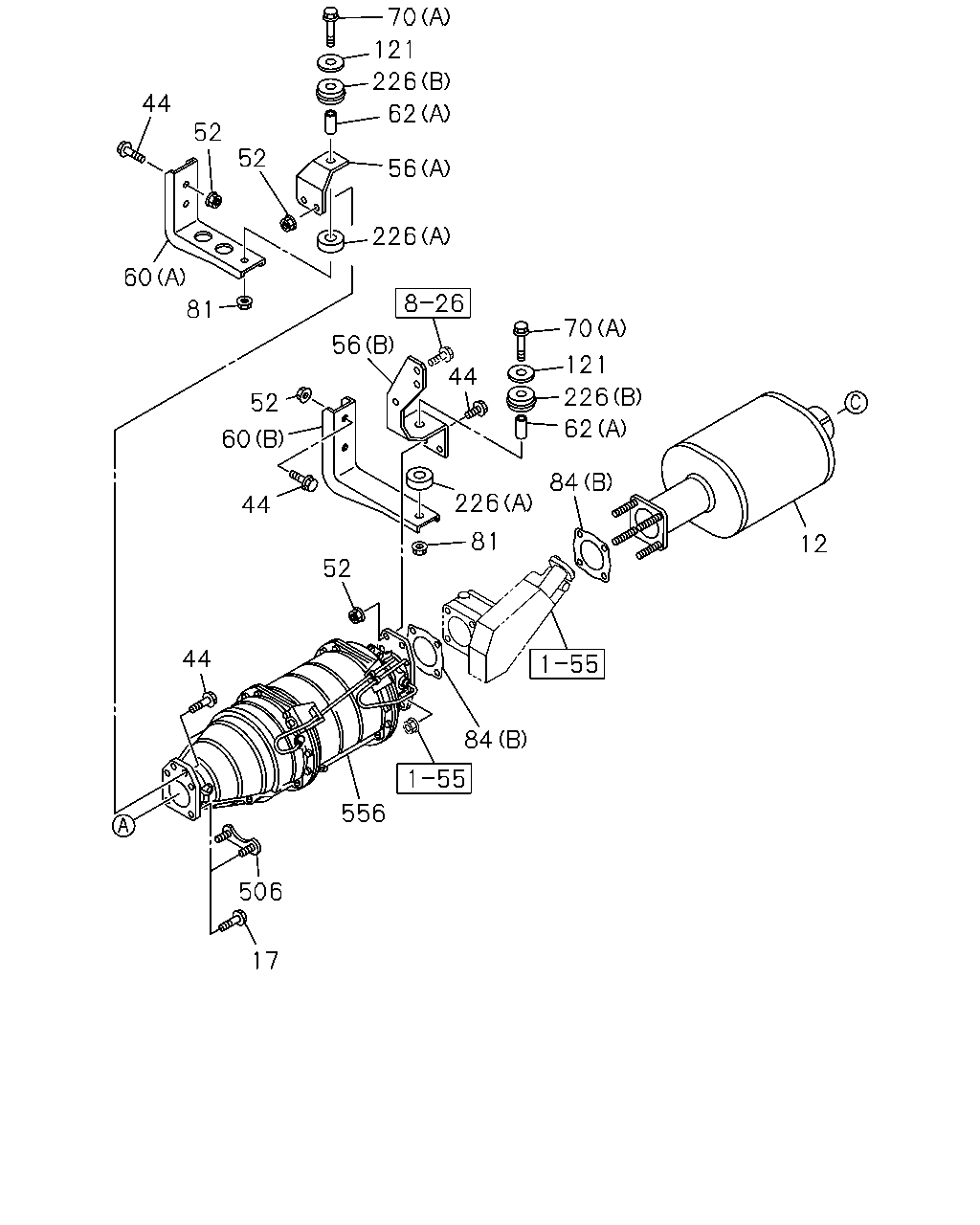

çizim 321236
17 506 44 52 556 84 81 12 226 84 62 226 121 70 44 44 60 52 56 81 44 52 52 226 56 62 226 121 70 60
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 1212-1301
12 SILENCER ASM; EXH
(B) 		8-98234-507-0 01 1 1302-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1212-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1212-
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1212-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1212-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1212-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1212-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (C) 		8-98059-756-0 02 1 1212-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (F) 		8-98233-506-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1212-1309
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1212-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1212-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 1212-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (E) 		8-98059-753-1 02 1 1212-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (E) 		8-98233-509-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1212-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1212-
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1212-1309
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98059-759-0 01 1 1212-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98234-195-0 01 1 1302-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1212-1301
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 1212-1301
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1212-
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 1212-1301
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1212-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1212-1301
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1212-1301
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302-
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1212-1301
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1212-1301
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1212-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1212-
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 1212-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1212-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1212-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1212-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1212-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1212-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1212-1301
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) 		8-94457-277-1 02 1 1212-1301
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1212-1301
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (B) 		8-94457-278-1 02 1 1212-1301
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302-
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 1212-1301
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302-
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 1212-1301
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1212-
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311
509 STUD; BRKT 8-98259-983-0 01 1 1312-
556 DPD ASM 8-97622-883-4 01 1 1212-

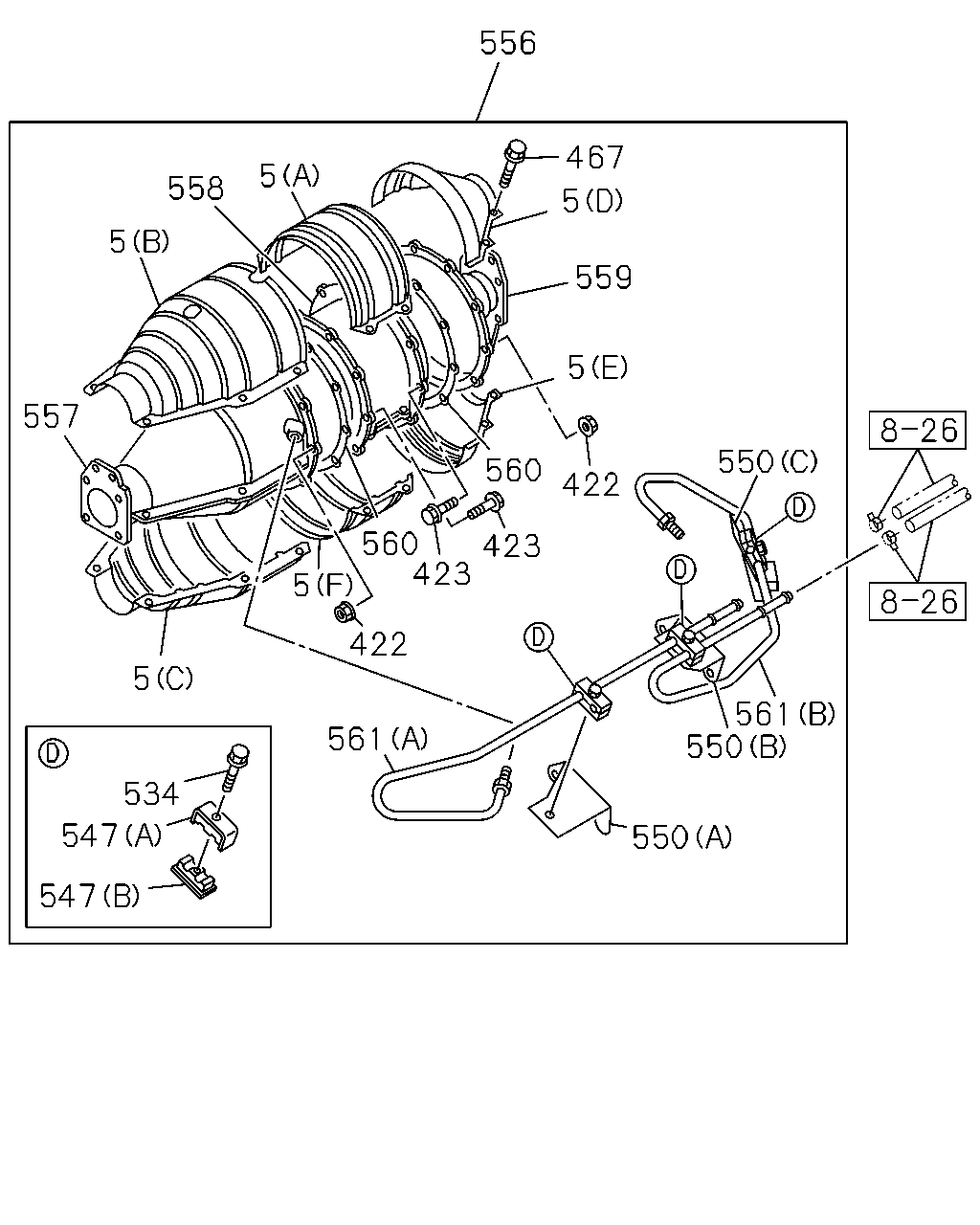

çizim 321240
547 547 534 5 557 5 558 5 556 467 5 559 5 560 422 423 560 423 422 5 561 550 550 561 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1212-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1212-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1212-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1212-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1212-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1212-
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1212-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1212-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1212-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311
509 STUD; BRKT 8-98259-983-0 01 1 1312-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1212-
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 03 1 1212-
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 03 1 1212-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1212-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1212-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1212-
556 DPD ASM 8-97622-883-4 01 1 1212-
557 CATALYST ASM 8-97608-055-8 01 1 1212-
558 FILTER ASM 8-97608-057-3 01 1 1212-
559 COVER; RR 8-97622-887-0 01 1 1212-
560 GASKET; DPD 8-97611-080-0 02 1 1212-
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1212-
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1212-

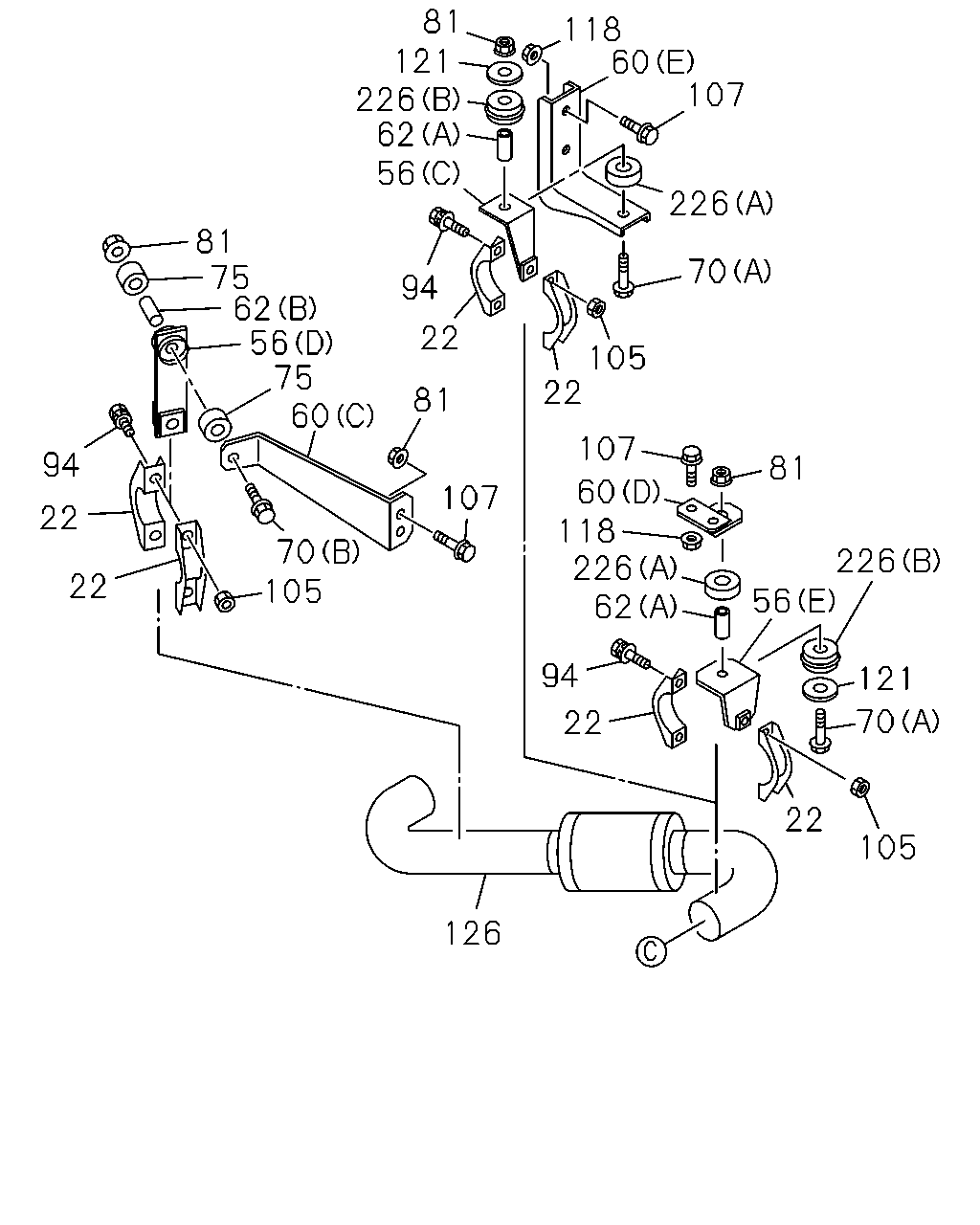

çizim 322564
94 22 22 81 75 62 56 75 60 70 105 126 22 94 107 81 22 94 56 62 226 121 81 118 60 107 226 70 105 22 107 81 60 118 226 62 226 56 121 70 22 105
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
22 CLAMP; EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) ID=80-84 		1-22133-233-0 04 1 1212-1301
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1212-1301
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W) ID=80-84 		1-22133-233-0 02 1 1212-1301
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1302-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (C) 		8-98059-756-0 02 1 1212-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (F) 		8-98233-506-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1212-1309
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1212-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1212-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 1212-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (E) 		8-98059-753-1 02 1 1212-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (E) 		8-98233-509-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1212-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1212-
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1212-1309
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98059-759-0 01 1 1212-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98234-195-0 01 1 1302-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1212-1301
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 1212-1301
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1212-
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 1212-1301
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1212-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1212-1301
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1212-1301
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302-
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1212-1301
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1212-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1212-1301
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1212-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1212-
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 1212-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302-
94 BOLT; CLAMP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10X40 FLANGE 		0-28651-040-0 04 1 1212-1301
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1212-1301
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) M10X40 FLANGE 		0-28651-040-0 02 1 1212-1301
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302-
105 NUT; CLAMP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 1212-1301
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1212-1301
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 1212-1301
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1212-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1212-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1212-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1212-
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-629-2 01 1 1212-1301
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		8-98234-295-0 01 1 1302-
126 PIPE; EXH,RR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) 		8-98043-365-2 01 1 1212-1301
126 PIPE; EXH,RR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) 		8-98233-516-0 01 1 1302-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1212-1301
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) 		8-94457-277-1 02 1 1212-1301
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1212-1301
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (B) 		8-94457-278-1 02 1 1212-1301
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302-
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 1212-1301
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302-
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 1212-1301
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311
509 STUD; BRKT 8-98259-983-0 01 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
