Sayfa 1-50 - Isuzu EPC

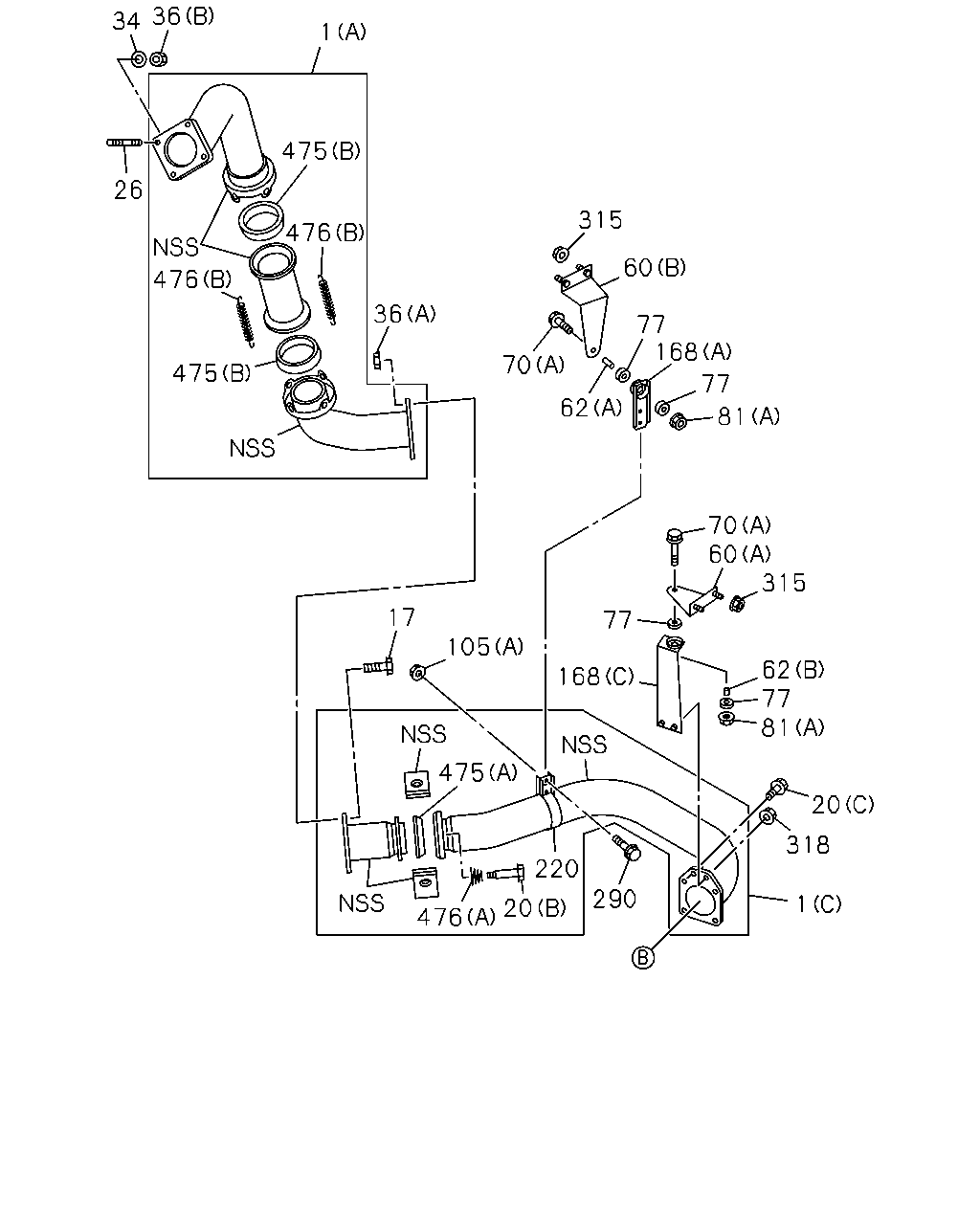

1-50 — EXHAUST PIPE AND SILENCER (#111600) — 262 parça

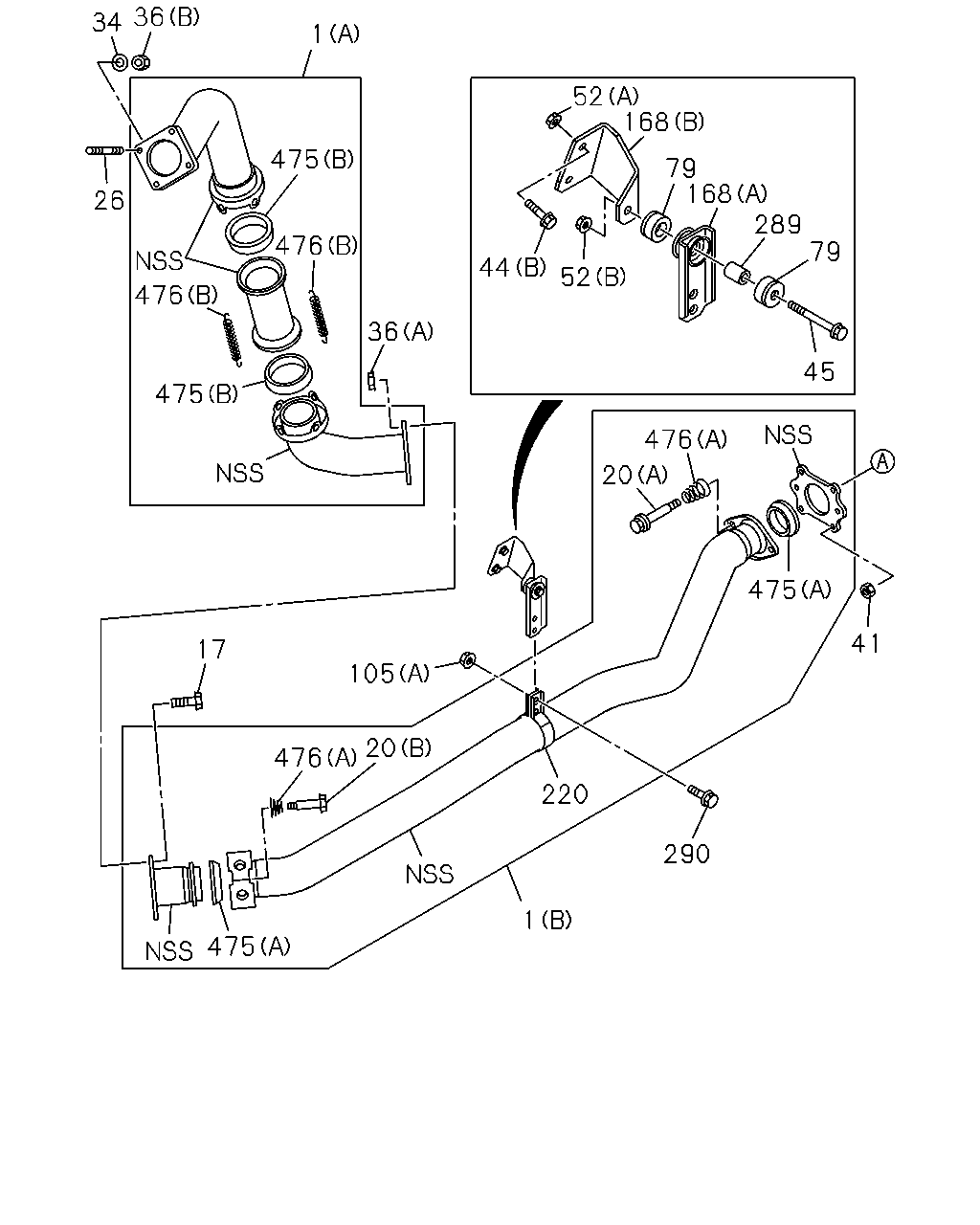

34 1 36 26 475 476 475 476 36 105 17 476 475 220 290 20 475 20 41 44 52 79 289 168 79 45 476 52 168 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> (C)	8-98332-716-0	01	1	1512-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> (D)	8-98332-717-0	01	1	1512-	●	●
1	PIPE; EXH (A)	8-97640-529-0	01	1	1212-	●	●
1	PIPE; EXH WHEEL BASE 6400MM(64W) (B)	8-97640-530-0	01	1	1212-	●	●
1	PIPE; EXH WHEEL BASE 6600MM(66W) (B)	8-97640-531-0	01	1	1212-1302	●	●
1	PIPE; EXH WHEEL BASE 6600MM(66W) (B)	8-97640-531-0	01	1	1303-	●
1	PIPE; EXH WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (B)	8-97640-531-0	01	1	1303-		●
17	BOLT; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> M12X25 FLANGE	1-09000-604-0	04	1	1512-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1212-1511	●	●
17	BOLT; EXH PIPE VERTICAL TAIL PIPE<NC4> M12X25 FLANGE	1-09000-604-0	03	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE VERTICAL TAIL PIPE<NC4> (C) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1212-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X49.8	8-97039-586-0	02	1	1212-	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1212-1402	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1212-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1212-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1212-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1212-	●	●
44	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	04	1	1212-1511	●	●
44	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M8X25 FLANGE	0-28050-825-0	04	1	1512-	●	●
44	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	02	1	1212-1511	●	●
44	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28050-830-0	02	1	1512-	●	●
45	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
45	BOLT; BRKT M10X50 FLANGE	0-28051-050-0	01	1	1212-1511	●	●
45	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
52	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	01	1	1512-	●	●
52	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
52	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1212-1511	●	●
52	NUT; BRKT VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	1212-1511	●	●
79	SUPPORT; BRKT EXC. VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	02	1	1512-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
168	BRACKET; EXH PIPE,FRT VERTICAL TAIL PIPE<NC4> (C)	8-98332-723-0	01	1	1512-	●	●
168	BRACKET; EXH PIPE,FRT (B)	8-97635-436-0	01	1	1212-1511	●	●
168	BRACKET; EXH PIPE,FRT EXC. VERTICAL TAIL PIPE<NC4> (B)	8-97635-436-0	01	1	1512-	●	●
168	BRACKET; EXH PIPE,FRT (A)	8-97640-532-0	01	1	1212-	●	●
220	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1212-	●	●
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	1212-1511	●	●
289	COLLAR; DIST,SUPPORT RUBBER EXC. VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	1512-	●	●
290	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	1212-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112	1-22119-294-1	02	1	1212-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-1	02	1	1212-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	1-09583-248-0	04	1	1212-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	8-94141-851-0	04	1	1212-	●	●

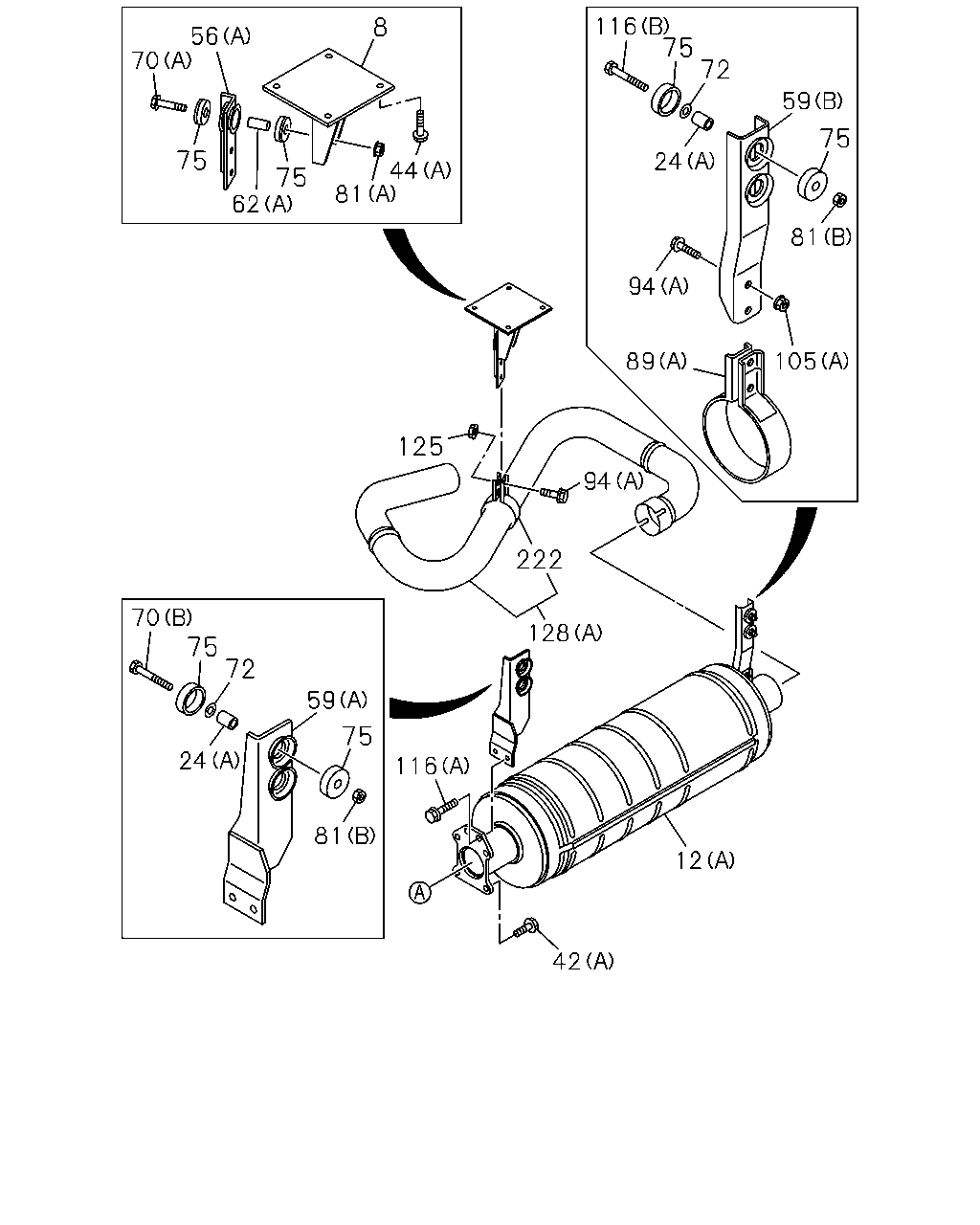

12 42 116 81 75 59 24 72 75 70 125 222 128 94 89 94 105 81 24 72 75 116 59 75 8 44 81 75 62 75 70 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE	8-98106-287-0	01	1	1212-1511	●	●
8	BRACKET; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4>	8-98106-287-0	01	1	1512-	●	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4> (B)	8-98333-141-0	01	1	1512-	●	●
12	SILENCER ASM; EXH (A)	8-97642-916-2	01	1	1212-1511	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97642-916-2	01	1	1512-	●	●
24	COLLAR; DIST,CLAMP VERTICAL TAIL PIPE<NC4> (B) L=25	1-14234-083-0	10	1	1512-	●	●
24	COLLAR; DIST,CLAMP (A) L=22	9-22159-024-0	04	1	1212-1511	●	●
24	COLLAR; DIST,CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) L=22	9-22159-024-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER VERTICAL TAIL PIPE<NC4> (B) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (A) M12X25 FLANGE	1-09000-604-0	04	1	1212-1511	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. VERTICAL TAIL PIPE<NC4> (A) M12X25 FLANGE	1-09000-604-0	04	1	1512-	●	●
44	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	04	1	1212-1511	●	●
44	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M8X25 FLANGE	0-28050-825-0	04	1	1512-	●	●
44	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	02	1	1212-1511	●	●
44	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28050-830-0	02	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	8-98332-721-0	01	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98106-290-0	01	1	1212-1511	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A)	8-98106-290-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT VERTICAL TAIL PIPE<NC4> (C)	8-98332-719-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT VERTICAL TAIL PIPE<NC4> (D)	8-98332-724-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	8-97642-915-1	01	1	1212-1511	●	●
59	BRACKET; EXH SILENCER,FRT EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97642-915-1	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	8-98055-106-0	01	1	1212-1511	●	●
59	BRACKET; EXH SILENCER,FRT EXC. VERTICAL TAIL PIPE<NC4> (B)	8-98055-106-0	01	1	1512-	●	●
62	TUBE; DIST,BRKT VERTICAL TAIL PIPE<NC4> (B) L=25	1-14234-083-0	01	1	1512-	●	●
62	TUBE; DIST,BRKT (A) L=22	9-22159-024-0	01	1	1212-	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (C) M10X40 FLANGE	0-28051-040-0	01	1	1512-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1212-1511	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10856-050-0	02	1	1512-	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1212-1511	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1212-1511	●	●
72	WASHER; LK,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.2	0-91510-810-0	04	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	10	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	10	1	1212-1511	●	●
75	RUBBER; SUPPORT,BRKT VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	12	1	1512-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10 FLANGE	0-91180-210-0	01	1	1512-	●	●
81	NUT; BRKT (B) M10	0-91110-510-0	04	1	1212-1511	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10	0-91110-510-0	04	1	1512-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1212-1511	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
89	CLAMP; EXH SILENCER,RR VERTICAL TAIL PIPE<NC4> (B)	8-98333-149-0	02	1	1512-	●	●
89	CLAMP; EXH SILENCER,RR (A)	8-97621-090-0	01	1	1212-1511	●	●
89	CLAMP; EXH SILENCER,RR EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97621-090-0	01	1	1512-	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10X40 FLANGE	0-28051-040-0	02	1	1512-	●	●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28650-840-0	04	1	1212-1511	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M8X40 FLANGE	0-28650-840-0	04	1	1512-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
116	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (C) M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
116	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1212-1511	●	●
116	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10856-050-0	02	1	1512-	●	●
116	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	02	1	1212-1511	●	●
116	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X35 FLANGE	0-28051-035-0	02	1	1512-	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
125	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4> (B)	8-98334-123-0	01	1	1512-	●	●
128	PIPE; EXH,RR (A)	8-97636-248-0	01	1	1212-1511	●	●
128	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97636-248-0	01	1	1512-	●	●
222	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1212-1511	●	●
222	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> D=101.4	1-22133-170-1	01	1	1512-	●	●

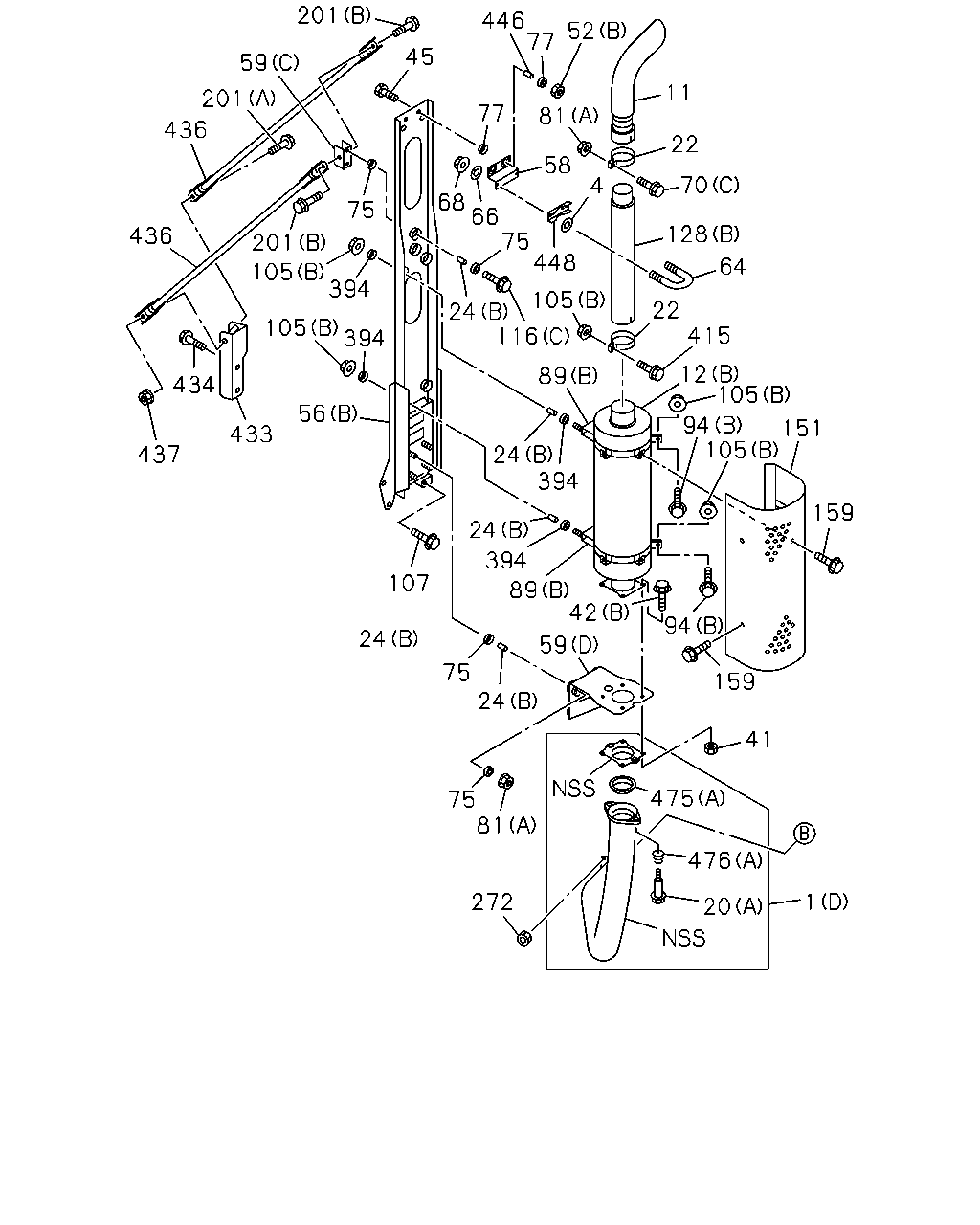

201 59 201 436 436 437 434 433 56 394 105 105 201 75 394 107 24 75 24 75 81 272 20 1 476 475 41 159 59 89 394 24 24 42 94 159 105 151 94 105 12 415 22 64 128 70 22 11 52 45 446 77 77 81 68 58 66 24 75 105 116 4 89 394 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> (C)	8-98332-716-0	01	1	1512-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> (D)	8-98332-717-0	01	1	1512-	●	●
1	PIPE; EXH (A)	8-97640-529-0	01	1	1212-	●	●
1	PIPE; EXH WHEEL BASE 6400MM(64W) (B)	8-97640-530-0	01	1	1212-	●	●
1	PIPE; EXH WHEEL BASE 6600MM(66W) (B)	8-97640-531-0	01	1	1212-1302	●	●
1	PIPE; EXH WHEEL BASE 6600MM(66W) (B)	8-97640-531-0	01	1	1303-	●
1	PIPE; EXH WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (B)	8-97640-531-0	01	1	1303-		●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	0-91610-708-0	02	1	1512-	●	●
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	8-98332-725-0	01	1	1512-	●	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4> (B)	8-98333-141-0	01	1	1512-	●	●
12	SILENCER ASM; EXH (A)	8-97642-916-2	01	1	1212-1511	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97642-916-2	01	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE VERTICAL TAIL PIPE<NC4> (C) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1212-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X49.8	8-97039-586-0	02	1	1212-	●	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4>	8-98337-245-0	02	1	1512-	●	●
24	COLLAR; DIST,CLAMP VERTICAL TAIL PIPE<NC4> (B) L=25	1-14234-083-0	10	1	1512-	●	●
24	COLLAR; DIST,CLAMP (A) L=22	9-22159-024-0	04	1	1212-1511	●	●
24	COLLAR; DIST,CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) L=22	9-22159-024-0	04	1	1512-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1212-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER VERTICAL TAIL PIPE<NC4> (B) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (A) M12X25 FLANGE	1-09000-604-0	04	1	1212-1511	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. VERTICAL TAIL PIPE<NC4> (A) M12X25 FLANGE	1-09000-604-0	04	1	1512-	●	●
45	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
45	BOLT; BRKT M10X50 FLANGE	0-28051-050-0	01	1	1212-1511	●	●
45	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
52	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	01	1	1512-	●	●
52	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
52	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1212-1511	●	●
52	NUT; BRKT VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	8-98332-721-0	01	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98106-290-0	01	1	1212-1511	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A)	8-98106-290-0	01	1	1512-	●	●
58	BRACKET; EXH PIPE,RR VERTICAL TAIL PIPE<NC4>	1-22131-799-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT VERTICAL TAIL PIPE<NC4> (C)	8-98332-719-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT VERTICAL TAIL PIPE<NC4> (D)	8-98332-724-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	8-97642-915-1	01	1	1212-1511	●	●
59	BRACKET; EXH SILENCER,FRT EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97642-915-1	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	8-98055-106-0	01	1	1212-1511	●	●
59	BRACKET; EXH SILENCER,FRT EXC. VERTICAL TAIL PIPE<NC4> (B)	8-98055-106-0	01	1	1512-	●	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4>	1-22113-097-0	01	1	1512-	●	●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.2	0-91510-508-0	02	1	1512-	●	●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> M8	0-91110-508-0	02	1	1512-	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (C) M10X40 FLANGE	0-28051-040-0	01	1	1512-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1212-1511	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10856-050-0	02	1	1512-	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1212-1511	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	10	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	10	1	1212-1511	●	●
75	RUBBER; SUPPORT,BRKT VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	12	1	1512-	●	●
77	RUBBER; CUSHION,BRKT VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	08	1	1512-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10 FLANGE	0-91180-210-0	01	1	1512-	●	●
81	NUT; BRKT (B) M10	0-91110-510-0	04	1	1212-1511	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10	0-91110-510-0	04	1	1512-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1212-1511	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
89	CLAMP; EXH SILENCER,RR VERTICAL TAIL PIPE<NC4> (B)	8-98333-149-0	02	1	1512-	●	●
89	CLAMP; EXH SILENCER,RR (A)	8-97621-090-0	01	1	1212-1511	●	●
89	CLAMP; EXH SILENCER,RR EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97621-090-0	01	1	1512-	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10X40 FLANGE	0-28051-040-0	02	1	1512-	●	●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28650-840-0	04	1	1212-1511	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M8X40 FLANGE	0-28650-840-0	04	1	1512-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M14X45 FLANGE	0-28861-445-0	04	1	1512-	●	●
116	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (C) M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
116	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1212-1511	●	●
116	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10856-050-0	02	1	1512-	●	●
116	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	02	1	1212-1511	●	●
116	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X35 FLANGE	0-28051-035-0	02	1	1512-	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4> (B)	8-98334-123-0	01	1	1512-	●	●
128	PIPE; EXH,RR (A)	8-97636-248-0	01	1	1212-1511	●	●
128	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4> (A)	8-97636-248-0	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4>	8-98333-145-0	01	1	1512-	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1512-	●	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (B) M10X25 FLANGE	0-28051-025-0	02	1	1512-	●	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (A) M10X90 FLANGE	0-28051-090-0	01	1	1512-	●	●
272	NUT; FLANGE VERTICAL TAIL PIPE<NC4> M12	0-91110-512-0	04	1	1512-	●	●
394	RUBBER; SUPPORT,CLAMP VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	08	1	1512-	●	●
415	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28051-040-0	01	1	1512-	●	●
433	BRACKET; STAY,EXH PIPE VERTICAL TAIL PIPE<NC4>	8-98332-720-0	01	1	1512-	●	●
434	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28061-035-0	02	1	1512-	●	●
436	STAY; SUPPORT,EXH VERTICAL TAIL PIPE<NC4>	8-97616-276-0	02	1	1512-	●	●
437	NUT; STAY VERTICAL TAIL PIPE<NC4> M10 FLANGE	0-91180-210-0	01	1	1512-	●	●
446	PIECE; DIST,EXH PIPE,RR VERTICAL TAIL PIPE<NC4> L=25	1-14234-083-0	02	1	1512-	●	●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4>	1-22113-095-0	01	1	1512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112	1-22119-294-1	02	1	1212-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-1	02	1	1212-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	1-09583-248-0	04	1	1212-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	8-94141-851-0	04	1	1212-	●	●

34 36 26 476 475 475 1 476 36 315 70 60 62 77 77 81 70 60 315 62 77 81 20 318 1 290 168 77 105 17 475 476 20 220 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> (C)	8-98332-716-0	01	1	1512-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> (D)	8-98332-717-0	01	1	1512-	●	●
1	PIPE; EXH (A)	8-97640-529-0	01	1	1212-	●	●
1	PIPE; EXH WHEEL BASE 6400MM(64W) (B)	8-97640-530-0	01	1	1212-	●	●
1	PIPE; EXH WHEEL BASE 6600MM(66W) (B)	8-97640-531-0	01	1	1212-1302	●	●
1	PIPE; EXH WHEEL BASE 6600MM(66W) (B)	8-97640-531-0	01	1	1303-	●
1	PIPE; EXH WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (B)	8-97640-531-0	01	1	1303-		●
17	BOLT; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> M12X25 FLANGE	1-09000-604-0	04	1	1512-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1212-1511	●	●
17	BOLT; EXH PIPE VERTICAL TAIL PIPE<NC4> M12X25 FLANGE	1-09000-604-0	03	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE VERTICAL TAIL PIPE<NC4> (C) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1212-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X49.8	8-97039-586-0	02	1	1212-	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1212-1402	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1212-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1212-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1212-	●	●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4> (A)	8-98332-718-0	01	1	1512-	●	●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4> (B)	8-98332-722-0	01	1	1512-	●	●
62	TUBE; DIST,BRKT VERTICAL TAIL PIPE<NC4> (B) L=25	1-14234-083-0	01	1	1512-	●	●
62	TUBE; DIST,BRKT (A) L=22	9-22159-024-0	01	1	1212-	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (C) M10X40 FLANGE	0-28051-040-0	01	1	1512-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1212-1511	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10856-050-0	02	1	1512-	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1212-1511	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
77	RUBBER; CUSHION,BRKT VERTICAL TAIL PIPE<NC4> OD=40	1-22159-094-0	08	1	1512-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10 FLANGE	0-91180-210-0	01	1	1512-	●	●
81	NUT; BRKT (B) M10	0-91110-510-0	04	1	1212-1511	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10	0-91110-510-0	04	1	1512-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1212-1511	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
168	BRACKET; EXH PIPE,FRT VERTICAL TAIL PIPE<NC4> (C)	8-98332-723-0	01	1	1512-	●	●
168	BRACKET; EXH PIPE,FRT (B)	8-97635-436-0	01	1	1212-1511	●	●
168	BRACKET; EXH PIPE,FRT EXC. VERTICAL TAIL PIPE<NC4> (B)	8-97635-436-0	01	1	1512-	●	●
168	BRACKET; EXH PIPE,FRT (A)	8-97640-532-0	01	1	1212-	●	●
220	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1212-	●	●
290	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	1212-	●	●
315	NUT; BRKT VERTICAL TAIL PIPE<NC4> M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
318	NUT; EXH PIPE,FRT VERTICAL TAIL PIPE<NC4> M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112	1-22119-294-1	02	1	1212-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-1	02	1	1212-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	1-09583-248-0	04	1	1212-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	8-94141-851-0	04	1	1212-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
