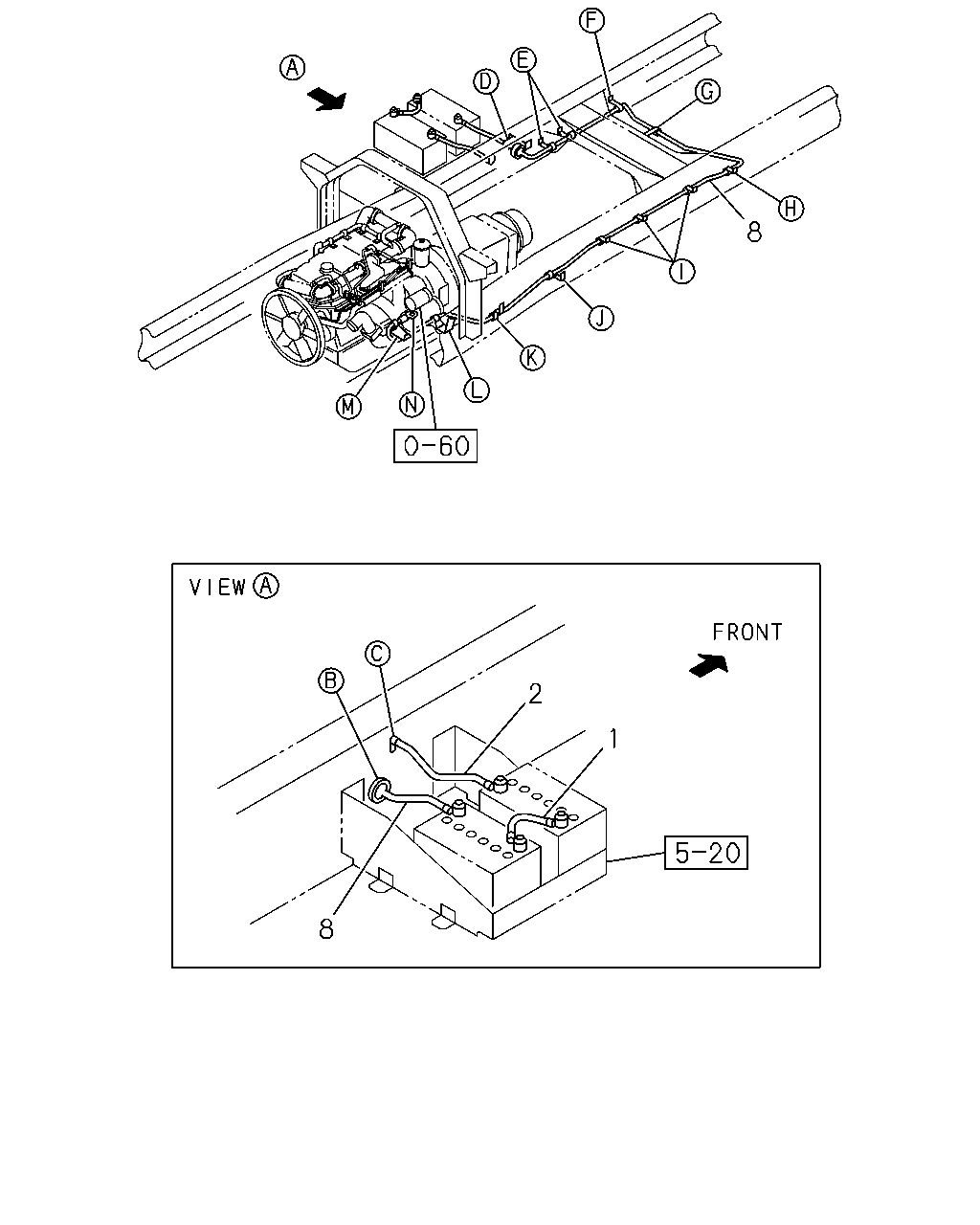

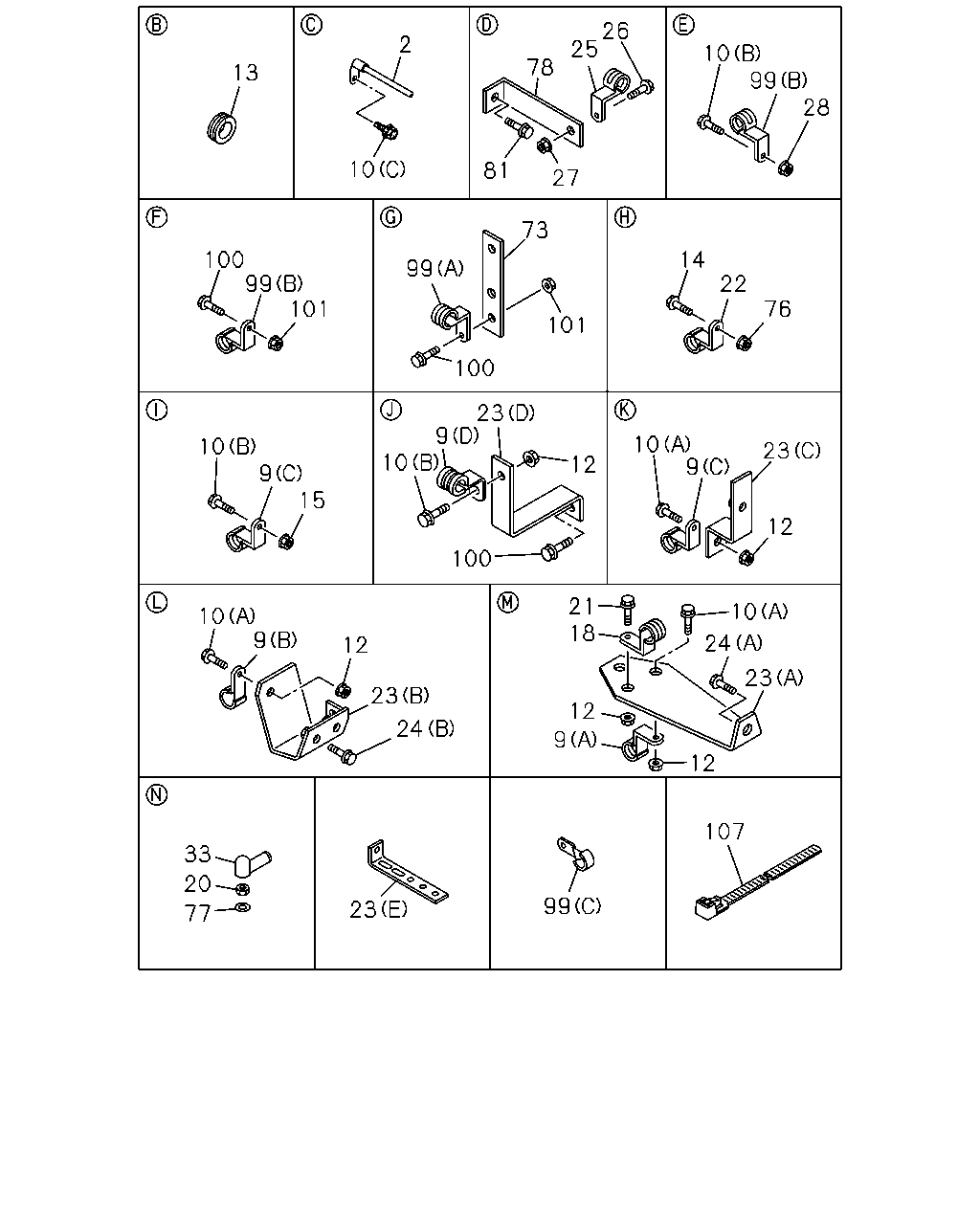

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#111599) — 92 parça

9 12 107 23 24 18 12 10 21 12 23 9 10 14 28 76 22 99 10 26 25 78 27 81 73 101 100 99 12 23 9 10 100 12 23 24 23 99 77 33 20 9 10 9 10 15 101 99 100 13 2 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CABLE; BATTERY L=250	8-98105-795-0	01	1	1212-	●	●
9	CLIP; BATTERY CABLE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=18 L=28	1-09701-067-0	01	1	1512-	●
9	CLIP; BATTERY CABLE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=18 L=28	1-09701-067-0	01	1	1512-	●
9	CLIP; BATTERY CABLE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=18 L=28	1-09701-067-0	01	1	1512-		●
9	CLIP; BATTERY CABLE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=18 L=28	1-09701-067-0	01	1	1512-		●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	01	1	1212-1511	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	01	1	1212-1511	●	●
9	CLIP; BATTERY CABLE WHEEL BASE 5700MM(57W) (B) ID=18 L=28	1-09701-067-0	02	1	1512-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28 H=30	1-09701-110-0	01	1	1212-	●	●
9	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	02	1	1212-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1212-	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1212-	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	04	1	1212-	●	●
10	BOLT; BATTERY CABLE CLIP (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1212-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
13	GROMMET; BATTERY CABLE ID=39 OD=45 T=19	1-09332-077-0	01	1	1212-	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28650-830-0	01	1	1212-1511	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	03	1	1212-	●	●
18	CLIP; BATTERY CABLE ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1212-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1212-	●	●
22	CLIP; BATTERY CABLE ID=18 L=28 H=30	1-09701-110-0	01	1	1212-	●	●
23	BRACKET; CABLE CLIP TO FRAME (E) L=160 H=30	1-47479-759-0	02	1	1212-1511	●	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5700MM(57W) (E) L=160 H=30	1-47479-759-0	03	1	1512-	●	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) L=160 H=30	1-47479-759-0	02	1	1512-	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) L=160 H=30	1-47479-759-0	02	1	1512-		●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-47479-248-0	01	1	1212-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	1-47471-215-1	01	1	1212-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=85 H=40	1-47476-676-0	01	1	1212-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	1-47479-779-0	01	1	1212-	●	●
24	BOLT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	03	1	1512-	●
24	BOLT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	03	1	1512-		●
24	BOLT; BRKT TO FRAME (A) M8X30 FLANGE	0-28650-830-0	03	1	1212-1511	●	●
24	BOLT; BRKT TO FRAME WHEEL BASE 5700MM(57W) (A) M8X30 FLANGE	0-28650-830-0	05	1	1512-	●	●
24	BOLT; BRKT TO FRAME (B) M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●
24	BOLT; BRKT TO FRAME (A) M8X30 FLANGE	0-28650-830-0	01	1	1212-1511	●	●
24	BOLT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
24	BOLT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
25	CLIP; BATTERY CABLE TO BRKT ID=18 L=38 H=23	1-09701-147-0	02	1	1212-1511	●	●
25	CLIP; BATTERY CABLE TO BRKT WHEEL BASE 5700MM(57W) ID=18 L=38 H=23	1-09701-147-0	03	1	1512-	●	●
25	CLIP; BATTERY CABLE TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=18 L=38 H=23	1-09701-147-0	02	1	1512-	●
25	CLIP; BATTERY CABLE TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ID=18 L=38 H=23	1-09701-147-0	02	1	1512-		●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-1511	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
26	BOLT; BATTERY CABLE CLIP TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X25 FLANGE	0-28650-825-0	02	1	1512-		●
27	NUT; BATTERY CABLE CLIP TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
27	NUT; BATTERY CABLE CLIP TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	1512-	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
28	NUT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
28	NUT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
28	NUT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	05	1	1512-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	1212-	●	●
73	BRACKET; BATTERY CABLE L=130	1-47478-959-0	02	1	1212-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	01	1	1212-	●	●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-810-0	01	1	1212-	●	●
78	BRACKET; CLIP BATTERY L=95	1-82699-085-0	01	1	1212-	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28650-820-0	01	1	1212-1511	●	●
81	BOLT; BATTERY CABLE WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
99	CLIP; BATTERY CABLE (C) ID=18 L=54	1-09701-068-0	01	1	1212-1511	●	●
99	CLIP; BATTERY CABLE (C) ID=18 L=54	1-09701-068-0	01	1	1512-	●	●
99	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	02	1	1212-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 L=25 H=50	1-09701-096-0	02	1	1212-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1212-1511	●	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X25 FLANGE	0-28650-825-0	03	1	1512-		●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1212-1511	●	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28650-825-0	04	1	1512-	●	●
100	BOLT; BATTERY CABLE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1212-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
107	CLIP; BAND L=350	1-09707-183-0	01	1	1212-	●	●

1 2 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115E41L<8MA> L=265	1-82650-388-1	01	1	1212-	●	●
1	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=265	8-98168-288-0	01	1	1212-	●	●
2	CABLE; BATTERY L=250	8-98105-795-0	01	1	1212-	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 5700MM(57W) ENGINE REAR PTO(SV1)	8-98331-829-0	01	1	1512-	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 5700MM(57W) EXC. ENGINE REAR PTO(SV1)	8-98331-828-0	01	1	1512-	●	●
8	CABLE; BATTERY,STARTER ENGINE REAR PTO(SV1) L=4780	8-98165-043-0	01	1	1212-1511	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ENGINE REAR PTO(SV1) L=4780	8-98165-043-0	01	1	1512-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ENGINE REAR PTO(SV1) L=4780	8-98165-043-0	01	1	1512-		●
8	CABLE; BATTERY,STARTER EXC. ENGINE REAR PTO(SV1)	8-98191-669-0	01	1	1212-1511	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1)	8-98191-669-0	01	1	1512-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. ENGINE REAR PTO(SV1)	8-98191-669-0	01	1	1512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
