1-40 — FUEL TANK (#111597) — 84 parça

622 322 237 49 43 49 237 42 42 38 40 237 237 40 38 43 42 42 488 341 341 19 3 1 25 11 25 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

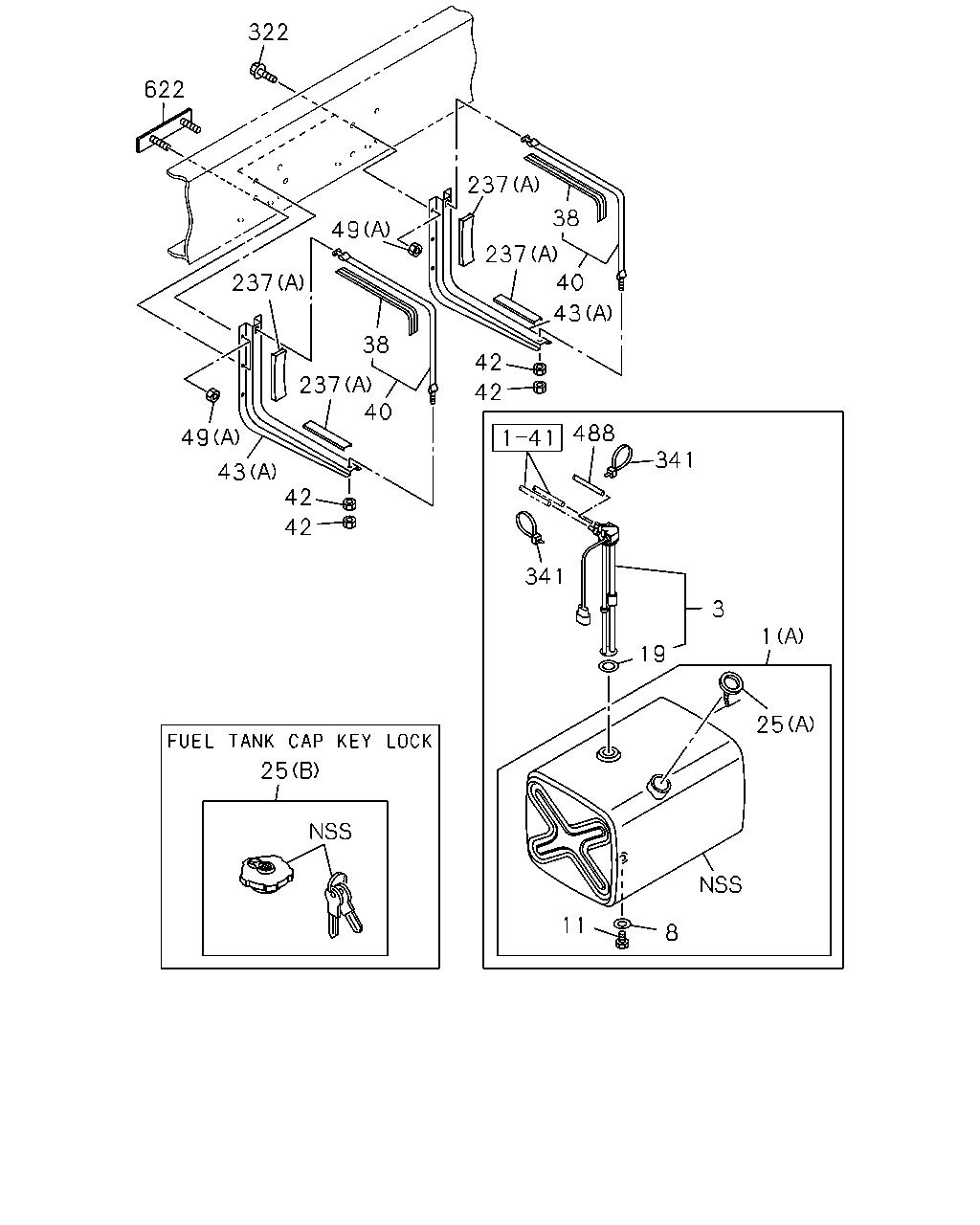

1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 514X685X625 200L	1-87412-051-0	01	1	1512-	●	●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1212-1510	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-788-3	01	1	1511-	●	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1212-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1212-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1212-	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1212-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (D)	1-22440-057-2	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1212-1510	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1511-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	1212-1510	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1511-	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1212-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1212-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1212-	●	●

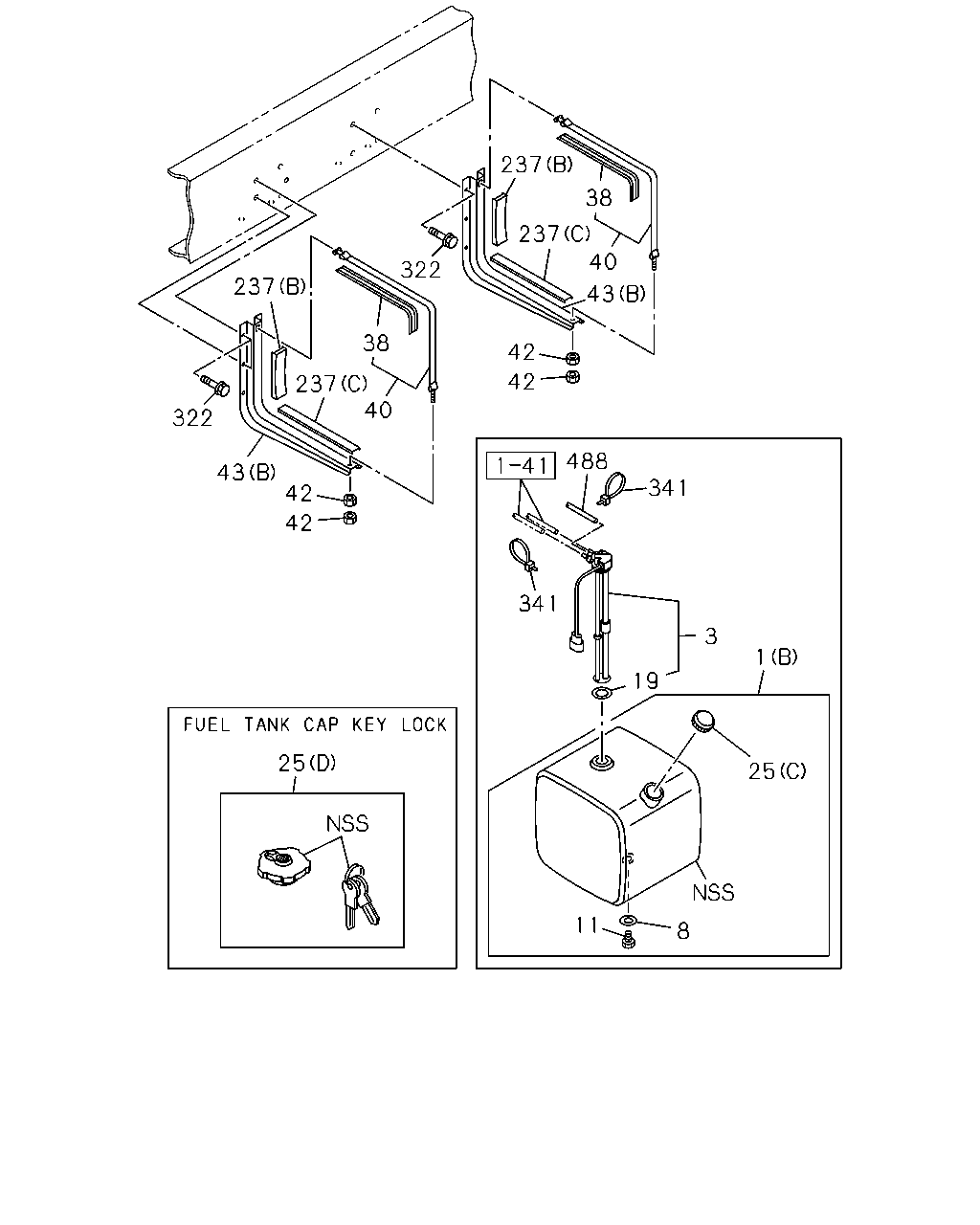

43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (B)	1-53461-529-1	02	1	1512-	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6400MM(64W) (A)	8-98230-299-0	02	1	1212-1510	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6400MM(64W) FUEL TANK 400L<SDH> (A)	8-98230-299-0	02	1	1511-	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W) (A)	1-53461-525-1	02	1	1212-1302	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W) (A)	1-53461-525-1	02	1	1303-1510	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (A)	1-53461-525-1	02	1	1303-1510		●
43	BRACKET; FUEL TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (A)	1-53461-525-1	02	1	1511-	●
43	BRACKET; FUEL TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) FUEL TANK 400L<SDH> (A)	1-53461-525-1	02	1	1511-		●
49	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●
49	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M10 FLANGE	0-91180-210-0	04	1	1512-		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	1212-1510	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	08	1	1511-	●	●
49	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1212-1511	●	●
49	NUT; BRKT WHEEL BASE 5700MM(57W) (B) M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=450	1-22553-042-1	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK (A)	1-22553-037-1	04	1	1212-1510	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH> (A)	1-22553-037-1	04	1	1511-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X40 FLANGE	0-28051-240-0	08	1	1512-	●	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1212-1510	●	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	1511-	●	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1212-	●	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1212-	●	●
622	STUD; BRACKET	1-53461-534-0	01	1	1212-1510	●	●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	1511-	●	●

237 322 38 237 322 43 42 42 40 237 38 237 43 40 42 42 488 341 3 341 19 1 25 8 11 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 514X685X625 200L	1-87412-051-0	01	1	1512-	●	●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1212-1510	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-788-3	01	1	1511-	●	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1212-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1212-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1212-	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1212-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (D)	1-22440-057-2	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1212-1510	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1511-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	1212-1510	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1511-	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1212-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1212-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1212-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (B)	1-53461-529-1	02	1	1512-	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6400MM(64W) (A)	8-98230-299-0	02	1	1212-1510	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6400MM(64W) FUEL TANK 400L<SDH> (A)	8-98230-299-0	02	1	1511-	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W) (A)	1-53461-525-1	02	1	1212-1302	●	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W) (A)	1-53461-525-1	02	1	1303-1510	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (A)	1-53461-525-1	02	1	1303-1510		●
43	BRACKET; FUEL TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (A)	1-53461-525-1	02	1	1511-	●
43	BRACKET; FUEL TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) FUEL TANK 400L<SDH> (A)	1-53461-525-1	02	1	1511-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=450	1-22553-042-1	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK (A)	1-22553-037-1	04	1	1212-1510	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH> (A)	1-22553-037-1	04	1	1511-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X40 FLANGE	0-28051-240-0	08	1	1512-	●	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1212-1510	●	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	1511-	●	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1212-	●	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1212-	●	●

339 339 465 339 339 465 49 324 261 49 339 465 339 339 465 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●
49	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M10 FLANGE	0-91180-210-0	04	1	1512-		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	1212-1510	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	08	1	1511-	●	●
49	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1212-1511	●	●
49	NUT; BRKT WHEEL BASE 5700MM(57W) (B) M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
261	BOLT; PROTECTOR WHEEL BASE 5700MM(57W) M8X20 FLANGE	0-28050-820-0	03	1	1512-	●	●

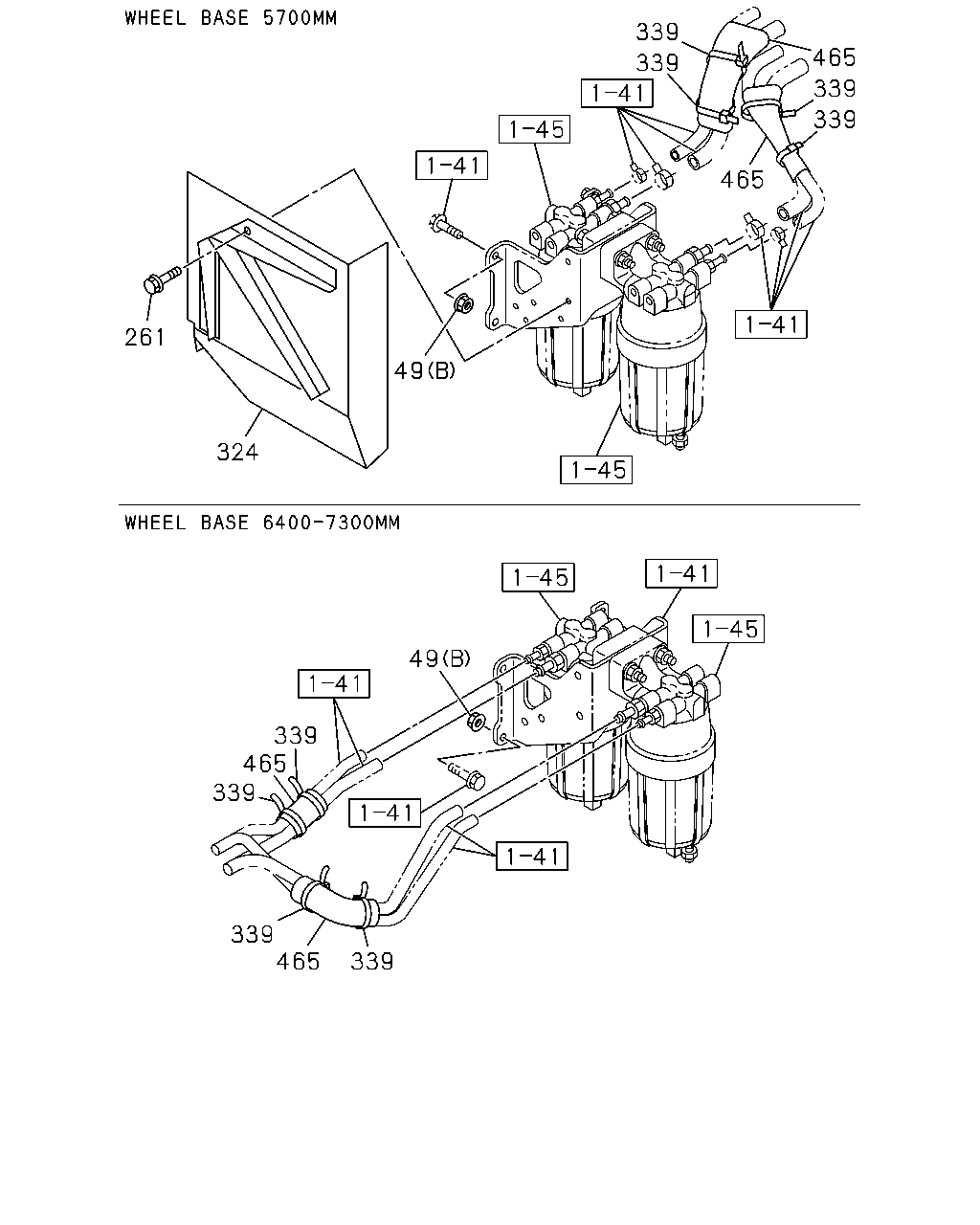

324	PROTECTOR; FUEL SEDIMENTER WHEEL BASE 5700MM(57W)	8-98331-077-0	01	1	1512-	●	●
339	CLIP; BAND,FUEL HOSE L=250	5-09707-030-1	04	1	1212-	●	●
465	SLEEVE; RUBBER L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1212-	●	●
