◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10868 - EXR LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#11159) — 26 parça

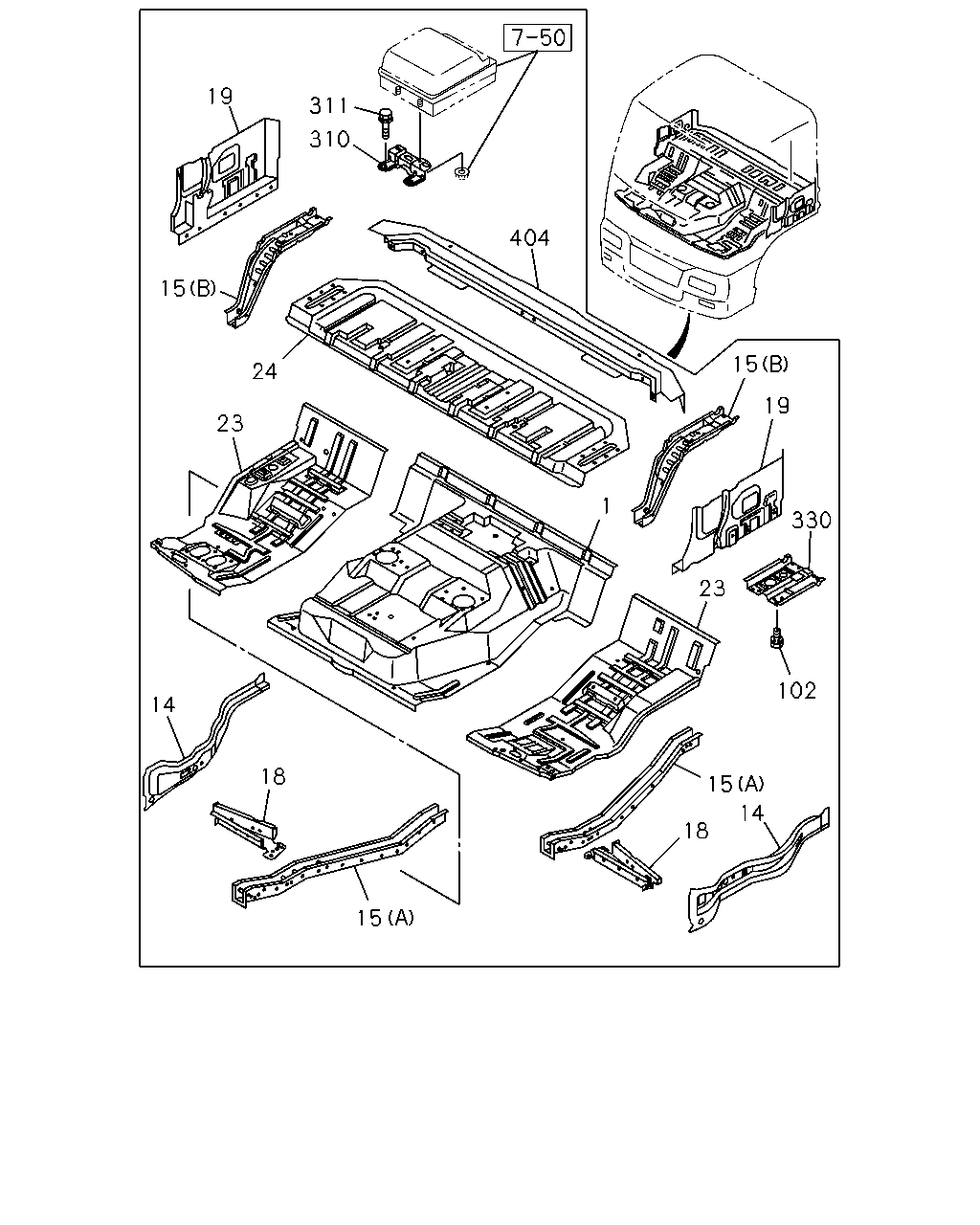

çizim 78514
19 311 310 404 15 15 24 19 23 330 1 23 102 14 18 15 14 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
MJD7S M/T(Y2Y) 		1-62172-614-5 01 1 0105-
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-627-5 01 1 0105-0106
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 		1-62172-627-5 01 1 0107-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0105-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0105-
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 0105-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0105-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0105-
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 0105-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0105-
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 0105-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0105-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0105-0106
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0107-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0105-0106
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0107-
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0105-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 0105-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) EXC. DUMP CONTROL LEVER<RC4> 		1-62172-805-0 01 1 0105-0106
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62172-805-0 01 1 0107-
24 PANEL; BED PAN 1-62172-540-9 01 1 0105-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0105-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0105-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0105-
